Plan 48611FM Exclusive New American Home Plan with Bonus Room Upstairs

Exclusive New American Home Plan with Bonus Room Upstairs

Plan 48611FM

  • 2,566

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Loads of character of curb appeal make this exclusive, two-story home plan an instant favorite.
  • Inside, a quiet study is located to the left of the foyer, while two secondary bedrooms line the right side of the hallway.
  • The living room, kitchen, and dining area are open to one another, and sliding doors lead to the perfect covered patio for a BBQ or lounge furniture.
  • The master bedroom is situated behind the garage, and features a convenient shortcut from the master closet to the laundry room.
  • The double garage offers a mudroom just inside to store personal items and outdoor gear, while sizable bonus room provides flexibility to the second level.
  • Related Plan: Eliminate the second level with plan 48607FM.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan

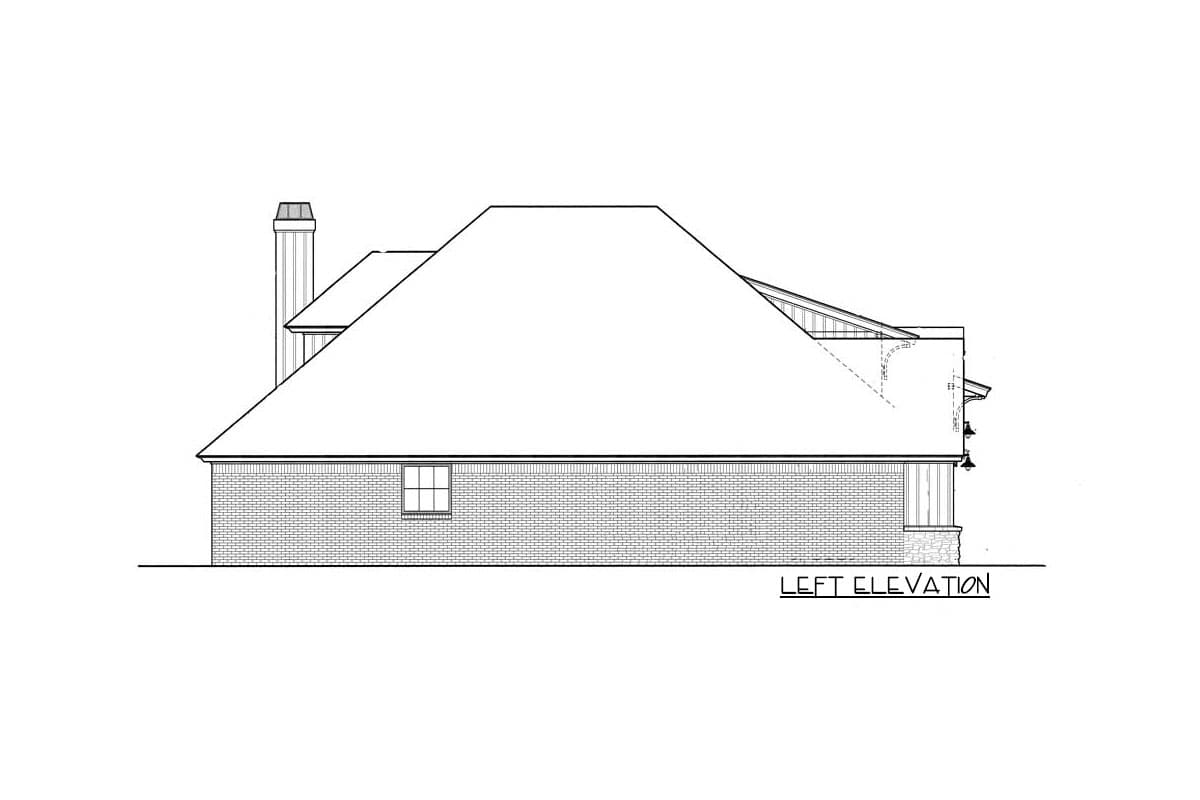

Front and Left Elevation

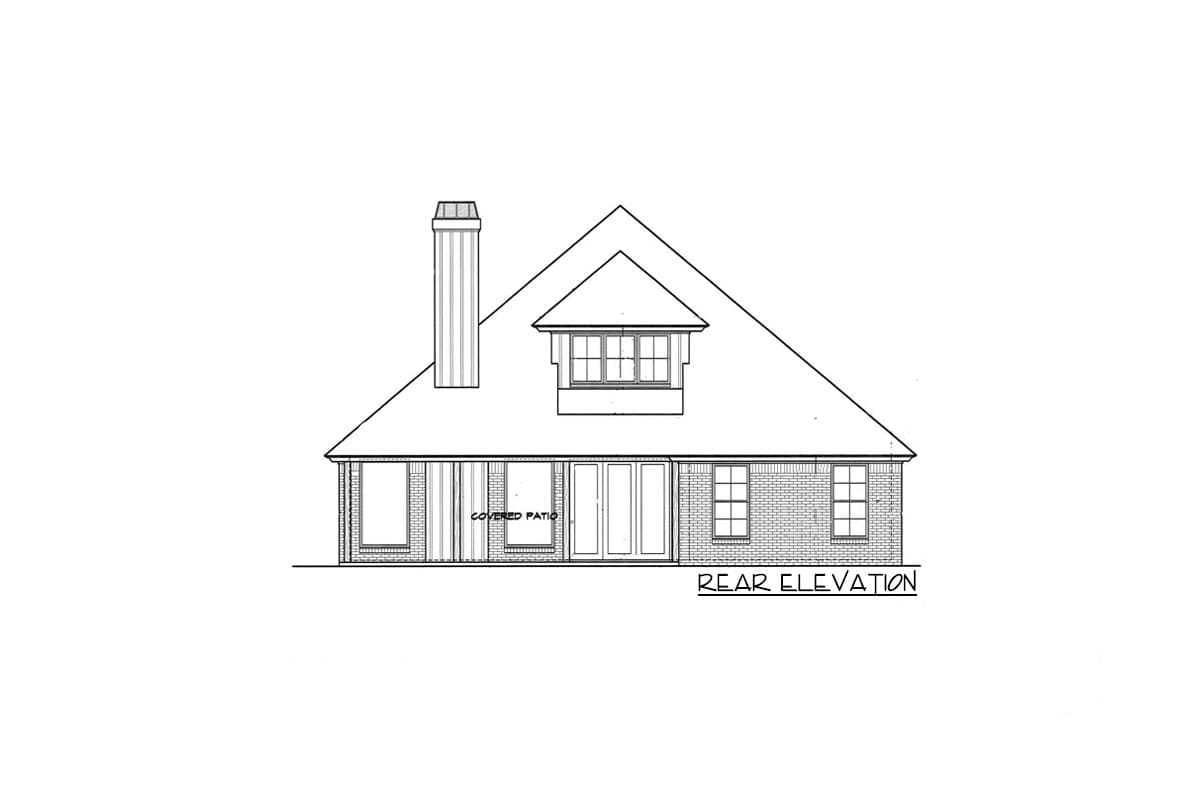

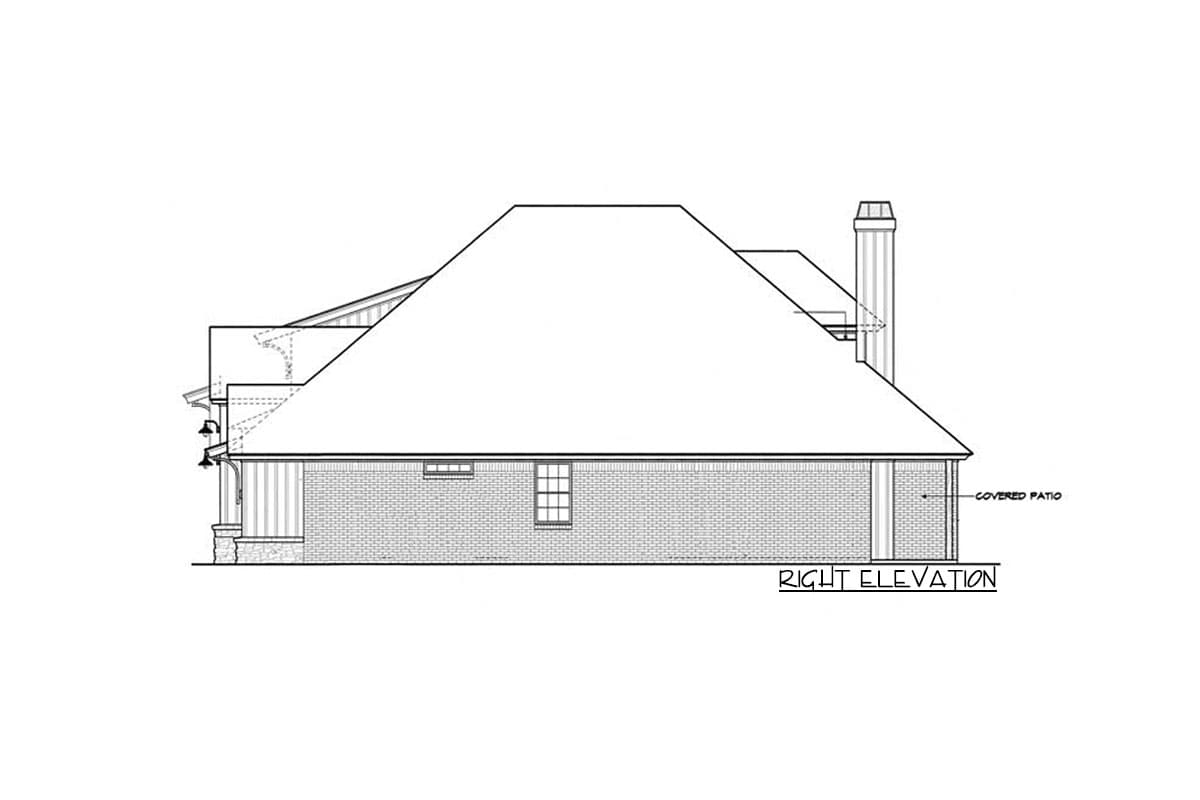

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

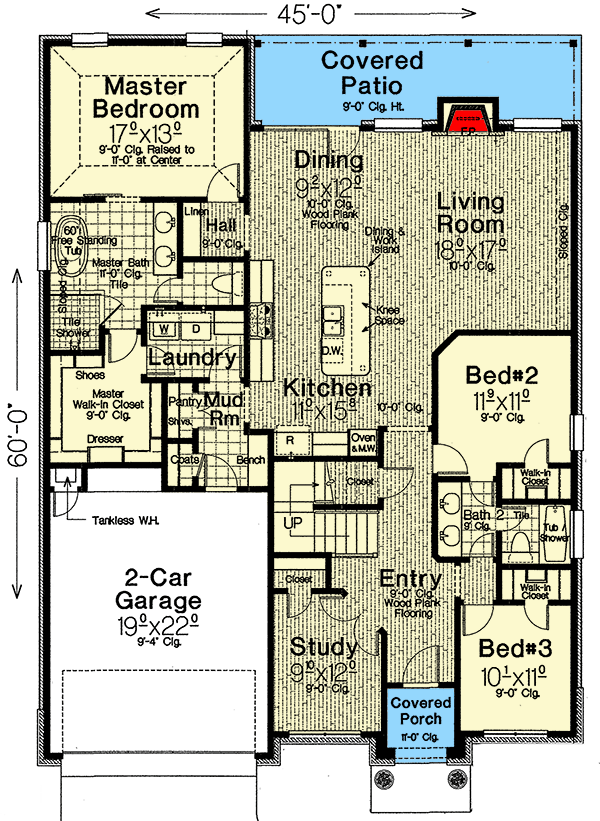

Exclusive New American Home Plan with Bonus Room Upstairs - 48611FM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

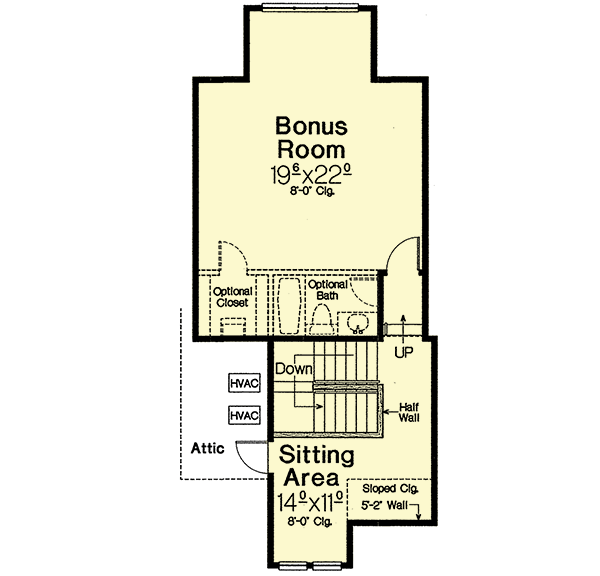

Exclusive New American Home Plan with Bonus Room Upstairs - 48611FM floor plan - 2nd Floor

Plan details



Exclusive New American Home Plan with Bonus Room Upstairs

  • 2,566

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,195
  • 8 Sets $1,335
  • PDF - Single-Build $1,485
  • CAD - Single-Build $2,270
  • View all purchase option online

About This Plan

  • Loads of character of curb appeal make this exclusive, two-story home plan an instant favorite.
  • Inside, a quiet study is located to the left of the foyer, while two secondary bedrooms line the right side of the hallway.
  • The living room, kitchen, and dining area are open to one another, and sliding doors lead to the perfect covered patio for a BBQ or lounge furniture.
  • The master bedroom is situated behind the garage, and features a convenient shortcut from the master closet to the laundry room.
  • The double garage offers a mudroom just inside to store personal items and outdoor gear, while sizable bonus room provides flexibility to the second level.
  • Related Plan: Eliminate the second level with plan 48607FM.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,566 sq. ft.
  • 1st Floor: 1,992 sq. ft.
  • 2nd Floor: 574 sq. ft.
  • Covered Patio: 190 sq. ft.
  • Porch, Combined: 40 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 0"
  • Depth: 60' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 448 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
