Plan 910071WHD
EXCLUSIVE
Exclusive New American Home Plan with Main-Level Master
Heated S.F.
3,100
Beds
5-7
Baths
3 - 4
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

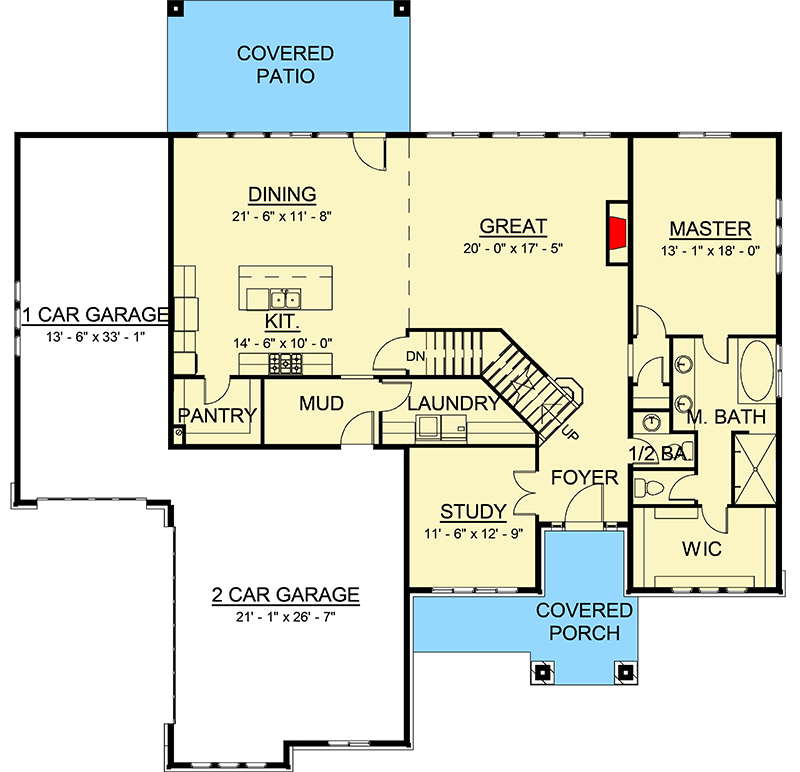

Exclusive New American Home Plan with Main-Level Master - 910071WHD floor plan - Main Level
Second Level
Reverse Floor Plan

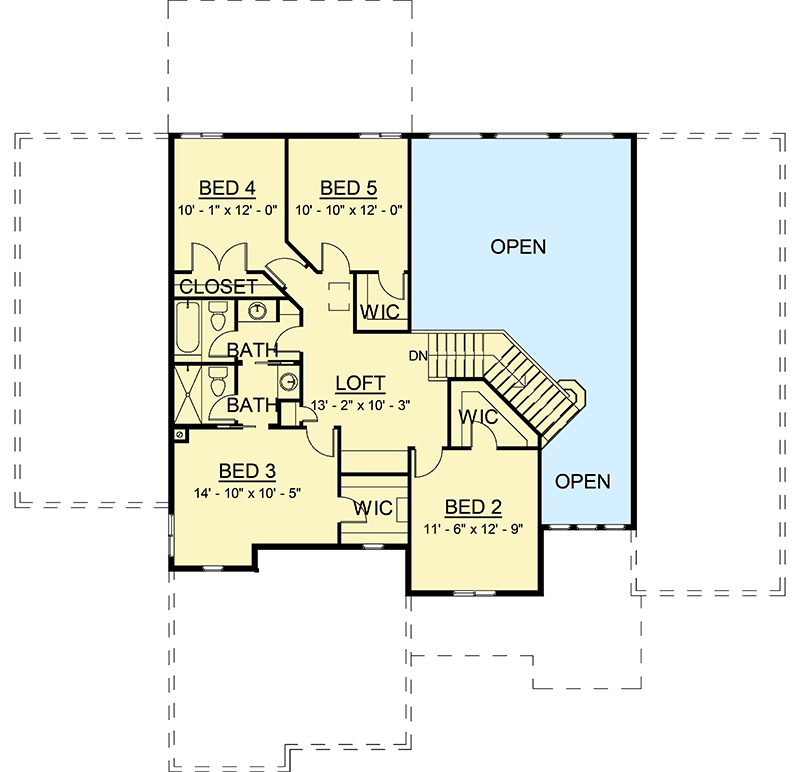

Exclusive New American Home Plan with Main-Level Master - 910071WHD floor plan - Second Level
Optional Lower Level
Reverse Floor Plan

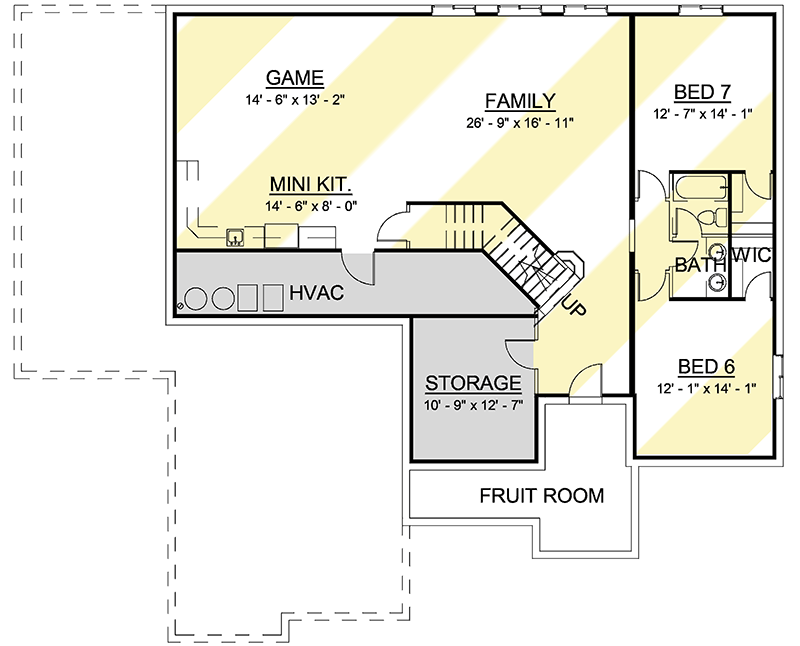

Exclusive New American Home Plan with Main-Level Master - 910071WHD floor plan - Optional Lower Level
Plan Details

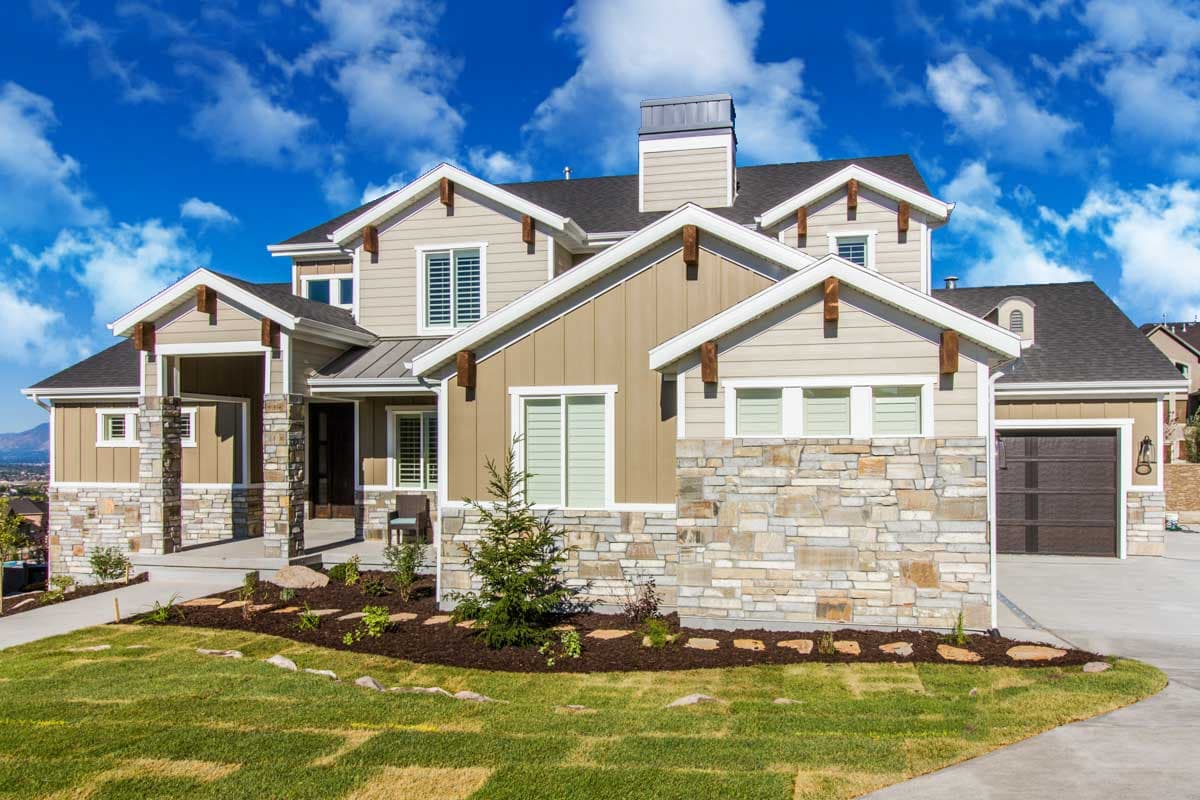

  • Craftsman detailing on the exterior of this New American house plan adds character to the stunning design, complete with stone accents and a charming front porch.
  • The main level consists of the shared living spaces in an open floor plan filled with natural light and tall ceilings. A covered patio off the back of the home is ideal for grilling or outdoor dining.
  • Also on this floor, discover a study behind french doors off the foyer, and the master suite, which includes a 5-fixture bath with a 2-person shower.
  •  Four sizable bedrooms are located upstairs, and share two compartmentalized baths.
  • Gain 1,909 sq. ft. of living space when you finish the optional lower level, and enjoy a generous family / game room with a kitchenette, and two bedrooms separated by a full bath.
What's Included
  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive New American Home Plan with Main-Level Master

  • 3,100

    Heated s.f.

  • 5-7

    Beds

  • 3 - 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Second Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,100 sq. ft.
  • 1st Floor: 2,022 sq. ft.
  • 2nd Floor: 1,078 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 70' 0"
  • Max ridge height: 30' 9"

Beds/Baths

  • Bedrooms: 5, 6, or 7
  • Full bathrooms: 3 or 4

Garage

  • Type: Attached
  • Area: 1088 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss
