Plan 790134GLV
EXCLUSIVE
Exclusive New American Home Plan with Study and 3-Car Garage
Heated S.F.
2,216
Beds
3
Baths
2.5
Stories
2
Cars
3
Plan Details
  • A blend of siding materials add interest to the exterior of this New American home plan that is exclusive to Architectural Designs.
  • From the foyer, pocket doors retract to unveil a sizable study. A few steps further and you will find three large windows in the great room that overlook the back yard.
  • The heart of the home is centered between the great room and dining area with an island and corner pantry creating a functional workspace for meal prep.
  • Three bedrooms are located upstairs, including the main bedroom that includes a walk-in closet and 4-fixture bathroom with a linen closet.
  • Step inside from the 3-car garage to find a mudroom with a powder bath and walk-in closet for coats, bags, and shoes.
  • Related Plan: Get a 2-car garage with house plan 790032GLV.
What's Included
  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive New American Home Plan with Study and 3-Car Garage

  • 2,216

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

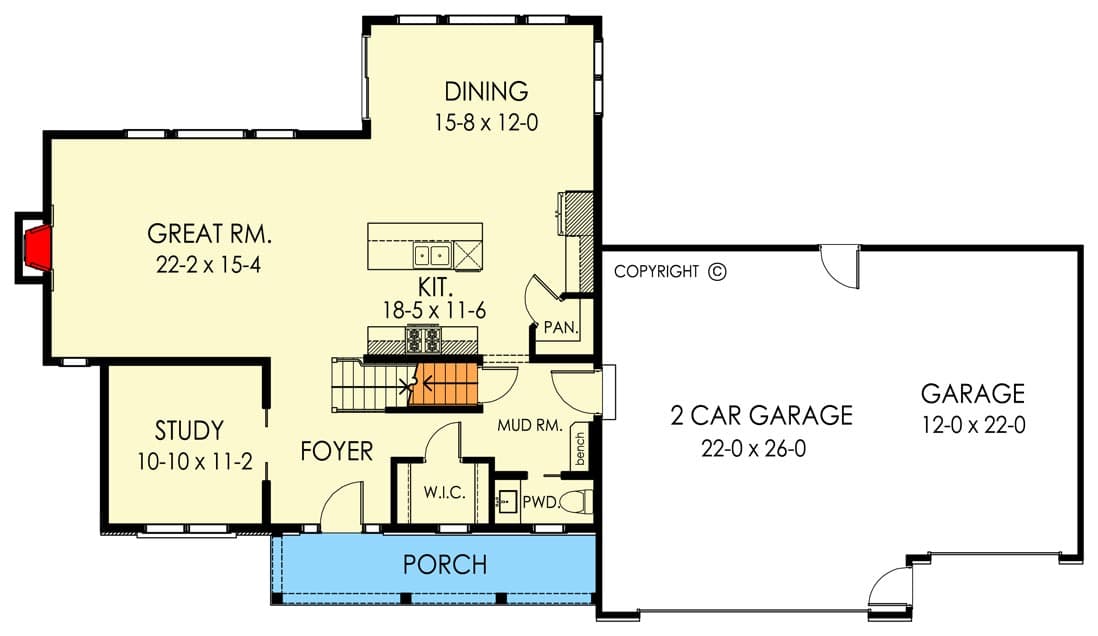

  • Main Level

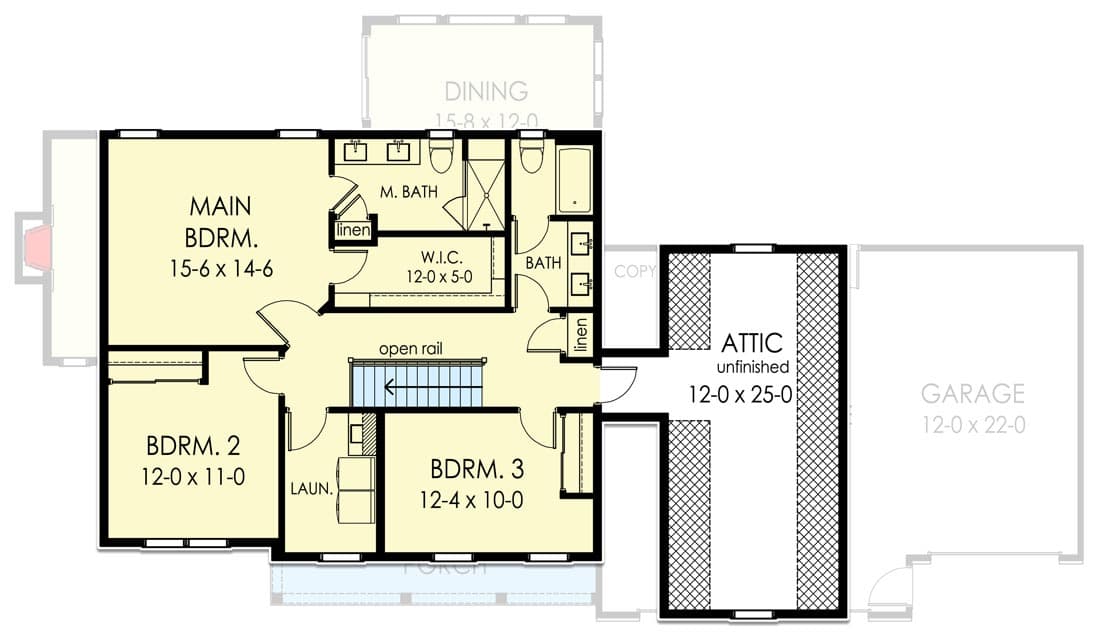

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,216 sq. ft.
  • 1st Floor: 1,178 sq. ft.
  • 2nd Floor: 1,038 sq. ft.

Dimensions

  • Width: 72' 8"
  • Depth: 42' 0"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 829 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
