Plan 510154WDY
EXCLUSIVE
Exclusive New American House Plan with Fireplace on Back Porch
Heated S.F.
2,806
Beds
4-5
Baths
3 - 4
Stories
1
Cars
3
What's Included
Plan Details
  • Brick, board and batten and clapboard siding give this exclusive New American house plan great curb appeal. A standing seam metal roof over the front porch with a gable centered above add to the appeal.
  • The living room with fireplace has 12' ceilings and is open to the dining room and kitchen. A door on the back wall takes you to the back porch with a fireplace and optional outdoor kitchen.
  • An arched opening separates the kitchen from the living room and you can see the fireplace from behind the island. A large walk-in pantry gives you great storage.
  • The keeping room has two windows looking out to the back yard and is adjacent to the breakfast alcove.
  • An 11'4" tray ceiling in the main bedroom and a door to the outdoor porch are nice touches. In the front of the home, two bedrooms share a Jack and Jill bath. A fourth bedroom across the home has its own bathroom.

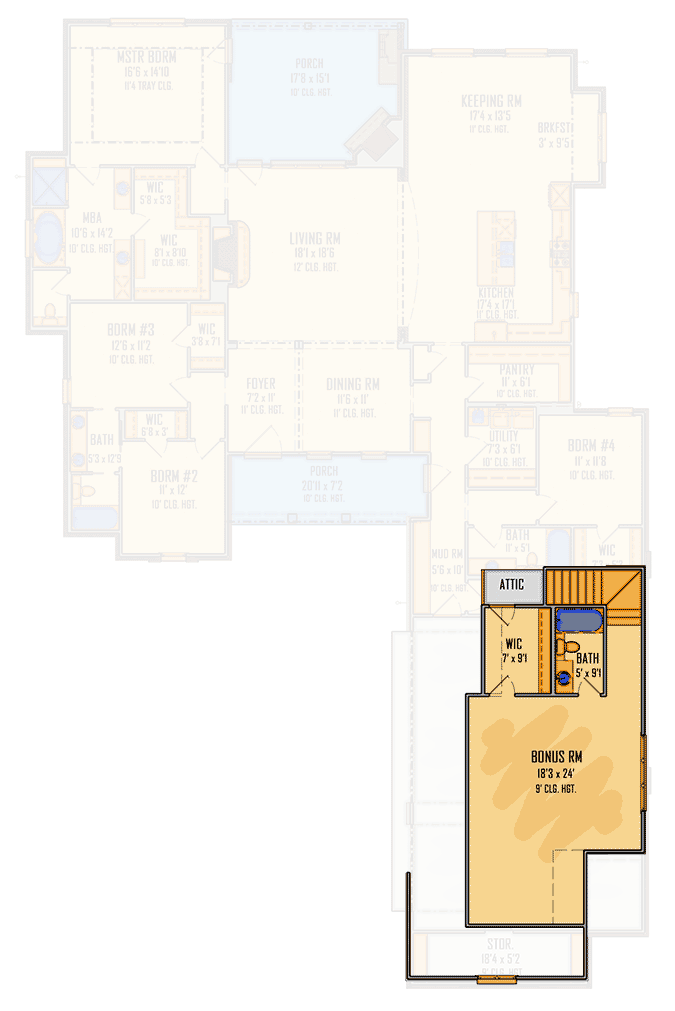

  • Stairs off the mud room take you to the bonus room over the garage. This space can be used as a play room, media room, home office or a fifth bedroom if needed.
  • Related Plan: Get an alternate version with house plan 510205WDY.
What's Included
  • Cover Sheet

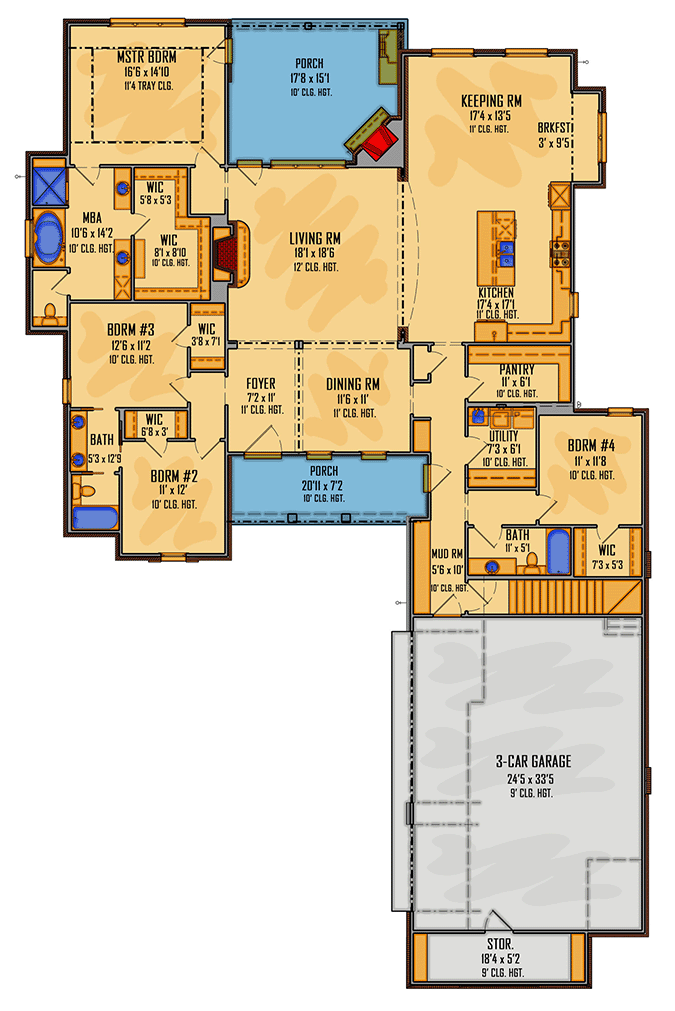

  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

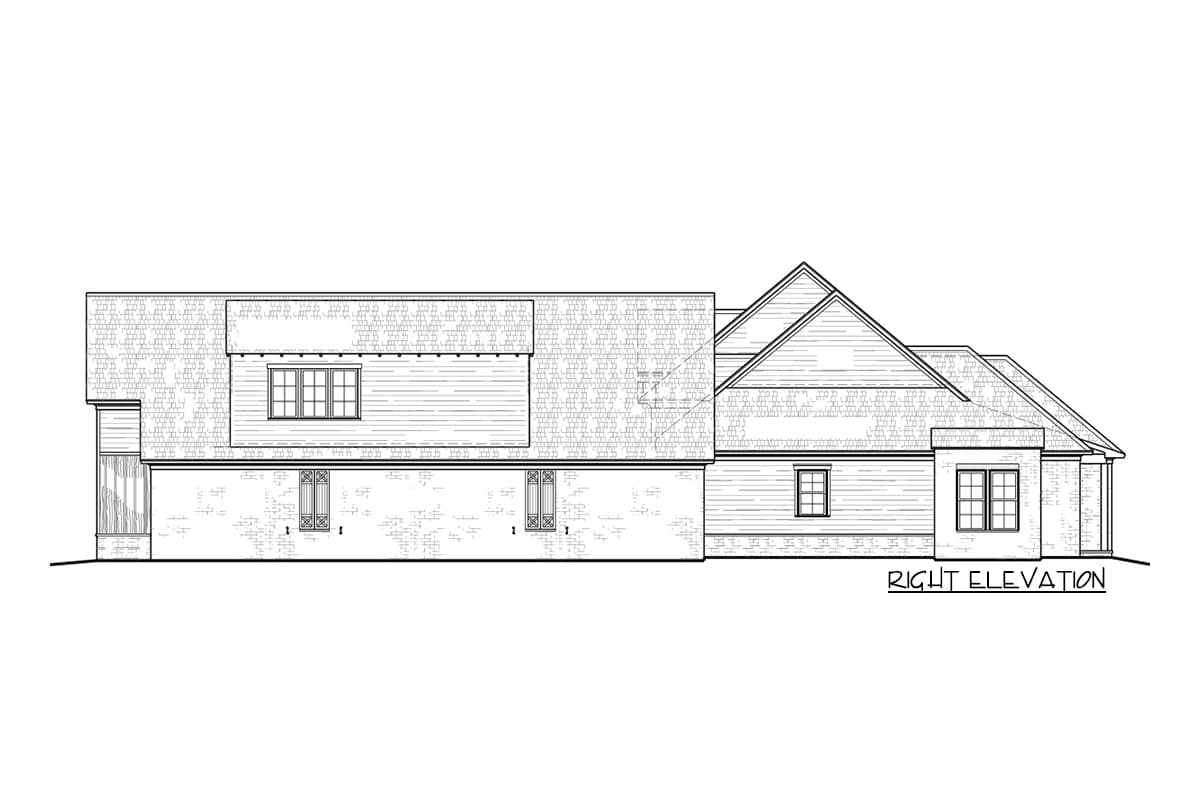

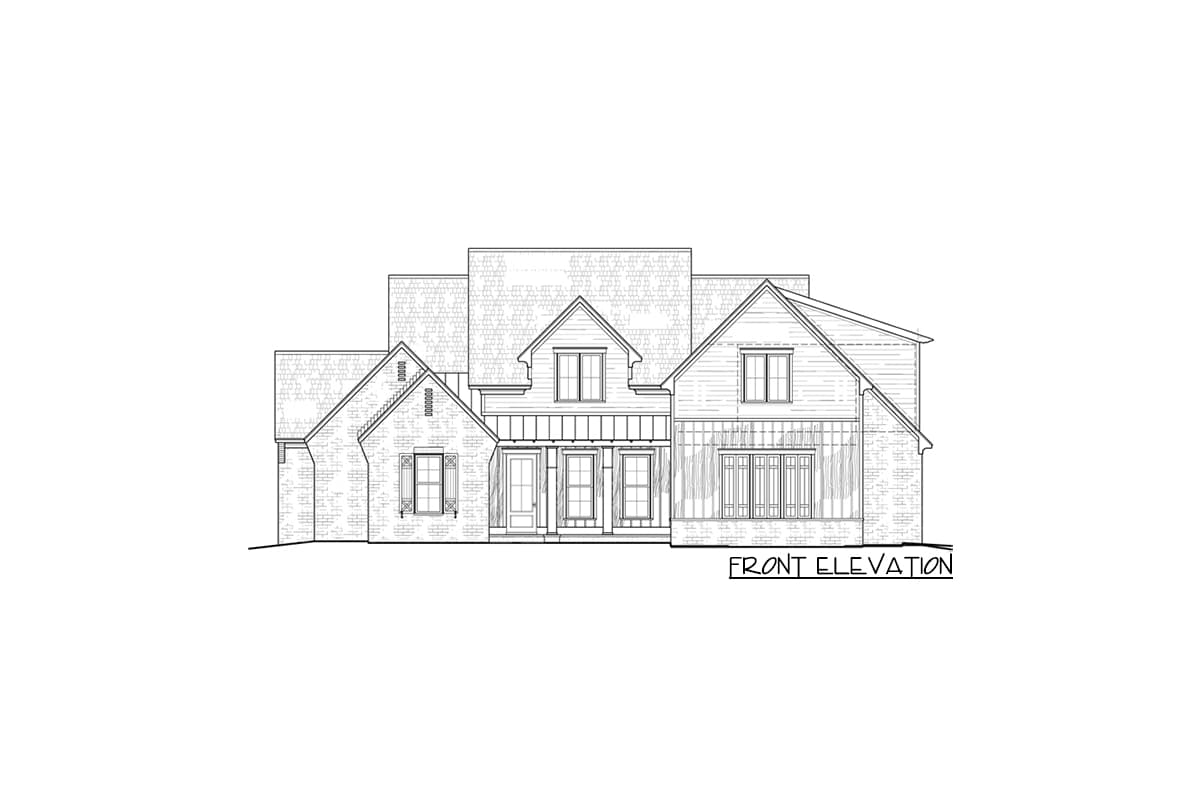

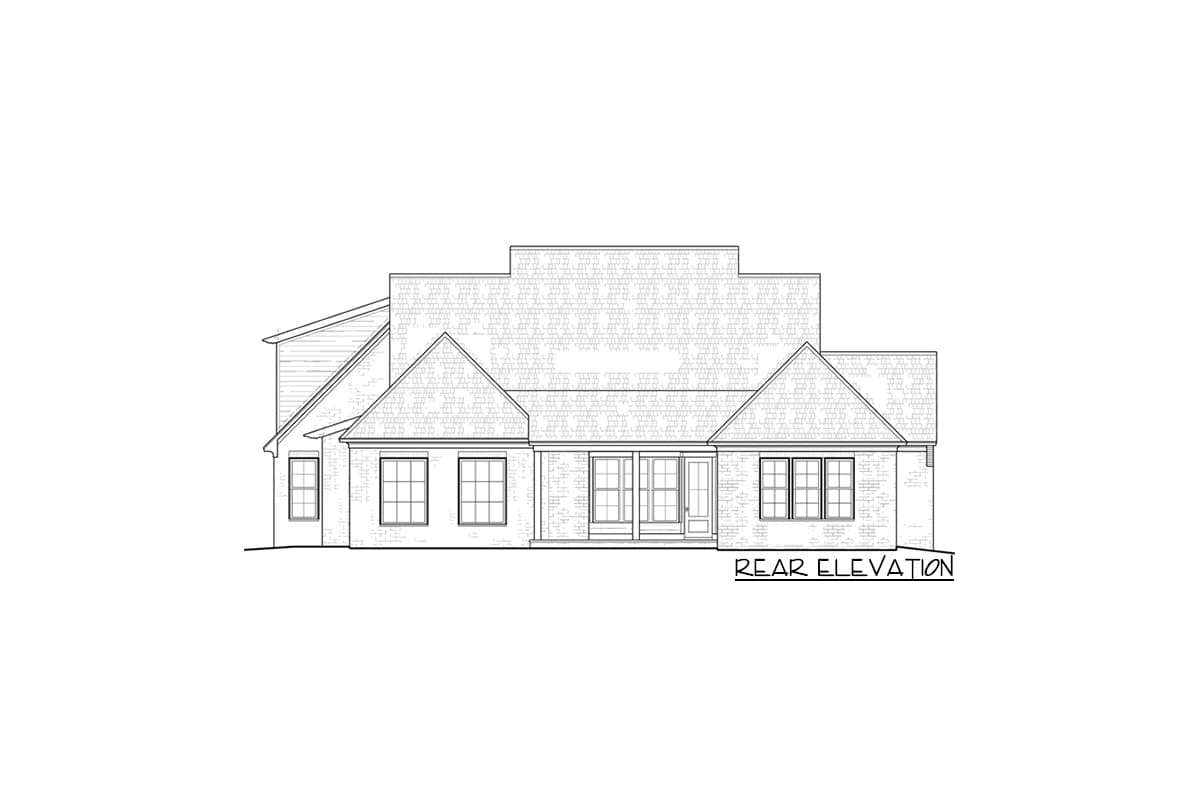

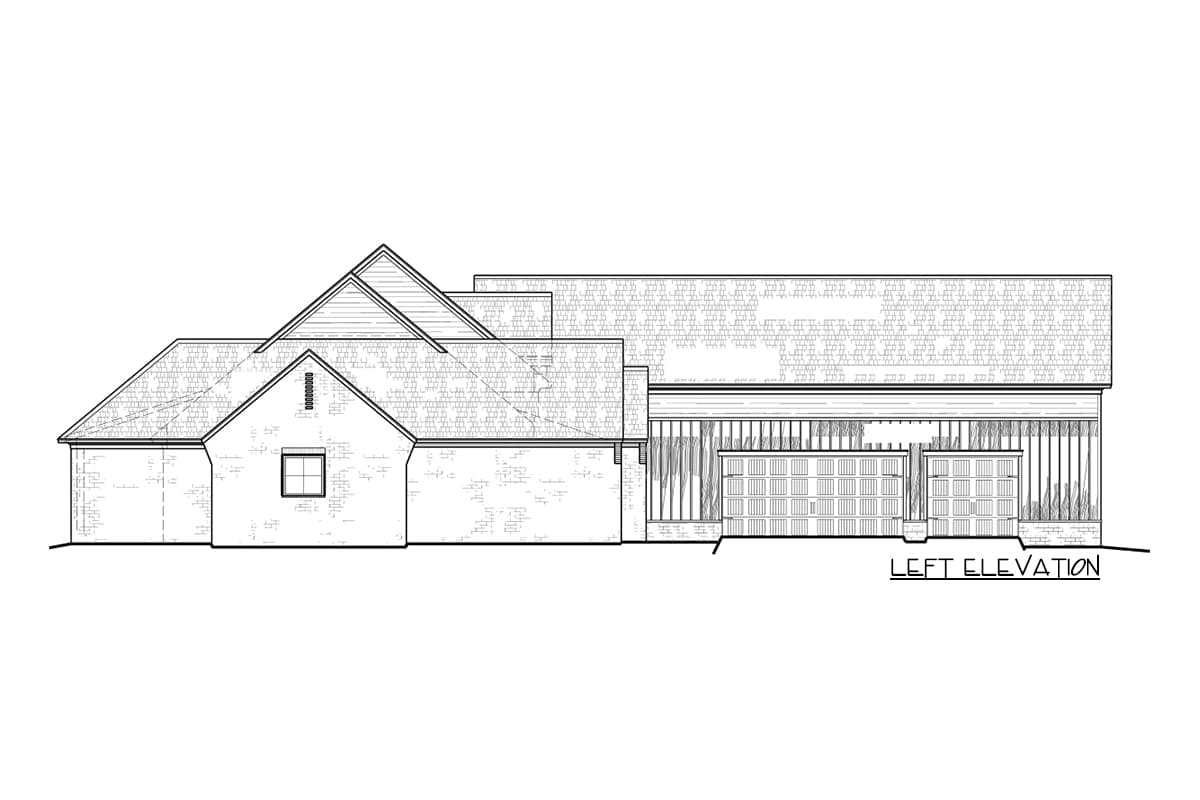

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
