Plan 915049CHP

Exclusive

Exclusive New American Ranch Plan with Split-Bed Layout - 2487 Sq Ft

Heated S.F.

2,487

Beds

3

Baths

2.5

Stories

1

Cars

3

Floor Plan

Main Level

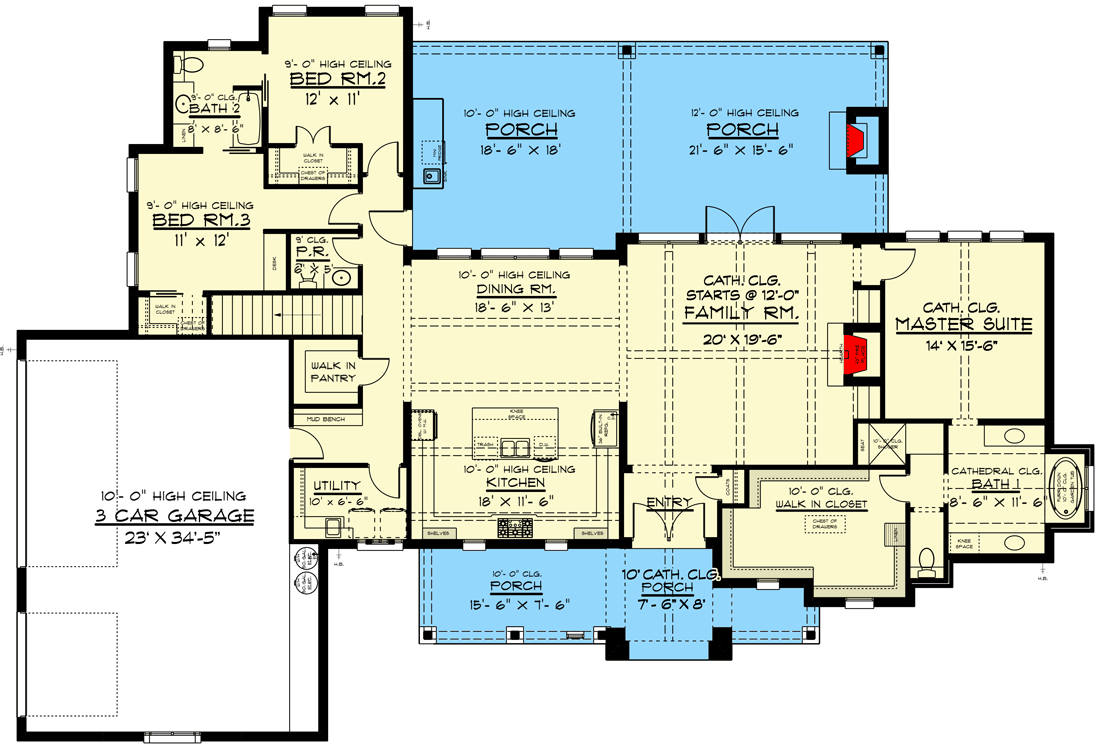

floor plan image Main Level

Bonus Over Garage

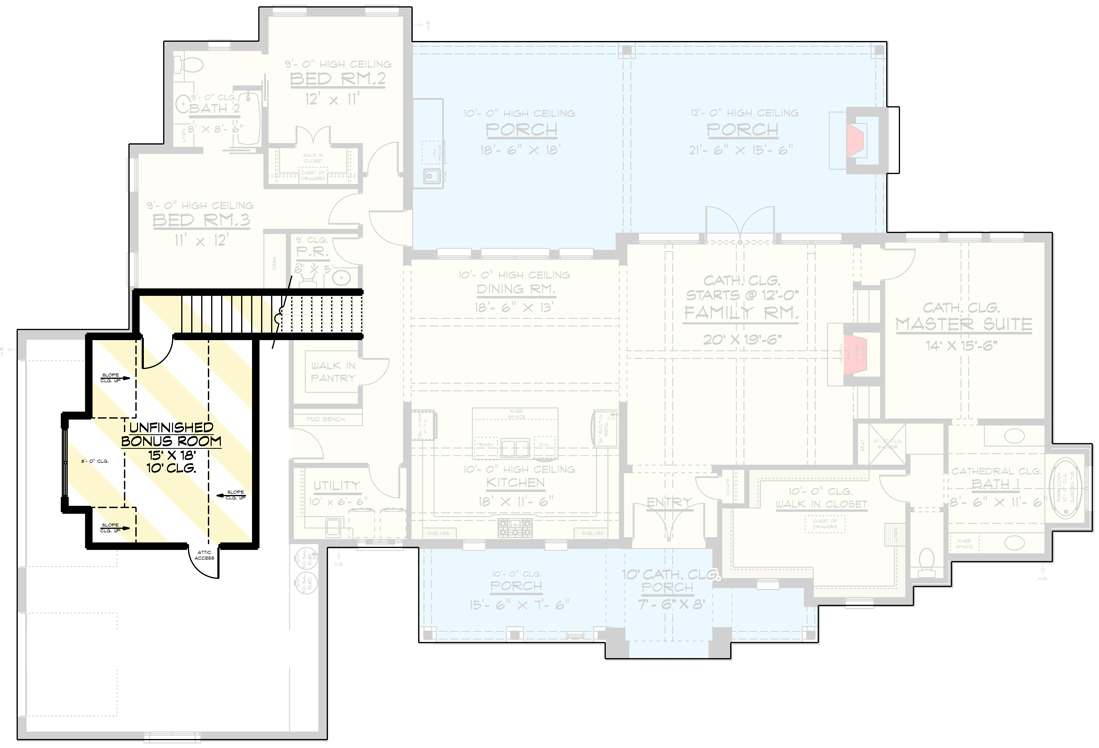

floor plan image Bonus Over Garage

Plan Details

This stunning, New American house plan delivers one-level living, rich in modern amenities for today's homeowner.
Vaulted ceilings above the great room center above a stone fireplace, while french doors on the rear wall invite you to spend time on the spacious covered porch.
Exposed beams line the 10' ceiling in the combined kitchen and dining area, where you'll find a large range, bar seating at the central island, and a nearby walk-in pantry.
The split-bed layout offers the utmost privacy to its residents, and the homeowners are sure to enjoy the deluxe ensuite with a garden tub and dresser island in the massive wardrobe.
Enter from the 3-car garage to find a drop zone for bags, shoes, and personal items. The neighboring laundry room features storage and a utility sink to complete this exclusive design.

What's Included

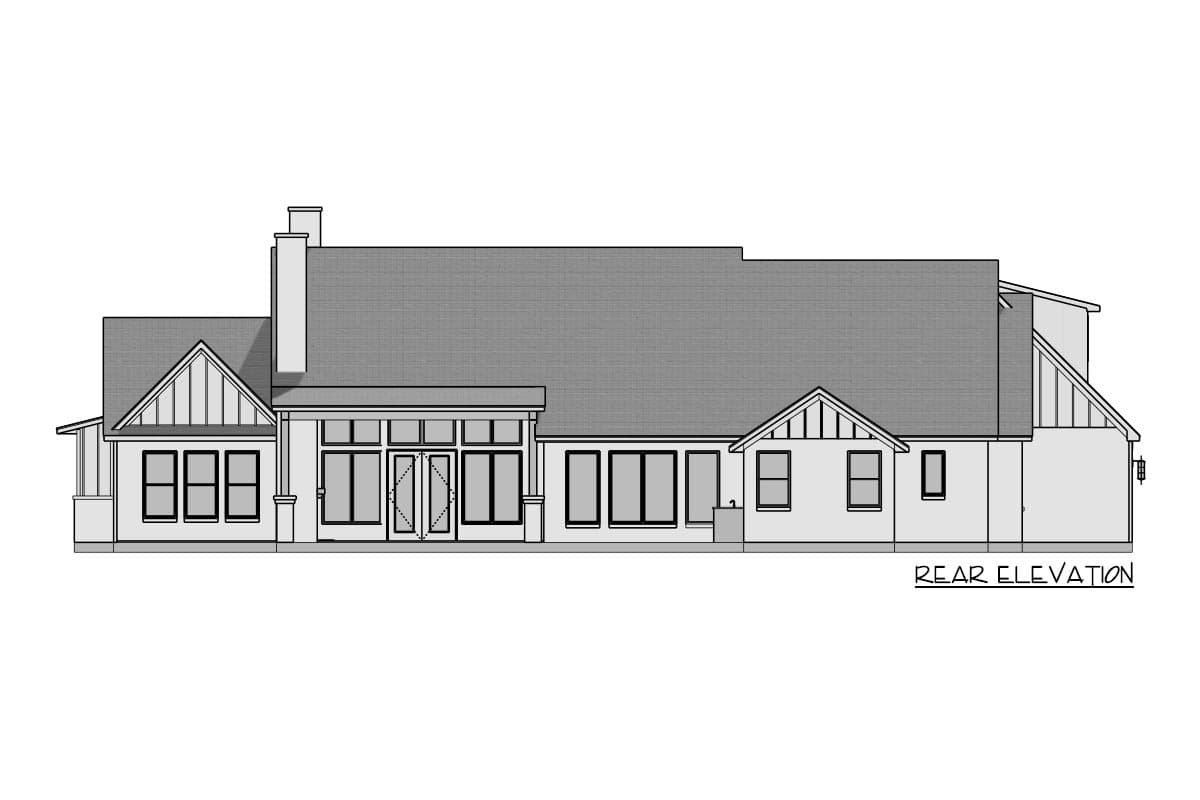

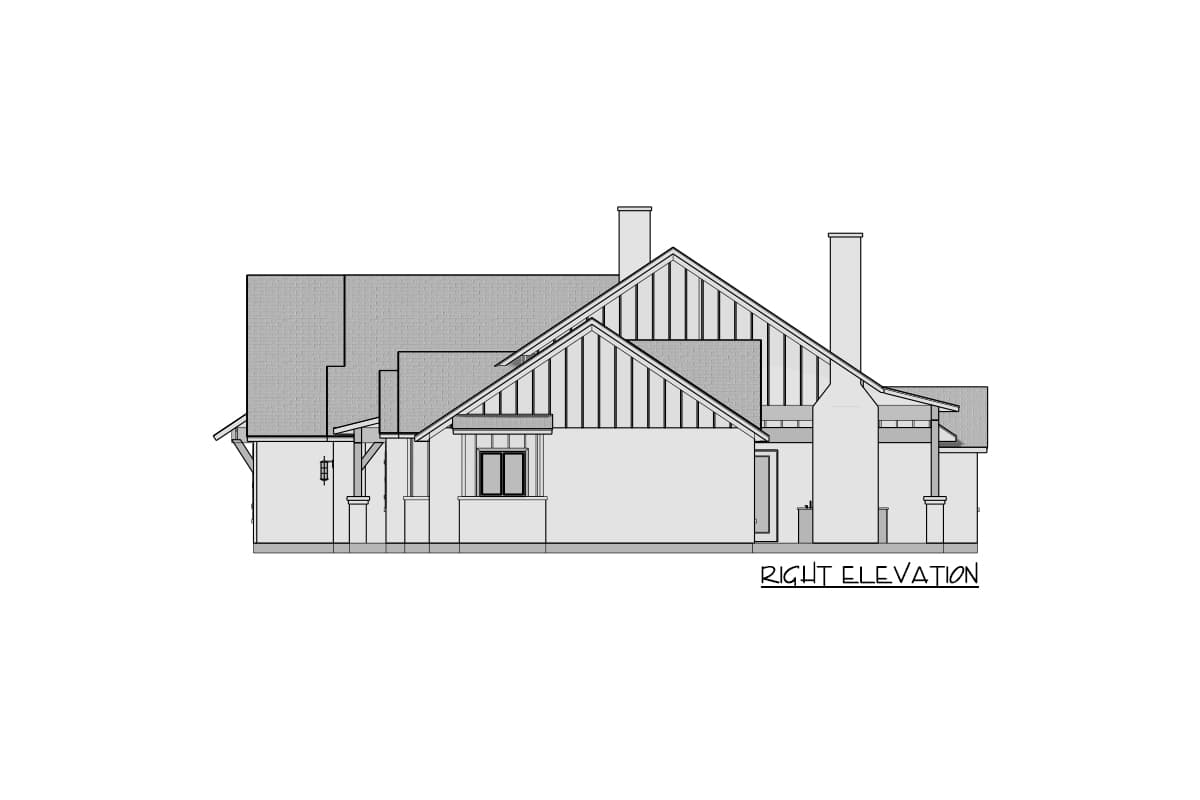

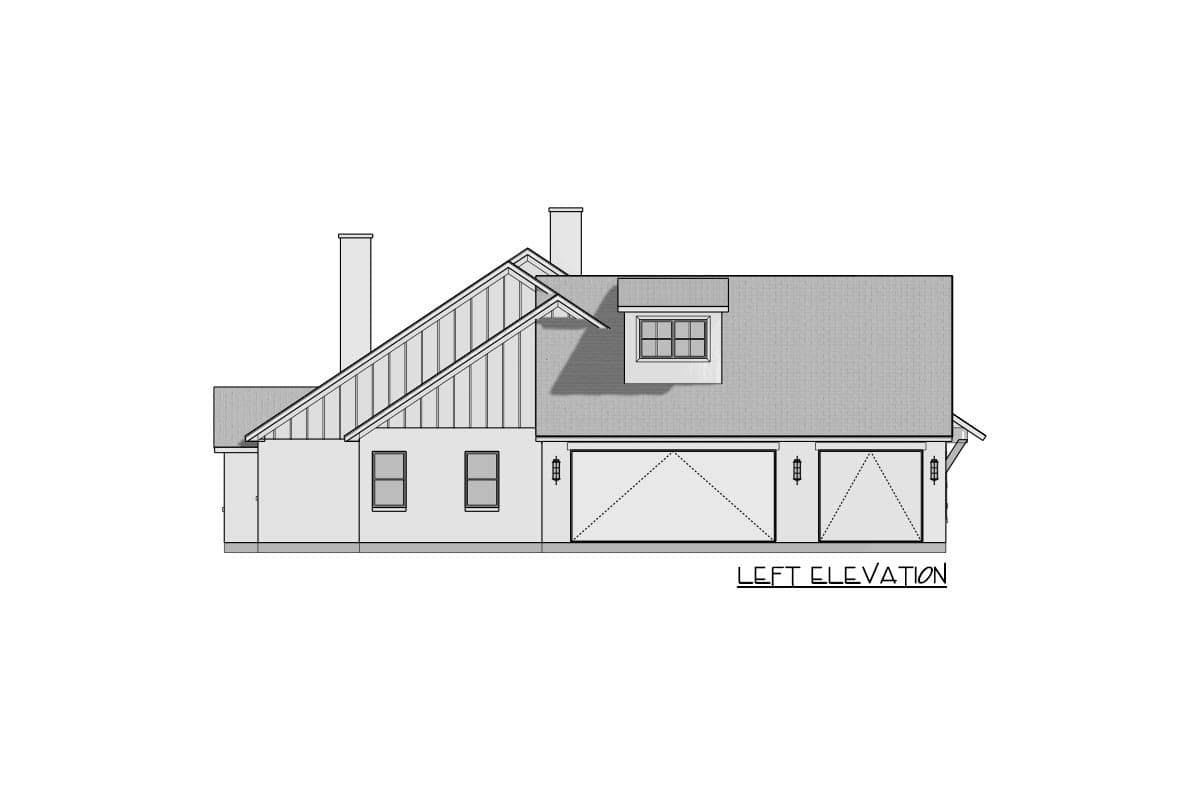

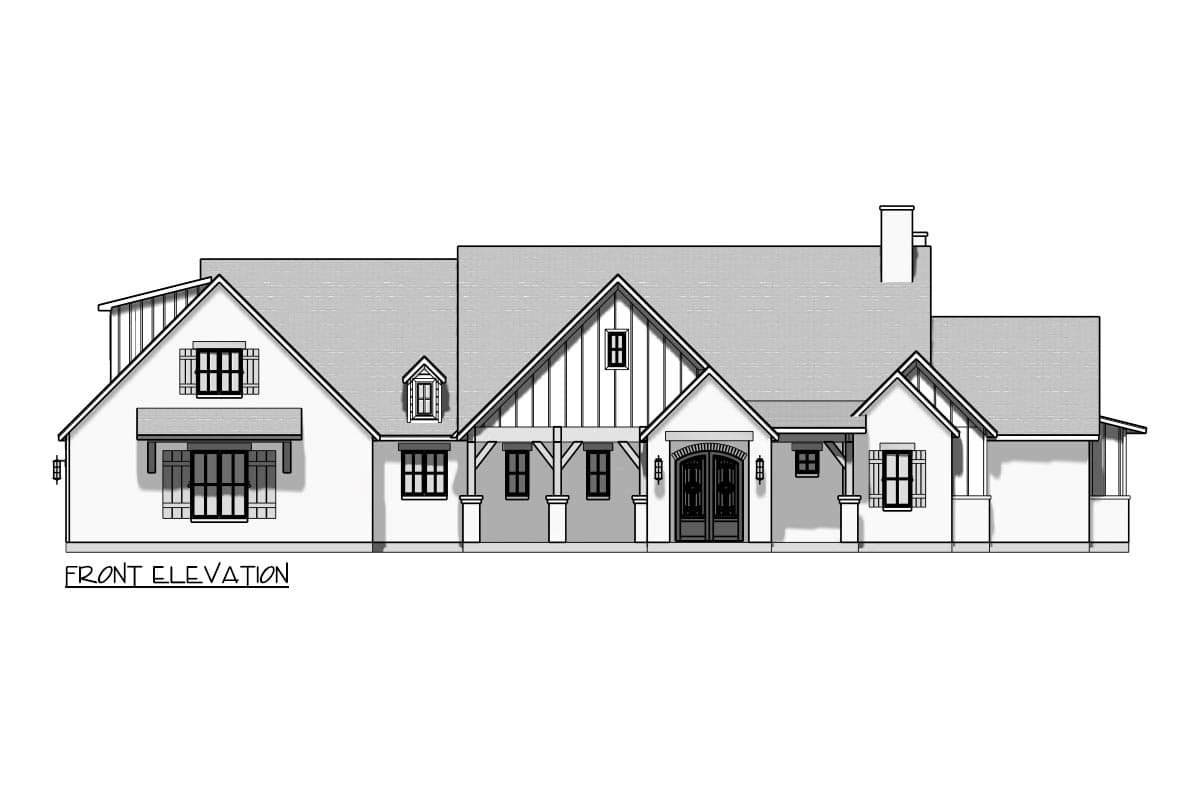

Elevations
Detailed floor plans
Roof plans
Foundation plans
Electrical schematics
Cross section(s)
Rafter plan and ceiling joist plans
Interior elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,487 sq. ft.

1st Floor

2,487 sq. ft.

Bonus

299 sq. ft.

Porch, Combined

962 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

94' 2"

Depth

64' 2"

Max Ridge Height

27' 1"

Garage

Type

Attached

Area

915 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Plan Collections

Square Footage Breakdown

Total Heated Area

2,487 sq. ft.

1st Floor

2,487 sq. ft.

Bonus

299 sq. ft.

Porch, Combined

962 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

94' 2"

Depth

64' 2"

Max Ridge Height

27' 1"

Garage

Type

Attached

Area

915 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Plan Collections
