Plan 790052GLV

Exclusive

Exclusive One-Level Craftsman House Plan

Heated S.F.
1,675
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 790052GLV

Main Level
Main Level
Expanded Master Closet
Expanded Master Closet

Plan 790052GLV

M-F 9am-5pm EST |

1-203-761-8500

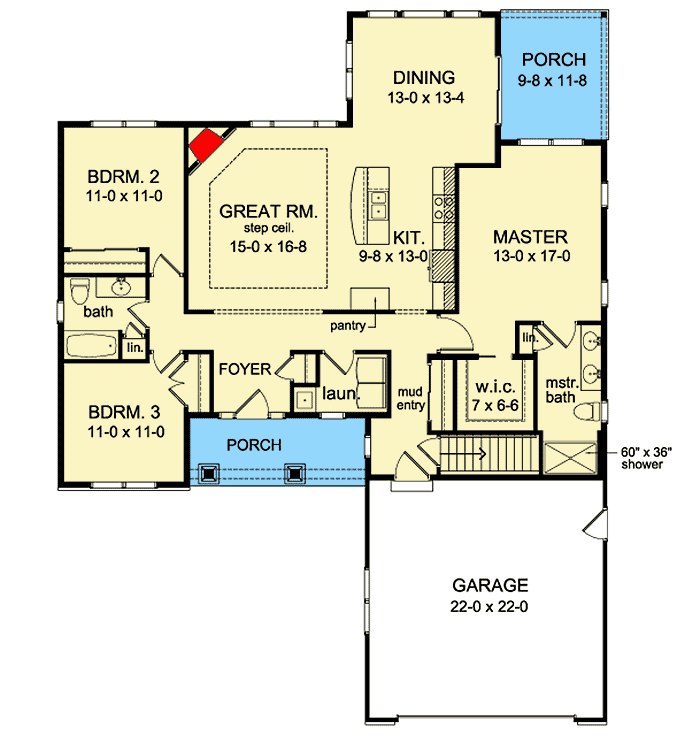

Main Level

Plan 790052GLV: Exclusive One-Level Craftsman House Plan - Floor Plan - Main Level - Craftsman, New American, Ranch

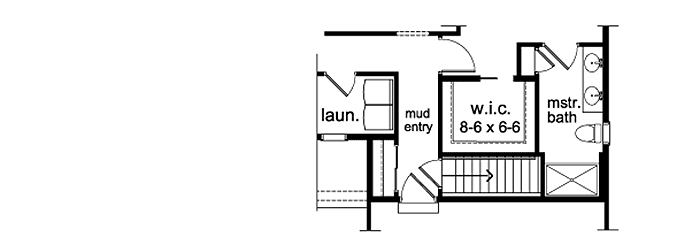

Expanded Master Closet

Plan 790052GLV: Exclusive One-Level Craftsman House Plan - Floor Plan - Expanded Master Closet - Craftsman, New American, Ranch

Plan Details

  • This delightful, craftsman house plan boasts an open floor plan for easy entertaining and sliders leading to a back porch for outdoor enjoyment.
  • The corner fireplace serves as a focal point within the shared living space and a tray ceiling provides a feeling of spaciousness. The kitchen sink is on the island, which also offers a bar top.
  • To the left of the home, two identical bedrooms are separated by a full bathroom.
  • On the opposite side of the home, a roomy master suite features a 4-fixture bathroom with a linen closet, and a pocket door which leads to a walk-in closet.
  • The laundry room is centrally located for added convenience.

What's Included

This house plan has 8 pages as follows:
  • Cover sheet with general notes

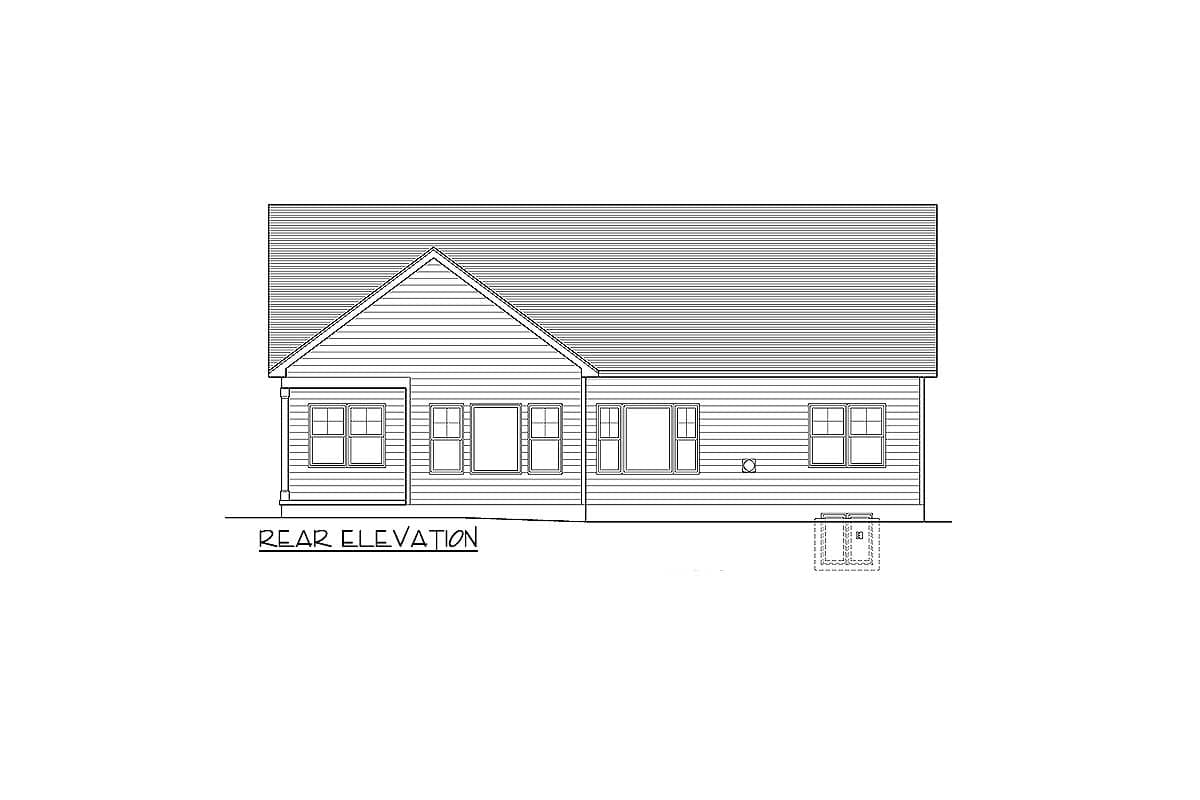

  • Elevations
  • Basement and foundation plan and typical wall section
  • First floor plan
  • Sections
  • Details
  • Reinforcing tables

What's Not Included

  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,675 sq. ft.

1st Floor

1,675 sq. ft.

Basement Unfinished

1,502 sq. ft.

Porch, Combined

90 sq. ft.

Deck

113 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

64' 8"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
