Plan 910023WHD Exclusive One-Level Home with Open Floor Plan

Exclusive One-Level Home with Open Floor Plan

Plan 910023WHD

  • 2,053

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

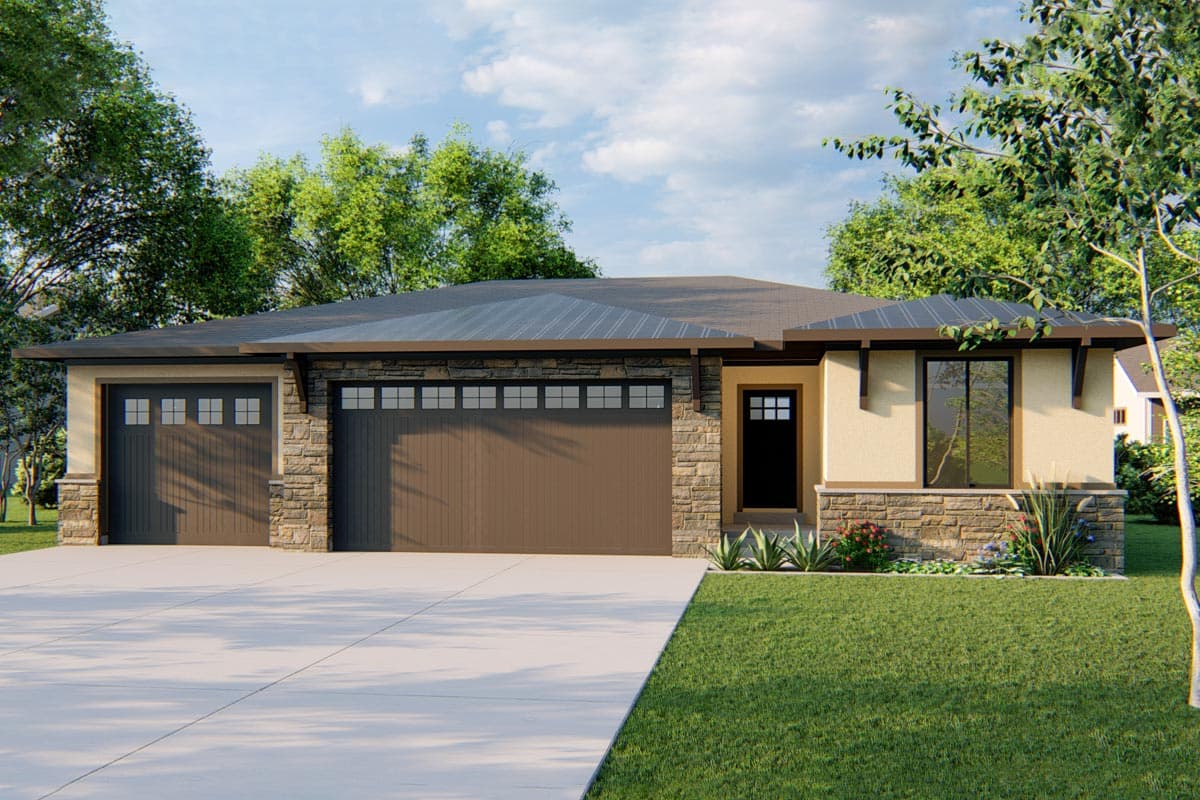

  • A low-pitched roof rests above this exclusive, one-level home plan, while metal roof accents and a stone trim add to the visually-pleasing aesthetic. Inside, the open layout creates a comfortable environment for family gatherings and everyday living.
  • The open and airy kitchen includes an island to maximize workspace, and a large pantry rests in the corner. Escape to the back patio for outdoor enjoyment.
  • Homeowners will delight in the privacy provided by the master bedroom, which includes a spacious en suite with a second sink in the toilet room. Two identical bedrooms are located near the foyer and share a full bath.
  • The 3-car garage opens into a mudroom with built-in lockers, and neighbors the laundry room.
  • Gain a fourth bedroom with the optional lower level, along with a sizable game room that includes a wet bar; a total of 1,193 sq. ft. of living space.

This house plan includes:

  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing

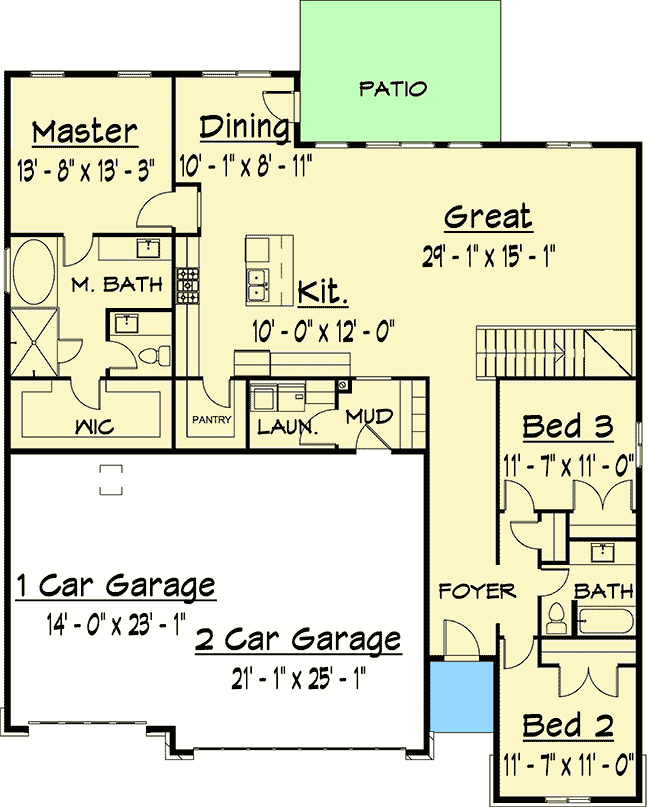

Floor Plan

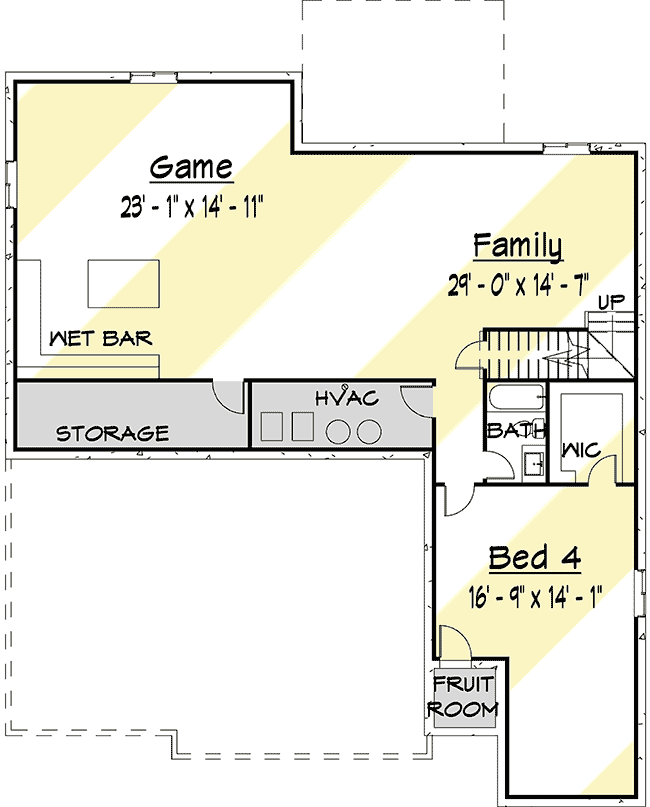

Optional Lower Level

Exclusive One-Level Home with Open Floor Plan - 910023WHD floor plan - Optional Lower Level

Plan details



Exclusive One-Level Home with Open Floor Plan

  • 2,053

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,795
  • 5 Sets $1,995
  • 5 Sets + PDF $2,195
  • CAD - Single-Build $2,495
  • View all purchase option online

About This Plan

  • A low-pitched roof rests above this exclusive, one-level home plan, while metal roof accents and a stone trim add to the visually-pleasing aesthetic. Inside, the open layout creates a comfortable environment for family gatherings and everyday living.
  • The open and airy kitchen includes an island to maximize workspace, and a large pantry rests in the corner. Escape to the back patio for outdoor enjoyment.
  • Homeowners will delight in the privacy provided by the master bedroom, which includes a spacious en suite with a second sink in the toilet room. Two identical bedrooms are located near the foyer and share a full bath.
  • The 3-car garage opens into a mudroom with built-in lockers, and neighbors the laundry room.
  • Gain a fourth bedroom with the optional lower level, along with a sizable game room that includes a wet bar; a total of 1,193 sq. ft. of living space.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,053 sq. ft.
  • 1st Floor: 2,053 sq. ft.
  • Deck: 204 sq. ft.
  • Porch, Combined: 33 sq. ft.
  • Optional Lower Level: 1,913 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 62' 0"
  • Max ridge height: 17' 7"

Garage

  • Type: Attached
  • Area: 883 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
