Exclusive One-Level House Plan with Formal Dining and Flex Room
Heated S.F.
2,171
Beds
2-3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Enjoy the benefits of one-level living with this exclusive house plan, which features front and rear porches and an open concept floor plan.
  • From the foyer, a formal dining room is located to the left, with access to the living room and kitchen. A fireplace in the living room adds a sense of comfort, and French doors open to the back porch.
  • An elongated kitchen island is surrounded by cabinets, counters, and appliances, with plenty of room for a large range in the spacious kitchen. The adjoining breakfast nook provides another dining option, while overlooking the rear porch.
  • The master suite boasts its own foyer, and includes a 5-fixture bathroom with a toilet room, separate tub and shower, and sizable walk-in closet. Bed 2 can be alternatively used as a home office and shares the bathrooms with Bedroom 3.
  • The 2-car garage is attached to the rear of the home, with a must-have storage room to hide lawn supplies. Access the home through a mudroom, with a convenient half bath and neighboring laundry room.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive One-Level House Plan with Formal Dining and Flex Room

  • 2,171

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,171 sq. ft.
  • 1st Floor: 2,171 sq. ft.

Dimensions

  • Width: 75' 0"
  • Depth: 59' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 516 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Exclusive One-Level House Plan with Formal Dining and Flex Room

  • 2,171

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Exclusive One-Level House Plan with Formal Dining and Flex Room

  • 2,171

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,171 sq. ft.
  • 1st Floor: 2,171 sq. ft.

Dimensions

  • Width: 75' 0"
  • Depth: 59' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 516 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

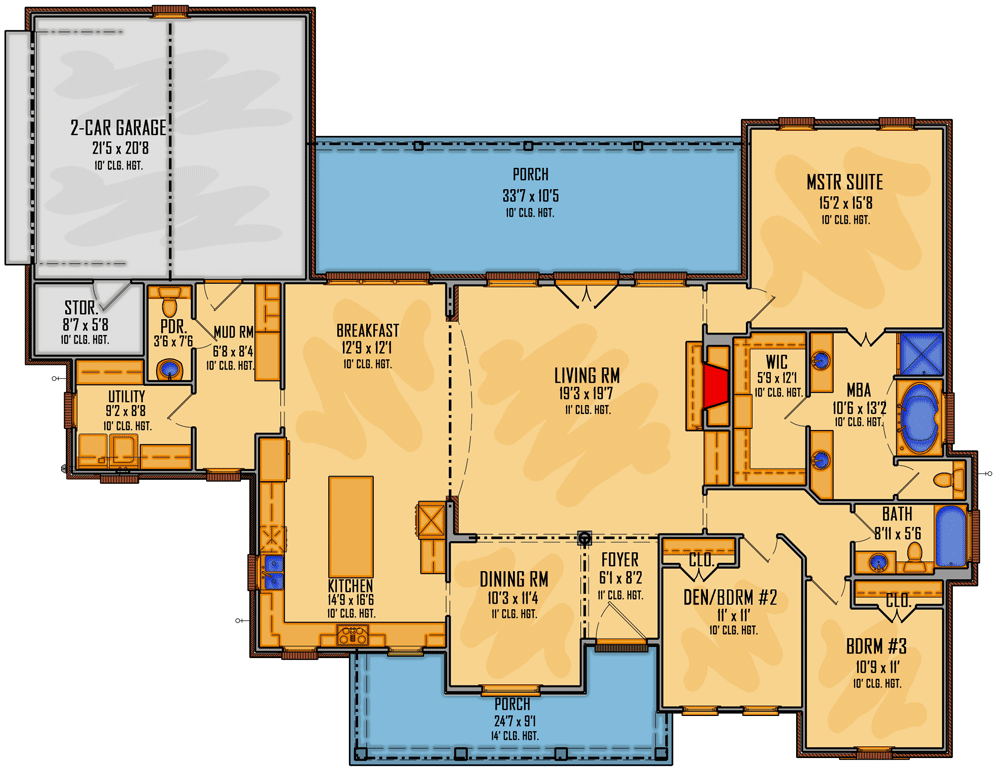

    Main Level
