Exclusive One-level House Plan with Split Bedrooms and a Pocket Office

Name: Plan 510201WDY: Exclusive One-level House Plan with Split Bedrooms and a Pocket Office
Brand: Architectural Designs
SKU: 510201WDY
Price: 1295.0 USD
Availability: InStock

Heated S.F.

2,334

Beds

Baths

Stories

Cars

Floor Plan

Main Level

Plan Details

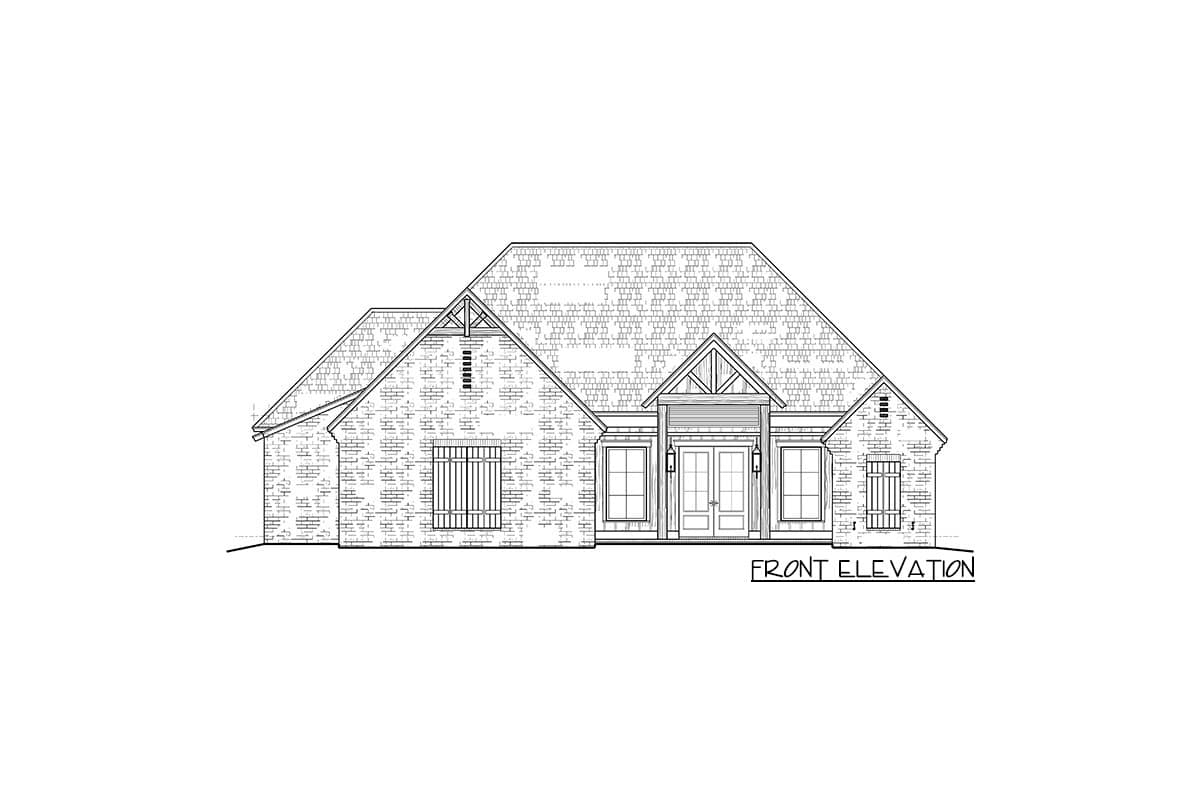

Timber-framed gables add to the rustic charm presented by this exclusive, one-level house plan. The 3-car garage creates a parking courtyard in front of the home and includes a storage room for lawn supplies or tools.
Double doors open into the foyer; a pocket office is located to the right, while straight ahead, the living room greets you. A fireplace adds a sense of warmth to the living space.
The gourmet kitchen will revitalize your love of cooking and hosts a large island, plenty of workspace, and a nearby dining room.
Head to the master bedroom for peace and quiet, joined by a 5-fixture bathroom and walk-in closet.
Three family bedrooms line the left side of the floor plan; two share a Jack-and-Jill bath and one includes a full bath.

What's Included

Cover Sheet
Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
Exterior Elevations w/ Details
Building Section and Roof Plan w/ Trim Details
Additional Building Notes and Details
Electrical Layout
Foundation Plan
Foundation Details and Notes

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
