Plan 521021TTL Exclusive One-level Southern Home Plan with Wraparound Porch

Exclusive One-level Southern Home Plan with Wraparound Porch

Plan 521021TTL

  • 1,467

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

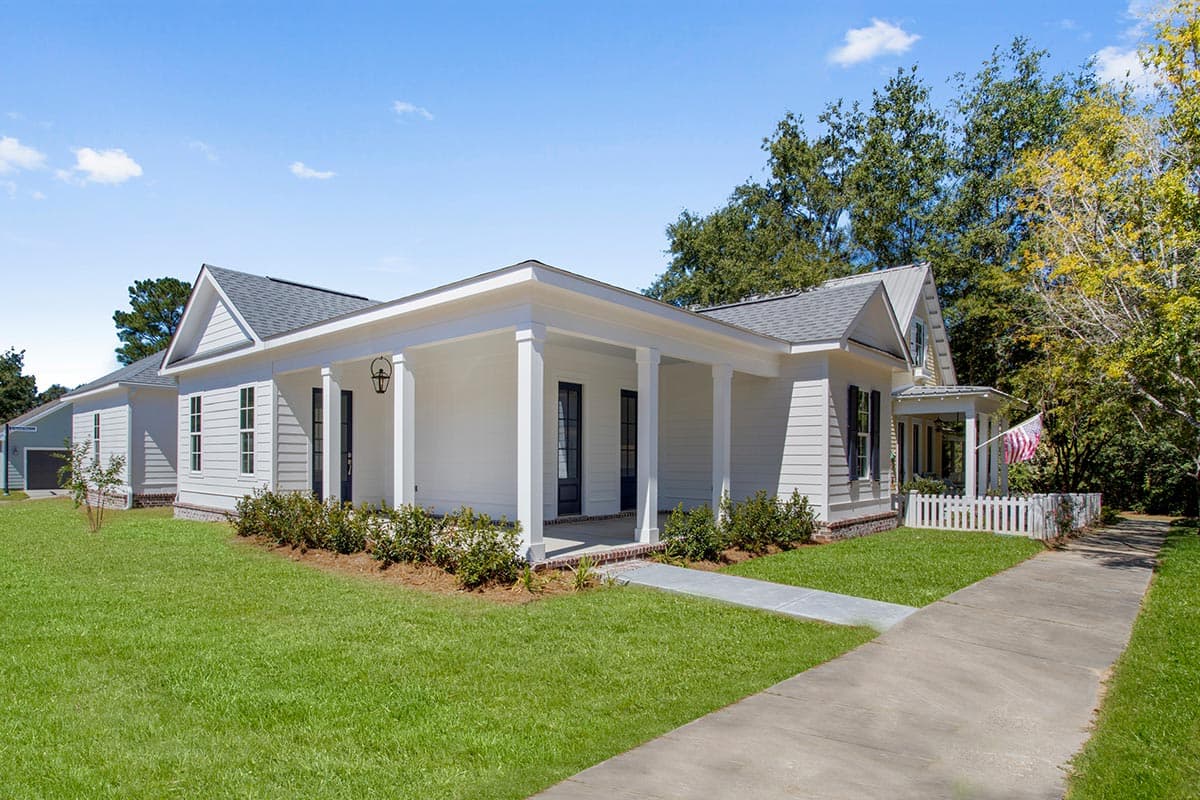

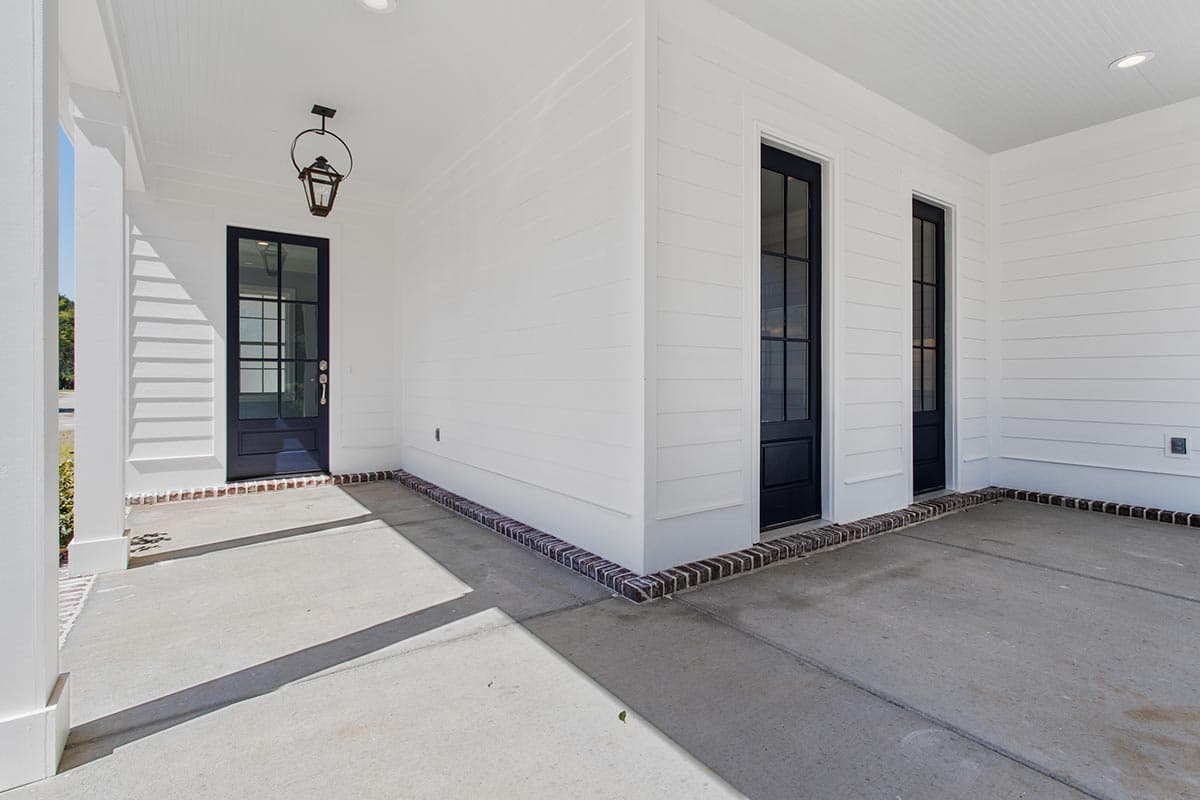

  • A wraparound porch supported by five pillars welcomes you home to this one-level Southern home plan, exclusive to Architectural Designs.

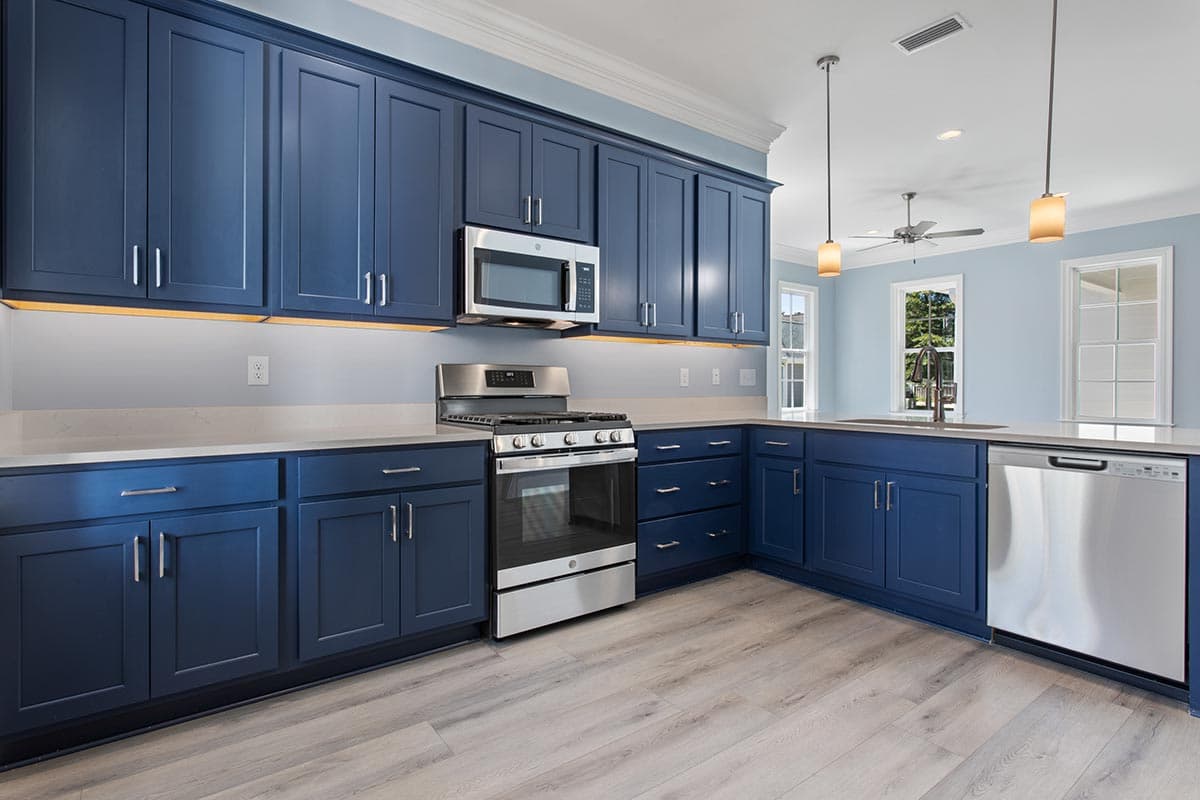

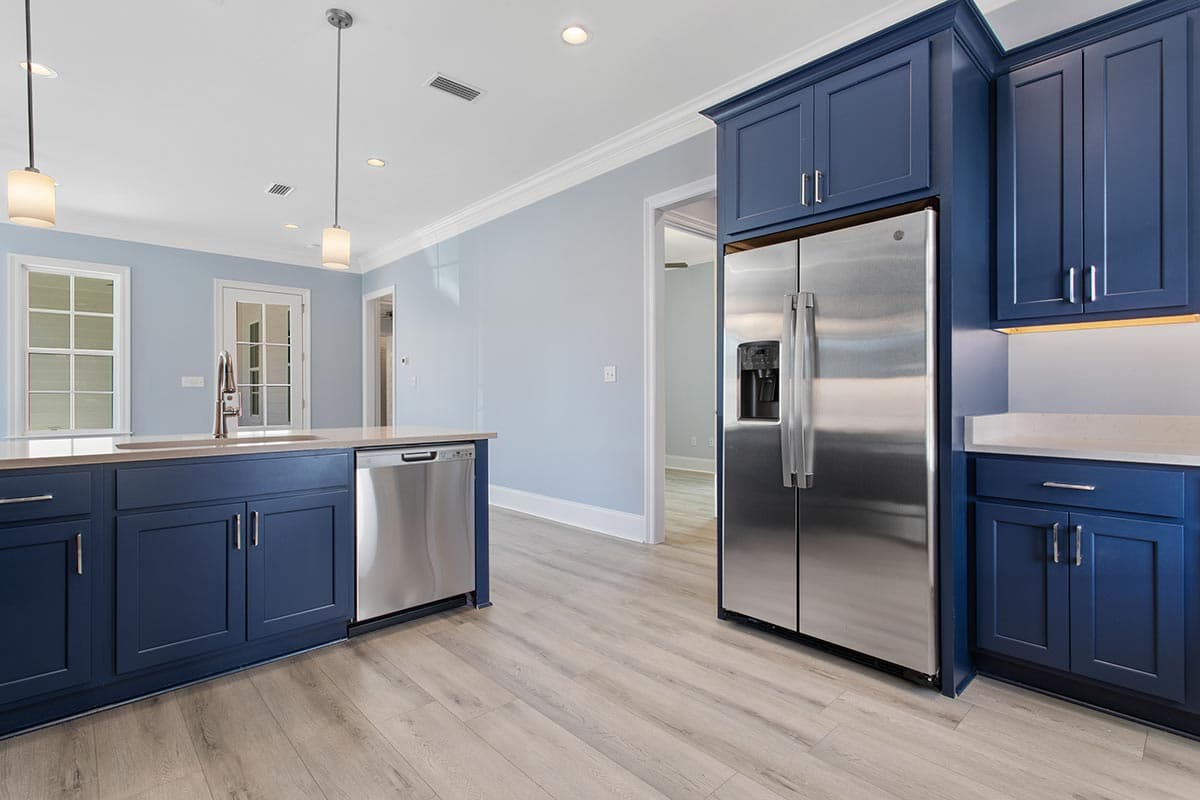

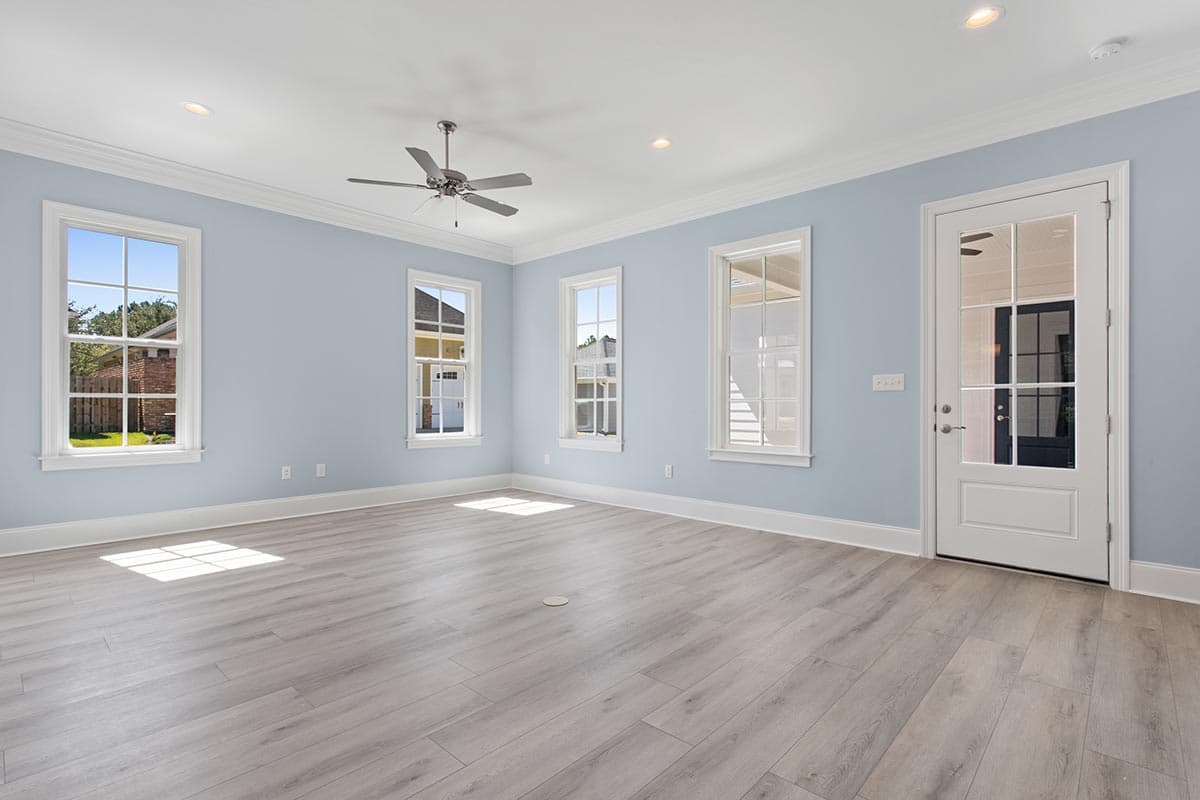

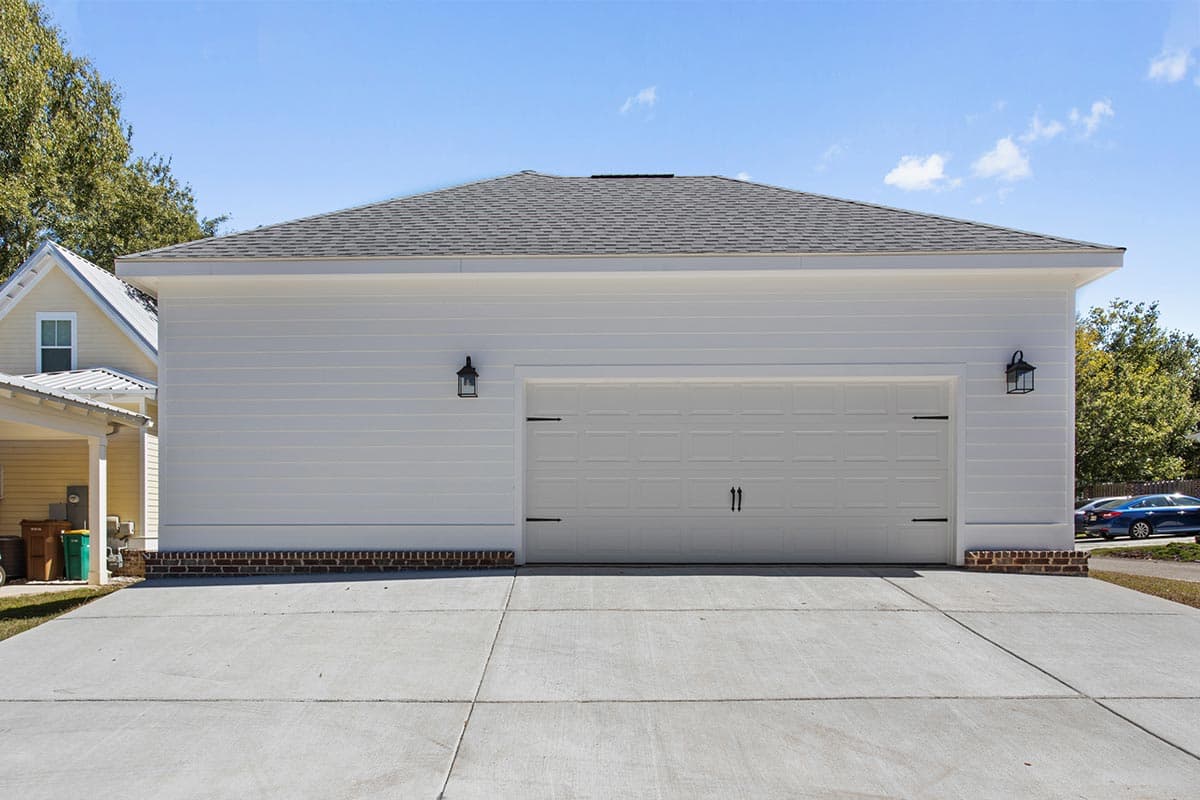

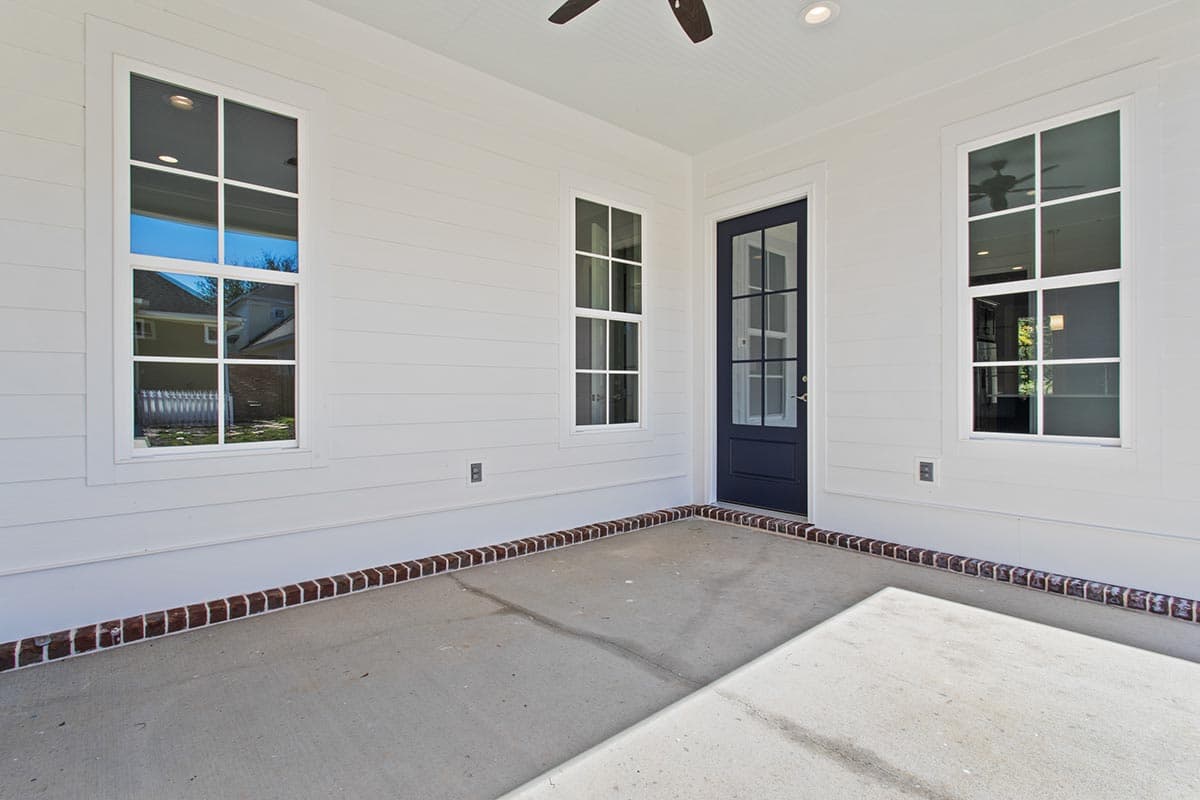

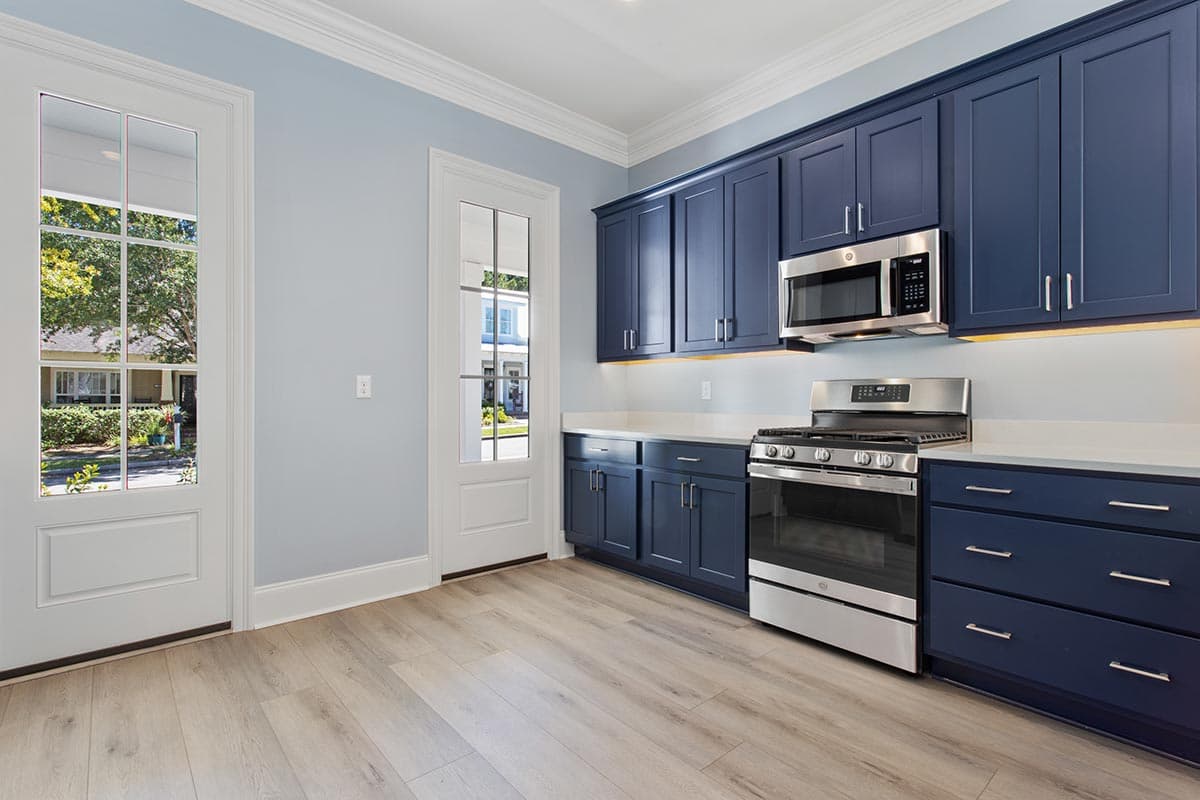

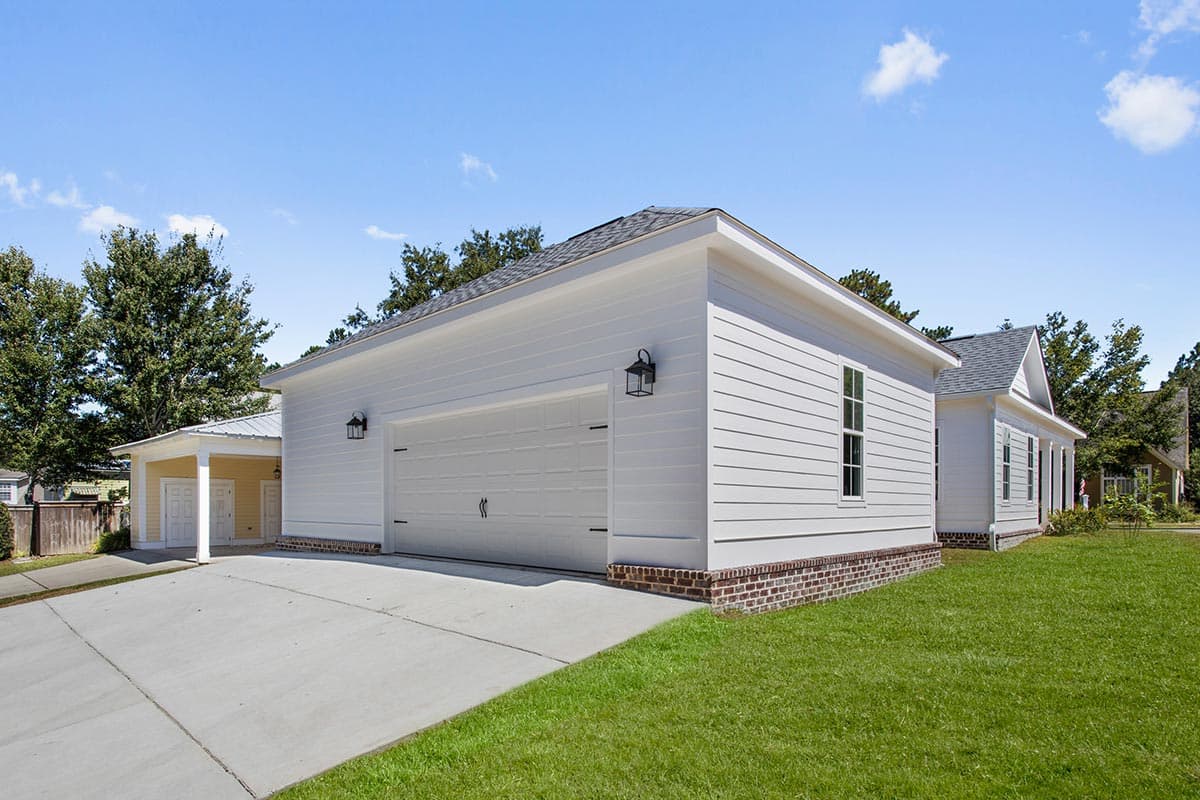

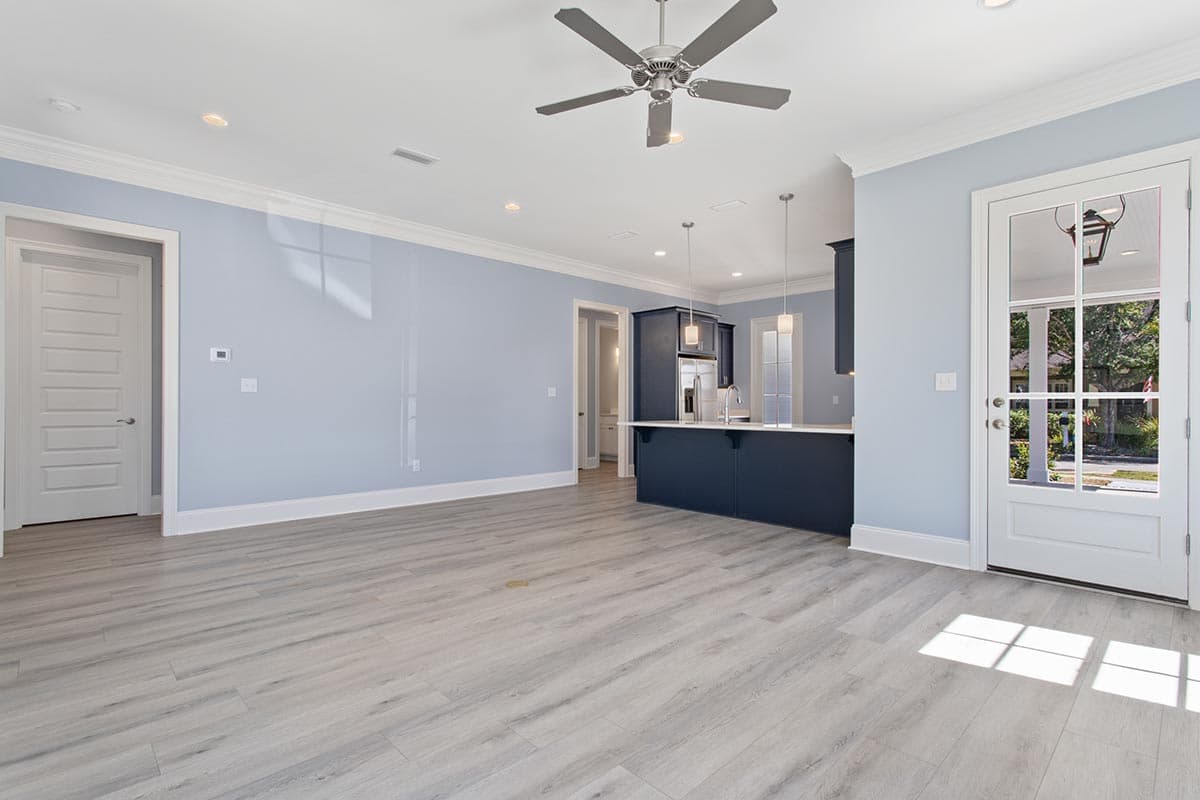

  • The heart of the home overlooks the front porch and freely flows into the attached dining and living areas. From here, you can access the side porch which connects to the 2-car garage with rear access.

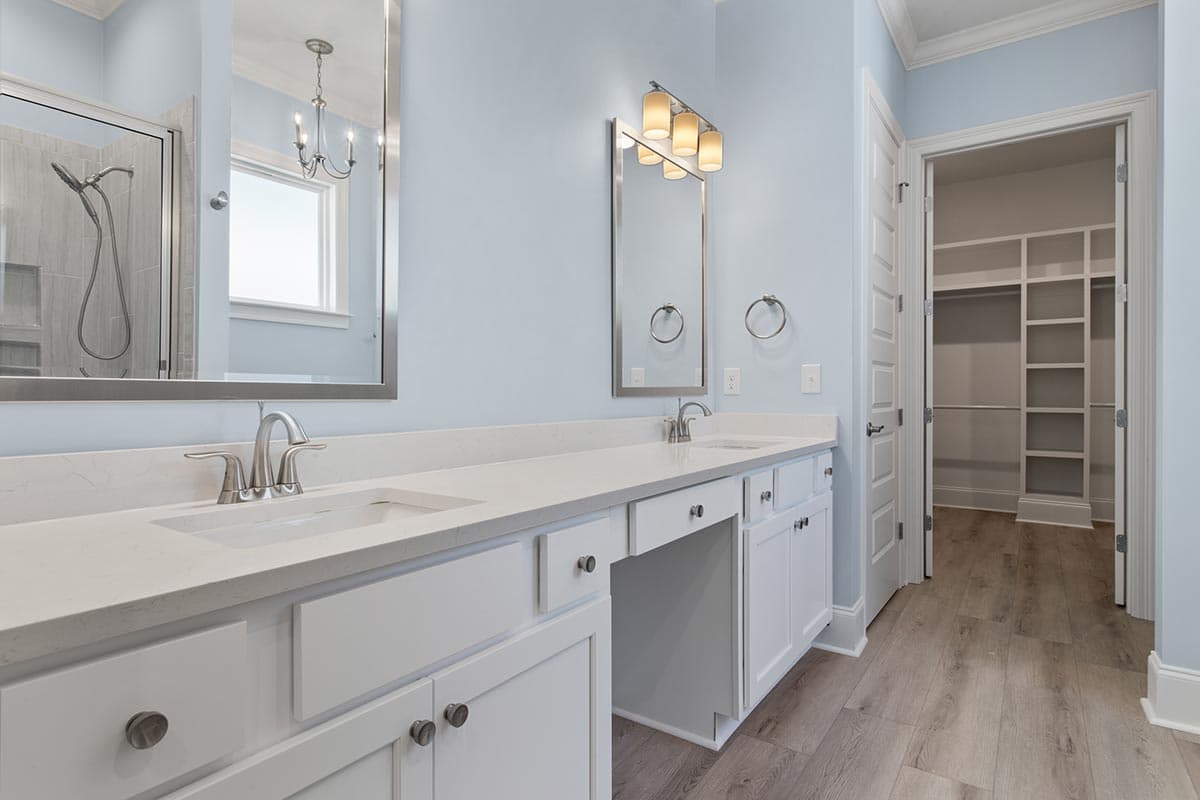

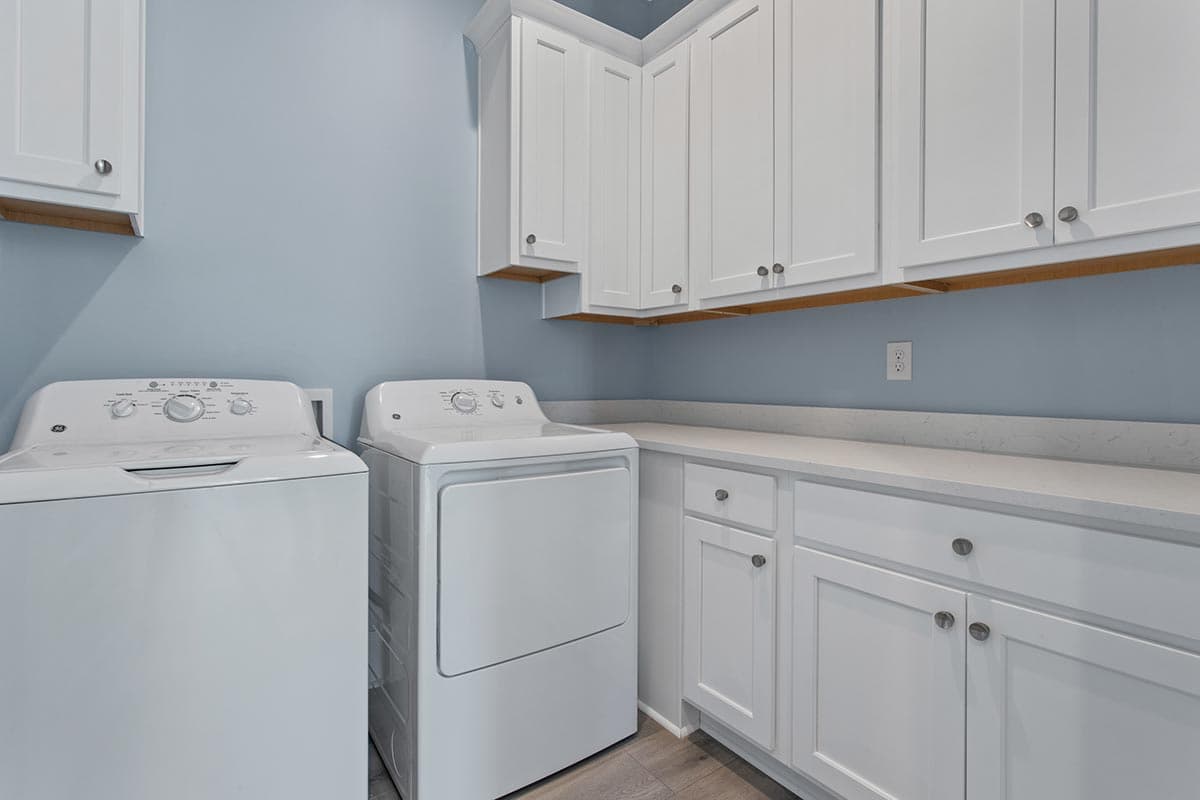

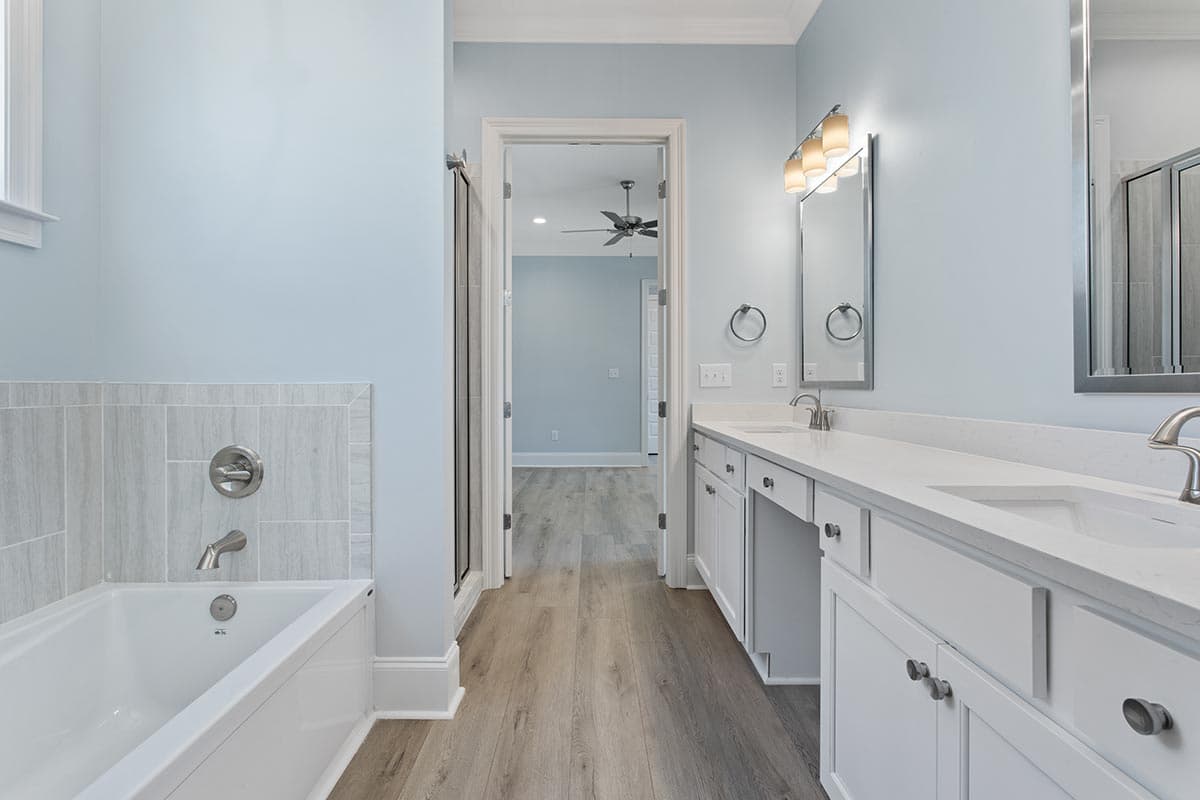

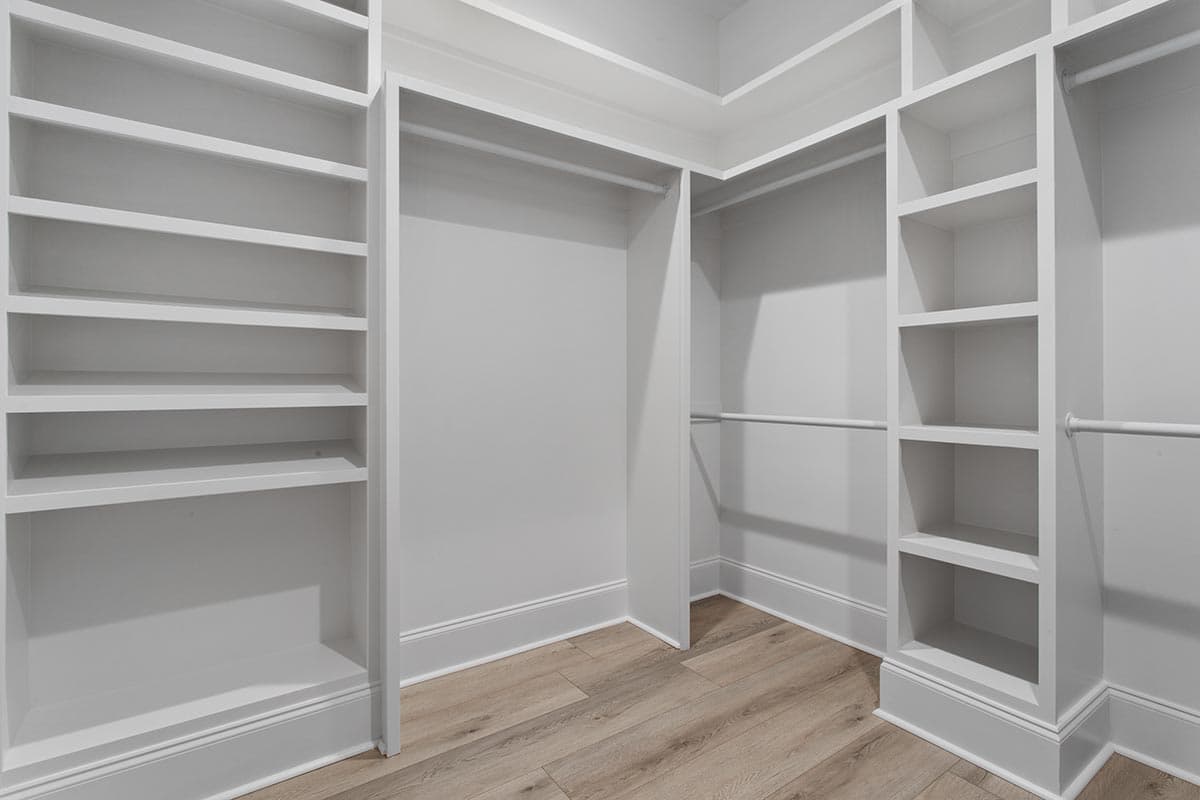

  • The master bedroom conveniently neighbors the laundry room and includes 5 fixtures in the attached bathroom, along with a roomy closet.

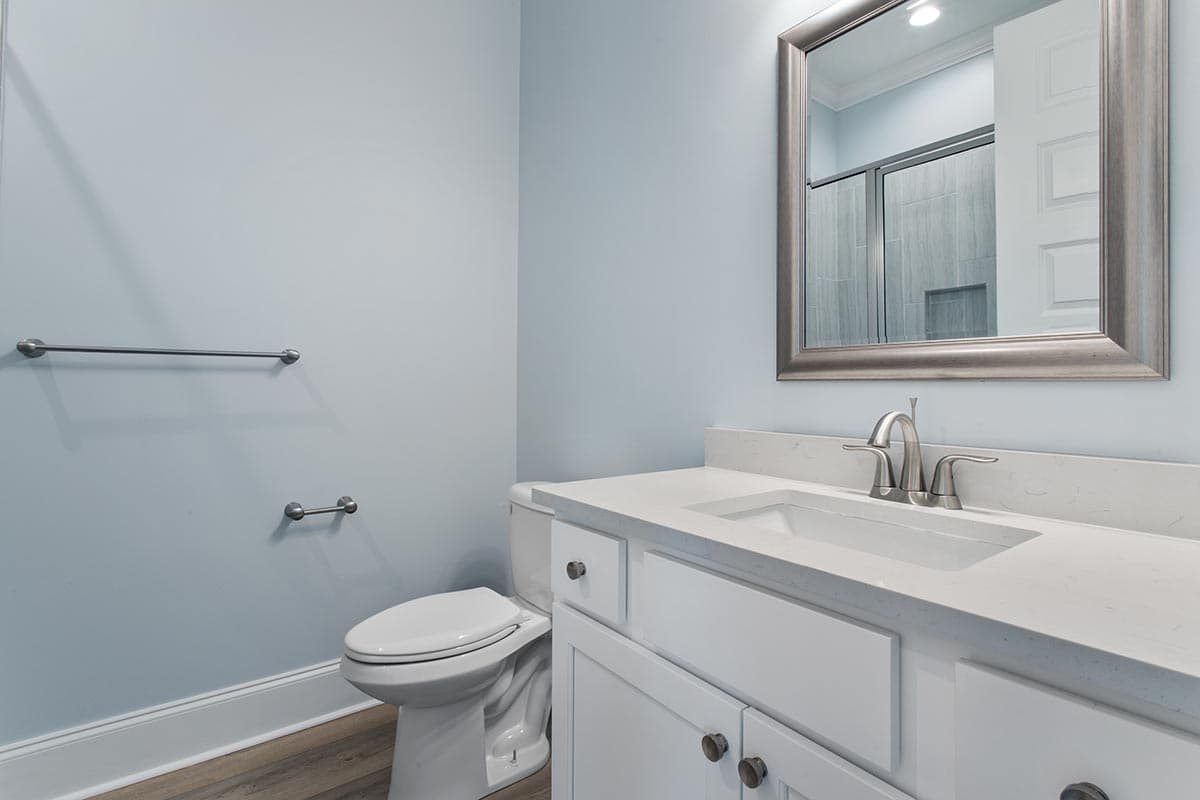

  • Bedrooms 2 and 3 are identical in size and separated by a full bathroom and linen closet.

  • Cover sheet
  • Foundation plan
  • Floor plan
  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

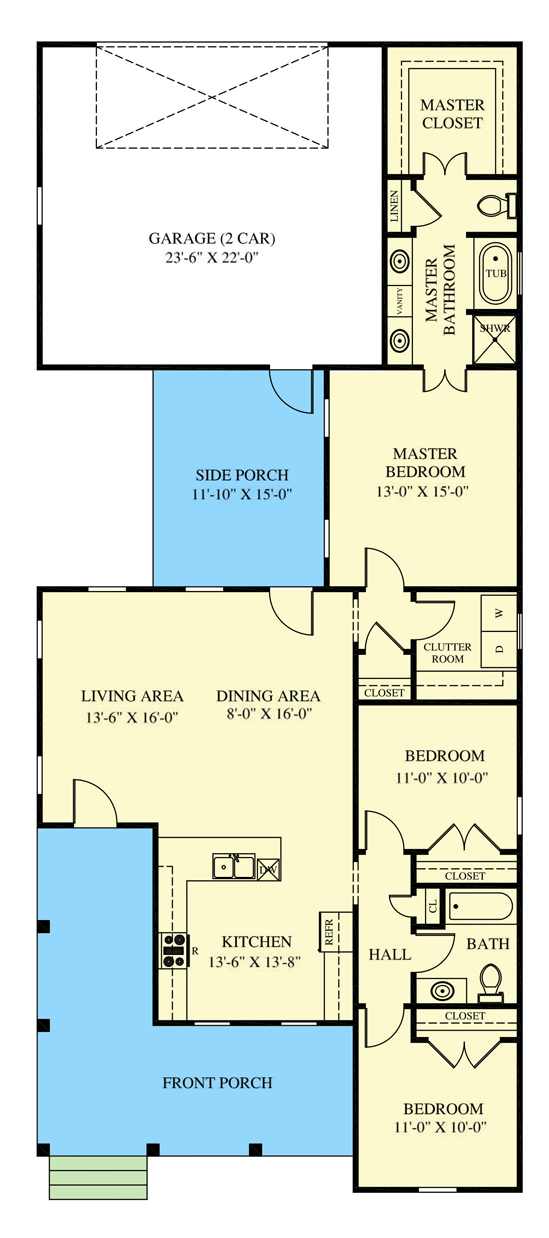

Exclusive One-level Southern Home Plan with Wraparound Porch - 521021TTL floor plan - Main Level

Plan details

Exclusive One-level Southern Home Plan with Wraparound Porch

  • 1,467

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets + PDF $1,500
  • PDF - Unlimited Build $1,950
  • CAD + PDF - Unlimited Build $2,250
  • View all purchase option online

About This Plan

  • A wraparound porch supported by five pillars welcomes you home to this one-level Southern home plan, exclusive to Architectural Designs.
  • The heart of the home overlooks the front porch and freely flows into the attached dining and living areas. From here, you can access the side porch which connects to the 2-car garage with rear access.
  • The master bedroom conveniently neighbors the laundry room and includes 5 fixtures in the attached bathroom, along with a roomy closet.
  • Bedrooms 2 and 3 are identical in size and separated by a full bathroom and linen closet.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,467 sq. ft.
  • 1st Floor: 1,467 sq. ft.
  • Porch, Combined: 484 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 34' 4"
  • Depth: 80' 4"

Garage

  • Type: Attached
  • Area: 539 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Stick And Truss
