Exclusive One-story Craftsman Home Plan with Angled 3-Car Garage
Heated S.F.
1,851
Beds
1-4
Baths
1.5 - 3.5
Stories
1
Cars
3
Flyer
What's Included
Plan Details
  • An oversized 3-car garage is set at an angle to the main portion of this Exclusive one-story Craftsman home plan. Designed with a single bedroom on the main floor, it comes with an optional finished lower level giving you three more bedrooms and a family room as well.
  • The foyer opens to the great room with fireplace and views to the back. This room opens to the kitchen with its large island with two sinks on one side and seating for up to 4 on the other. A large walk-in pantry gives you great  storage.
  • A formal dining room has views to the back and access to a covered patio.
  • The right side of the home is dedicated to the master suite with a five-fixture bath and a large walk-in closet.
  • Other amenities include a pocket office hidden behind a barn door, a large mudroom with built-ins and a handy laundry room.
  • Finish the lower level - included with the plans - and get 3 more bedrooms, 2 additional full baths and more expansion space.
What's Included
This house plan includes the following details:
  • Project Overview
  • General Specifications

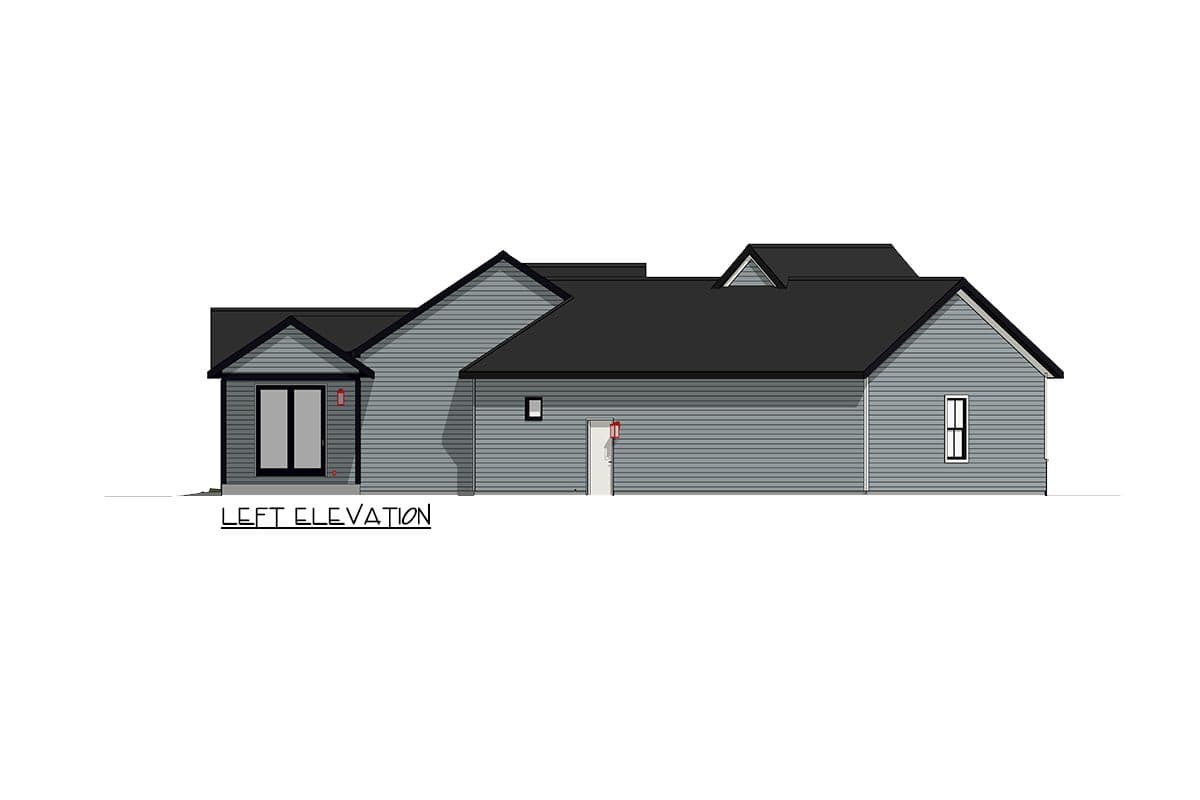

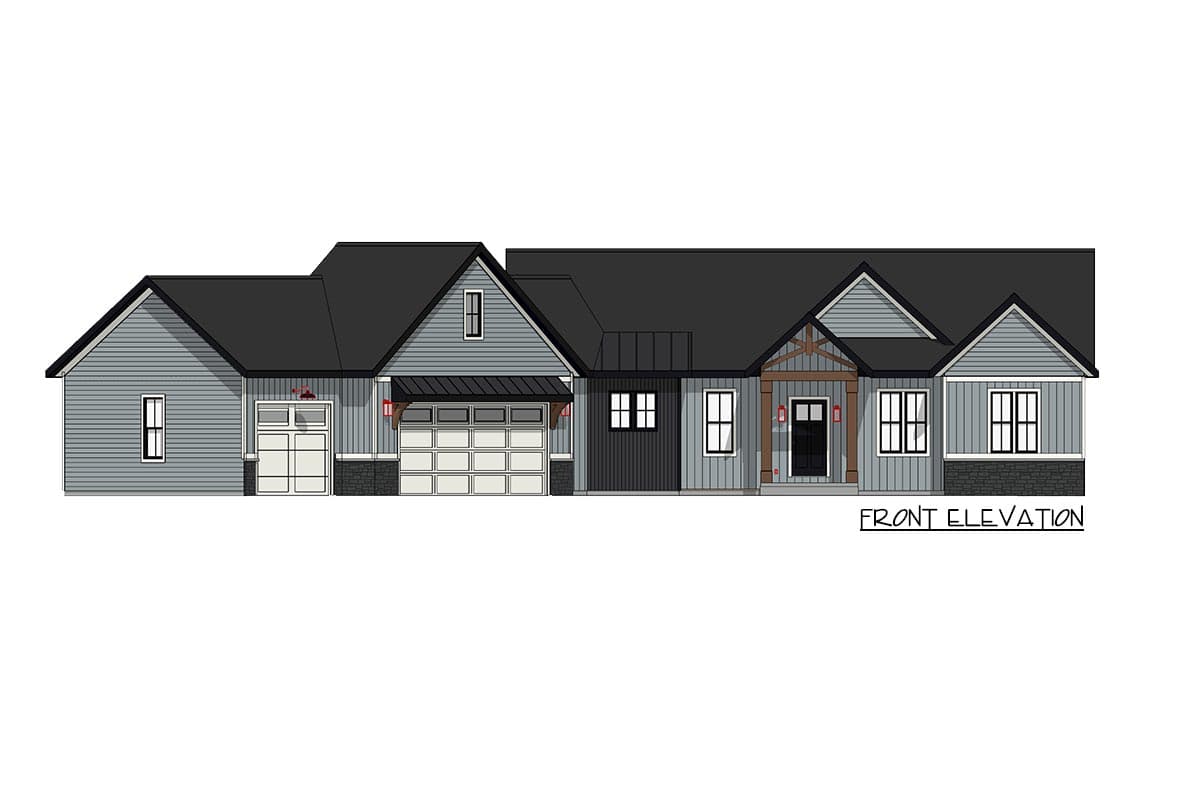

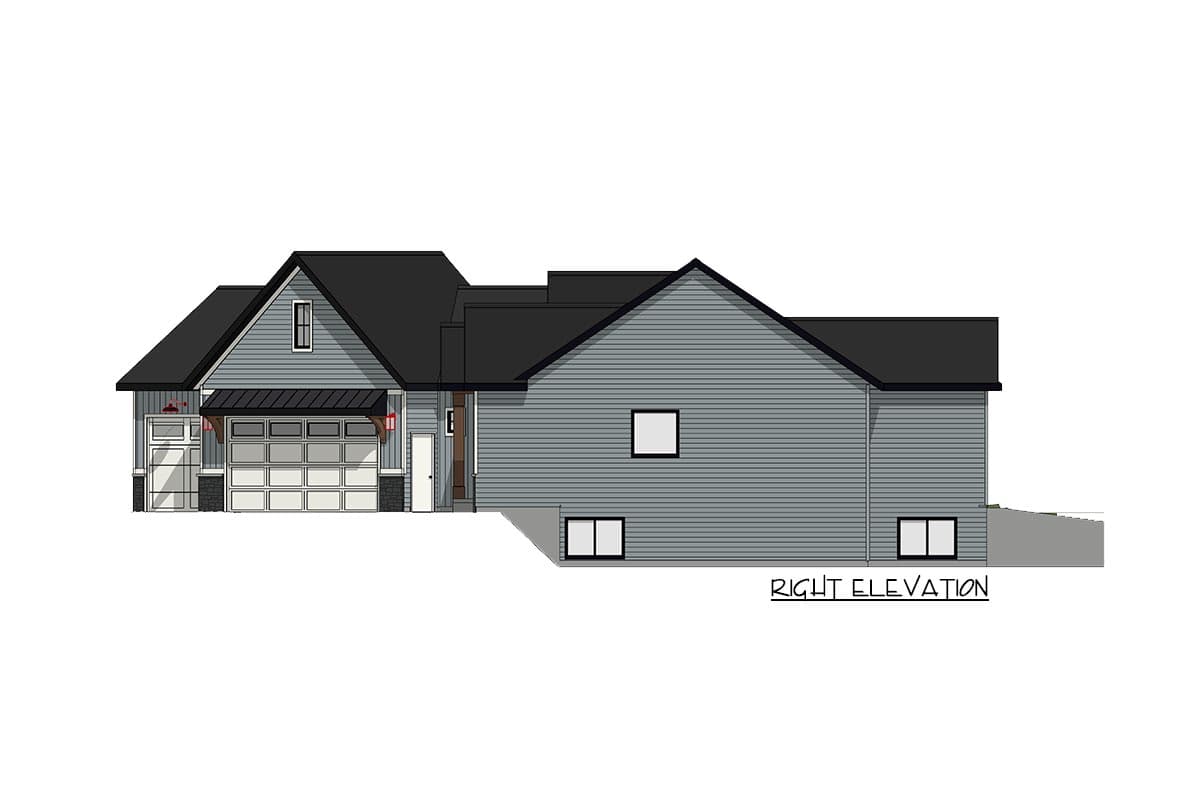

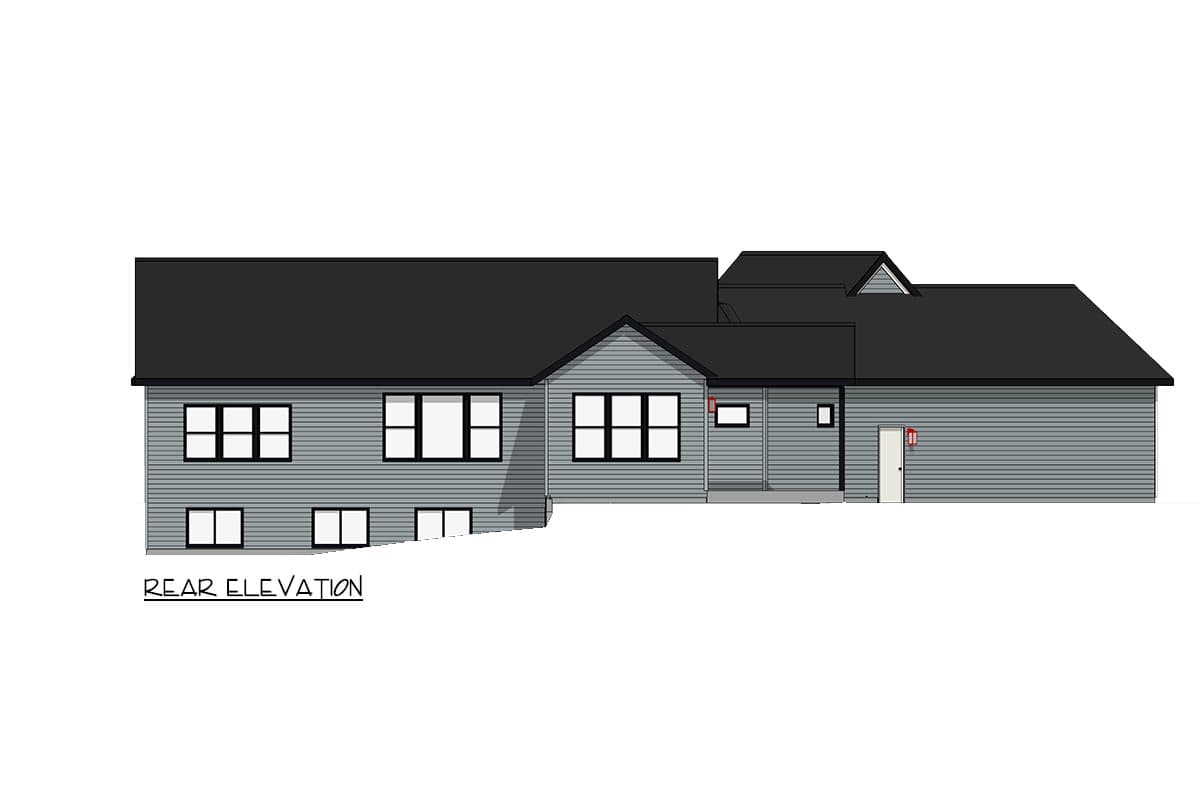

  • Exterior Elevations
  • Roof Layout Plan
  • Foundation Plan Details

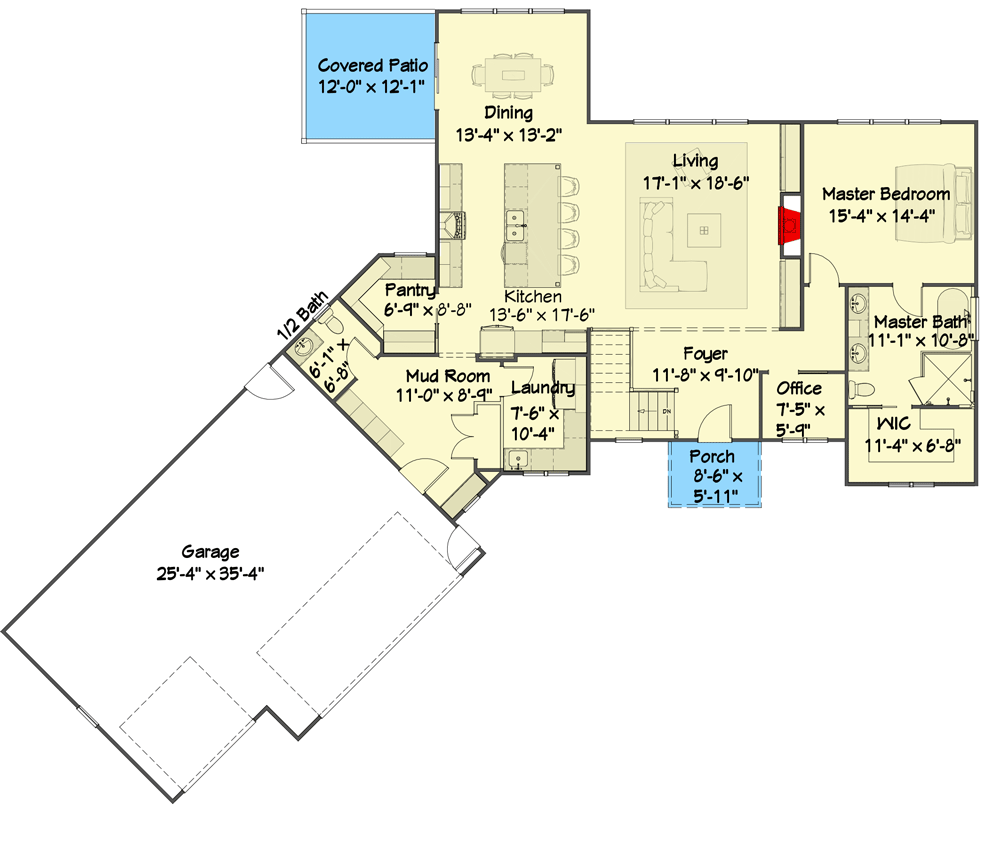

  • Floor plan
  • Floor framing
  • Framing Cross Section Details
  • Electrical Plan
  • Kitchen & Bath Cabinet Elevations

What is NOT included in the plans:
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive One-story Craftsman Home Plan with Angled 3-Car Garage

  • 1,851

    Heated s.f.

  • 1-4

    Beds

  • 1.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

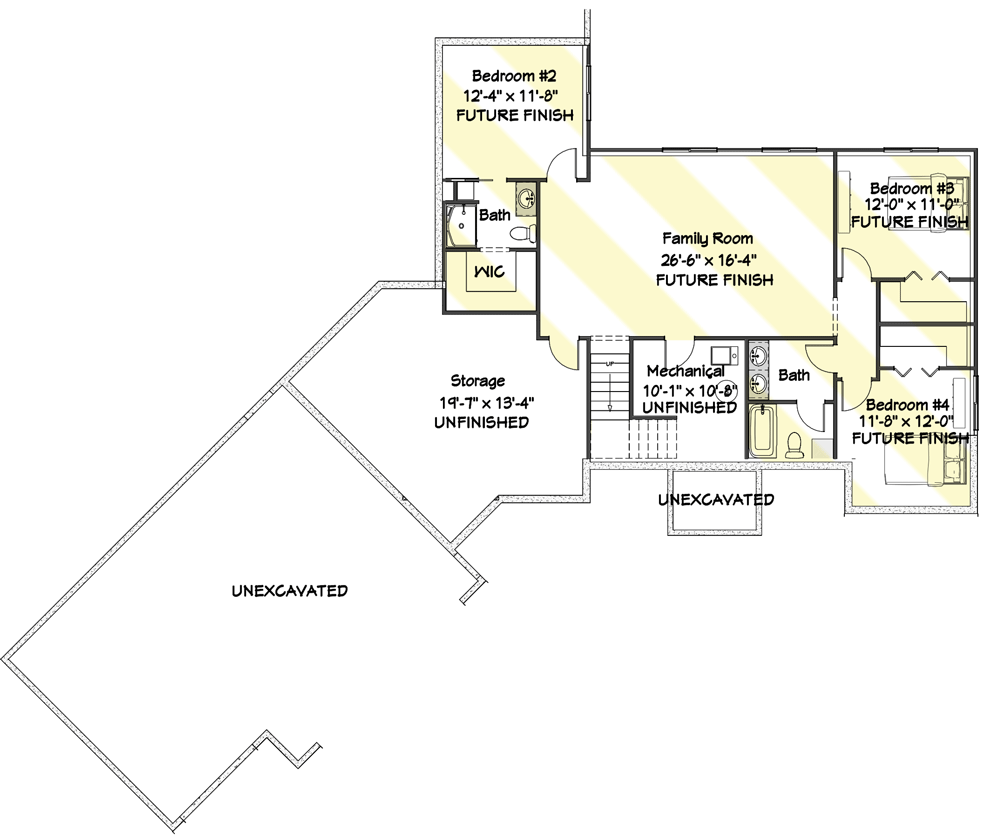

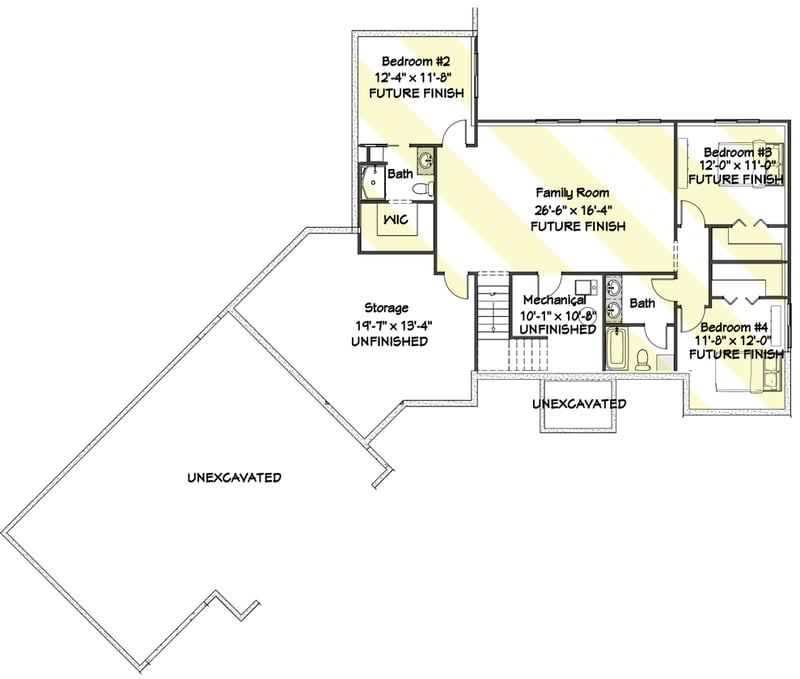

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,851 sq. ft.
  • Lower Level: 1,259 sq. ft.
  • 1st Floor: 1,851 sq. ft.

Dimensions

  • Width: 88' 1"
  • Depth: 77' 8"
  • Max ridge height: 20' 6"

Beds/Baths

  • Bedrooms: 1, 2, 3, or 4
  • Full bathrooms: 1, 2, or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 884 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 0' 8" First Floor / 0' 9"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 11 on 12
  • Framing Type: Truss
