Exclusive One-Story New American House Plan with Vaulted Great Room

Pageloader

Exclusive One-Story New American House Plan with Vaulted Great Room

Plan 871001NST

  • 1,892

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • A standing seam hipped roof and board and batten siding combine to give this one-story Exclusive New American house plan great curb appeal.
  • Step in off the front porch and you are greeted with views of the vaulted great room to the wall in back. The great room shares an open space with the kitchen and gives you a great space to enjoy with friends. Two sets of sliding doors open to the side porch.
  • The master bedroom is located in back and has its own private covered porch. Two walk-in closets and a four-fixture bath complete the suite.
  • A second bedroom has views to the front and the side and has use of the hall bath.
  • The home gives you all the conveniences of one-story living and is designed for aging in place and gives you wider doorways and a complete absence of stairs or elevation changes.
  • A mudroom connects the home to the 2-car side-load garage. A bay window gives you a place to set up a workbench and extra storage.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Plan details



Exclusive One-Story New American House Plan with Vaulted Great Room

  • 1,892

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,195
  • CAD $1,995
  • View all purchase option online

About This Plan

  • A standing seam hipped roof and board and batten siding combine to give this one-story Exclusive New American house plan great curb appeal.
  • Step in off the front porch and you are greeted with views of the vaulted great room to the wall in back. The great room shares an open space with the kitchen and gives you a great space to enjoy with friends. Two sets of sliding doors open to the side porch.
  • The master bedroom is located in back and has its own private covered porch. Two walk-in closets and a four-fixture bath complete the suite.
  • A second bedroom has views to the front and the side and has use of the hall bath.
  • The home gives you all the conveniences of one-story living and is designed for aging in place and gives you wider doorways and a complete absence of stairs or elevation changes.
  • A mudroom connects the home to the 2-car side-load garage. A bay window gives you a place to set up a workbench and extra storage.

Floor Plans

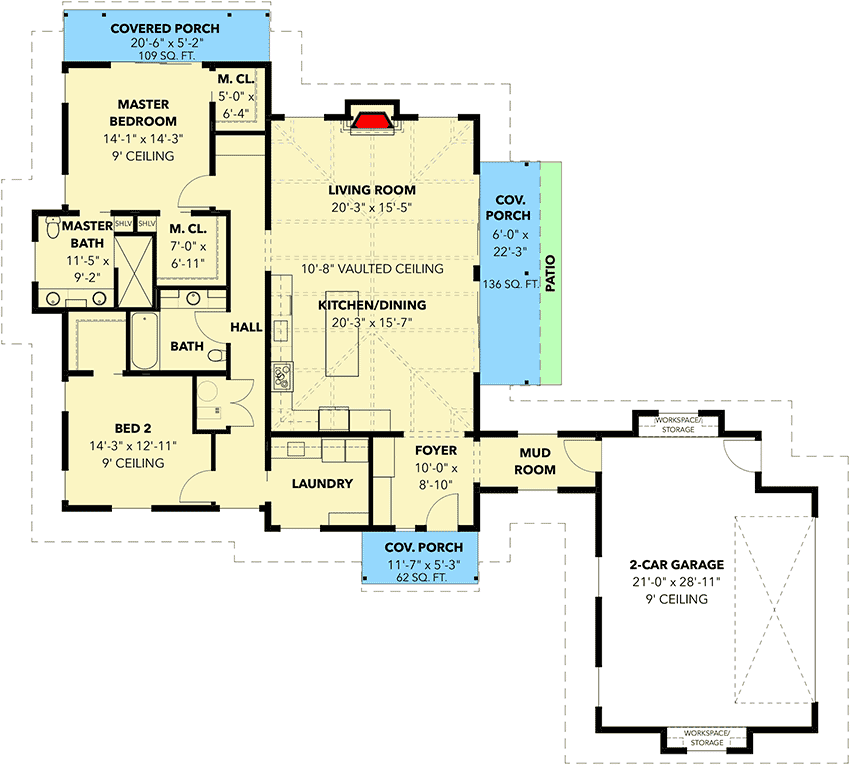

  • Main Level
