Plan 61275UT Exclusive Ranch Home Plan with 3-Bed Apartment Downstairs

Exclusive Ranch Home Plan with 3-Bed Apartment Downstairs

Plan 61275UT

  • 2,296

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • This exclusive, Ranch home plan showcases a multitude of forward-facing gables on the stunning front elevation and delivers a 3-bedroom apartment downstairs with private exterior access.
  • On the main level, the open family, dining, and kitchen areas help when hosting large gatherings, and easy access to the oversized covered deck expands living space when entertaining.
  • The sizable master suite features a rear wall of windows and includes a 5-fixture bath with a bidet and a walk-in closet. Bedrooms 2 and 3 reside across the hall and share a compartmentalized bath.
  • A home office completes the main level, while downstairs offers a theater and exercise room.
  • The lower level apartment mimics the floor plan of upstairs and features storage space, laundry, and a pantry. A single garage bay provides a second set of stairs that leads directly to the apartment if used as an income property.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

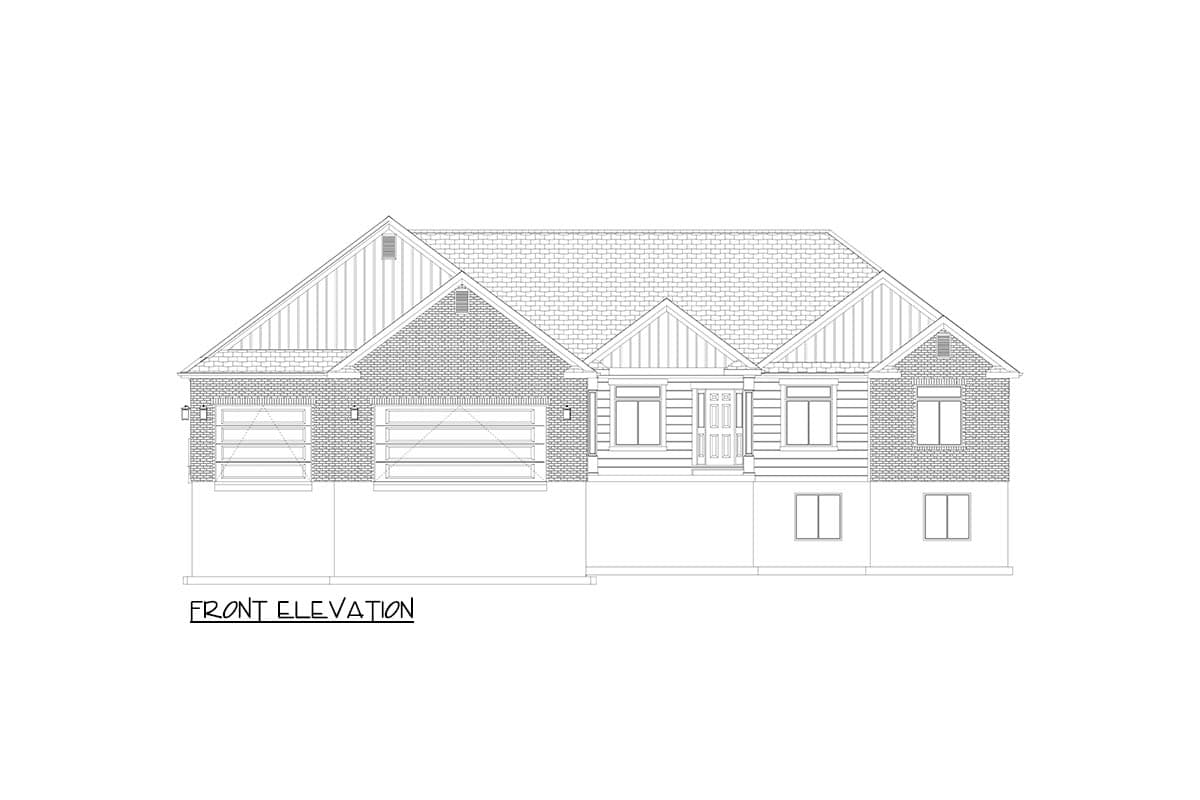

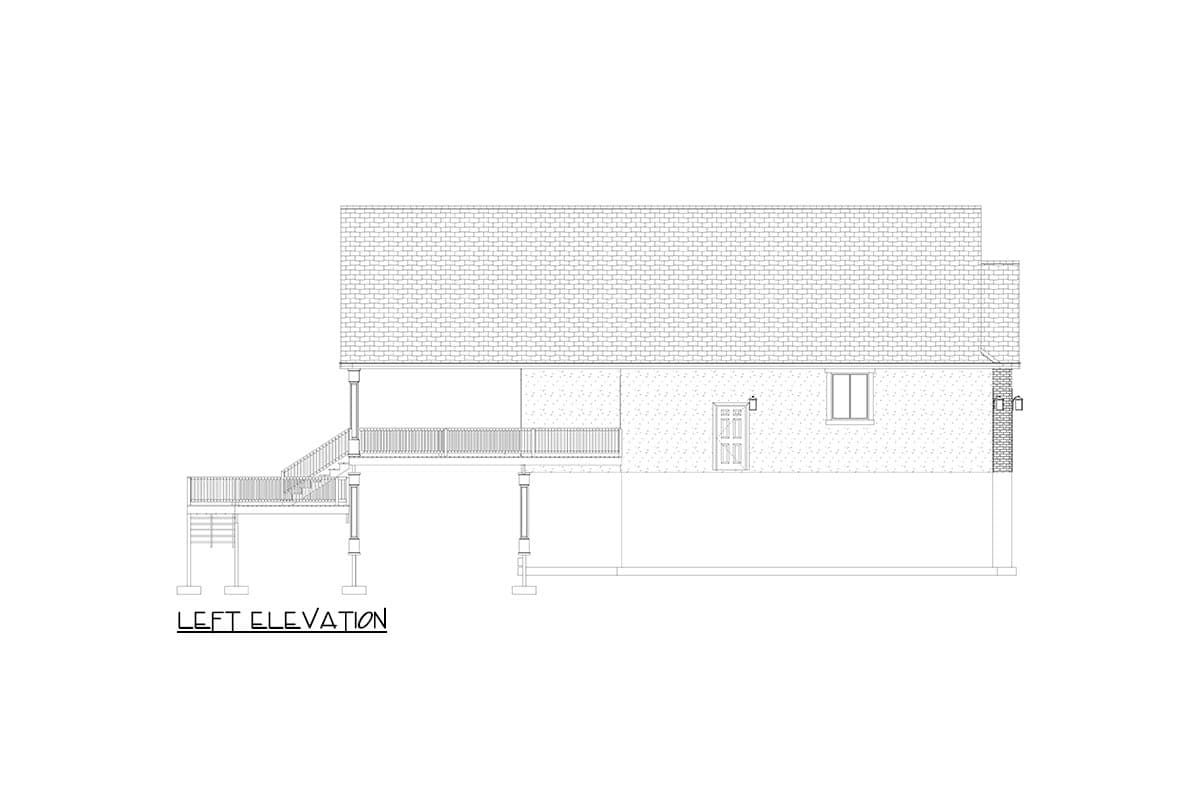

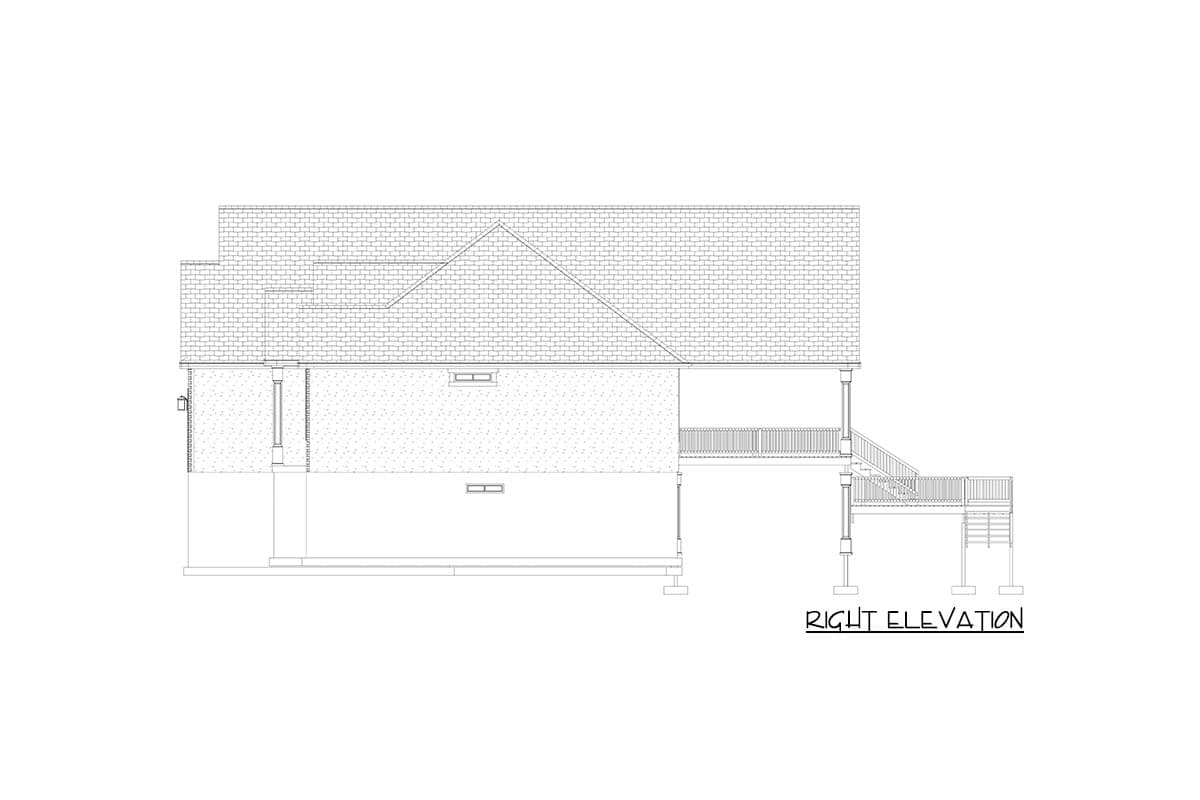

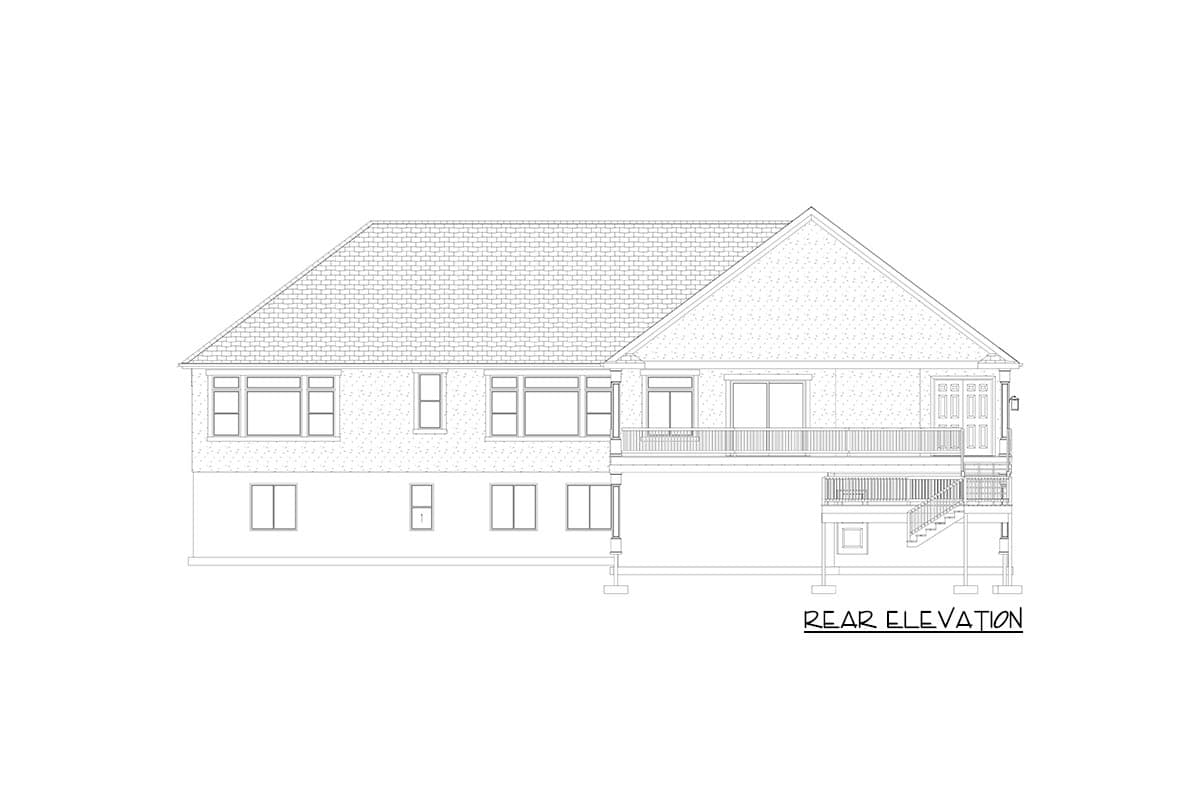

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

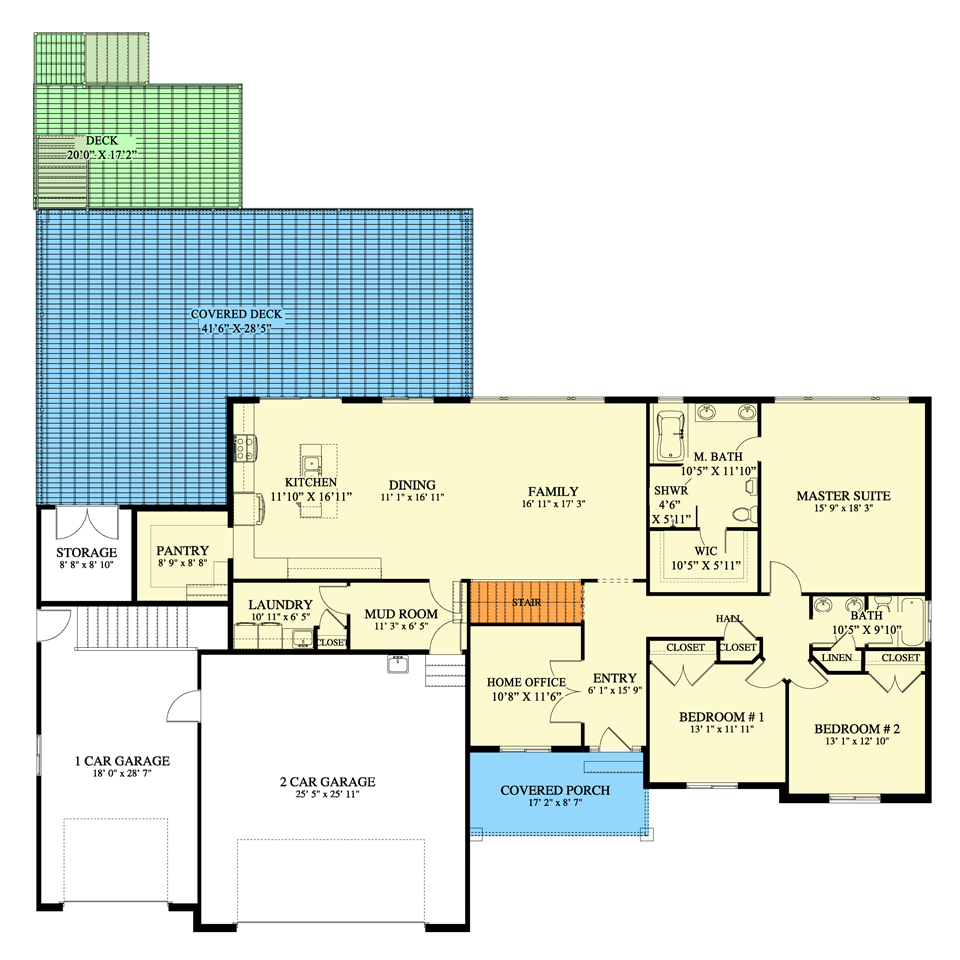

Exclusive Ranch Home Plan with 3-Bed Apartment Downstairs - 61275UT floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

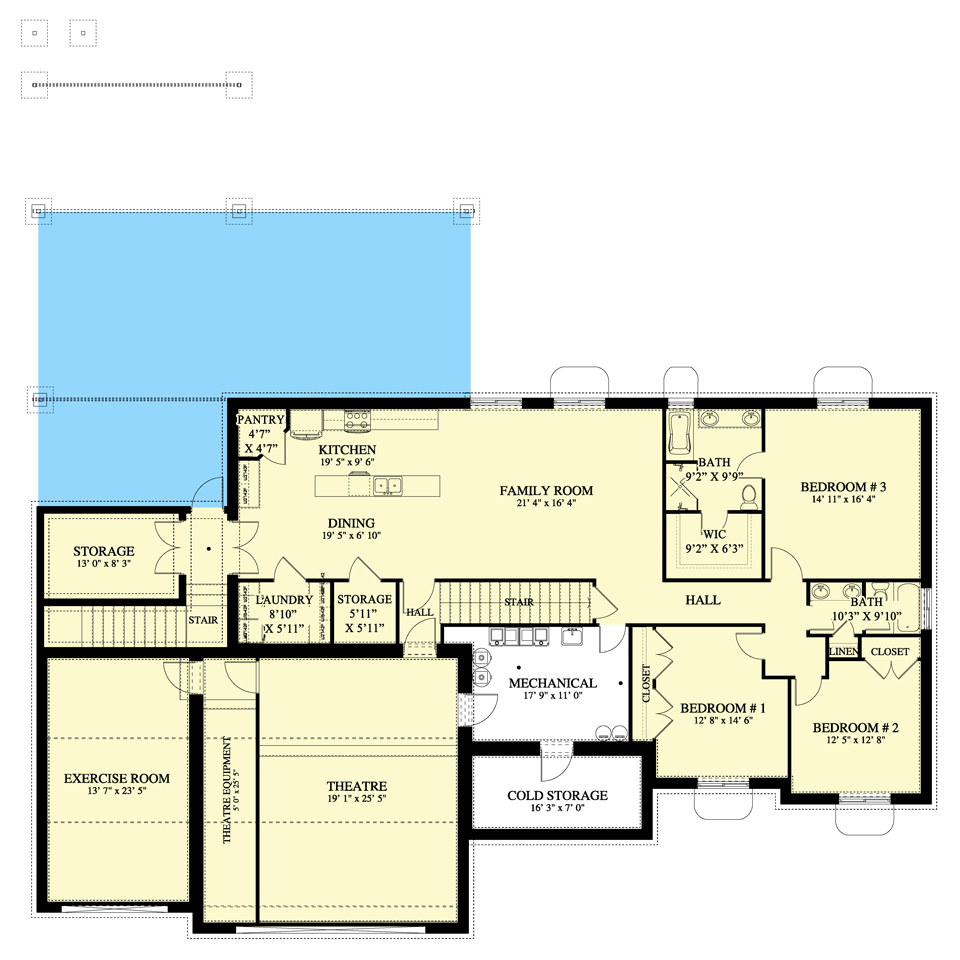

Exclusive Ranch Home Plan with 3-Bed Apartment Downstairs - 61275UT floor plan - Basement

Plan details

Exclusive Ranch Home Plan with 3-Bed Apartment Downstairs

  • 2,296

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $995
  • PDF - Unlimited Build $1,050
  • 5 Sets + PDF $1,200
  • CAD - Unlimited Build $18,505
  • View all purchase option online

About This Plan

  • This exclusive, Ranch home plan showcases a multitude of forward-facing gables on the stunning front elevation and delivers a 3-bedroom apartment downstairs with private exterior access.
  • On the main level, the open family, dining, and kitchen areas help when hosting large gatherings, and easy access to the oversized covered deck expands living space when entertaining.
  • The sizable master suite features a rear wall of windows and includes a 5-fixture bath with a bidet and a walk-in closet. Bedrooms 2 and 3 reside across the hall and share a compartmentalized bath.
  • A home office completes the main level, while downstairs offers a theater and exercise room.
  • The lower level apartment mimics the floor plan of upstairs and features storage space, laundry, and a pantry. A single garage bay provides a second set of stairs that leads directly to the apartment if used as an income property.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,296 sq. ft.
  • 1st Floor: 2,296 sq. ft.
  • Basement Unfinished: 3,690 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6
  • Optional Type(s): 2x6

Dimensions

  • Width: 86' 0"
  • Depth: 51' 5"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 1248 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
