Plan 64507SC Exclusive Ranch Home Plan with Walk-Out Basement Option

2,716 3-4 2.5 - 4.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

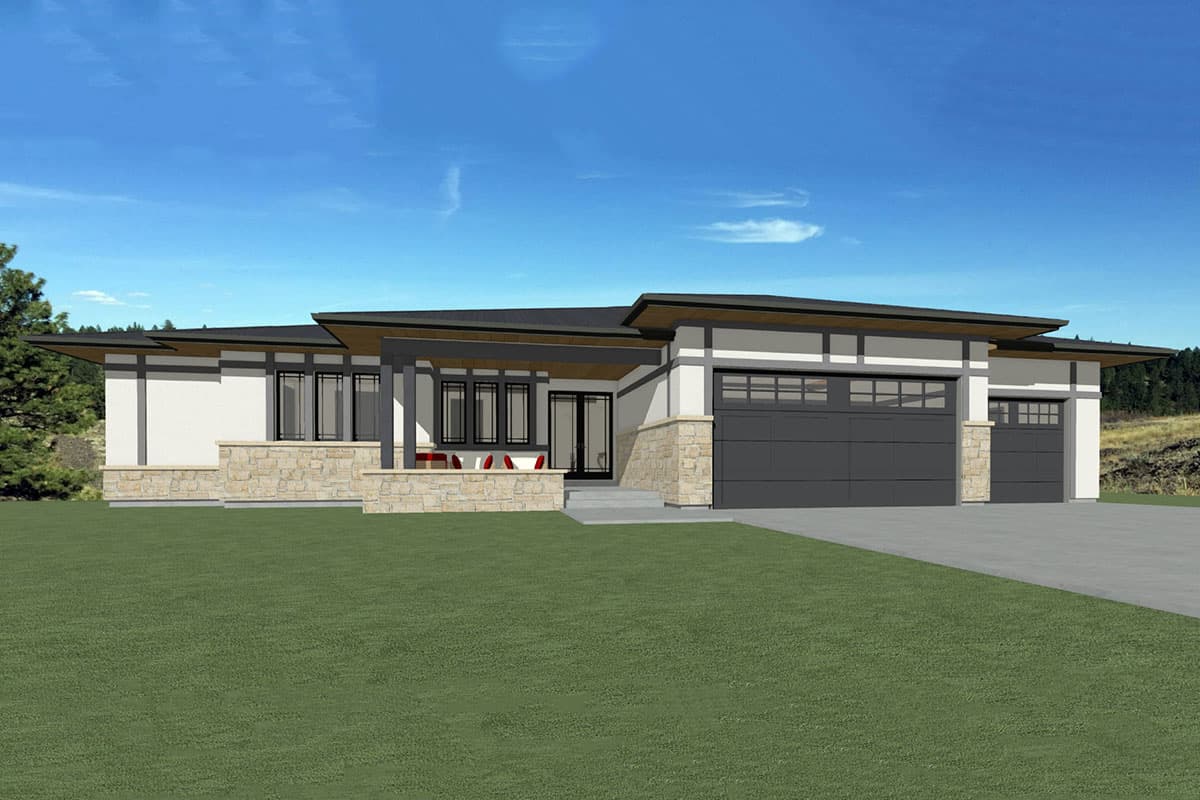

Exclusive Ranch Home Plan with Walk-Out Basement Option

Plan 64507SC

  • 2,716

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • The flexible design of this exclusive, ranch home plan offers 3 bedrooms on the main level, along with up to 4 additional bedrooms in the optional walk-out basement.
  • Get to your know your neighbors from the nearly 10'-deep front porch, that opens into a foyer with exposed beams. Towards the rear of the home, a coffered ceiling helps define the living room amongst the open floor plan, and the oversized sliding door creates a seamless flow between the indoor and outdoor spaces.
  • The rectangular kitchen is anchored by an L-shaped island with seating for six which opens to the spacious dining room.
  • The deluxe master bedroom occupies the right side of the home, and is joined by a 5-fixture bathroom with a dresser island in the closet. Bedrooms 2 and 3 round out the main level, and share a Jack-and-Jill bath. One of the family bedrooms offers access to the back covered deck.
  • The optional lower level nearly doubles the square footage, and includes a spacious recreation room with a wet bar, that extends outdoors onto a covered patio. Four rooms can be used for a variety of purposes; bedrooms, exercise, storage, etc.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

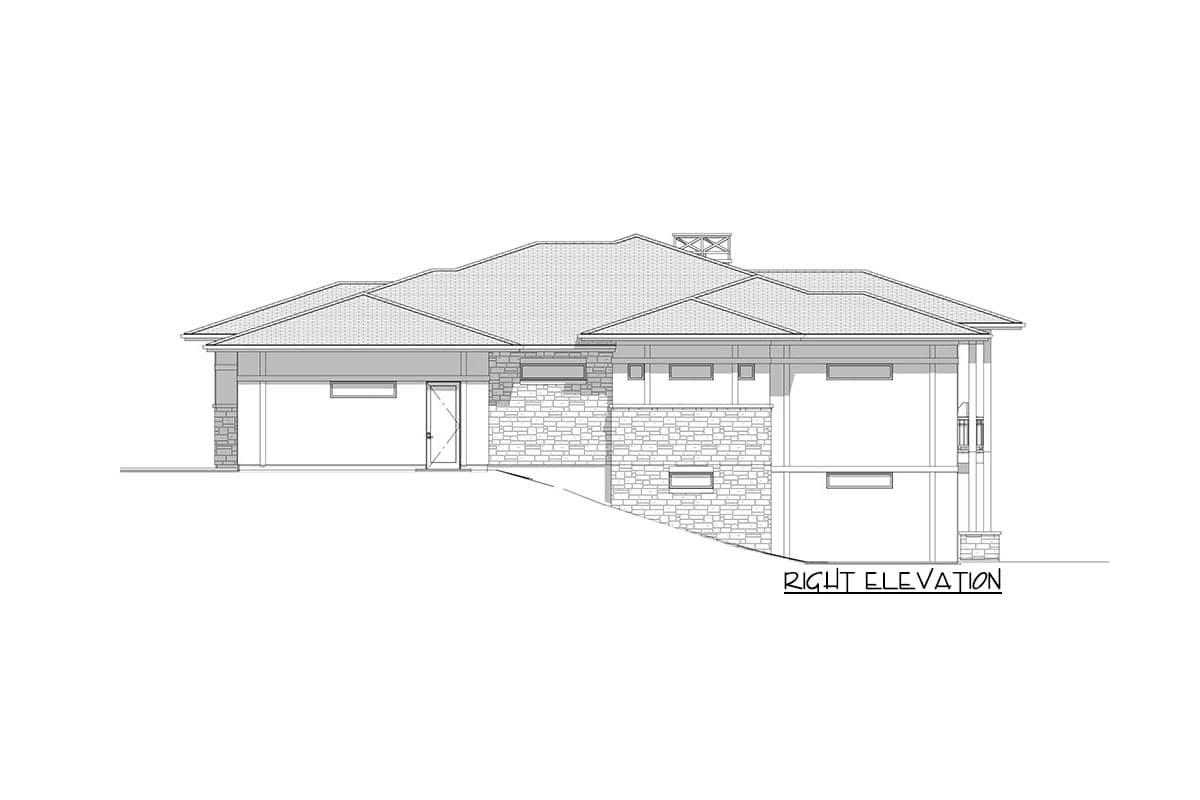

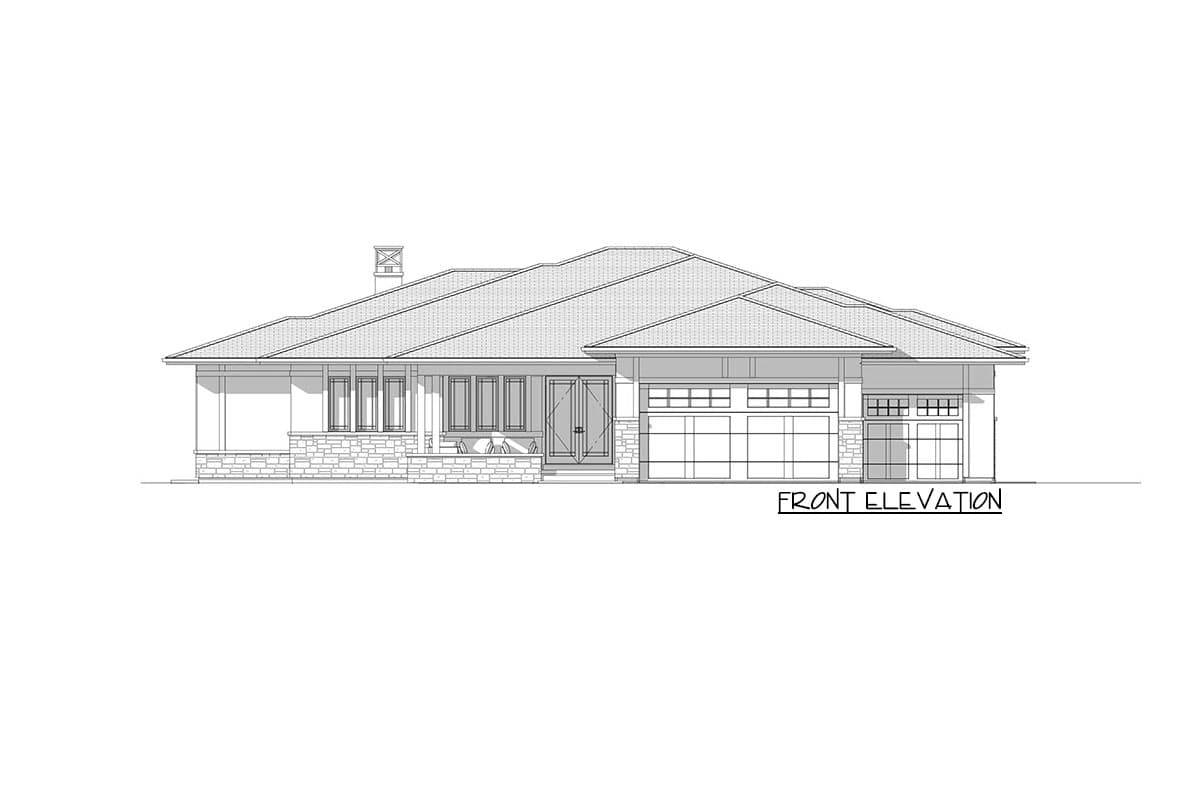

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

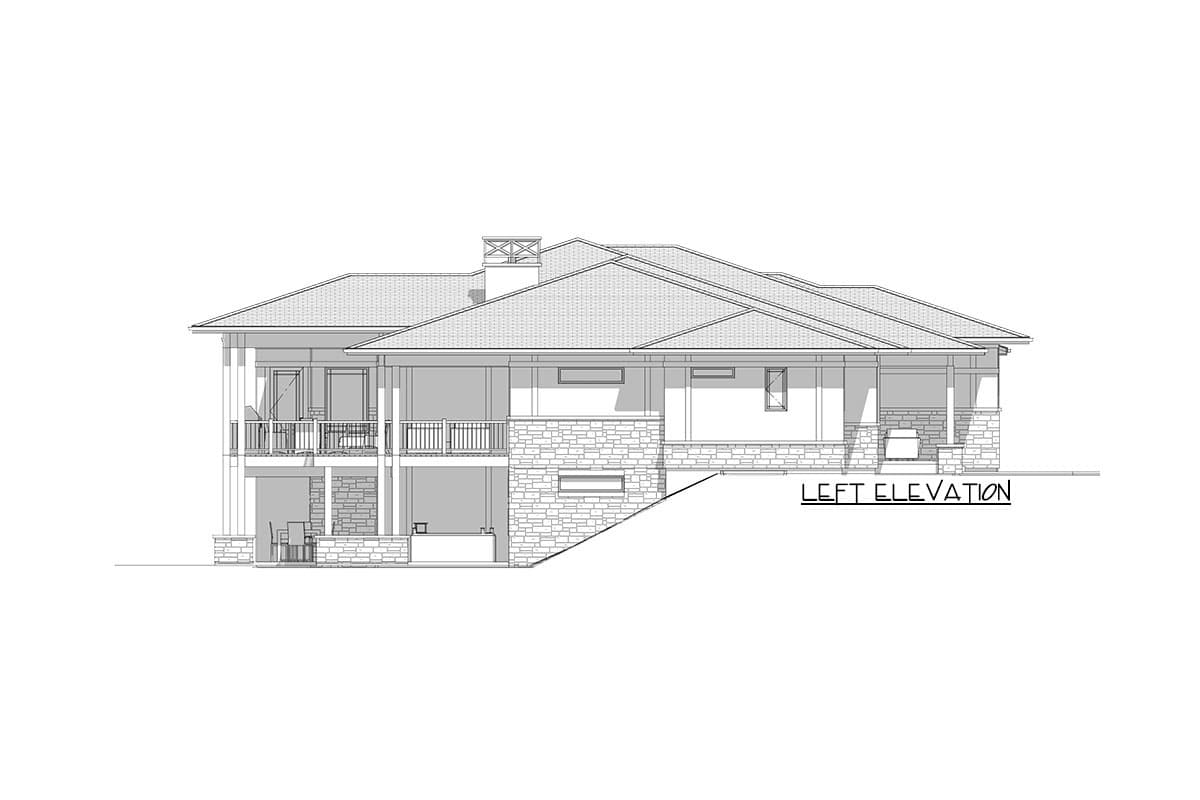

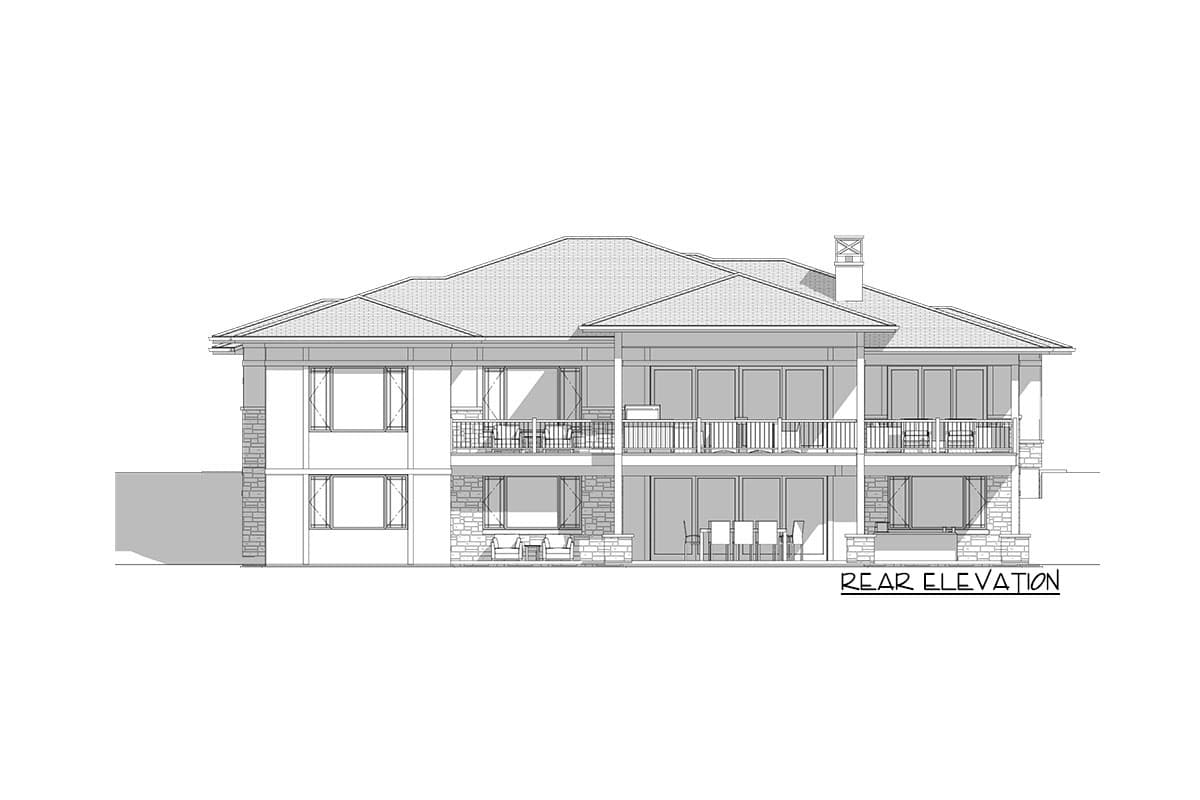

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

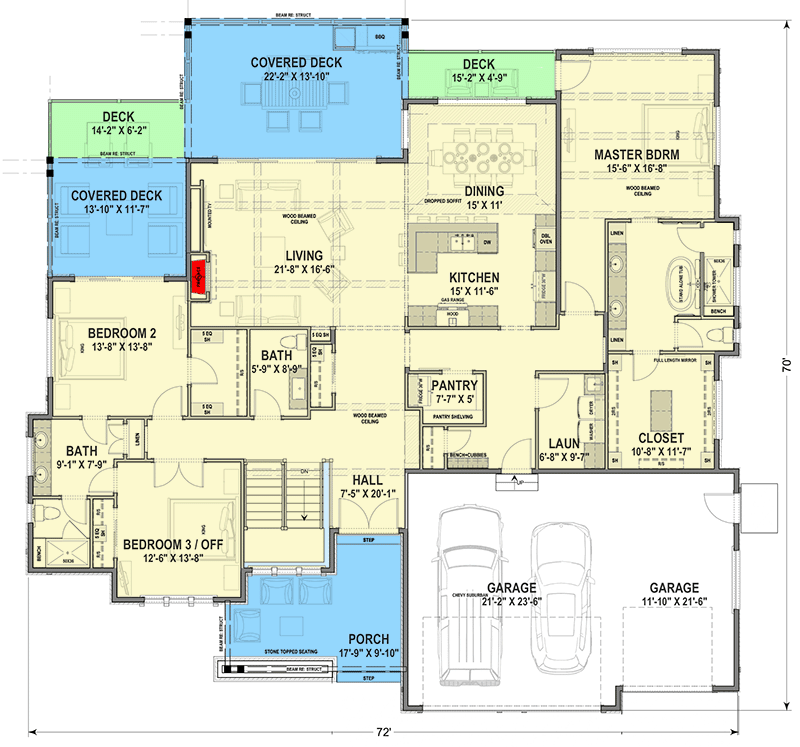

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Ranch Home Plan with Walk-Out Basement Option - 64507SC floor plan - Main Level

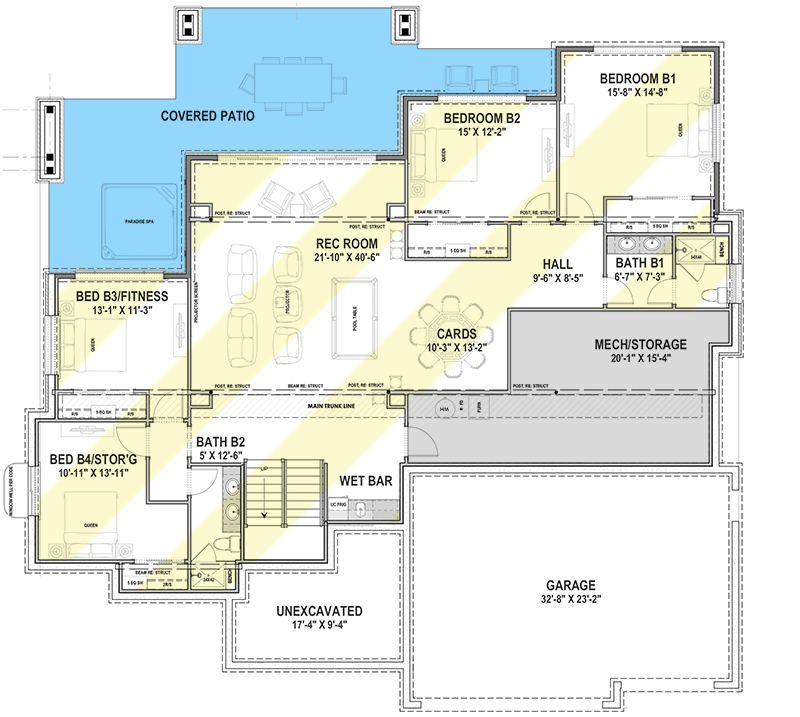

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Ranch Home Plan with Walk-Out Basement Option - 64507SC floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,716 sq. ft.
  • 1st Floor: 2,716 sq. ft.
  • Covered Patio: 660 sq. ft.
  • Porch, Combined: 194 sq. ft.
  • Optional Lower Level: 2,420 sq. ft.
  • Basement Unfinished: 300 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Daylight, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 72' 10"
  • Depth: 70' 8"
  • Max ridge height: 19' 9"

Garage

  • Type: Attached
  • Area: 788 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style

Special features

Plan Collections

Exclusive Ranch Home Plan with Walk-Out Basement Option

  • 2,716

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • PDF - Unlimited Build $1,595
  • CAD + PDF - Single-Build $1,795
  • CAD + PDF - Unlimited Build $2,295
  • View all purchase option online

About This Plan

  • The flexible design of this exclusive, ranch home plan offers 3 bedrooms on the main level, along with up to 4 additional bedrooms in the optional walk-out basement.
  • Get to your know your neighbors from the nearly 10'-deep front porch, that opens into a foyer with exposed beams. Towards the rear of the home, a coffered ceiling helps define the living room amongst the open floor plan, and the oversized sliding door creates a seamless flow between the indoor and outdoor spaces.
  • The rectangular kitchen is anchored by an L-shaped island with seating for six which opens to the spacious dining room.
  • The deluxe master bedroom occupies the right side of the home, and is joined by a 5-fixture bathroom with a dresser island in the closet. Bedrooms 2 and 3 round out the main level, and share a Jack-and-Jill bath. One of the family bedrooms offers access to the back covered deck.
  • The optional lower level nearly doubles the square footage, and includes a spacious recreation room with a wet bar, that extends outdoors onto a covered patio. Four rooms can be used for a variety of purposes; bedrooms, exercise, storage, etc.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,716 sq. ft.
  • 1st Floor: 2,716 sq. ft.
  • Covered Patio: 660 sq. ft.
  • Porch, Combined: 194 sq. ft.
  • Optional Lower Level: 2,420 sq. ft.
  • Basement Unfinished: 300 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Daylight, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 72' 10"
  • Depth: 70' 8"
  • Max ridge height: 19' 9"

Garage

  • Type: Attached
  • Area: 788 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 4 on 12
Plan 64507SC
View this and more for this plan by visiting www.architechtecturaldesigns.com/64507SC
|
