Exclusive Ranch with Huge Rear Deck

Plan 77604FB

  • 2,156

    Heated s.f.

  • 1-3

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • The spacious open layout of this Ranch house plan, exclusive to Architectural Designs, makes it a delight to live in.
  • There are two separate informal eating areas, one at the peninsula eating bar that seats 3 and another one on the kitchen island that also seats 3 people.
  • The walk-in pantry is huge and provides plenty of storage.

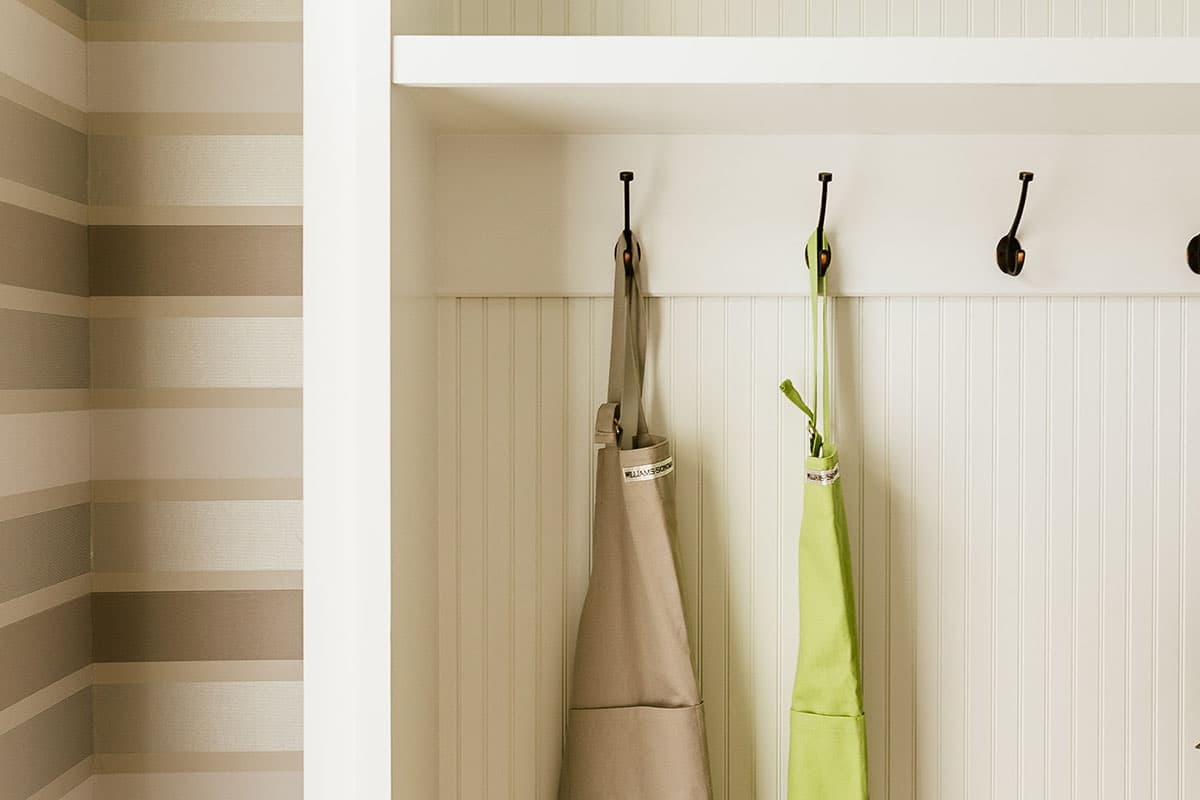

  • Bench seating in the mud room makes it easy to take off boots and shoes.

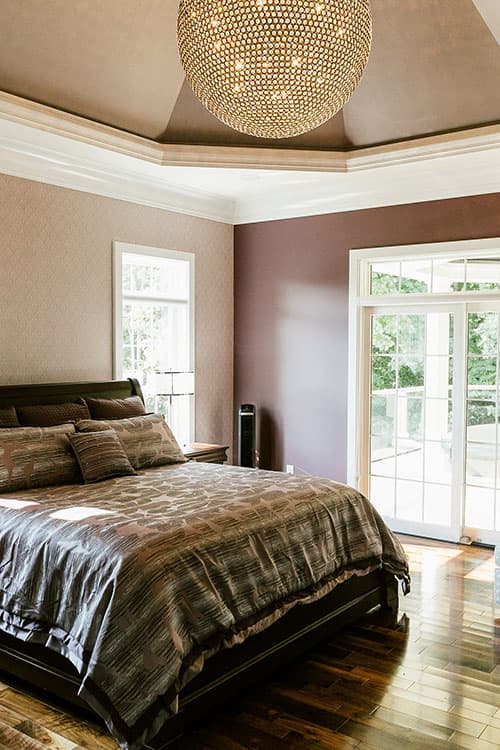

  • The master bedroom gets top-of-the line treatment with its lovely tray ceiling, large bathroom and giant walk-in closet.

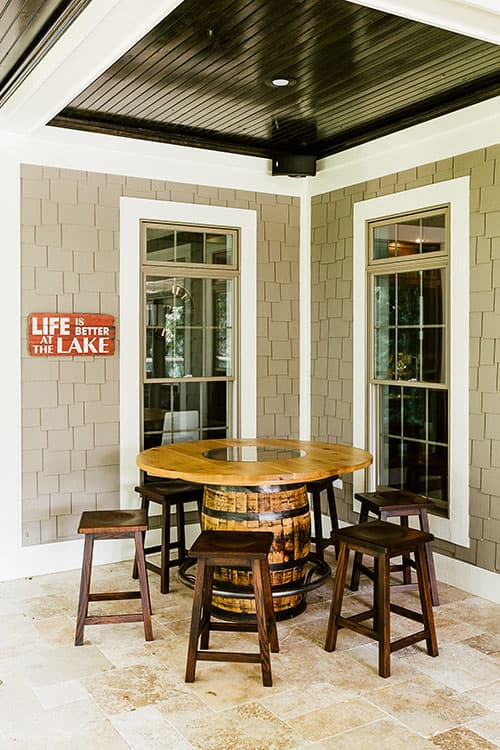

  • Sliding glass doors in the master take you out to the enormous rear covered deck or use the double doors in the living room.

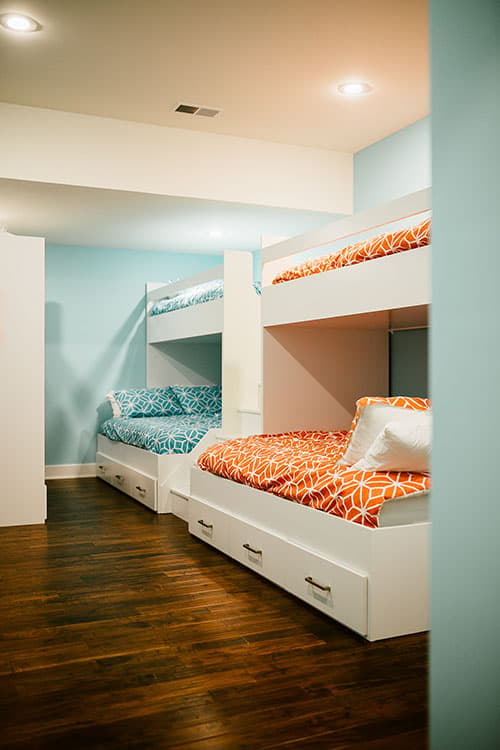

  • Need more bedrooms? Finish off the huge lower level to gain two more bedrooms, a dedicated exercise room with large walk-in closet and a giant L-shaped family room.

The plan includes:

  • cover page
  • foundation plan
  • main floor plan
  • second floor plan

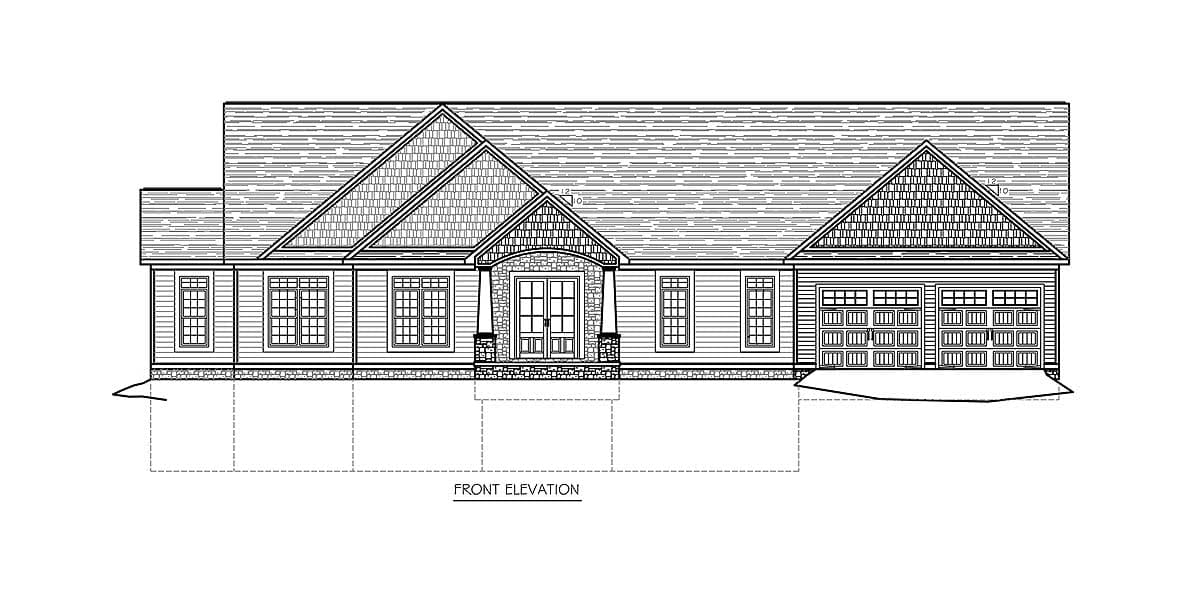

  • all four elevation views
  • one section view
  • enlarged construction details
  • electrical layout
  • and roof plan if needed

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally whe

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

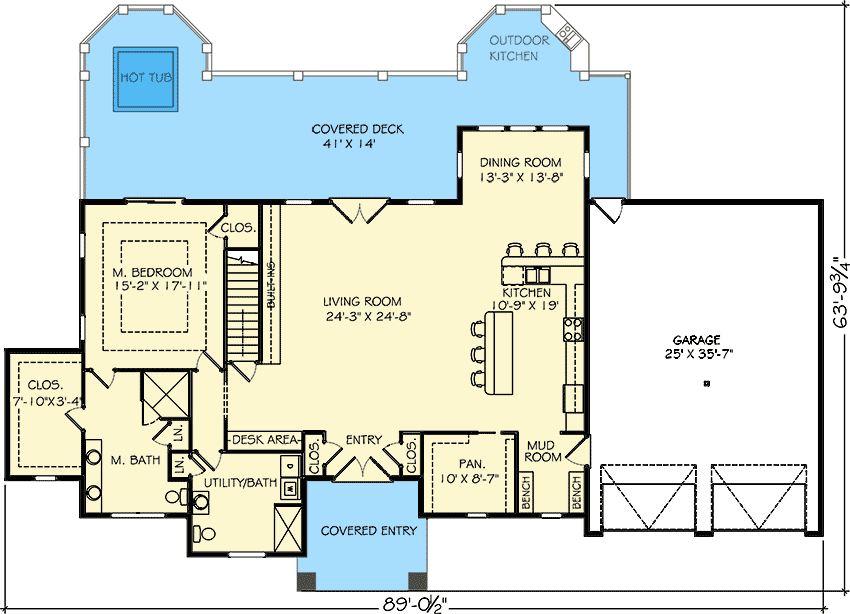

Exclusive Ranch with Huge Rear Deck - 77604FB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Ranch with Huge Rear Deck - 77604FB floor plan - Lower Level

Exclusive Ranch with Huge Rear Deck

  • 2,156

    Heated s.f.

  • 1-3

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,156 sq. ft.
  • 1st Floor: 2,156 sq. ft.

Dimensions

  • Width: 89' 0"
  • Depth: 63' 9"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 1, 2, or 3
  • Full bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 935 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick And Truss
