Plan 654004KNA
EXCLUSIVE
Exclusive Shingle Home Plan with Optional Lower Level Apartment
Heated S.F.
1,946
Beds
3-5
Baths
3.5 - 4.5
Stories
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

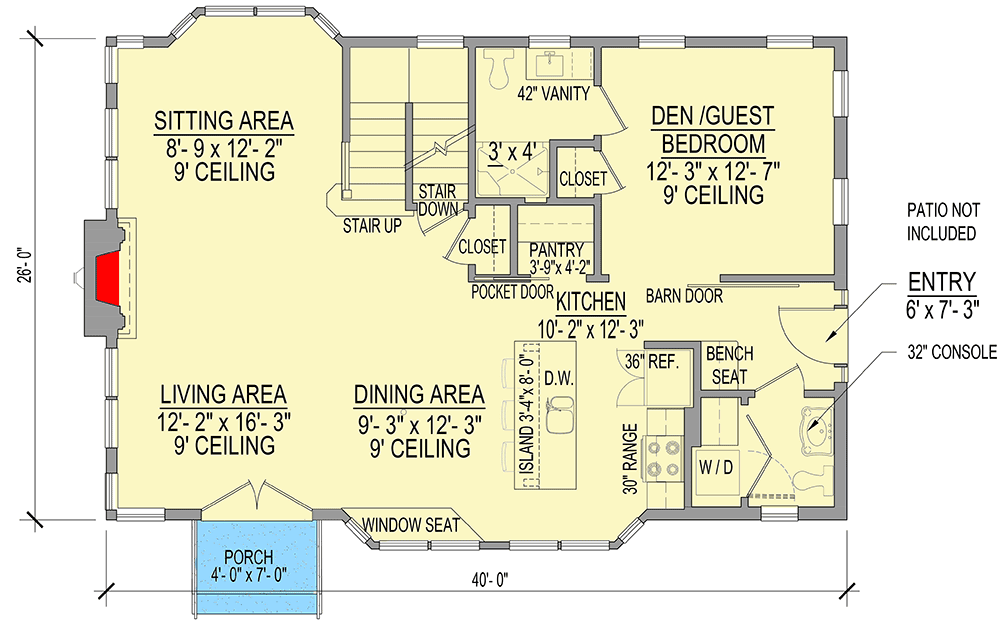

Exclusive Shingle Home Plan with Optional Lower Level Apartment - 654004KNA floor plan - Main Level
2nd Floor
Reverse Floor Plan

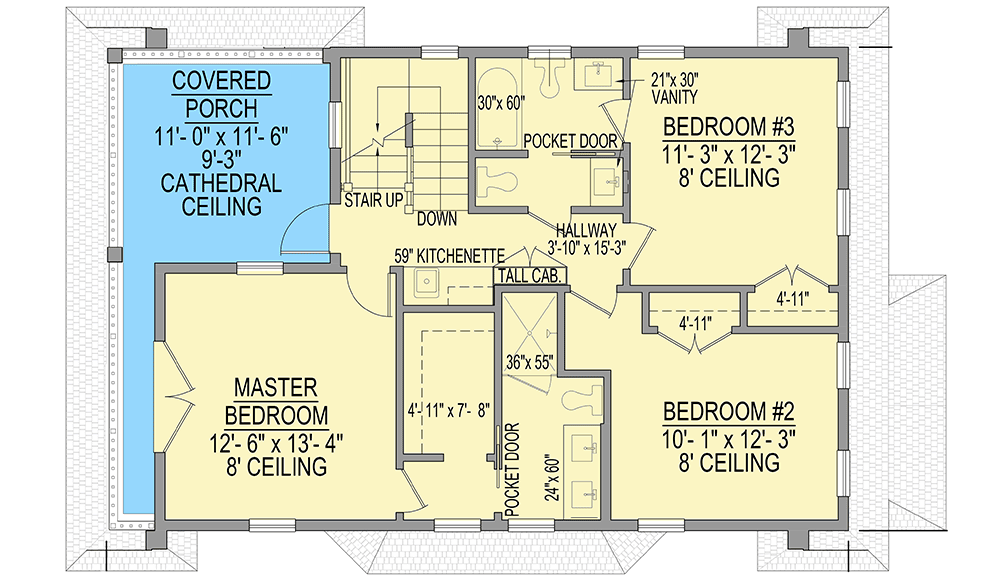

Exclusive Shingle Home Plan with Optional Lower Level Apartment - 654004KNA floor plan - 2nd Floor
Roof Top Deck
Reverse Floor Plan

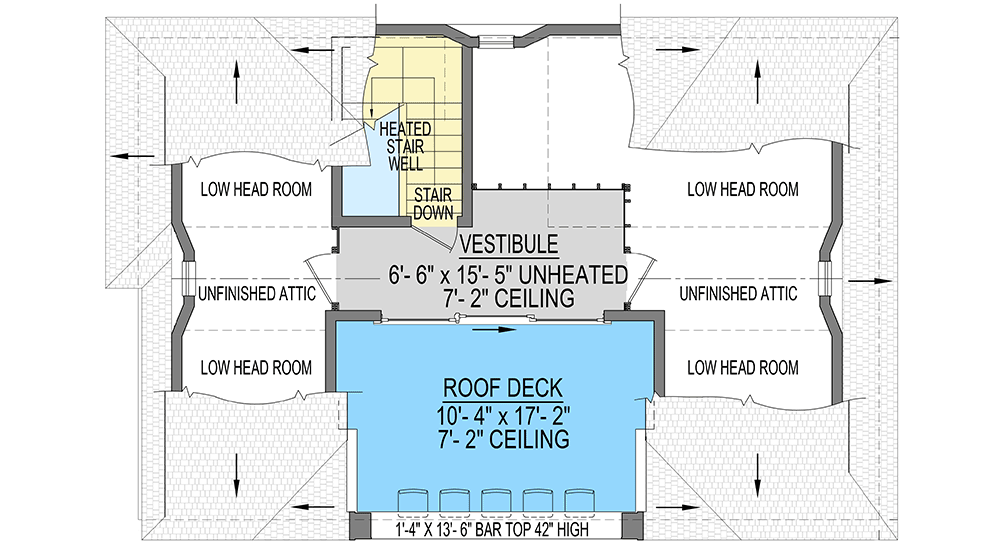

Exclusive Shingle Home Plan with Optional Lower Level Apartment - 654004KNA floor plan - Roof Top Deck
Optional Lower Level
Reverse Floor Plan

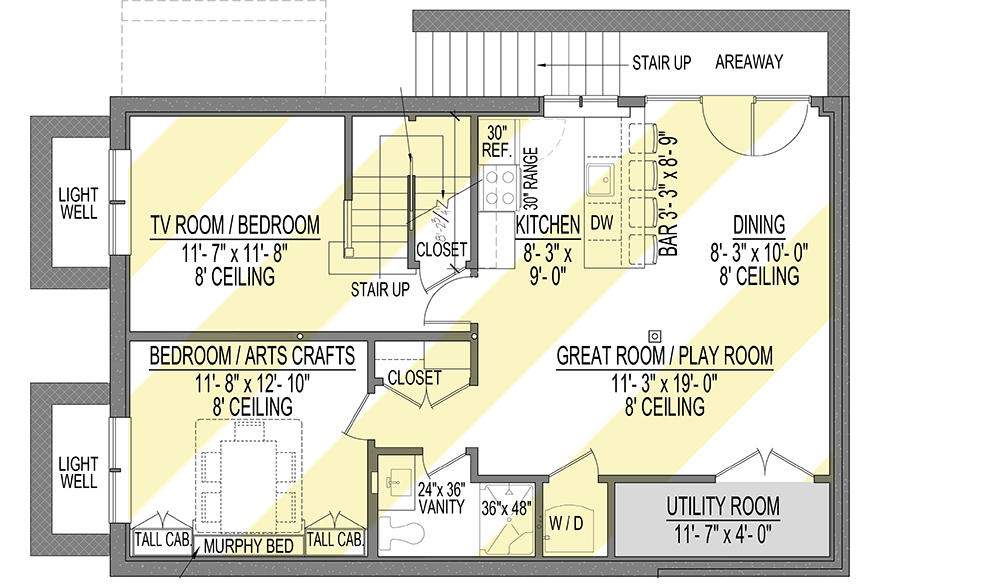

Exclusive Shingle Home Plan with Optional Lower Level Apartment - 654004KNA floor plan - Optional Lower Level
Plan Details
  • Windows and shake siding dominate the exterior of this exclusive, Shingle house plan, which boasts an open floor plan on the main level, rooftop deck, and an optional apartment on the lower level.
  • Double doors part to welcome you inside, where the light and airy living space greets you. A fireplace anchors the left wall, and the open kitchen features an island that includes seating for three.
  • A den is located behind a barn door, and could double as a guest bedroom when needed. Across the hall, a powder bath near the mudroom includes a laundry closet.
  • Upstairs, discover three bedrooms, with the largest reserved for the homeowner. French doors in the master bedroom lead to a covered porch with a cathedral ceiling.
  • The optional lower level could serve as 1,040 square feet of additional living space, or a separate apartment due to the private exterior entrance. The design includes a kitchen, dining area, and great room, along with two bedrooms.
  • Related Plans: Get a matching detached garage with plan 654019KNA. Eliminate the second floor covered porch with house plan 654006KNA.
What's Included
  • Cover Sheet
  • Foundation Plan
  • Floor plans
  • Exterior elevations
  • Details
  • Building sections
  • Roof plans drawn at 1/4" scale
  • Suggested electrical layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
