Exclusive Small Home Plan with Two Bedrooms

Plan 430804SNG

  • 750

    Heated s.f.

  • 2

    Beds

  • 1 - 2

    Baths

  • 2

    Stories

  • This exclusive, small home plan makes compact living easy with a seamless floor plan; totaling 750 sq ft. The charming exterior features board and batten siding and a lengthy front porch to welcomes your guests. Build it as a vacation home or as an ADU. Or even as a downsizing option.
  • Inside, the living room greets you and provides forward-facing views. The adjoining kitchen features u-shaped counters and a back door neighbors the utility closet.
  • The main-floor bedroom includes a walk-in closet, and is located across the hall from a full bath.
  • Upstairs, discover a loft which lends space for a desk, and a second bedroom.
  • An optional second bathroom is included in the design, and plenty of attic space provides additional storage.
  • Related Plan: Get an 800 square foot version with house plan 430816SNG.

The plan set includes the following:

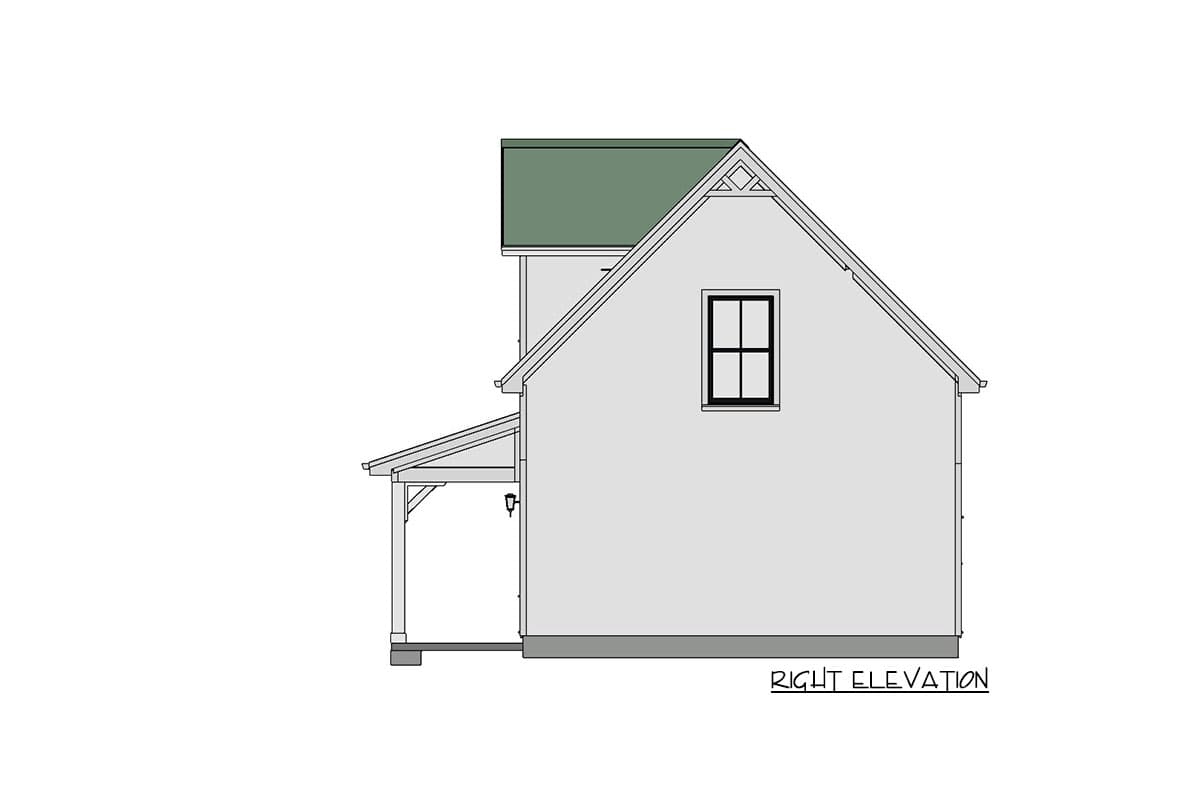

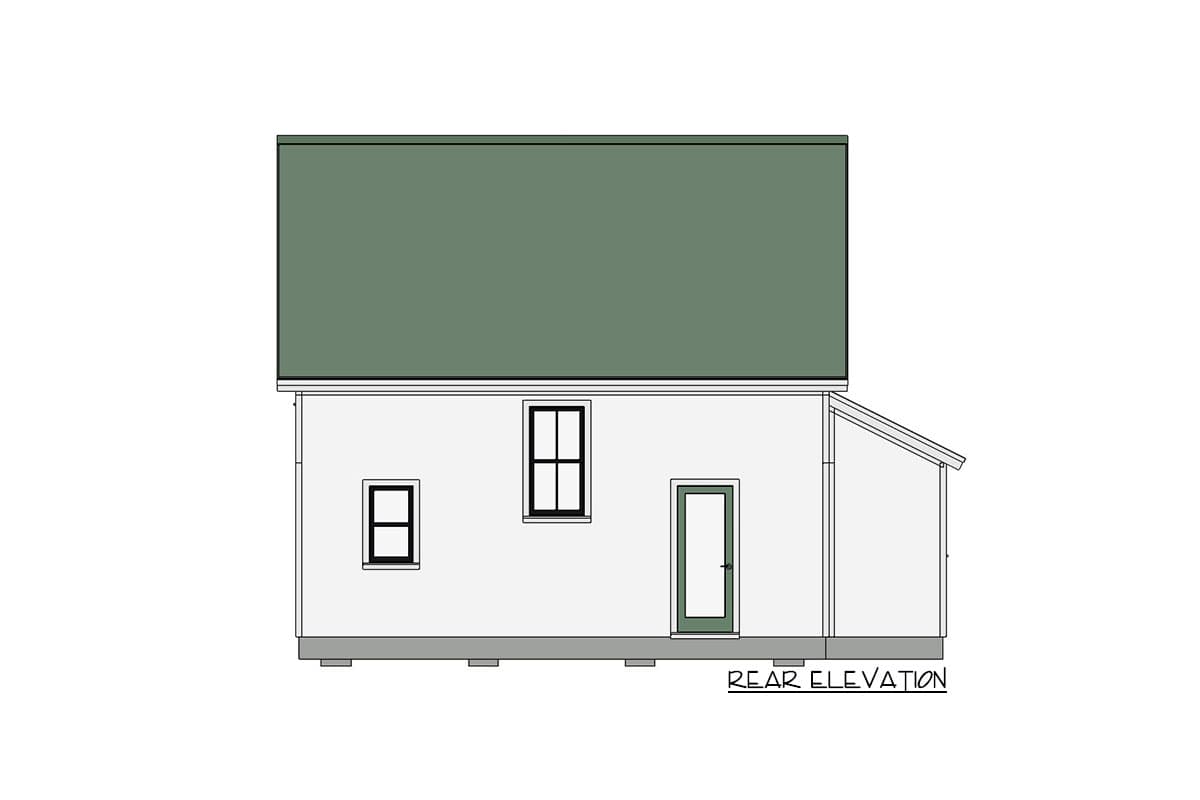

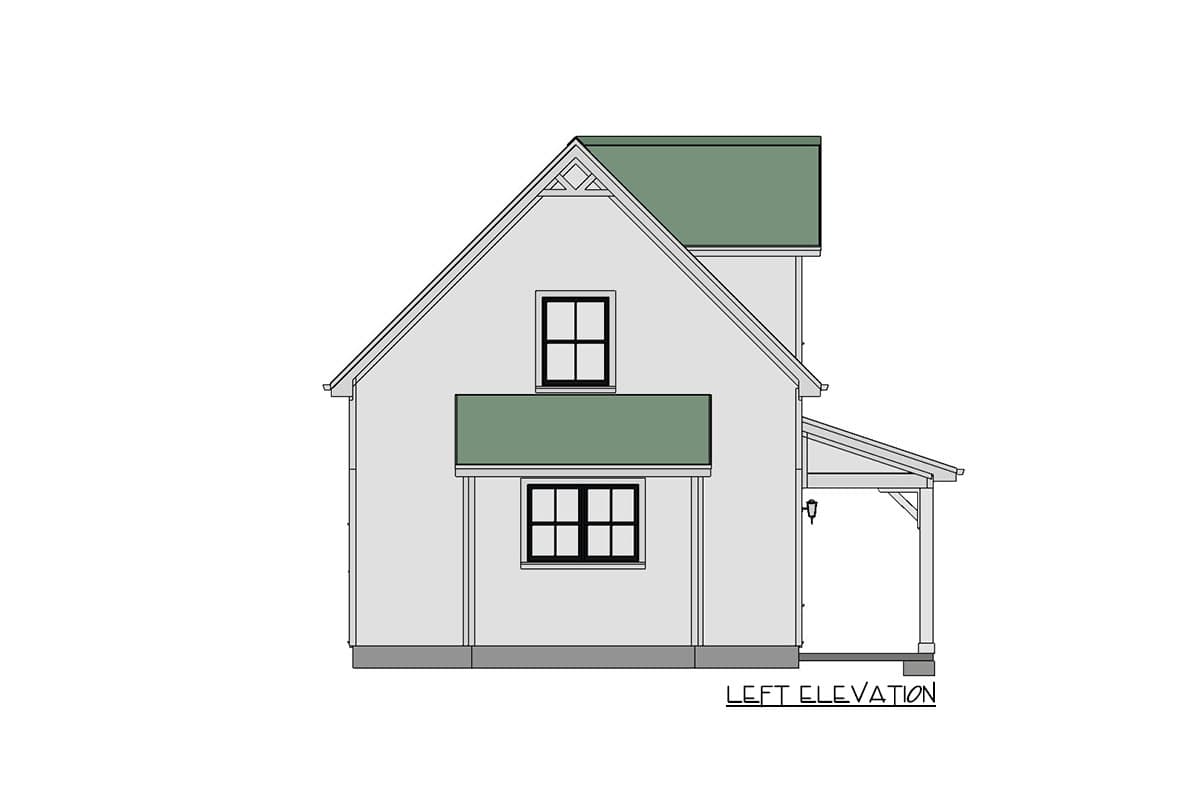

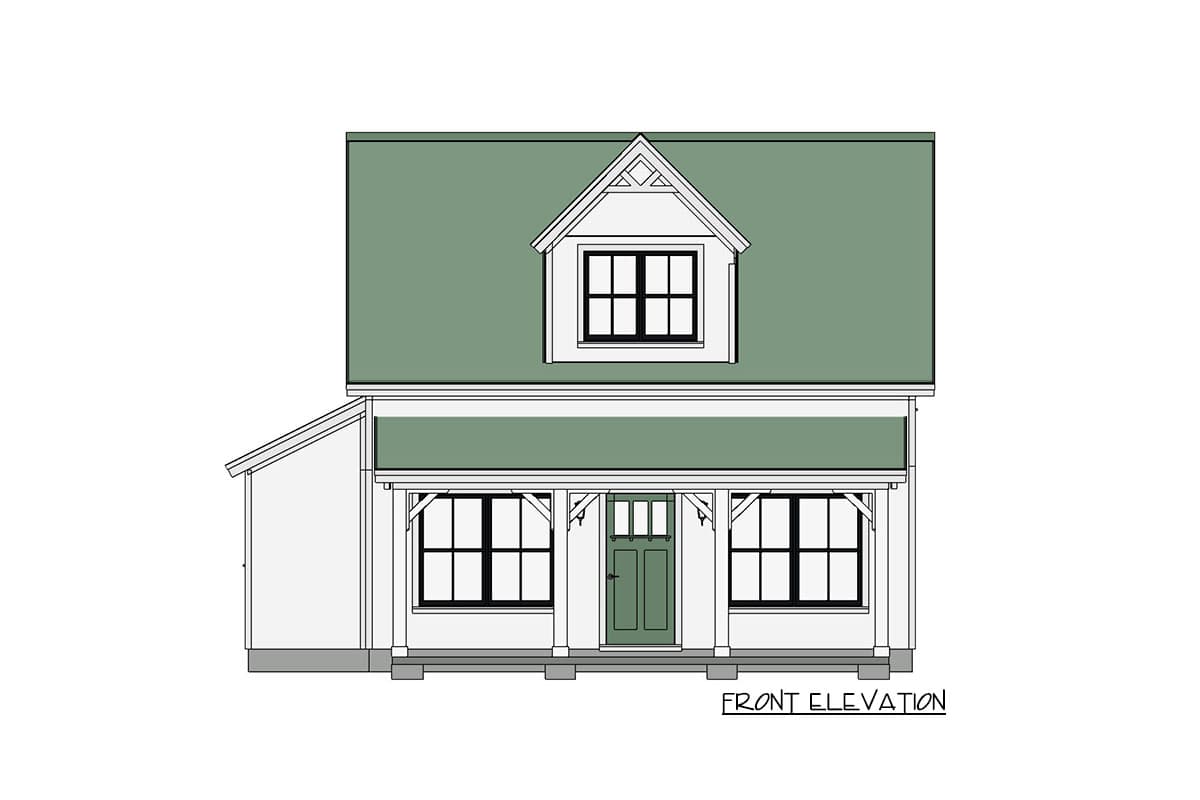

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

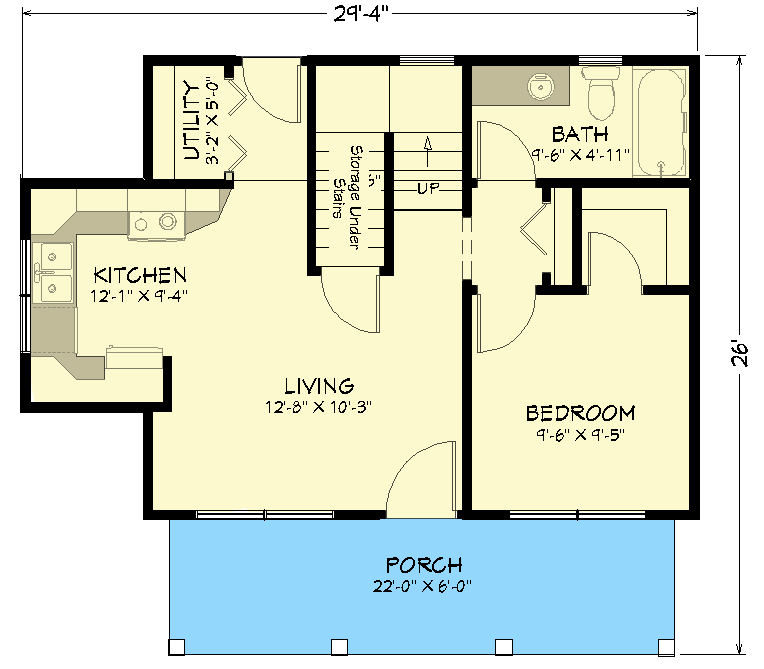

Exclusive Small Home Plan with Two Bedrooms - 430804SNG floor plan - Main Level

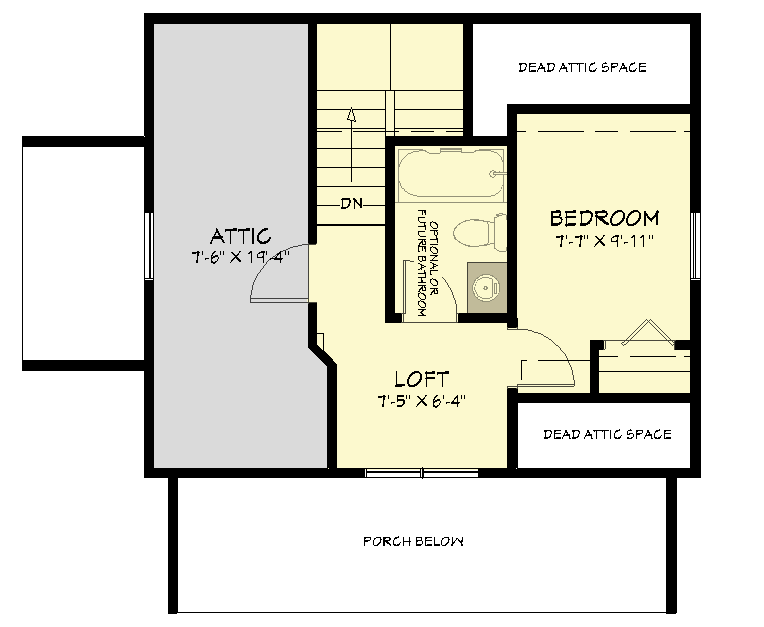

2nd Floor
