Plan 510216WDY Exclusive Southern Home Plan with Cart Bay and Partially-screened Porch

4,066 5 5.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive Southern Home Plan with Cart Bay and Partially-screened Porch

Plan 510216WDY

  • 4,066

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This Exclusive Southern home plan was designed with entertaining in mind with its large living space that flows into the kitchen and dining / keeping room.
  • The kitchen boasts plenty of workspace, along with a large range, walk-in pantry near the garage, and two sinks. Retreat to the screened porch to dine outdoors, or relax by the fire pit on the adjacent patio.
  • A vaulted ceiling sits atop the master suite, which includes a 5-fixture bath and dresser island in the walk-in closet. Three additional bedrooms are sprinkled throughout the plan, as well as a home office.
  • The 3-car garage features a bay for a golf cart, or utilize the space as a hobby shop.
  • Upstairs, bedroom 5 comes with a walk-in closet and neighbors a full bathroom.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

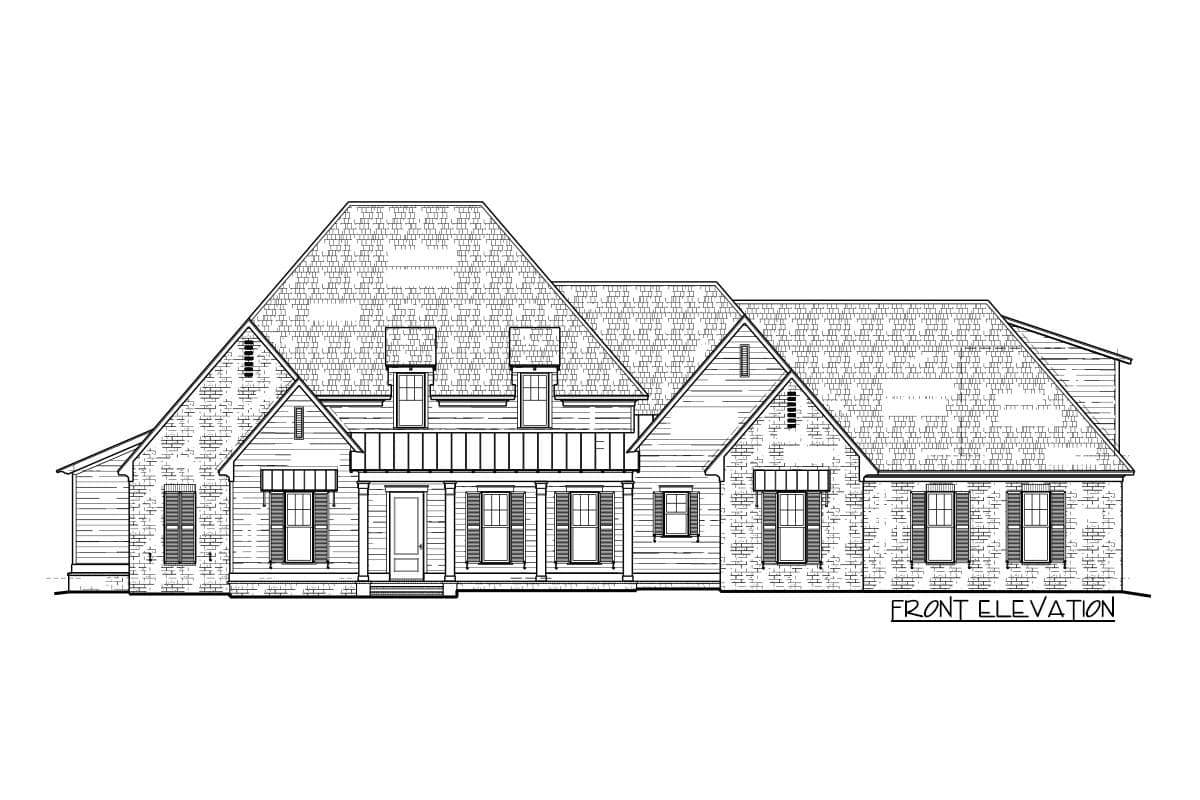

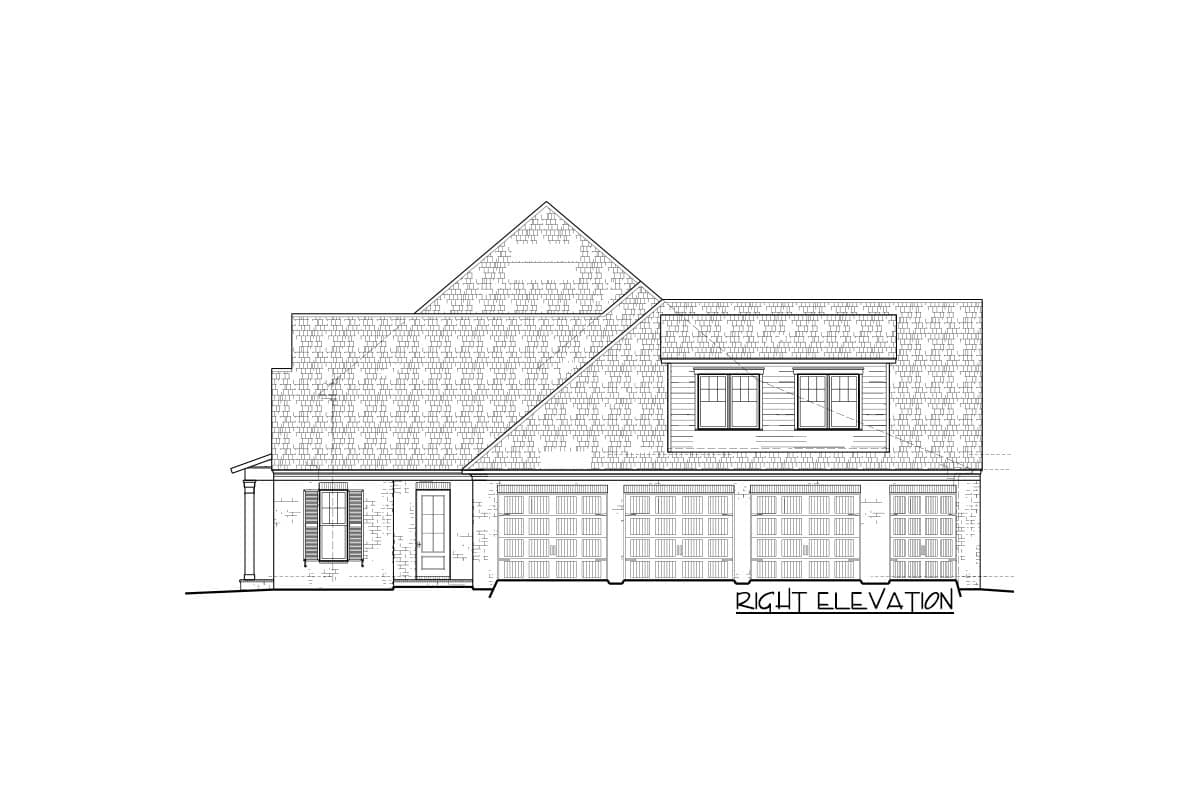

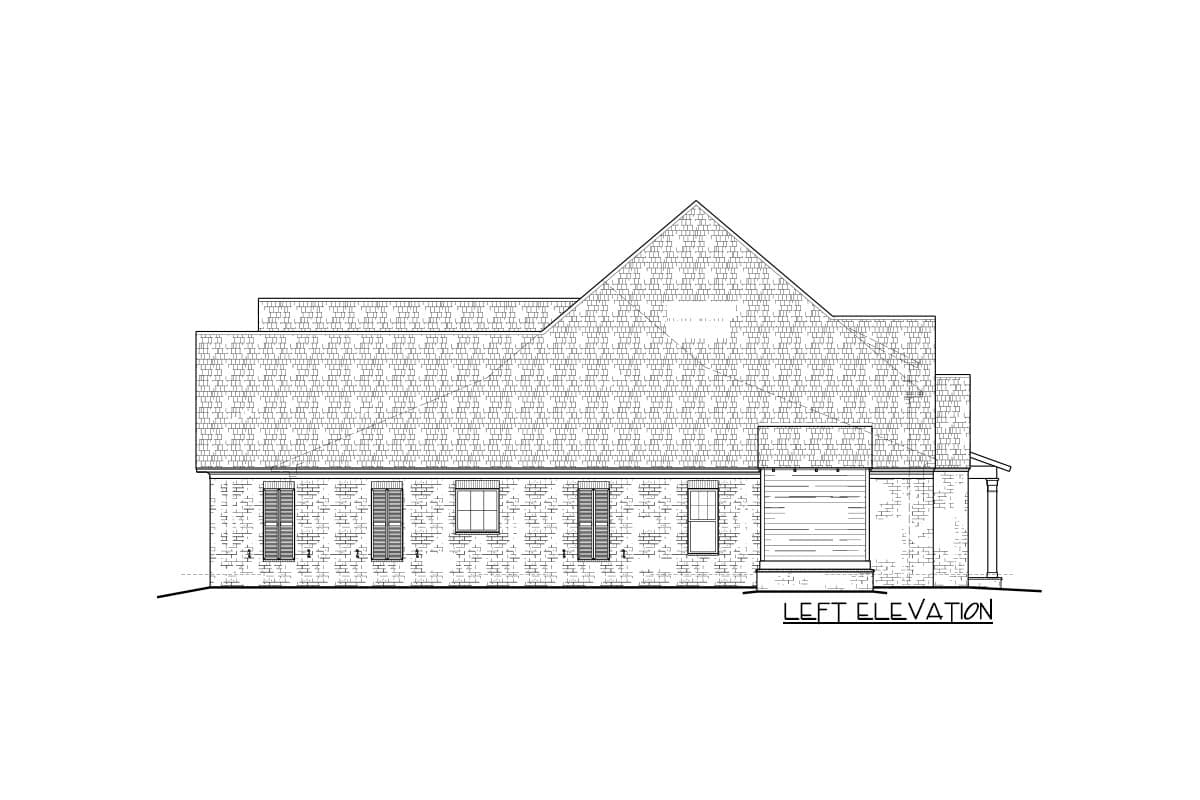

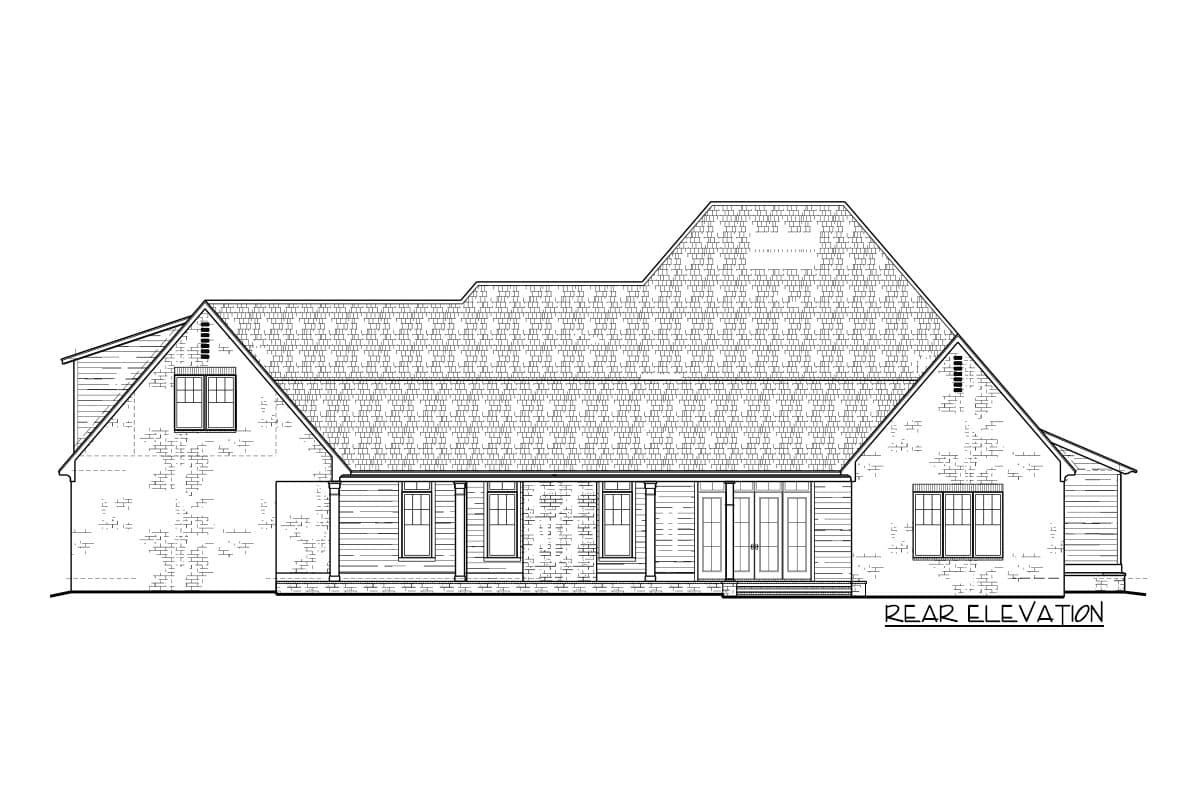

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

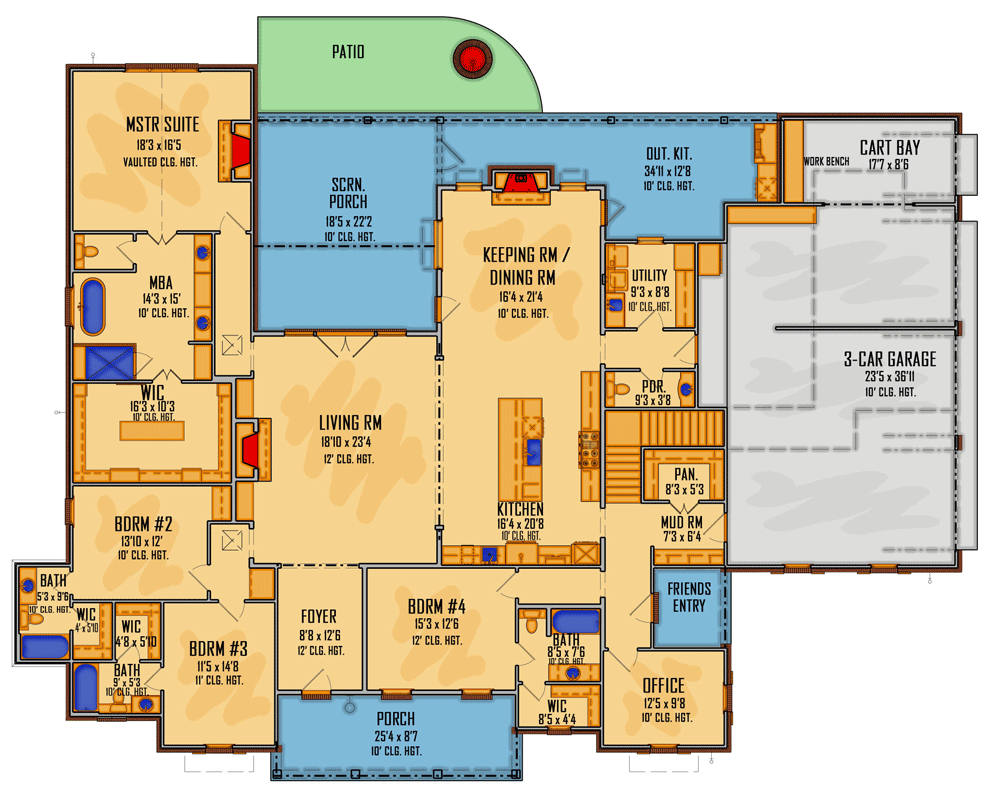

Exclusive Southern Home Plan with Cart Bay and Partially-screened Porch - 510216WDY floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

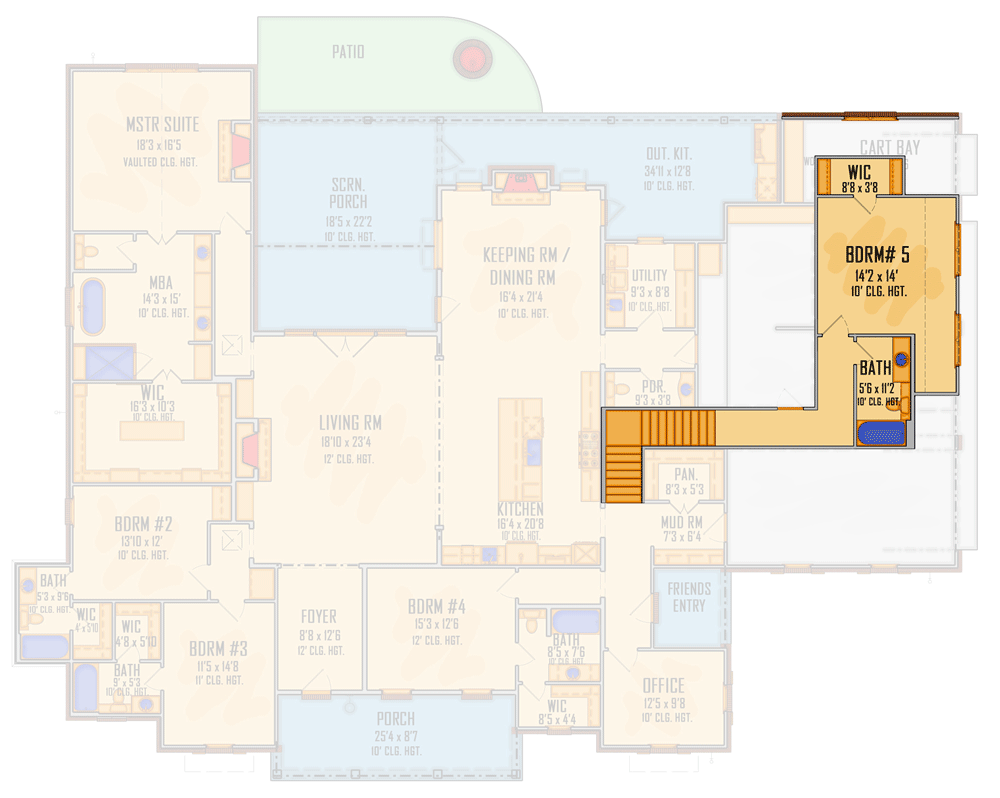

Exclusive Southern Home Plan with Cart Bay and Partially-screened Porch - 510216WDY floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,066 sq. ft.
  • 1st Floor: 3,546 sq. ft.
  • 2nd Floor: 442 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 97' 7"
  • Depth: 73' 4"
  • Max ridge height: 34' 11"

Garage

  • Type: Attached
  • Area: 1102 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Exclusive Southern Home Plan with Cart Bay and Partially-screened Porch

  • 4,066

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,500
  • 8 Sets $1,600
  • PDF - Single-Build $1,850
  • 5 Sets + PDF $2,100
  • CAD + PDF - Unlimited Build $2,850
  • View all purchase option online

About This Plan

  • This Exclusive Southern home plan was designed with entertaining in mind with its large living space that flows into the kitchen and dining / keeping room.
  • The kitchen boasts plenty of workspace, along with a large range, walk-in pantry near the garage, and two sinks. Retreat to the screened porch to dine outdoors, or relax by the fire pit on the adjacent patio.
  • A vaulted ceiling sits atop the master suite, which includes a 5-fixture bath and dresser island in the walk-in closet. Three additional bedrooms are sprinkled throughout the plan, as well as a home office.
  • The 3-car garage features a bay for a golf cart, or utilize the space as a hobby shop.
  • Upstairs, bedroom 5 comes with a walk-in closet and neighbors a full bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,066 sq. ft.
  • 1st Floor: 3,546 sq. ft.
  • 2nd Floor: 442 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 97' 7"
  • Depth: 73' 4"
  • Max ridge height: 34' 11"

Garage

  • Type: Attached
  • Area: 1102 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 510216WDY
View this and more for this plan by visiting www.architechtecturaldesigns.com/510216WDY
|
