Plan 73389HS Exclusive Storybook Craftsman Home Plan with Upstairs Laundry and Lower Level Expansion

2,895 4-5 3.5 - 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive Storybook Craftsman Home Plan with Upstairs Laundry and Lower Level Expansion

Plan 73389HS

  • 2,895

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

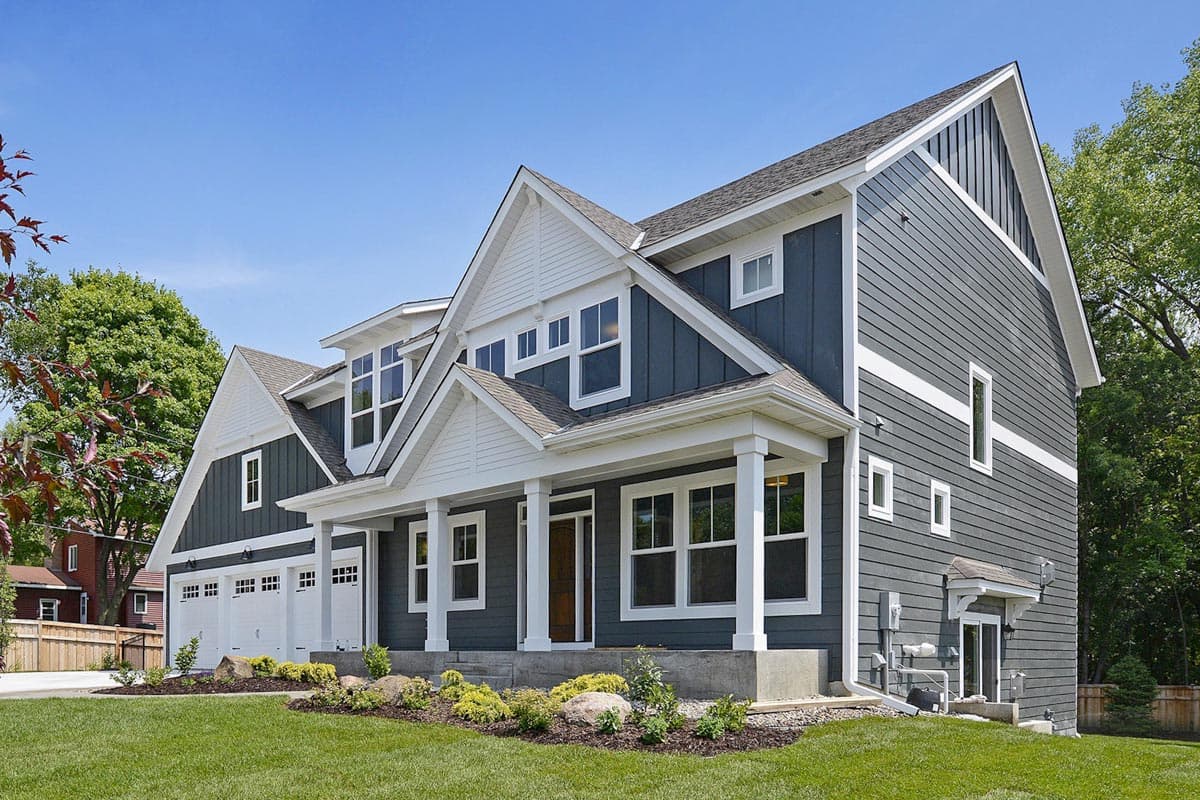

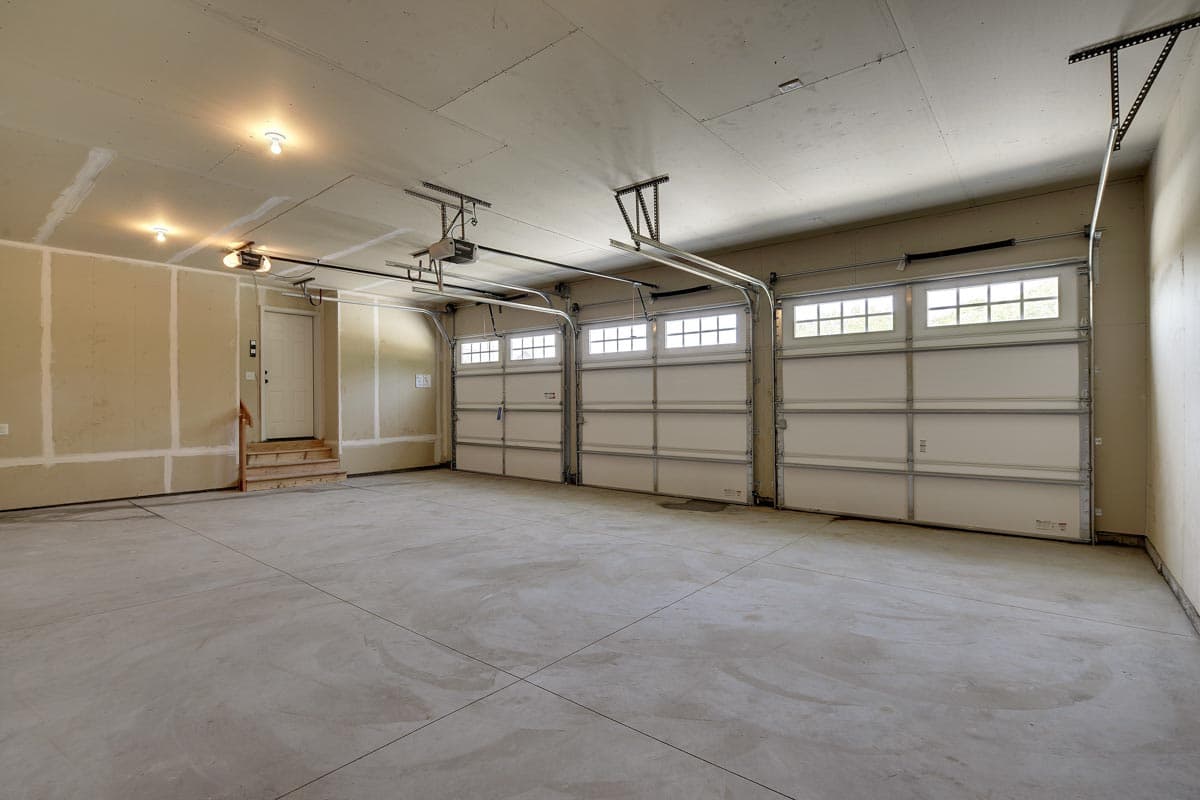

  • This exciting, exclusive 4-bedroom craftsman home plan draws you in with eye-catching architectural accents, a welcoming front porch, and a 3-car garage.

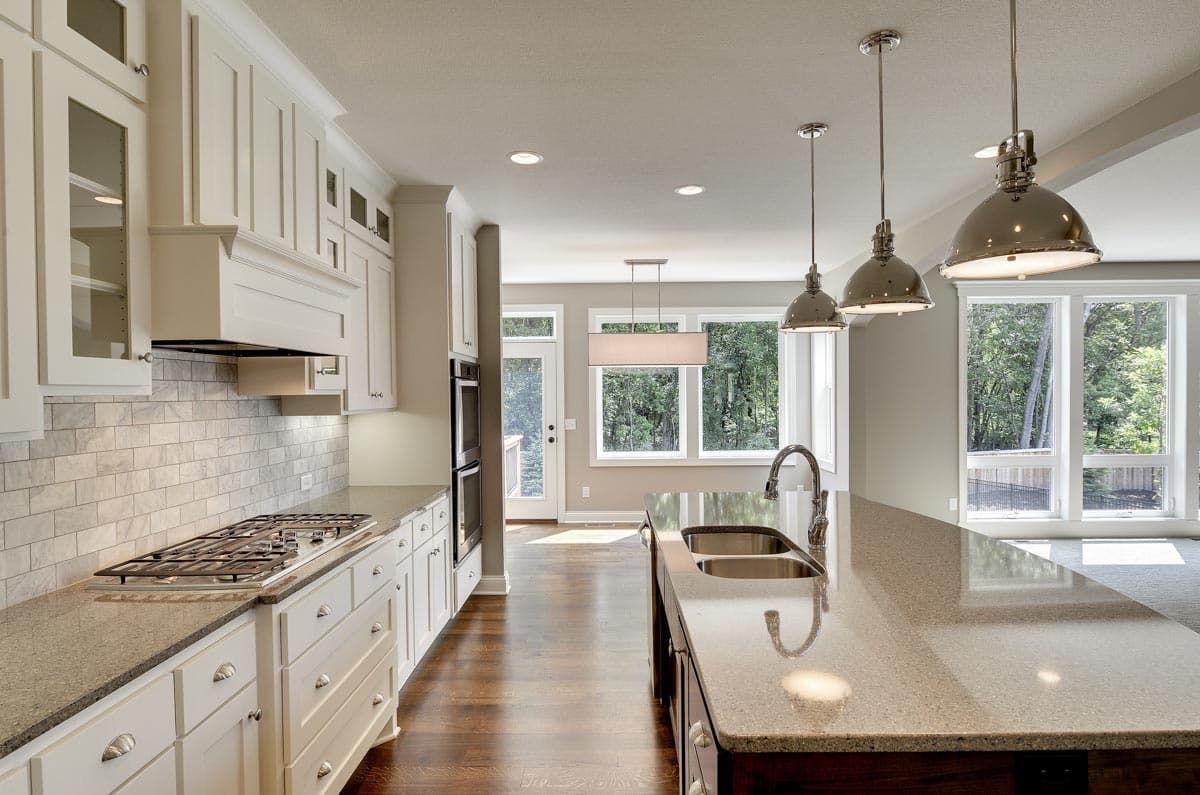

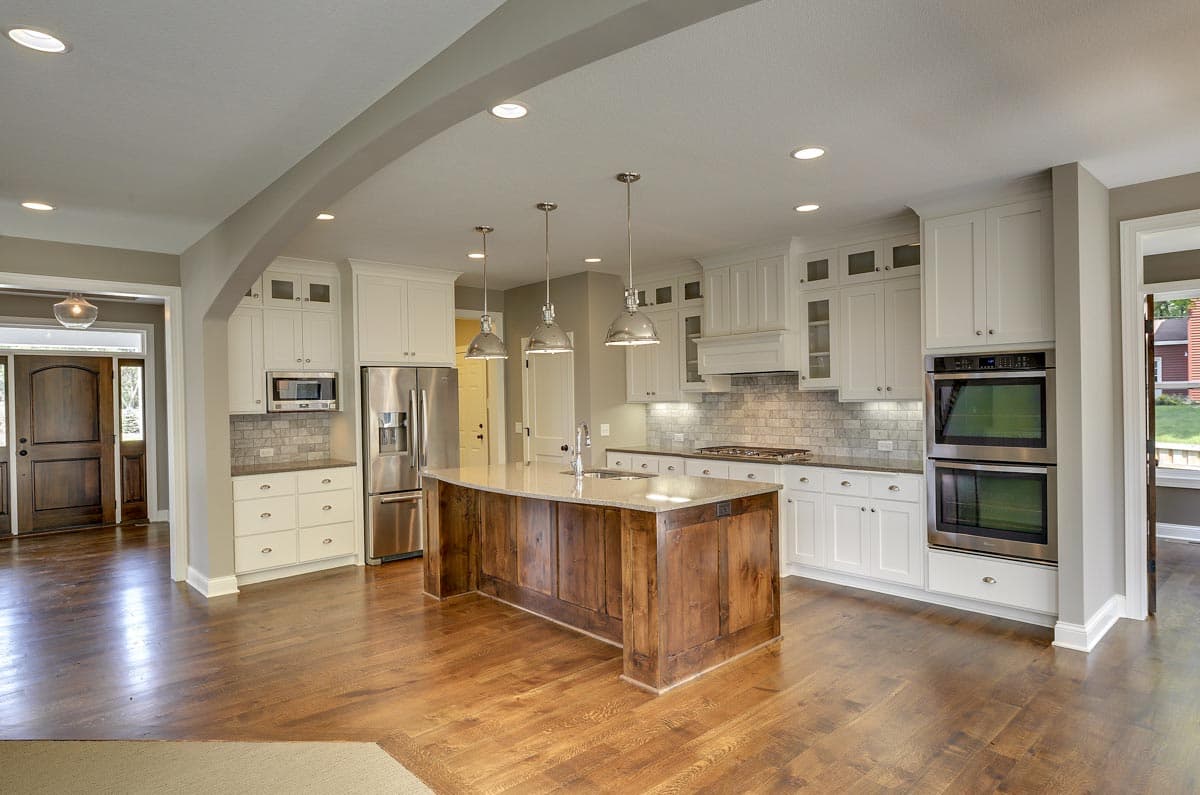

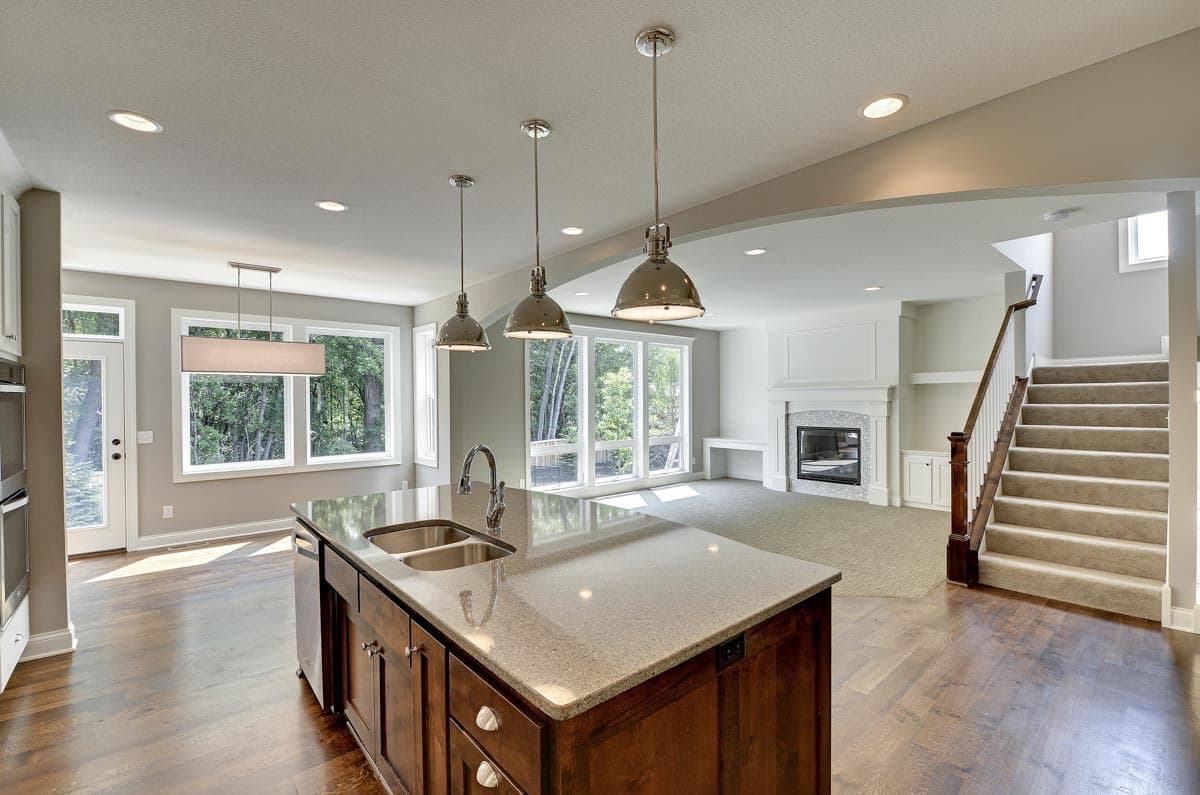

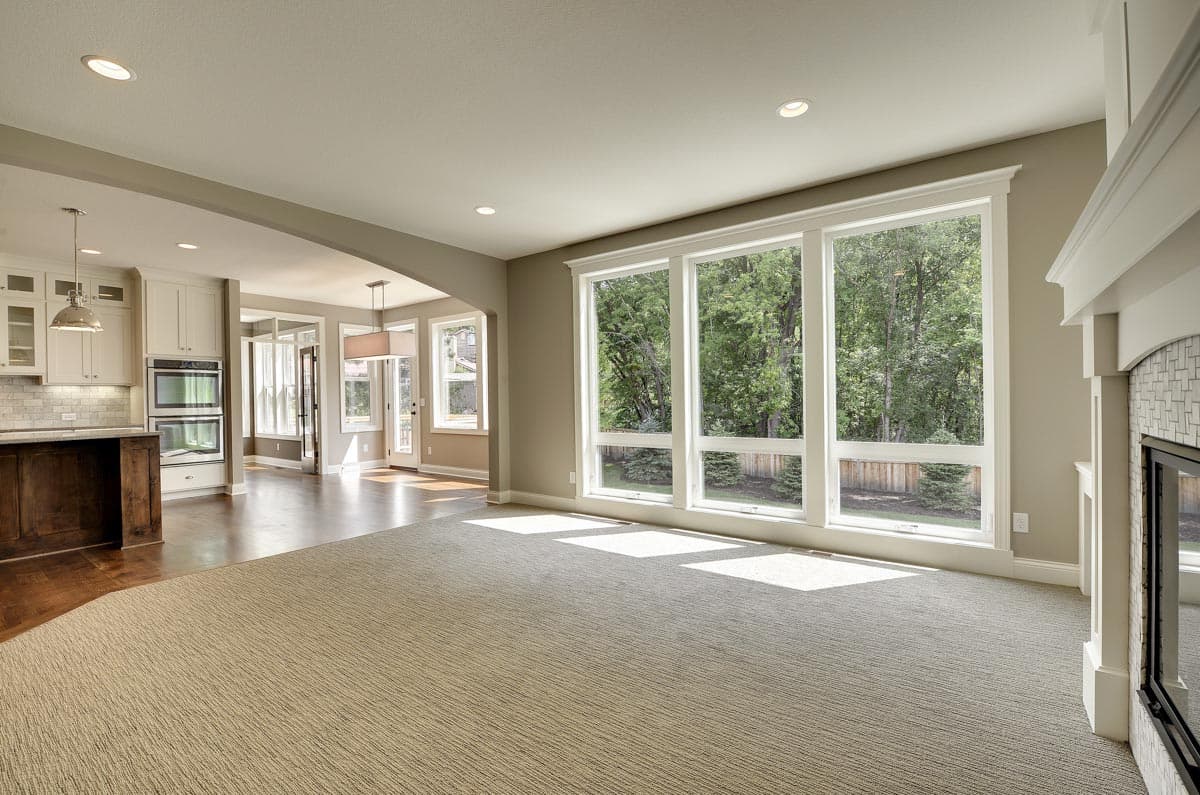

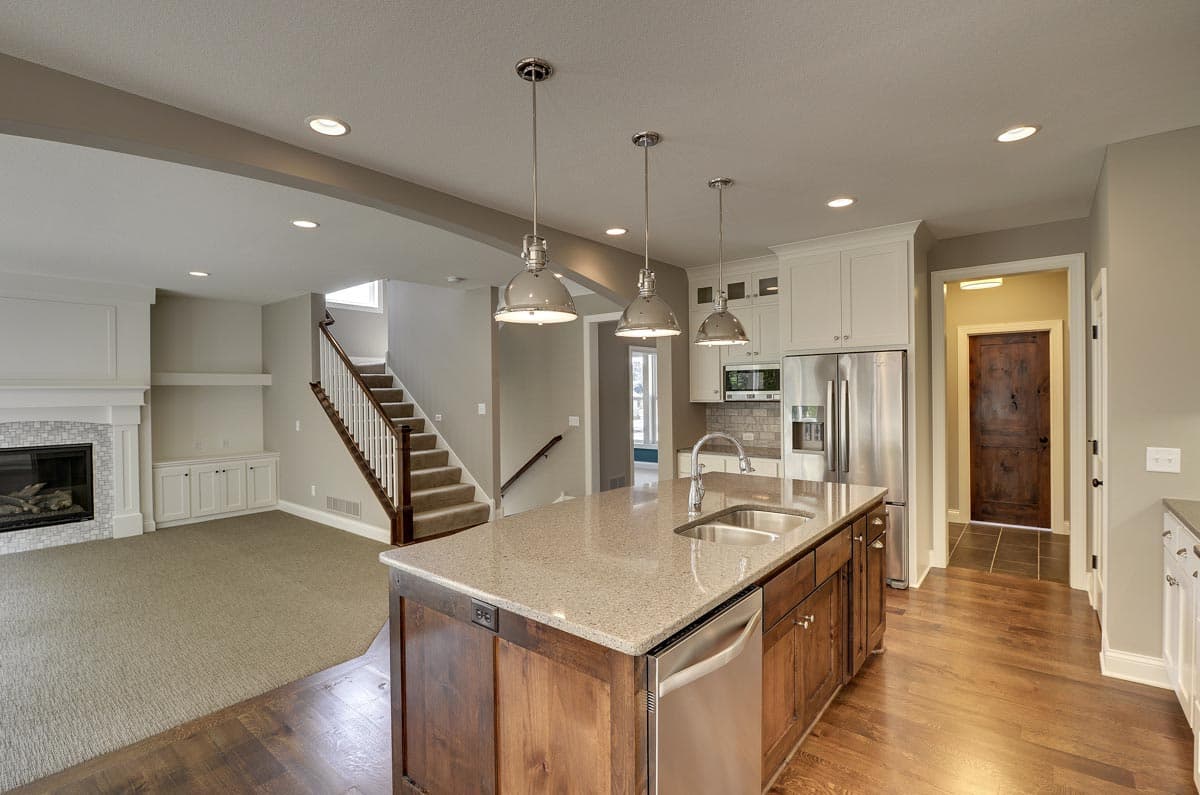

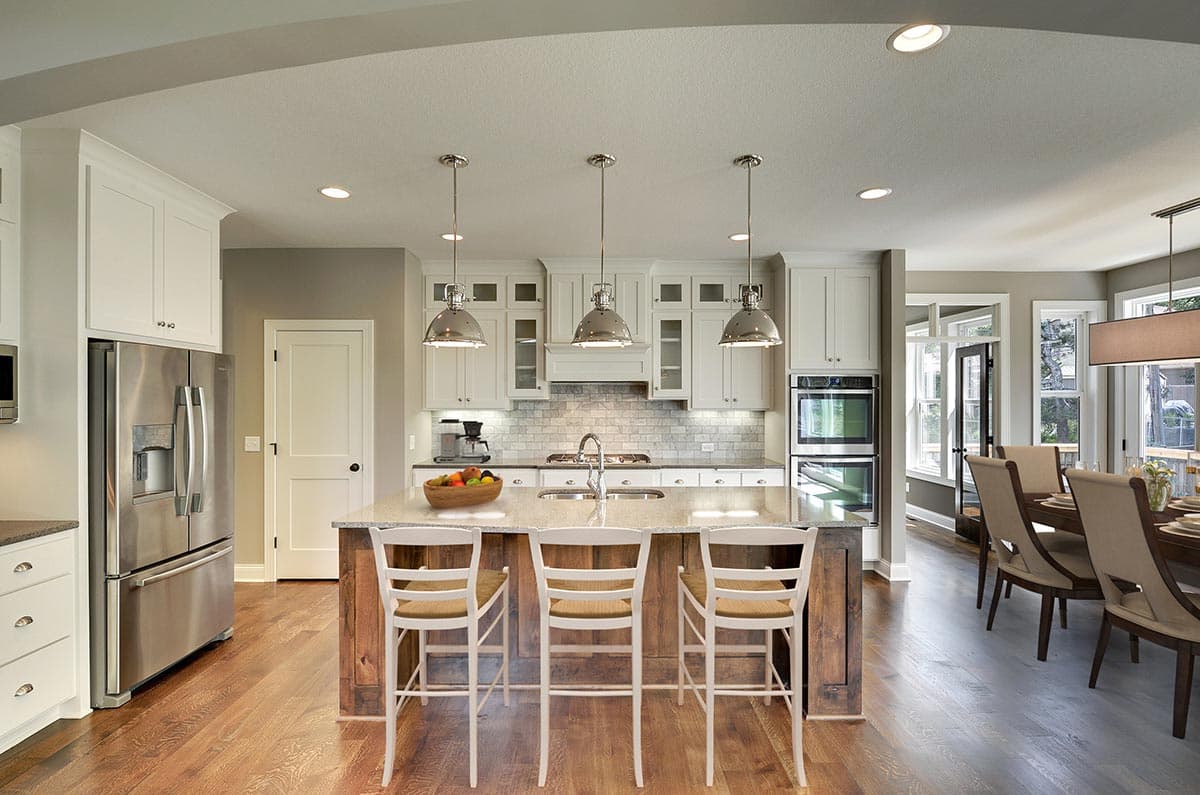

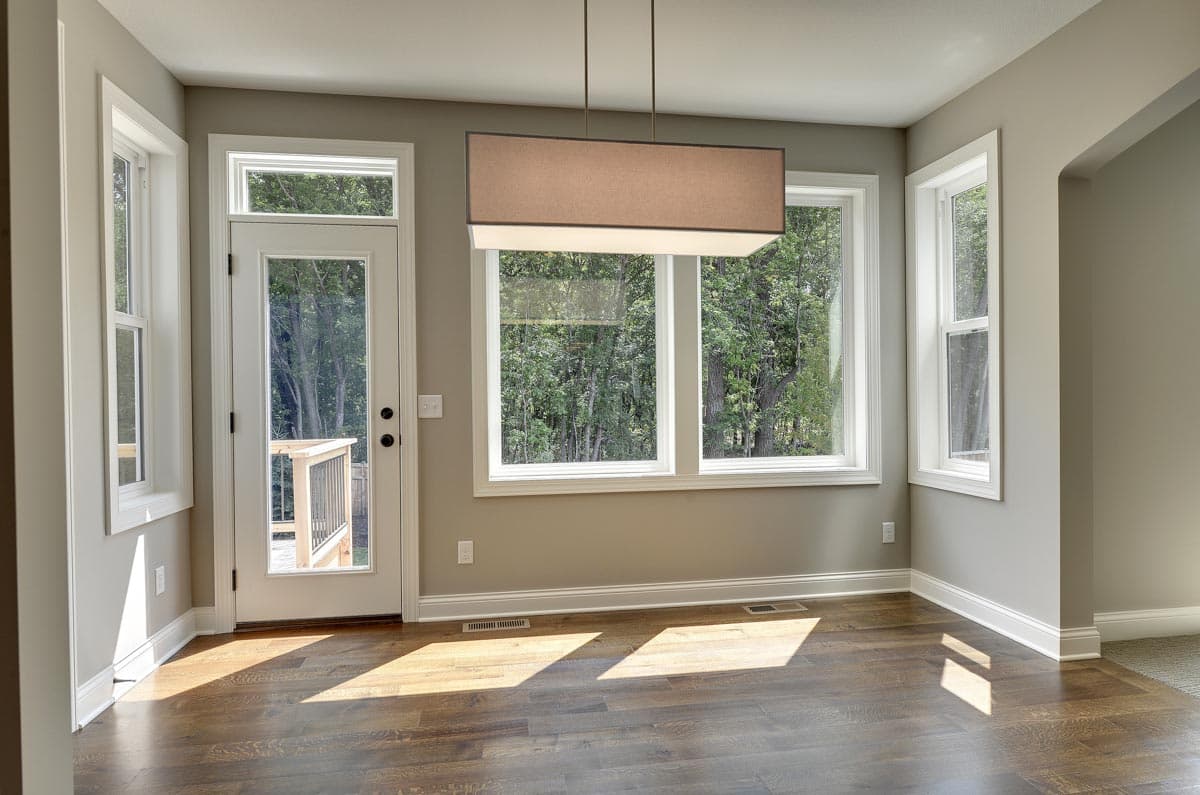

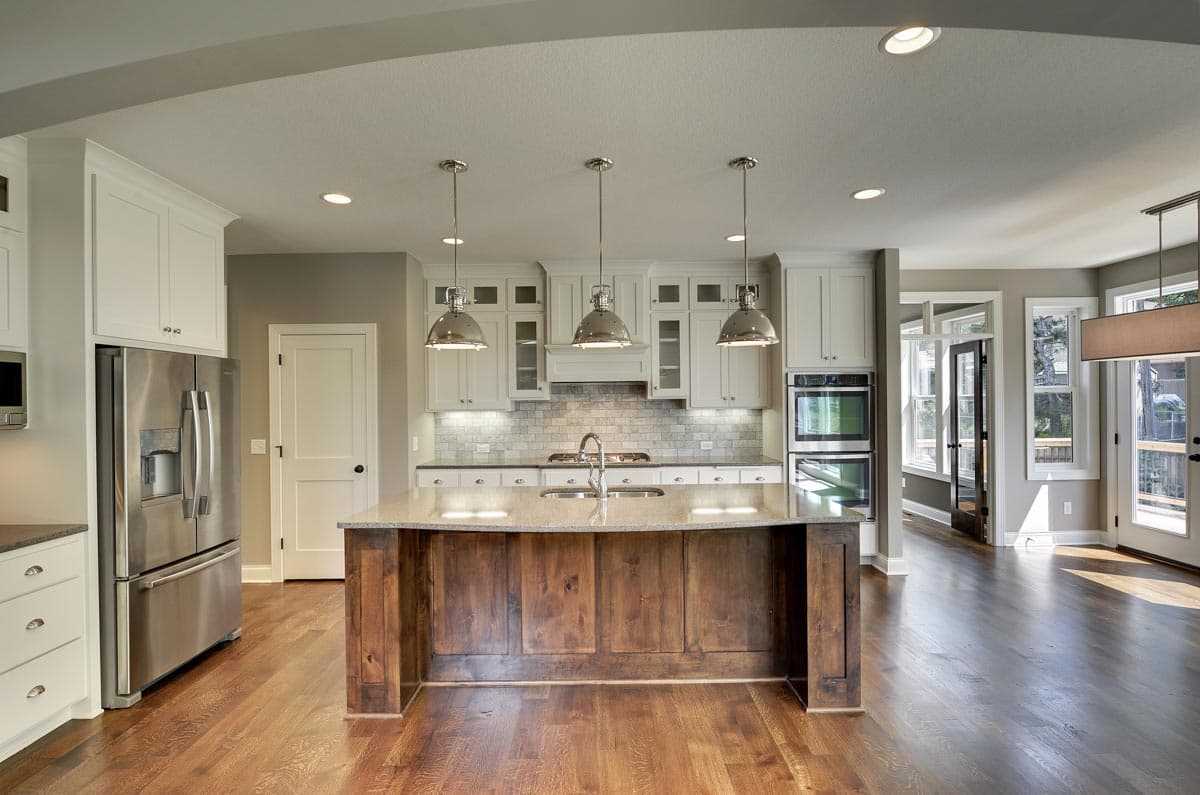

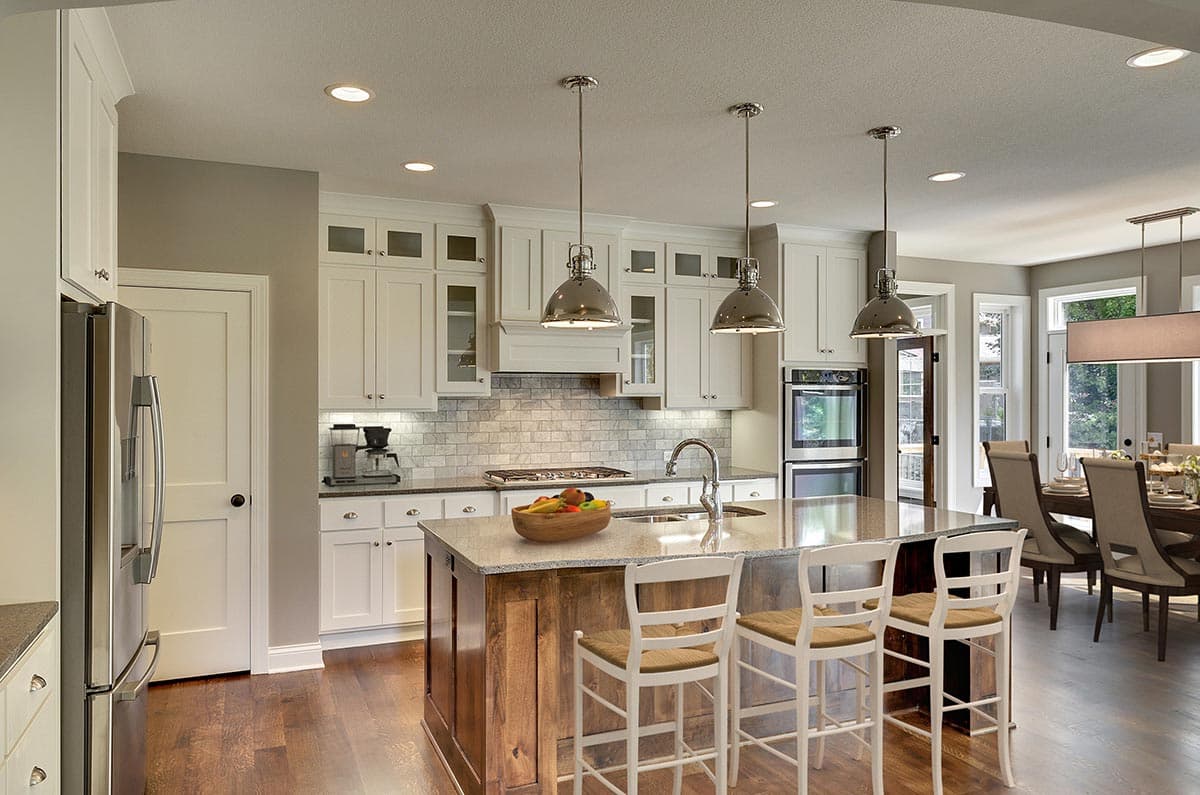

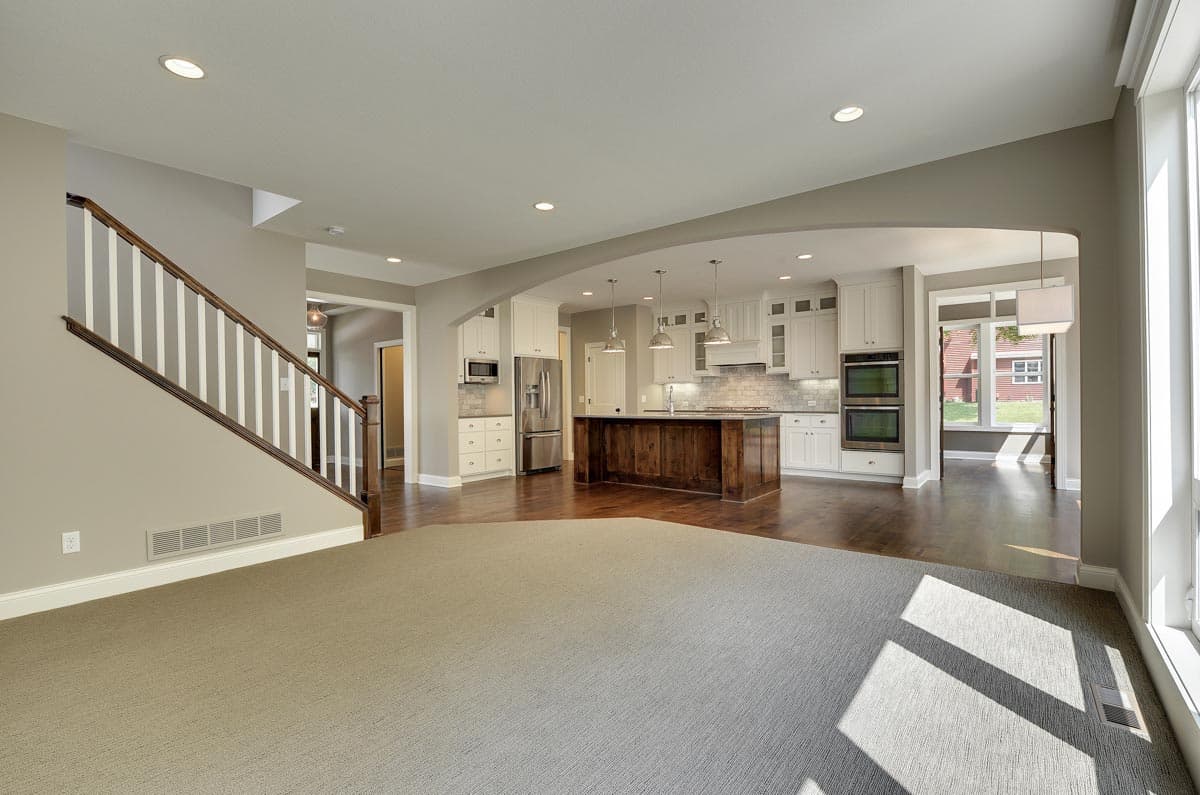

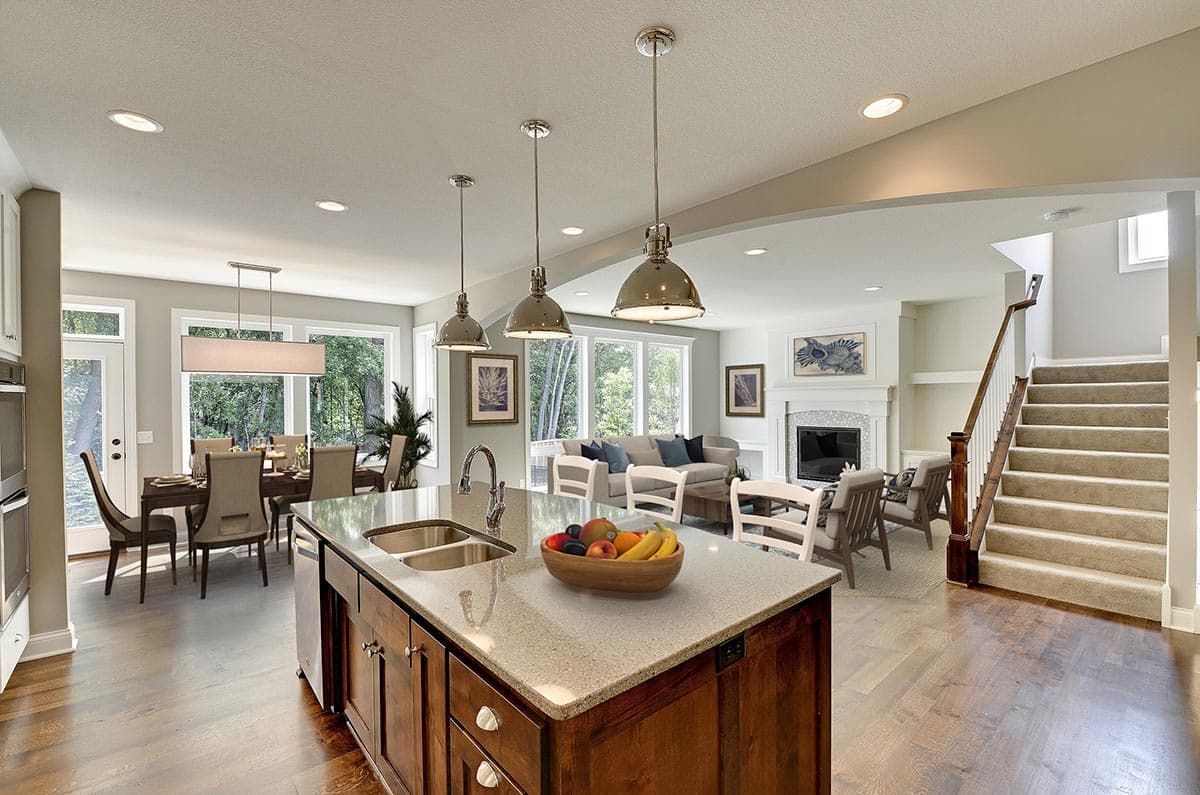

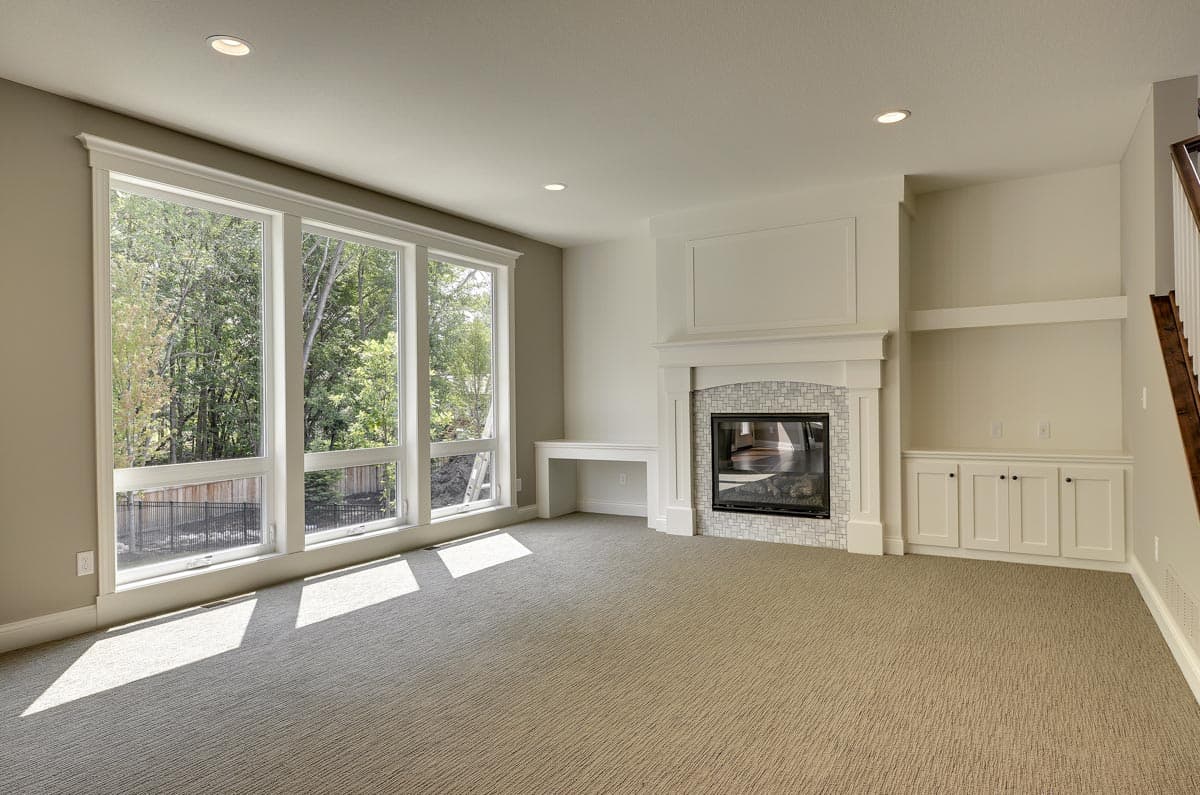

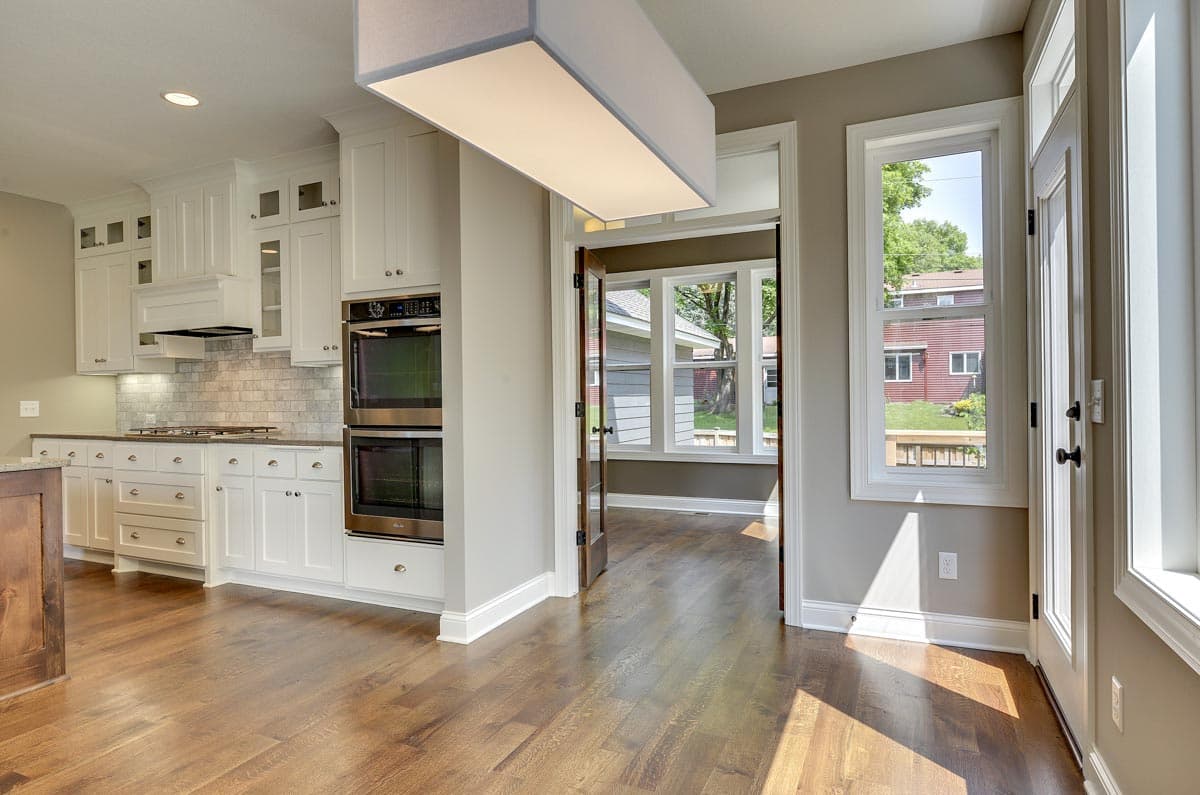

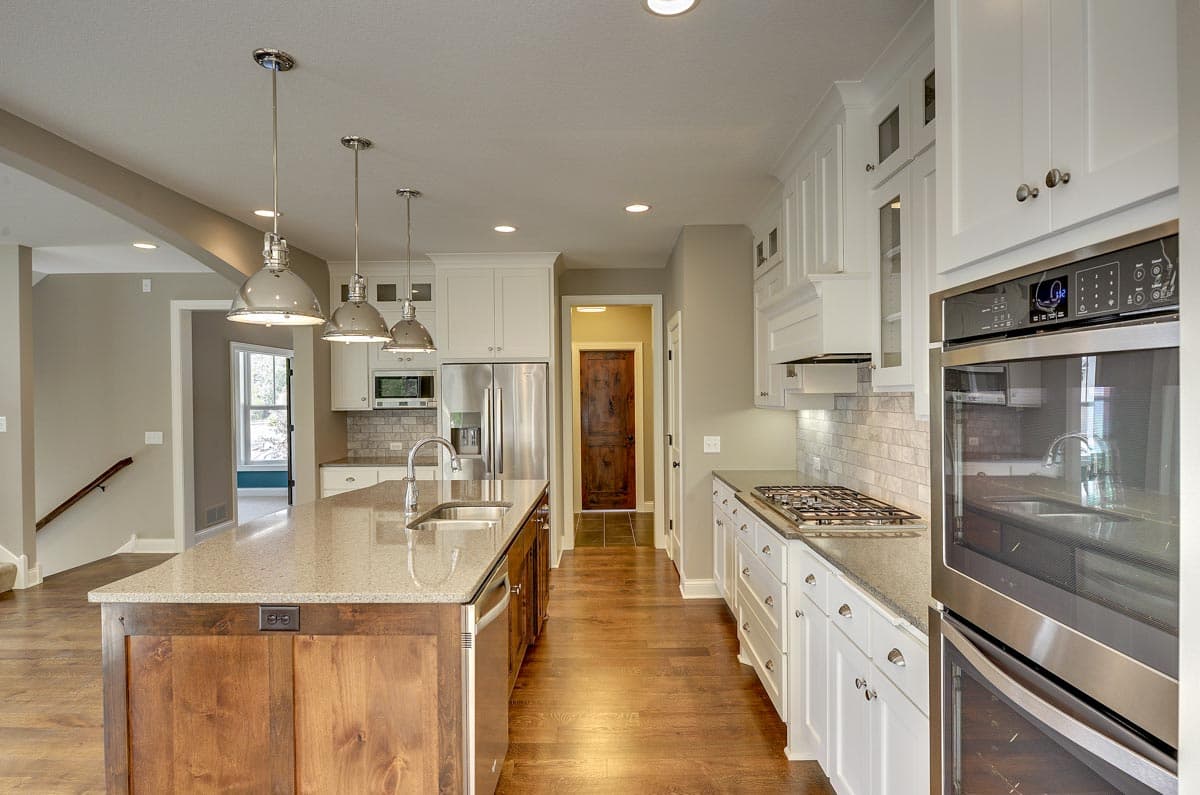

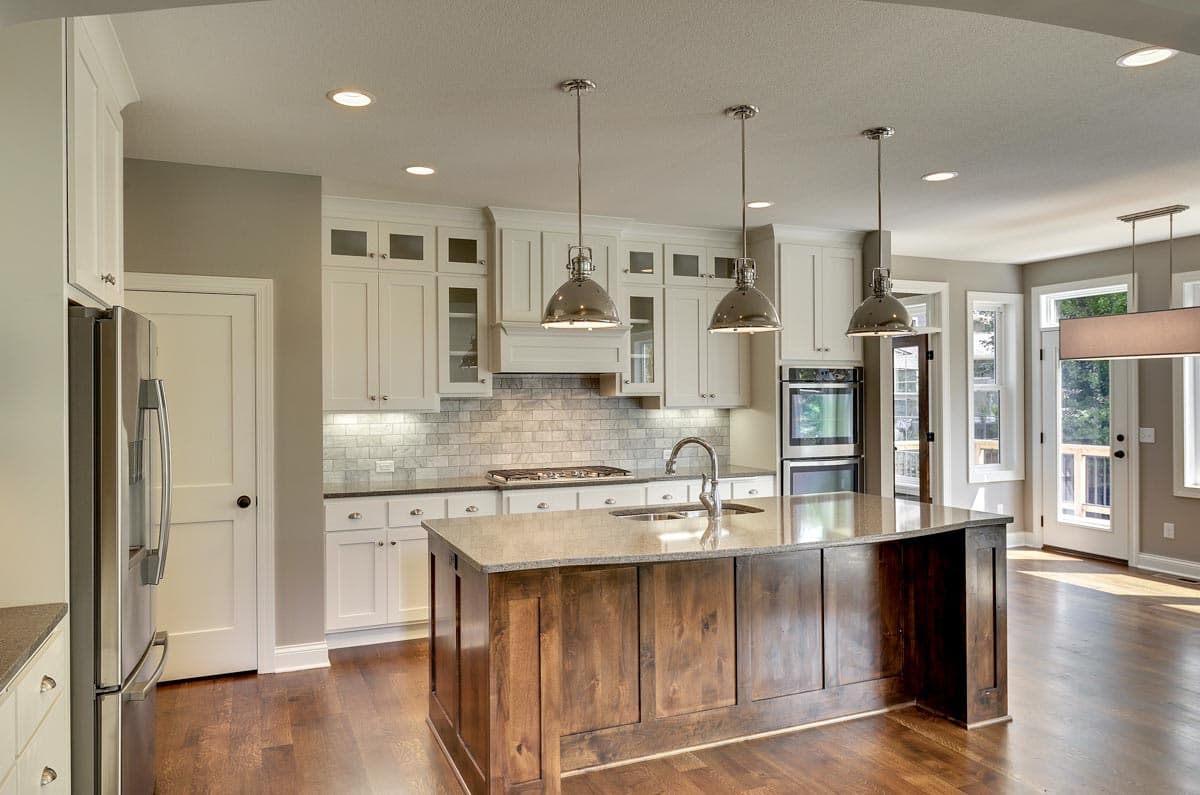

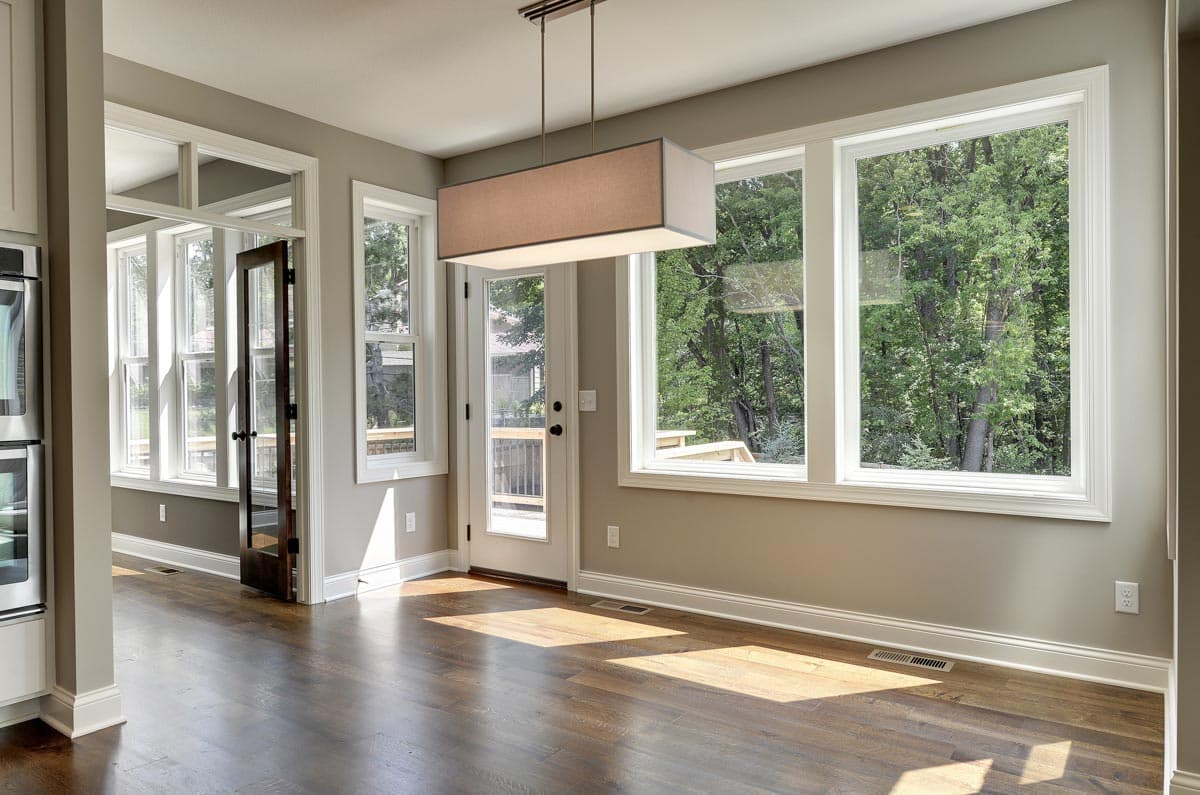

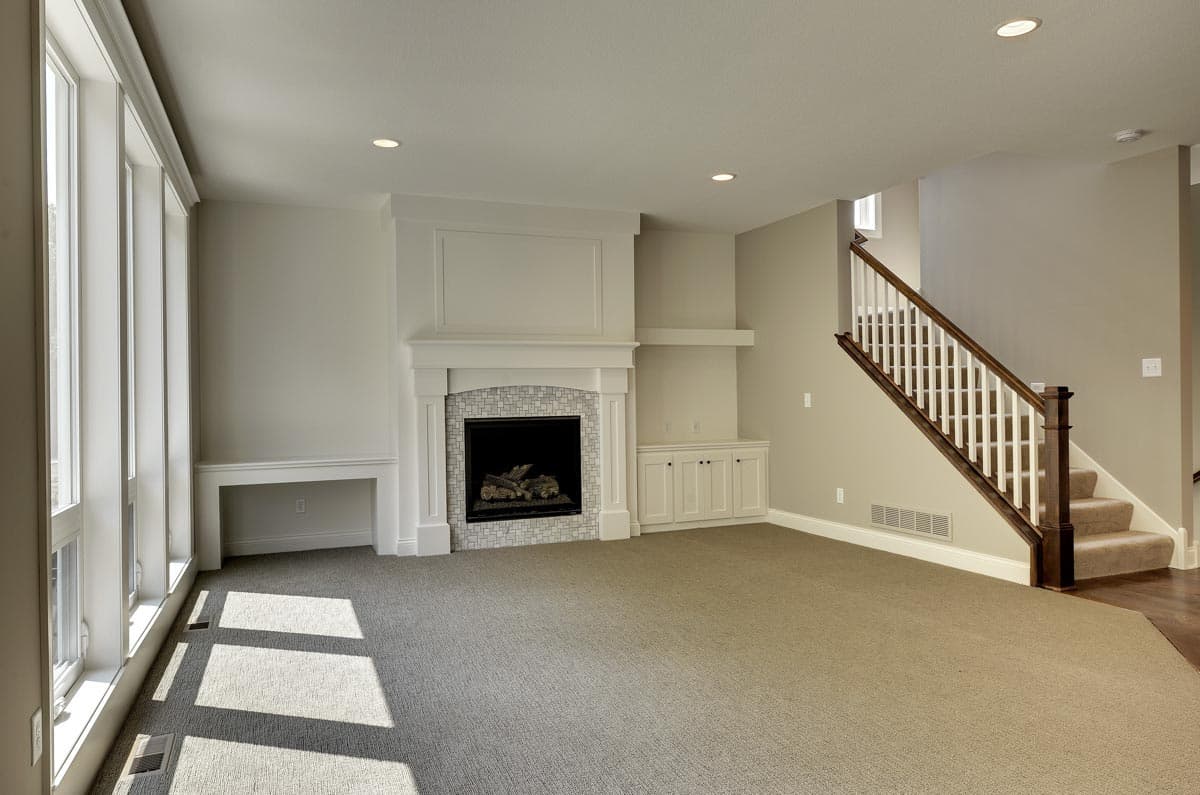

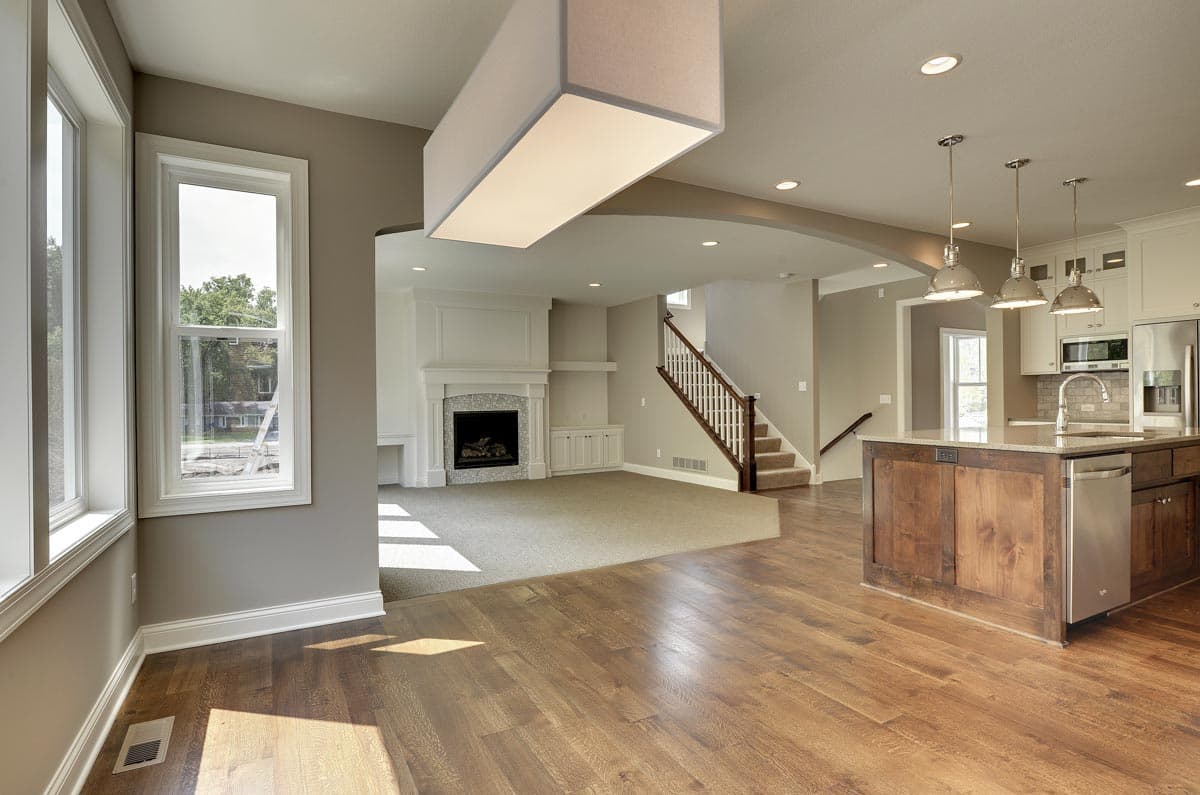

  • The open-concept main floor layout allows for maximum versatility. The great room features a fireplace and abundant natural light. In the kitchen, you'll find an oversized island with ample seating for casual meals. An airy dinette opens to a large covered deck.

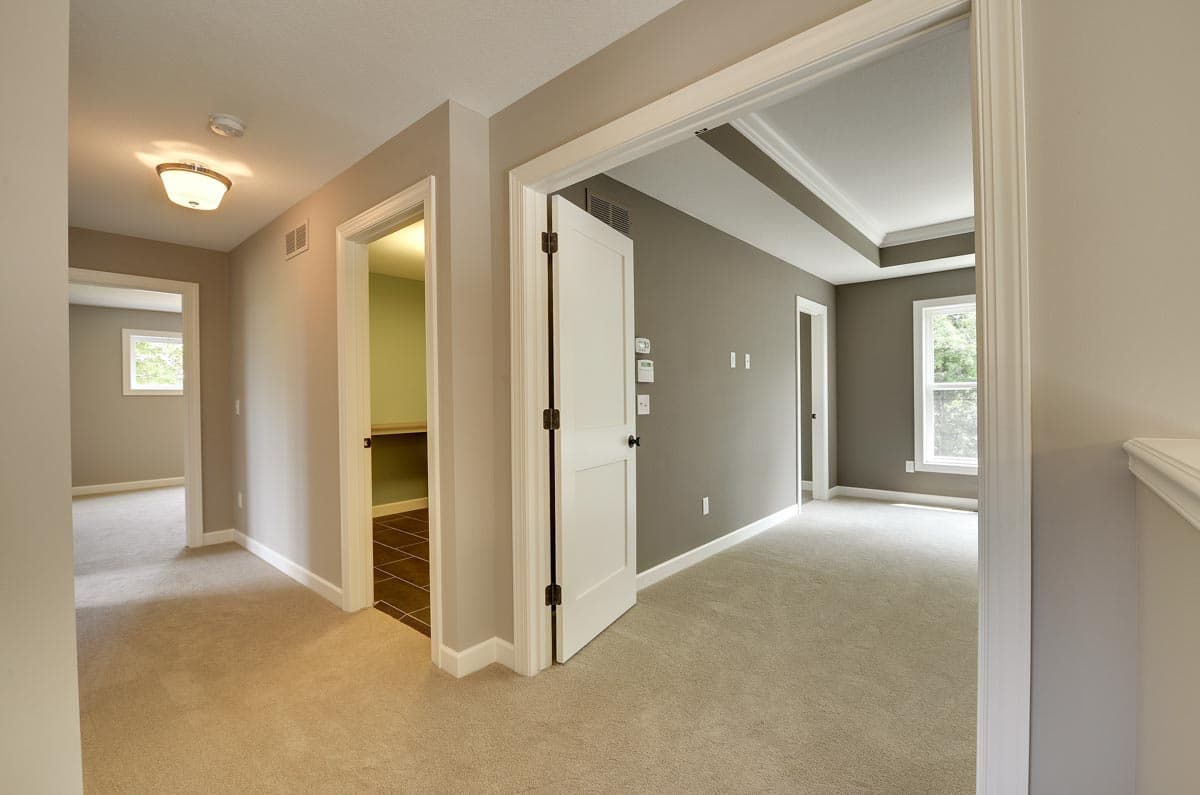

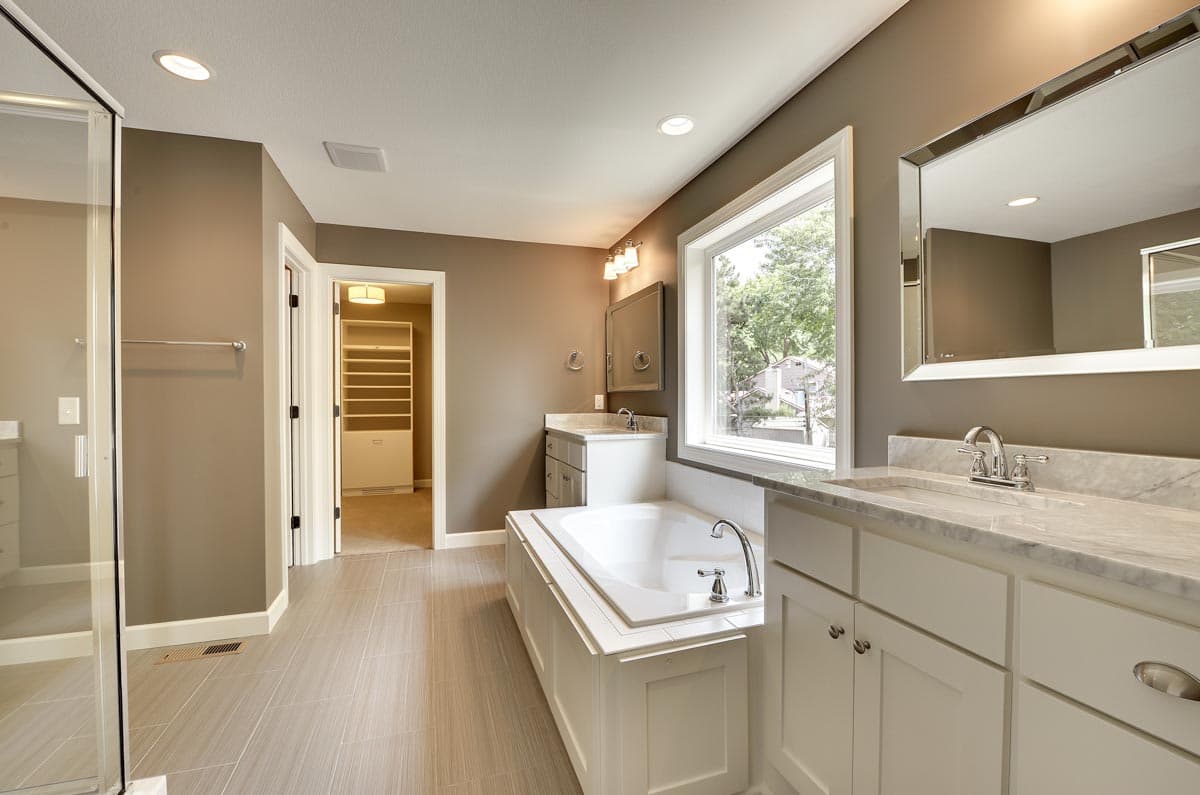

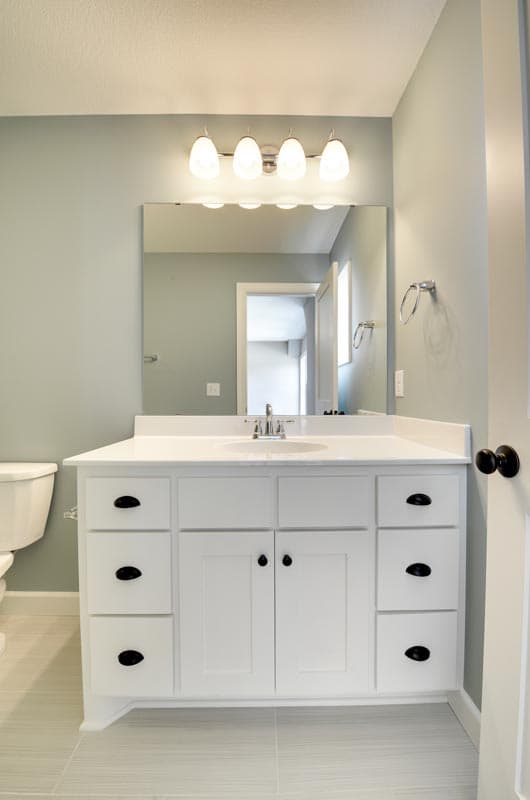

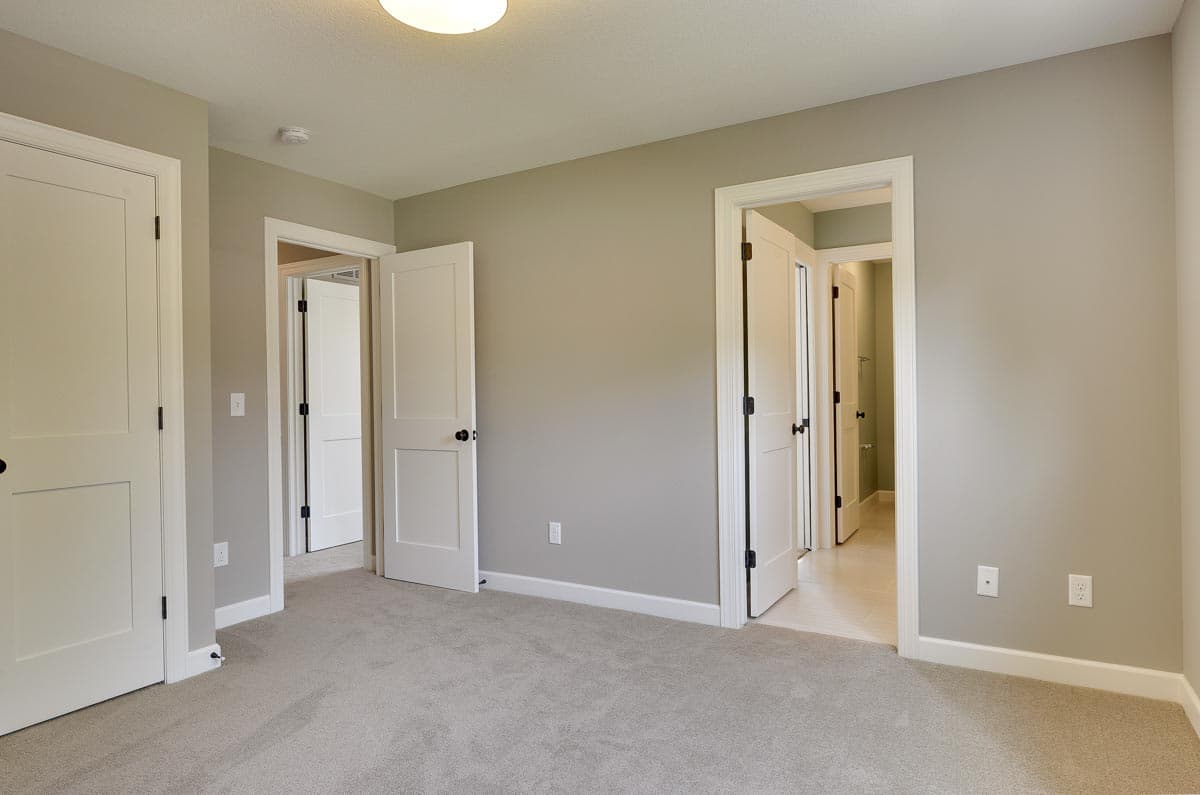

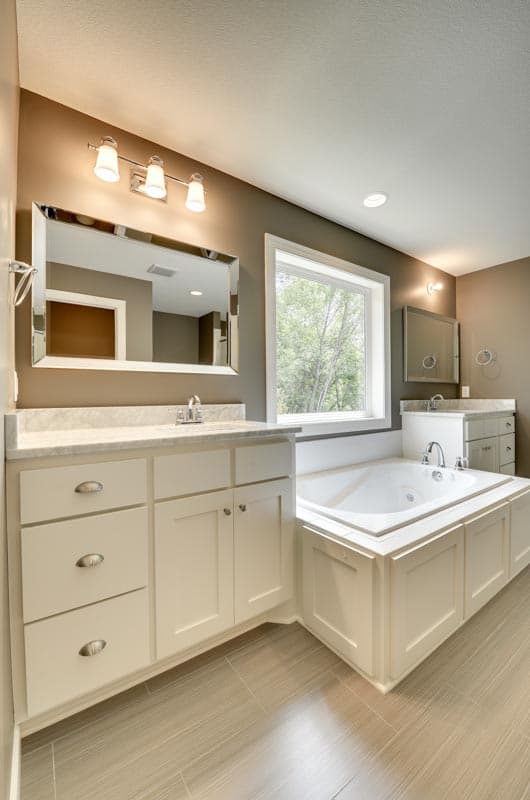

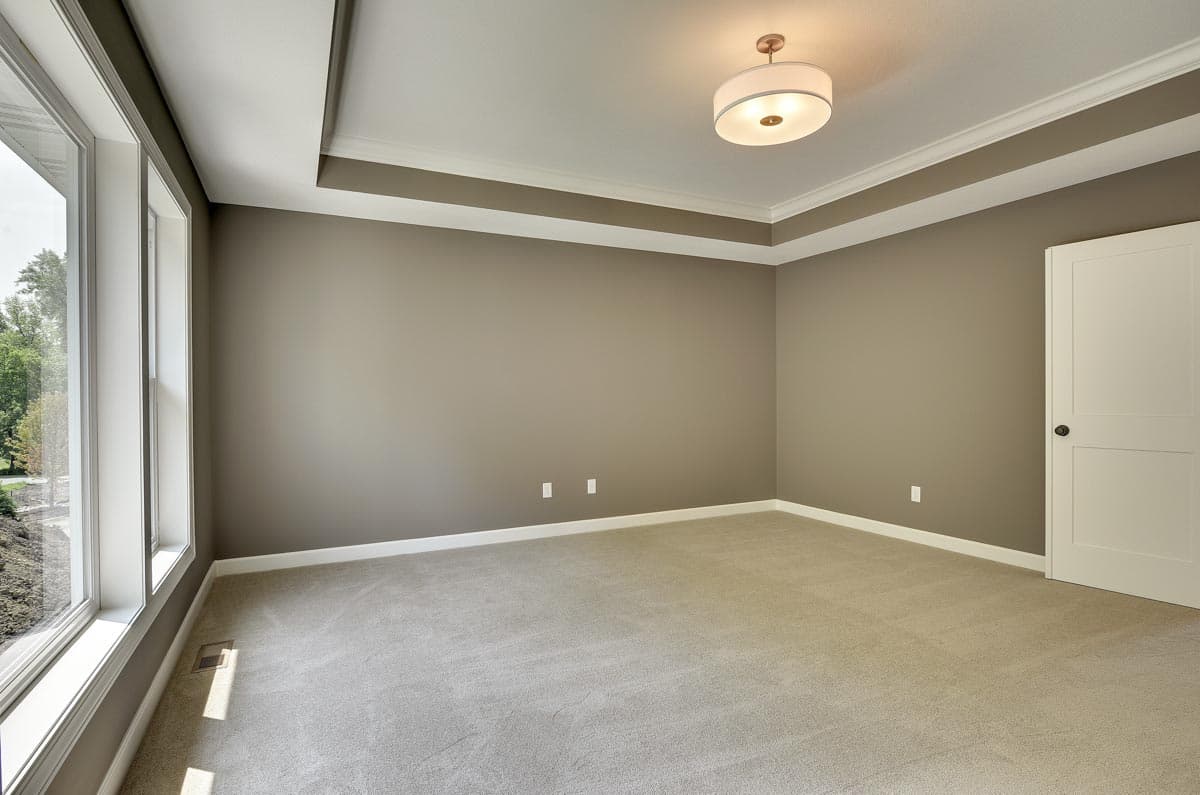

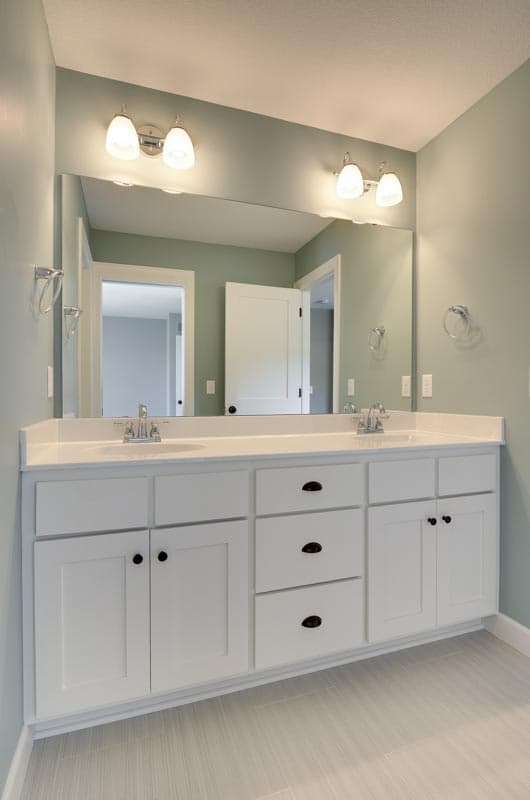

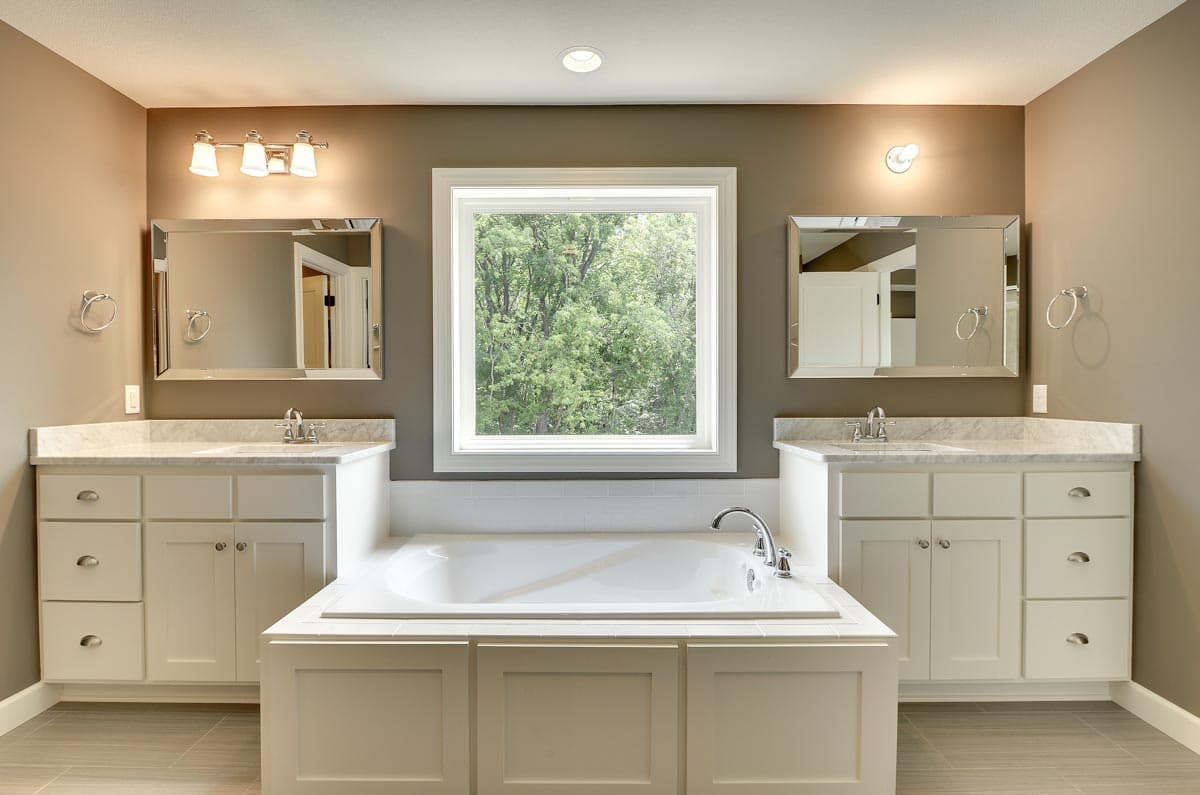

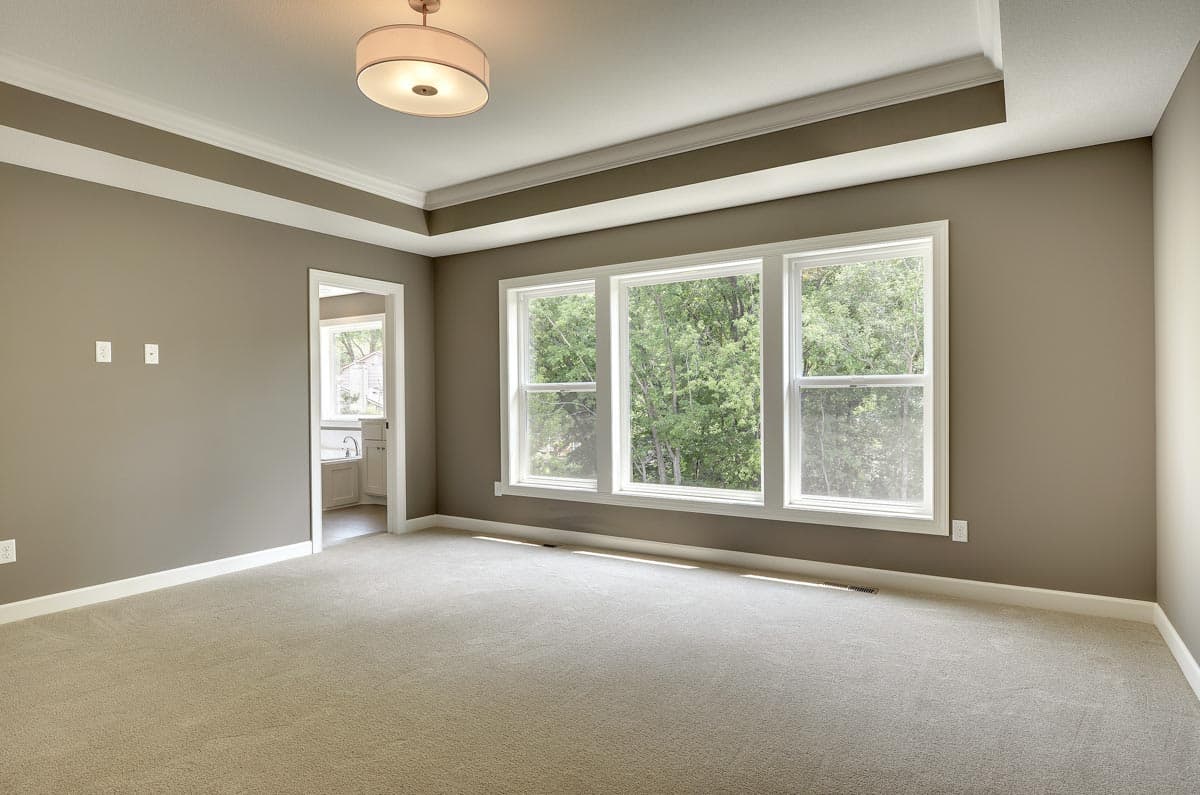

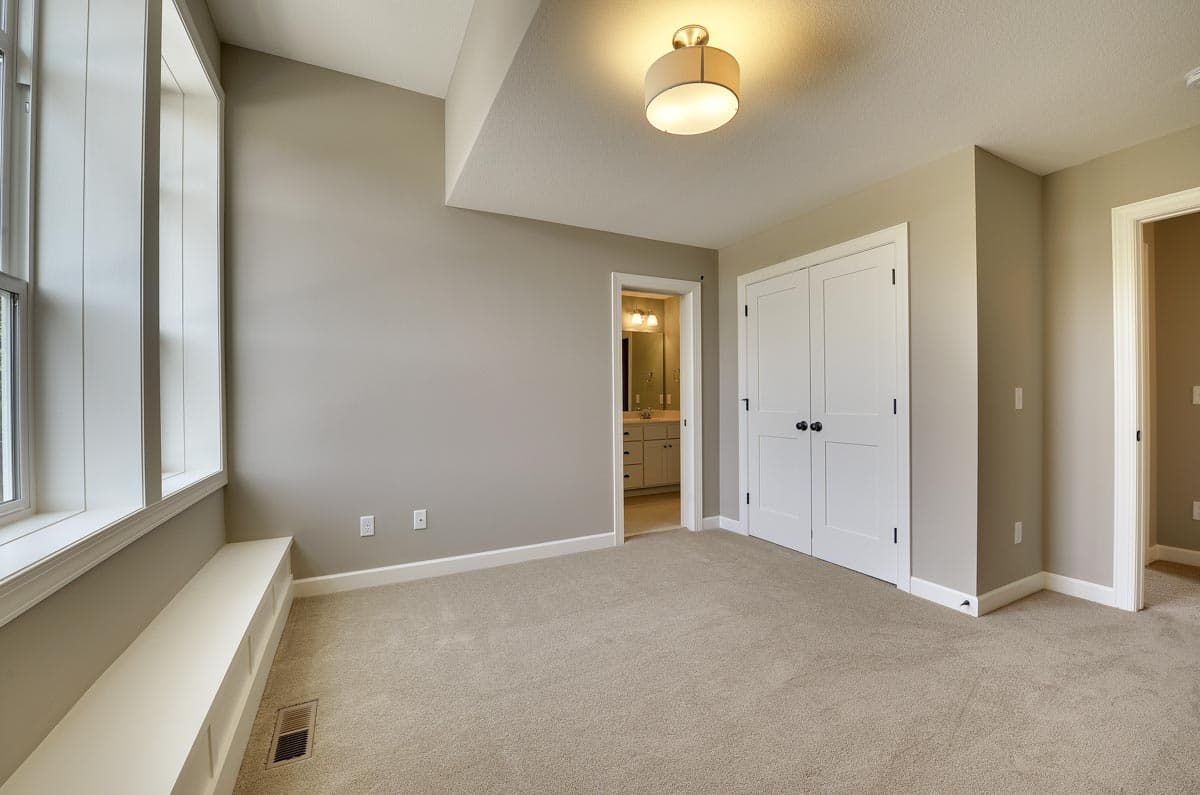

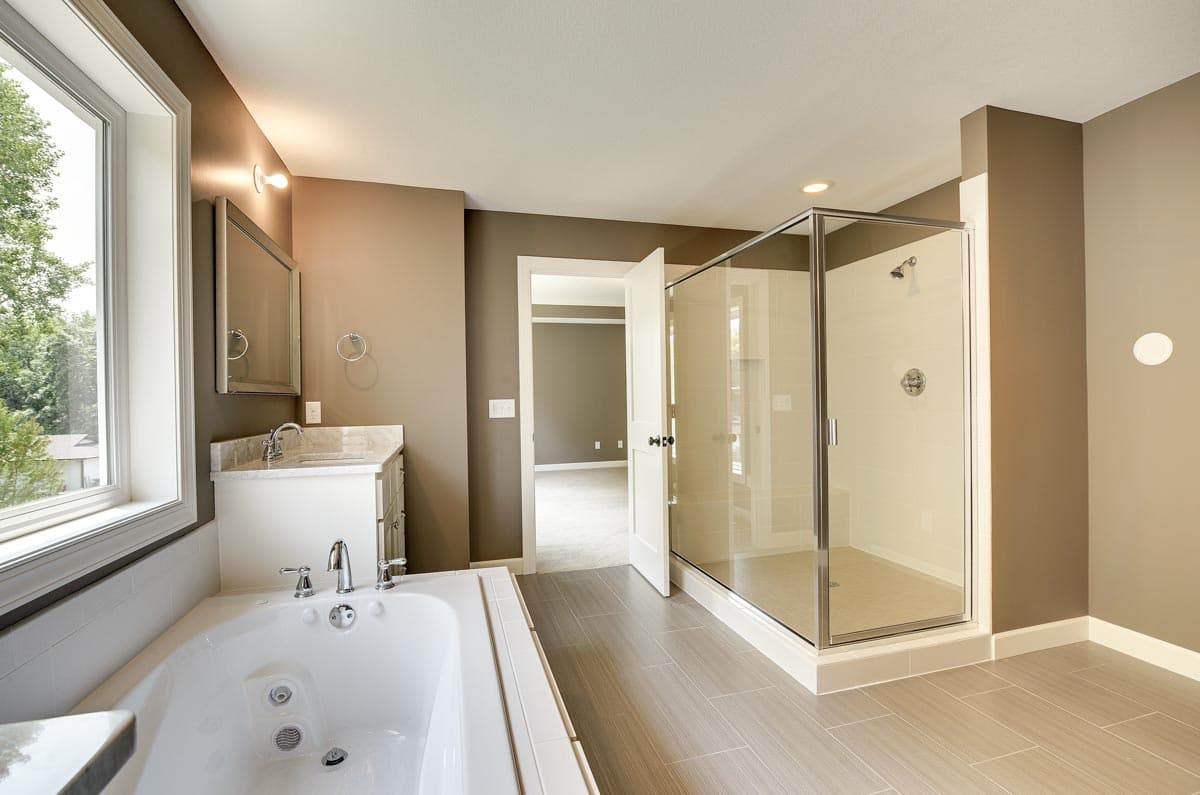

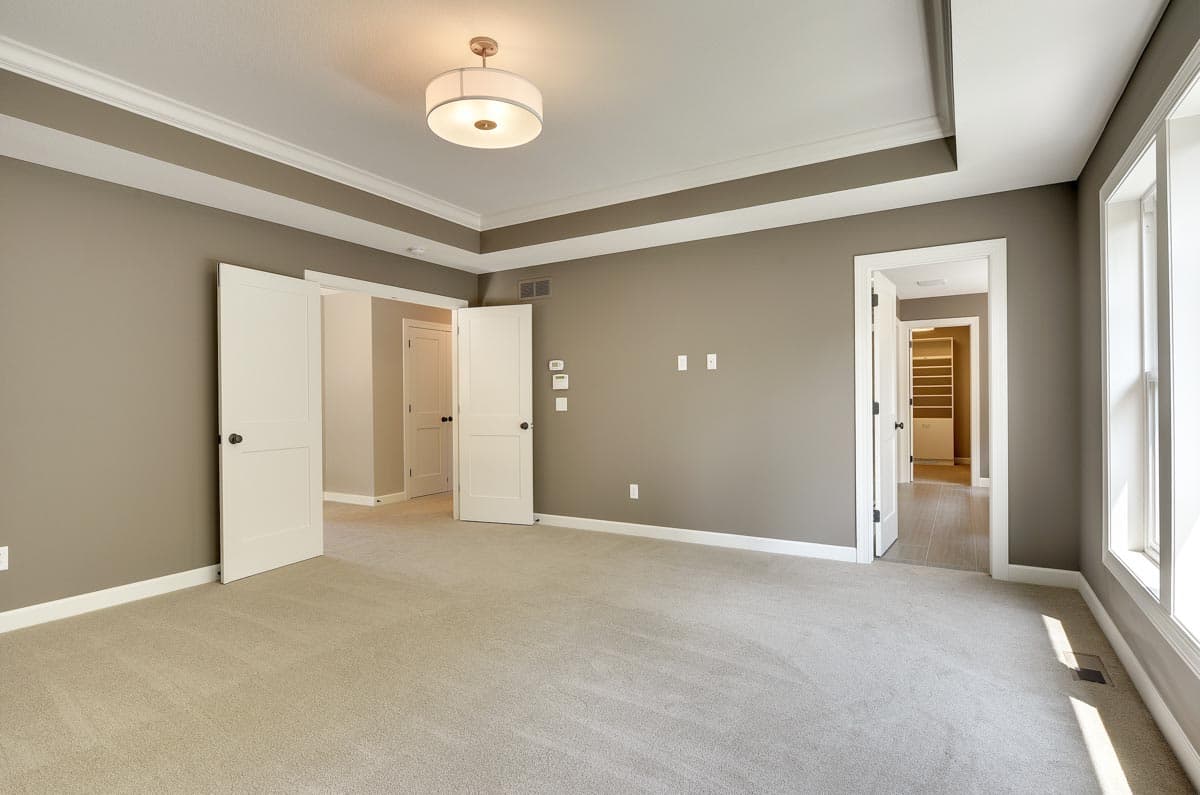

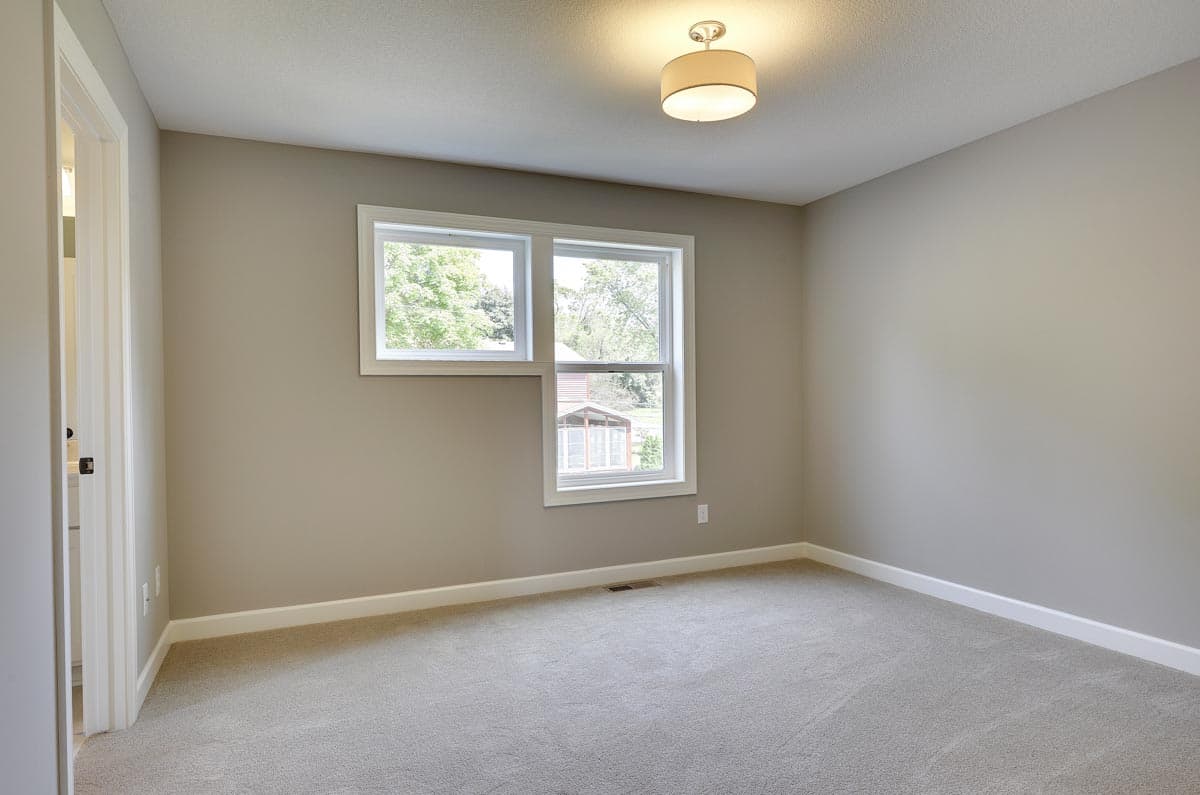

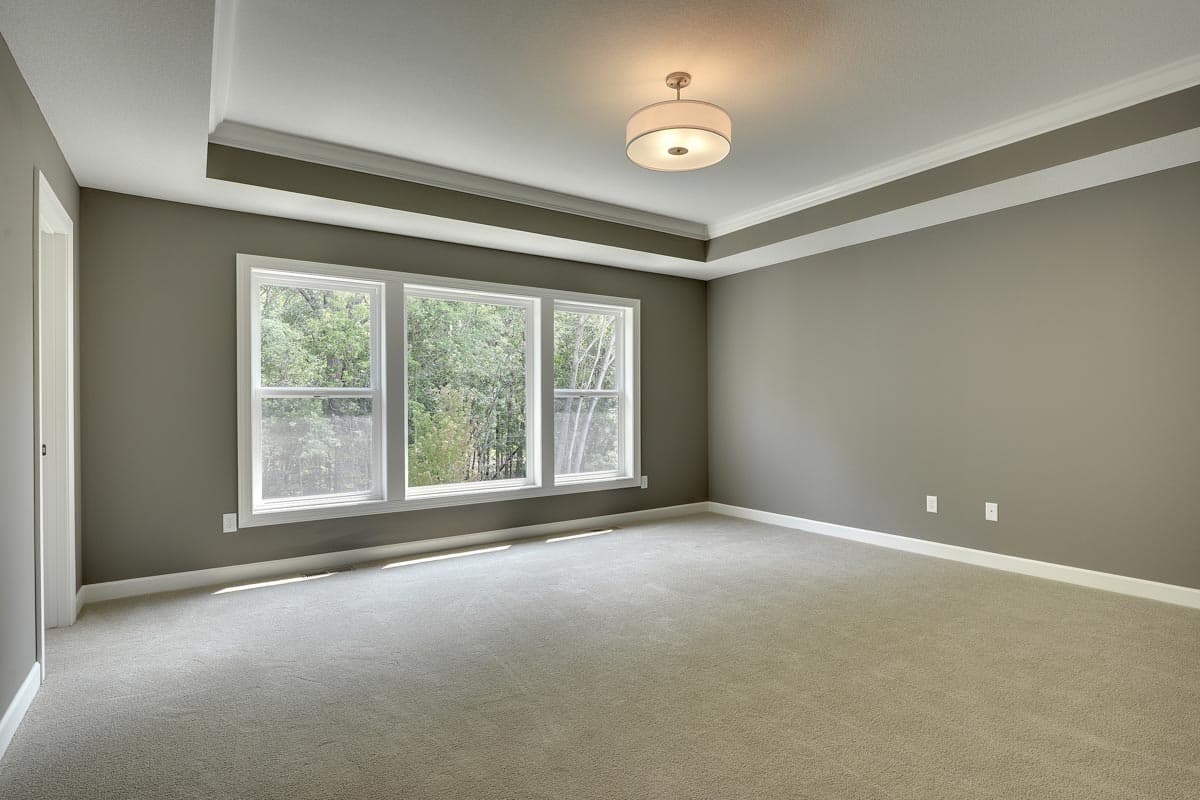

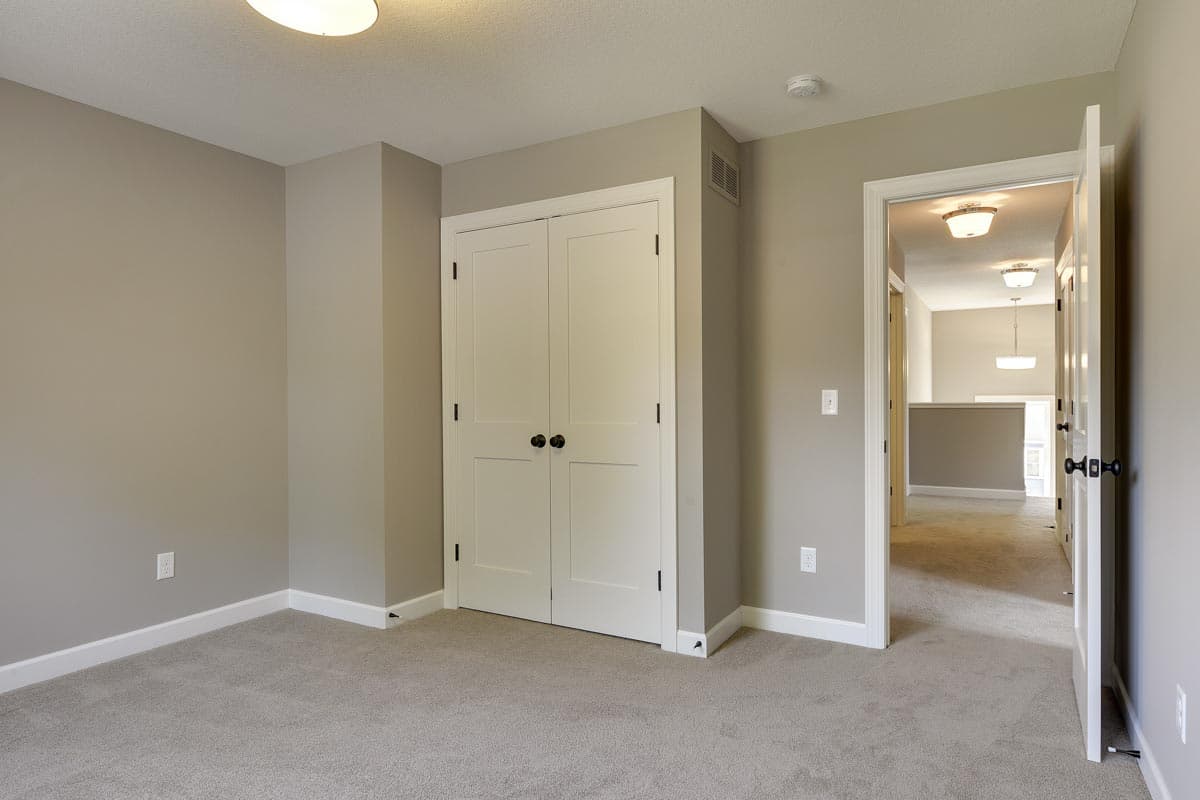

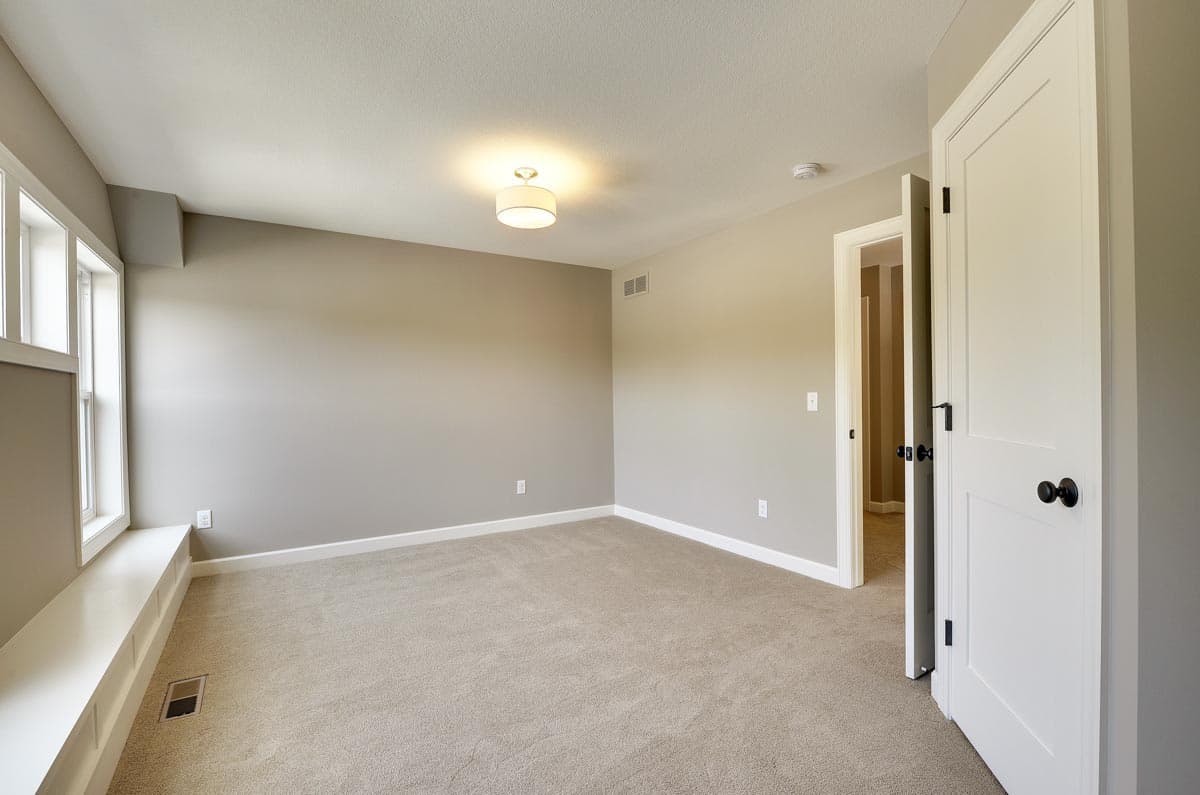

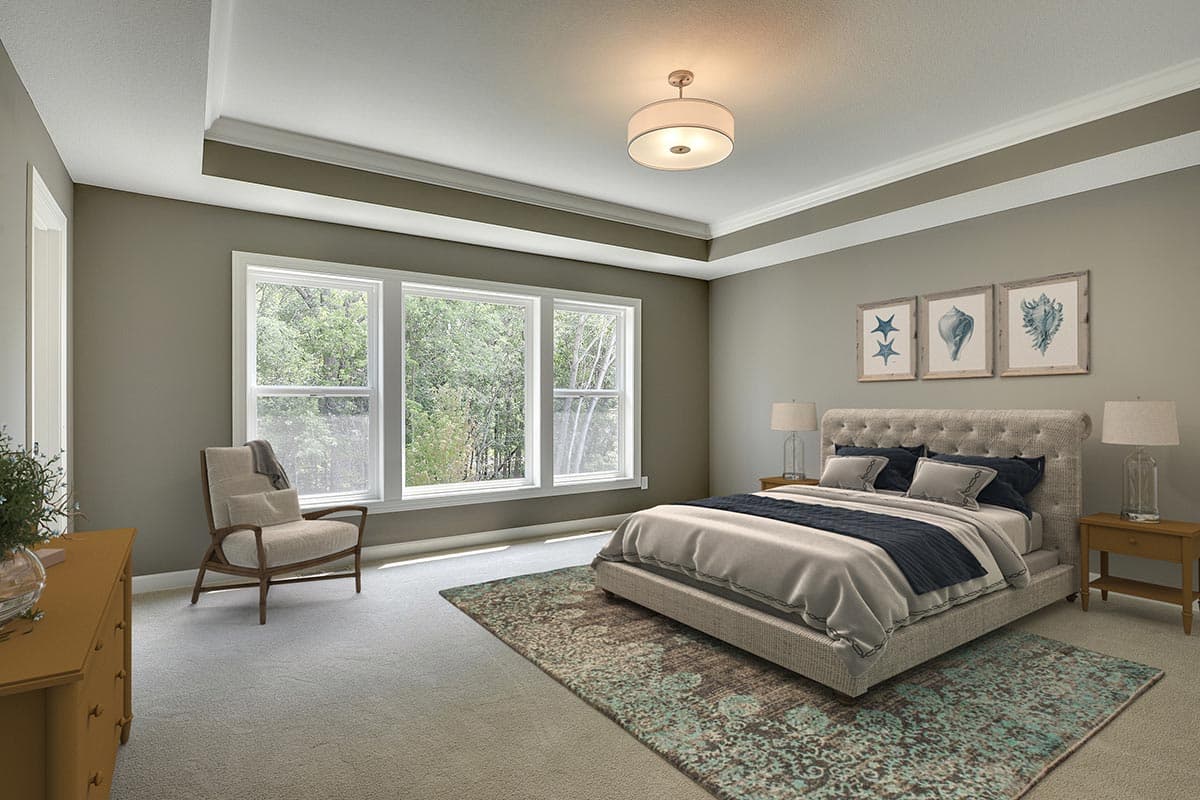

  • On the upper level, discover your well-appointed master suite, which features an elegant tray ceiling, 4-piece bath with an oversized shower, and a large walk-in closet. Across the hall, a bedroom with a full bath is ideal for guests. Two additional upstairs bedrooms share a Jack-and-Jill bath.

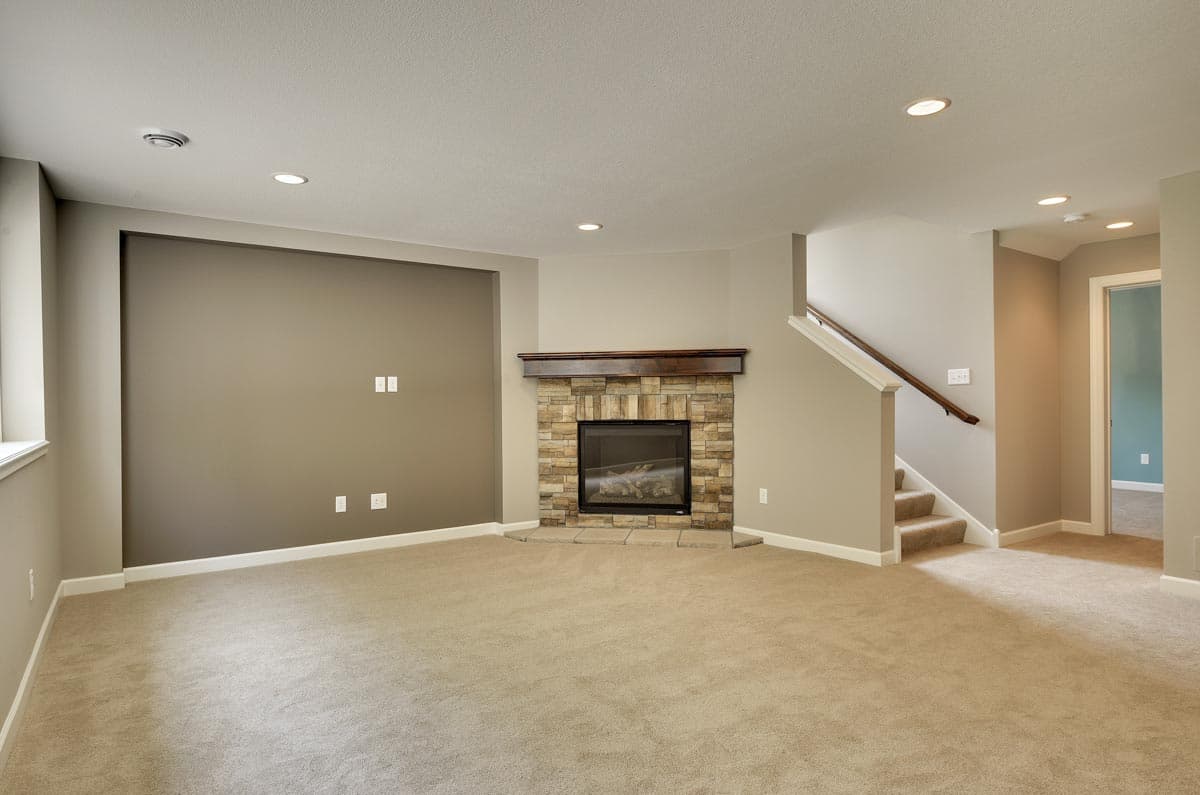

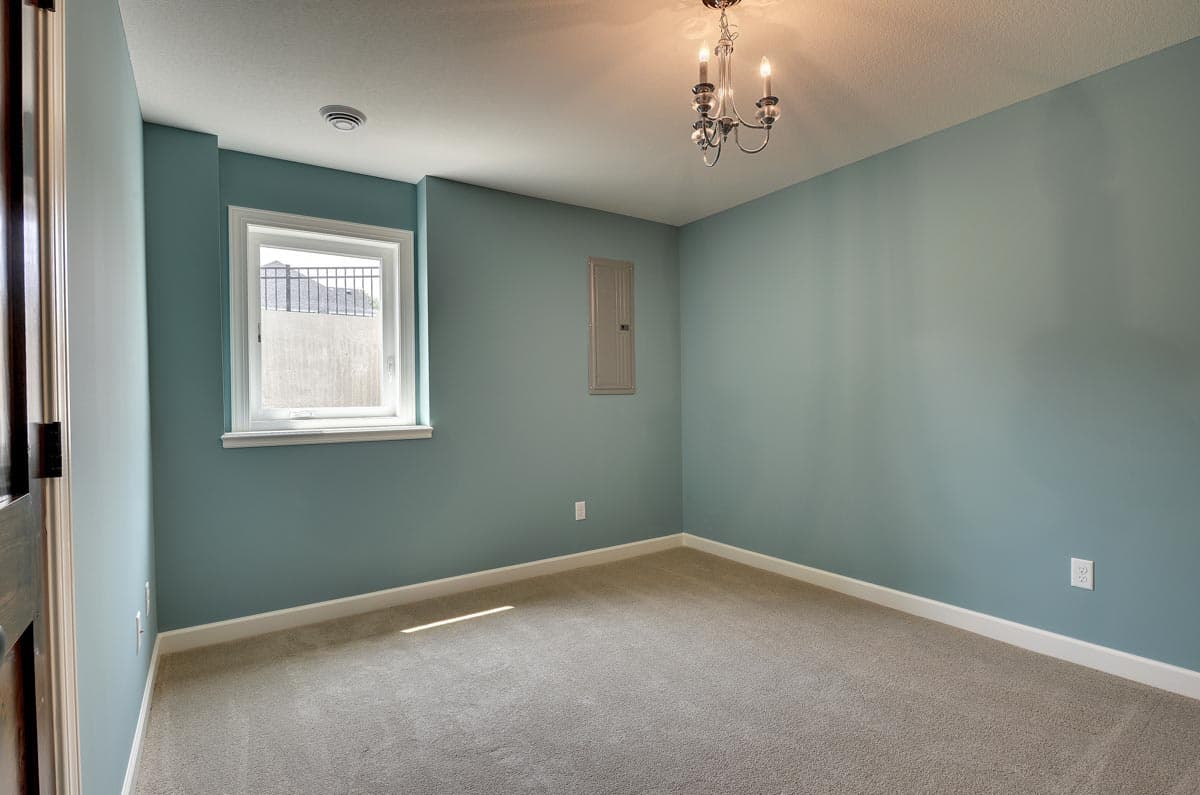

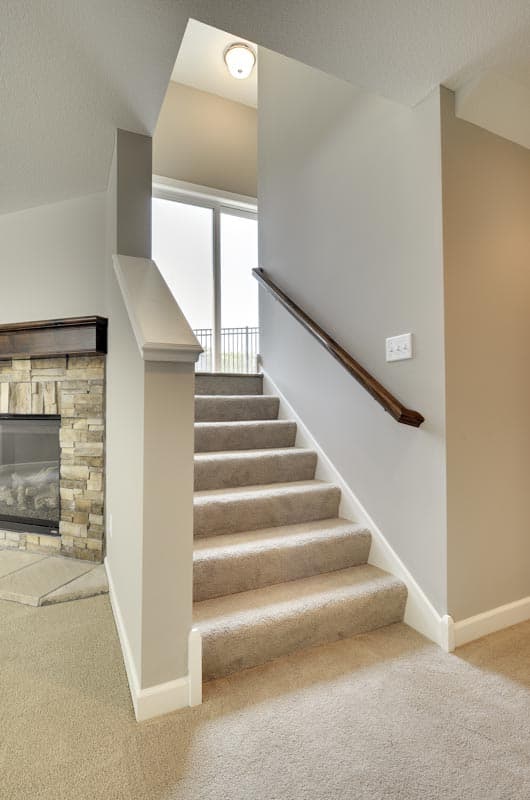

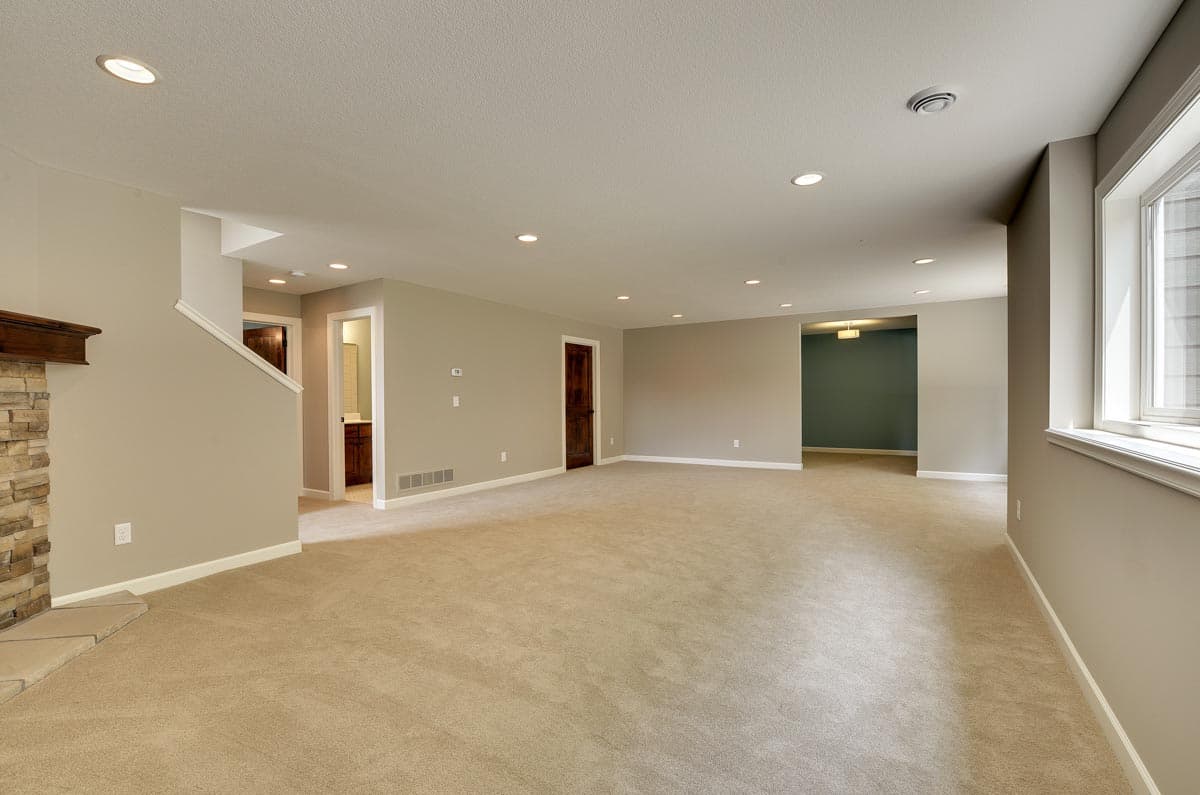

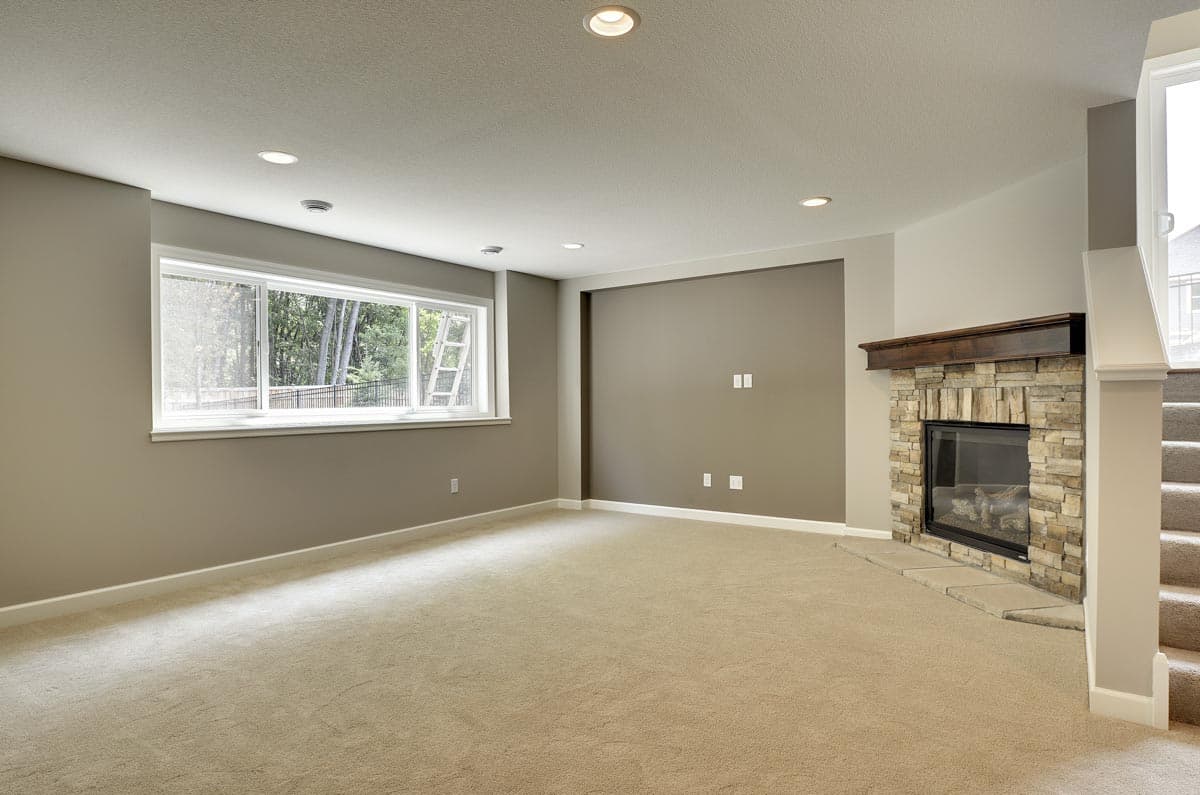

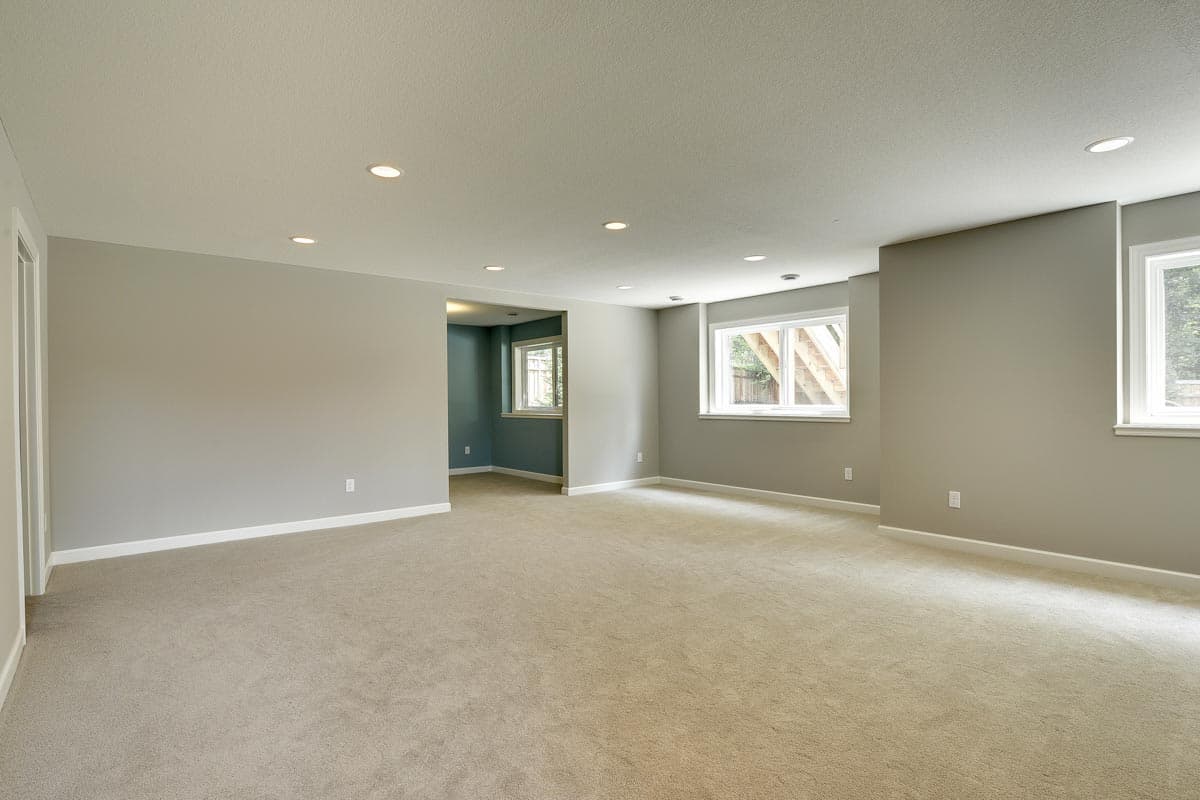

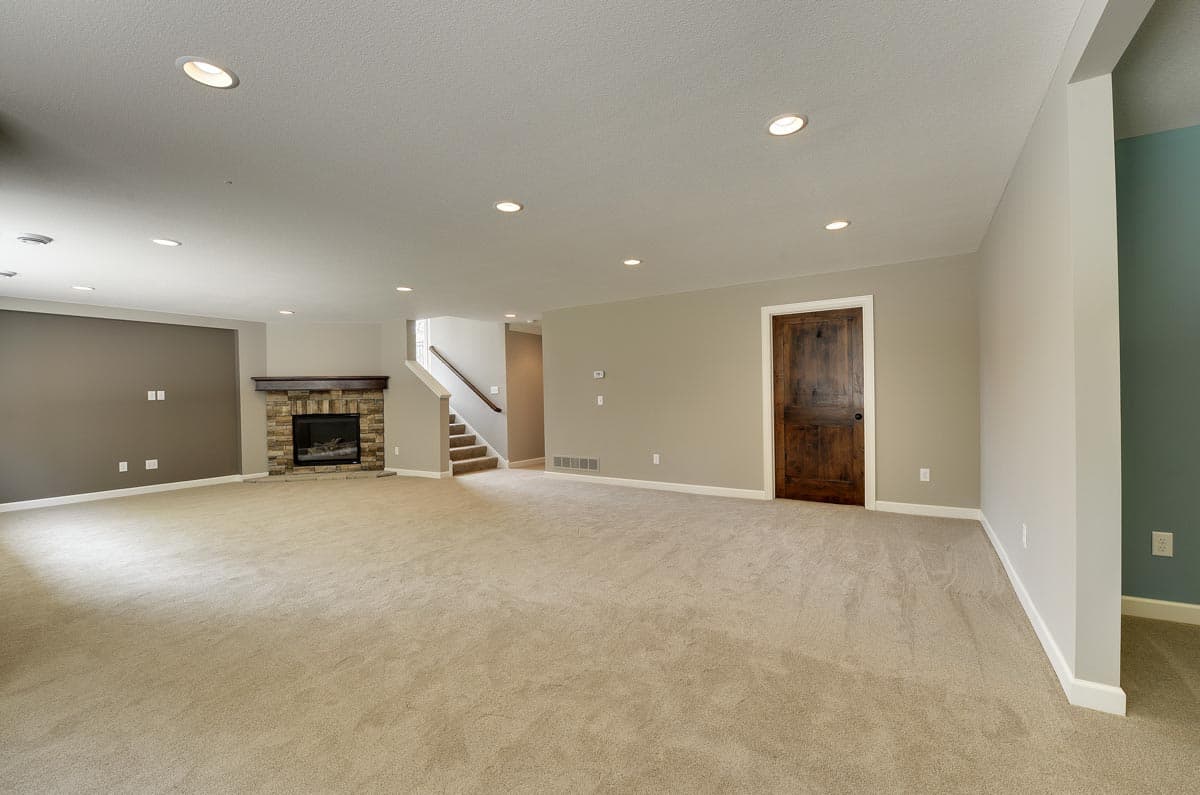

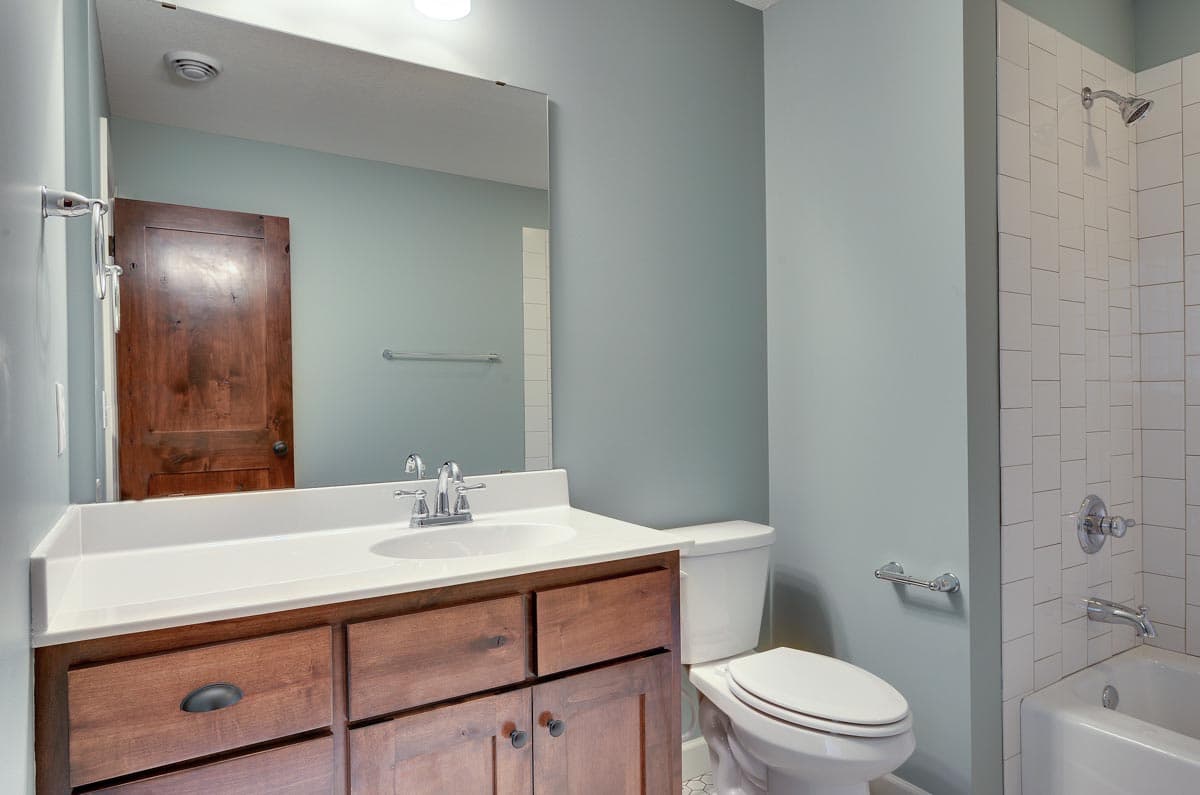

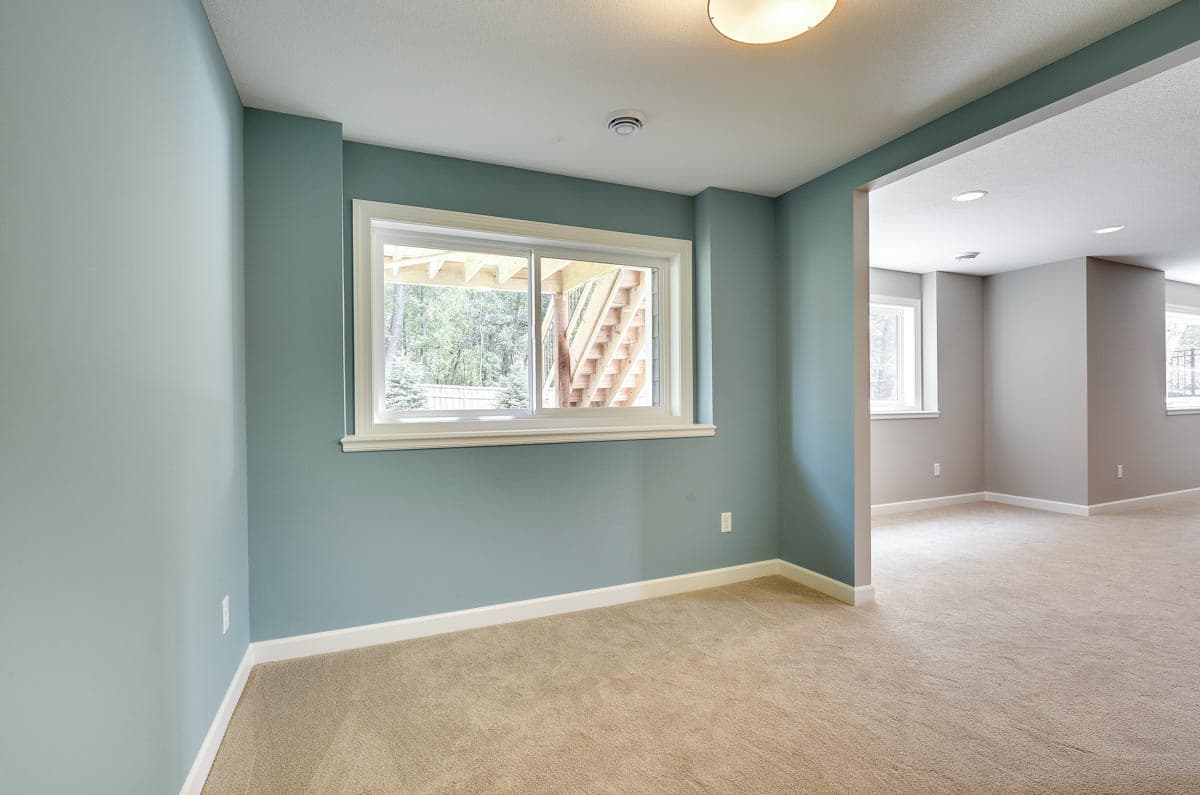

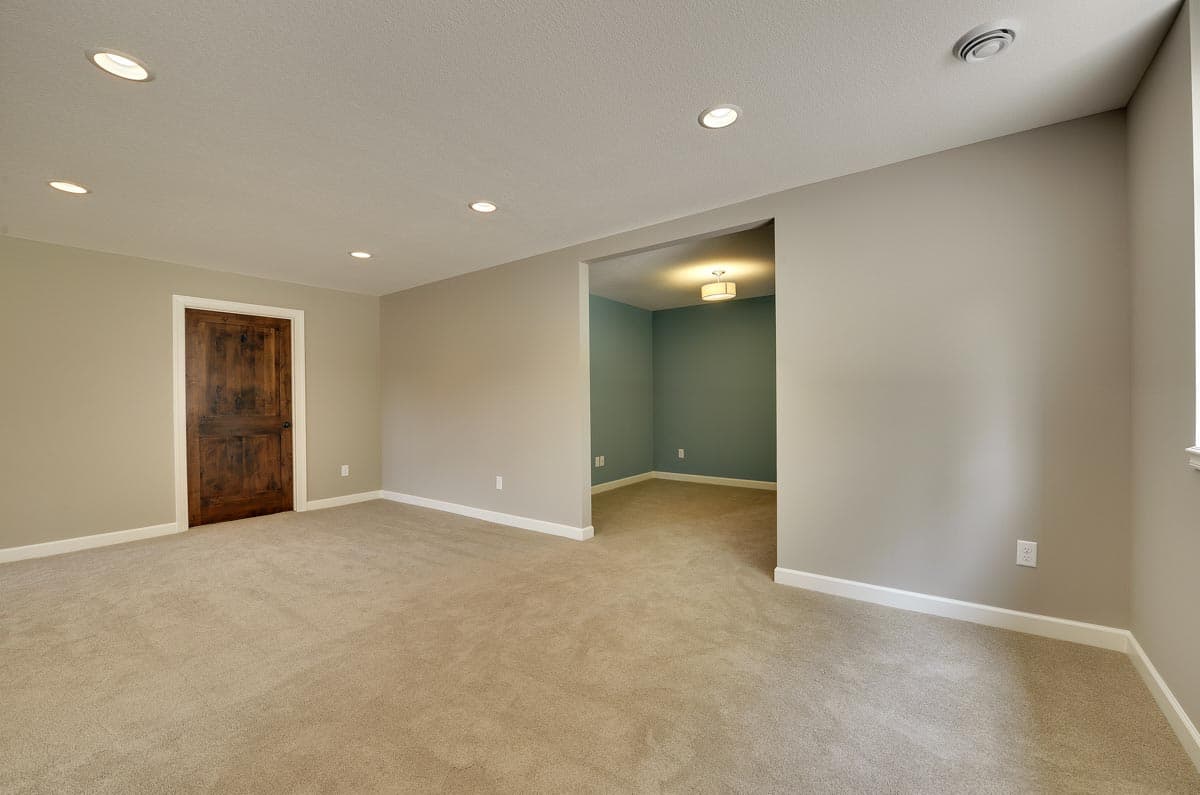

  • The optional lower-level plan includes a spacious game room, family room with a fireplace, exercise room, and an additional bedroom with a full bath.
  • NOTE: Contact us if building within a 50 mile radius of the Twin Cities area in Minnesota as restrictions may apply.

This plan set has 10 pages as follows:

  1. Lower level floor plan
  2. Main floor plan
  3. Second floor plan and bedroom wall elevation

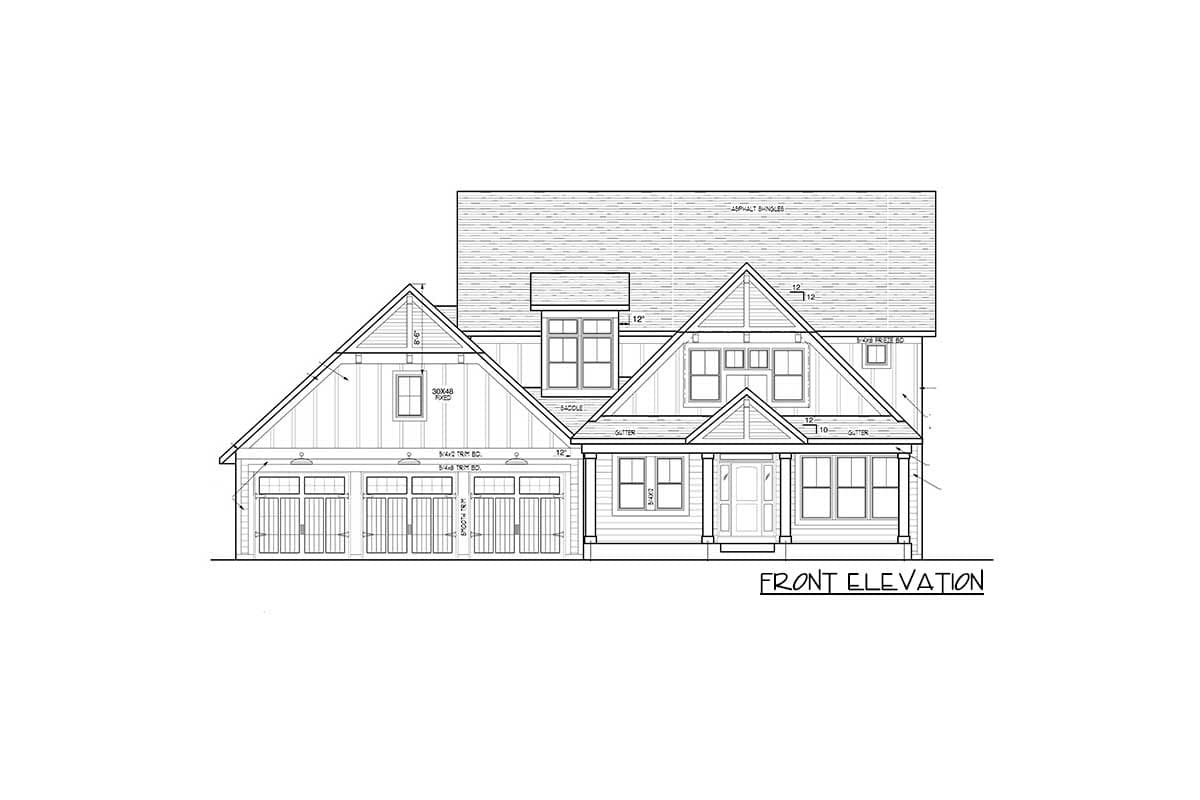

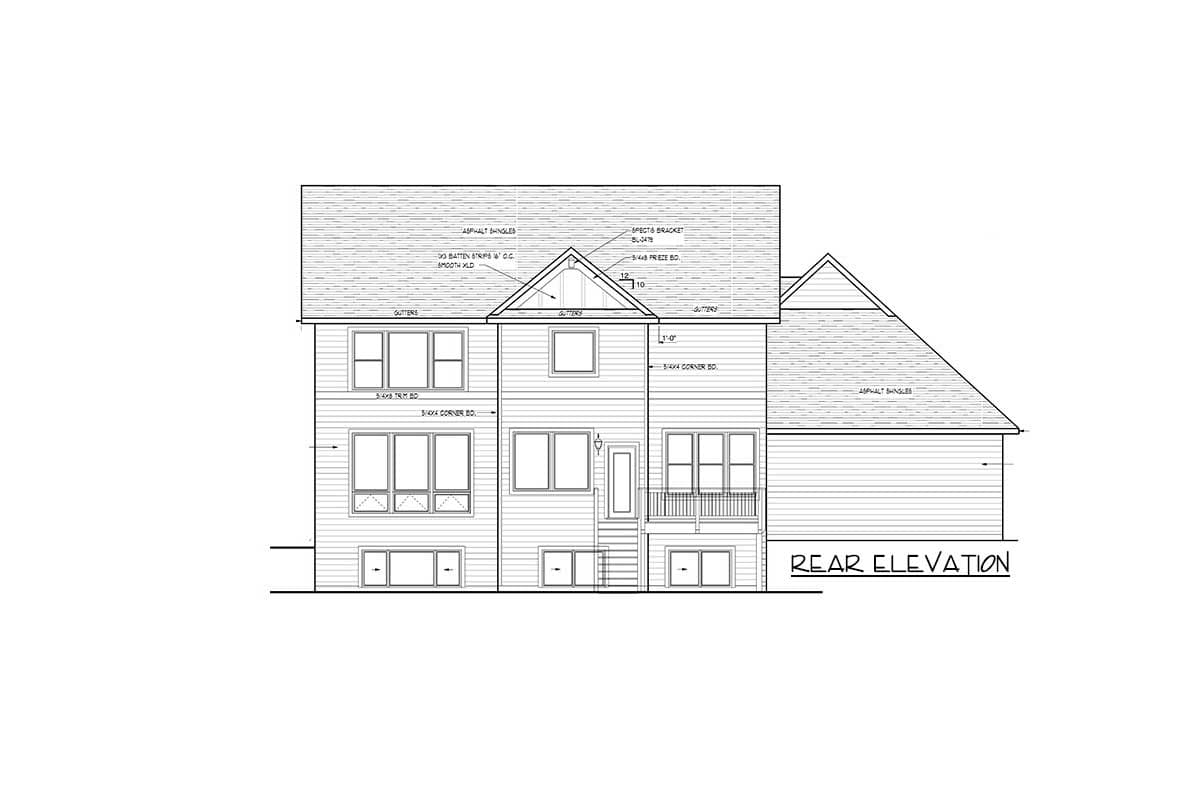

  4. Front and rear elevations, gable louver detail and front stoop detail

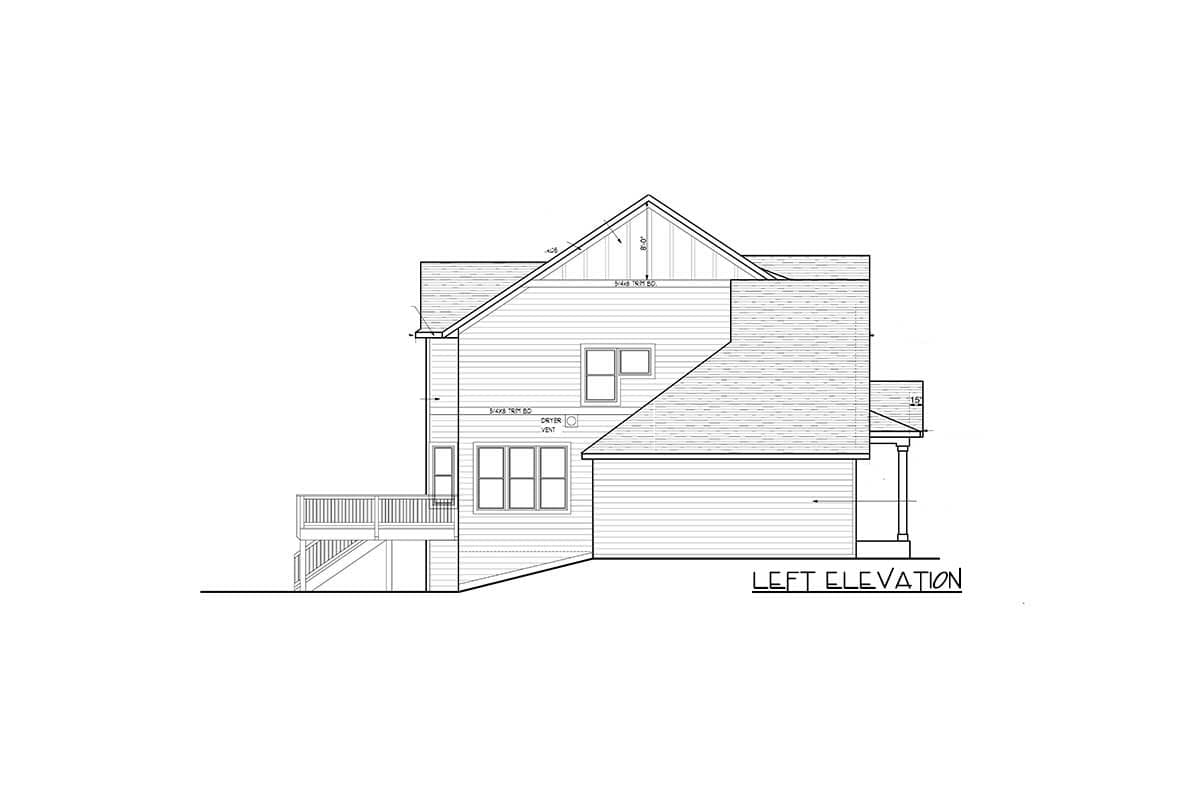

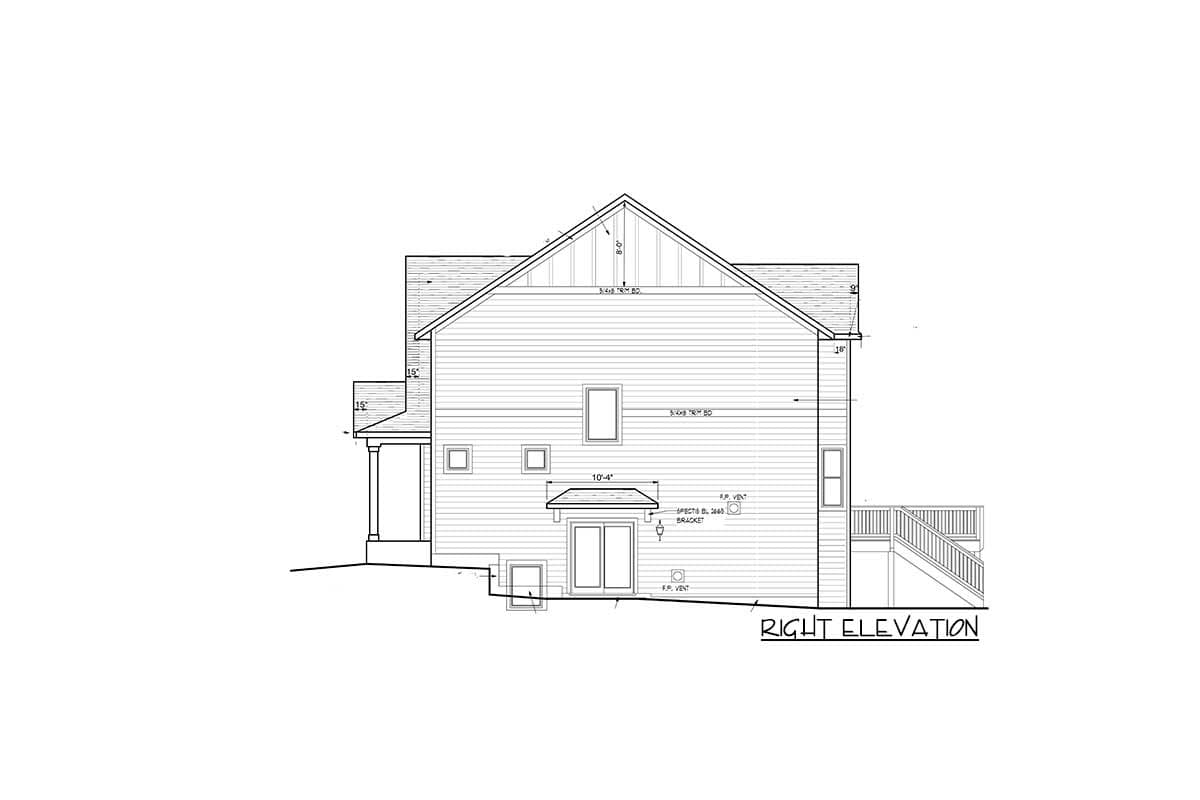

  5. Left and right elevations
  6. Electrical plans
  7. Interior elevations
  8. Interior elevations
  9. Cross sections
  10. Deck plan
Note: the plan is a truss design and your local truss manufacturer will create the trusses following the plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

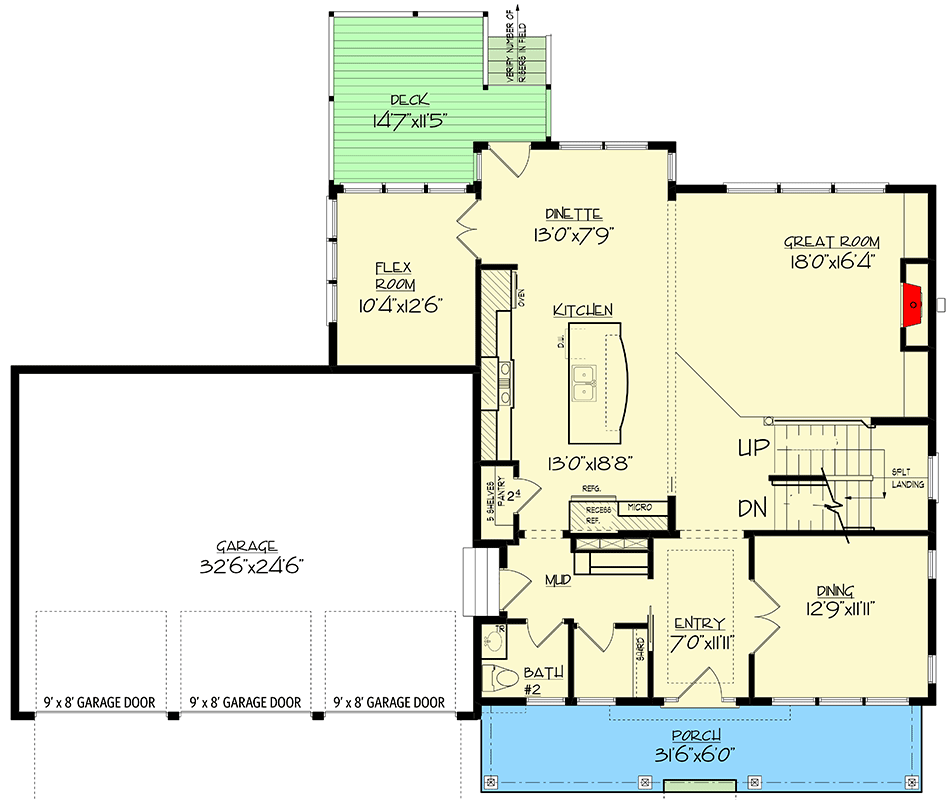

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Storybook Craftsman Home Plan with Upstairs Laundry and Lower Level Expansion - 73389HS floor plan - Main Level

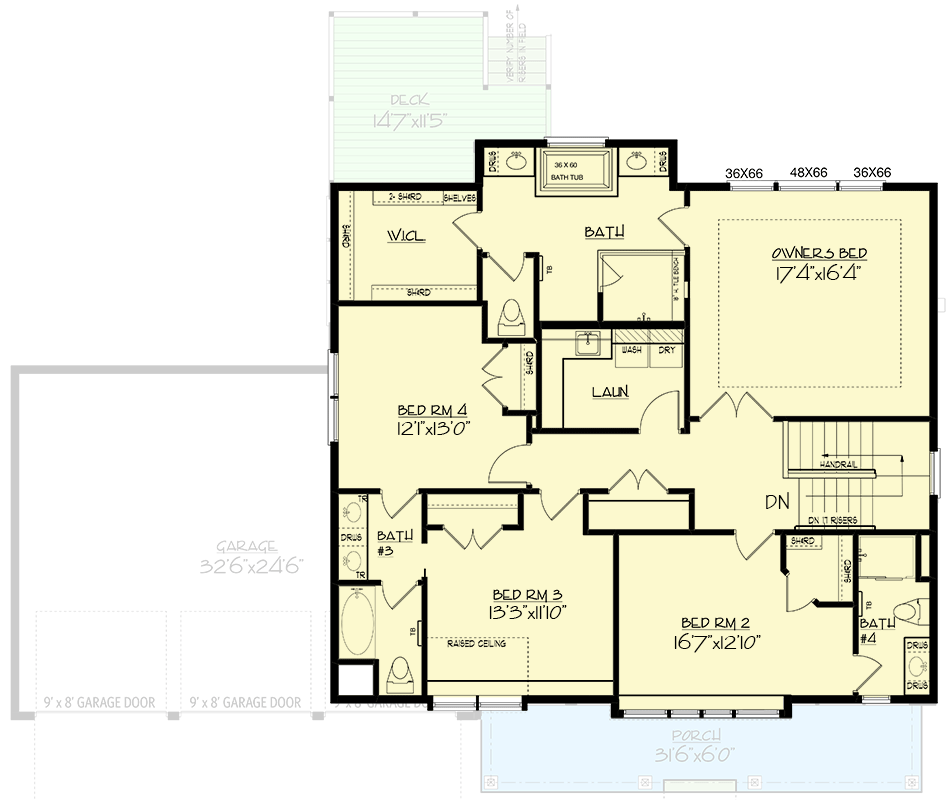

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Storybook Craftsman Home Plan with Upstairs Laundry and Lower Level Expansion - 73389HS floor plan - 2nd Floor

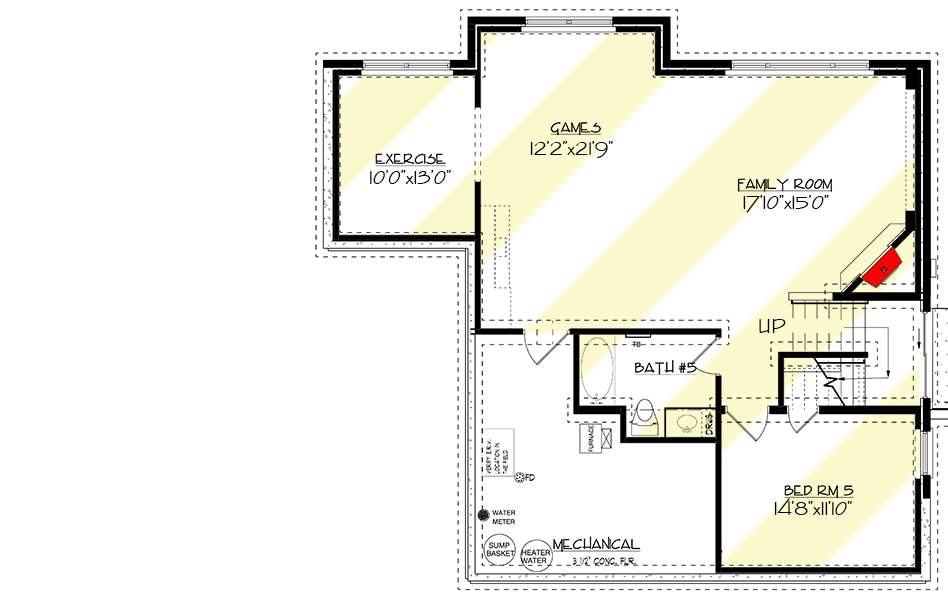

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Storybook Craftsman Home Plan with Upstairs Laundry and Lower Level Expansion - 73389HS floor plan - Optional Lower Level

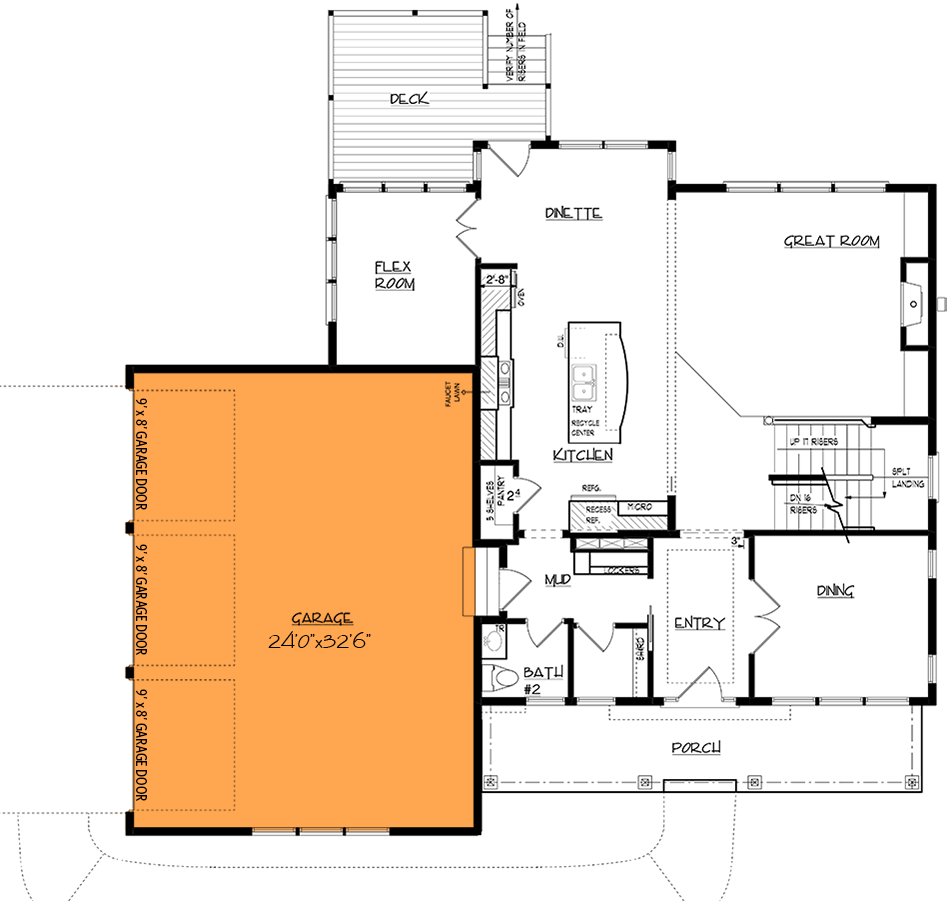

Optional Side Load Garage (+$395)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Storybook Craftsman Home Plan with Upstairs Laundry and Lower Level Expansion - 73389HS floor plan - Optional Side Load Garage (+$395)

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,895 sq. ft.
  • 1st Floor: 1,312 sq. ft.
  • 2nd Floor: 1,583 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 46' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Exclusive Storybook Craftsman Home Plan with Upstairs Laundry and Lower Level Expansion

  • 2,895

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,495
  • View all purchase option online

About This Plan

  • This exciting, exclusive 4-bedroom craftsman home plan draws you in with eye-catching architectural accents, a welcoming front porch, and a 3-car garage.
  • The open-concept main floor layout allows for maximum versatility. The great room features a fireplace and abundant natural light. In the kitchen, you'll find an oversized island with ample seating for casual meals. An airy dinette opens to a large covered deck.
  • On the upper level, discover your well-appointed master suite, which features an elegant tray ceiling, 4-piece bath with an oversized shower, and a large walk-in closet. Across the hall, a bedroom with a full bath is ideal for guests. Two additional upstairs bedrooms share a Jack-and-Jill bath.
  • The optional lower-level plan includes a spacious game room, family room with a fireplace, exercise room, and an additional bedroom with a full bath.
  • NOTE: Contact us if building within a 50 mile radius of the Twin Cities area in Minnesota as restrictions may apply.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level

  • Optional Side Load Garage (+$395)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,895 sq. ft.
  • 1st Floor: 1,312 sq. ft.
  • 2nd Floor: 1,583 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 46' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
Plan 73389HS
View this and more for this plan by visiting www.architechtecturaldesigns.com/73389HS
|
