Plan 770001CED

Exclusive Three Bedroom Ranch with Split Bedroom Layout

1,940 3 2 1 2
Print
Compare
...

Exclusive Three Bedroom Ranch with Split Bedroom Layout

Plan 770001CED

  • 1,940

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Two elegant interior columns announce the entry to the big vaulted great room that can be seen from the foyer of this handsome Traditional house plan - exclusive to Architectural Designs.
  • The large dining area has glass on three sides to bring the views and light inside.
  • The peninsula eating bar curves around to provide a great spot for the kitchen sink so you can enjoy the fireplace while cooking.
  • Homeowners get a beautiful vaulted master suite with a large walk-in closet.
  • Two family bedrooms are set on the opposite side of the home.

This designer's house plans consist of the following elements:

  • Cover sheet with general notes

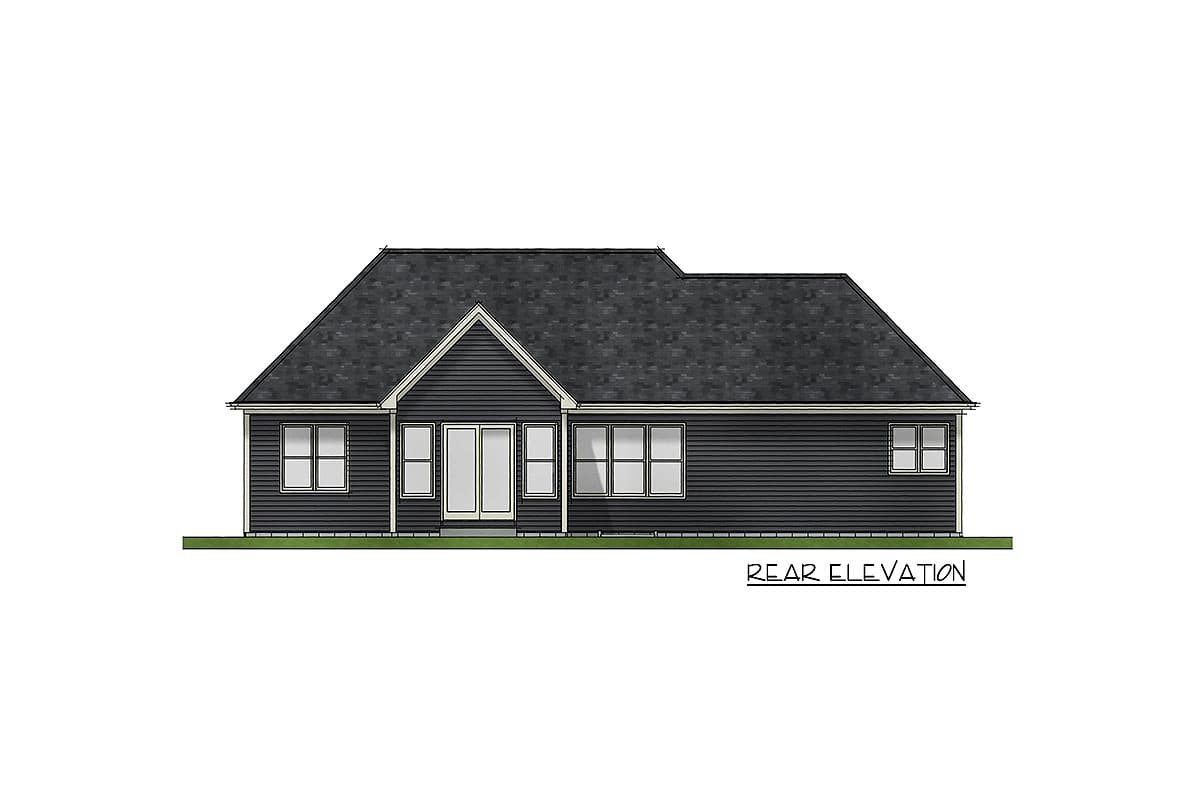

  • Elevations
  • Foundation plan
  • Floor plan(s)
  • Roof framing plan
  • Sections

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Main Level

Reverse Floor Plan

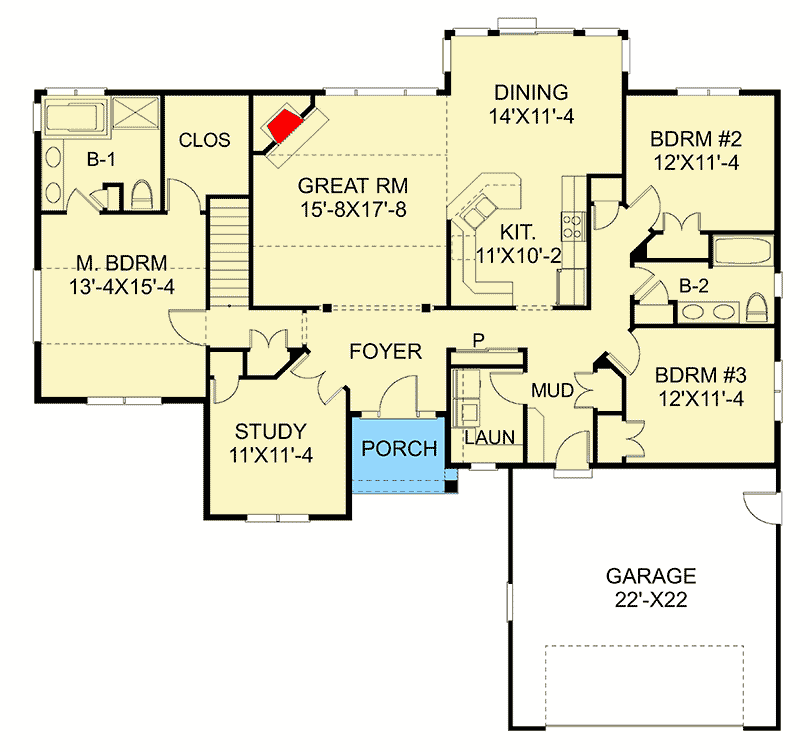

Exclusive Three Bedroom Ranch with Split Bedroom Layout - 770001CED floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,940 sq. ft.
  • 1st Floor: 1,940 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 4"
  • Depth: 58' 10"
  • Max ridge height: 23' 6"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Type Height
Great Room Vaulted
Master Bedroom Vaulted

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Exclusive Three Bedroom Ranch with Split Bedroom Layout

  • 1,940

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $800
  • 5 Sets $900
  • PDF - multi-use $1,495
  • CAD $1,600
  • View all purchase option online

About This Plan

  • Two elegant interior columns announce the entry to the big vaulted great room that can be seen from the foyer of this handsome Traditional house plan - exclusive to Architectural Designs.
  • The large dining area has glass on three sides to bring the views and light inside.
  • The peninsula eating bar curves around to provide a great spot for the kitchen sink so you can enjoy the fireplace while cooking.
  • Homeowners get a beautiful vaulted master suite with a large walk-in closet.
  • Two family bedrooms are set on the opposite side of the home.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,940 sq. ft.
  • 1st Floor: 1,940 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 4"
  • Depth: 58' 10"
  • Max ridge height: 23' 6"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss

Plan 770001CED
View this and more for this plan by visiting www.architechtecturaldesigns.com/770001CED
|
