Plan 420040WNT Exclusive Tiny Home Plan with Vaulted Living Room

Exclusive Tiny Home Plan with Vaulted Living Room

Plan 420040WNT

  • 496

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • The tiny living movement offers big benefits, including a budget-friendly home plan. This exclusive design presents vertical and horizontal siding, topped by a metal roof.
  • A 12' by 7' covered porch welcomes you inside, where a vaulted ceiling makes the living room feel larger.
  • The kitchen features a window above the sink and access to the laundry room and side yard.
  • The single bedroom includes a walk-in closet, and is located across the hall from a full bathroom with two sinks.
  • A dedicated storage room is accessible from the exterior; a must-have for compact floor plans.

What is Included in Our Plans?

Each plan is designed to meet nationally recognized building codes for the year they were created. Following is a listing of sheets included in our plans:

Foundation Plan

outlines details of the slab, crawl space, or basement specifically associated with the house that this plan has been designed for. These details may include; Footing sizes and locations, Floor framing information, Slab information etc.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

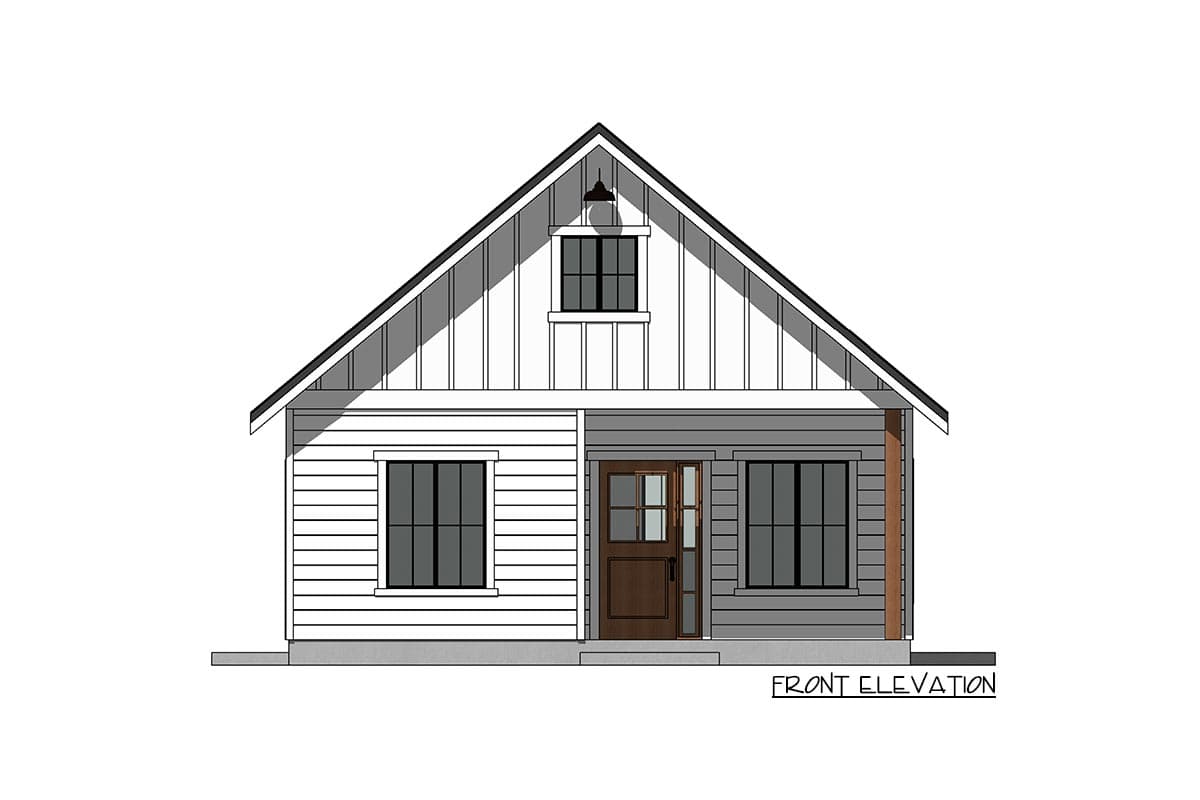

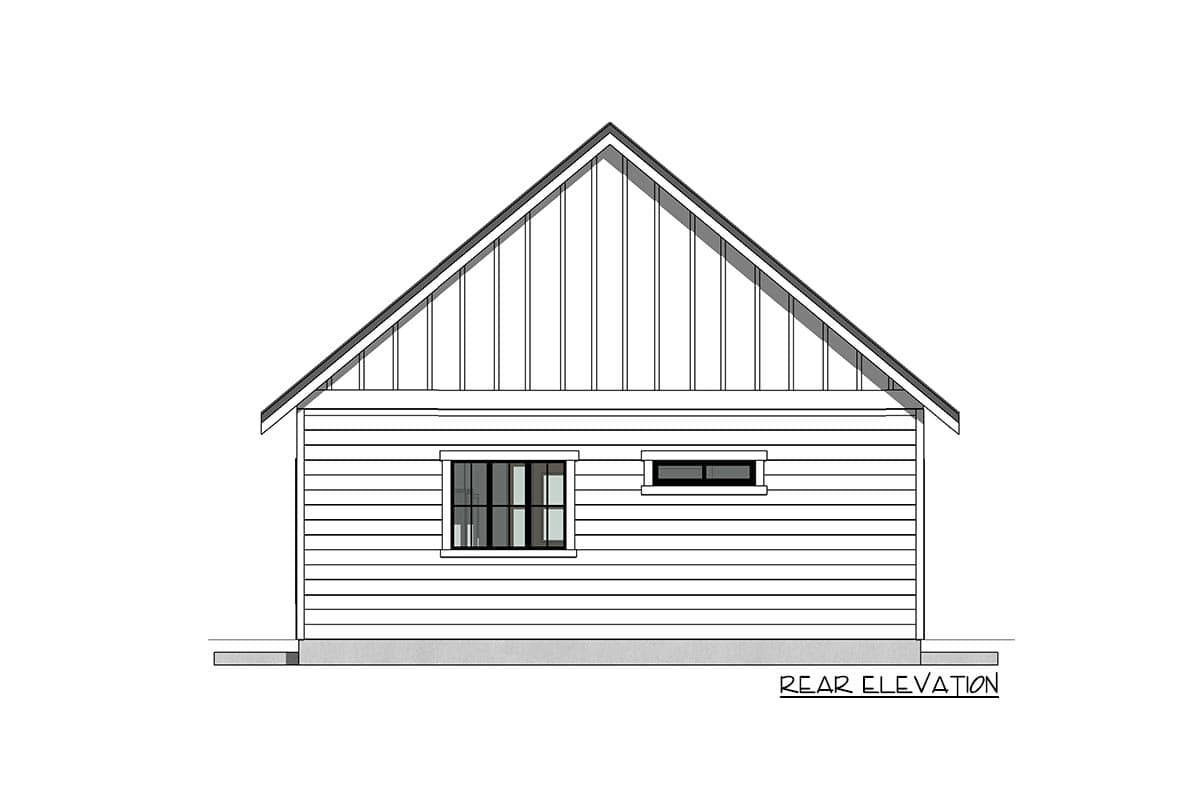

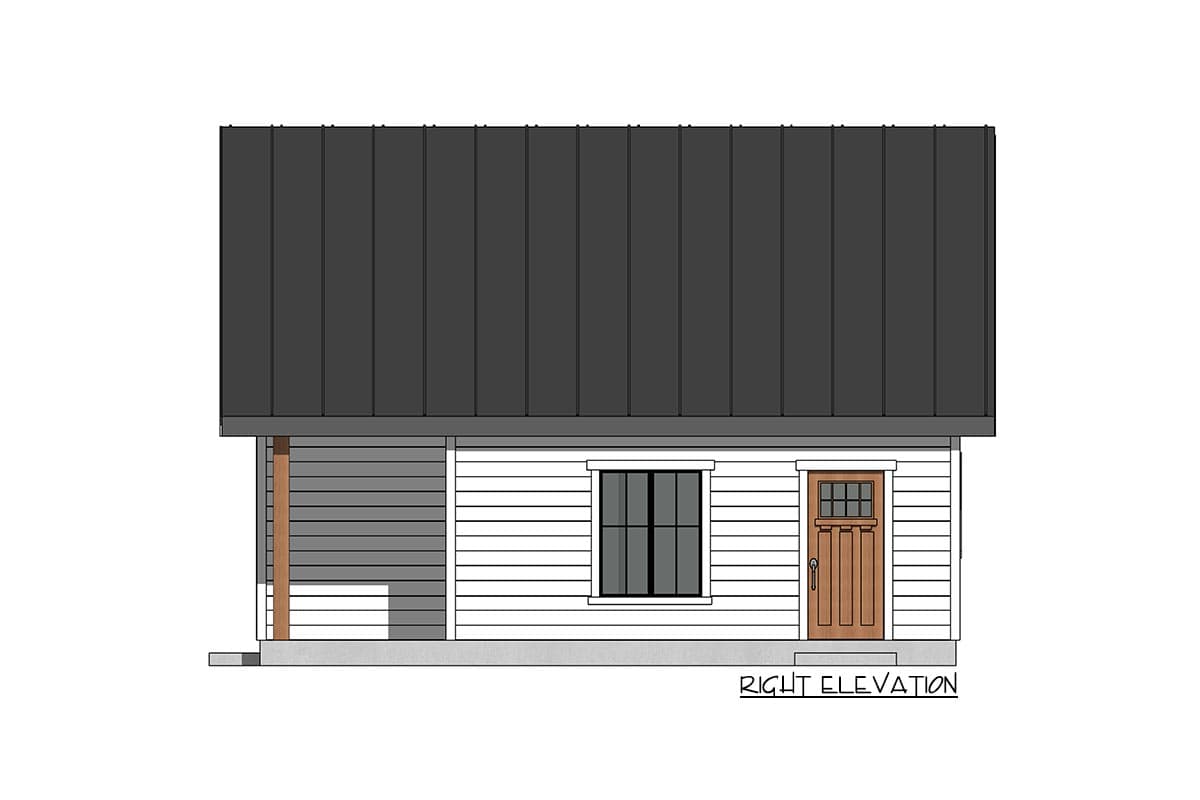

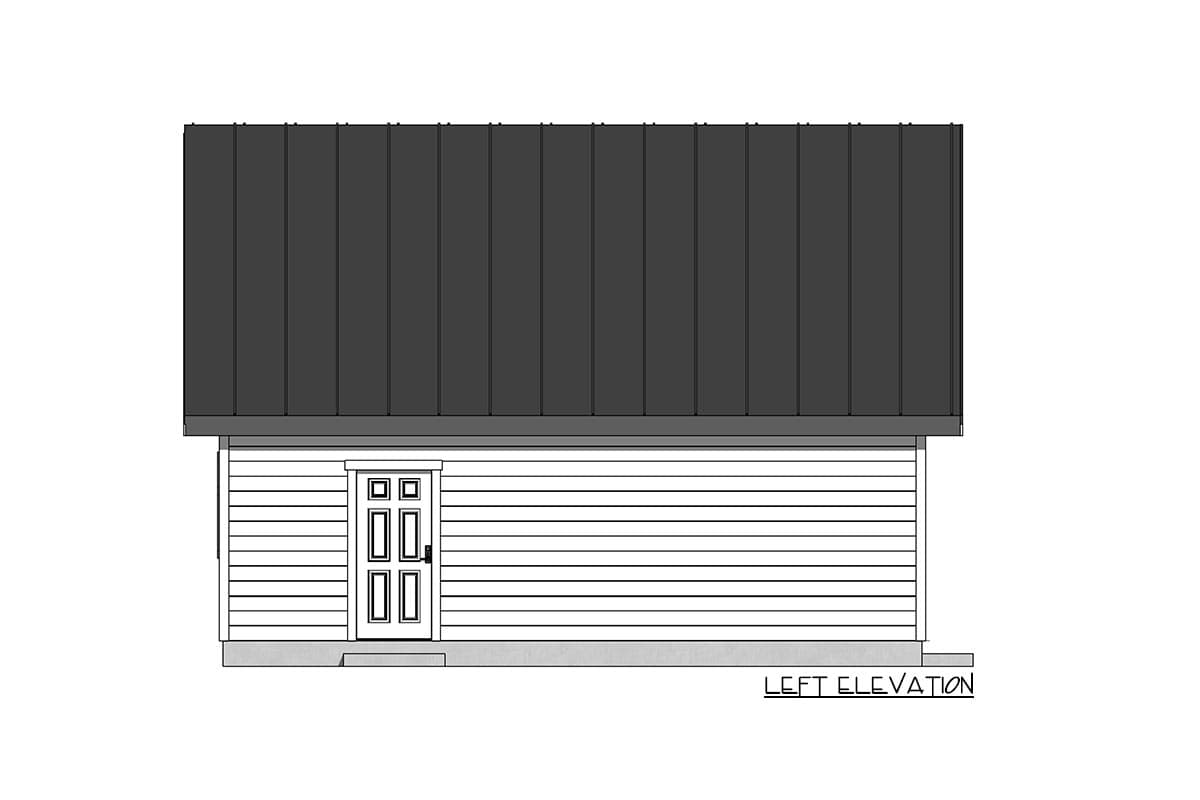

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.


Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan (available as an upgrade option)
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

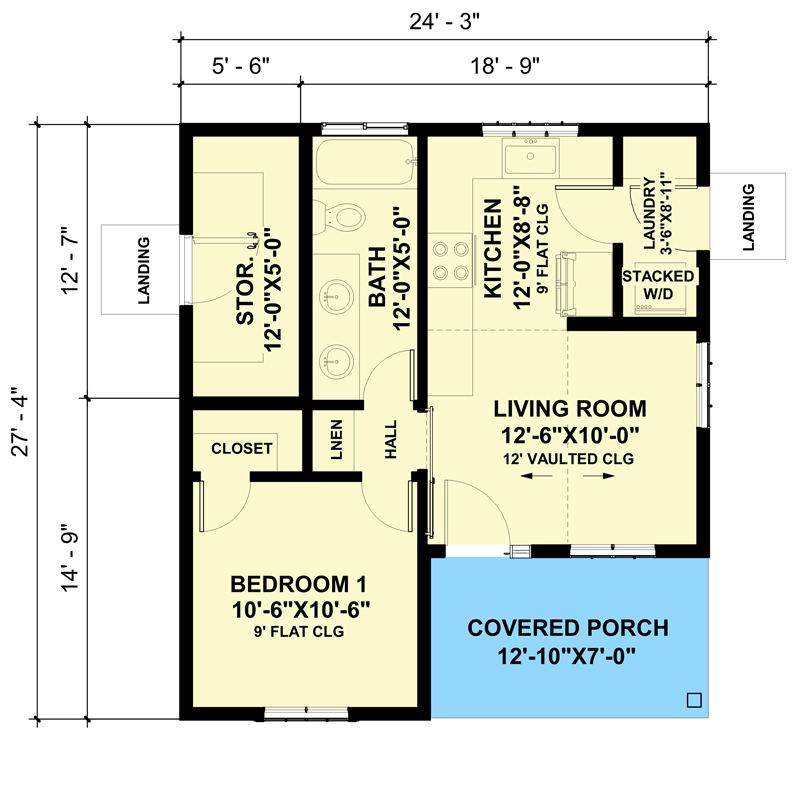

Exclusive Tiny Home Plan with Vaulted Living Room - 420040WNT floor plan - Main Level

Plan details

Architectural Style

Plan Collections

Exclusive Tiny Home Plan with Vaulted Living Room

  • 496

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $995
  • 5 Sets $1,145
  • 5 Sets + PDF $1,245
  • CAD - Unlimited Build $1,895
  • View all purchase option online

About This Plan

  • The tiny living movement offers big benefits, including a budget-friendly home plan. This exclusive design presents vertical and horizontal siding, topped by a metal roof.
  • A 12' by 7' covered porch welcomes you inside, where a vaulted ceiling makes the living room feel larger.
  • The kitchen features a window above the sink and access to the laundry room and side yard.
  • The single bedroom includes a walk-in closet, and is located across the hall from a full bathroom with two sinks.
  • A dedicated storage room is accessible from the exterior; a must-have for compact floor plans.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 496 sq. ft.
  • 1st Floor: 496 sq. ft.
  • Storage: 60 sq. ft.
  • Covered Patio: 89 sq. ft.
  • Porch, Combined: 89 sq. ft.
  • Porch, Front: 89 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 24' 3"
  • Depth: 27' 4"
  • Max ridge height: 20' 2"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
