Plan 93134EL Exclusive Traditional Home with First-floor Master Suite

4,216 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive Traditional Home with First-floor Master Suite

Plan 93134EL

  • 4,216

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Warm tones and textures, on the exterior of this traditional house plan, add a comforting element to the massive curb appeal, and the thoughtful floor plan boasts luxurious details at every turn.
  • The light and airy great room features an elegant, coffered ceiling, along with access to the screened porch, perfect for dining outdoors. The open kitchen includes a large island, and the attached breakfast nook overlooks the backyard.
  • The main-level, master suite considers your future needs, and the lavish en suite includes a freestanding tub and large wardrobe with a dresser island. Across the hall, a home office provides a quiet space to work.
  • Three bedroom suites on the second level each include their own full bath and walk-in closet. The bonus room above the garage is factored in to the total living area, and provides the kids a fun space to enjoy.
  • A third garage bay sits at a 90 degree angle from the double garage, both of which enter into a mudroom with built-in lockers and a powder bath.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

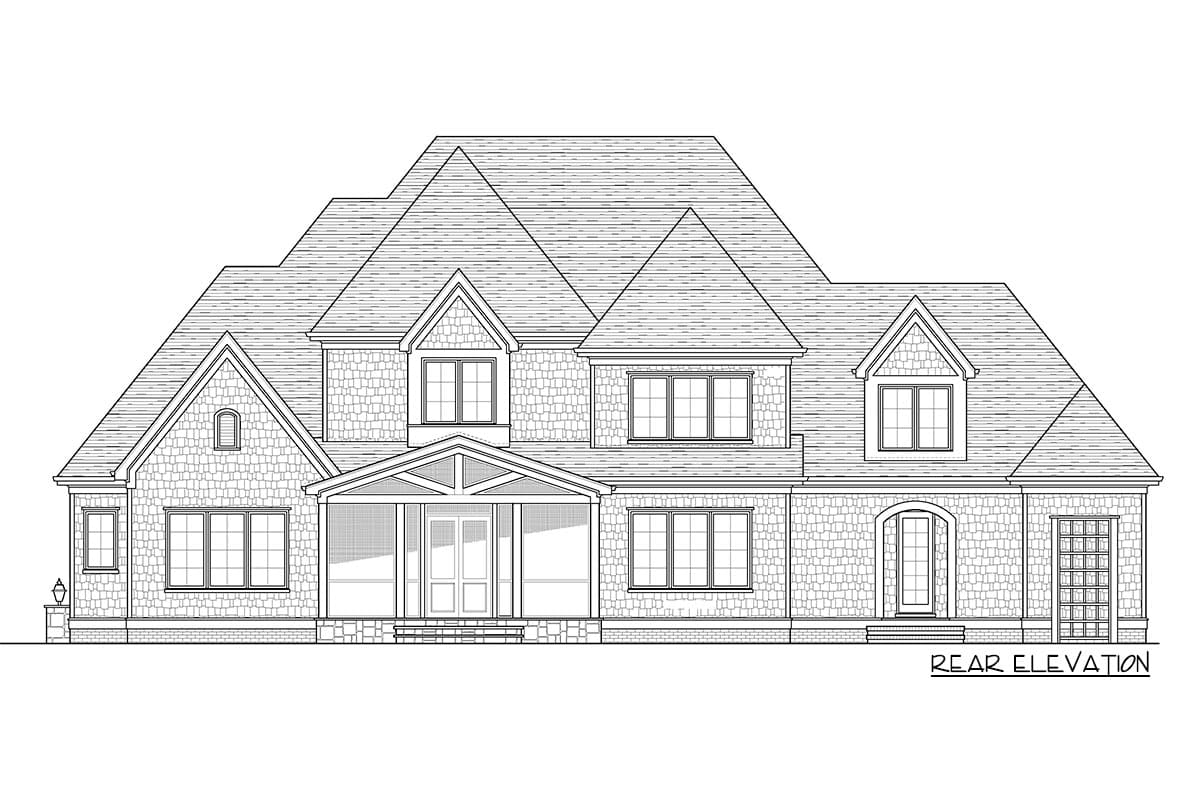

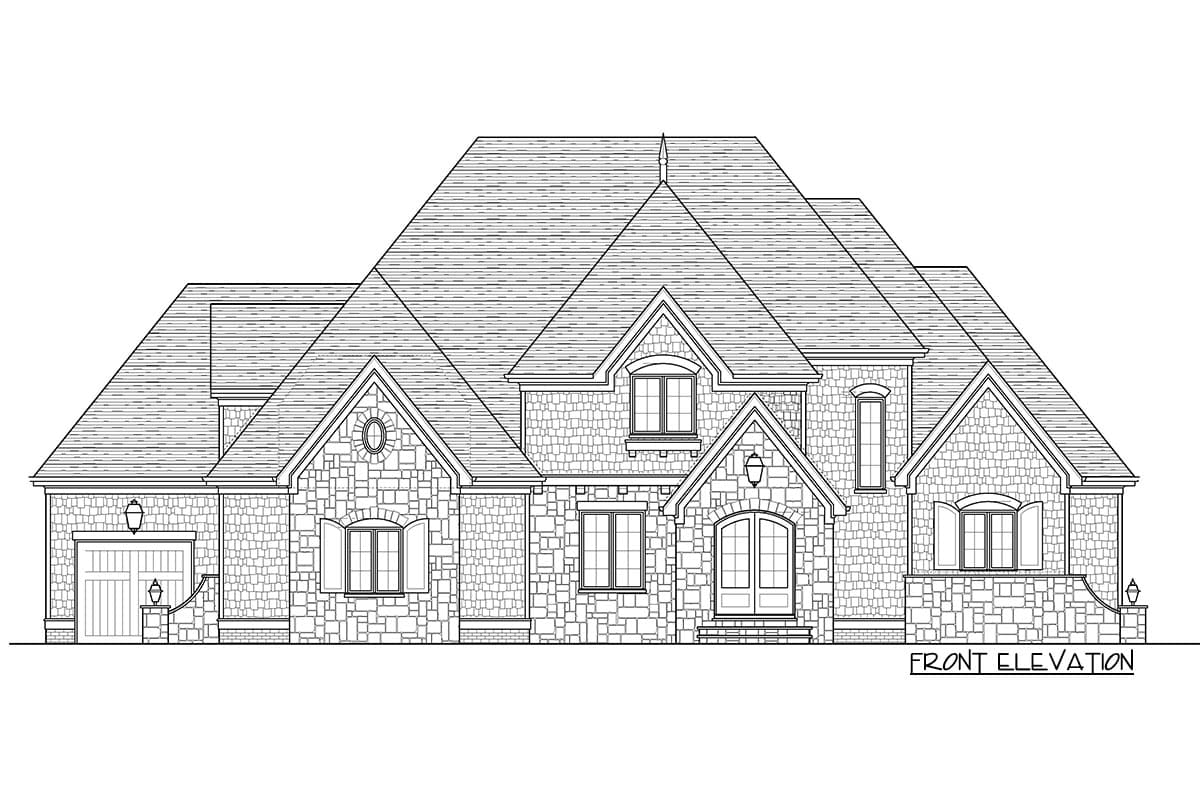

  • Front & Rear Elevation

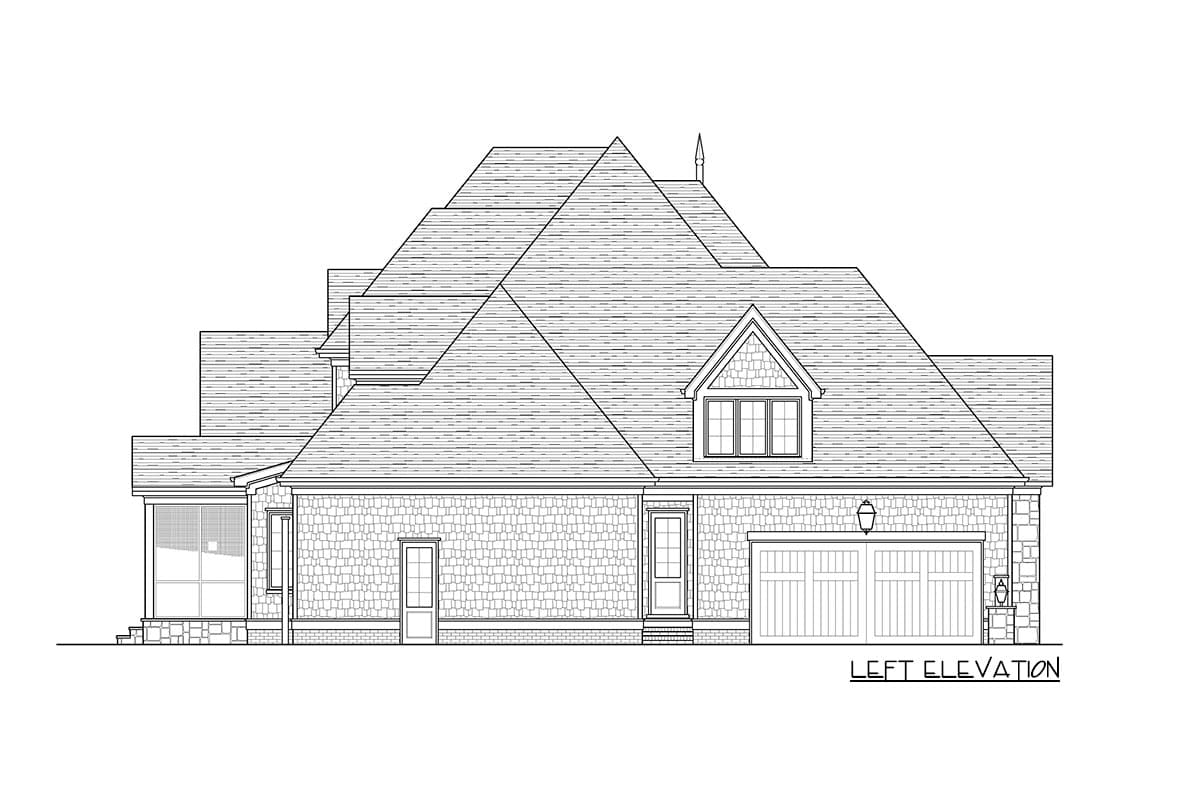

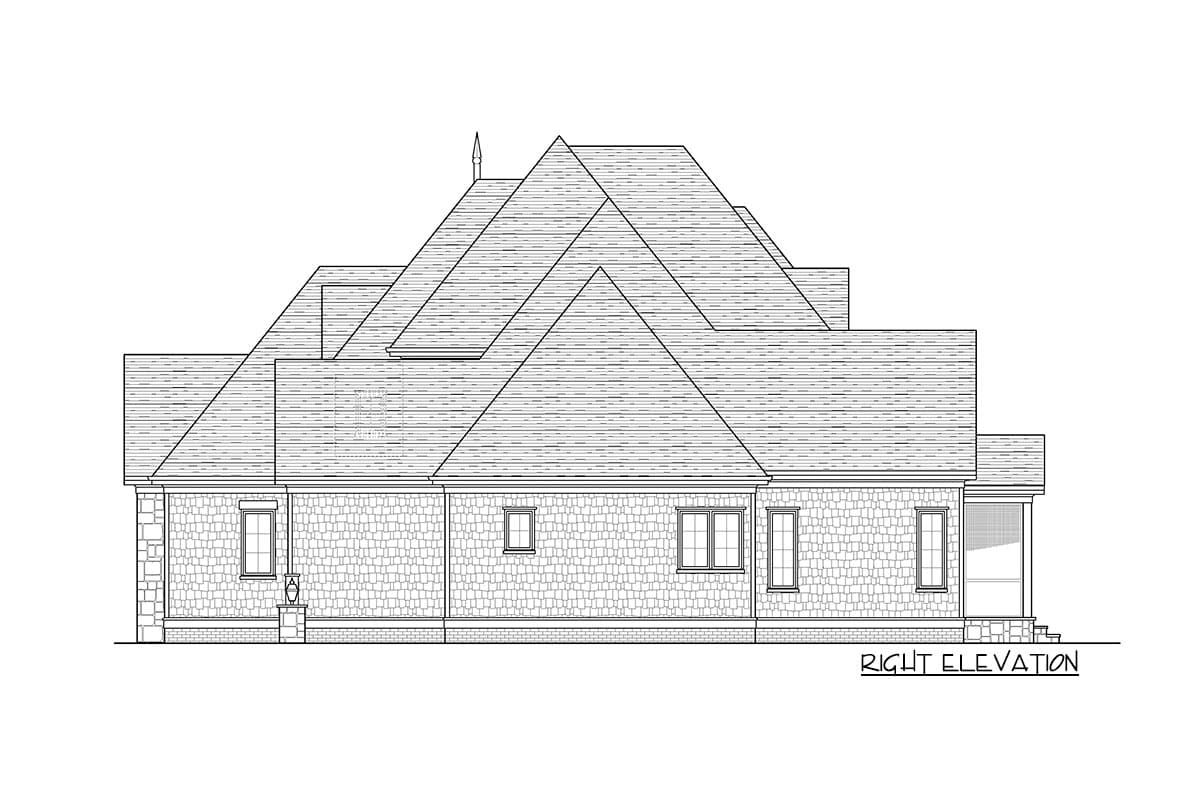

  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

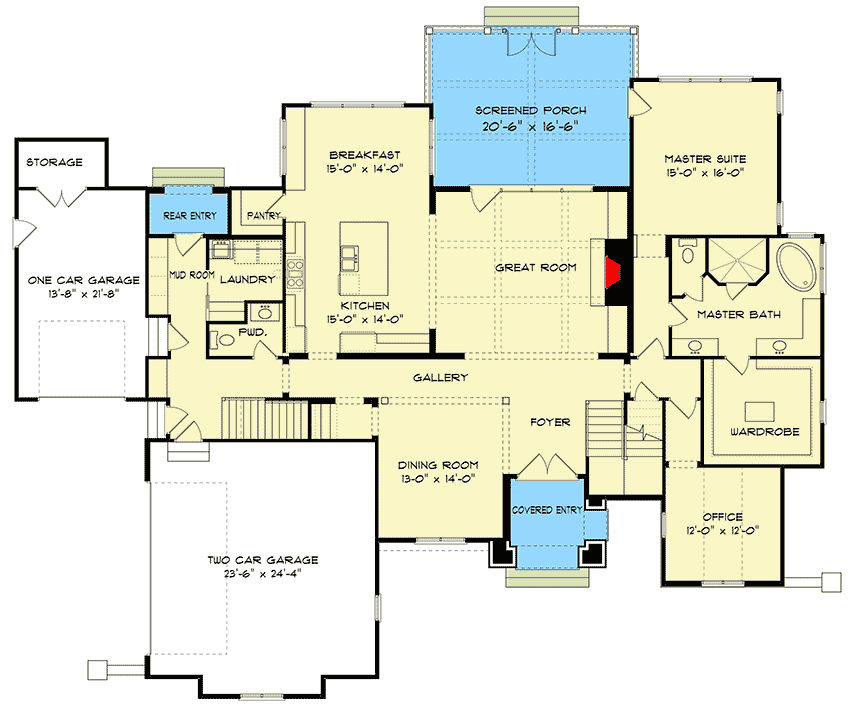

Exclusive Traditional Home with First-floor Master Suite - 93134EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

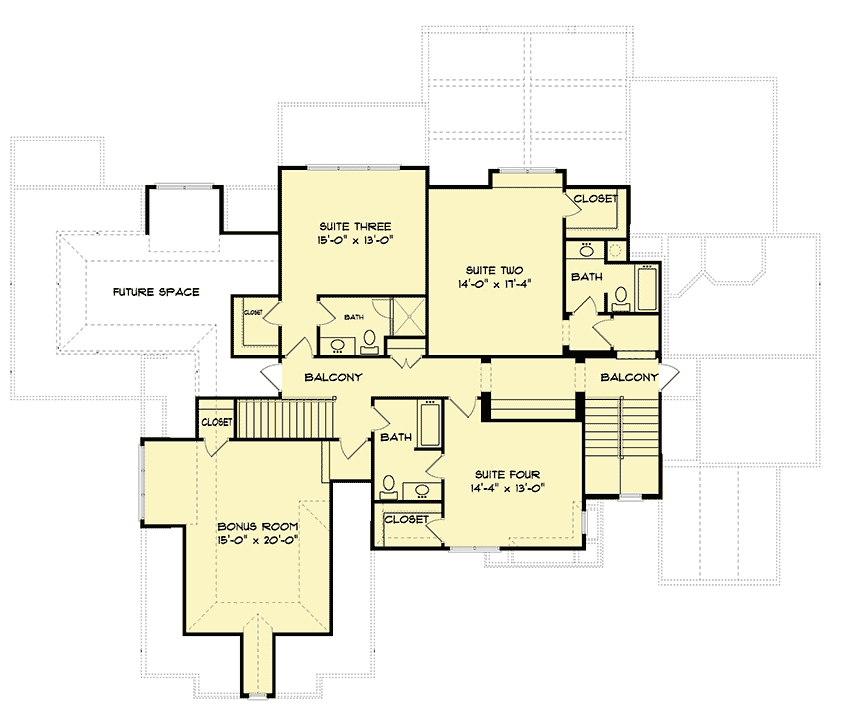

Exclusive Traditional Home with First-floor Master Suite - 93134EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,216 sq. ft.
  • 1st Floor: 2,522 sq. ft.
  • 2nd Floor: 1,694 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 84' 7"
  • Depth: 70' 4"

Garage

  • Type: Attached
  • Area: 872 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Exclusive Traditional Home with First-floor Master Suite

  • 4,216

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,740
  • CAD+PDF - Single-Build $3,162
  • PDF - Unlimited Build $3,590
  • CAD - Unlimited Build $4,012
  • View all purchase option online

About This Plan

  • Warm tones and textures, on the exterior of this traditional house plan, add a comforting element to the massive curb appeal, and the thoughtful floor plan boasts luxurious details at every turn.
  • The light and airy great room features an elegant, coffered ceiling, along with access to the screened porch, perfect for dining outdoors. The open kitchen includes a large island, and the attached breakfast nook overlooks the backyard.
  • The main-level, master suite considers your future needs, and the lavish en suite includes a freestanding tub and large wardrobe with a dresser island. Across the hall, a home office provides a quiet space to work.
  • Three bedroom suites on the second level each include their own full bath and walk-in closet. The bonus room above the garage is factored in to the total living area, and provides the kids a fun space to enjoy.
  • A third garage bay sits at a 90 degree angle from the double garage, both of which enter into a mudroom with built-in lockers and a powder bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,216 sq. ft.
  • 1st Floor: 2,522 sq. ft.
  • 2nd Floor: 1,694 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 84' 7"
  • Depth: 70' 4"

Garage

  • Type: Attached
  • Area: 872 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
