Plan 365014PED Exclusive Transitional Home Plan with Rec Room and Home Office for a Rear Sloping Lot

5,440 4 4.5 1 3-4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive Transitional Home Plan with Rec Room and Home Office for a Rear Sloping Lot

Plan 365014PED

  • 5,440

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3-4

    Cars

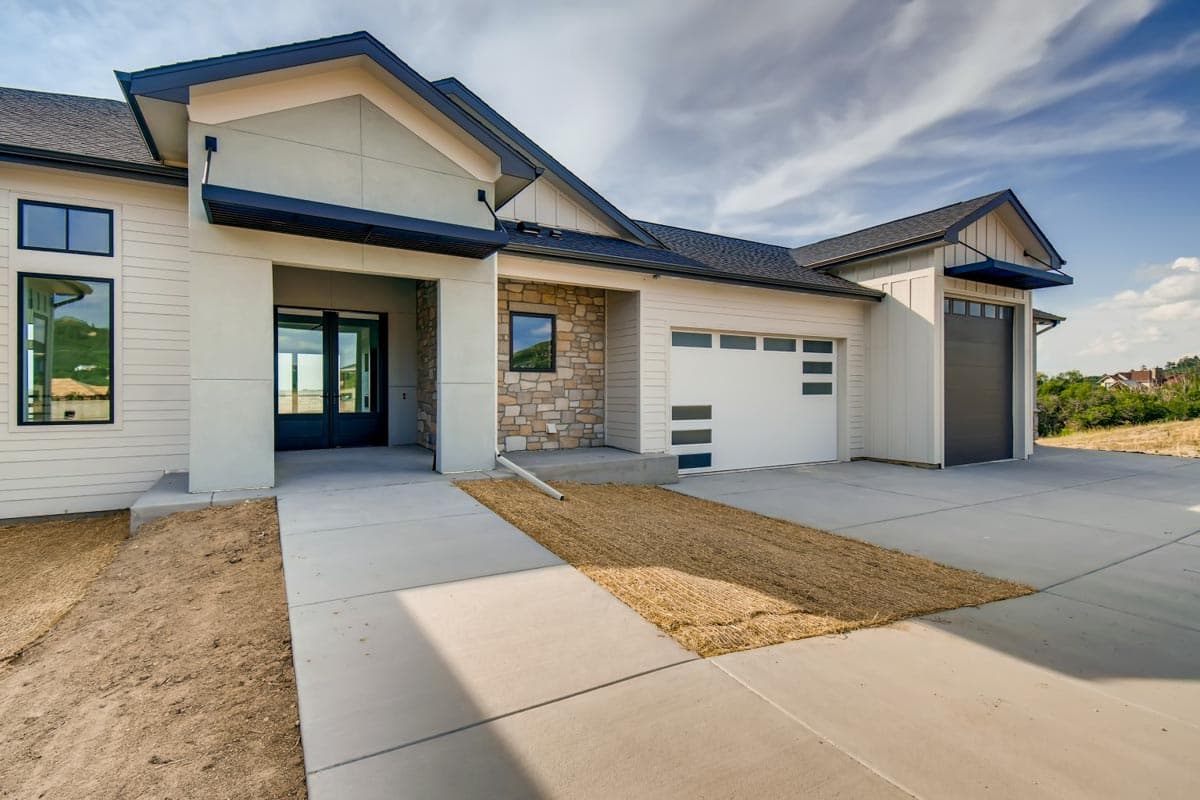

  • A variety of gables with modern metal awnings line the front elevation of this Transitional home plan, which is exclusive to Architectural Designs.

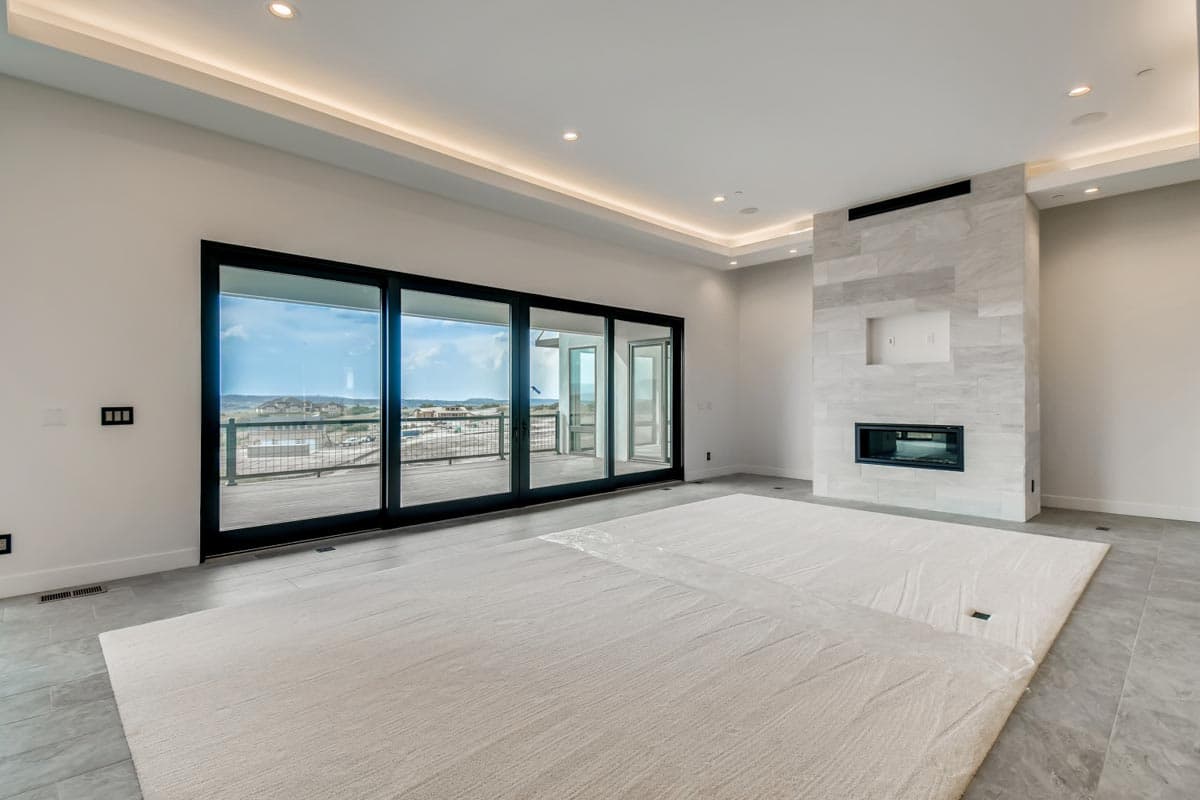

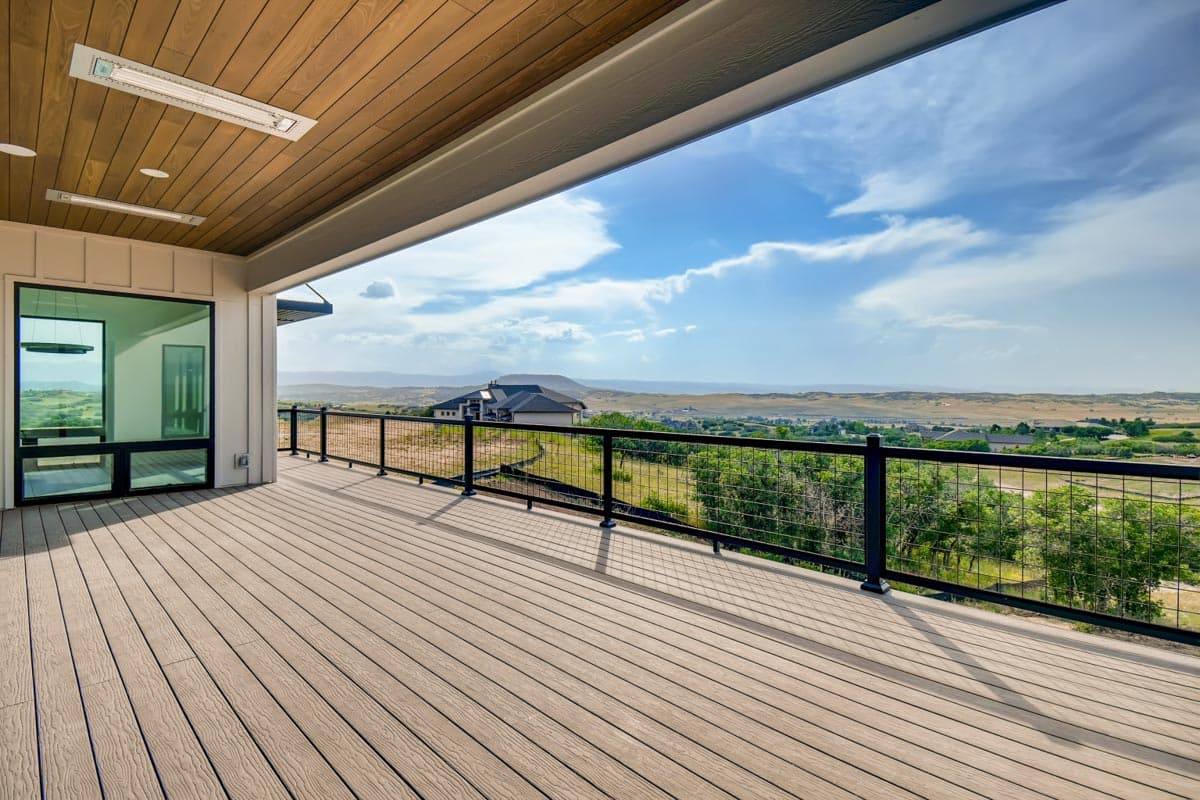

  • The abundance of transom windows throughout the home ensure a light and airy floor plan, and an oversized sliding door connects the spacious great room with the covered deck.

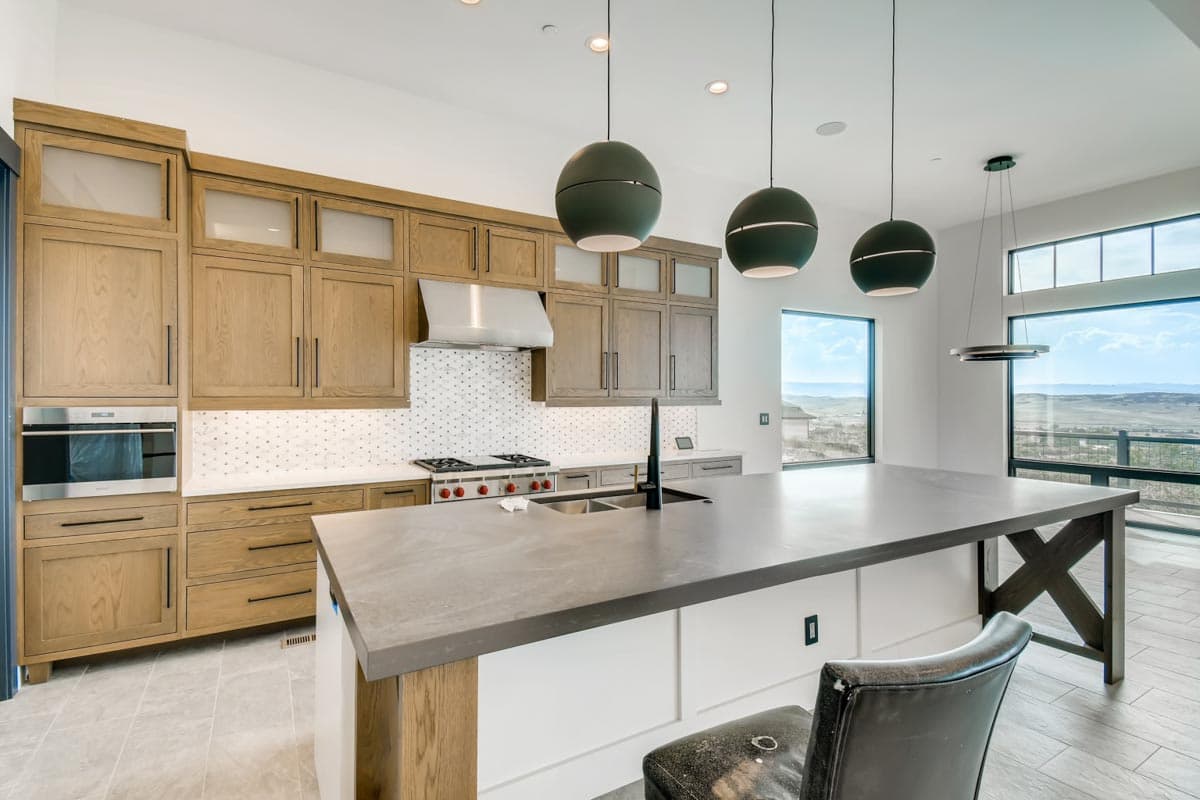

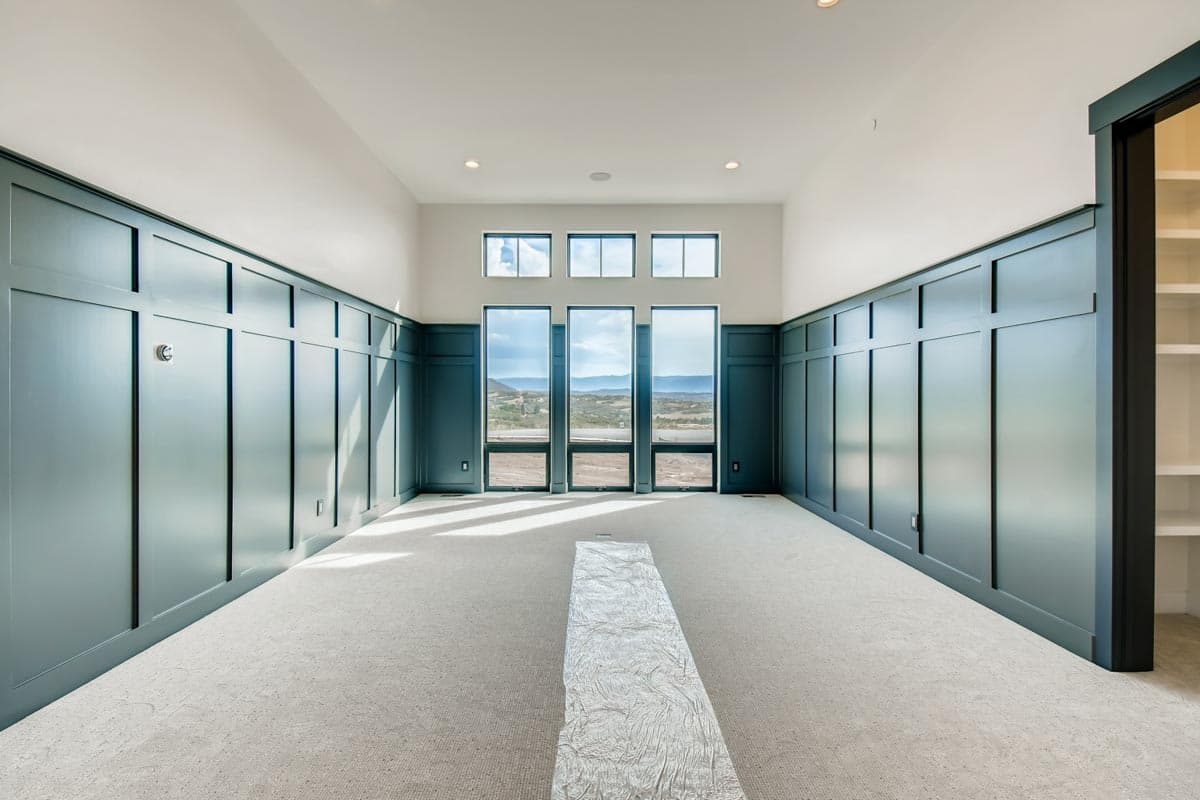

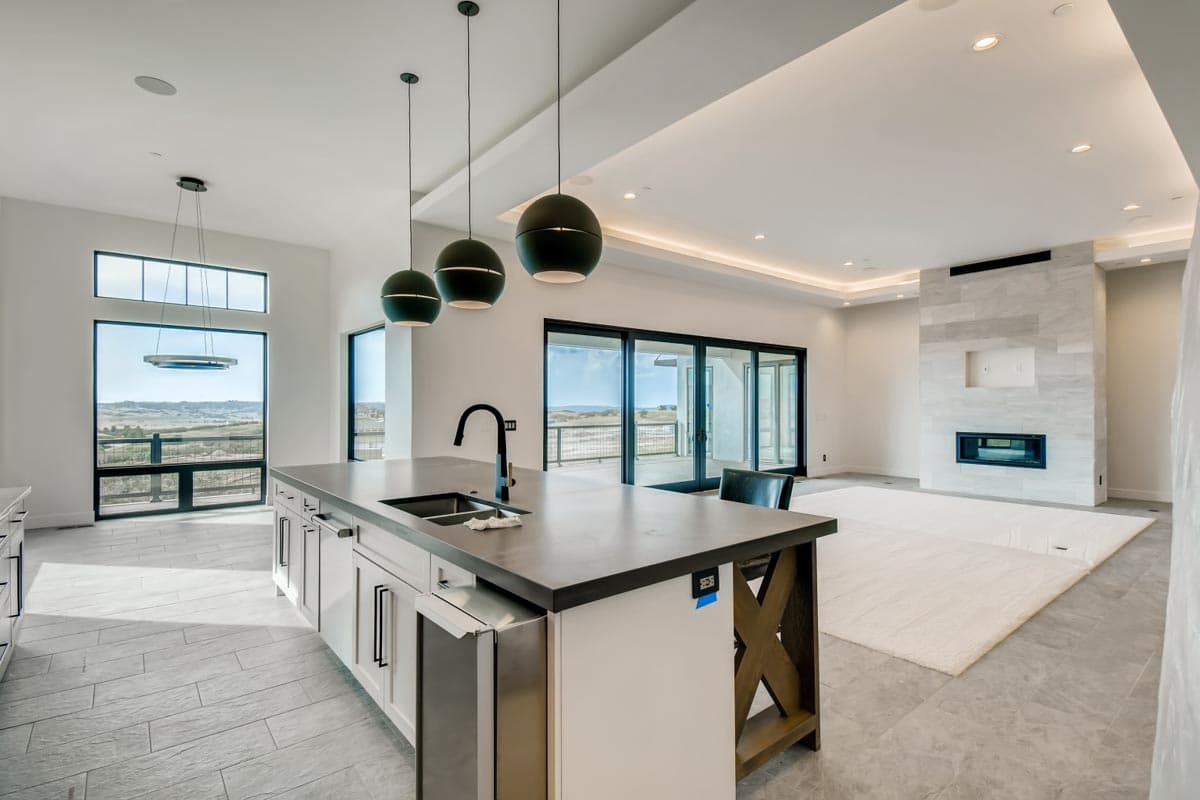

  • The gourmet kitchen delivers a large island, walk-in pantry with secondary freezer space, and an adjoining dining area. Next door, the home office is open to a sitting nook and includes the staircase that leads to the lower level.

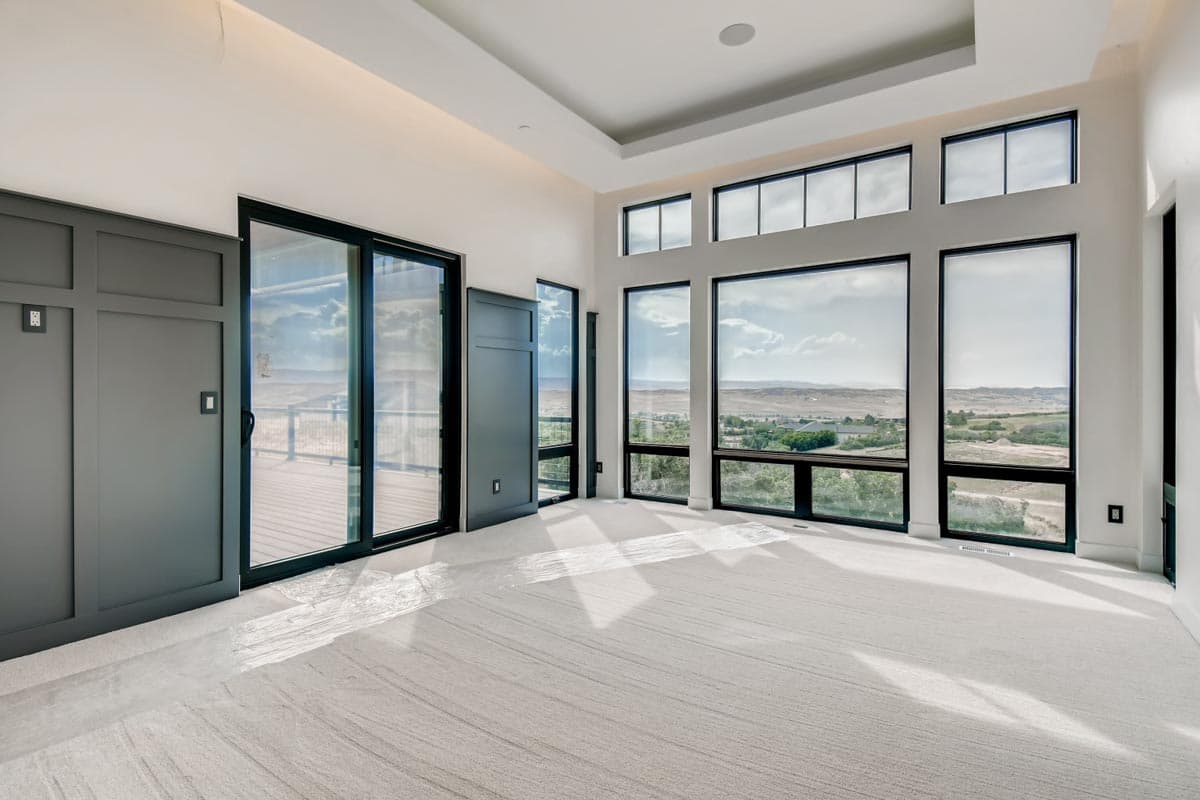

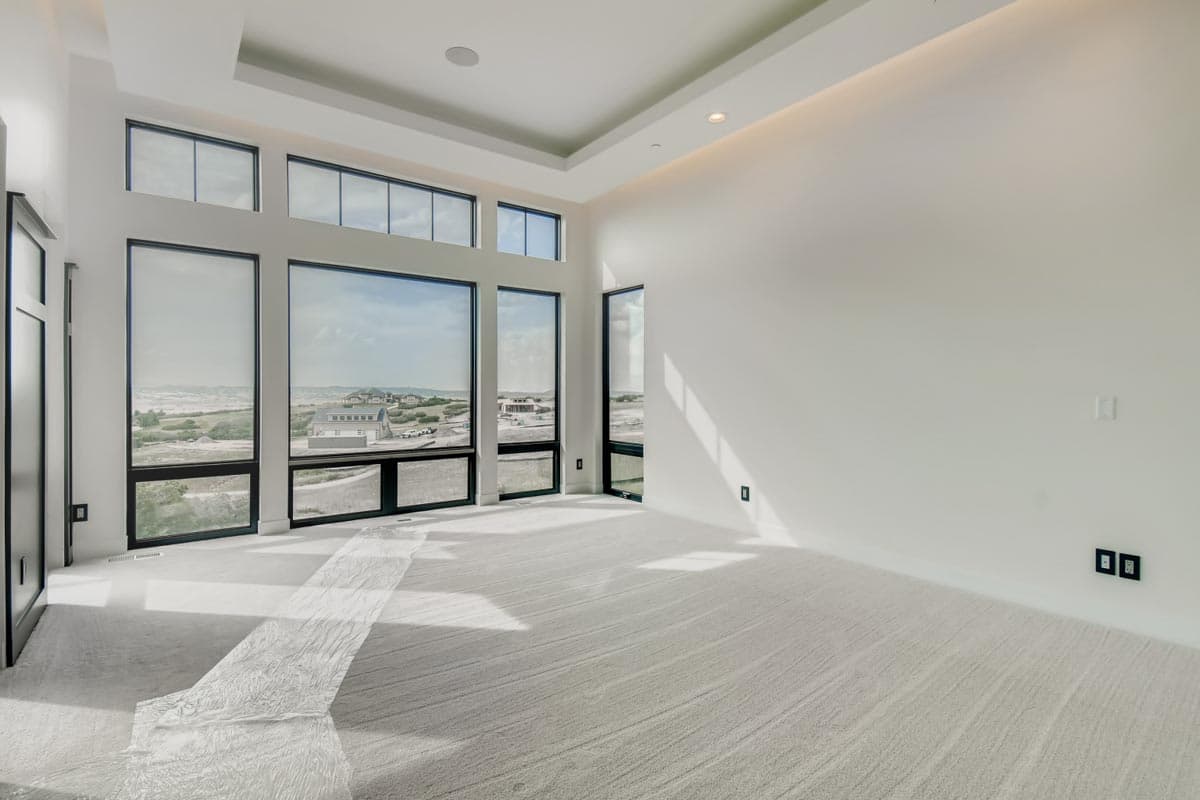

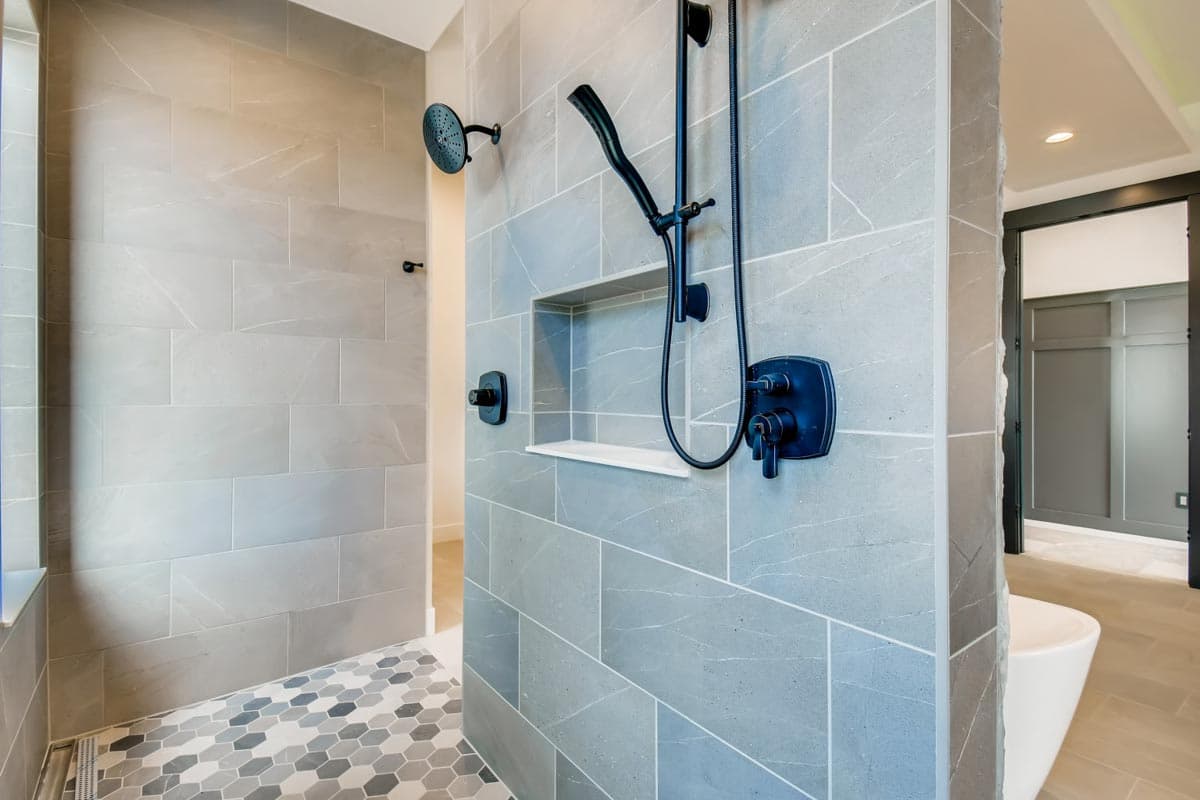

  • The master bedroom provides a true oasis for the homeowner with its freestanding tub with a stone backdrop, oversized shower, and dual walk-in closets. A second bedroom suite on this level includes a walk-in closet.

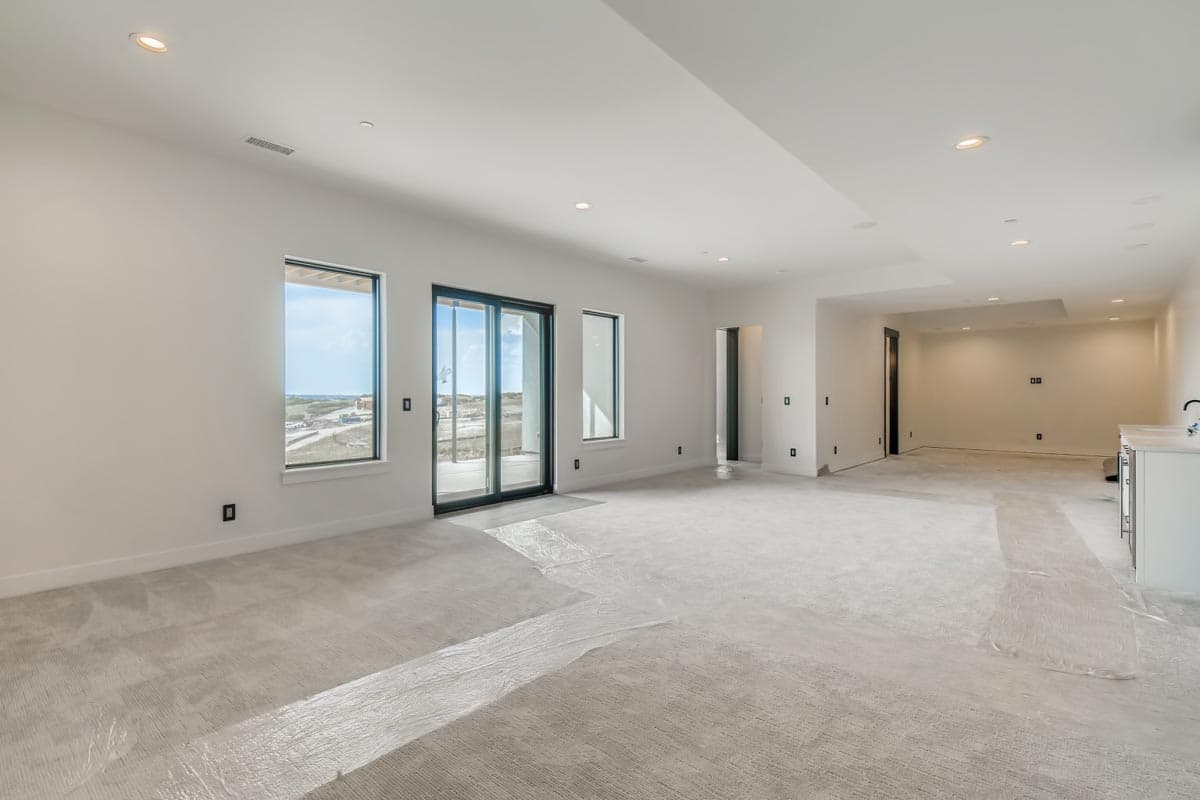

  • Two additional bedrooms share the walk-out basement with a sizable rec room, workout area, and home theater. Unfinished space lends an area for storage and the 4-car garage totals 1,383 sq ft.
  • Related Note: RRR equals 1 week delivery delay, and  slab/crawl foundation options will be a 2 week delivery delay.

Each plan set includes the following:

  • Cover sheet with general information
  • Detailed floor plans for each floor
  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

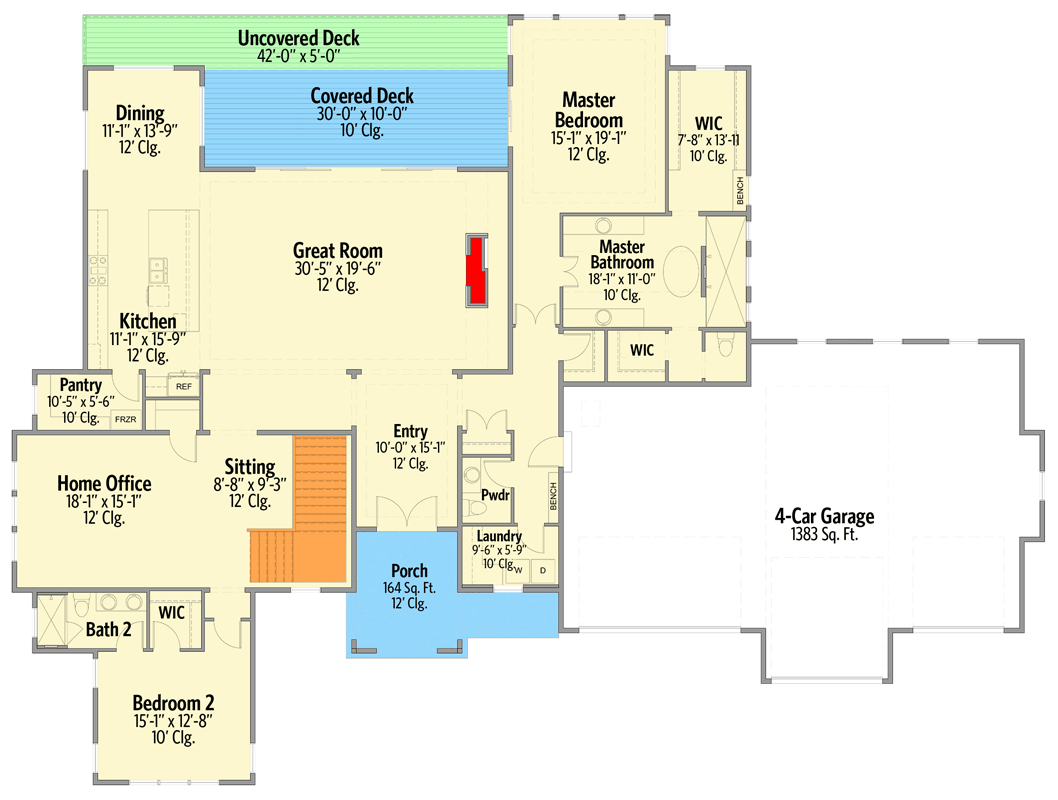

Exclusive Transitional Home Plan with Rec Room and Home Office for a Rear Sloping Lot - 365014PED floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

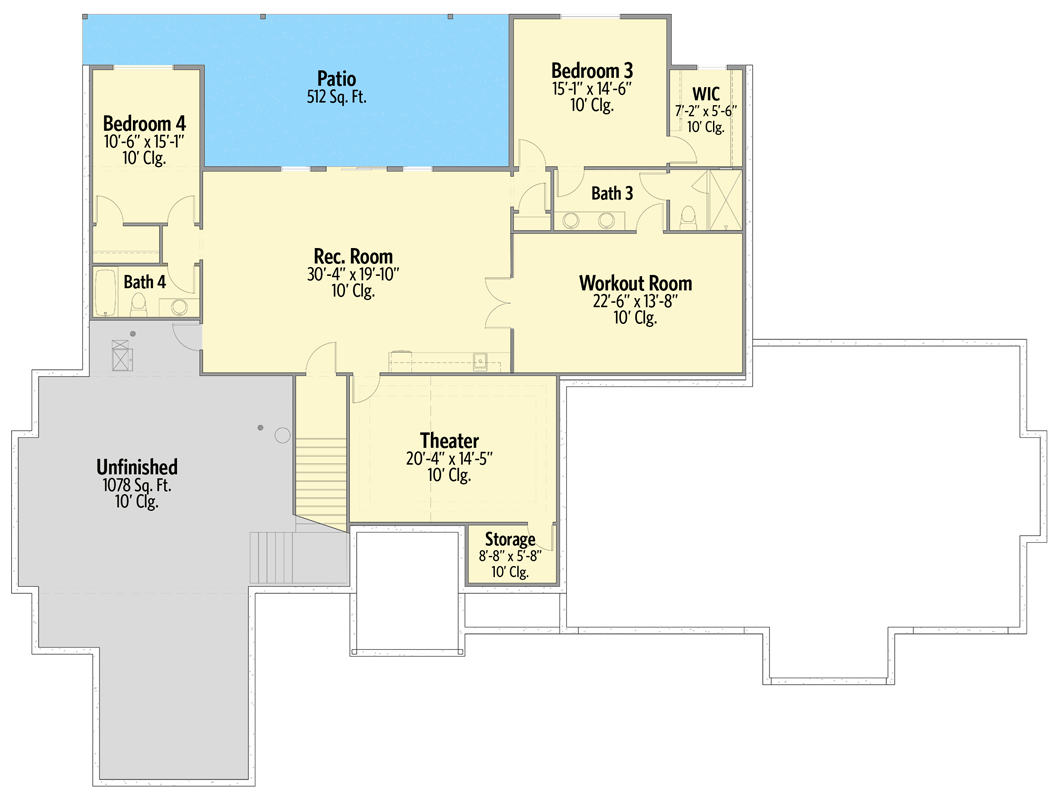

Exclusive Transitional Home Plan with Rec Room and Home Office for a Rear Sloping Lot - 365014PED floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,440 sq. ft.
  • Lower Level: 2,183 sq. ft.
  • 1st Floor: 3,257 sq. ft.
  • Deck: 510 sq. ft.
  • Porch, Front: 164 sq. ft.
  • Basement Unfinished: 1,079 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 102' 0"
  • Depth: 76' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: RV Garage, Attached
  • Area: 1301 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 12' 0"
Room Details Ceiling Type Width Depth Height
Master Bath Flat 10' 0"
Laundry Room Flat 10' 0"
Bedroom 2 Flat 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Exclusive Transitional Home Plan with Rec Room and Home Office for a Rear Sloping Lot

  • 5,440

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3 - 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,497
  • CAD + PDF - Single Build $3,397
  • View all purchase option online

About This Plan

  • A variety of gables with modern metal awnings line the front elevation of this Transitional home plan, which is exclusive to Architectural Designs.
  • The abundance of transom windows throughout the home ensure a light and airy floor plan, and an oversized sliding door connects the spacious great room with the covered deck.
  • The gourmet kitchen delivers a large island, walk-in pantry with secondary freezer space, and an adjoining dining area. Next door, the home office is open to a sitting nook and includes the staircase that leads to the lower level.
  • The master bedroom provides a true oasis for the homeowner with its freestanding tub with a stone backdrop, oversized shower, and dual walk-in closets. A second bedroom suite on this level includes a walk-in closet.
  • Two additional bedrooms share the walk-out basement with a sizable rec room, workout area, and home theater. Unfinished space lends an area for storage and the 4-car garage totals 1,383 sq ft.
  • Related Note: RRR equals 1 week delivery delay, and  slab/crawl foundation options will be a 2 week delivery delay.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,440 sq. ft.
  • Lower Level: 2,183 sq. ft.
  • 1st Floor: 3,257 sq. ft.
  • Deck: 510 sq. ft.
  • Porch, Front: 164 sq. ft.
  • Basement Unfinished: 1,079 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 102' 0"
  • Depth: 76' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: RV Garage, Attached
  • Area: 1301 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 12' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
Plan 365014PED
View this and more for this plan by visiting www.architechtecturaldesigns.com/365014PED
|
Need Help? 800-854-7852
|
Plan 365014PED
