Exclusive Trendsetting Modern House Plan

Plan 85147MS

  • 3,334

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Beautiful slanted roof lines and lots of glass create an eye-catching exterior for this trendsetting Modern house plan that is exclusive to Architectural Designs.
  • While the main living space is one huge great room, there's also a quiet den you can go to for alone time.
  • A wall of sliding glass doors in the great room lead out to a large deck.
  • The master suite also has sliders to a private deck that wraps around the bedroom.
  • On the finished lower level, there are two more bedrooms, two baths and a massive rec room with a kitchenette.
  • Head outside for a soak in the hot tub nearby.

Each plan set is drawn to 1/4" scale and includes the following:

  • Detailed elevations
  • Foundation plan including all structural components
  • Detailed floor plans, including ceiling and floor framing information
  • Detailed roof framing plans
  • Detailed cross sections
  • All framing members called out
  • Details throughout the set of plans as appropriate for construction to current IRC code

Floor Plan

Plan details



Exclusive Trendsetting Modern House Plan

  • 3,334

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,833
  • 6 Sets $2,167
  • PDF - multi-use $2,633
  • CAD $3,334
  • CAD - multi-use $4,134
  • View all purchase option online

About This Plan

  • Beautiful slanted roof lines and lots of glass create an eye-catching exterior for this trendsetting Modern house plan that is exclusive to Architectural Designs.
  • While the main living space is one huge great room, there's also a quiet den you can go to for alone time.
  • A wall of sliding glass doors in the great room lead out to a large deck.
  • The master suite also has sliders to a private deck that wraps around the bedroom.
  • On the finished lower level, there are two more bedrooms, two baths and a massive rec room with a kitchenette.
  • Head outside for a soak in the hot tub nearby.

Floor Plans

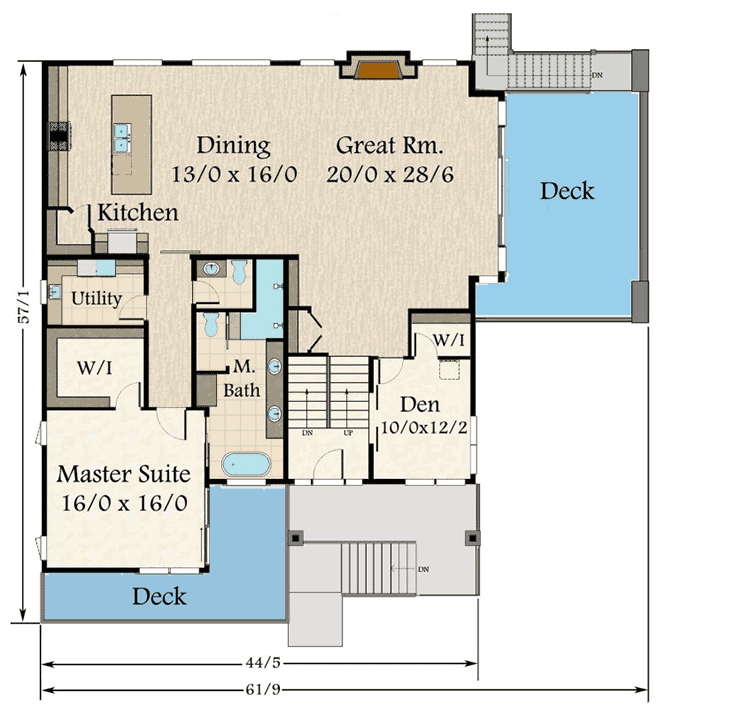

  • Main Level

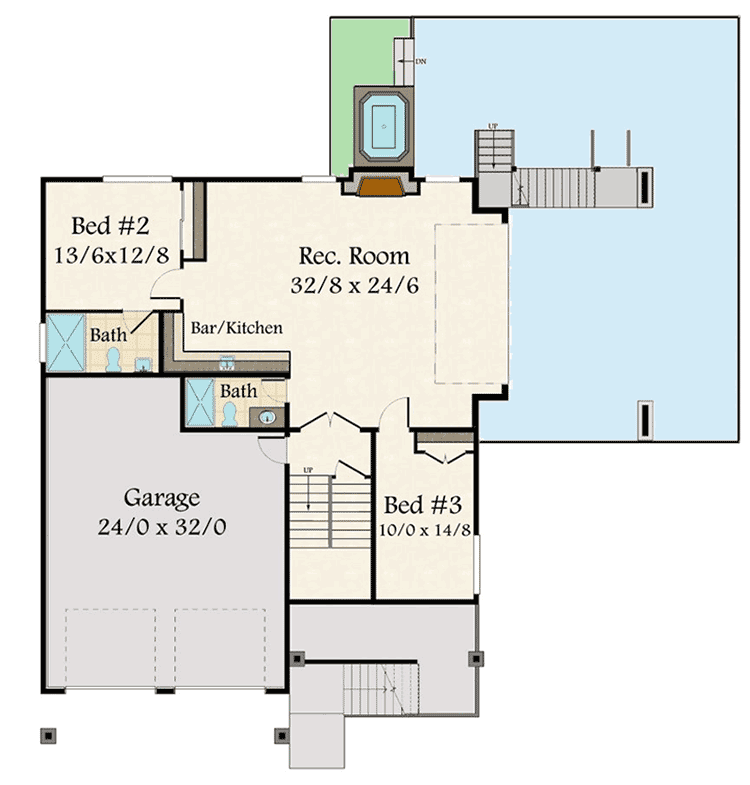

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,334 sq. ft.
  • Lower Level: 1,344 sq. ft.
  • 1st Floor: 1,991 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 61' 9"
  • Depth: 57' 1"
  • Max ridge height: 33' 1"

Garage

  • Type: Drive Under
  • Area: 760 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
