Plan 550017LAN Expandable Country Home Plan with 3 to 6 Bedrooms

2,763 3-6 2.5 - 5.5 2-3 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Expandable Country Home Plan with 3 to 6 Bedrooms

Plan 550017LAN

  • 2,763

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 5.5

    Baths

  • 2-3

    Stories

  • 2

    Cars

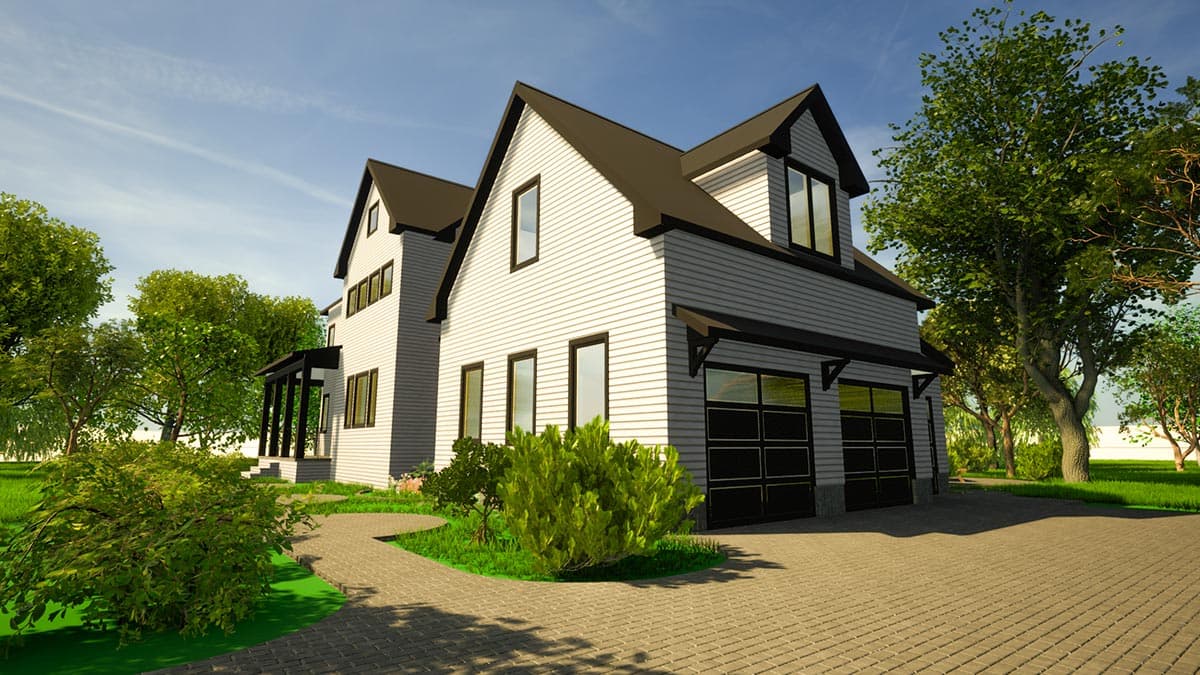

This country home plan gives you anywhere from 2,763 square feet of heated living and 3 bedrooms to over 6,000 square feet of heated living and 6 bedrooms depending on the options - all come with the purchase of this exclusive house plan - you decide to build.

The center portion of the home is open concept and presents the kitchen in front with large farmhouse sink set below a window looking out front, a 7' by 5' island and large walk-in pantry open to the vaulted dining and family room. The back wall opens and connects to the screen porch, giving you the best of indoor-outdoor living.
The primary bedroom is the only one on the main floor and has windows lining three walls.
The second floor gives you two bedrooms with a shared bathroom and a game room loft with windows looking out across the two-story space below.
An optional second floor layout gives you a second primary suite and a home office/game room over the garage.
There's also an optional third floor with a sixth bedroom and a bathroom (or just attic space).
The garage has to 9' by 9' overhead doors and a separate workshop area.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

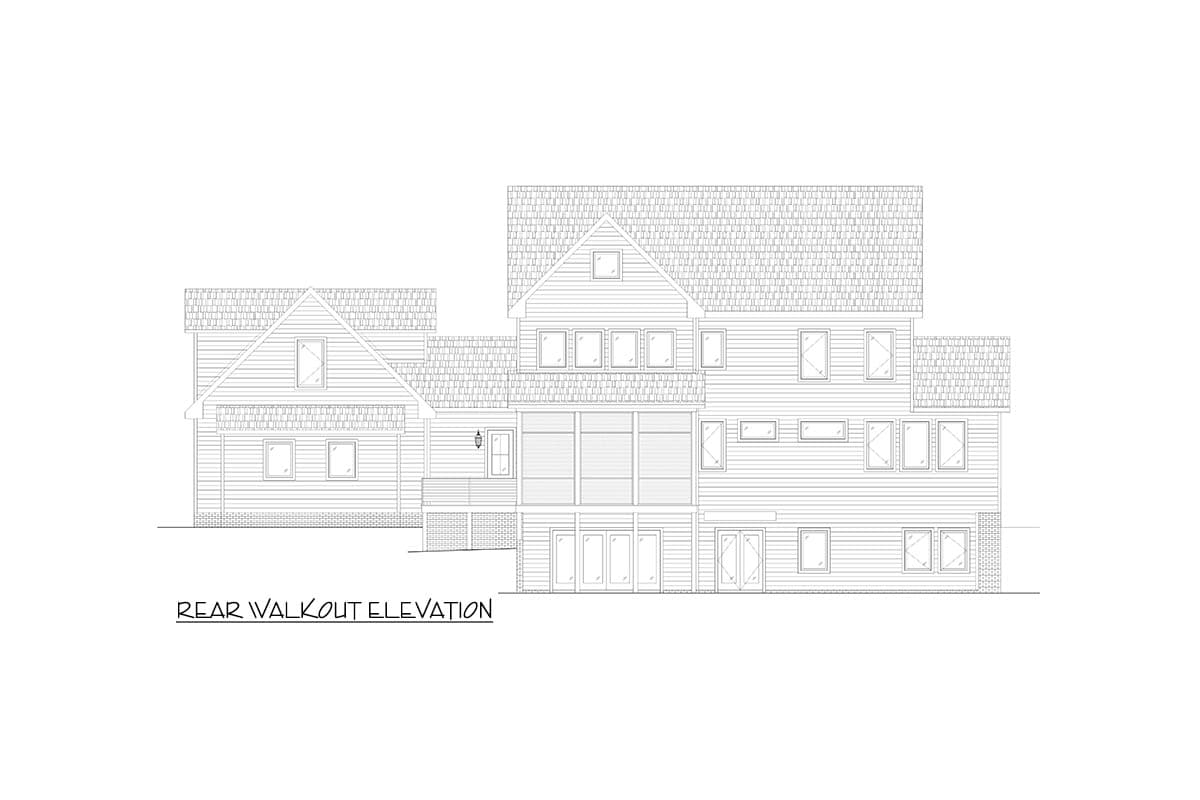

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

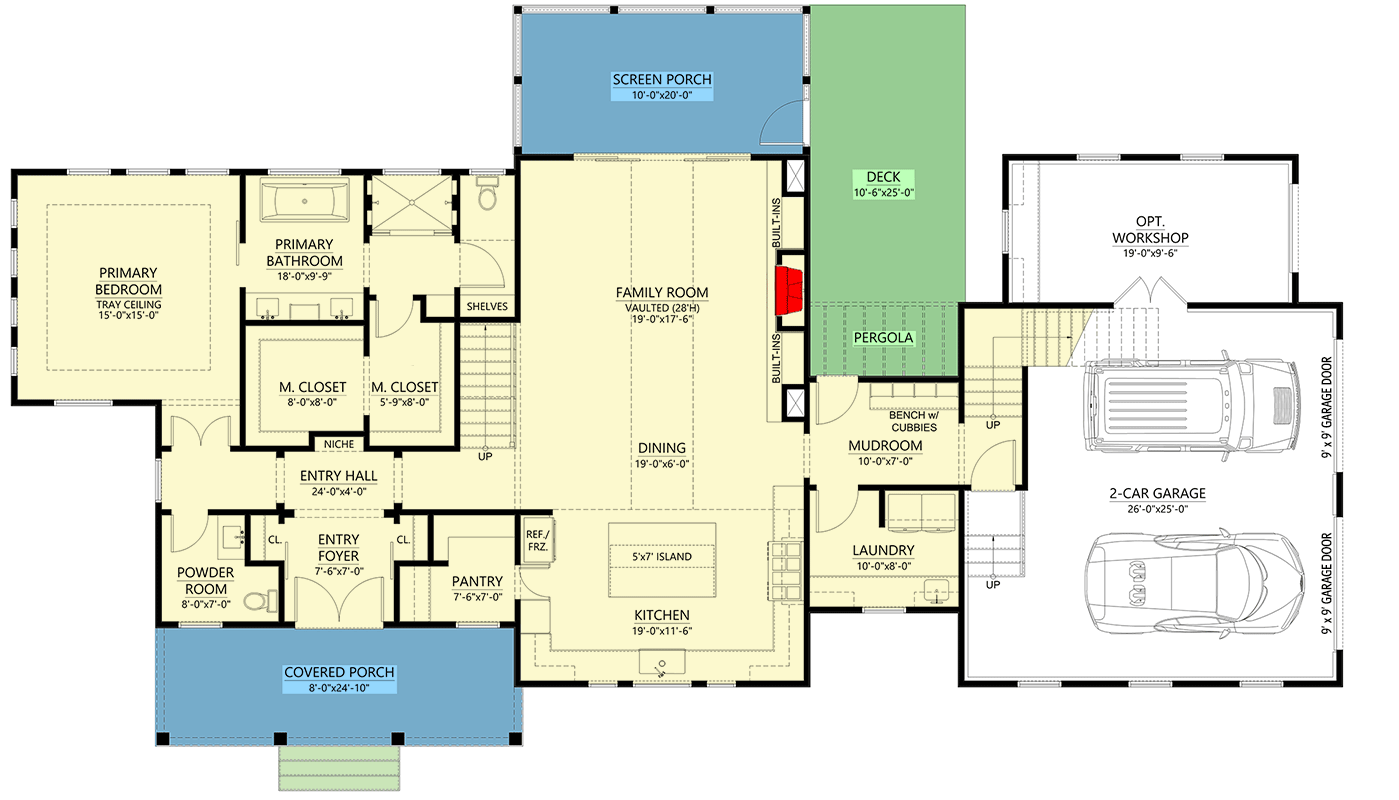

Main Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Expandable Country Home Plan with 3 to 6 Bedrooms - 550017LAN floor plan - Main Floor

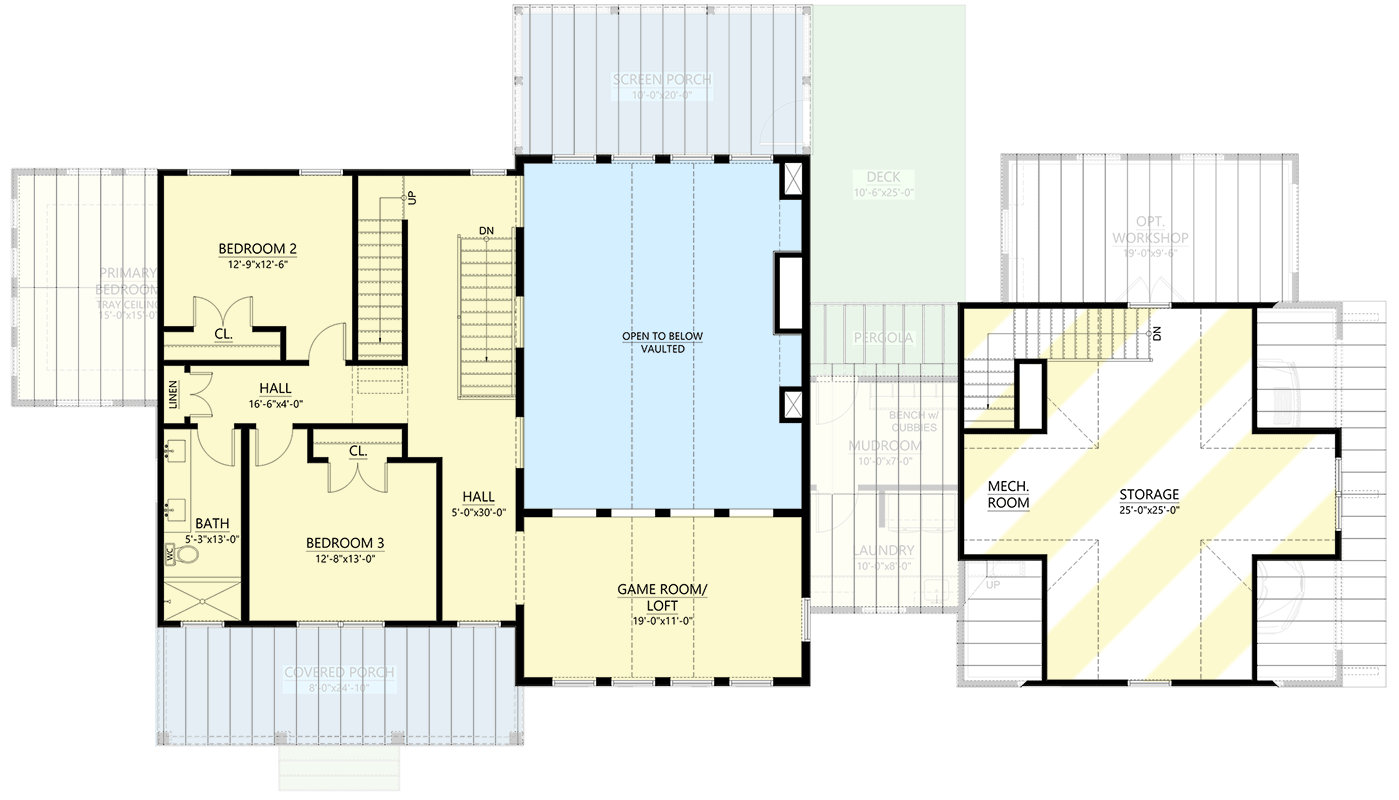

Second Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Expandable Country Home Plan with 3 to 6 Bedrooms - 550017LAN floor plan - Second Floor

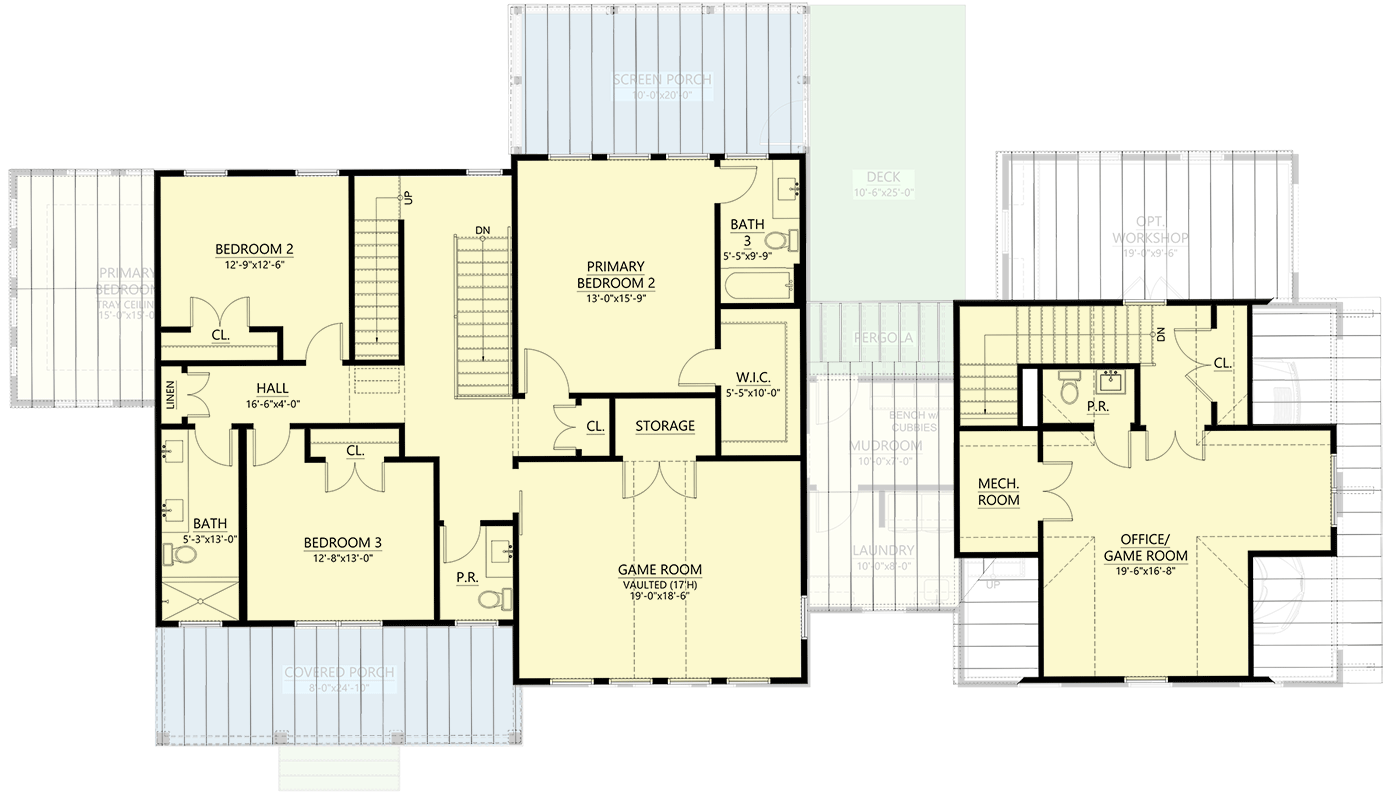

Second Floor with Optional 4th Bedroom

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Expandable Country Home Plan with 3 to 6 Bedrooms - 550017LAN floor plan - Second Floor with Optional 4th Bedroom

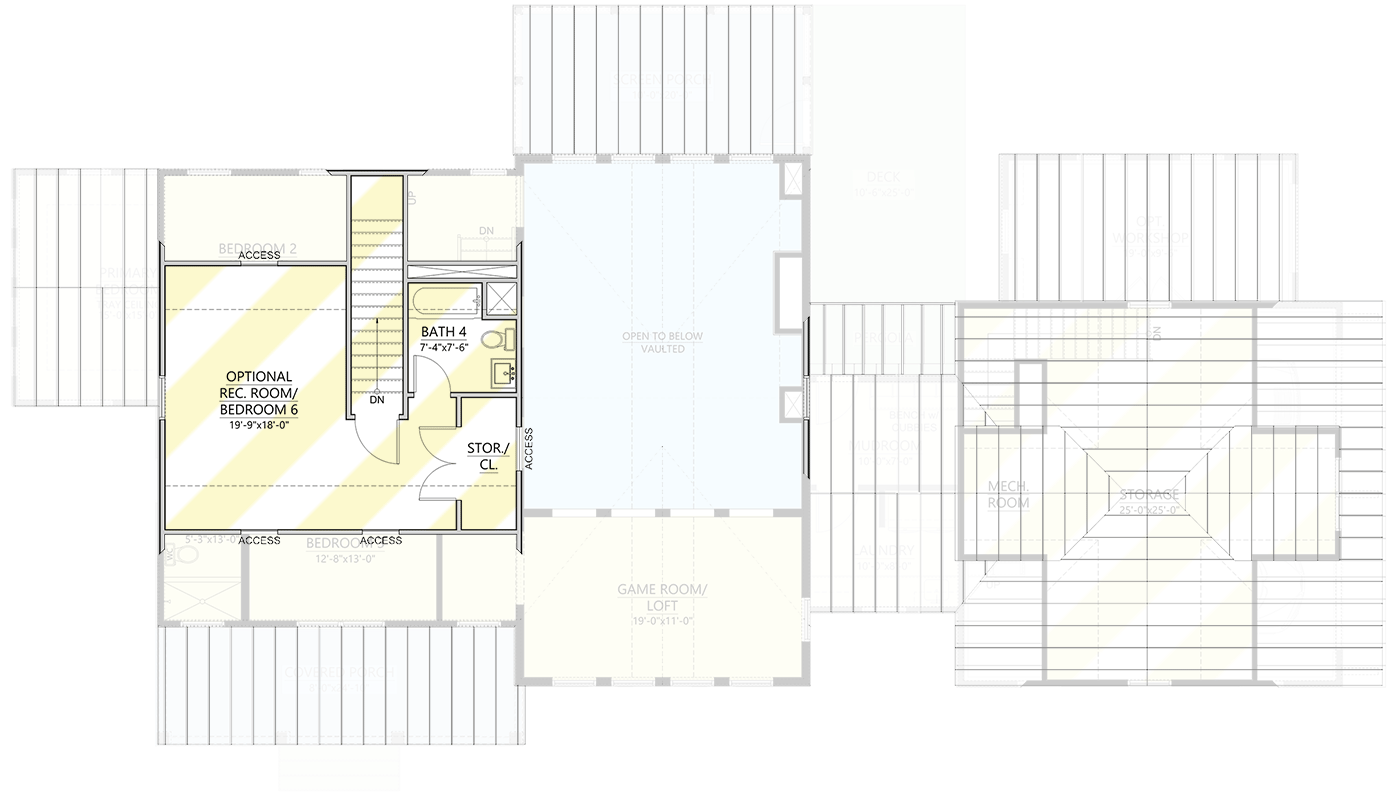

Third Floor with Optional 6th Bedroom

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Expandable Country Home Plan with 3 to 6 Bedrooms - 550017LAN floor plan - Third Floor with Optional 6th Bedroom

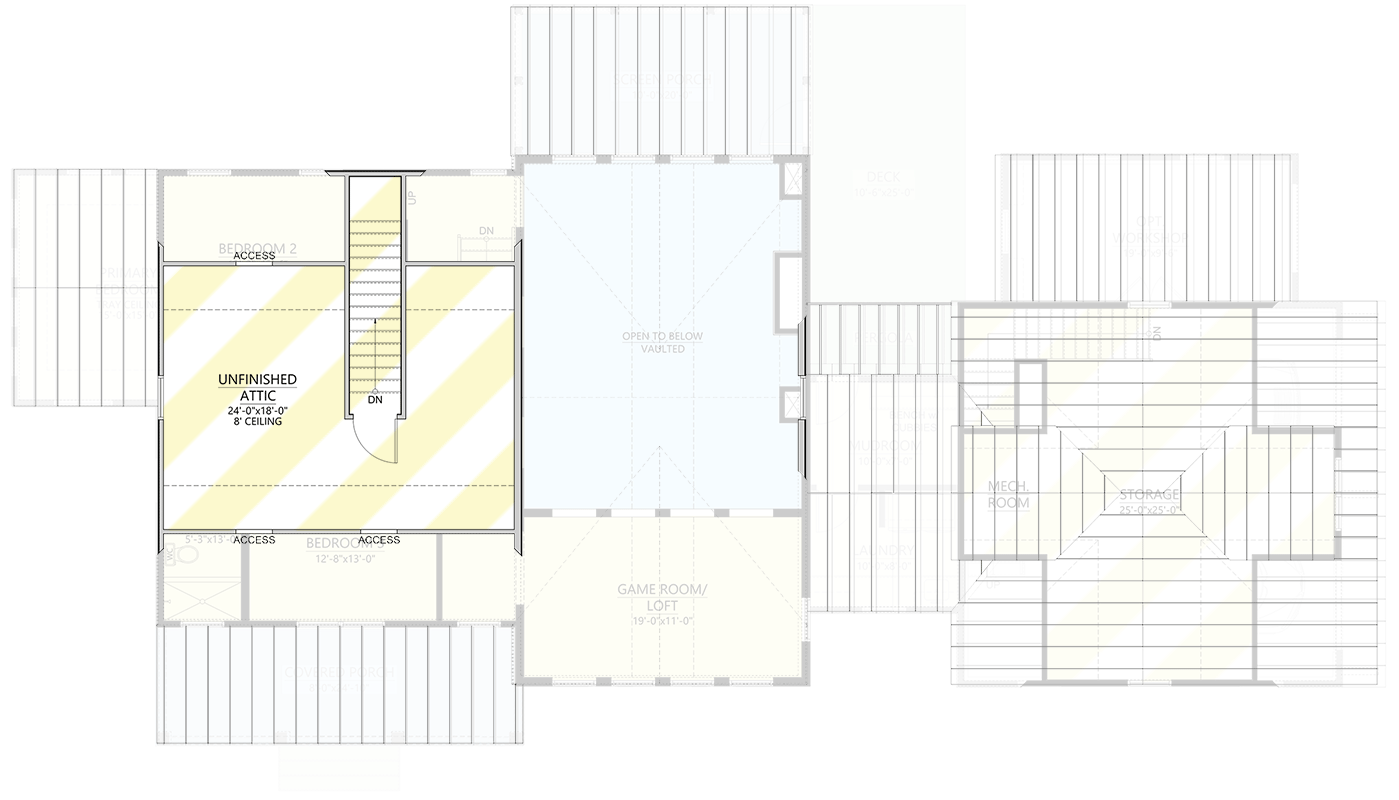

Attic Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Expandable Country Home Plan with 3 to 6 Bedrooms - 550017LAN floor plan - Attic Floor

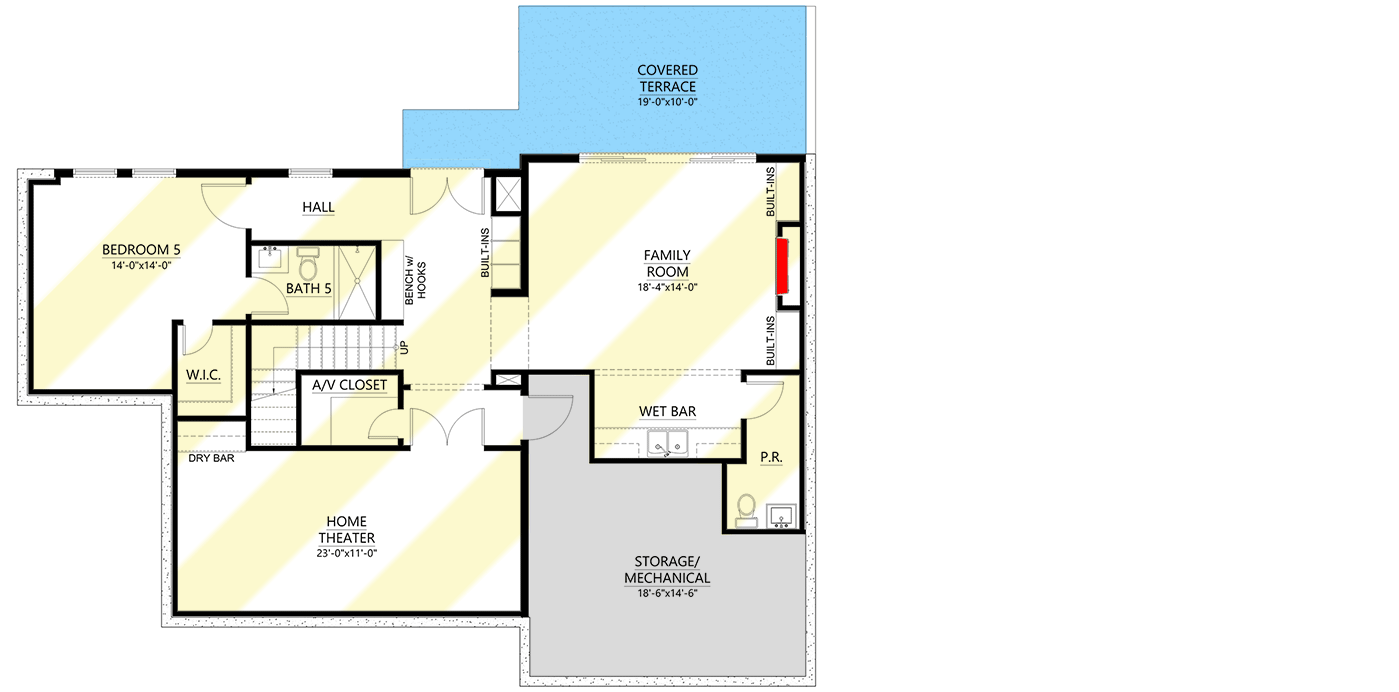

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Expandable Country Home Plan with 3 to 6 Bedrooms - 550017LAN floor plan - Optional Lower Level

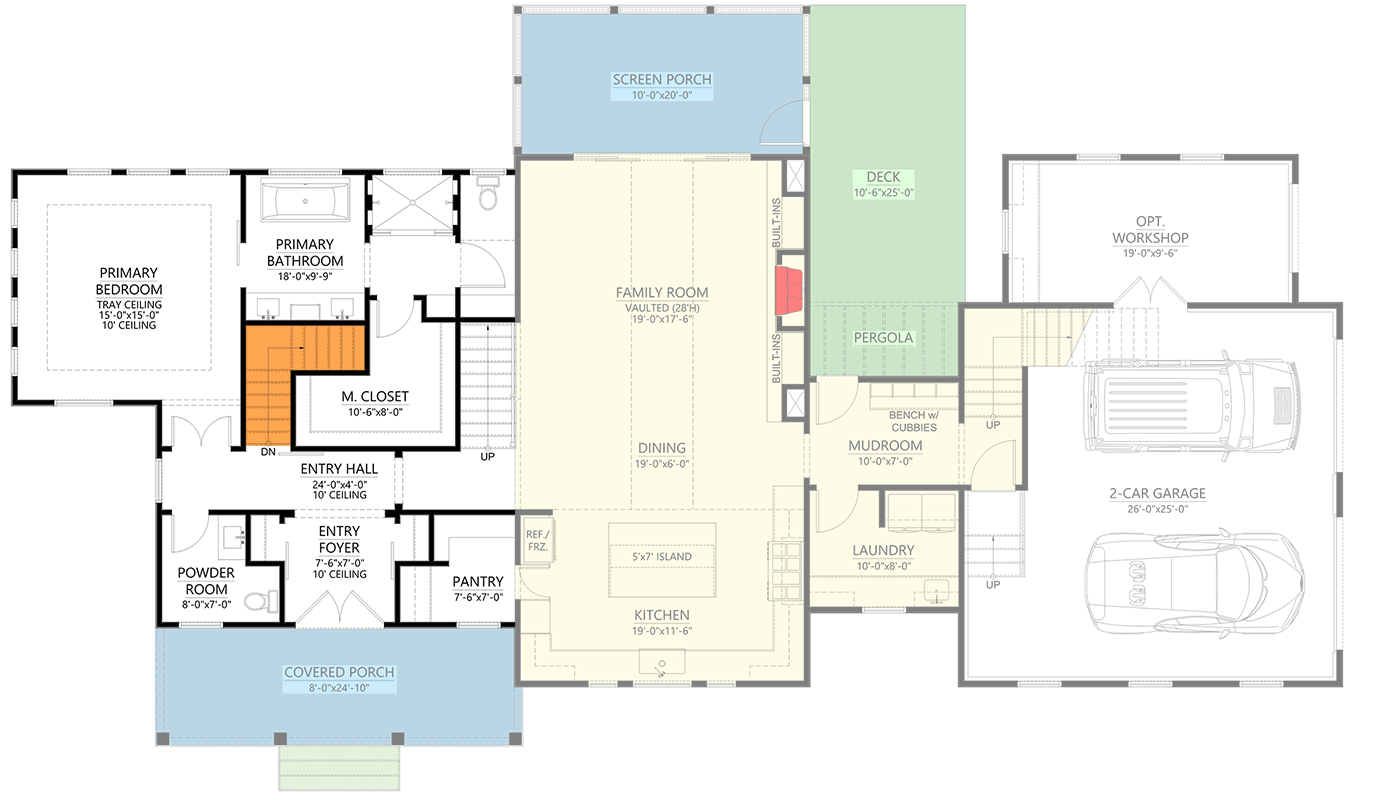

Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Expandable Country Home Plan with 3 to 6 Bedrooms - 550017LAN floor plan - Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,763 sq. ft.
  • 1st Floor: 1,804 sq. ft.
  • 2nd Floor: 959 sq. ft.
  • Workshop: 200 sq. ft.
  • Attic: 432 sq. ft.
  • Screened Porch: 200 sq. ft.
  • Porch, Front: 196 sq. ft.
  • Bonus: 454 sq. ft.
  • Optional Lower Level: 1,628 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2, 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Monolithic Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 90' 0"
  • Depth: 50' 0"
  • Max ridge height: 38' 0"

Garage

  • Type: Attached
  • Area: 676 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Attic 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Expandable Country Home Plan with 3 to 6 Bedrooms

  • 2,763

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 5.5

    Baths

  • 2-3

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD + PDF - Single-Build $3,280
  • PDF - Unlimited Build $3,345
  • CAD Unlimited + PDF $4,130
  • View all purchase option online

About This Plan

This country home plan gives you anywhere from 2,763 square feet of heated living and 3 bedrooms to over 6,000 square feet of heated living and 6 bedrooms depending on the options - all come with the purchase of this exclusive house plan - you decide to build.
The center portion of the home is open concept and presents the kitchen in front with large farmhouse sink set below a window looking out front, a 7' by 5' island and large walk-in pantry open to the vaulted dining and family room. The back wall opens and connects to the screen porch, giving you the best of indoor-outdoor living.
The primary bedroom is the only one on the main floor and has windows lining three walls.
The second floor gives you two bedrooms with a shared bathroom and a game room loft with windows looking out across the two-story space below.
An optional second floor layout gives you a second primary suite and a home office/game room over the garage.
There's also an optional third floor with a sixth bedroom and a bathroom (or just attic space).
The garage has to 9' by 9' overhead doors and a separate workshop area.

Floor Plans

  • Main Floor

  • Second Floor

  • Second Floor with Optional 4th Bedroom

  • Third Floor with Optional 6th Bedroom

  • Attic Floor

  • Optional Lower Level

  • Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,763 sq. ft.
  • 1st Floor: 1,804 sq. ft.
  • 2nd Floor: 959 sq. ft.
  • Workshop: 200 sq. ft.
  • Attic: 432 sq. ft.
  • Screened Porch: 200 sq. ft.
  • Porch, Front: 196 sq. ft.
  • Bonus: 454 sq. ft.
  • Optional Lower Level: 1,628 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2, 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Monolithic Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 90' 0"
  • Depth: 50' 0"
  • Max ridge height: 38' 0"

Garage

  • Type: Attached
  • Area: 676 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Attic 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss
Plan 550017LAN
