Plan 39192ST

Expandable House Plan with Optionally Finished Lower Level

Heated S.F.
3,171
Beds
2 - 5
Baths
2.5 - 3.5
Stories
1
Cars
3

Floor Plan

Plan 39192ST

Main Level
Main Level
Basement
Basement

Plan 39192ST

M-F 9am-5pm EST |

1-203-761-8500

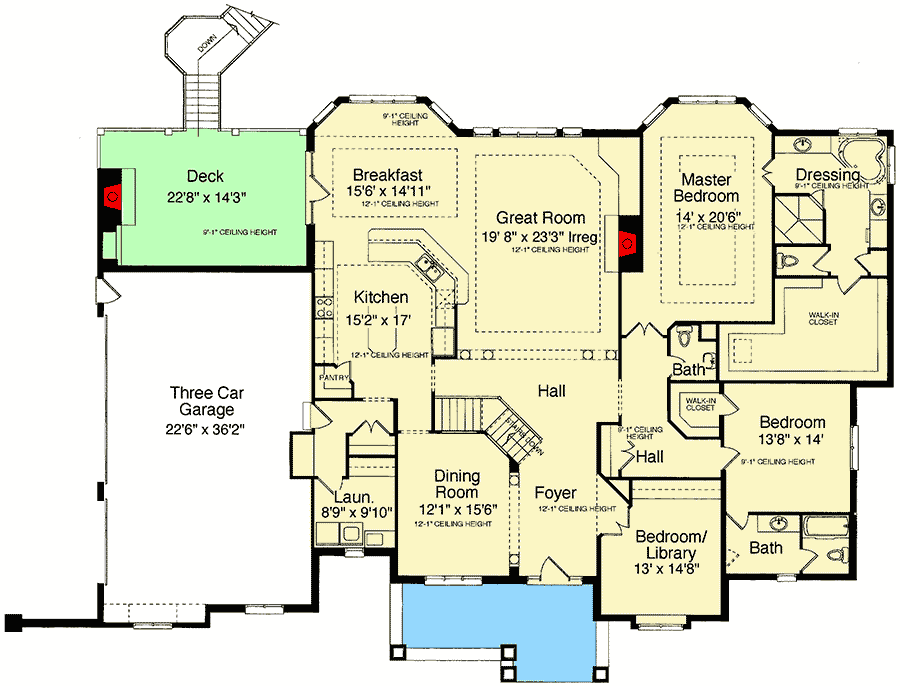

Main Level

Plan 39192ST: Expandable House Plan with Optionally Finished Lower Level - Floor Plan - Main Level - Southern, Traditional

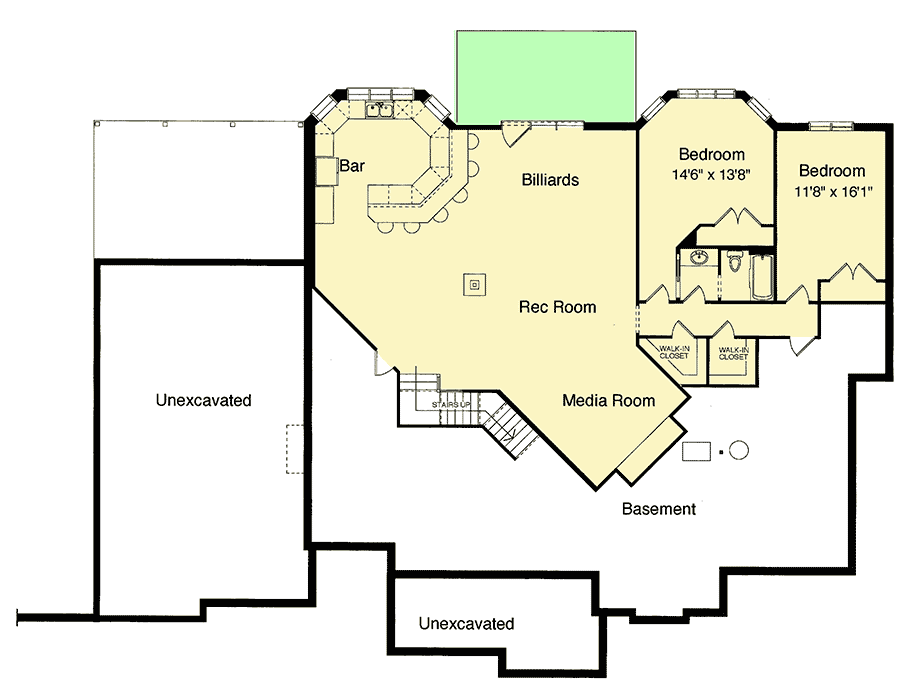

Basement

Plan 39192ST: Expandable House Plan with Optionally Finished Lower Level - Floor Plan - Basement - Southern, Traditional

Plan Details

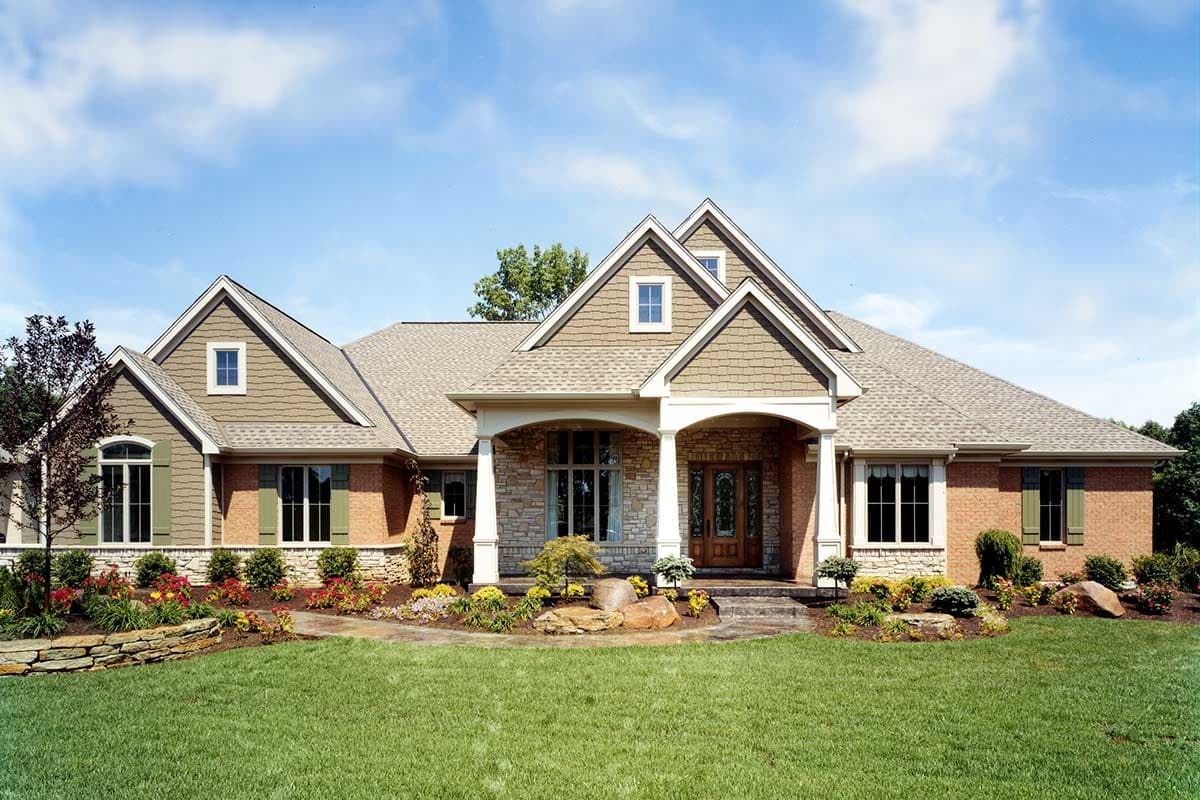

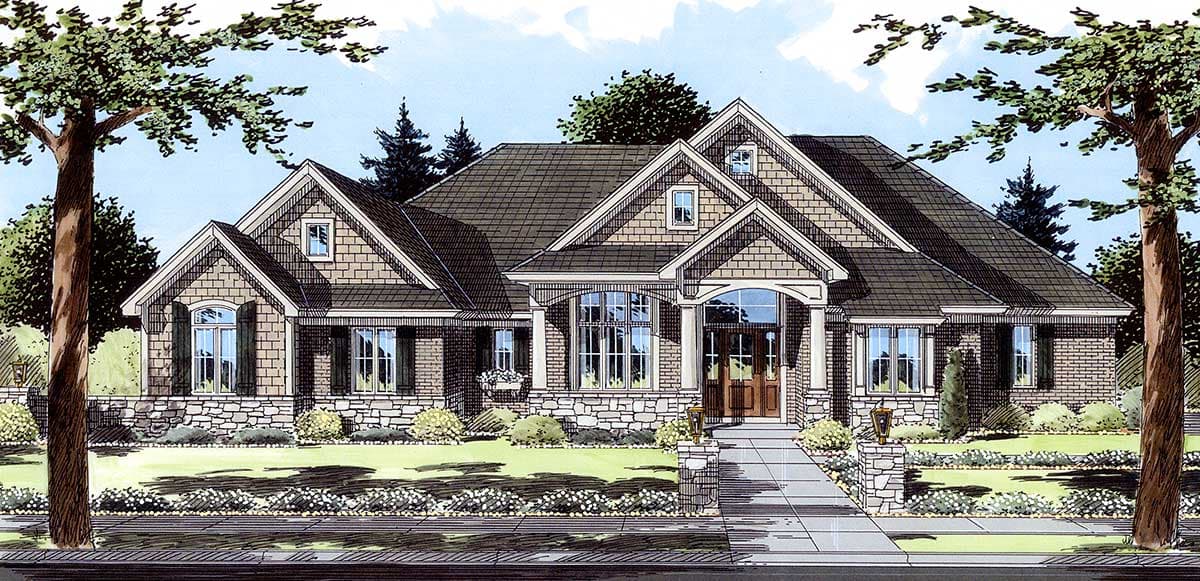

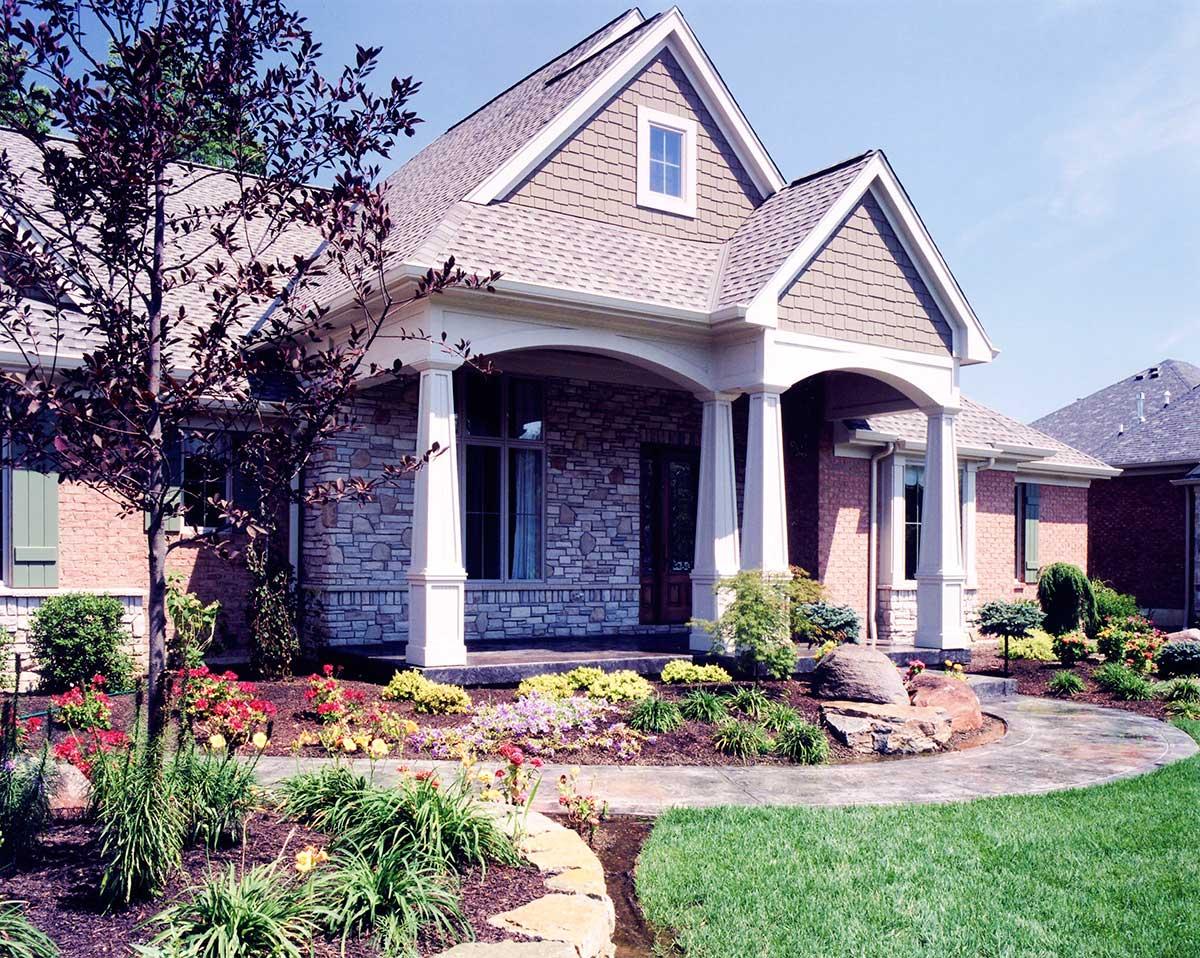

  • A brick, stone and shakes facade with covered porch and multiple gables make this beautiful one level home plan a perfect choice for the discriminating buyer.

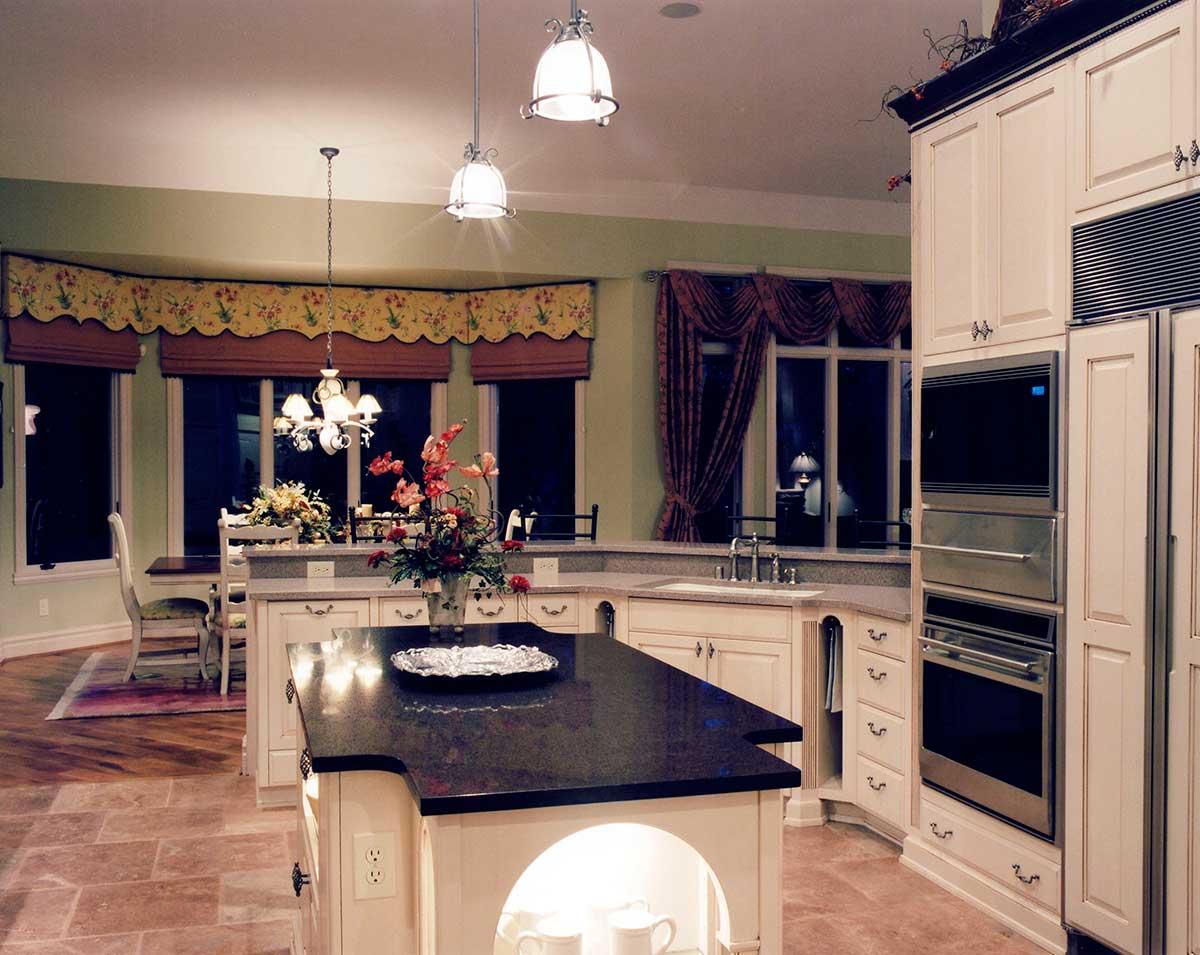

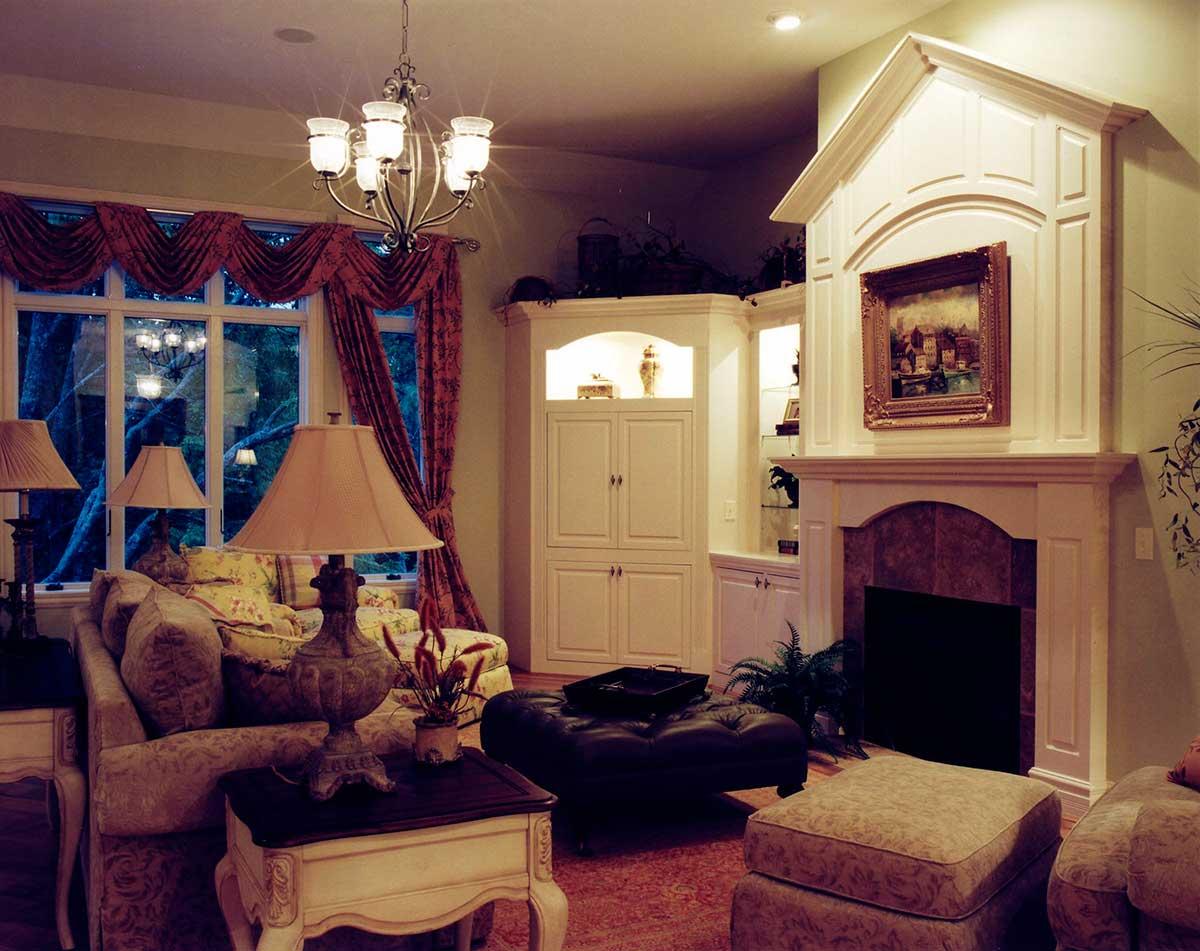

  • A large informal great room, breakfast area and kitchen, with island and bar seating, create a comfortable and inviting atmosphere.

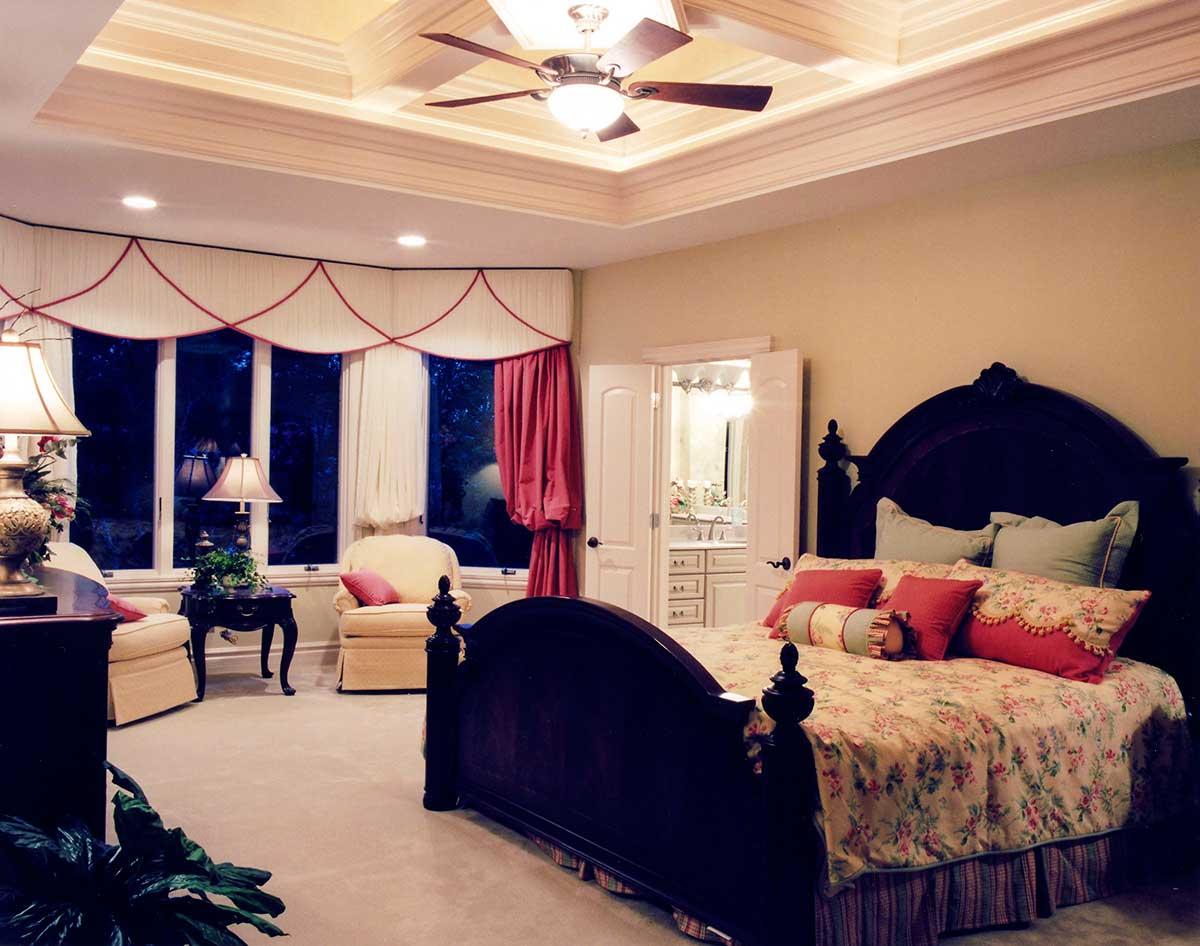

  • Columns separate the great room from the foyer while 12' high ceilings top the great room, breakfast area, kitchen, dining room and master bedroom.

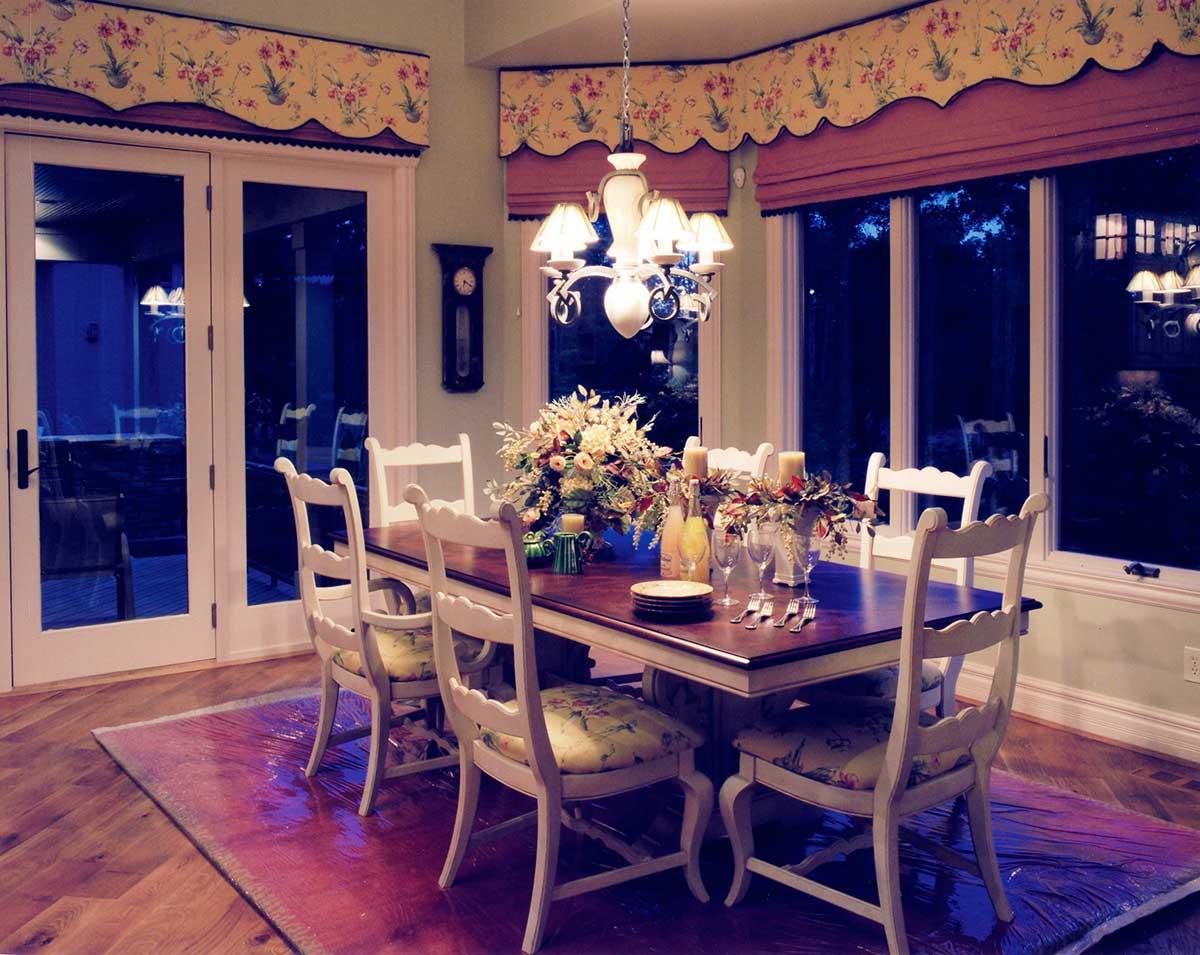

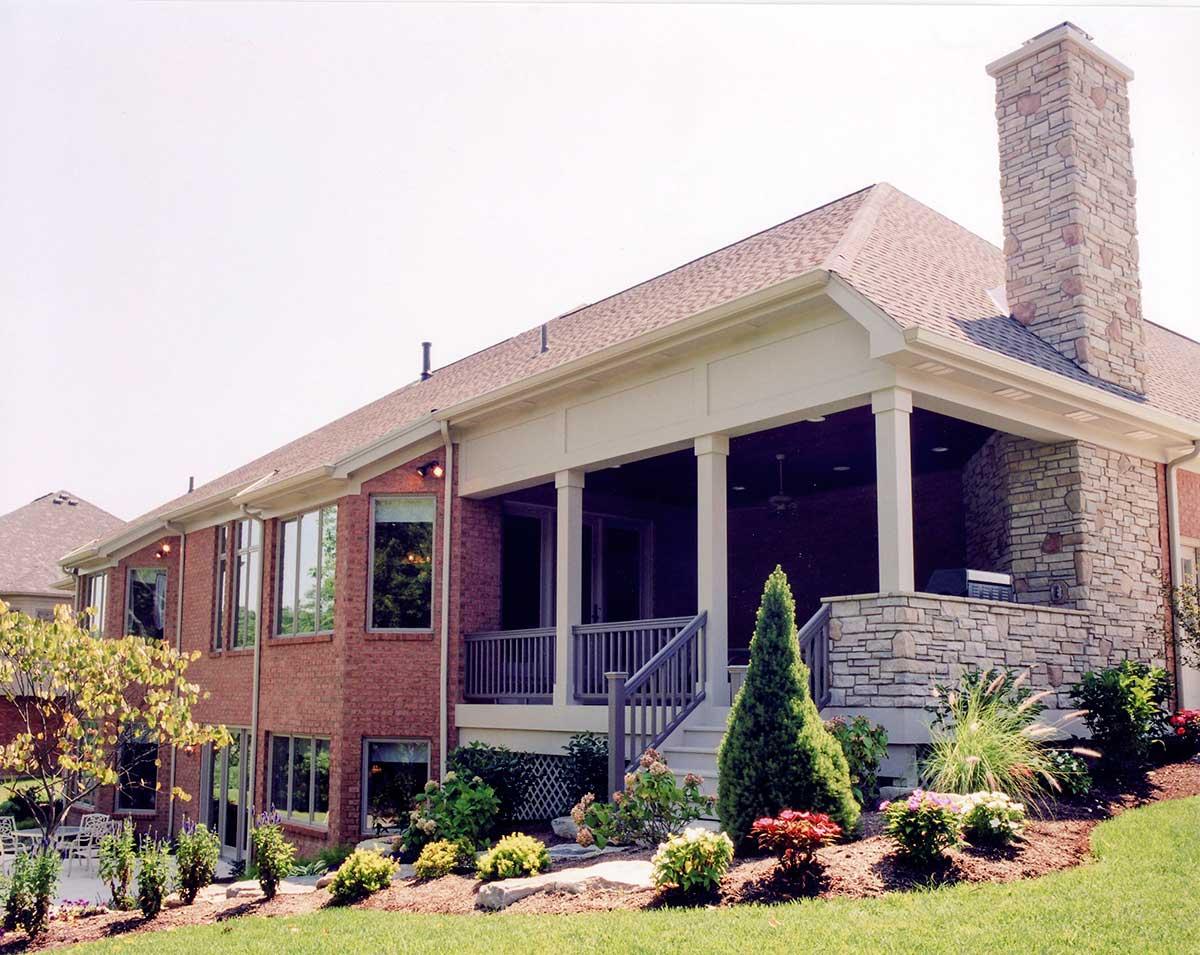

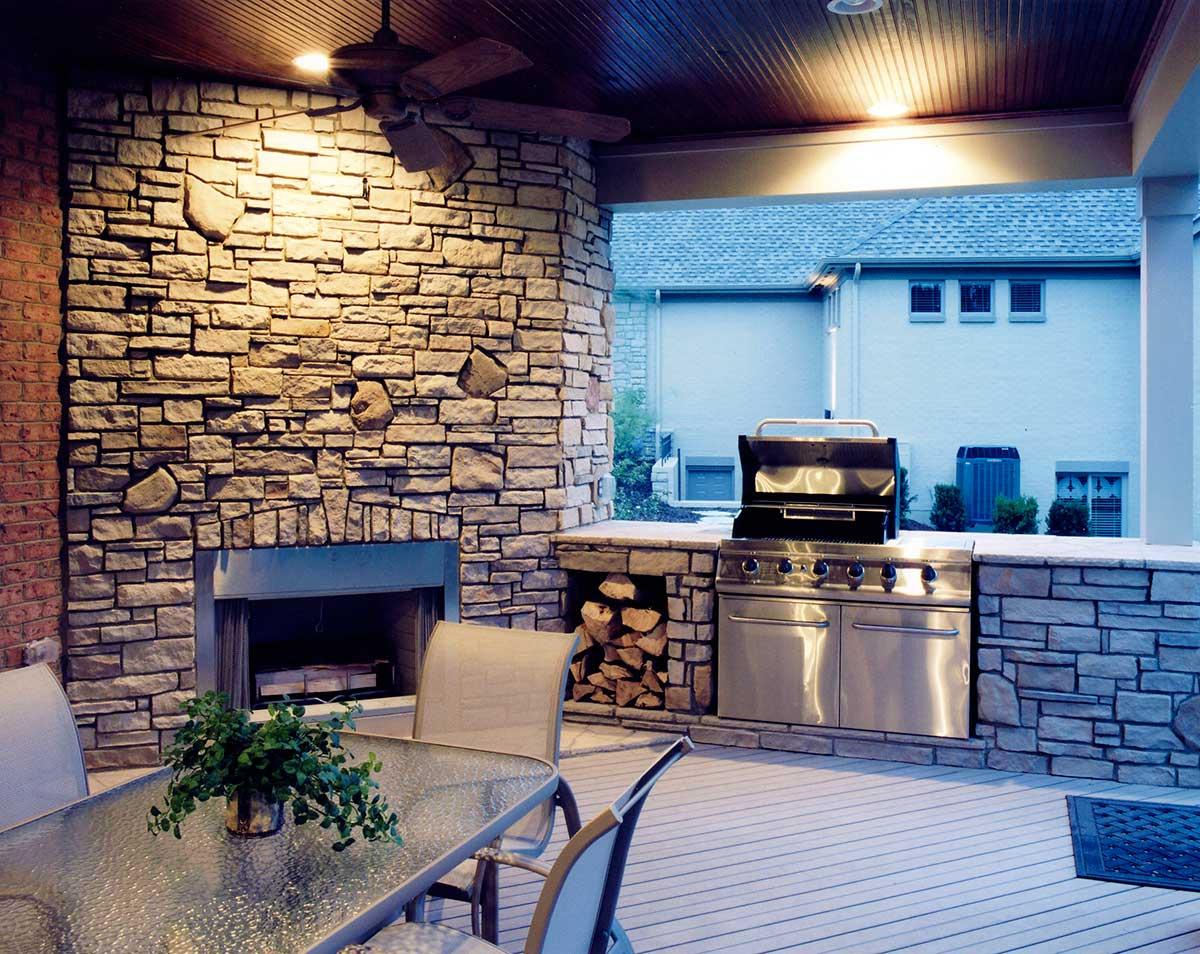

  • Formal dining is available for special occasion dining and a covered deck with fireplace and built in grill area offers expanded space for fun times.
  • Angled stairs lead to an optional finished lower level where a large party room offers a bar, billiards area, rec. room and media room. Additional bedrooms are available for the occasional overnight guest or family members.
  • Related Plans: See these alternate smaller versions - 39068ST (2,619 s.f.), 39073ST (2,796 s.f.) and 39151ST (2,246 s.f.).

What's Included

  • General notes and specifications

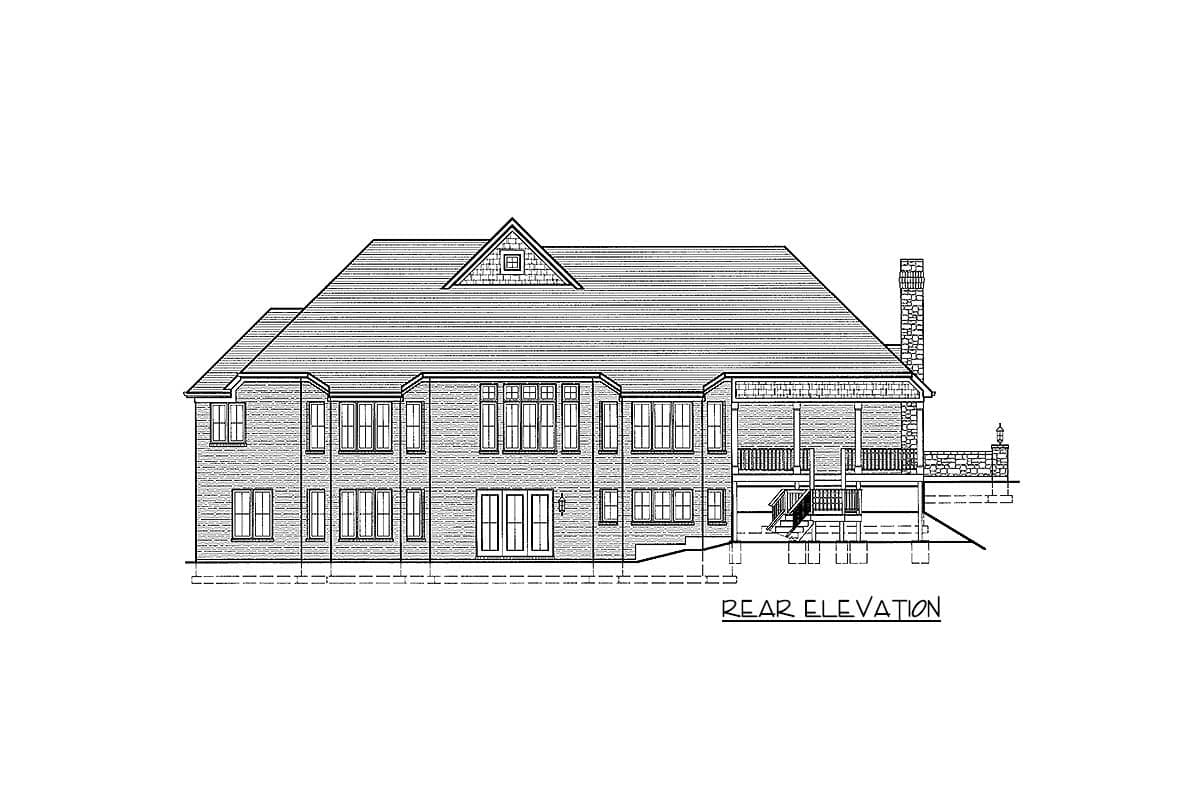

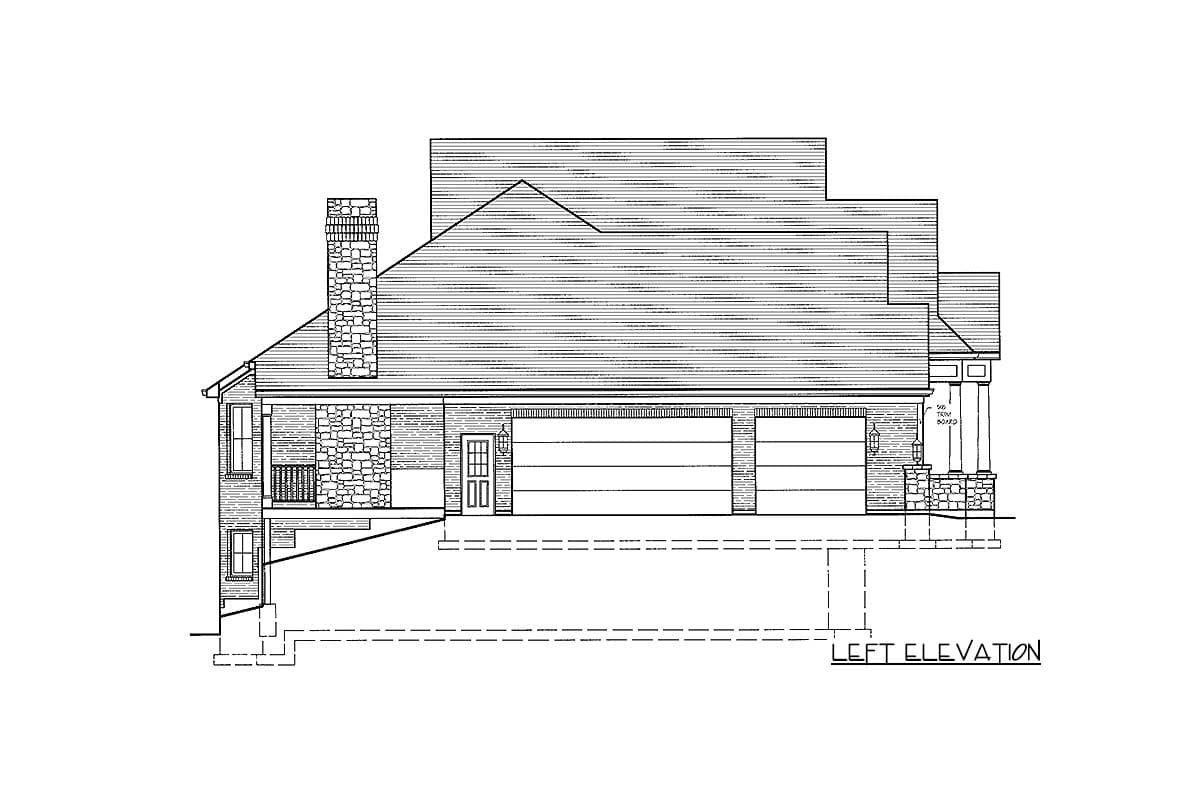

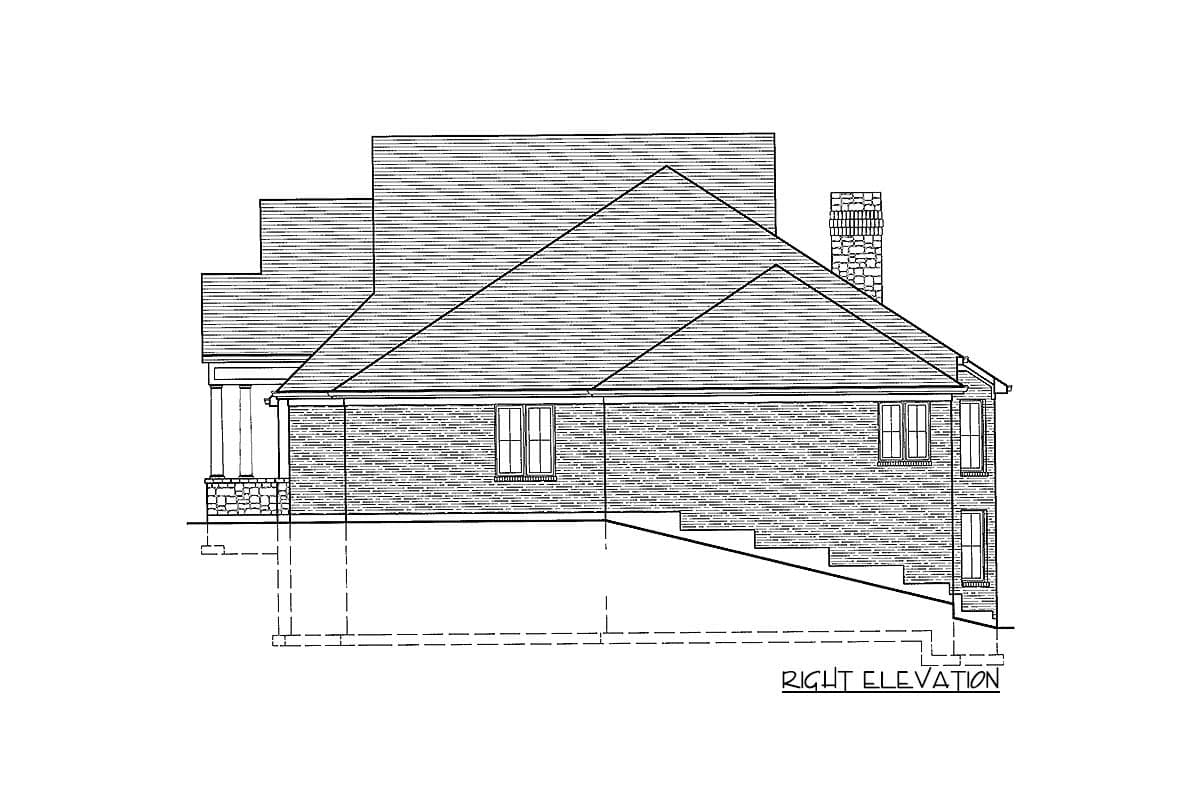

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,171 sq. ft.

1st Floor

3,171 sq. ft.

Optional Lower Level

1,897 sq. ft.

Porch, Front

217 sq. ft.

Deck

323 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

86' 2"

Depth

63' 8"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

828 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Formal Dining

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Walk-in Pantry

Plan Collections

Luxury

Photo Gallery

Premium Collection
