Plan 81697AB Expandable One-Story House Plan With Dramatic Foyer

Expandable One-Story House Plan With Dramatic Foyer

Plan 81697AB

  • 3,396

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • With an optional finished lower level, this "one" story house plan can be expanded to have up to five bedrooms (two on the main floor and three below).
  • A curved stair in the foyer creates a beautiful welcome and takes you to the lower level.
  • The foyer opens to the great room which has French doors leading to a large sun deck in back. The nook and kitchen are open to the great room and another set of French doors opens to the screened covered deck giving you a great spot to enjoy the views.
  • The master suite has a sitting area and a large segmented walk-in closet.
  • Off the foyer, you'll find a home office with views over the front porch.

Plans include the following:

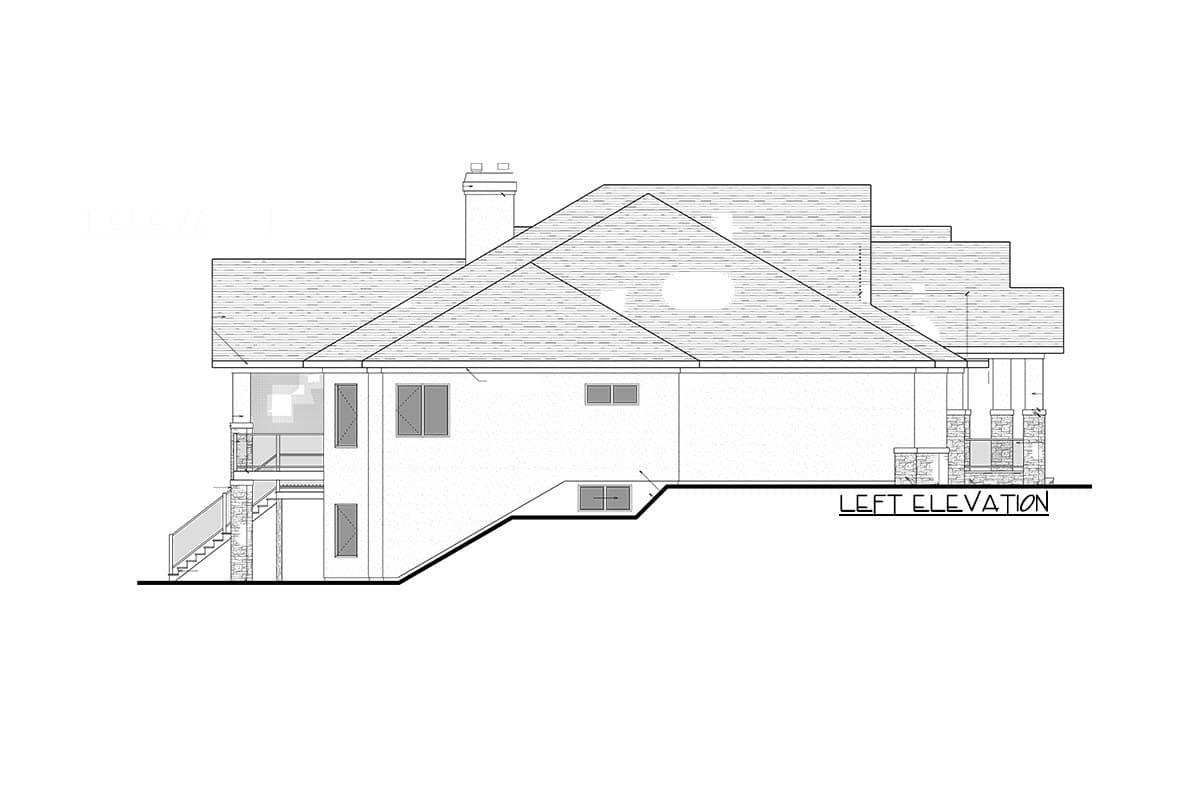

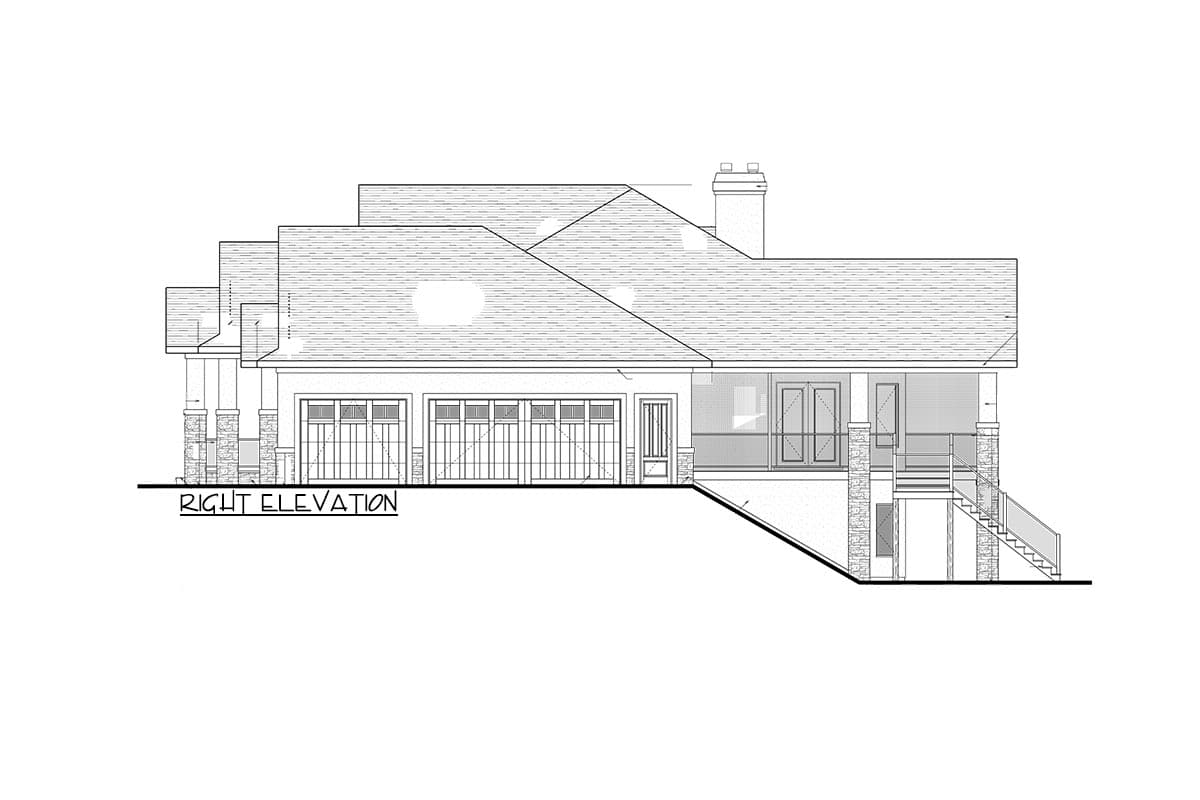

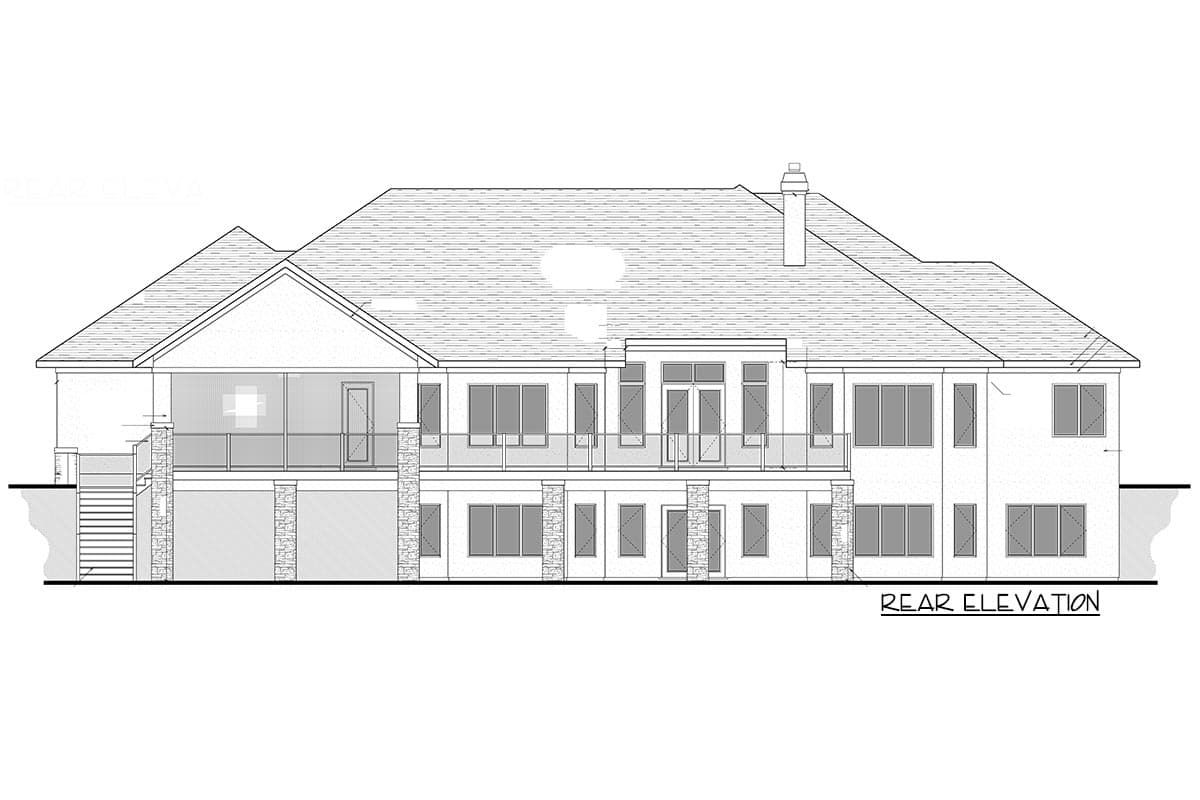

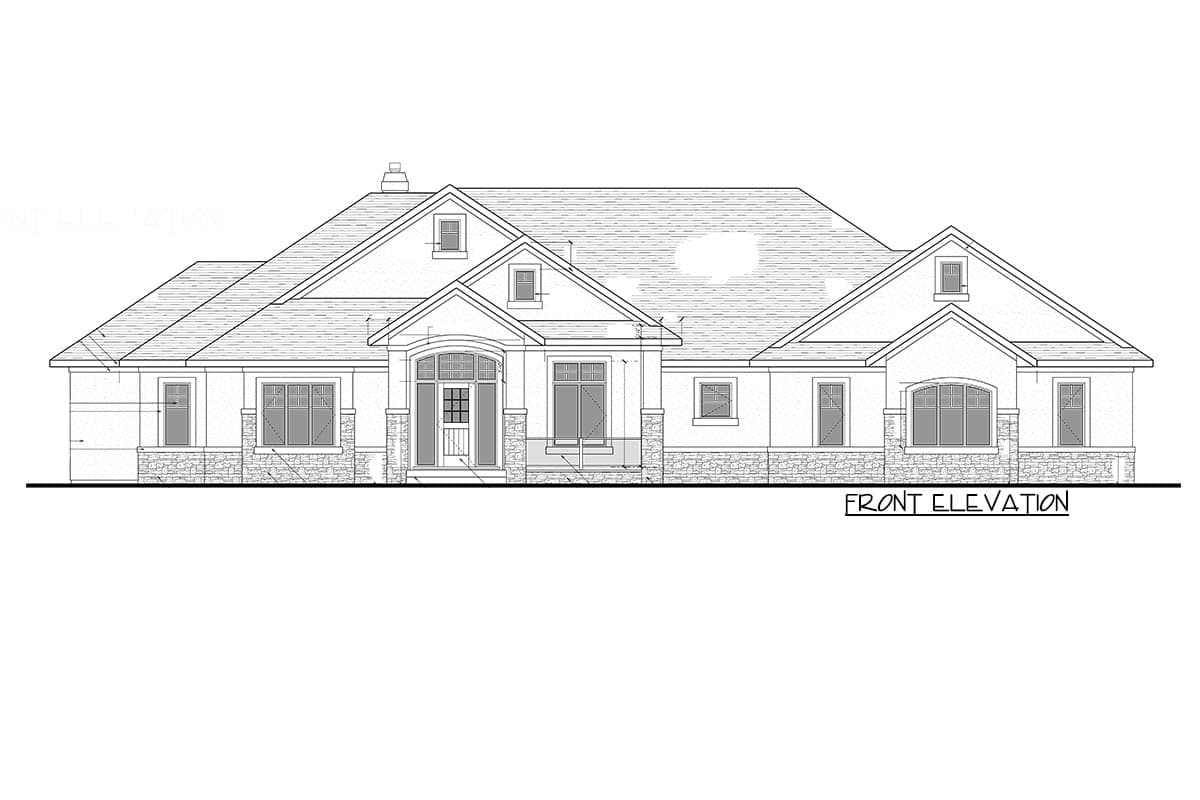

  • 4 elevations (Front, Rear, Left and Right)

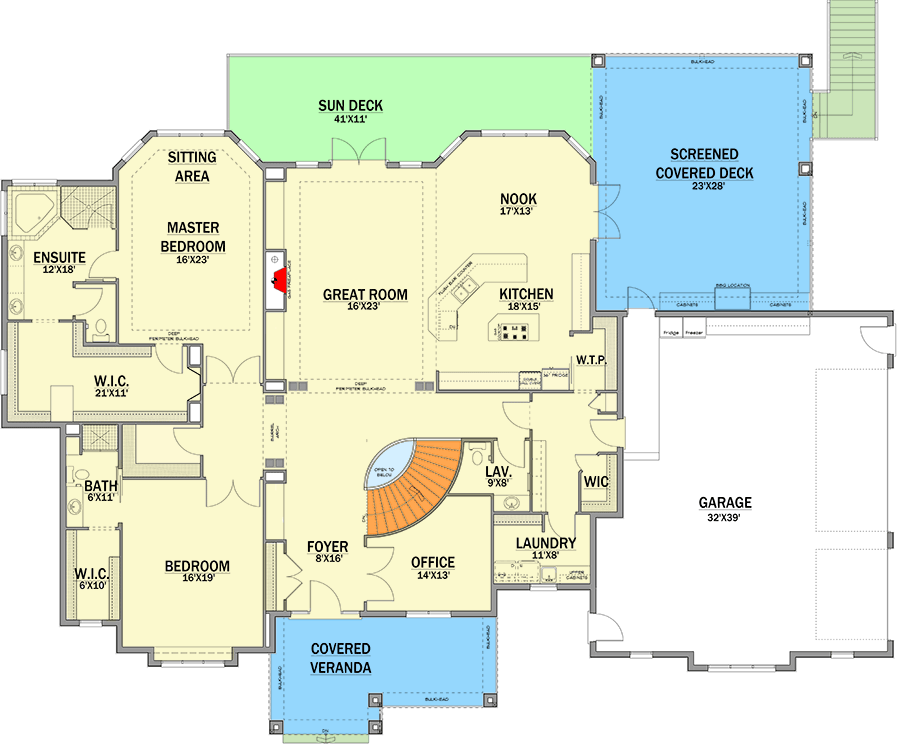

  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

 We also include a list of building specifications, and notes for each page, with any important info the builder may need.

 What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations



Floor Plan

Plan details



Expandable One-Story House Plan With Dramatic Foyer

  • 3,396

    Heated s.f.

  • 2 - 5

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,815
  • CAD - Single-Build $2,725
  • View all purchase option online

About This Plan

  • With an optional finished lower level, this "one" story house plan can be expanded to have up to five bedrooms (two on the main floor and three below).
  • A curved stair in the foyer creates a beautiful welcome and takes you to the lower level.
  • The foyer opens to the great room which has French doors leading to a large sun deck in back. The nook and kitchen are open to the great room and another set of French doors opens to the screened covered deck giving you a great spot to enjoy the views.
  • The master suite has a sitting area and a large segmented walk-in closet.
  • Off the foyer, you'll find a home office with views over the front porch.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,396 sq. ft.
  • 1st Floor: 3,396 sq. ft.
  • Deck: 739 sq. ft.
  • Screened Porch: 644 sq. ft.

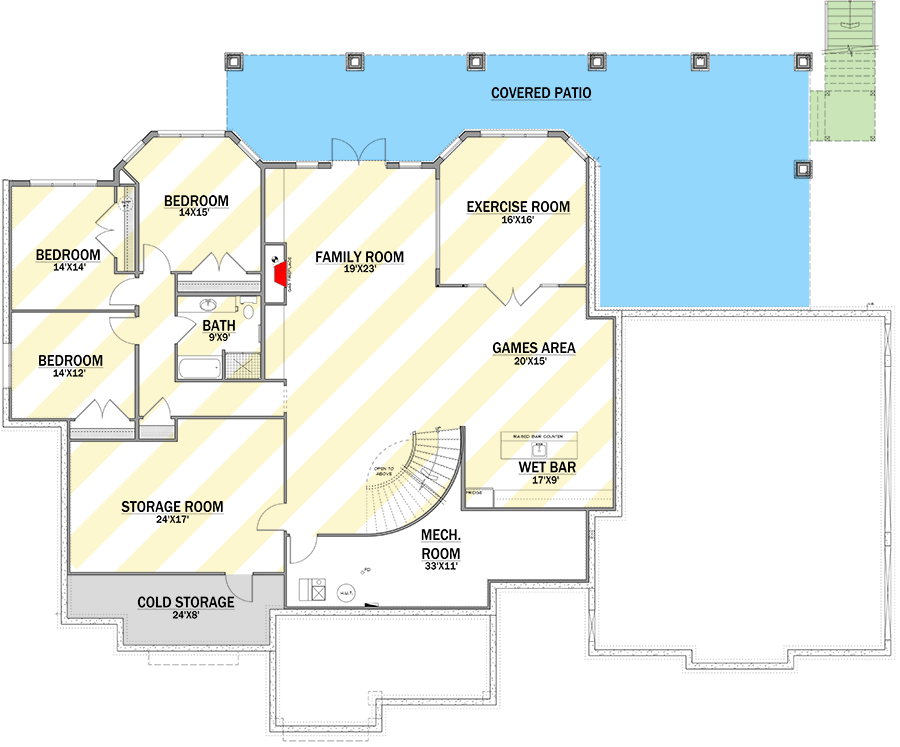

  • Optional Lower Level: 2,310 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, & 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 99' 0"
  • Depth: 60' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 1225 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
