Plan 68593VR Expanded Modern Garage with Loft Space Above

1,000 0 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Expanded Modern Garage with Loft Space Above

Plan 68593VR

  • 1,000

    Heated s.f.

  • 0

    Beds

  • 2

    Stories

  • 4

    Cars

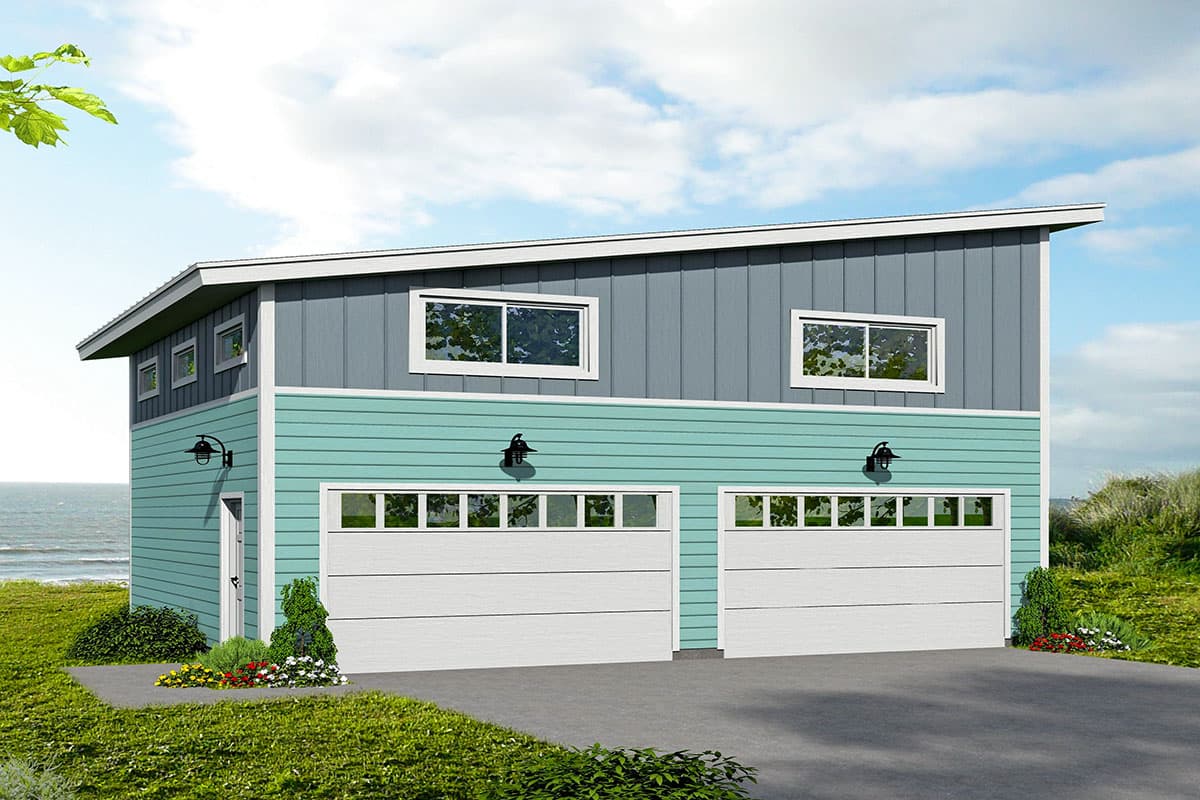

  • This 2-car modern carriage plan has two 16'8"-wide garage doors and a man door on the ground level.
  • Above the garage, you'll find a light-filled loft space that can be put to many uses.
  • Related Plan: Get a smaller version with garage plan 68554VR. Get a 4-car version with garage plan 68544VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

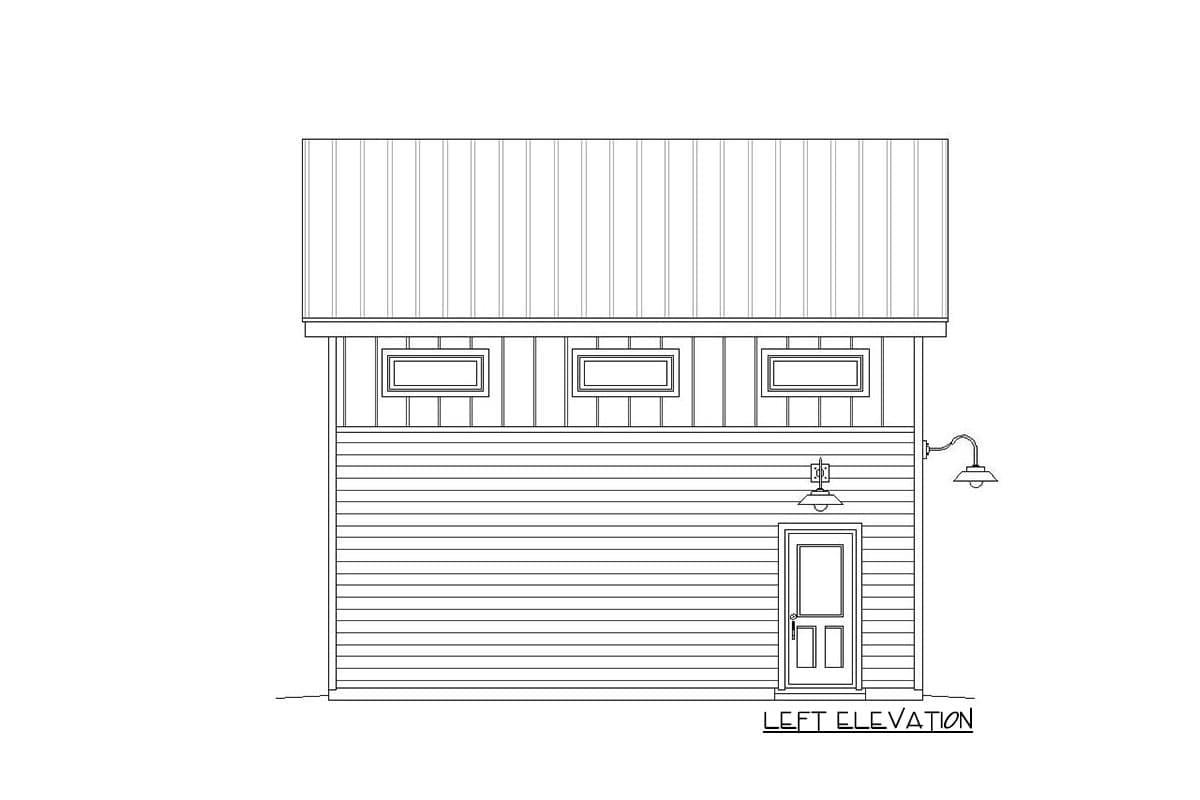

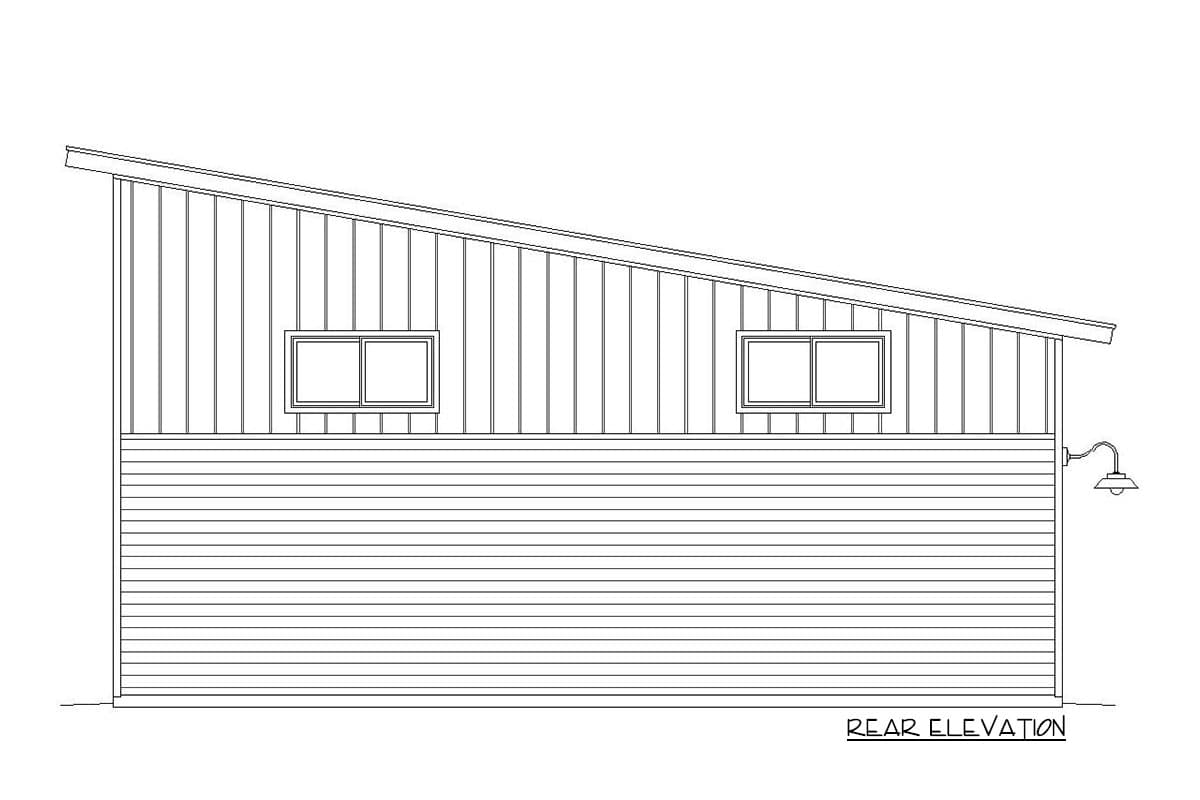

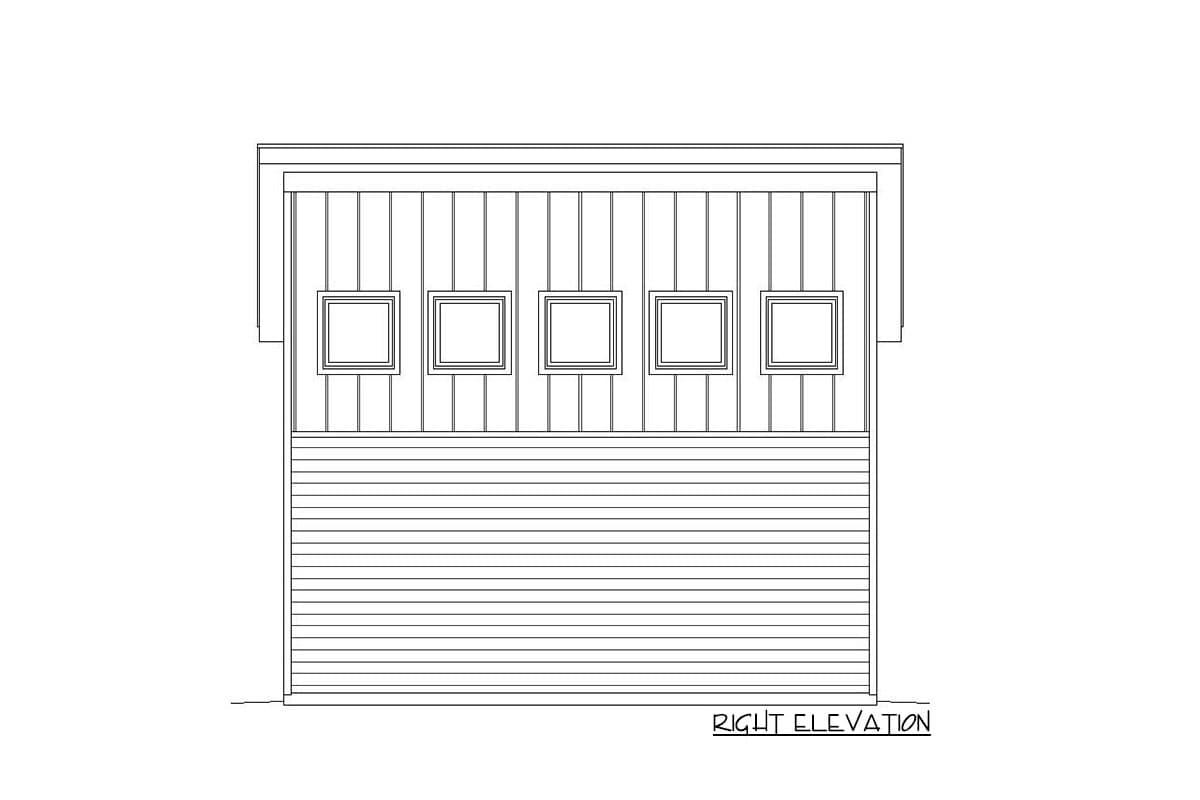

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Expanded Modern Garage with Loft Space Above - 68593VR floor plan - Main Level

Loft

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Expanded Modern Garage with Loft Space Above - 68593VR floor plan - Loft

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,000 sq. ft.
  • 2nd Floor: 1,000 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 25' 0"
  • Max ridge height: 24' 1"

Garage

  • Type: Detached
  • Area: 1000 sq. ft.
  • Count: 4 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Stick

Special features

Expanded Modern Garage with Loft Space Above

  • 1,000

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets $1,175
  • 5 Sets + PDF $1,250
  • CAD + PDF - Single-Build $1,400
  • View all purchase option online

About This Plan

  • This 2-car modern carriage plan has two 16'8"-wide garage doors and a man door on the ground level.
  • Above the garage, you'll find a light-filled loft space that can be put to many uses.
  • Related Plan: Get a smaller version with garage plan 68554VR. Get a 4-car version with garage plan 68544VR.

Floor Plans

  • Main Level

  • Loft

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,000 sq. ft.
  • 2nd Floor: 1,000 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 25' 0"
  • Max ridge height: 24' 1"

Garage

  • Type: Detached
  • Area: 1000 sq. ft.
  • Count: 4 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
Plan 68593VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68593VR
|
