Plan 85440MS

Exclusive

Expanded Stylish Modern House Plan Under 900 Square Feet

Heated S.F.
818
Beds
1
Baths
1.5
Stories
2

Floor Plan

Plan 85440MS

Main Level
Main Level
2nd Floor
2nd Floor

Plan 85440MS

M-F 9am-5pm EST |

1-203-761-8500

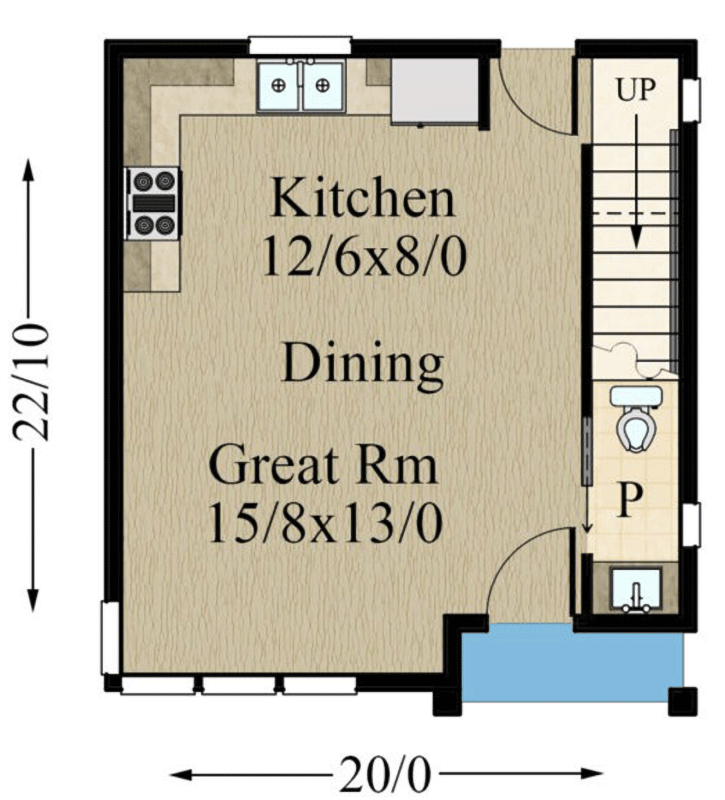

Main Level

Plan 85440MS: Expanded Stylish Modern House Plan Under 900 Square Feet - Floor Plan - Main Level - Modern, Northwest

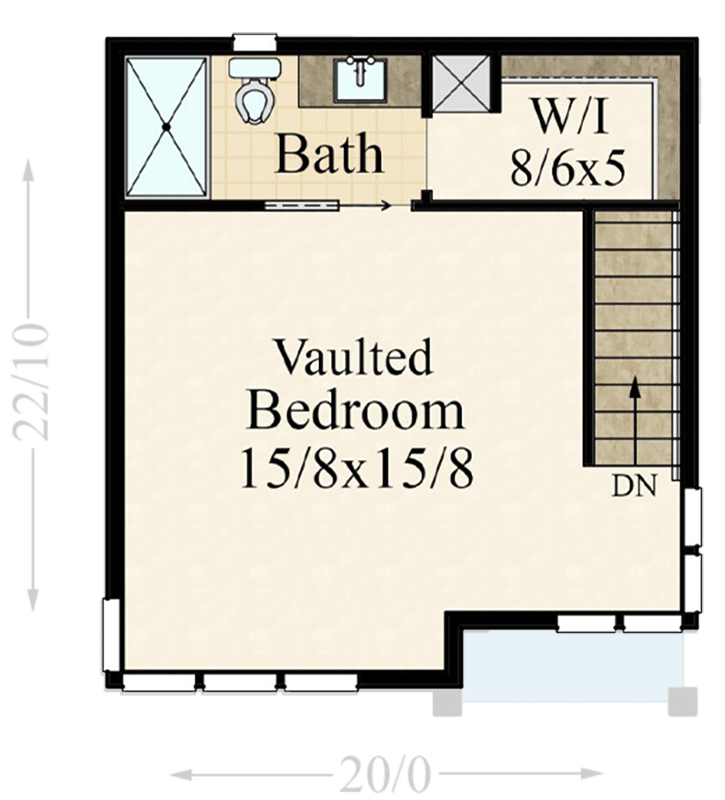

2nd Floor

Plan 85440MS: Expanded Stylish Modern House Plan Under 900 Square Feet - Floor Plan - 2nd Floor - Modern, Northwest

Plan Details

  • This 818 square foot modern house plan is an expanded version of the 502 square foot version, house plan 85439MS.
  • Upon entering the home, and you’ll find a fully outfitted kitchen, a spacious great room, and space for a dining set in between. The main floor also includes a convenient half bath.
  • The entire upper floor is dedicated to the bedroom, its ensuite bathroom, and the walk-in closet. In the walk-in closet is where you’ll find the washer and dryer.
  • Related Plan: Get a smaller version with house plan 85439MS (502 sq. ft.).

What's Included

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

818 sq. ft.

1st Floor

424 sq. ft.

2nd Floor

394 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

22' 9"

Max Ridge Height

23' 8"

Ceiling Heights

First Floor

7' 9"

Second Floor

8'

Master Vault

12' 0''

Architectural Style

Modern

Northwest

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

818 sq. ft.

1st Floor

424 sq. ft.

2nd Floor

394 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

22' 9"

Max Ridge Height

23' 8"

Ceiling Heights

First Floor

7' 9"

Second Floor

8'

Master Vault

12' 0''

Architectural Style

Modern

Northwest

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Exclusive
