Plan 490143NAH

Expansive 3-Bedroom Craftsman Home Plan with Attached Garage

Heated S.F.
1,955
Beds
3 - 5
Baths
2.5 - 3.5
Stories
1
Cars
2

Floor Plan

Plan 490143NAH

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 490143NAH

M-F 9am-5pm EST |

1-203-761-8500

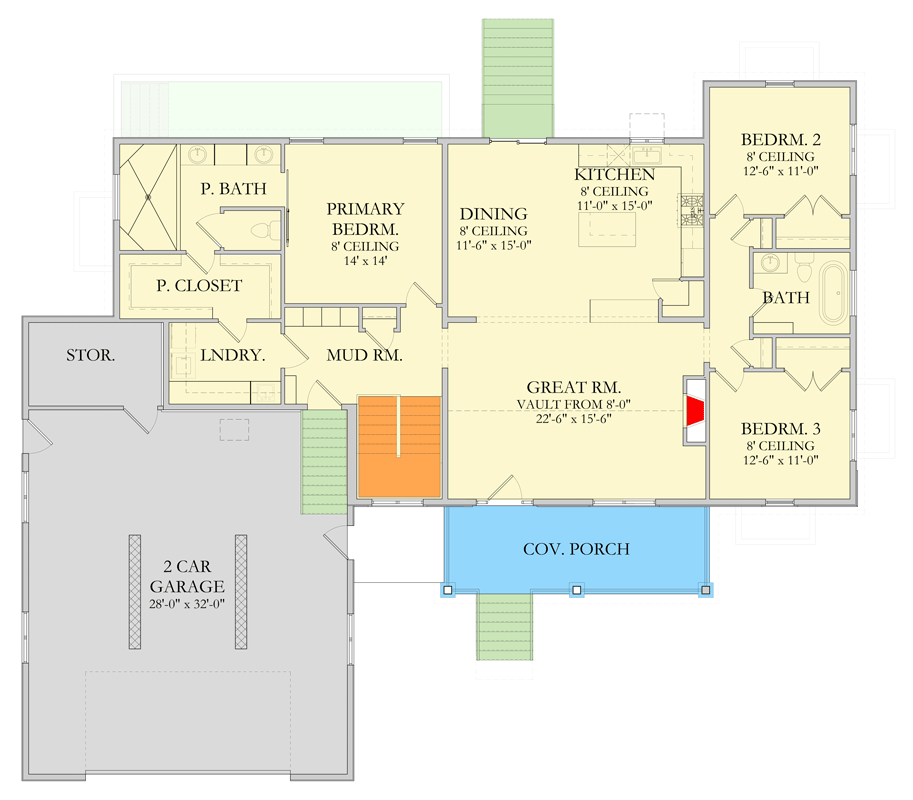

Main Level

Plan 490143NAH: Expansive 3-Bedroom Craftsman Home Plan with Attached Garage - Floor Plan - Main Level - Craftsman, New American

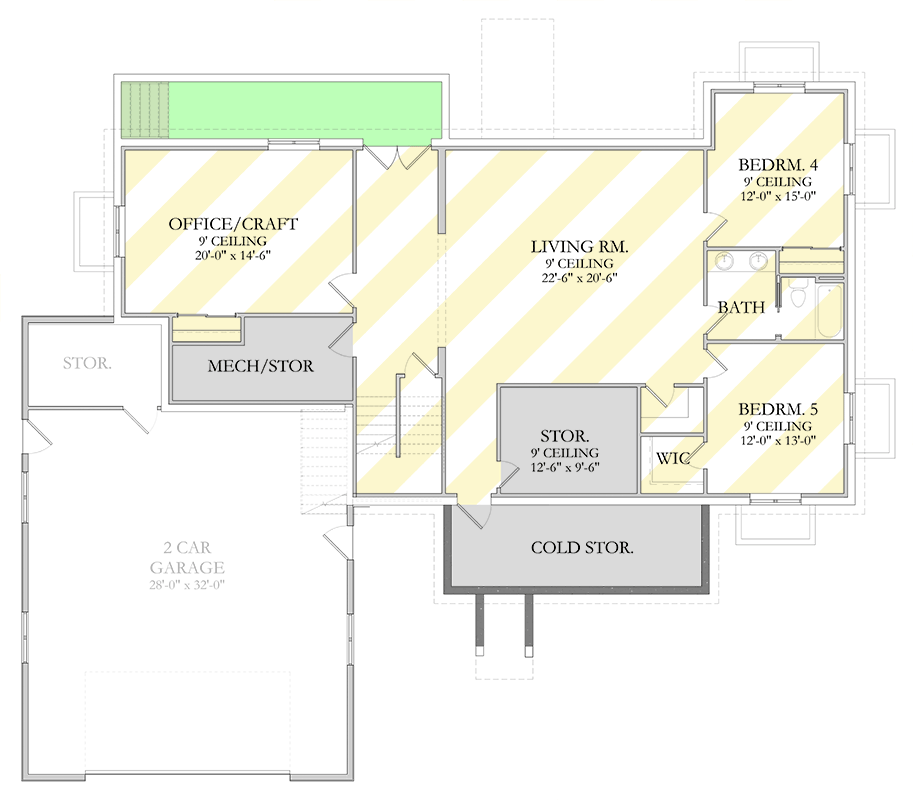

Optional Lower Level

Plan 490143NAH: Expansive 3-Bedroom Craftsman Home Plan with Attached Garage - Floor Plan - Optional Lower Level - Craftsman, New American

Plan Details

  • This Craftsman-style home offers 3,479 sq. ft. of living space, 3-5 bedrooms, 2-3.5 bathrooms, and a 943 sq. ft. attached garage for 2 cars.
  • The main entrance reveals an open-concept layout with a vaulted great room adjacent to a dining area, seamlessly connected to the kitchen.
  • The home's heart is formed by a spacious great room and kitchen, complemented by a functional mudroom with garage entry.
  • The first-floor master suite features a private bath and walk-in closet, with secondary bedrooms offering a split design for added privacy.
  • Enjoy a 245 sq. ft. front porch for outdoor relaxation and enjoyment.
  • The lower level extends living possibilities with additional spaces and storage, adaptable to your needs.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,955 sq. ft.

1st Floor

1,955 sq. ft.

Porch, Front

245 sq. ft.

Optional Lower Level

1,525 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

73' 0"

Depth

62' 0"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

943 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,955 sq. ft.

1st Floor

1,955 sq. ft.

Porch, Front

245 sq. ft.

Optional Lower Level

1,525 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

73' 0"

Depth

62' 0"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

943 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
