Plan 95330RW

Expansive New American Ranch House Plan with Split Beds and 3-Car Garage

Heated S.F.
2,485
Beds
3
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 95330RW

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 95330RW

M-F 9am-5pm EST |

1-203-761-8500

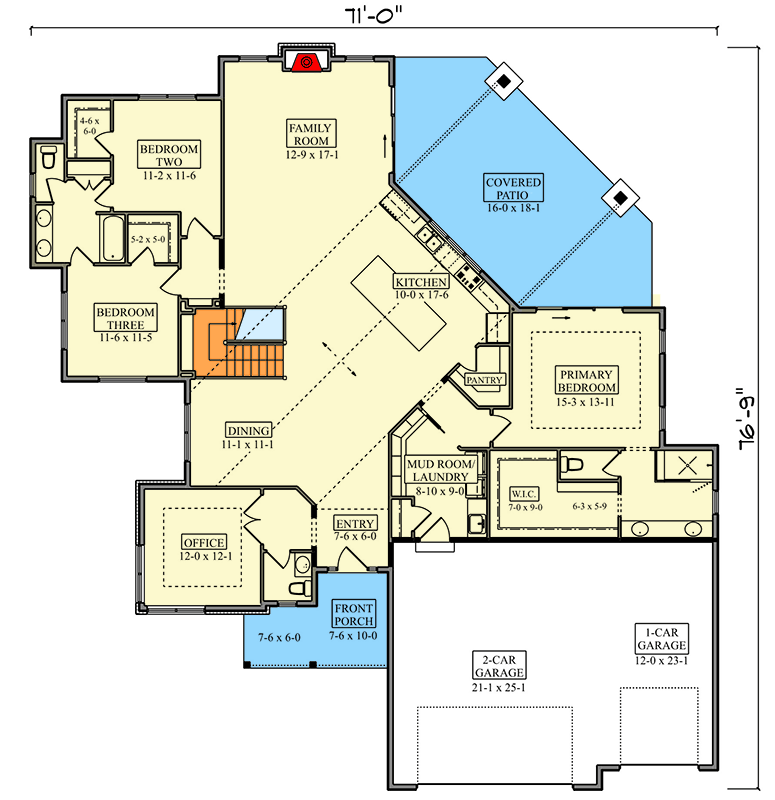

Main Level

Plan 95330RW: Expansive New American Ranch House Plan with Split Beds and 3-Car Garage - Floor Plan - Main Level - Craftsman, Mountain, New American, Ranch

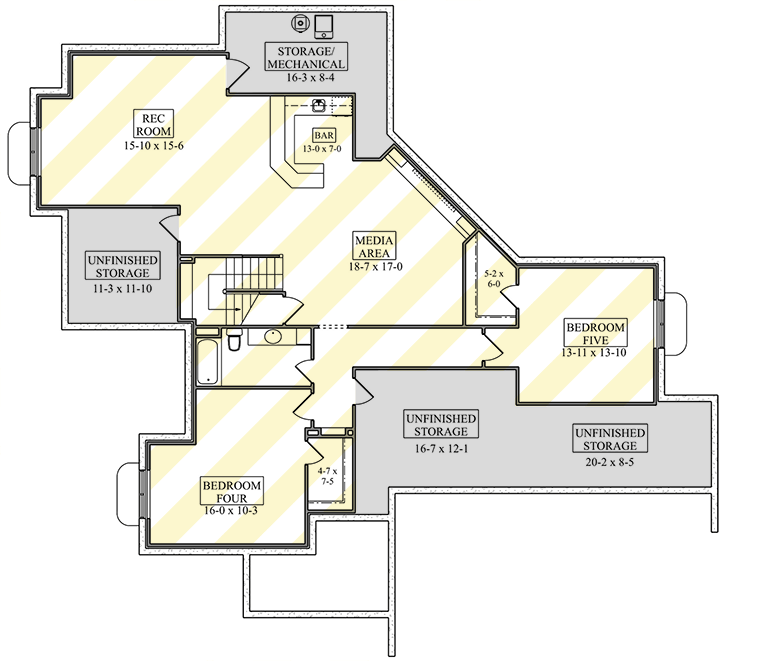

Optional Lower Level

Plan 95330RW: Expansive New American Ranch House Plan with Split Beds and 3-Car Garage - Floor Plan - Optional Lower Level - Craftsman, Mountain, New American, Ranch

Plan Details

  • This expansive 2,485 sq. ft. New American Ranch House Plan, showcasing a blend of Craftsman and Mountain architectural elements, offers 3 bedrooms, 2.5 bathrooms, and a generous 843 sq. ft. 3-car attached garage.

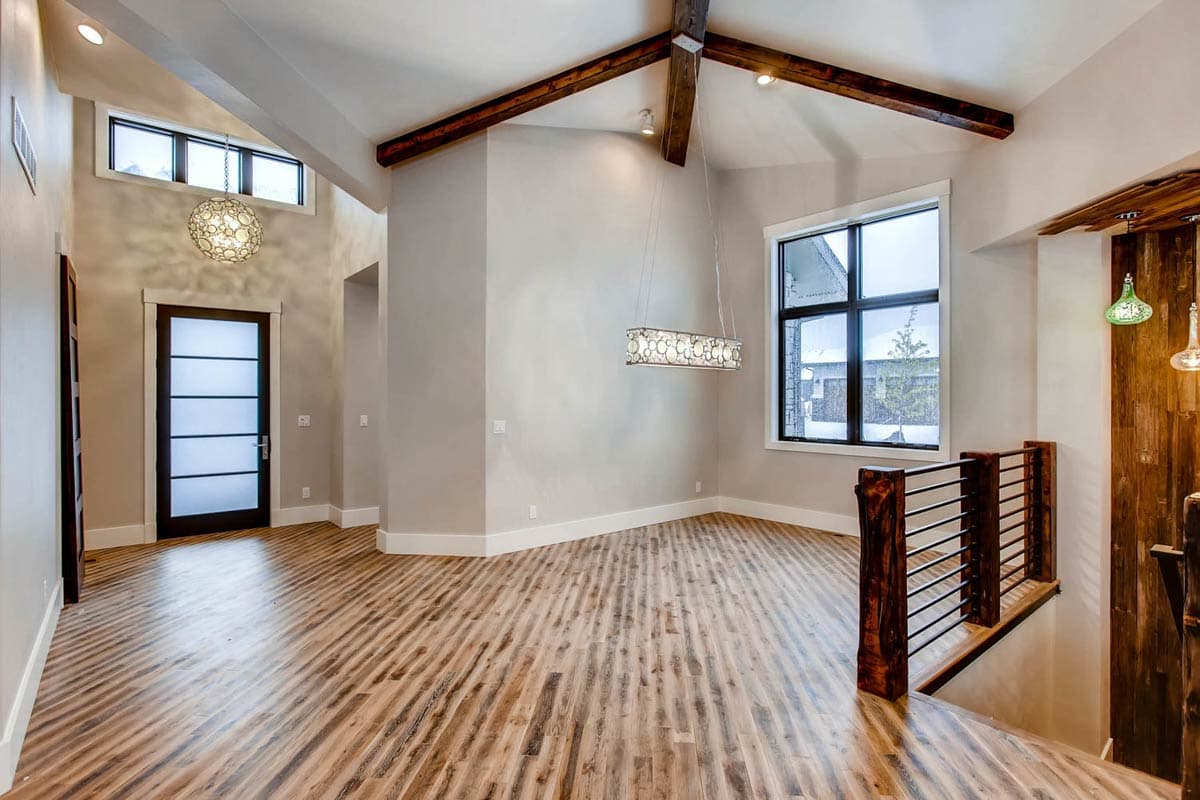

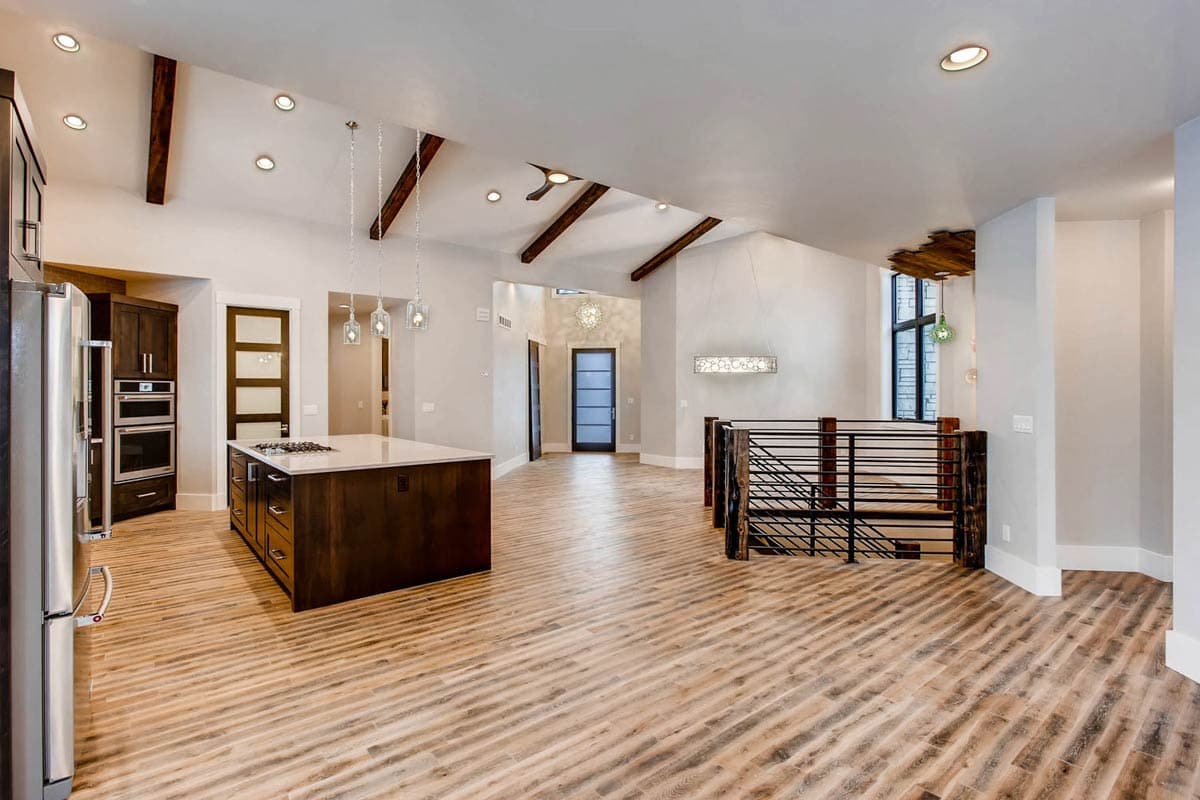

  • Step inside to discover an inviting foyer that leads seamlessly into an open-concept living space, where a dedicated home office provides a quiet retreat for productivity.

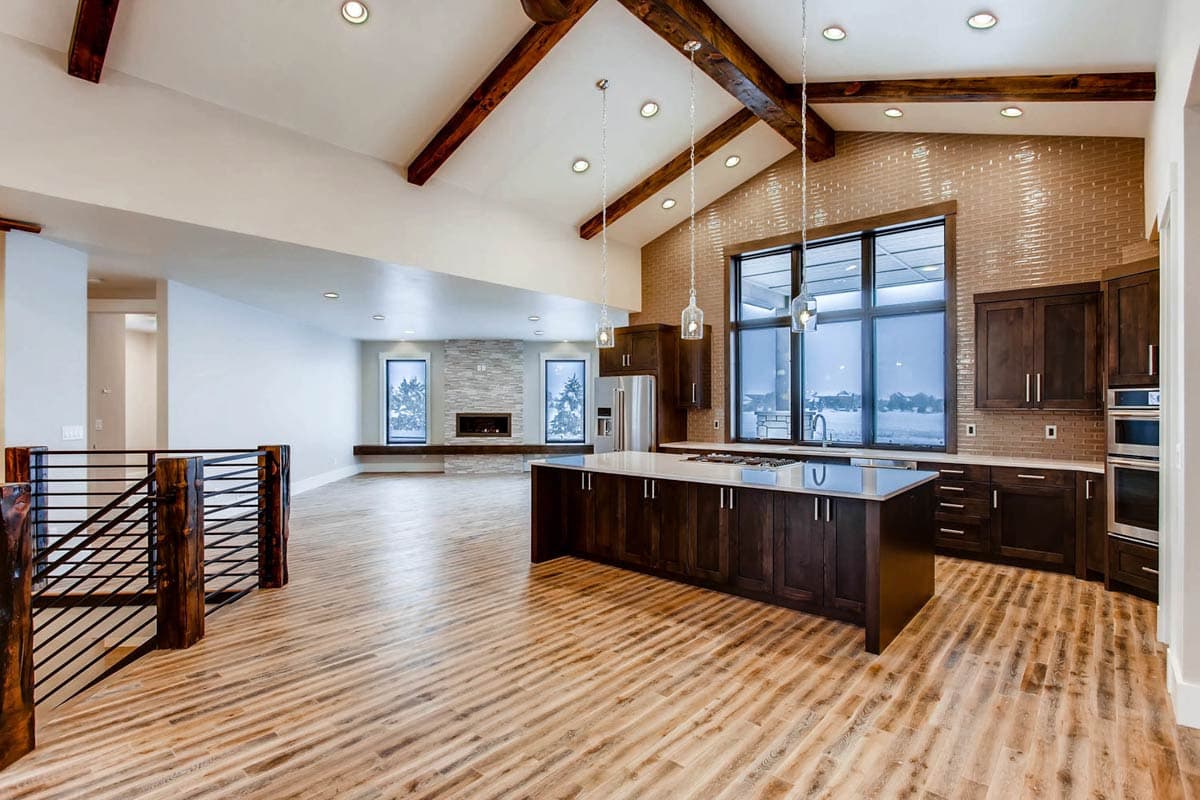

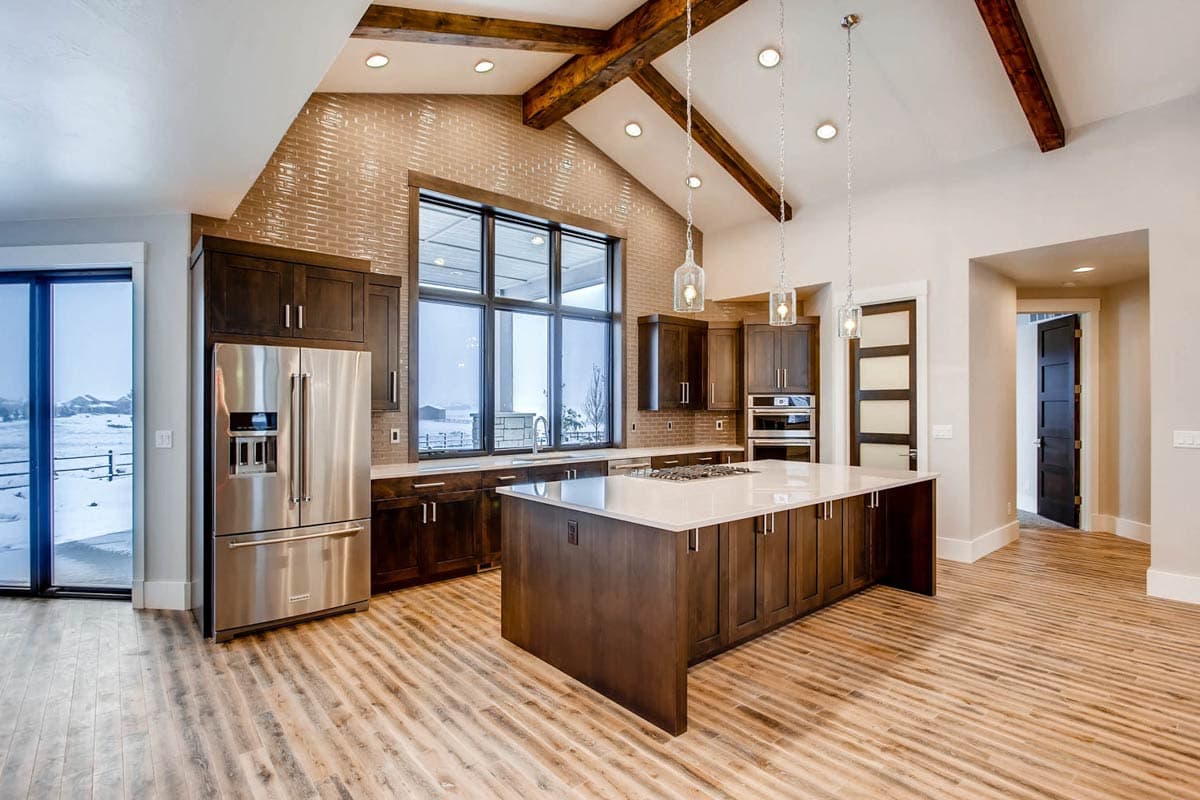

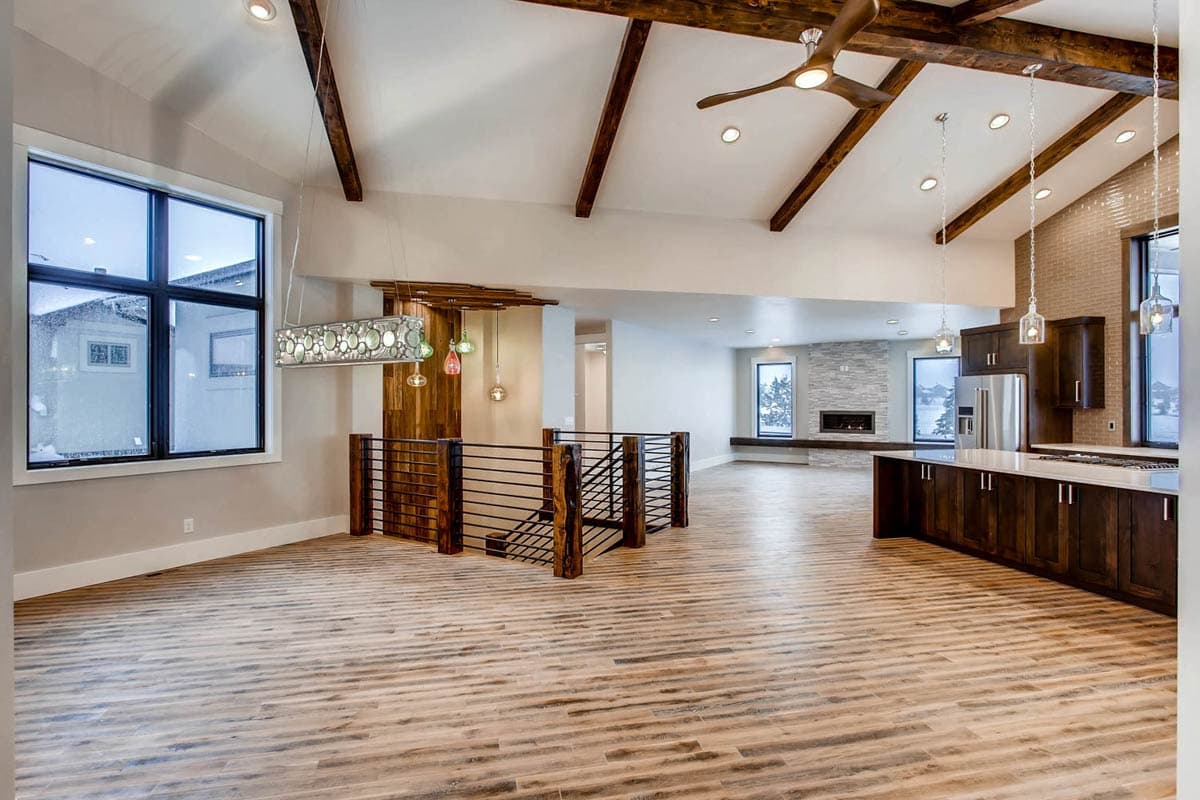

  • The heart of the home features a well-appointed kitchen, complete with a walk-in butler's pantry, flowing effortlessly into the dining area and great room, fostering an ideal environment for daily living and social gatherings.
  • The first-floor master suite offers a private sanctuary, thoughtfully separated from the secondary bedrooms which share a convenient Jack and Jill bath, ensuring comfort and privacy for all.

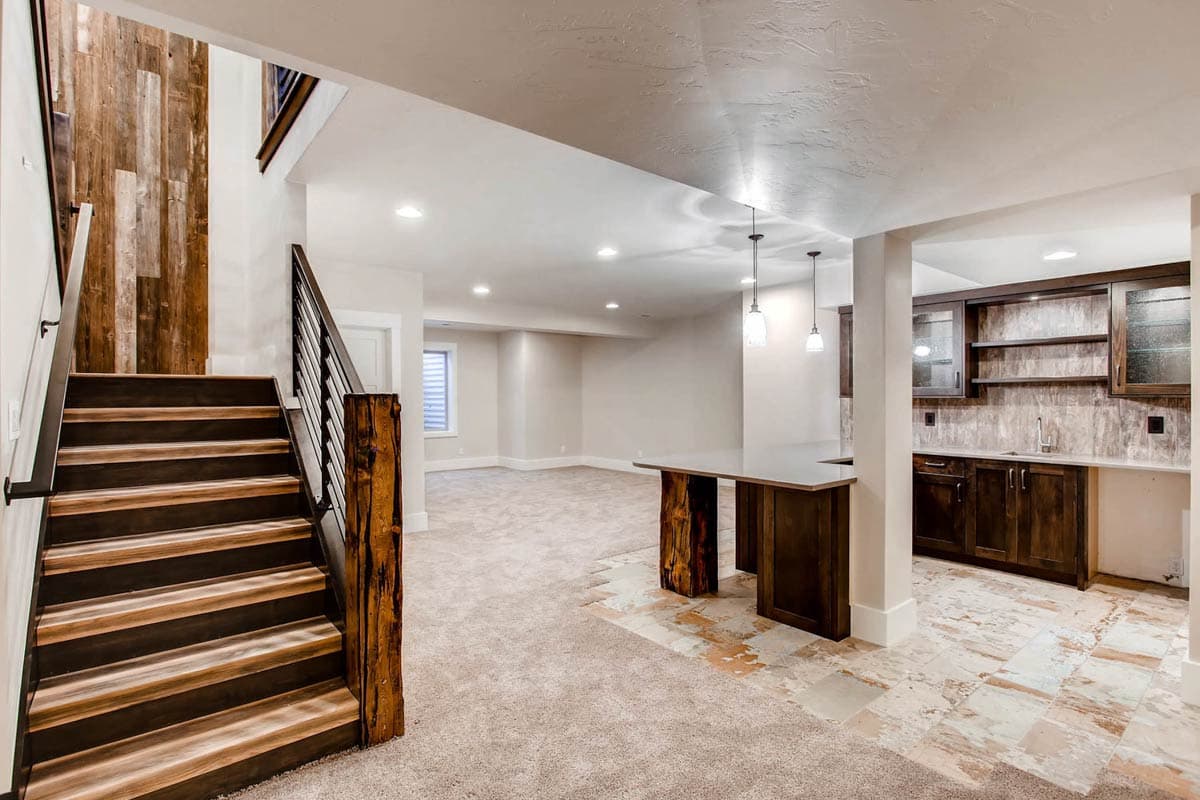

  • An optional finished lower level expands your living possibilities, featuring a spacious game/rec room and a stylish wet bar, perfect for entertaining or creating a personalized leisure space.
  • Enjoy serene outdoor moments on the expansive 580 sq. ft. of deck and porch space, ideal for morning coffee or evening relaxation while overlooking your surroundings.
  • The plan includes an impressive optional finished lower level, adding 1,653 sq. ft. of versatile living space that can be tailored to host additional bedrooms, a home gym, or an expansive entertainment zone.

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,485 sq. ft.

1st Floor

2,485 sq. ft.

Basement Unfinished

828 sq. ft.

Optional Lower Level

1,653 sq. ft.

Deck & Porch

580 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

76' 9"

Max Ridge Height

18' 4"

Garage

Type

Attached, Standard

Area

843 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Architectural Style

Craftsman

Mountain

New American

Ranch

Special Features

Bedrooms - Split

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

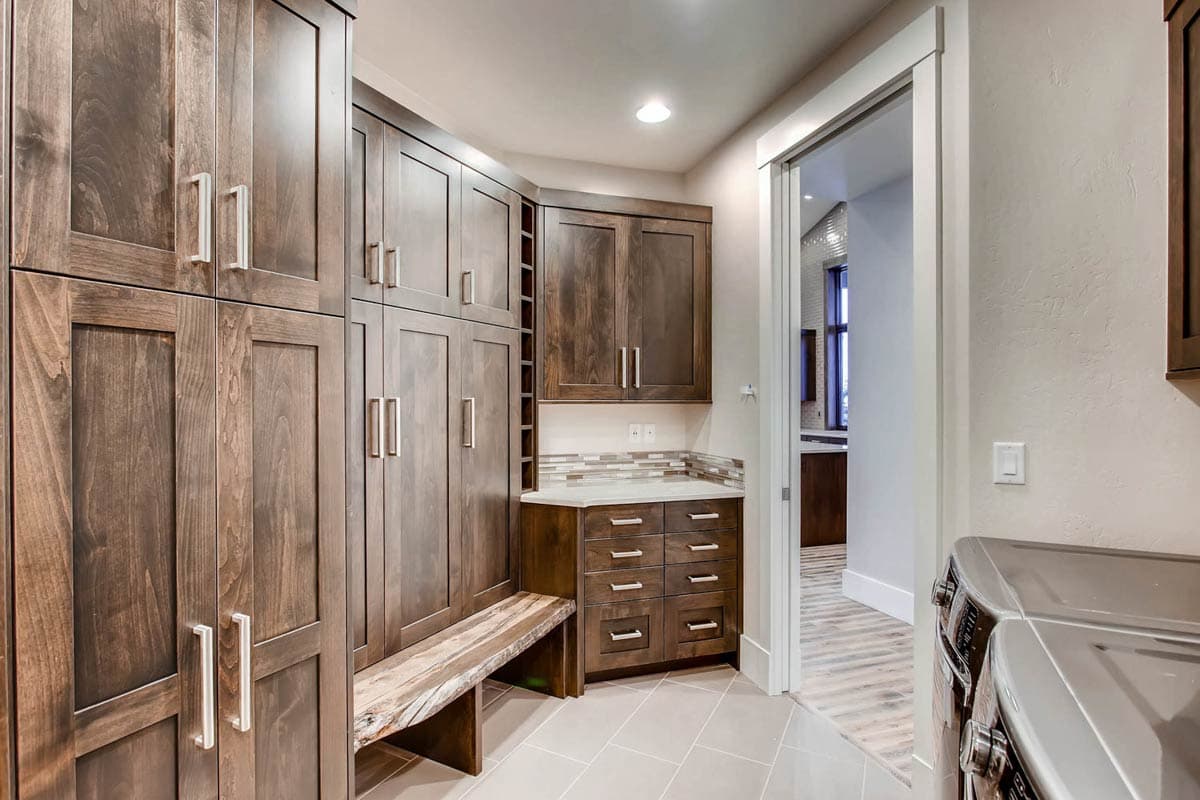

Mudroom

Walk-in Pantry

Wet Bar
