Plan 23659JD

Exquisite Craftsman House Plan

Exquisite Craftsman House Plan

Plan 23659JD

  • 4,043

    Heated s.f.

  • 5-6

    Beds

  • 5.5 - 6.5

    Baths

  • 2

    Stories

  • 3

    Cars

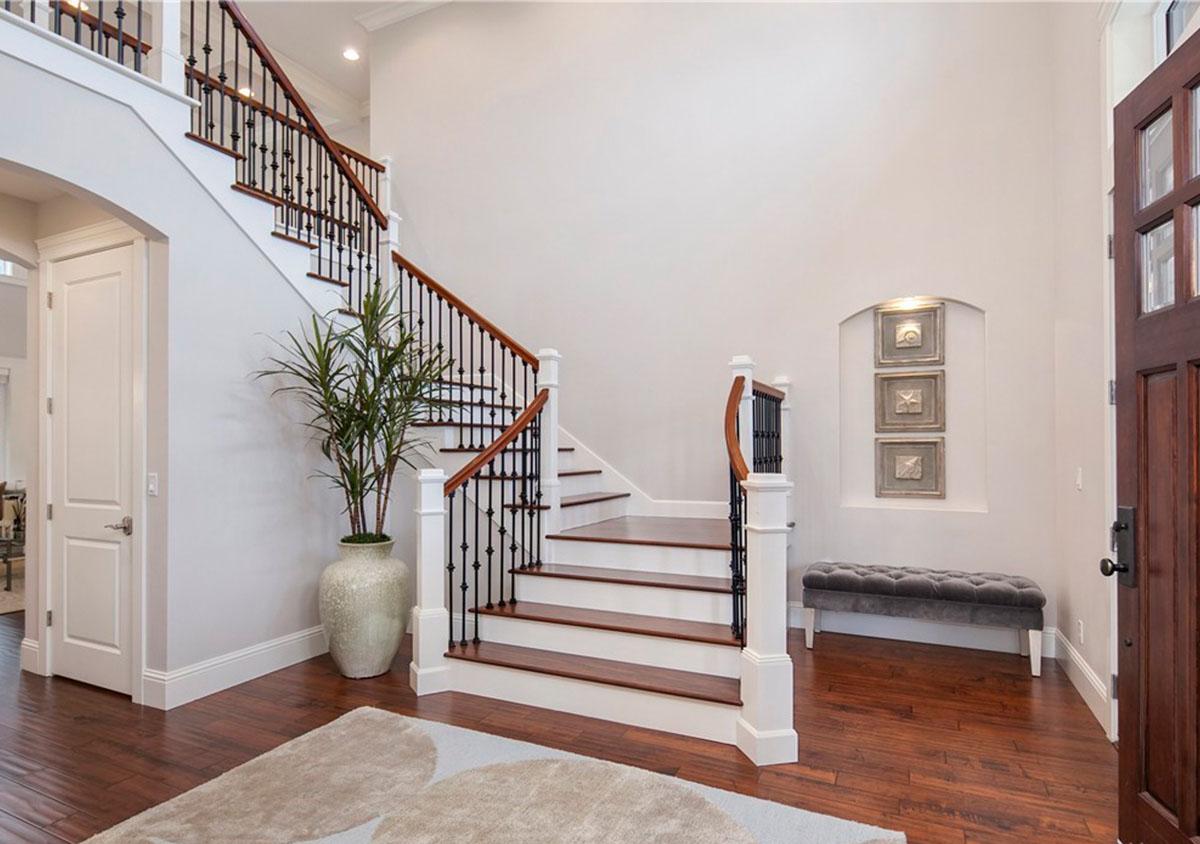

  • A beautiful two-story foyer is your first impression of the inside of this exquisite Craftsman house plan.

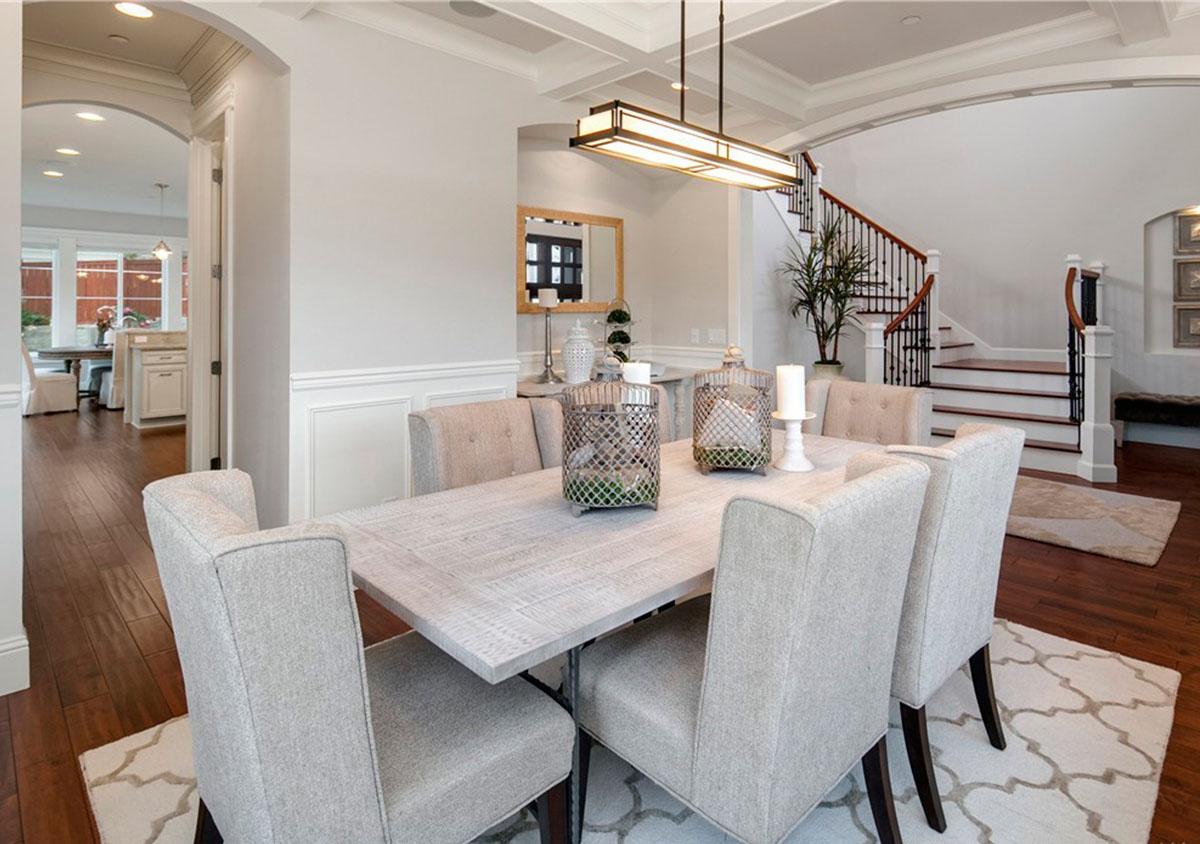

  • The foyer is open to the formal dining room so you can immediately see the gorgeous coffered ceiling.

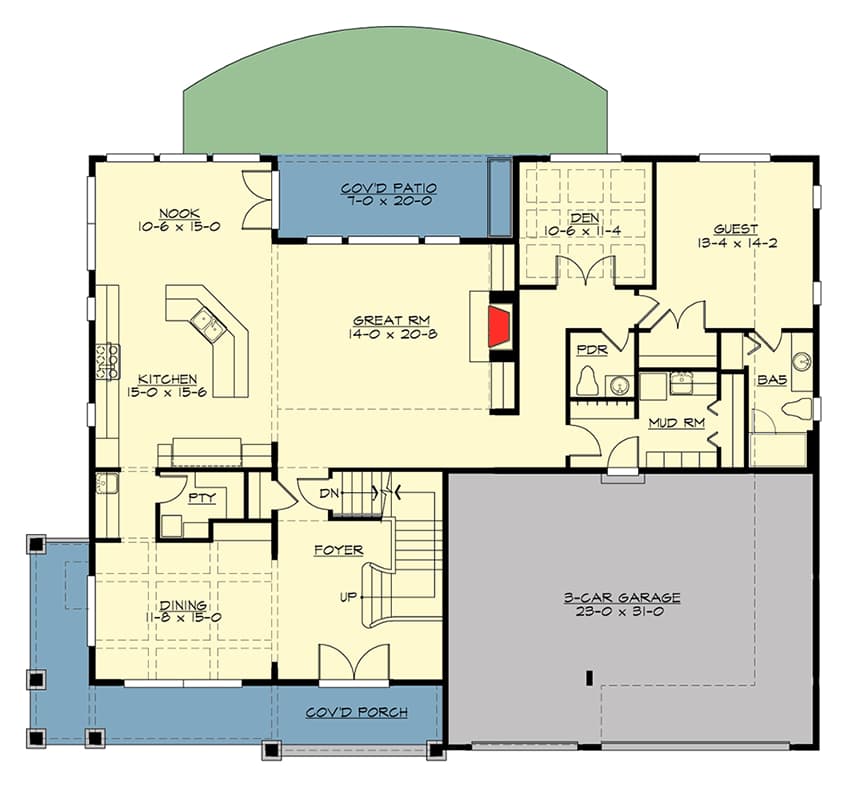

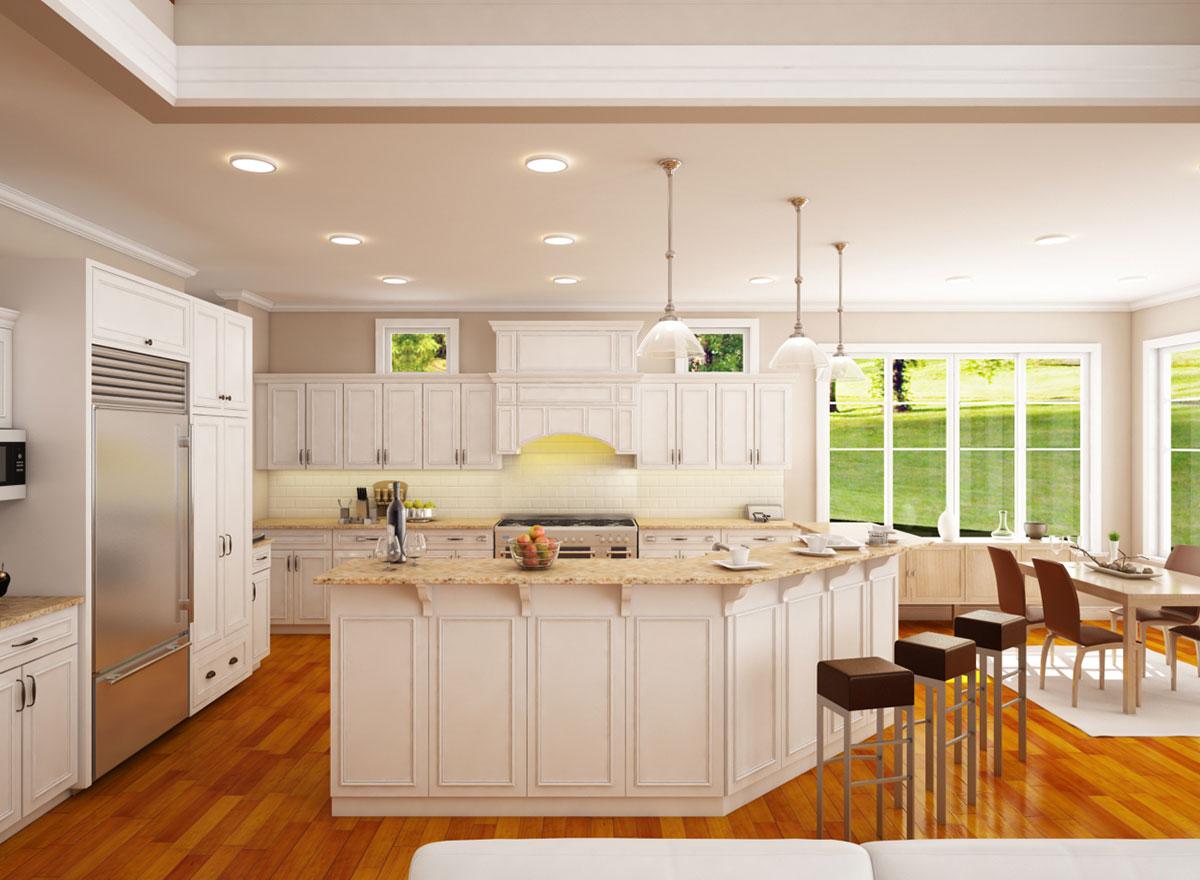

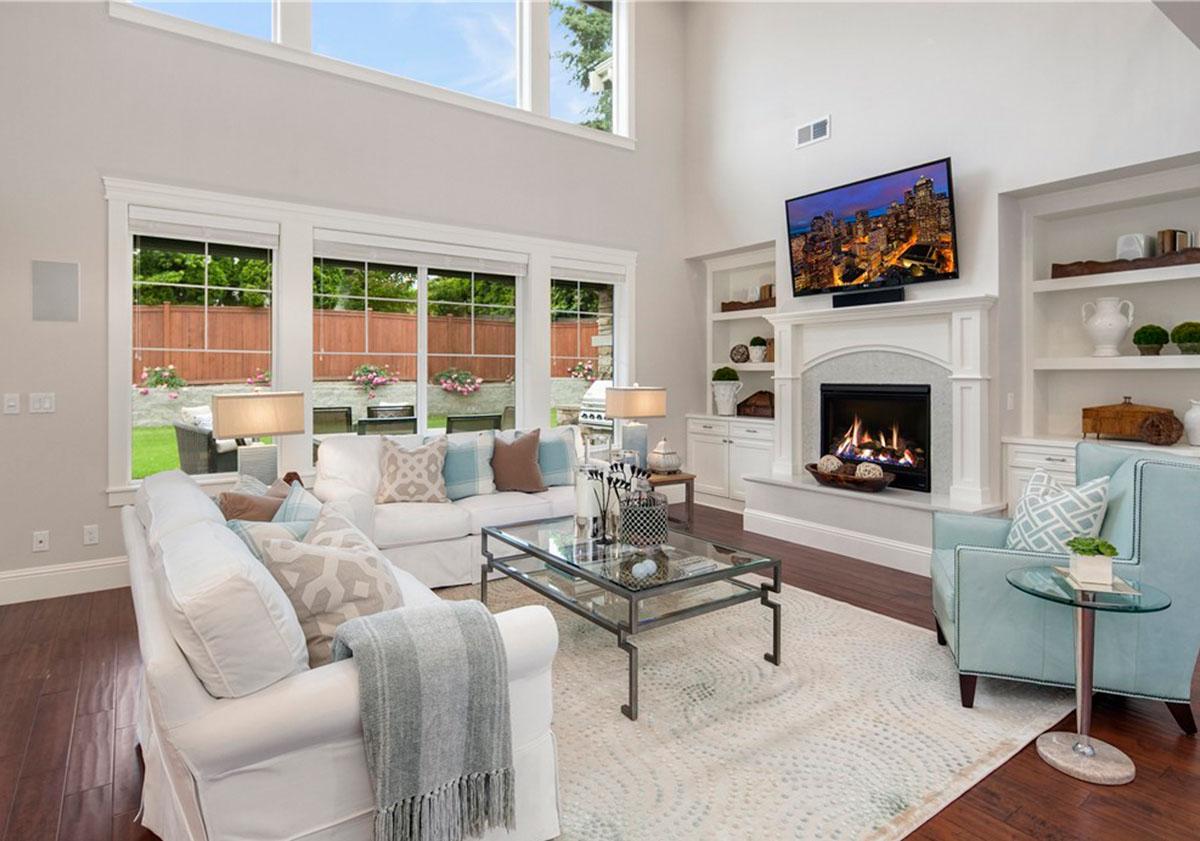

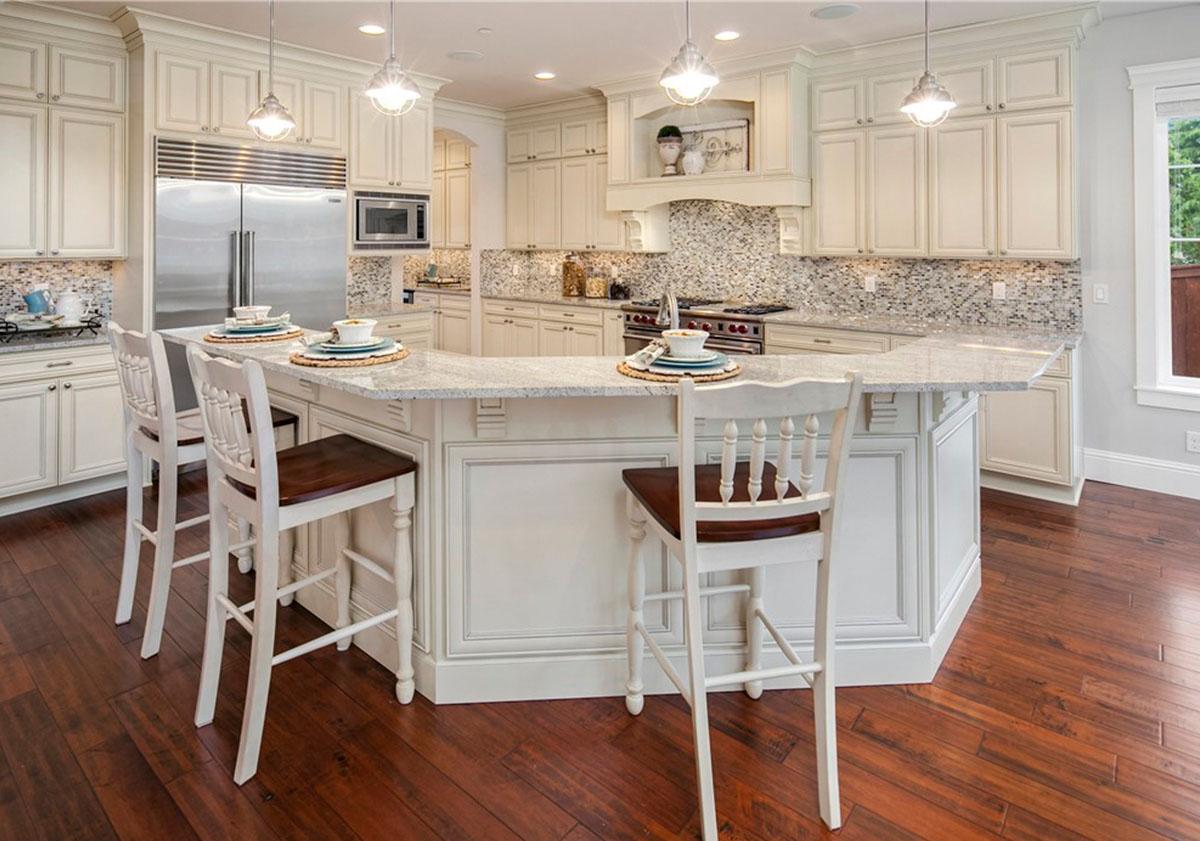

  • Follow the butler's pantry through to the spacious kitchen with its six burner stove, walk-in pantry and wonderful views of the nook, covered patio out back and the large two-story great room.
  • A quiet den also has a coffered ceiling and the nearby guest suite gets a private bathroom and walk-in closet.

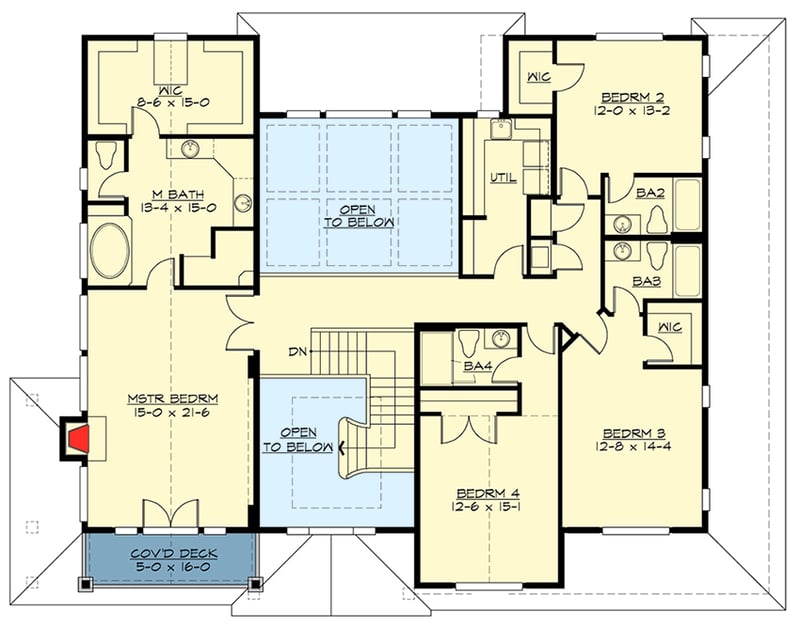

  • On the second floor, open railing lets you look down into both the foyer and the great room.
  • The balcony bridge separate the vaulted master suite from the family bedrooms.
  • The vaulted master ceiling extends right into the bathroom and walk-in closet too.
  • The blueprints come with an optional finished lower level where you gain a mini-kitchen, enormous rec room and a sixth bedroom and bathroom plus a flex room that can be customized to your builder to suit your needs.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

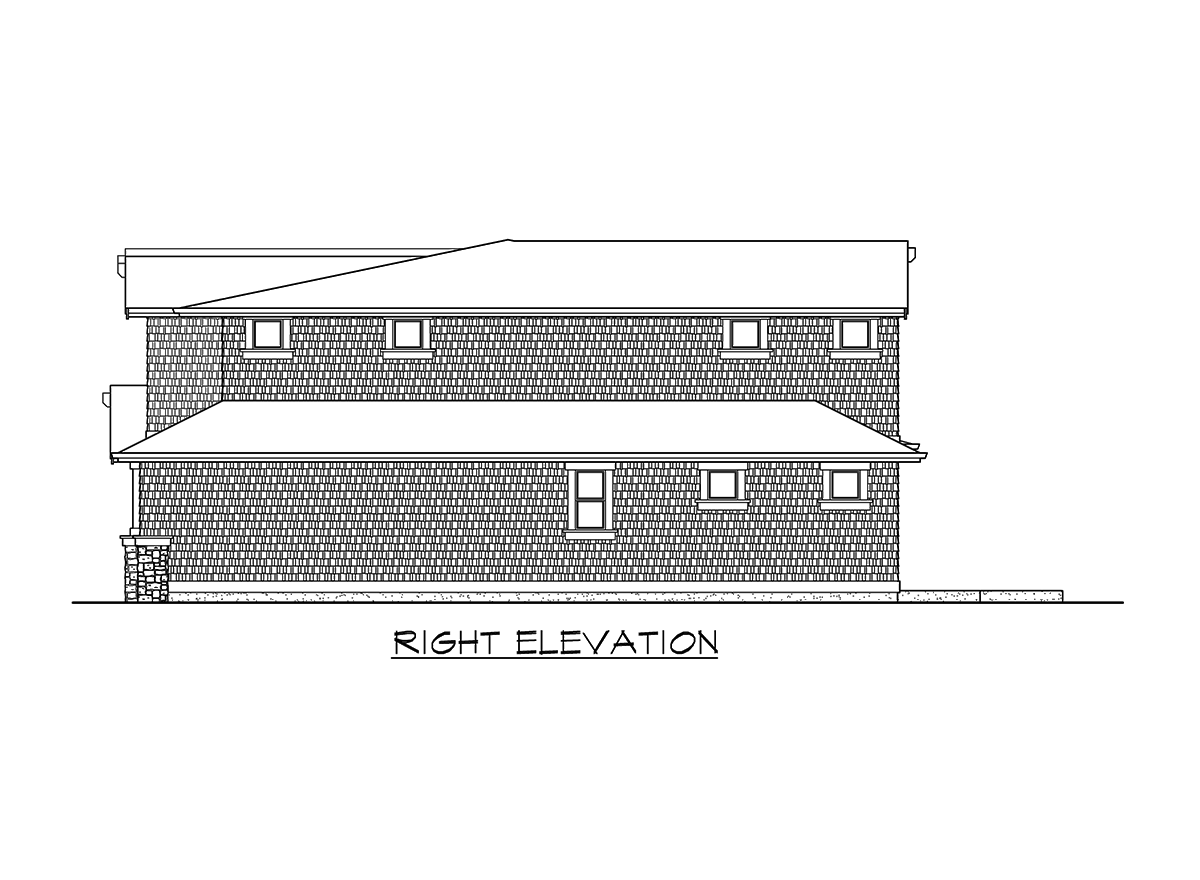

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

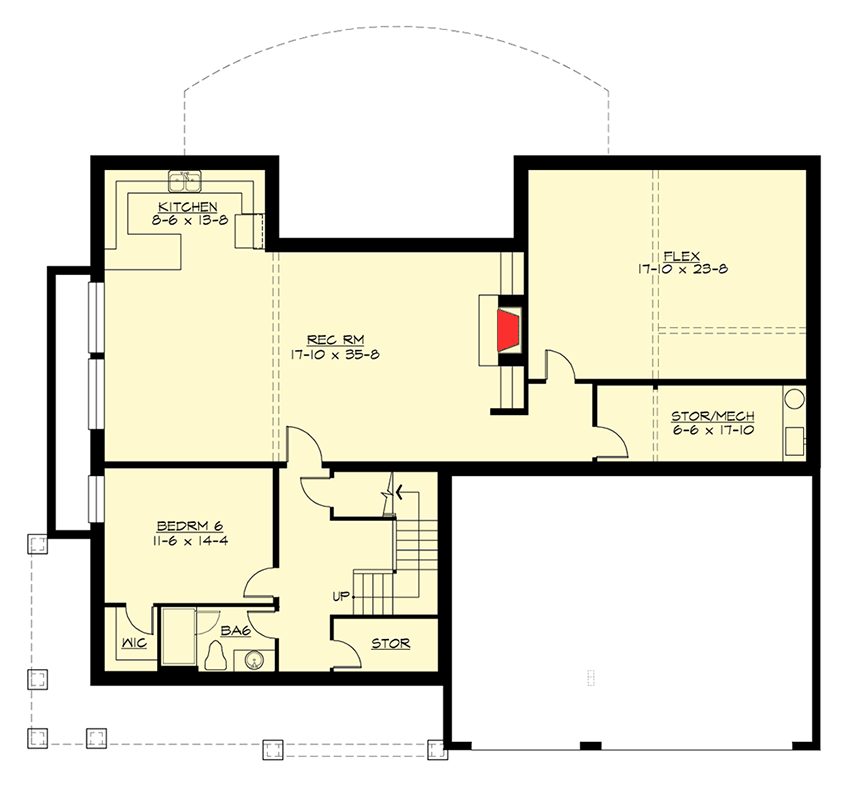

Optional Finished Lower Level

Exquisite Craftsman House Plan - 23659JD floor plan - Optional Finished Lower Level

Plan details



Exquisite Craftsman House Plan

  • 4,043

    Heated s.f.

  • 5 - 6

    Beds

  • 6 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,700
  • 5 Sets PLUS $2,900
  • CAD - multi-use $4,450
  • View all purchase option online

About This Plan

  • A beautiful two-story foyer is your first impression of the inside of this exquisite Craftsman house plan.
  • The foyer is open to the formal dining room so you can immediately see the gorgeous coffered ceiling.
  • Follow the butler's pantry through to the spacious kitchen with its six burner stove, walk-in pantry and wonderful views of the nook, covered patio out back and the large two-story great room.
  • A quiet den also has a coffered ceiling and the nearby guest suite gets a private bathroom and walk-in closet.
  • On the second floor, open railing lets you look down into both the foyer and the great room.
  • The balcony bridge separate the vaulted master suite from the family bedrooms.
  • The vaulted master ceiling extends right into the bathroom and walk-in closet too.
  • The blueprints come with an optional finished lower level where you gain a mini-kitchen, enormous rec room and a sixth bedroom and bathroom plus a flex room that can be customized to your builder to suit your needs.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

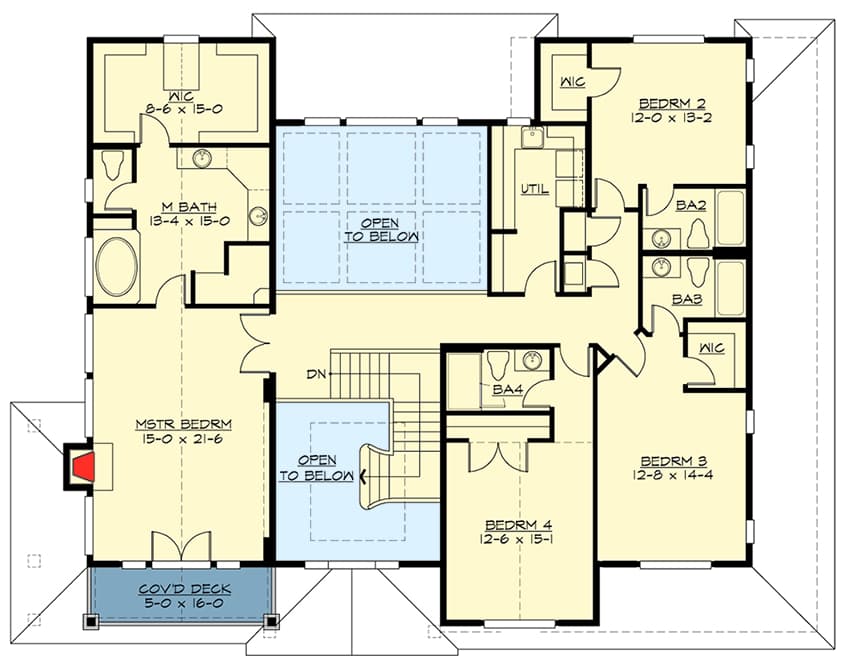

  • Second Level

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,043 sq. ft.
  • 1st Floor: 2,083 sq. ft.
  • 2nd Floor: 1,960 sq. ft.
  • Covered Patio: 140 sq. ft.
  • Balcony / Veranda: 80 sq. ft.
  • Optional Lower Level: 2,091 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 5 or 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 4"
  • Depth: 50' 6"
  • Max ridge height: 23' 6"

Garage

  • Type: Attached
  • Area: 743 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
