Plan 31533GF

Extremely Narrow House Plan for the Special Lot

Heated S.F.
1,147
Beds
2
Baths
2.5
Stories
2

Floor Plan

Plan 31533GF

Main Level
Main Level
Second Floor
Second Floor

Plan 31533GF

M-F 9am-5pm EST |

1-203-761-8500

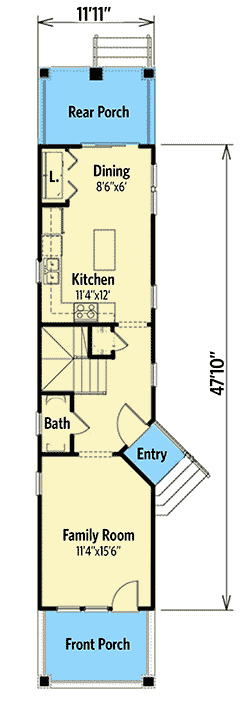

Main Level

Plan 31533GF: Extremely Narrow House Plan for the Special Lot - Floor Plan - Main Level - Bungalow, Cottage

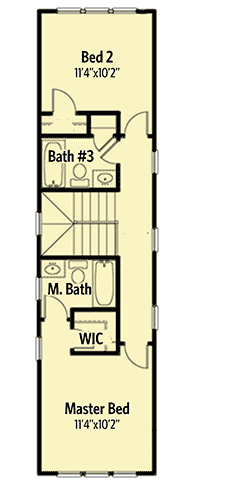

Second Floor

Plan 31533GF: Extremely Narrow House Plan for the Special Lot - Floor Plan - Second Floor - Bungalow, Cottage

Plan Details

  • This 2-bed house plan is designed for the unusual situation when a severely limited lot condition requires a home to be just 12 feet wide.
  • A side entrance allows for optimal use of the living space.
  • Enjoy outdoor access with the front family room opening to a covered porch and the dining room opening to a private deck.
  • The stairs are located in the center of the structure allowing for the maximum amount of natural light in the living areas.
  • Upstairs, the bedrooms - each with their own bath - are located at either end of the home.

What's Included

  • Cover Sheet: Shows typical notes and requirements.

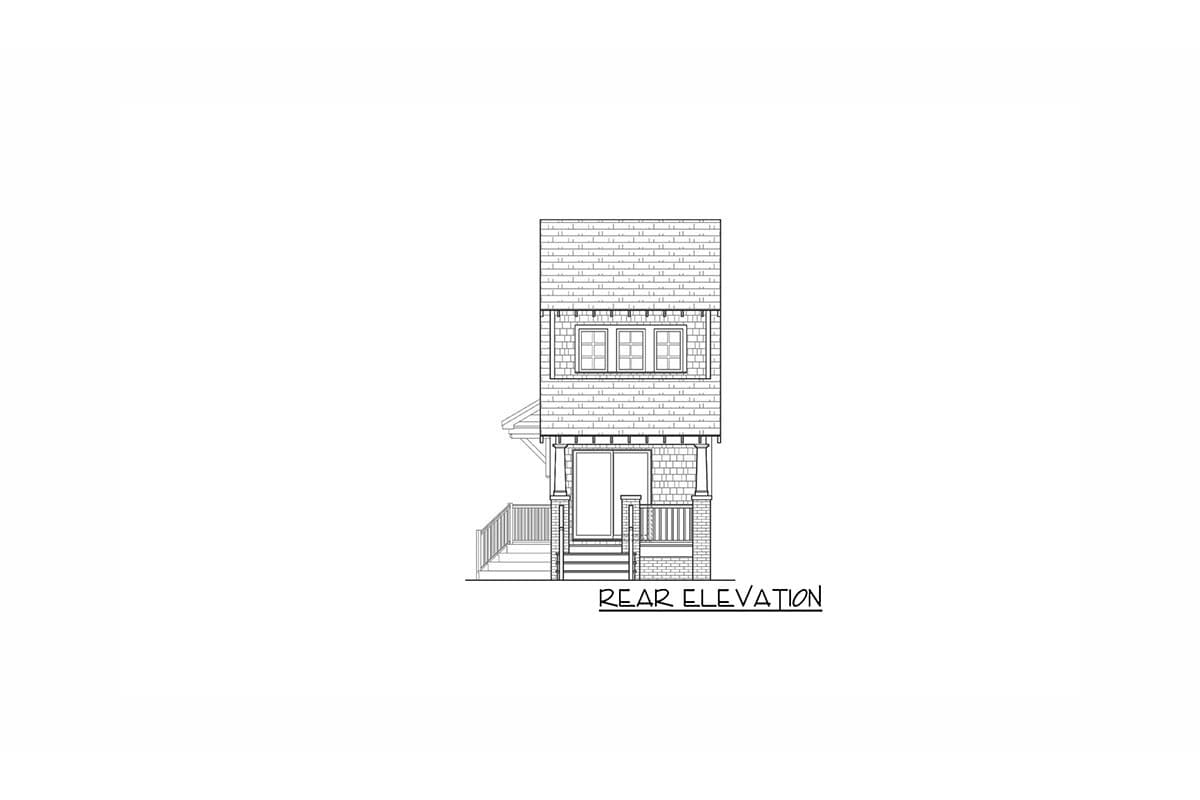

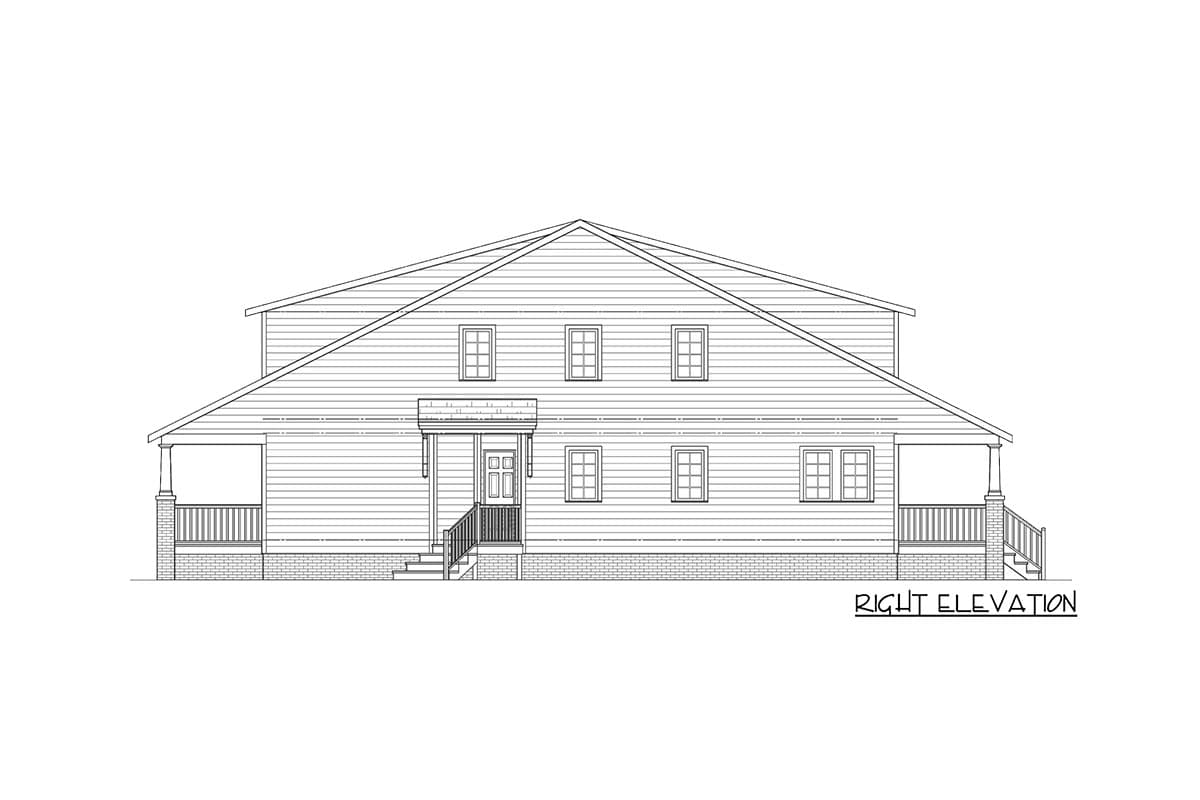

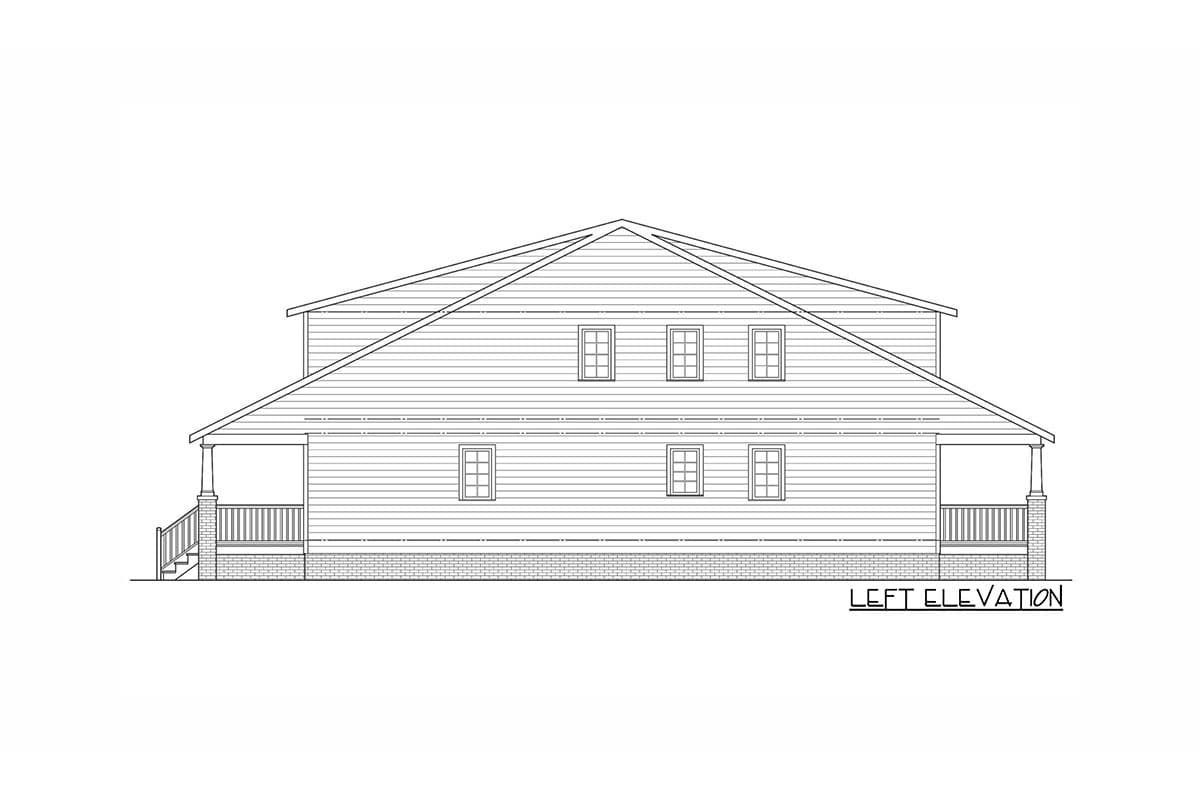

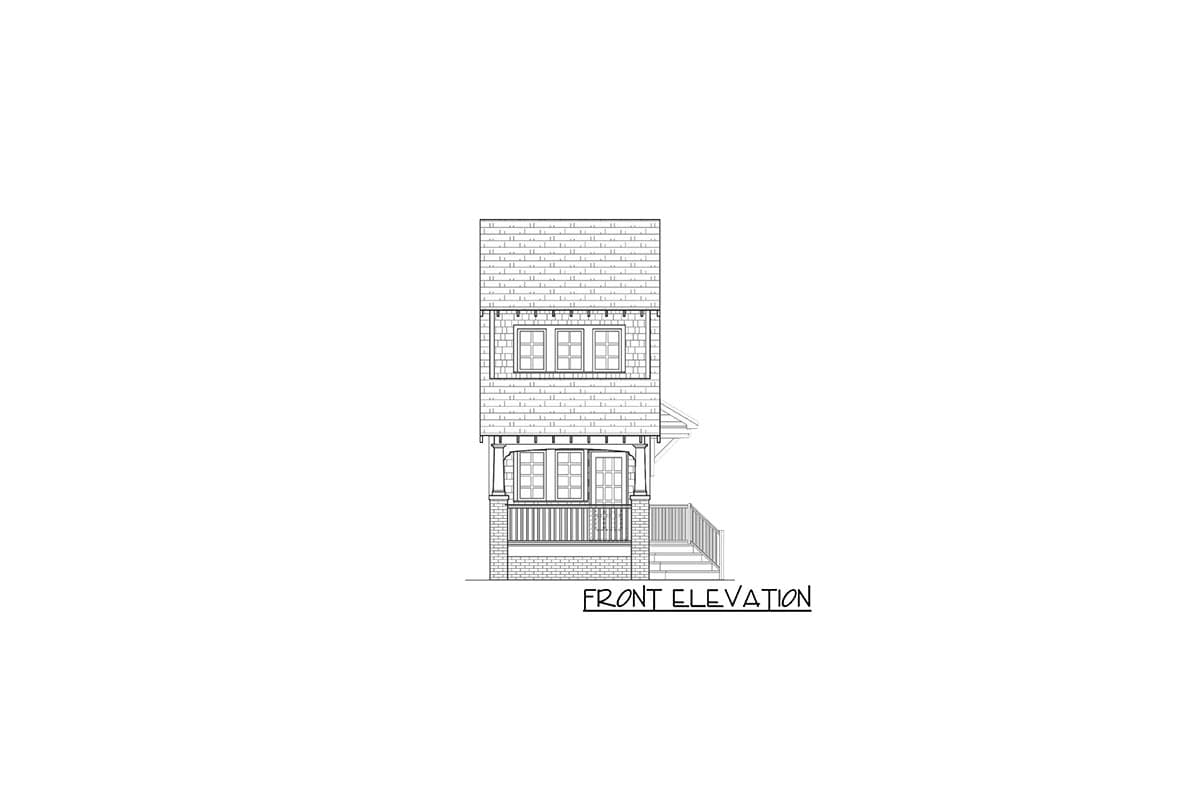

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plan: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - handled by your subcontractors
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - handled by your subcontractors
  • Energy calculations - handled locally when required
  • Electrical Layout - handled by your builder and subcontractor
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,147 sq. ft.

1st Floor

563 sq. ft.

2nd Floor

584 sq. ft.

Porch, Combined

202 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

12' 0"

Depth

47' 10"

Max Ridge Height

27' 2"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3.5 on 12

Architectural Style

Bungalow

Cottage

Special Features

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,147 sq. ft.

1st Floor

563 sq. ft.

2nd Floor

584 sq. ft.

Porch, Combined

202 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

12' 0"

Depth

47' 10"

Max Ridge Height

27' 2"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3.5 on 12

Architectural Style

Bungalow

Cottage

Special Features

Laundry - Main Level

Master Suite - Upstairs
