Eye-catching Contemporary House Plan with Covered Patio

Heated S.F.

3,931

Beds

3

Baths

4

Stories

2

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

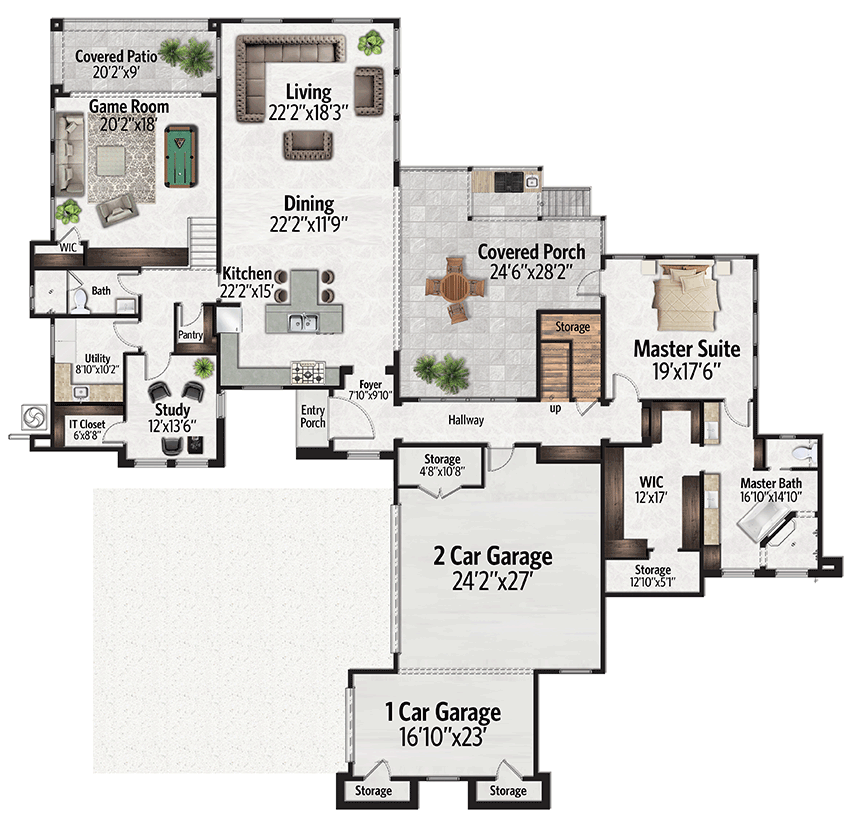

Eye-catching Contemporary House Plan with Covered Patio - 430043LY floor plan - Main Level

2nd Floor

Reverse Floor Plan

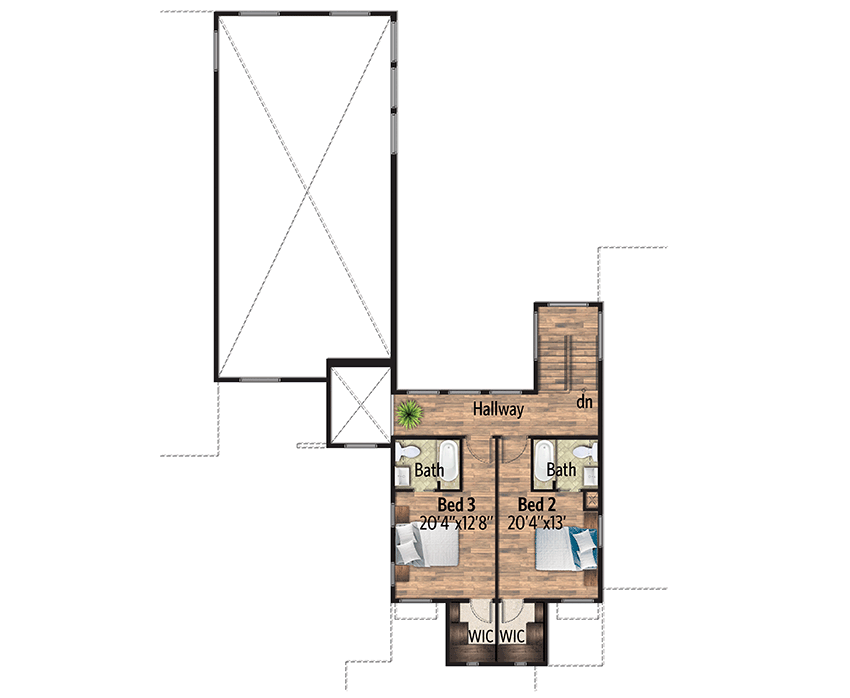

Eye-catching Contemporary House Plan with Covered Patio - 430043LY floor plan - 2nd Floor

Plan Details

This striking 3-bedroom home plan boasts a modern stone and stucco exterior and convenient 3-car garage.
Through the foyer discover an open-concept living and dining area with abundant natural light, clean sightlines, and maximum versatility.
The conveniently designed kitchen offers seating for casual meals and a walk-in pantry.
A generously sized study in the front of the home offers privacy and a thoughtful walk-in IT closet.
The secluded master suite becomes your private retreat, where you’ll find a 5-piece bath with a large double shower and a spacious walk-in closet.
A game room on the main floor is bathed in light from the adjacent covered patio.
A covered porch with a kitchen makes outdoor entertaining a breeze.
Upstairs, discover two additional bedrooms with full baths.

What's Included

Cover sheet
Roof plan
Floor plan

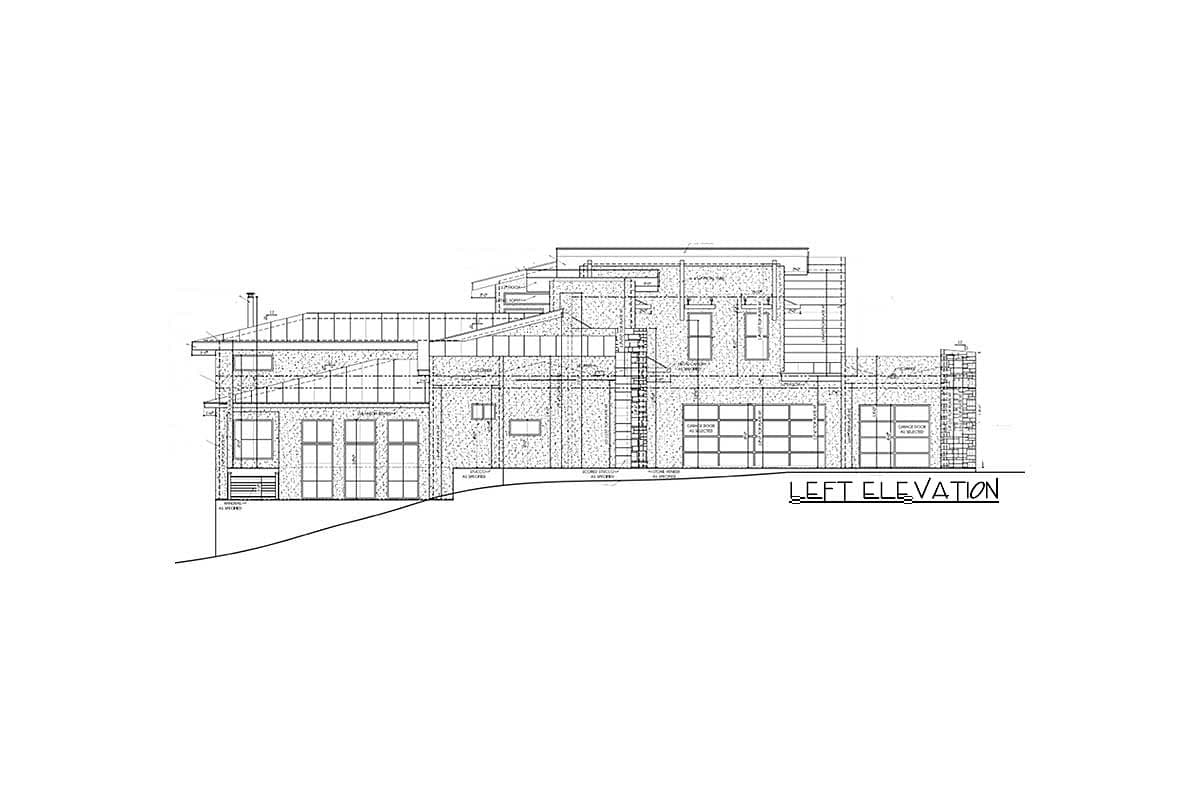

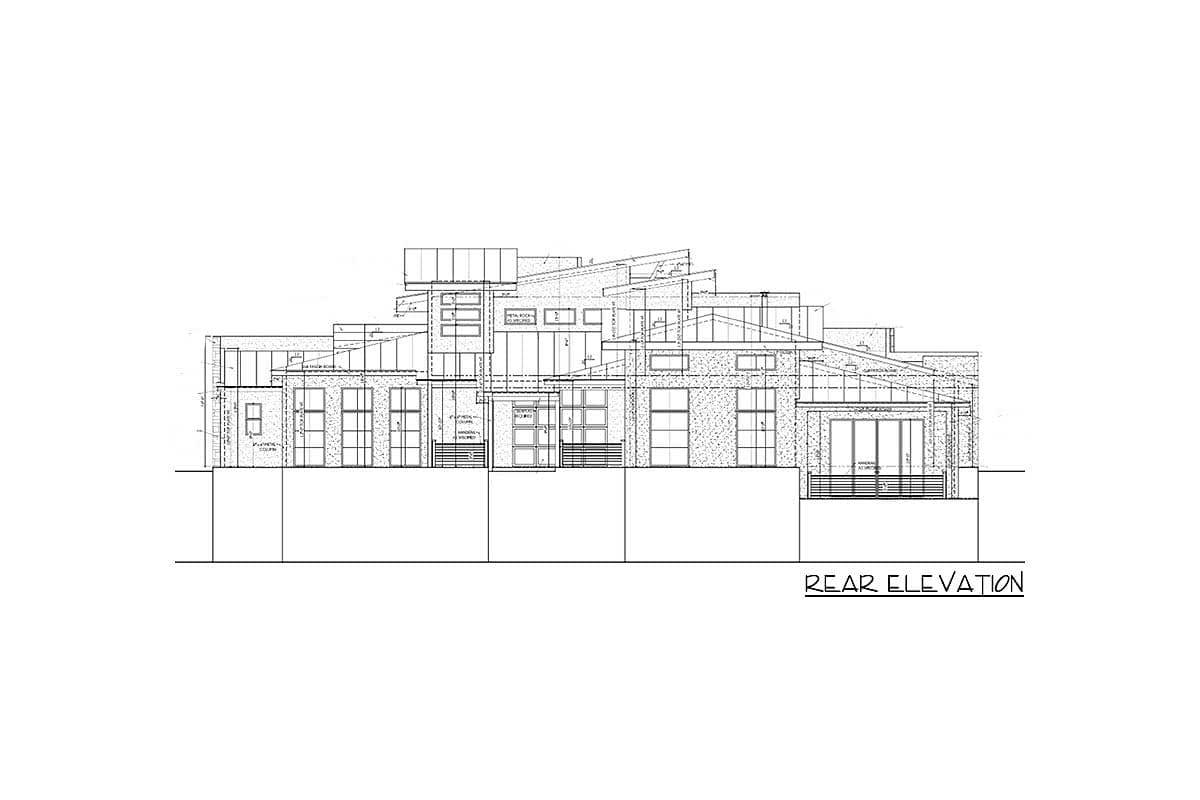

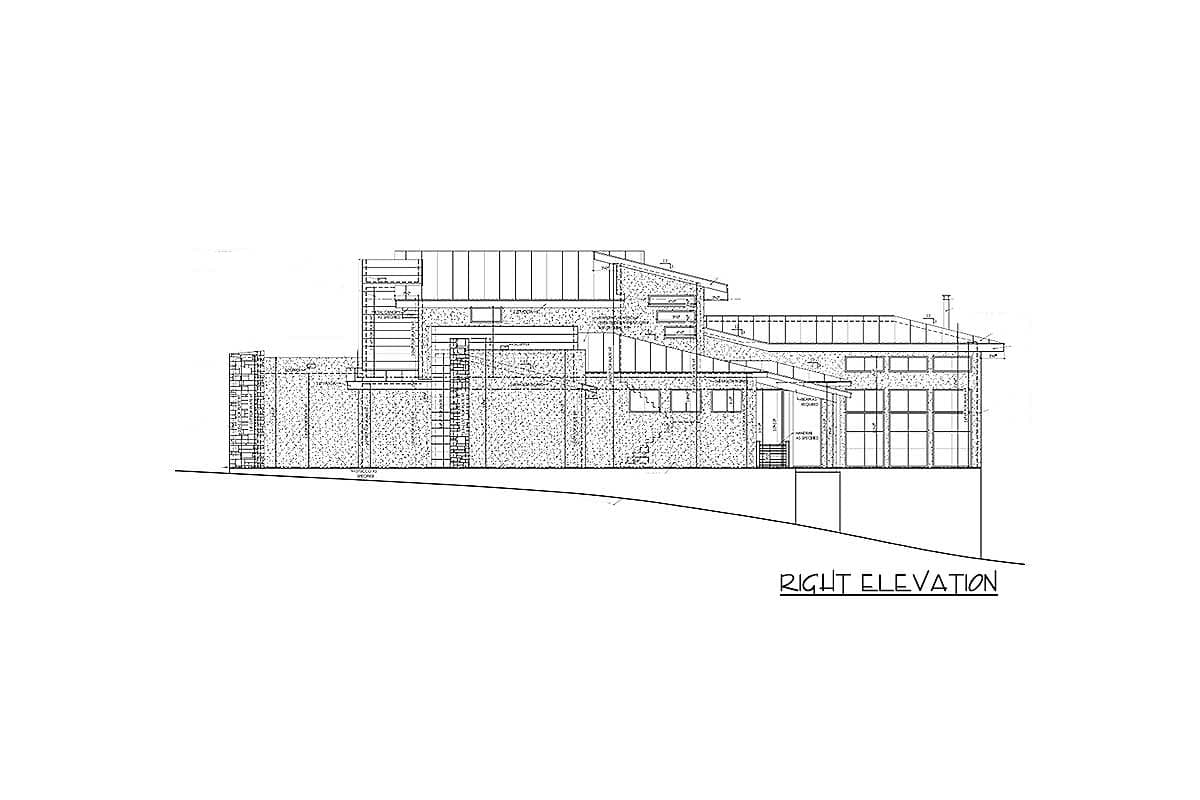

Exterior elevations
Typical wall sections
Ceiling treatment plans
Electrical floor plans
Interior elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

Square Footage Breakdown

Total Heated Area:

3,931 sq. ft.

1st Floor:

3,173 sq. ft.

2nd Floor:

758 sq. ft.

Deck:

648 sq. ft.

Porch, Combined:

182 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

4

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

98' 2"

Depth:

95' 6"

Garage

Type:

Attached

Area:

1038 sq. ft.

Count:

3 Cars

Entry Location:

Courtyard

Ceiling Heights

Floor / Height:

First Floor / 10' 0" Second Floor / 10' 0"

Room Details	Ceiling Type	Width	Depth	Height
Foyer				10' 0" to 22' 6"
Kitchen				10' 0" to 19' 6"
Living Room				10' 0" to 16' 0"

Roof Details

Primary Pitch:

3 on 12

Secondary Pitch:

2 on 12

Framing Type:

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area:

3,931 sq. ft.

1st Floor:

3,173 sq. ft.

2nd Floor:

758 sq. ft.

Deck:

648 sq. ft.

Porch, Combined:

182 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

4

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

98' 2"

Depth:

95' 6"

Garage

Type:

Attached

Area:

1038 sq. ft.

Count:

3 Cars

Entry Location:

Courtyard

Ceiling Heights

Floor / Height:

First Floor / 10' 0" Second Floor / 10' 0"

Room Details	Ceiling Type	Width	Depth	Height
Foyer				10' 0" to 22' 6"
Kitchen				10' 0" to 19' 6"
Living Room				10' 0" to 16' 0"

Roof Details

Primary Pitch:

3 on 12

Secondary Pitch:

2 on 12

Framing Type:

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
