Eye-Catching Craftsman House Plan

Plan 360003DK

  • 3,361

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Dressed up with beautiful detailing on the exterior, this Northwest house plan is a real stand out.
  • Designed for a narrow lot, the 10' ceilings and open floor plan go a long way to making the home feel even larger.
  • A big fireplace is the focal point of the enormous great room.
  • A wrap-around peninsula eating bar in the kitchen seats 4 people and overlooks the great room and dining area.
  • Cook with a view from the bank of triple windows over the kitchen sink.
  • In back, the vaulted master suite lies in a secluded location, giving you a quiet retreat.
  • Three bedrooms on the second floor enjoy a large loft with open railing so you can see down below.

This plan includes the following elements:

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

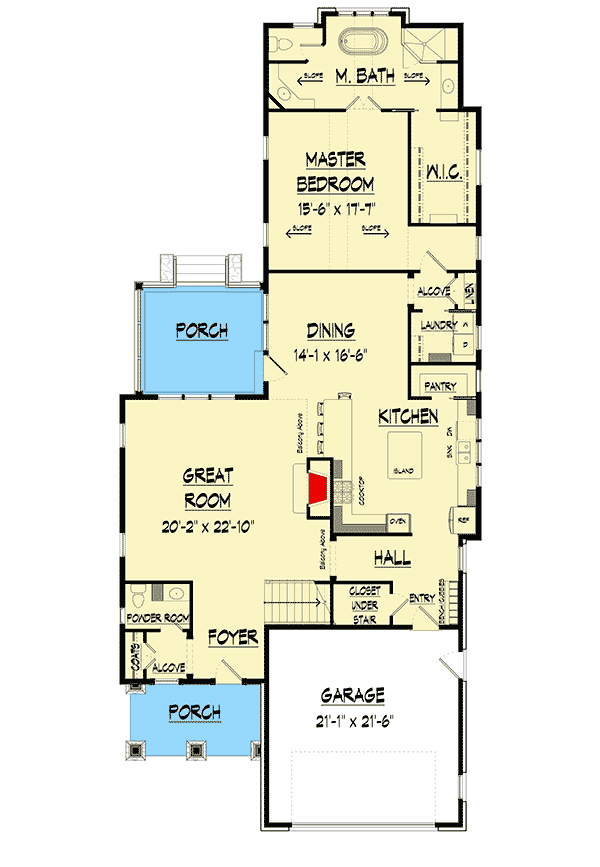

Eye-Catching Craftsman House Plan - 360003DK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

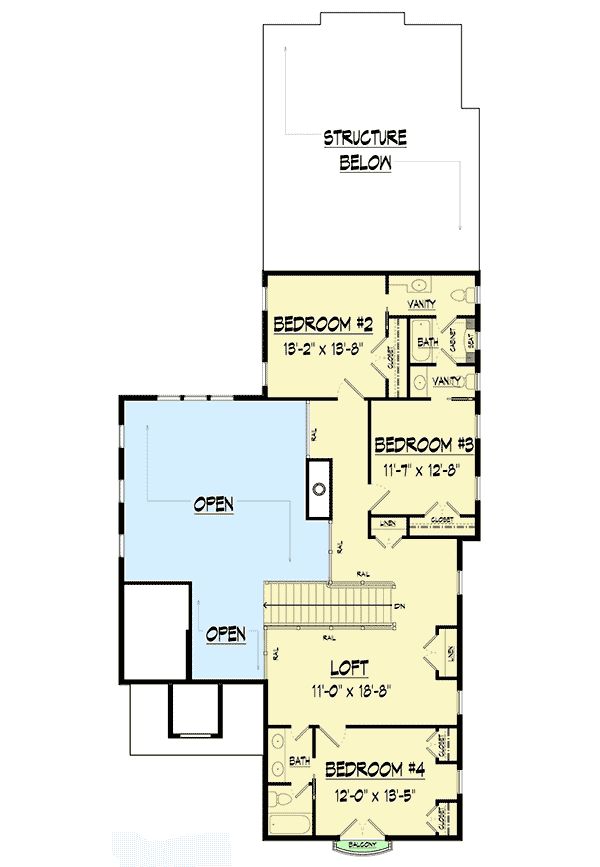

Eye-Catching Craftsman House Plan - 360003DK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,361 sq. ft.
  • 1st Floor: 2,109 sq. ft.
  • 2nd Floor: 1,252 sq. ft.
  • Porch, Front: 122 sq. ft.
  • Porch, Rear: 184 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 0"
  • Depth: 91' 6"
  • Max ridge height: 32' 9"

Garage

  • Type: Attached
  • Area: 481 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Flat 20' 5"
Foyer Flat 20' 5"
Master Bedroom Vaulted
Master Bath Vaulted

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Eye-Catching Craftsman House Plan

  • 3,361

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,361 sq. ft.
  • 1st Floor: 2,109 sq. ft.
  • 2nd Floor: 1,252 sq. ft.

Dimensions

  • Width: 41' 0"
  • Depth: 91' 6"
  • Max ridge height: 32' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 481 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
