Plan 56366SM Fab 4 Bed French Country

3,171 4 3.5 1-2 2
Print
Compare
...

Fab 4 Bed French Country

Plan 56366SM

  • 3,171

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • You get four bedrooms and a whole lot of privacy in this fabulous French County home plan. The master suite is located in the back corner of the home and has an attached office which can be used as an office or private sitting room.

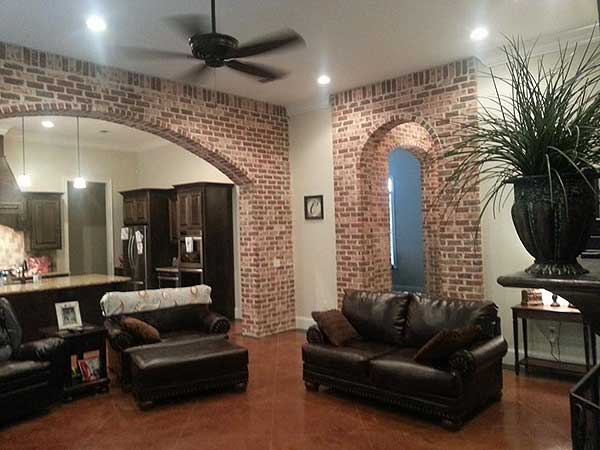

  • The kitchen has open views to the keeping room and the family room, the latter through a graceful arched opening. And serving guests is a breeze - and a private affair - through a smaller arched passageway.

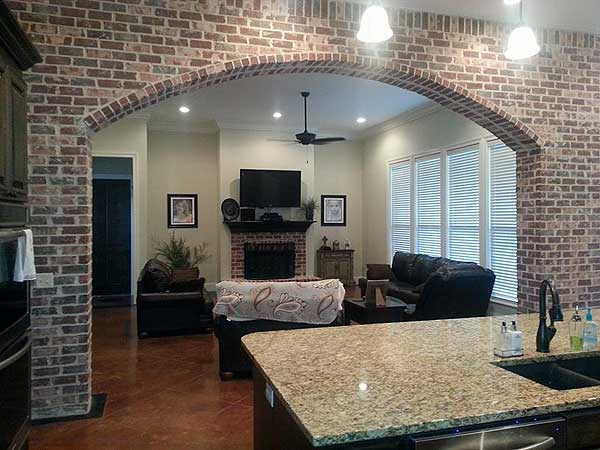

  • The family room has a fireplace and four windows on the back wall overlook the rear porch. There, you'll enjoy a fireplace and an outdoor kitchen, extending your living area.
  • Two bedrooms share a bath in left of the home. And a final fourth bed is lff the garage mud room entry, where you'll also find an oversized laundry room.
  • Expand over the garage with the stairs off the mud rooom if you need more room.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

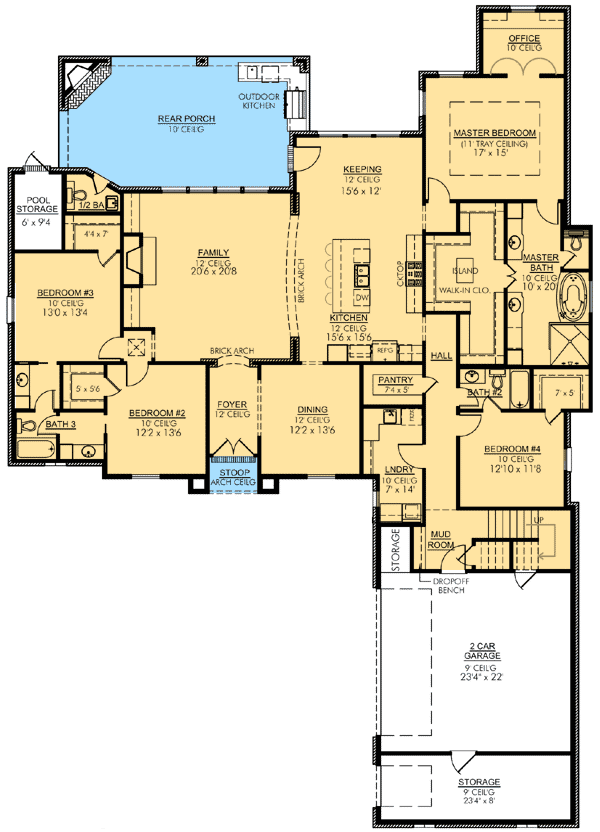

Fab 4 Bed French Country - 56366SM floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

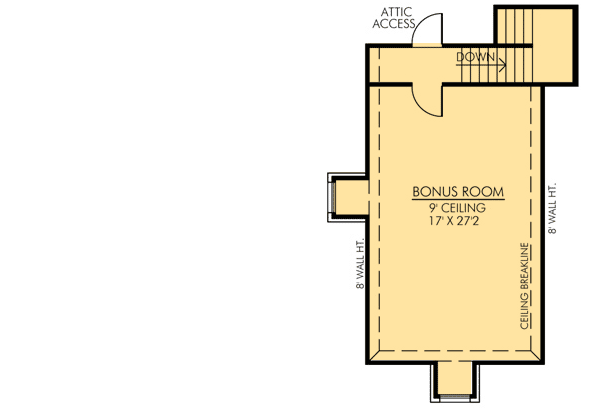

Fab 4 Bed French Country - 56366SM floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,171 sq. ft.
  • 1st Floor: 3,171 sq. ft.
  • Storage: 186 sq. ft.
  • Porch, Combined: 502 sq. ft.
  • Bonus: 562 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 71' 6"
  • Depth: 100' 8"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 513 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 9 on 12

Architectural Style

Special features

Plan Collections



Fab 4 Bed French Country

  • 3,171

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets $1,395
  • 5 Sets + PDF $1,595
  • PDF - Unlimited Build $1,995
  • CAD - Unlimited Build $2,295
  • View all purchase option online

About This Plan

  • You get four bedrooms and a whole lot of privacy in this fabulous French County home plan. The master suite is located in the back corner of the home and has an attached office which can be used as an office or private sitting room.
  • The kitchen has open views to the keeping room and the family room, the latter through a graceful arched opening. And serving guests is a breeze - and a private affair - through a smaller arched passageway.
  • The family room has a fireplace and four windows on the back wall overlook the rear porch. There, you'll enjoy a fireplace and an outdoor kitchen, extending your living area.
  • Two bedrooms share a bath in left of the home. And a final fourth bed is lff the garage mud room entry, where you'll also find an oversized laundry room.
  • Expand over the garage with the stairs off the mud rooom if you need more room.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,171 sq. ft.
  • 1st Floor: 3,171 sq. ft.
  • Storage: 186 sq. ft.
  • Porch, Combined: 502 sq. ft.
  • Bonus: 562 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 71' 6"
  • Depth: 100' 8"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 513 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12

Plan 56366SM
View this and more for this plan by visiting www.architechtecturaldesigns.com/56366SM
|
