Fabulous Kitchen

Plan 56304SM

  • 2,788

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Wine and dine in style in this beautiful French Country home with a gourmet kitchen filled with amenities.
  • Brick arched openings, tray ceilings, a wine cooler and walk-in pantry are but a few of the special features that will win you over.
  • The kitchen is open to the dining room, making the whole space seem huge.
  • Built-ins flank the fireplace in the family room with its 12' high ceilings.
  • The master suite is tucked away in the rear of the home, giving you a secluded retreat.
  • The master walk-in closet is divided into his and her compartments with separate doors to each side.
  • Up the stairs, a bonus room can be finished to suit your needs.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

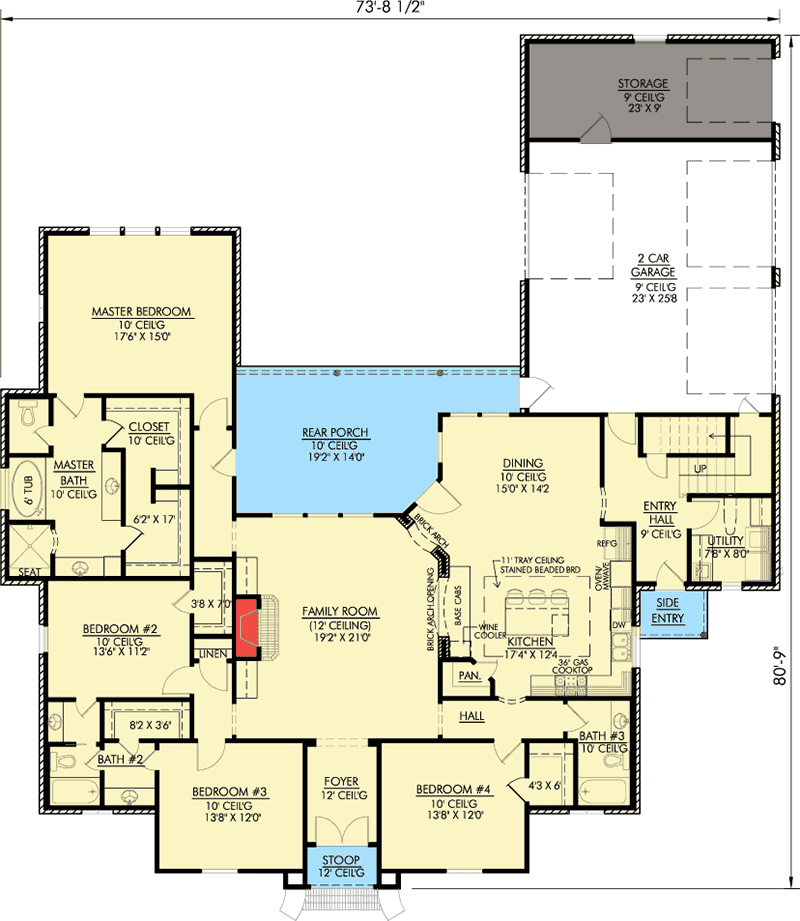

Fabulous Kitchen - 56304SM floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Fabulous Kitchen - 56304SM floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,788 sq. ft.
  • 1st Floor: 2,788 sq. ft.
  • Storage: 207 sq. ft.
  • Porch, Combined: 268 sq. ft.
  • Bonus: 481 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 9"
  • Depth: 80' 9"
  • Max ridge height: 30' 8"

Garage

  • Type: Attached
  • Area: 591 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12

Architectural Style

Special features

Plan Collections

Fabulous Kitchen

  • 2,788

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,195
  • 5 Sets $1,295
  • 5 Sets + PDF $1,495
  • PDF - Unlimited Build $1,895
  • CAD + PDF - Single-Build $2,195
  • CAD Unlimited + PDF $2,395
  • View all purchase option online

About This Plan

  • Wine and dine in style in this beautiful French Country home with a gourmet kitchen filled with amenities.
  • Brick arched openings, tray ceilings, a wine cooler and walk-in pantry are but a few of the special features that will win you over.
  • The kitchen is open to the dining room, making the whole space seem huge.
  • Built-ins flank the fireplace in the family room with its 12' high ceilings.
  • The master suite is tucked away in the rear of the home, giving you a secluded retreat.
  • The master walk-in closet is divided into his and her compartments with separate doors to each side.
  • Up the stairs, a bonus room can be finished to suit your needs.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,788 sq. ft.
  • 1st Floor: 2,788 sq. ft.
  • Storage: 207 sq. ft.
  • Porch, Combined: 268 sq. ft.
  • Bonus: 481 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 9"
  • Depth: 80' 9"
  • Max ridge height: 30' 8"

Garage

  • Type: Attached
  • Area: 591 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
