Fabulous Master Suite

Plan 36513TX

  • 5,910

    Heated s.f.

  • 3

    Beds

  • 5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • The "Wow!" factor is high in this European house plan with a striking facade and a fabulous master suite.
  • Homeowners will be pampered with a master retreat that has a fireplace, exercise area, two huge walk-in closets and an enormous master bathroom with his and her sections.
  • The Wow! starts right at the front door where you can see straight into the family room with its 25' high ceiling.
  • A spacious dining room to the left can hold a huge dining room table and chairs.
  • The kitchen is also massive and is connected to the bayed breakfast nook in back.
  • Climb the gorgeous curved staircase to reach the second floor loft with balcony and a media room with wet bar.
  • On the lower level, you get a game room with another wet bar and two family bedrooms, each with a bathroom.
  • A residential elevator takes you from floor to floor with ease.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

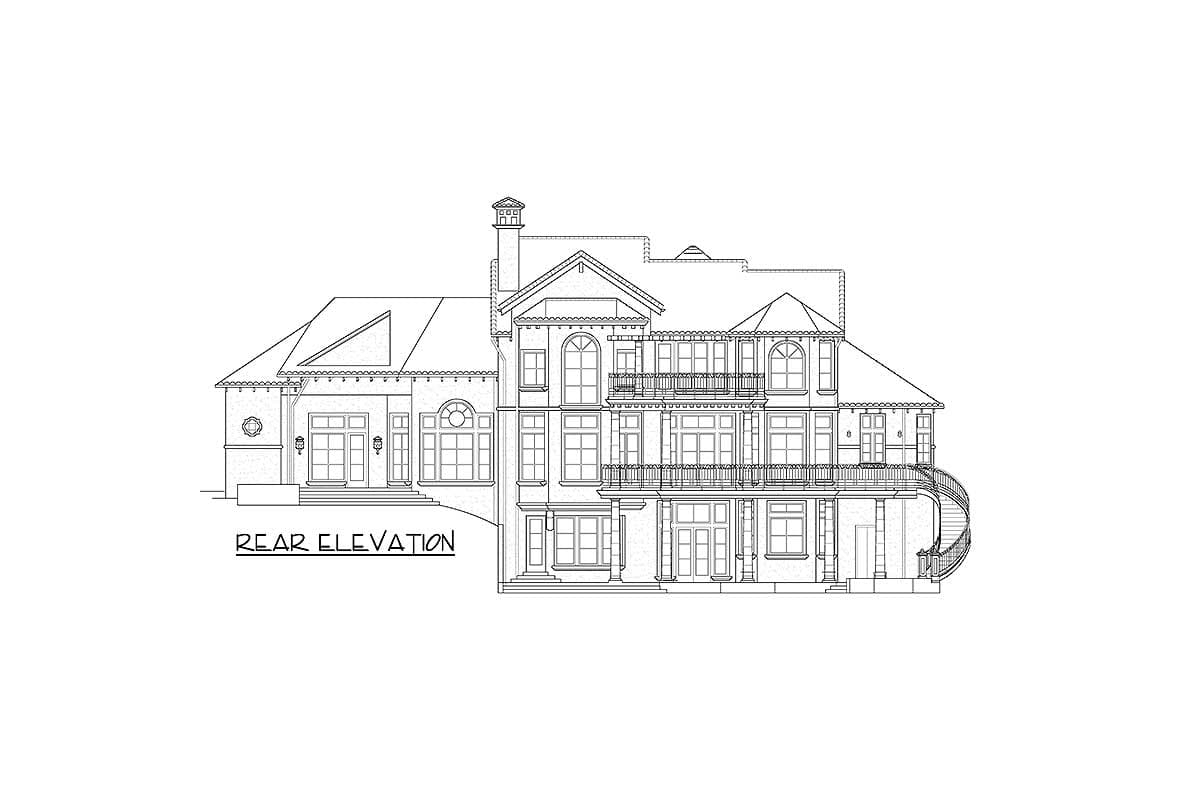

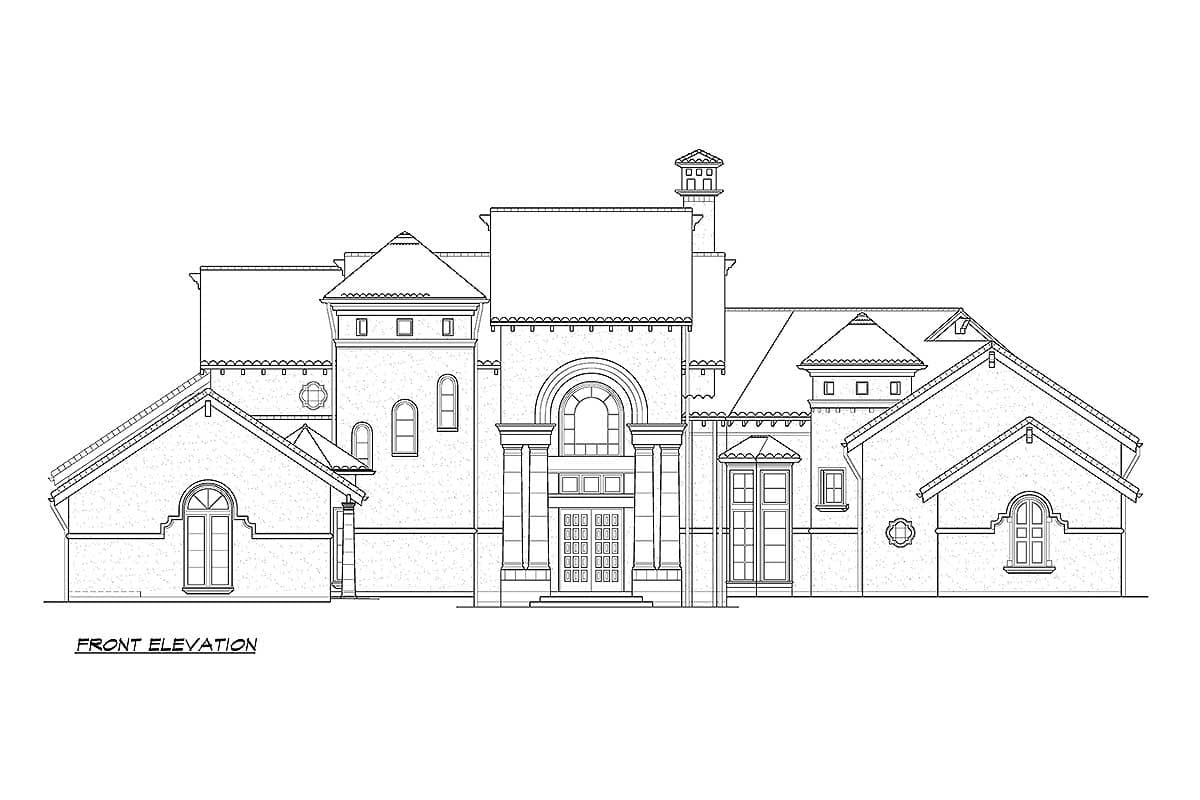

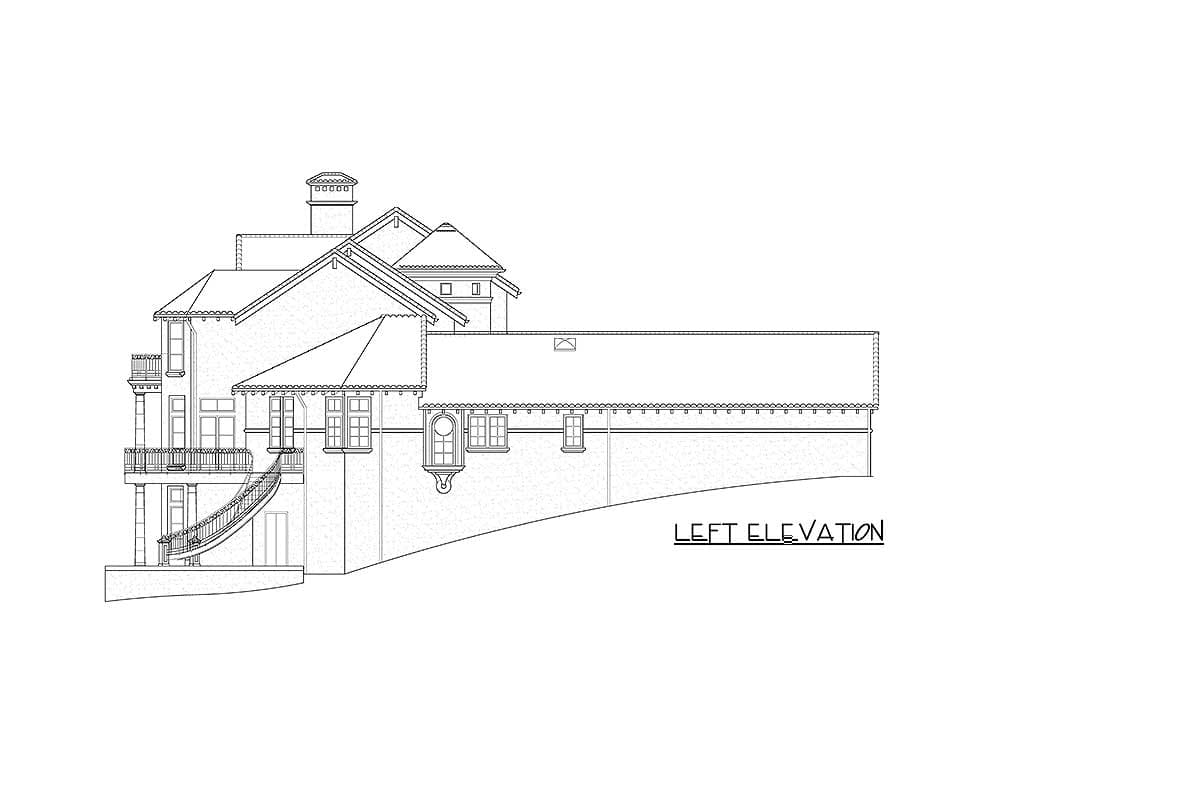

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

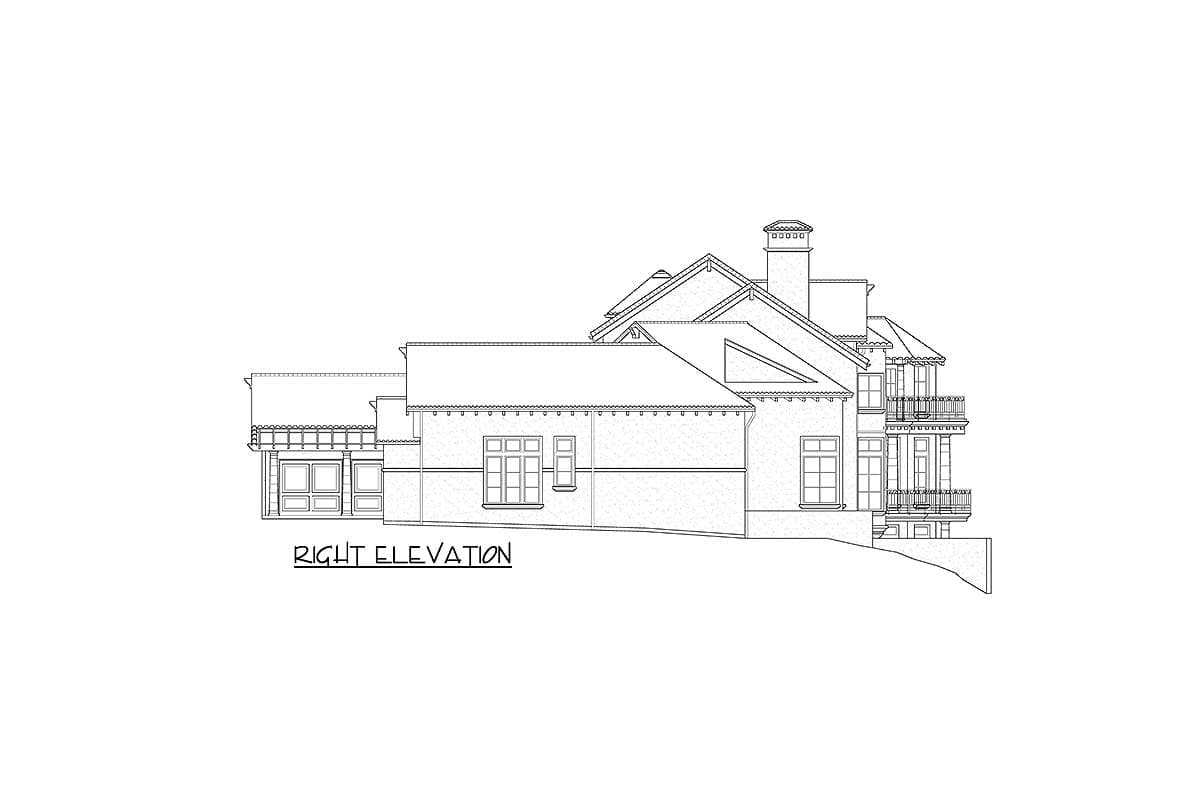

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

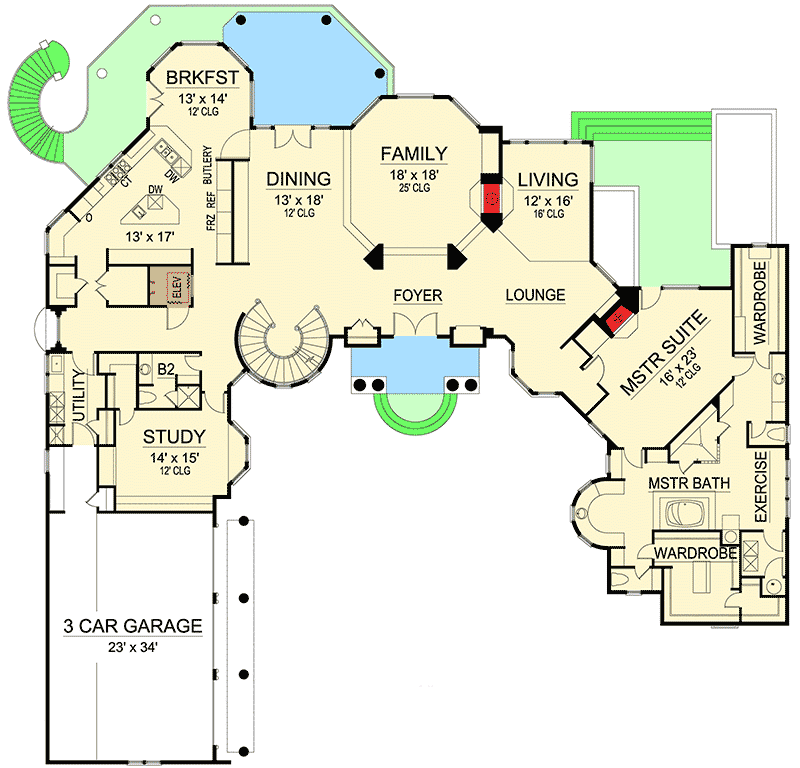

Fabulous Master Suite - 36513TX floor plan - Main Level

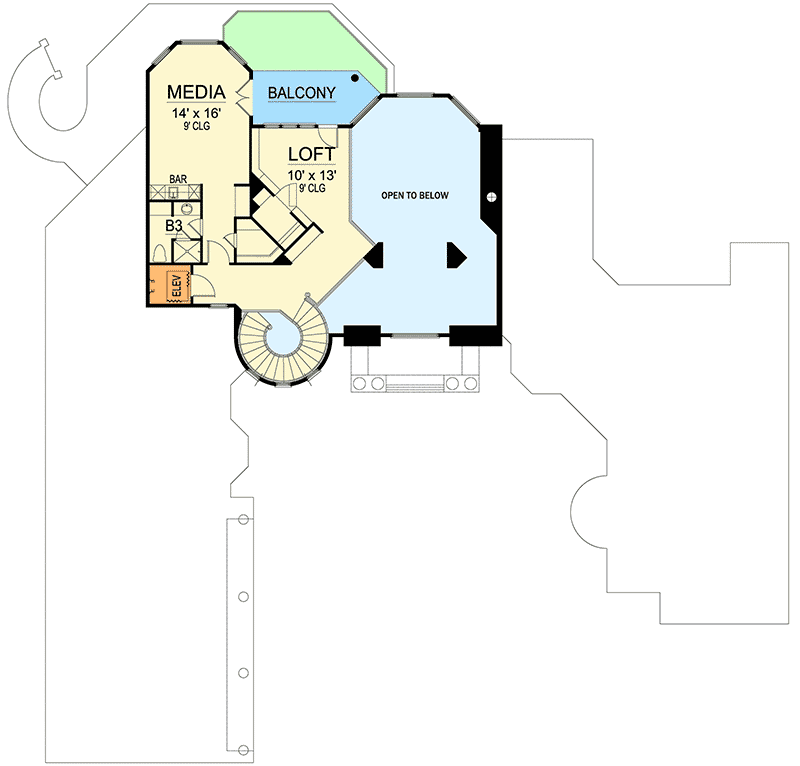

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Fabulous Master Suite - 36513TX floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

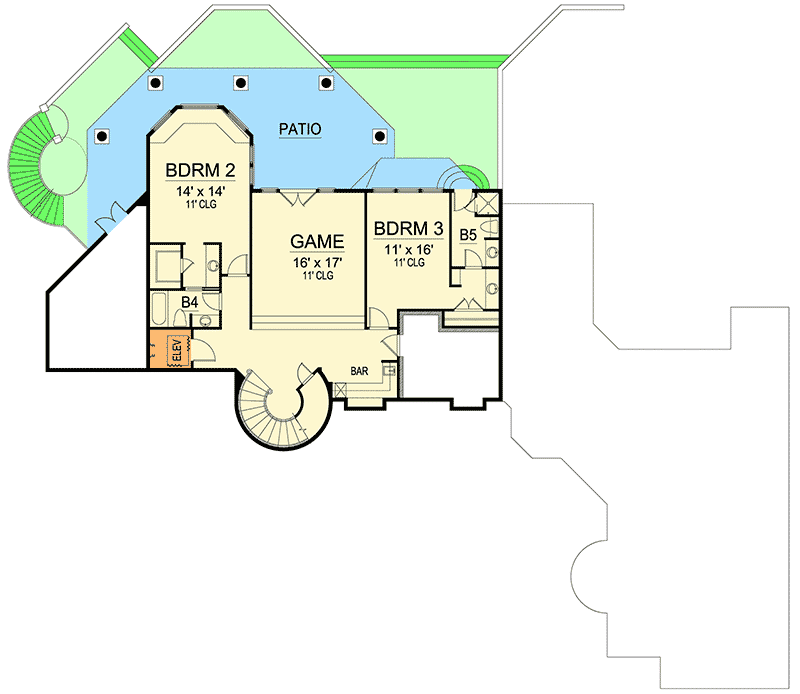

Fabulous Master Suite - 36513TX floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,910 sq. ft.
  • Lower Level: 1,248 sq. ft.
  • 1st Floor: 3,871 sq. ft.
  • 2nd Floor: 791 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 5

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 103' 0"
  • Depth: 100' 0"
  • Max ridge height: 45' 0"

Garage

  • Type: Attached
  • Area: 836 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" First Floor / 12' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Fabulous Master Suite

  • 5,910

    Heated s.f.

  • 3

    Beds

  • 5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,420
  • 5 Sets $2,620
  • CAD - Single-Build $3,630
  • View all purchase option online

About This Plan

  • The "Wow!" factor is high in this European house plan with a striking facade and a fabulous master suite.
  • Homeowners will be pampered with a master retreat that has a fireplace, exercise area, two huge walk-in closets and an enormous master bathroom with his and her sections.
  • The Wow! starts right at the front door where you can see straight into the family room with its 25' high ceiling.
  • A spacious dining room to the left can hold a huge dining room table and chairs.
  • The kitchen is also massive and is connected to the bayed breakfast nook in back.
  • Climb the gorgeous curved staircase to reach the second floor loft with balcony and a media room with wet bar.
  • On the lower level, you get a game room with another wet bar and two family bedrooms, each with a bathroom.
  • A residential elevator takes you from floor to floor with ease.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,910 sq. ft.
  • Lower Level: 1,248 sq. ft.
  • 1st Floor: 3,871 sq. ft.
  • 2nd Floor: 791 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 103' 0"
  • Depth: 100' 0"
  • Max ridge height: 45' 0"

Garage

  • Type: Attached
  • Area: 836 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" First Floor / 12' 0" Second Floor / 9' 0"
