Plan 57312HA

Fabulous Ranch Home Plan

Heated S.F.
2,156
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 57312HA

Main Level
Main Level

Plan 57312HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 57312HA: Fabulous Ranch Home Plan - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This fabulous Ranch home has it all, from a vaulted great room to split bedrooms to a huge wrap-around porch.
  • Even the foyer is spacious with beautiful views of the great room beyond.
  • Transom windows brighten the dining room with its tray ceiling.
  • More transoms add light to the great room.
  • Choose from a vaulted or coffered ceiling in the elegant master suite with its bay window.
  • The roof is a truss design with an 8:12 main pitch and a 10:12 secondary pitch.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

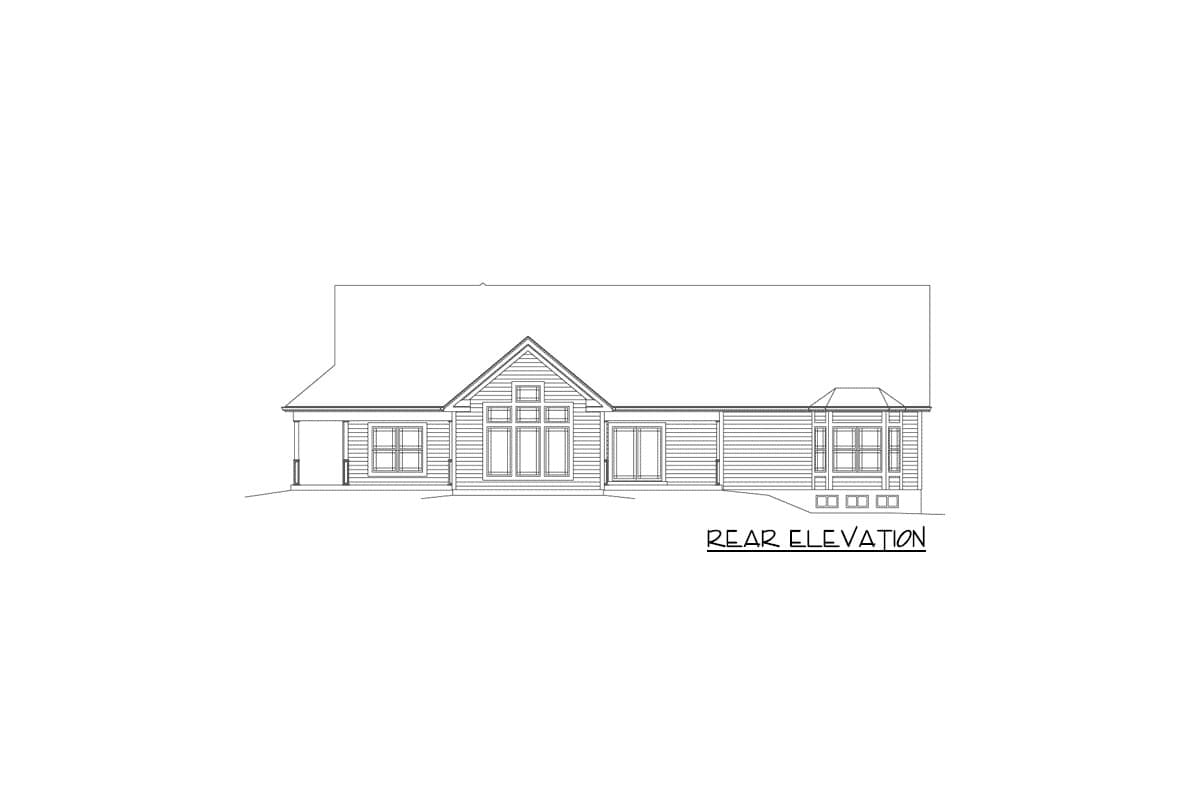

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,156 sq. ft.

1st Floor

2,156 sq. ft.

Basement Unfinished

1,987 sq. ft.

Porch, Combined

697 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

76' 4"

Depth

52' 0"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

575 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Walk-in Pantry

Wraparound Porch

Square Footage Breakdown

Total Heated Area

2,156 sq. ft.

1st Floor

2,156 sq. ft.

Basement Unfinished

1,987 sq. ft.

Porch, Combined

697 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

76' 4"

Depth

52' 0"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

575 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Walk-in Pantry

Wraparound Porch
