Plan 39172ST Family Friendly Home Plan

1,978 4 2.5 - 3.5 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Family Friendly Home Plan

Plan 39172ST

  • 1,978

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A covered porch and brick and siding facade create a welcoming appearance to this delightful two-story home plan.
  • The large great room enjoys a fireplace, built-ins and view to the rear yard.
  • The kitchen showcases an oversized island with seating for quick meals and a roomy dining area. The mud room and adjacent laundry room offer an orderly transition from the garage to the house.
  • The second floor master enjoys a raised ceiling, large walk-in closet and private bath.
  • Three additional bedrooms complete this family friendly home plan.

  • General notes and specifications

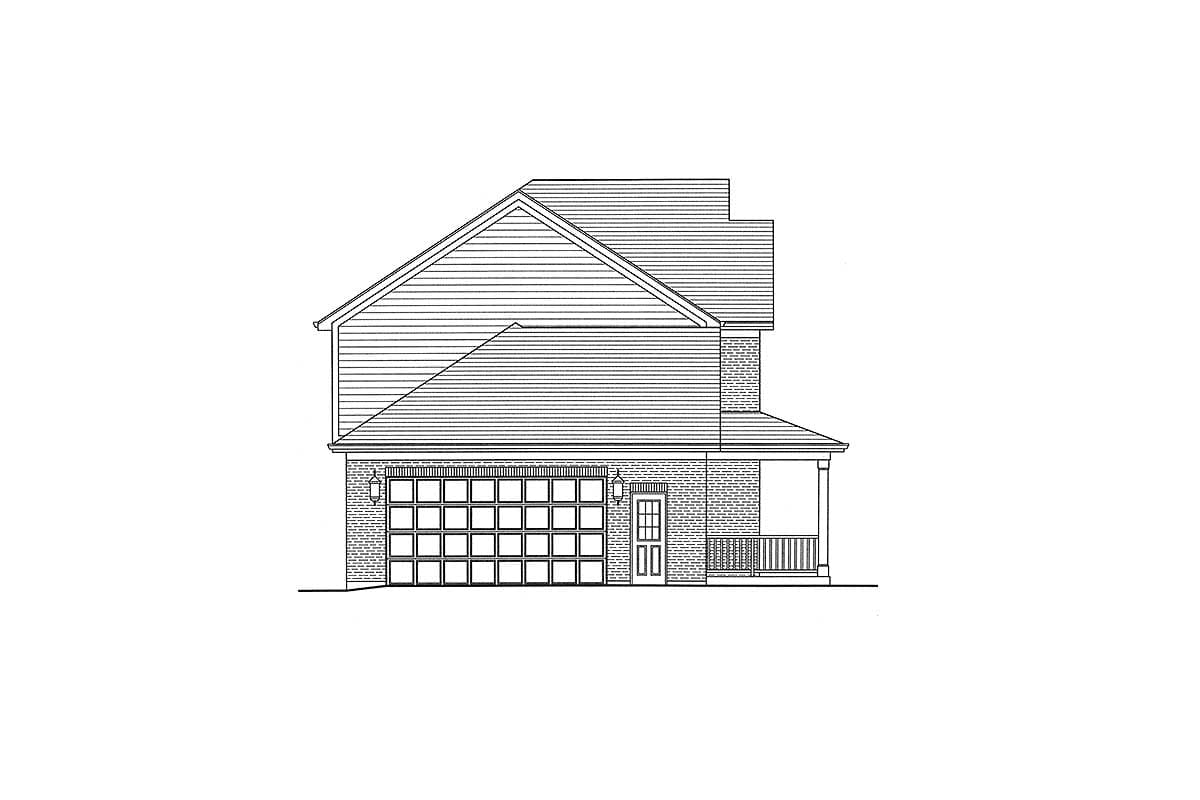

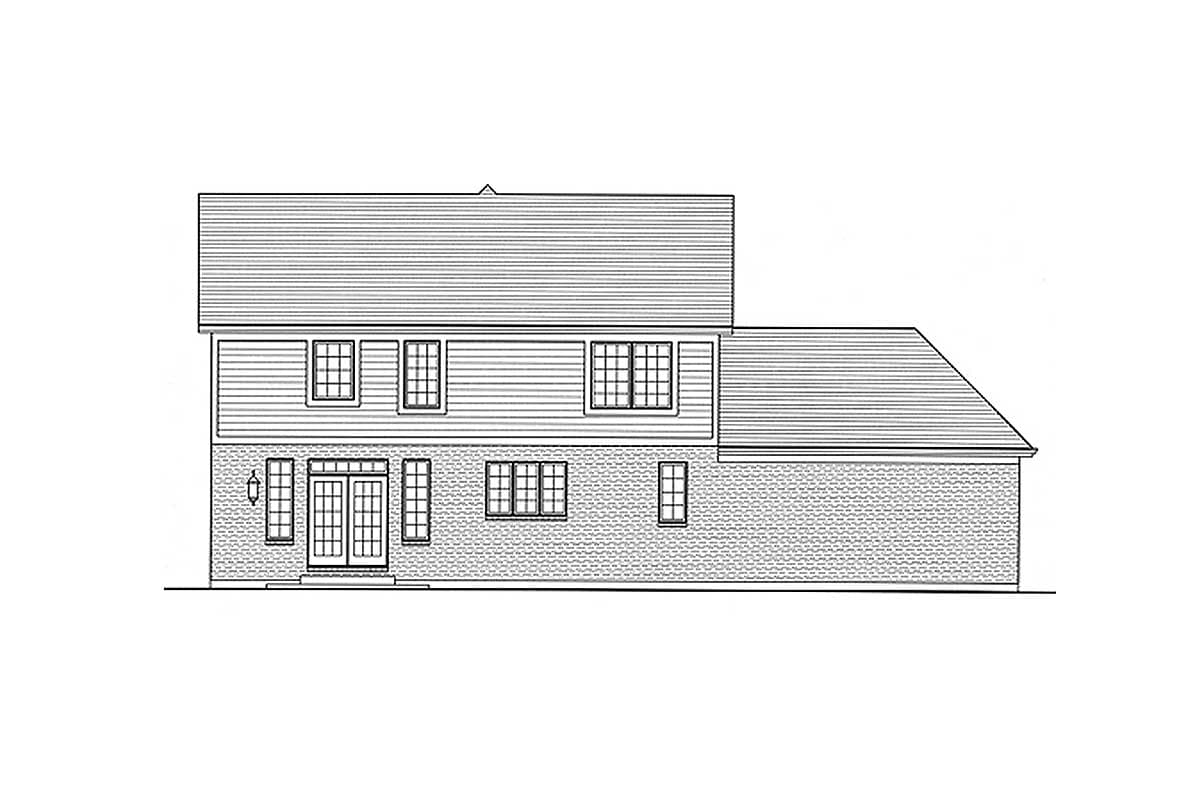

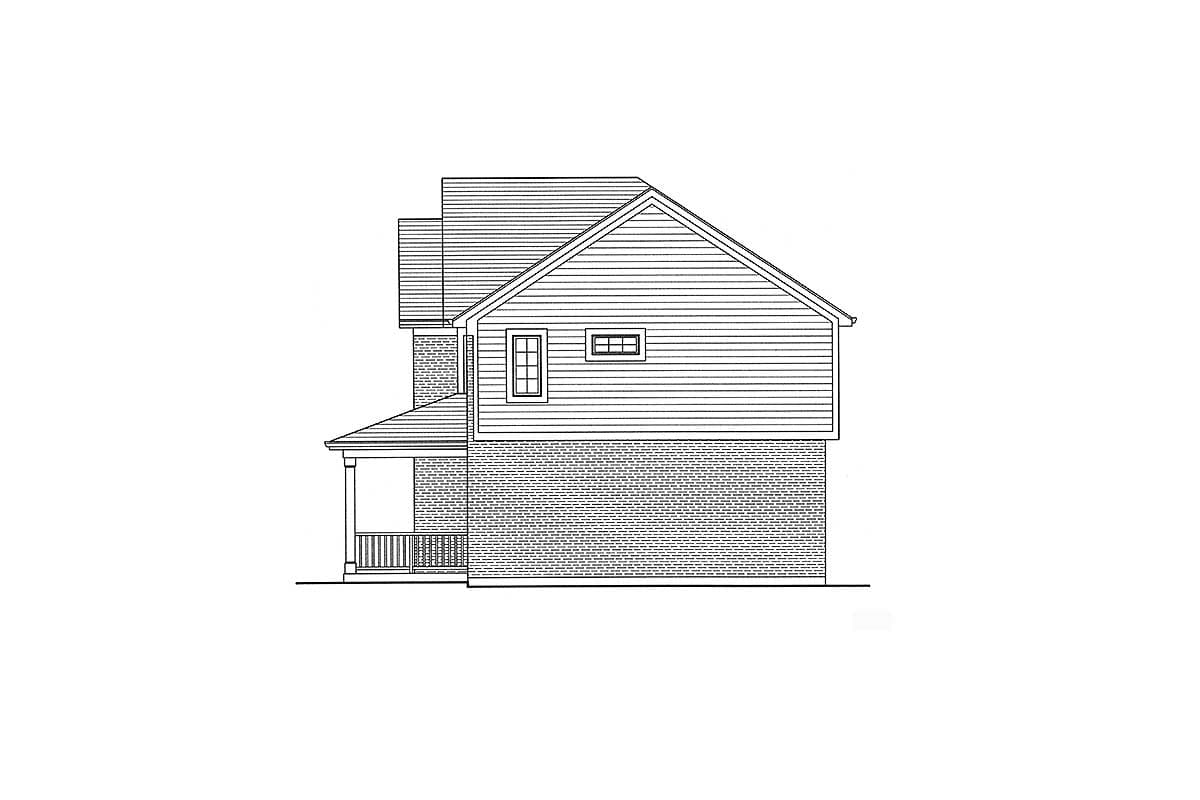

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

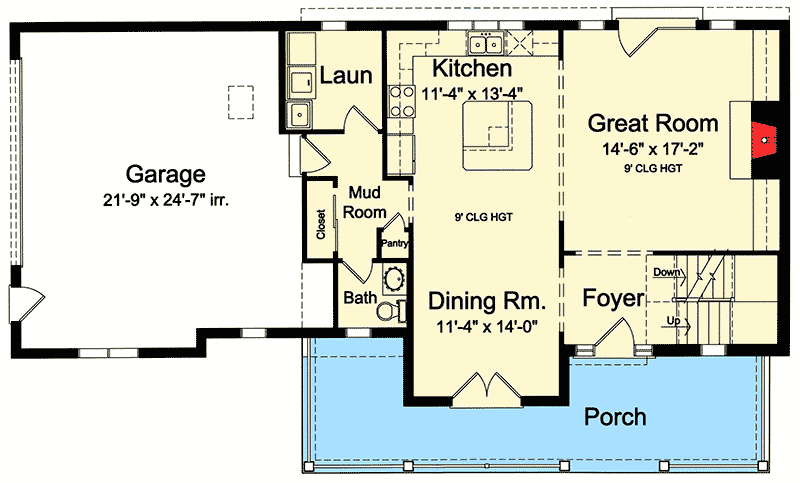

Family Friendly Home Plan - 39172ST floor plan - Main Level

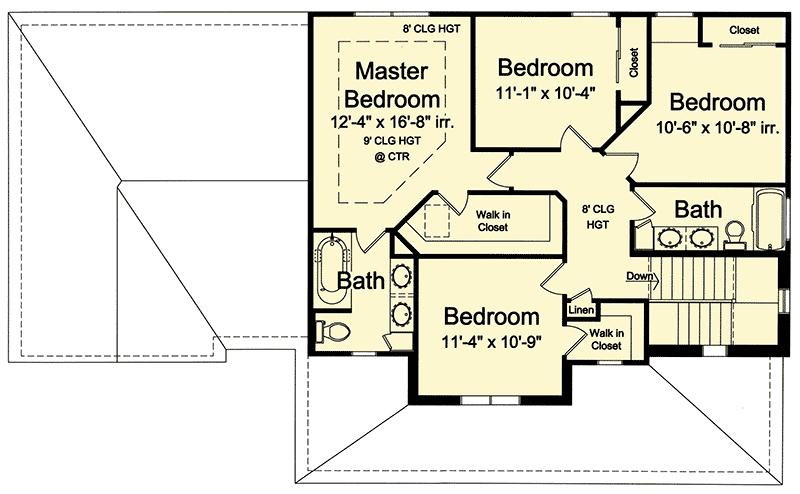

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Family Friendly Home Plan - 39172ST floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

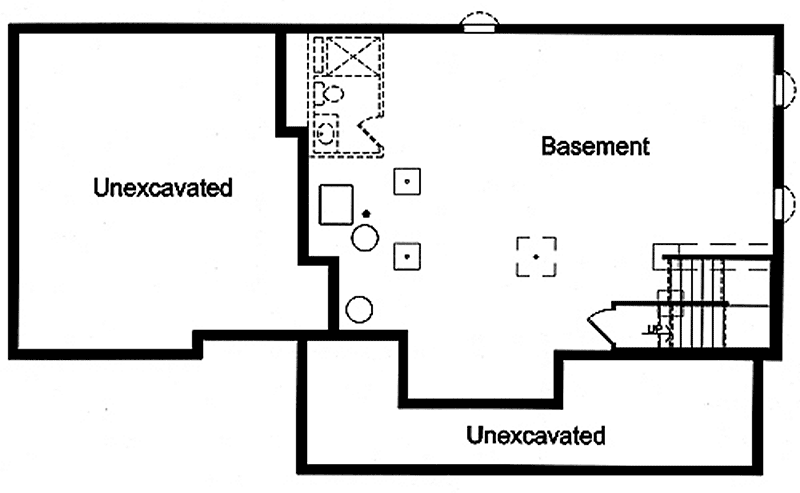

Family Friendly Home Plan - 39172ST floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,978 sq. ft.
  • 1st Floor: 1,016 sq. ft.
  • 2nd Floor: 962 sq. ft.
  • Porch, Front: 292 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 35' 0"
  • Max ridge height: 31' 6"

Garage

  • Type: Attached
  • Area: 516 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Truss

Architectural Style

Special features

Family Friendly Home Plan

  • 1,978

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 1,978 sq. ft.
  • 1st Floor: 1,016 sq. ft.
  • 2nd Floor: 962 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 35' 0"
  • Max ridge height: 31' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 516 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Truss
