Family House Plan with Optional Room Layouts

2,879 4 3.5 2 2
Pageloader

Family House Plan with Optional Room Layouts

Plan 42312DB

  • 2,879

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Built-in bookshelves line the flex room that could be used as a study or a formal dining room or even a play room.
  • The main living space is the big family room with its coffered ceiling that draws your eyes upward.
  • Double doors in the dining area take you out to a covered loggia where you can grill or relax in the shade.
  • You'll have plenty of counter spoace in the big kitchen that offers a walk-in pantry and an island for additional storage.
  • All four bedrooms are on the upper floor, most with vaulted or tray ceilings.
  • Bedroom 2 is off by itself and has a private bathroom and walk-in closet.

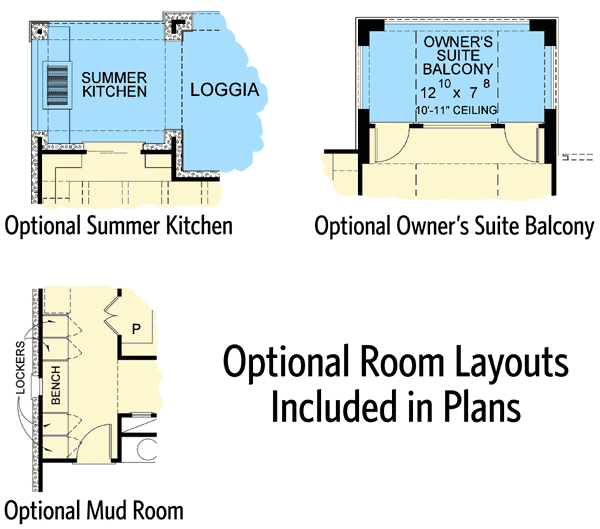

  • This home gives you optional room layouts so you can customize the home to suit your family.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

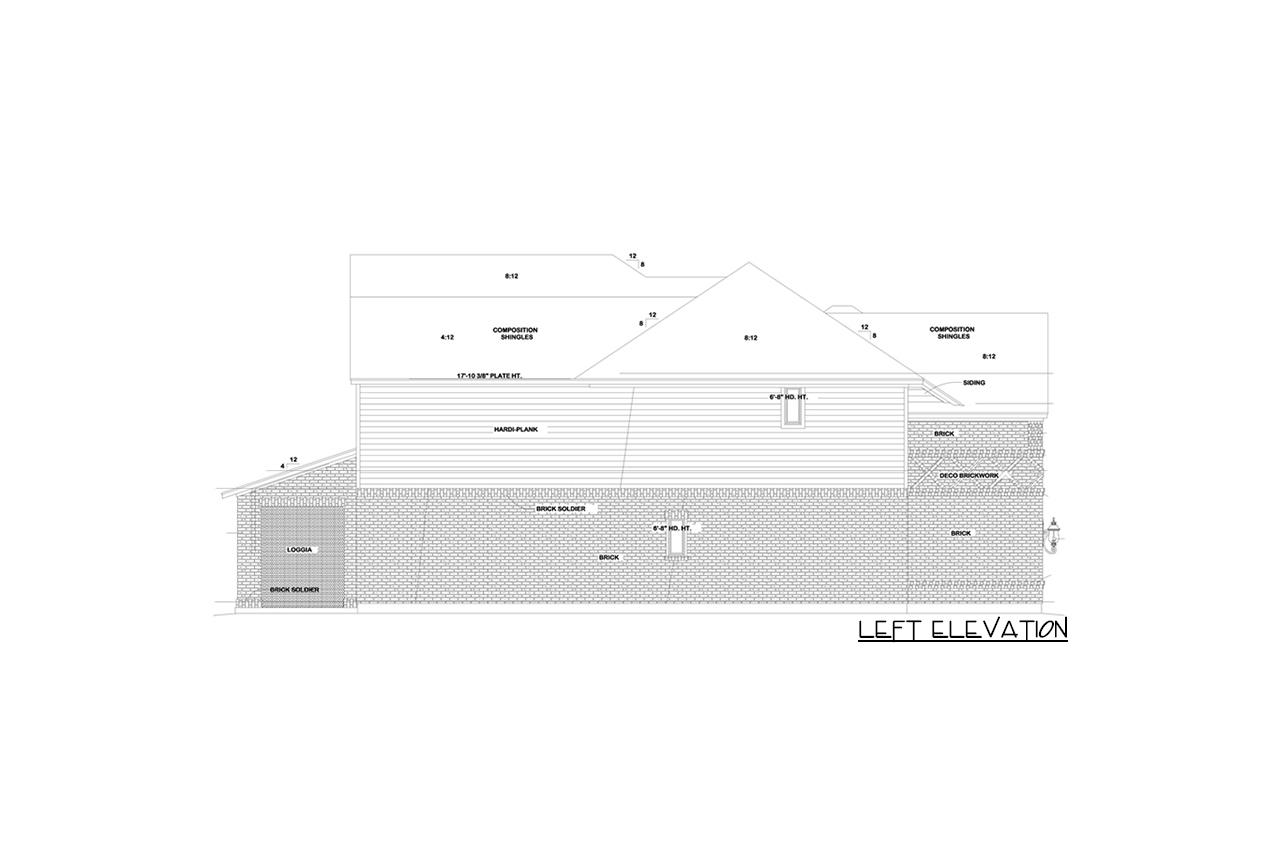

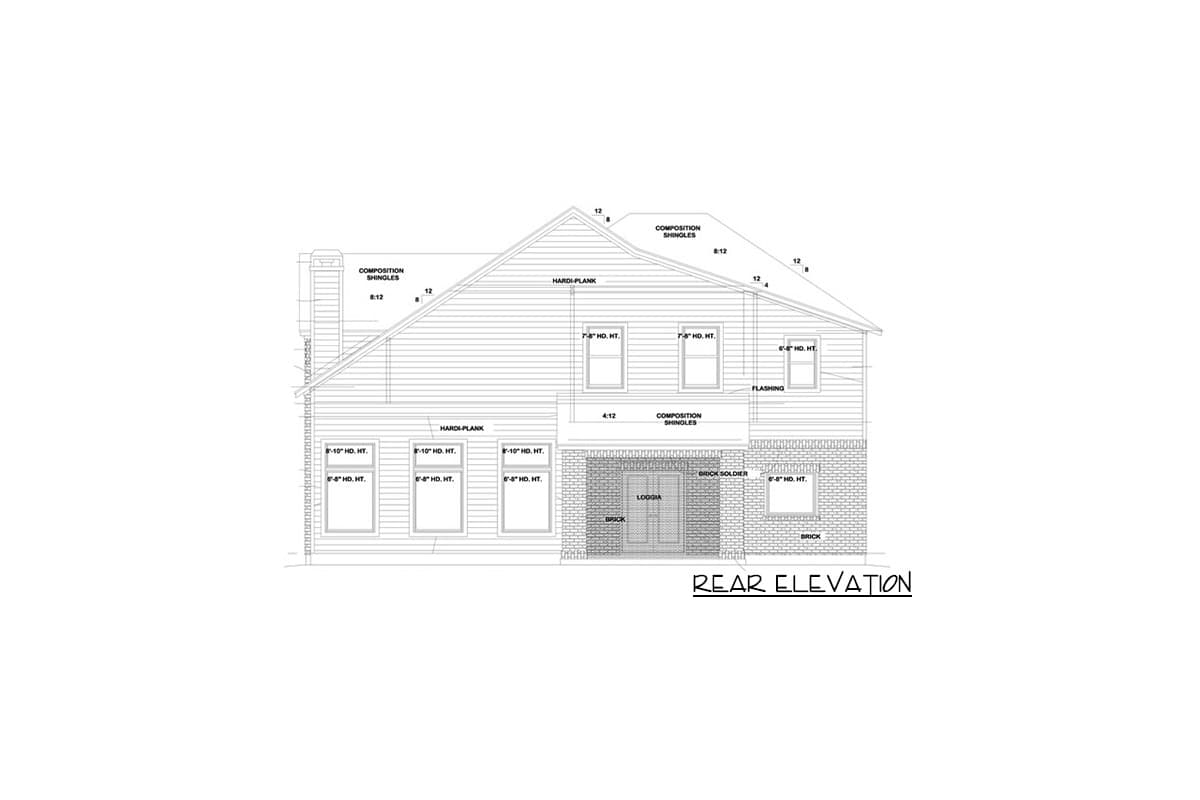

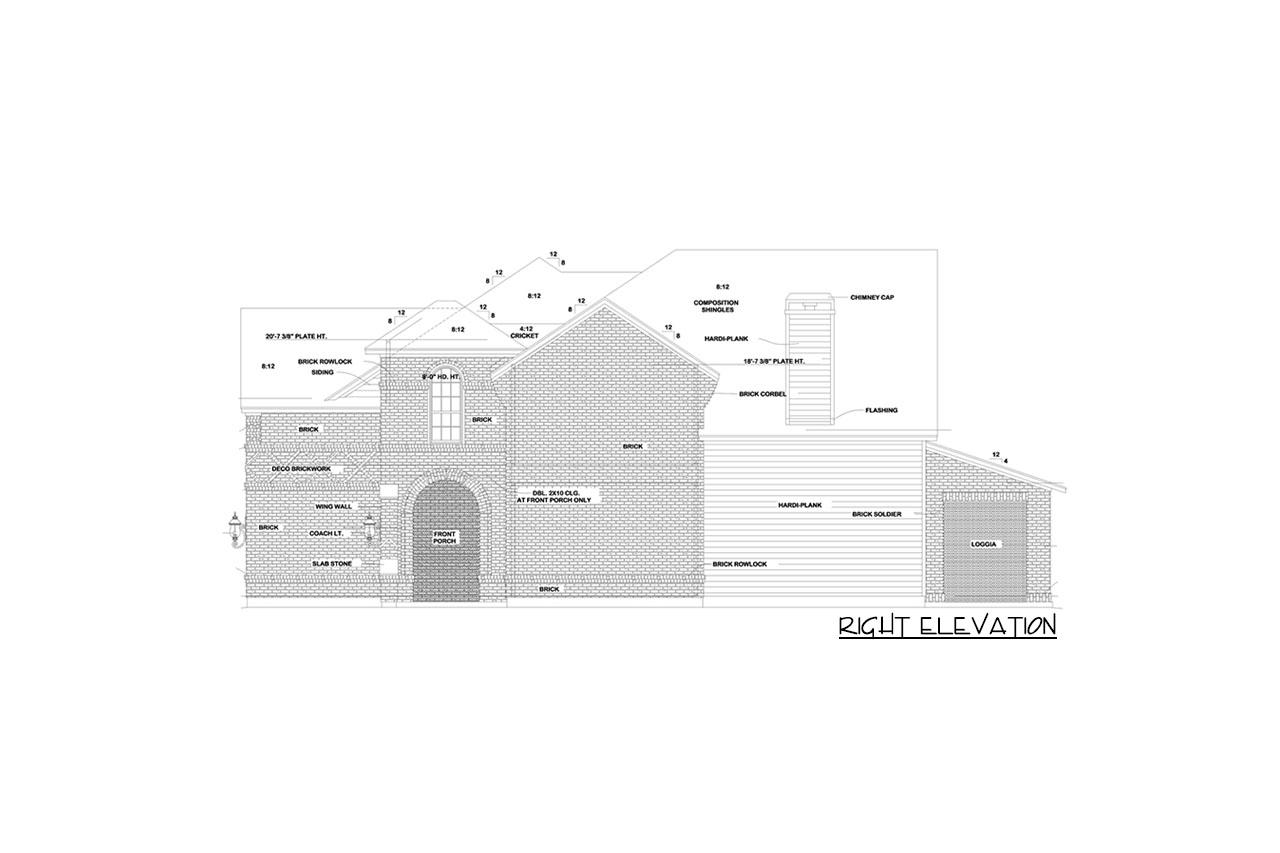

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

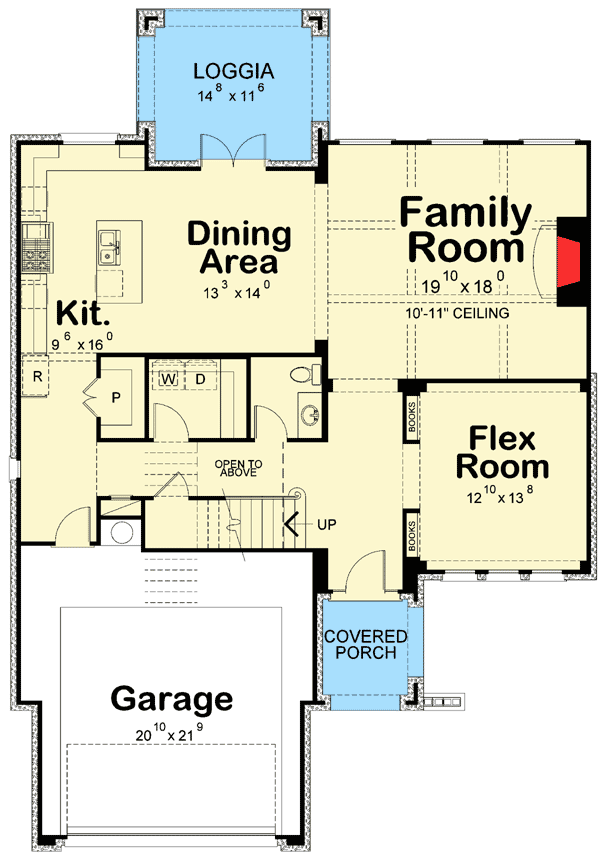

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

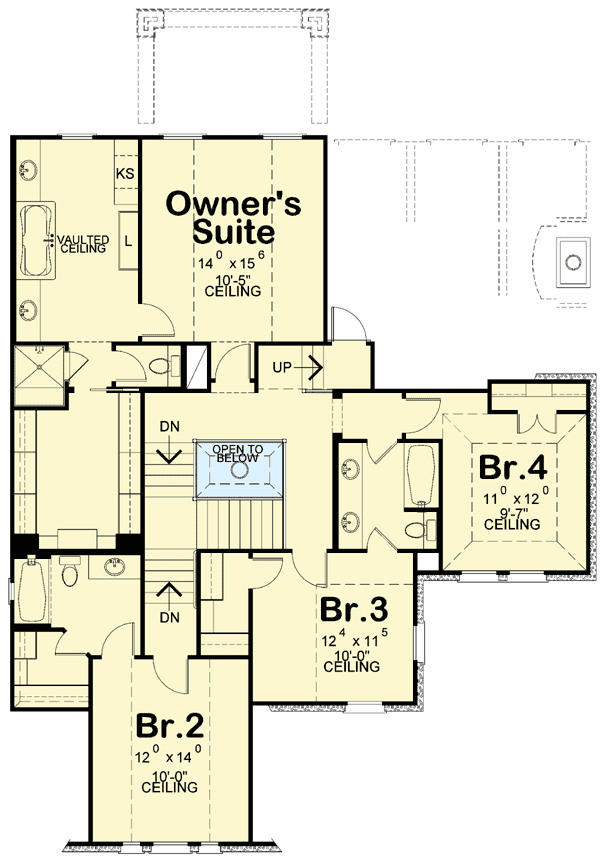

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
