Plan 57196HA

Fantastic A-Frame Get-Away

Heated S.F.
1,224
Beds
2 - 3
Baths
1
Stories
2

Floor Plan

Plan 57196HA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 57196HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

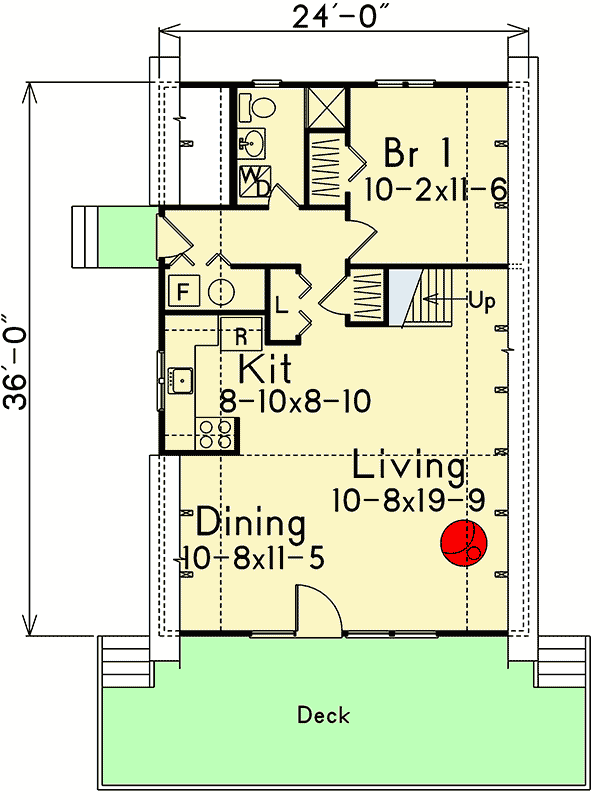

Plan 57196HA: Fantastic A-Frame Get-Away - Floor Plan - Main Level - A-Frame, Cottage, Rustic, Vacation

2nd Floor

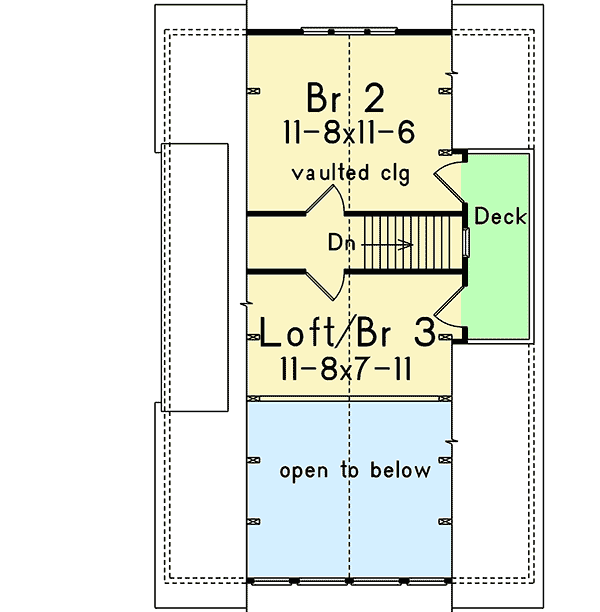

Plan 57196HA: Fantastic A-Frame Get-Away - Floor Plan - 2nd Floor - A-Frame, Cottage, Rustic, Vacation

Plan Details

  • Get away to this cozy A-frame featuring three bedrooms.
  • Living and dining rooms with free-standing fireplace walks out onto a large deck.
  • U-shaped kitchen has a unique built-in table at end of counter for intimate gatherings.
  • Both second floor bedrooms enjoy their own private balcony.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,224 sq. ft.

1st Floor

864 sq. ft.

2nd Floor

360 sq. ft.

Entry

55 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

36' 0"

Ceiling Heights

First Floor

8'

Second Floor

7'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

A-Frame

Cottage

Rustic

Vacation

Special Features

Flex Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,224 sq. ft.

1st Floor

864 sq. ft.

2nd Floor

360 sq. ft.

Entry

55 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

36' 0"

Ceiling Heights

First Floor

8'

Second Floor

7'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

A-Frame

Cottage

Rustic

Vacation

Special Features

Flex Room

Laundry - Main Level

Loft

Master Suite - 1st Floor
