Plan 40413DB

Fantastic Family Room

3,124 4 5 2 2
Pageloader

Fantastic Family Room

Plan 40413DB

  • 3,124

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The central focus of the family room is the fireplace and entertainment center. Placed close together, you and a group of friends can enjoy watching the big game, a season finale or the just the soothing flames of firelight. All this, under the lofty 18'2" ceiling!
  • The centrally located kitchen island -- with counter space for snacks and room for barstools nearby -- means you won't have to go hungry while watching the game or chatting with friends.
  • If you want to barbecue, you can cook and dine on the covered porch or move right next door, in the eating area.
  • The computer loft allows you to hear the kids typing on their computer and working on their studies, while you're downstairs.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details



Fantastic Family Room

  • 3,124

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $715
  • PDF - single-use $1,095
  • 5 Sets $1,220
  • 8 Sets $1,290
  • PDF - multi-use $1,595
  • CAD $1,916
  • CAD - multi-use $2,416
  • View all purchase option online

About This Plan

  • The central focus of the family room is the fireplace and entertainment center. Placed close together, you and a group of friends can enjoy watching the big game, a season finale or the just the soothing flames of firelight. All this, under the lofty 18'2" ceiling!
  • The centrally located kitchen island -- with counter space for snacks and room for barstools nearby -- means you won't have to go hungry while watching the game or chatting with friends.
  • If you want to barbecue, you can cook and dine on the covered porch or move right next door, in the eating area.
  • The computer loft allows you to hear the kids typing on their computer and working on their studies, while you're downstairs.

Floor Plans

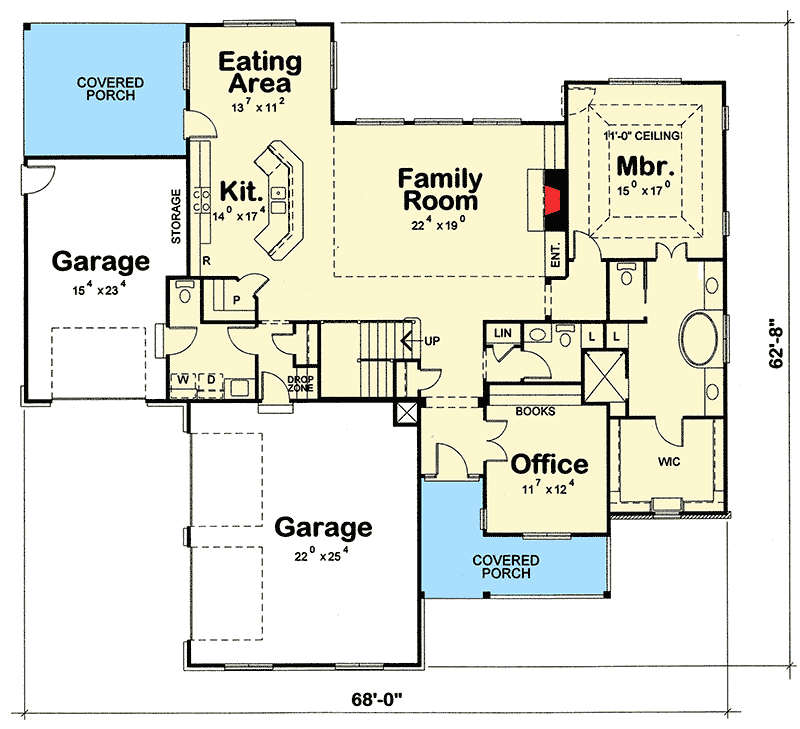

  • Main Level

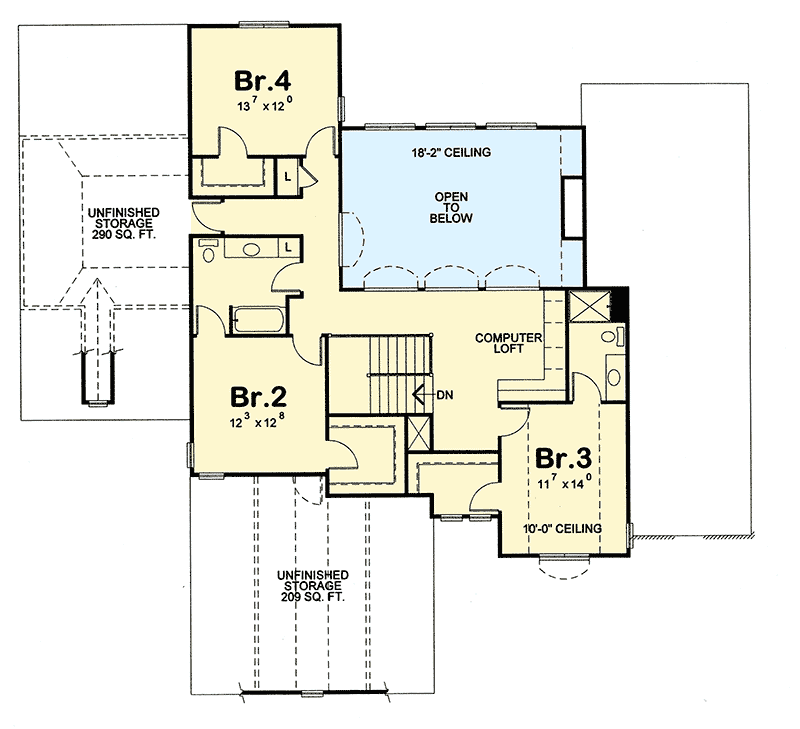

  • 2nd Floor

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,124 sq. ft.
  • 1st Floor: 1,988 sq. ft.
  • 2nd Floor: 1,136 sq. ft.
  • Porch, Front: 144 sq. ft.
  • Porch, Rear: 204 sq. ft.
  • Bonus: 499 sq. ft.
  • Storage: 499 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 62' 8"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 930 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
