Plan 72672DA

Fantastic Panoramic Views

Heated S.F.
2,404
Beds
2 - 3
Baths
2
Stories
1

Floor Plan

Plan 72672DA

Main Level
Main Level

Plan 72672DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 72672DA: Fantastic Panoramic Views - Floor Plan - Main Level - Craftsman, Ranch

Plan Details

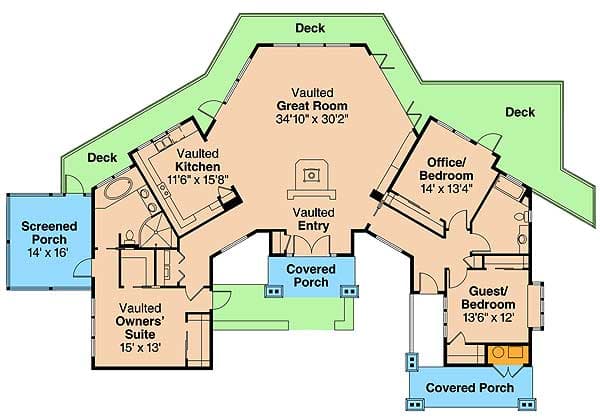

  • Panoramic views are a major plus in this 2 (or 3) bedroom home plan. The most expansive are views from the vaulted hexagonal great room and the wide deck that spans the entire rear and segues into a large screened porch. Views are also splendid from the office/bedroom, the kitchen, and both bathtubs.
  • Built-in benches rim part of the entry deck. To enter this shingle-style lodge, you walk between slender twinned posts set on tapered stone veneer bases. The vaulted porch opens into an even loftier vaulted entry inside double doors. The entry is part and parcel of the hexagonal great room, where 6 ceiling segments soar to a central apex high above.
  • At floor level, the entry is separated from the great room by an 8'-high section of wall or shelves. On the other side, a freestanding wood stove backs up to that wall, which could be bricked, tiled or whatever suits. Bookshelves and a home entertainment center line the wall to the right of the entry.
  • Two rooms are down the hallway on that side. A generously sized vaulted kitchen is to the entry's left. Skylights spill more light into the already bright kitchen. Counters wrap around three sides, and an abundance of cabinets line two of them. Laundry appliances and a deluxe owners' suite are just a few steps down the hall.
  • Owners' suite amenities include a vaulted ceiling and walk-in closet. The spacious bathroom boasts a dual vanity, roll-in shower, and a deep tub with what could be a wonderfully relaxing view.
  • The roof has a 6:12 pitch.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

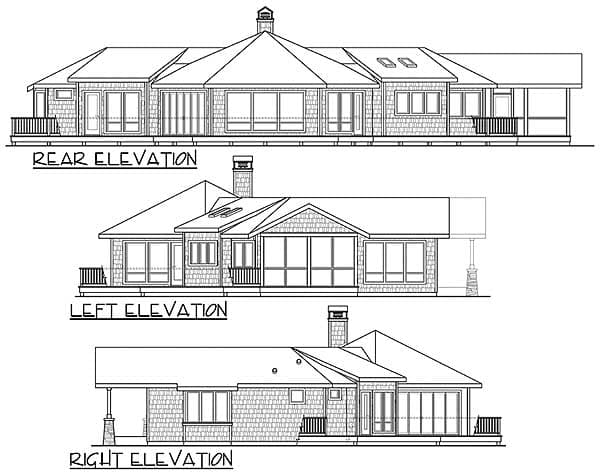

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,404 sq. ft.

1st Floor

2,404 sq. ft.

Screened Porch

224 sq. ft.

Porch, Rear

446 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 8"

Depth

59' 11"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Home Office

Master Suite - 1st Floor

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,404 sq. ft.

1st Floor

2,404 sq. ft.

Screened Porch

224 sq. ft.

Porch, Rear

446 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 8"

Depth

59' 11"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Home Office

Master Suite - 1st Floor

Plan Collections

Home Office
