Plan: 36013DK

Farmhouse Home with Wraparound Porch

2,334 3 3 2 2
Pageloader

Farmhouse Home with Wraparound Porch

Plan 36013DK

  • 2,334

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

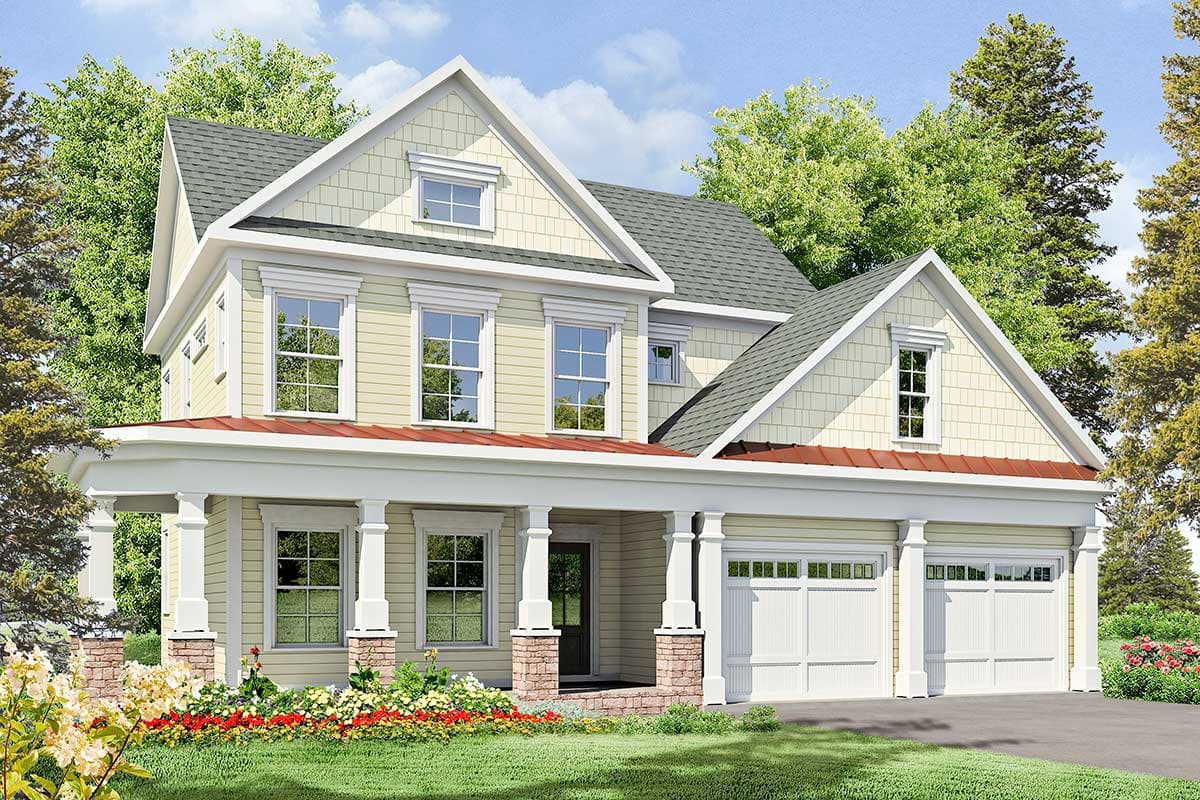

  • Sturdy columns support the front wraparound porch of this Farmhouse plan.
  • The over-sized 2 car garage has extra storage space in back.
  • Columns and an arch announce the formal dining room with the kitchen close by.
  • Vaulted ceilings crown the breakfast and family rooms.
  • Tucked away in the rear of the home, the master suite has tray ceilings, double walk-in closets and a huge bath with lots of counter space.
  • The secondary bedrooms lie on the upper level with a delightful sitting area in the front bedroom.

This plan includes the following elements:

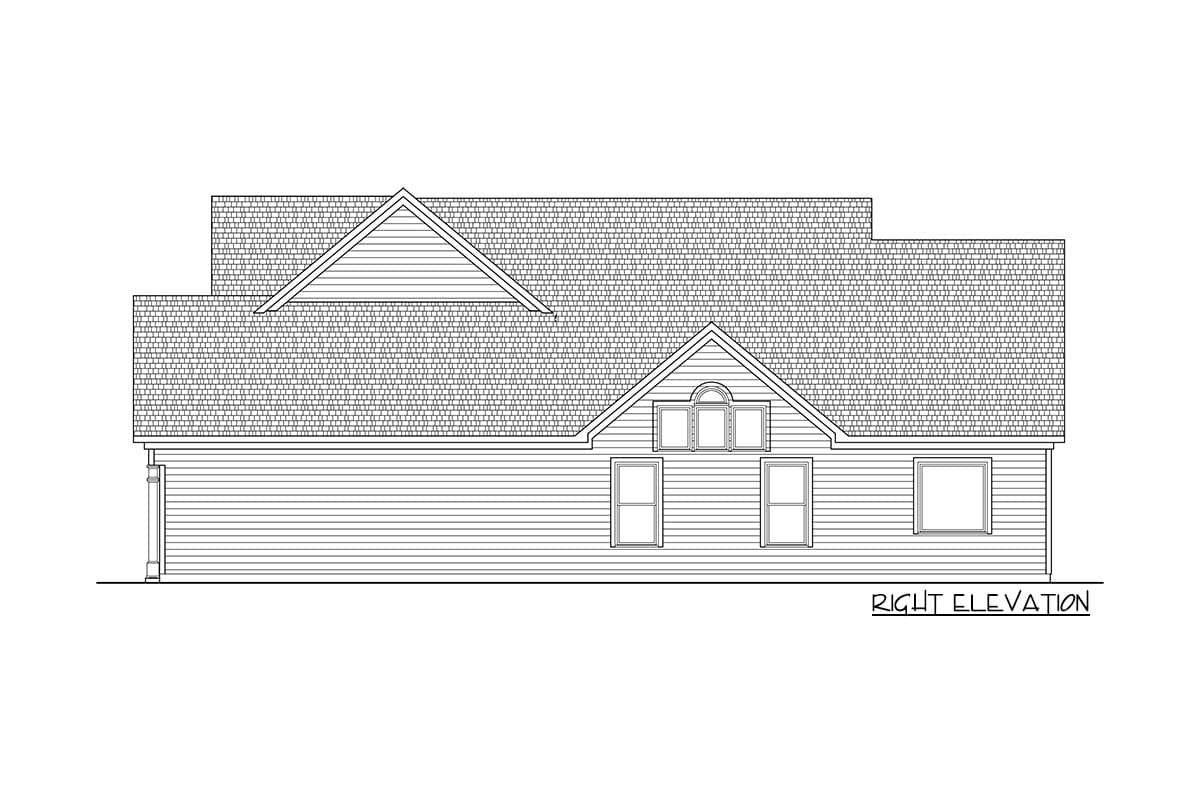

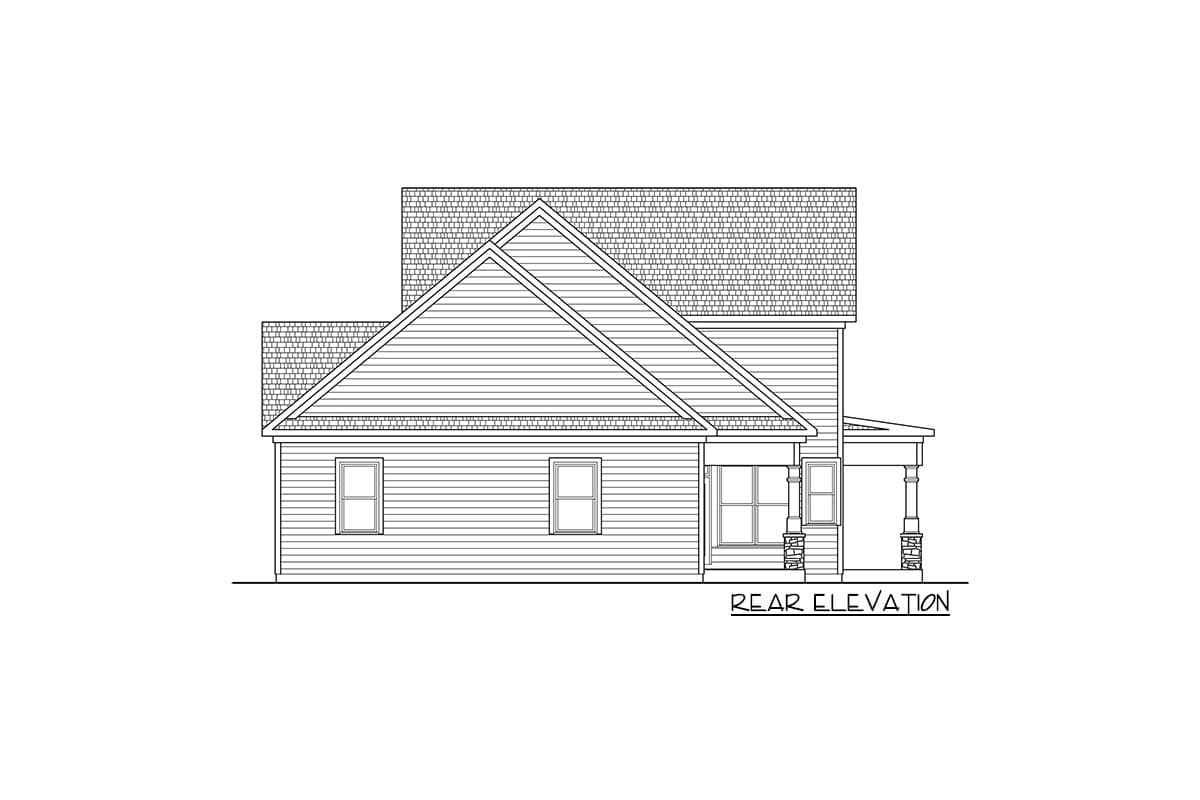

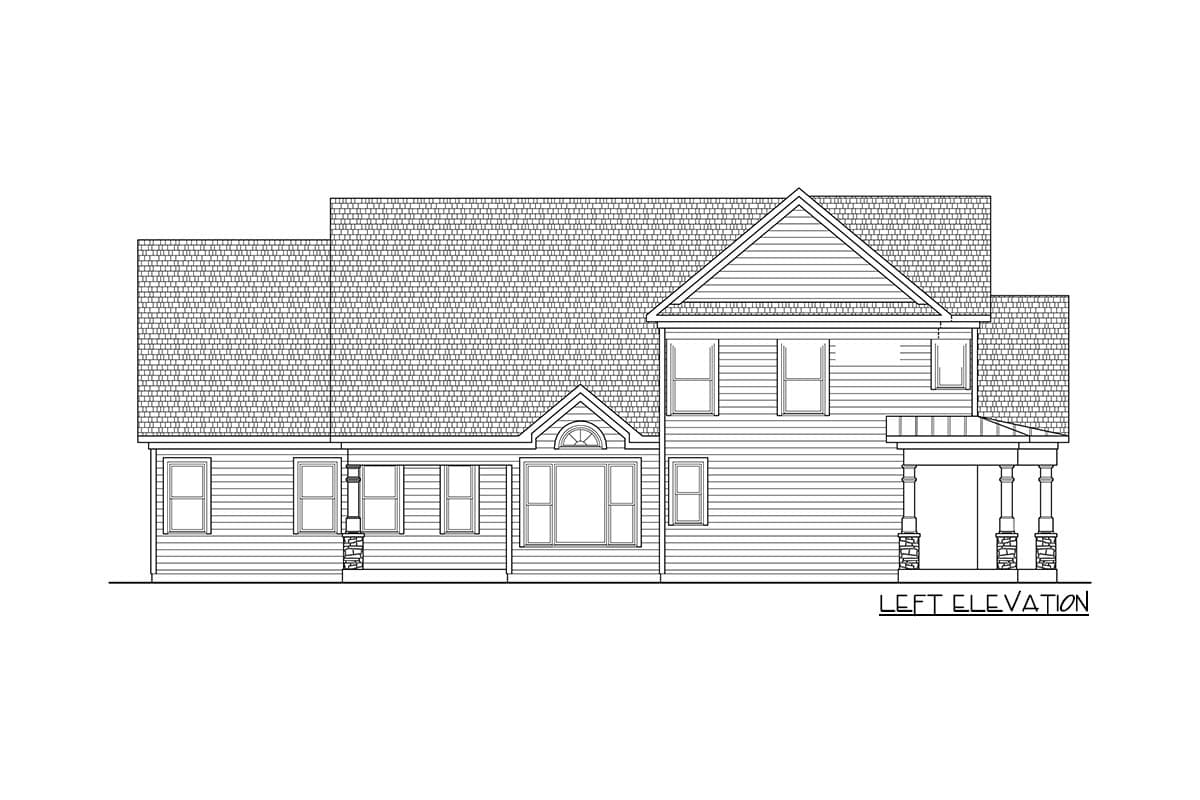

  • Front, Rear, Right Side and Left Side Elevational views with construction specification information
  • Roof Plan Quick View Floor Plans Foundation plan of choice specifying construction information
  • Floor Plan(s) with construction information
  • Electrical Plans
  • Construction Details for walls, Foundation, roof framing.
  • Some plans includes a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

Floor Plan

Plan details



Farmhouse Home with Wraparound Porch

  • 2,334

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $850
  • 8 Sets $1,095
  • PDF - single-use $1,295
  • CAD $1,595
  • View all purchase option online

About This Plan

  • Sturdy columns support the front wraparound porch of this Farmhouse plan.
  • The over-sized 2 car garage has extra storage space in back.
  • Columns and an arch announce the formal dining room with the kitchen close by.
  • Vaulted ceilings crown the breakfast and family rooms.
  • Tucked away in the rear of the home, the master suite has tray ceilings, double walk-in closets and a huge bath with lots of counter space.
  • The secondary bedrooms lie on the upper level with a delightful sitting area in the front bedroom.

Floor Plans

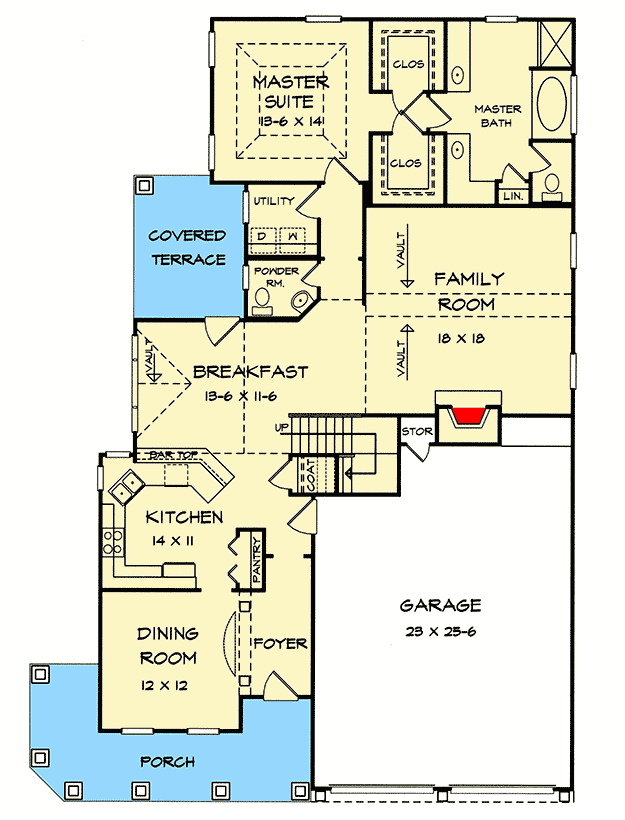

  • Main Level

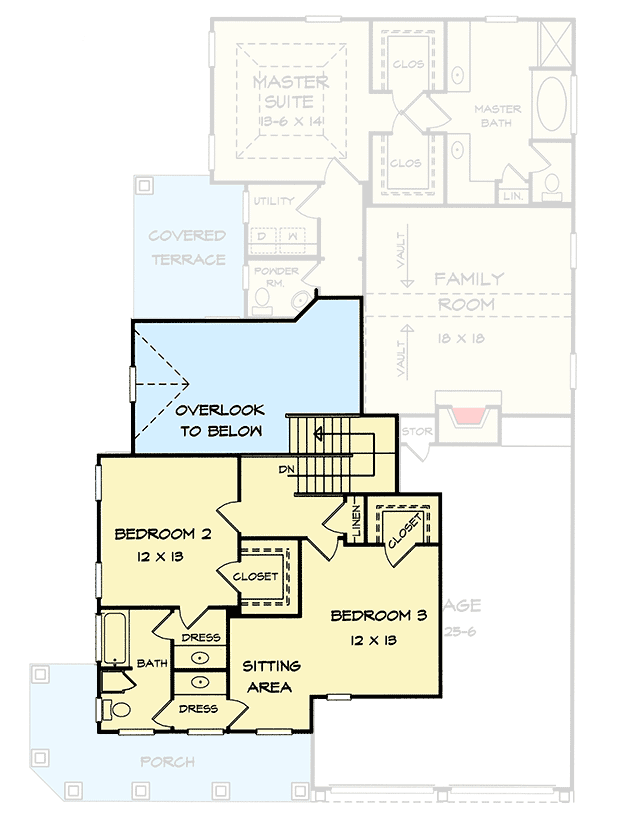

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,334 sq. ft.
  • 1st Floor: 1,675 sq. ft.
  • 2nd Floor: 659 sq. ft.
  • Porch, Combined: 314 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 47' 7"
  • Depth: 68' 6"
  • Max ridge height: 33' 6"

Garage

  • Type: Attached
  • Area: 676 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

  • Country
  • Farmhouse
  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Jack & Jill Bath
  • PDF
  • Wrap Around Porch
