Plan 818067JSS

Farmhouse Plan with Split-Bed Layout and Laundry Access from Primary Suite - 2646 Sq Ft

Heated S.F.

2,646

Beds

4

Baths

3

Stories

1

Cars

2

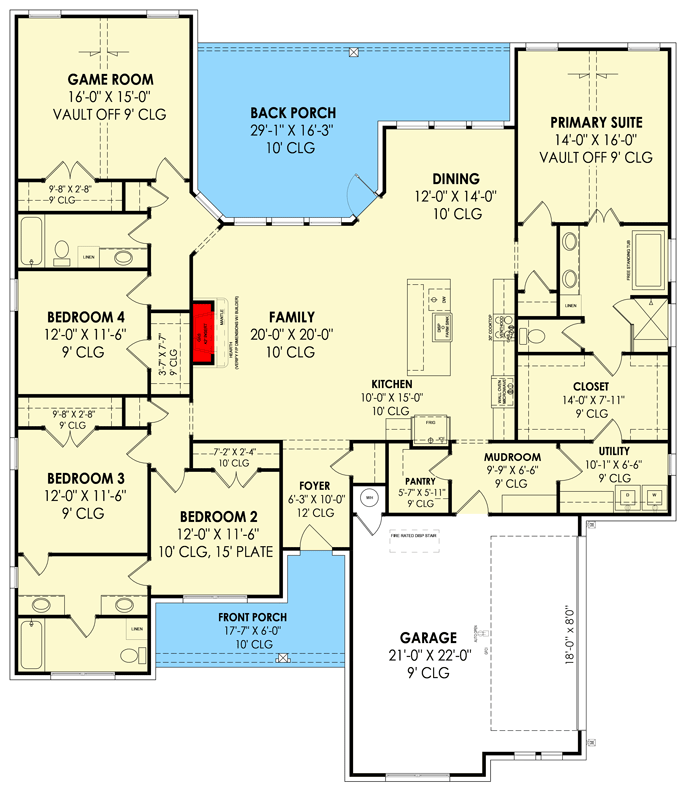

Floor Plan

Main Level

floor plan image Main Level

Plan Details

This 2,646 sq. ft. house plan gives you 4 beds, 3 baths and a 2-car garage (522 sq. ft.) side garage with a mudroom entrance.
Through the foyer, the open concept layout bridges the kitchen, family and dining spaces.
The primary suite on the right combines into a private bath, walk-in closet and grants direct access to the laundry room with the remaining 3 beds, on the left side of the plan, sit south of the backyard-facing game room.
Covered porches on the front and rear sides of the plan provide ample outdoor living space for lounging or get-togethers.

What's Included

Foundation plan
Detailed floorplans
Roof plan

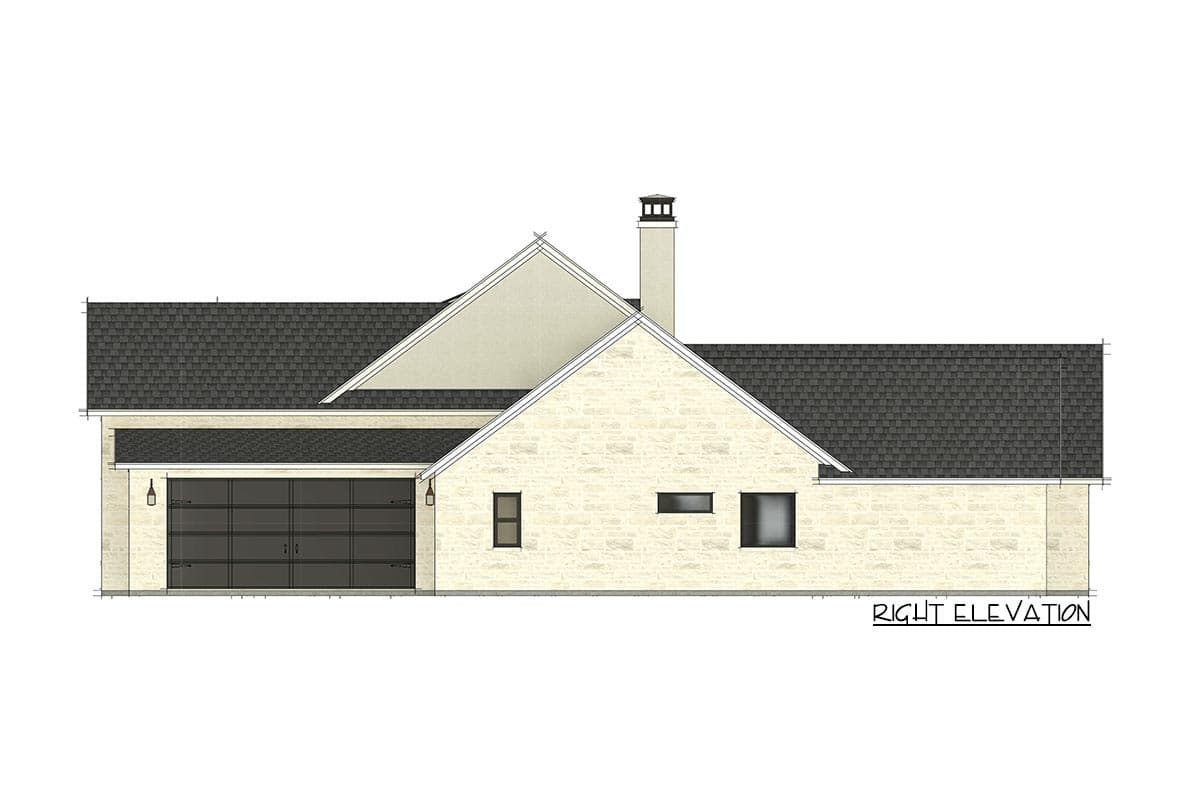

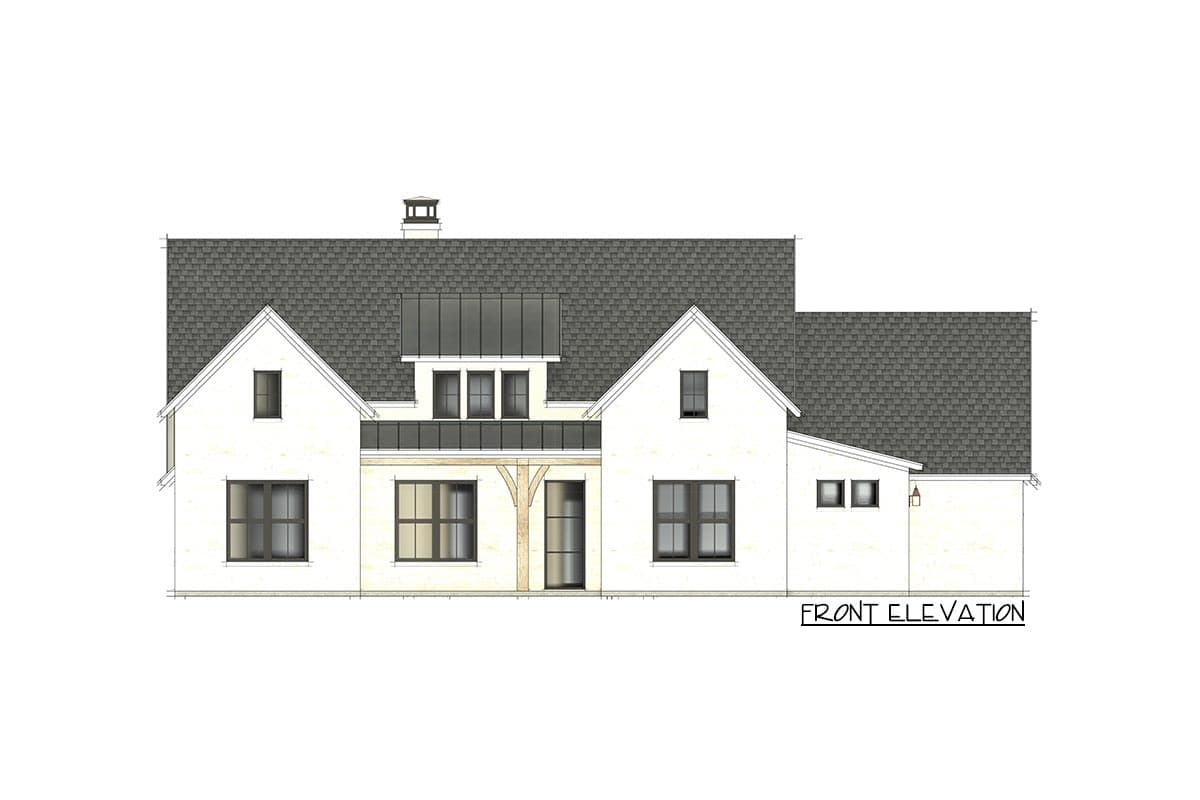

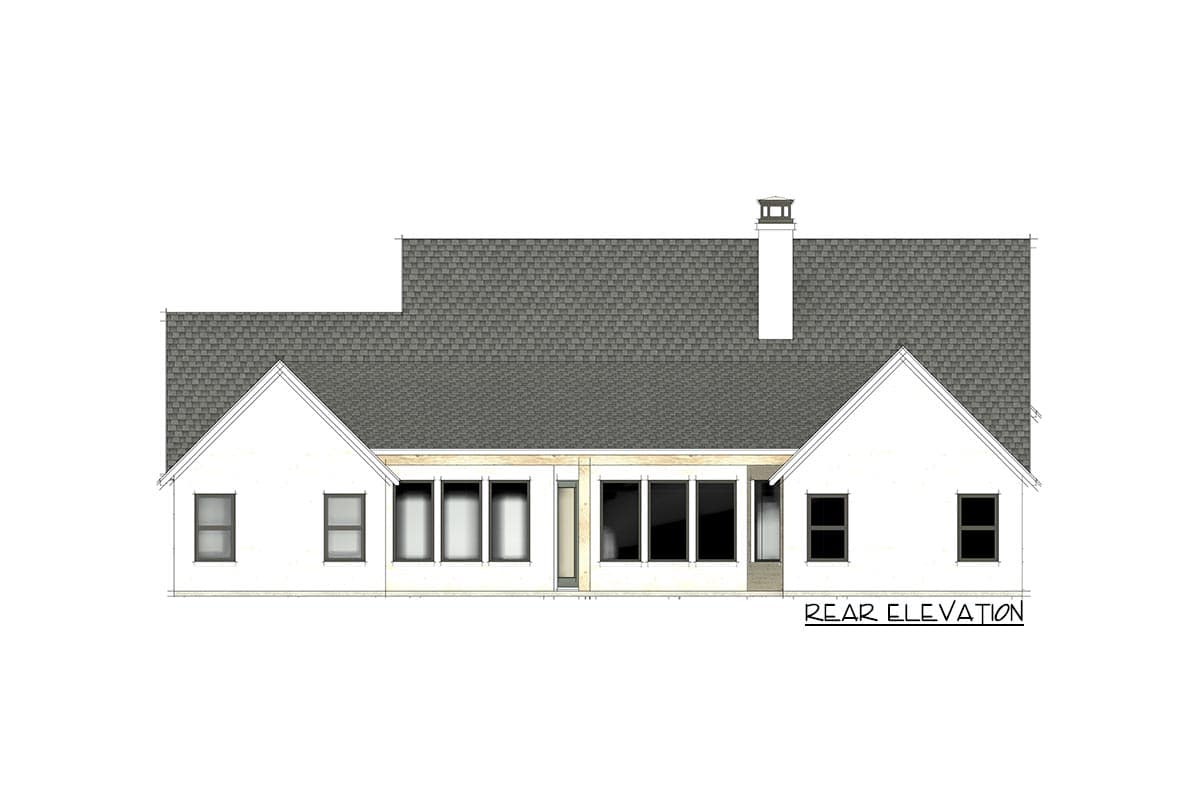

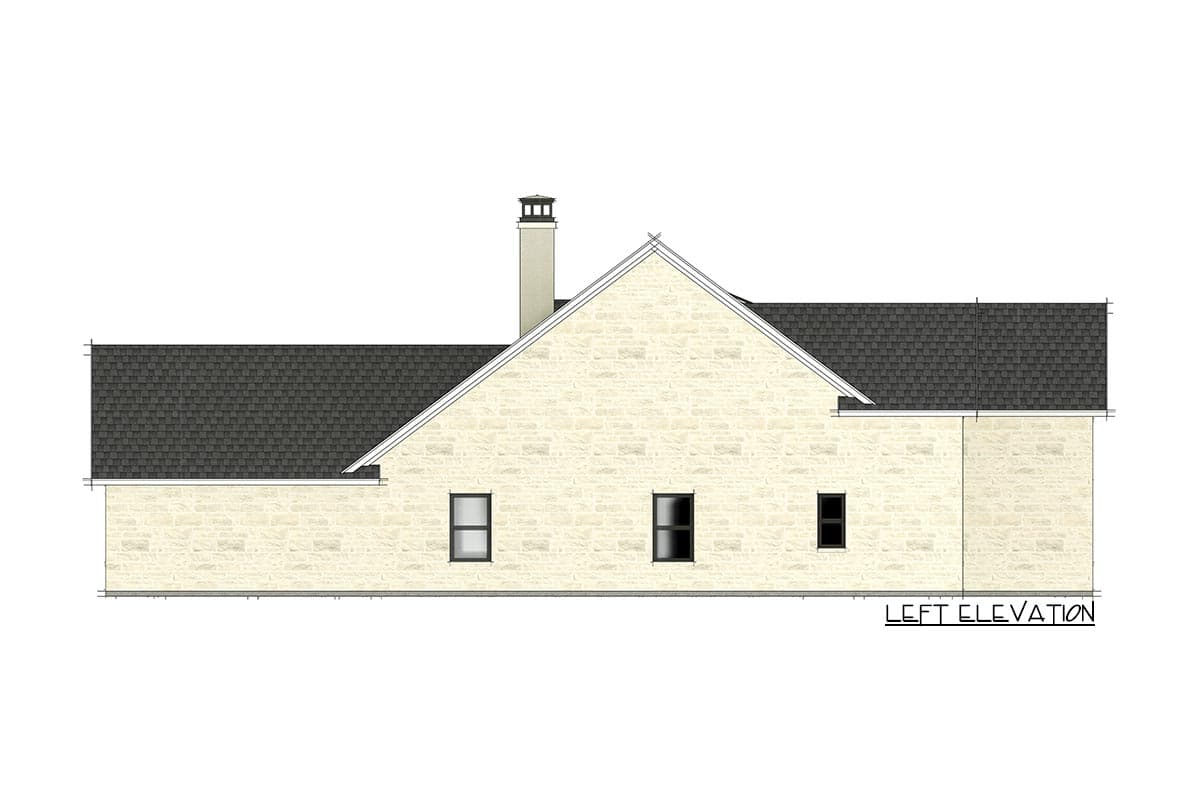

Four elevations
Electrical schematic
Cross section(s)
Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,646 sq. ft.

1st Floor

2,646 sq. ft.

Porch, Front

129 sq. ft.

Porch, Rear

356 sq. ft.

Porch, Combined

485 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 1"

Depth

72' 0"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

522 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

0' 9"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Modern Farmhouse

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
