Plan 51342MM

Farmhouse Ranch House Plan with Split Bedrooms and Mudroom

Heated S.F.
1,627
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51342MM

Main Level
Main Level

Plan 51342MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

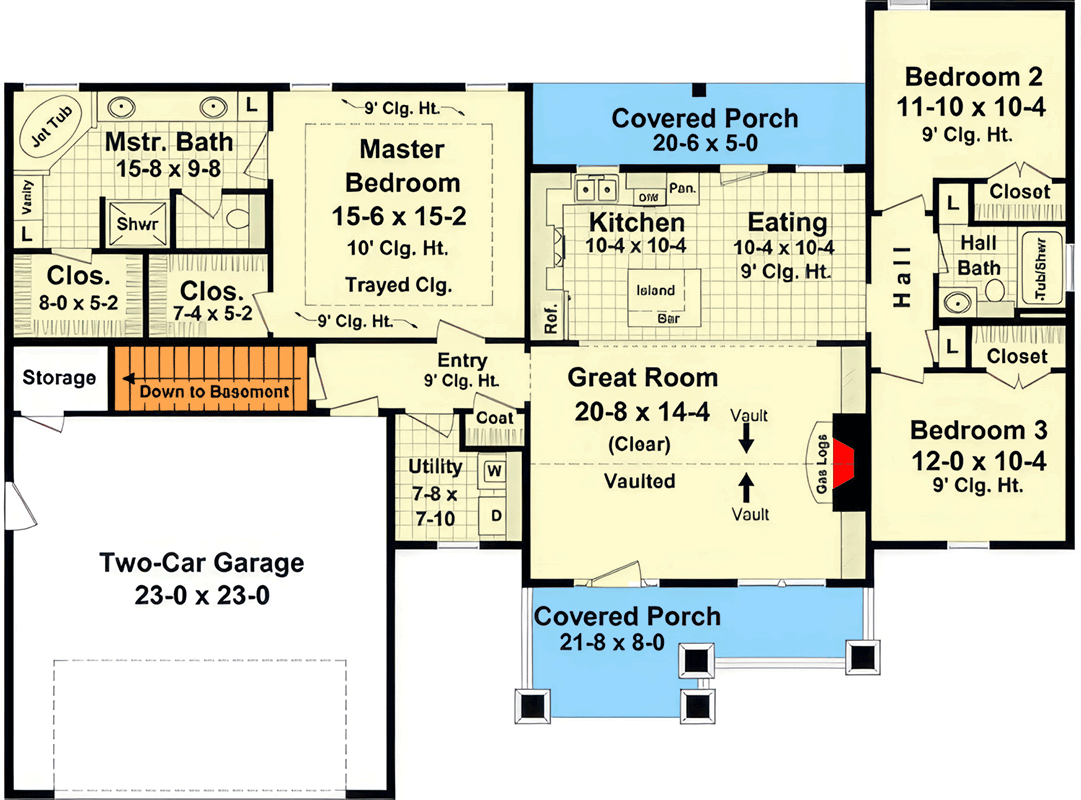

Plan 51342MM: Farmhouse Ranch House Plan with Split Bedrooms and Mudroom - Floor Plan - Main Level - Country, Farmhouse, New American, Ranch

Plan Details

  • This captivating 1,627 sq. ft. Farmhouse Ranch house plan offers 3 bedrooms, 2 full bathrooms, and an attached 641 sq. ft. 2-car garage, all wrapped in a timeless New American exterior.
  • Step inside from the welcoming 143 sq. ft. front porch to discover an open-concept living space designed for modern living, featuring a convenient mudroom right off the garage entry for seamless transitions.
  • The heart of the home flows effortlessly, with the kitchen and dining area positioned perfectly for daily meals and gatherings, complete with a cozy breakfast nook ideal for morning coffee.
  • The luxurious 1st-floor master suite provides a private retreat, thoughtfully separated from the two secondary bedrooms in a desirable split-bedroom layout, ensuring comfort and privacy for all.
  • Enjoy the outdoors on both the inviting front porch, perfect for greeting guests, and the serene 103 sq. ft. rear porch, offering a private space for relaxation or al fresco dining.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

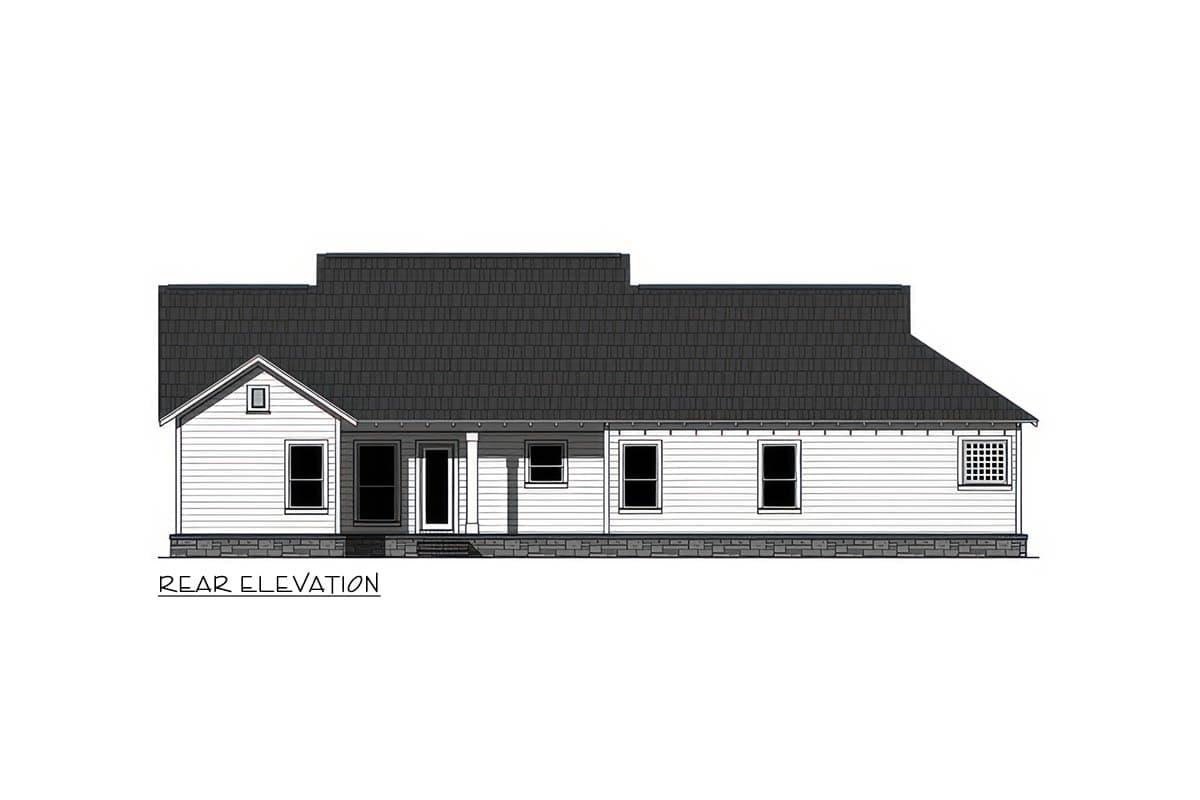

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,627 sq. ft.

1st Floor

1,627 sq. ft.

Porch, Front

143 sq. ft.

Porch, Rear

103 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 10"

Depth

49' 0"

Max Ridge Height

21' 5"

Garage

Type

Attached

Area

641 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,627 sq. ft.

1st Floor

1,627 sq. ft.

Porch, Front

143 sq. ft.

Porch, Rear

103 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 10"

Depth

49' 0"

Max Ridge Height

21' 5"

Garage

Type

Attached

Area

641 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
