Fireplace Study

Plan 36194TX

This plan plants 3 trees

7,175
Heated s.f.
4
Beds
4.5
Baths
2
Stories
4
Cars

Pass the foyer and bar and enjoy the warmth of the fireplace in the living room while looking at the view through the wall of windows. The family center involves the family room, breakfast room and kitchen, which are all open.
A free standing island in the kitchen is useful for added counterspace. The eating bar is the only separation between the family center.
The master suite has a large wardrobe, master bath, exercise room and access to the study. Grab a book and sit by the fireplace in the study or read on any of the several patios/porticos.
A bedroom downstairs offers a guest room for elder guests or inlaws.
The house plan's second floor has two bedrooms with private baths and closets, a media room, game room, loft, bonus room and balcony.
The house plan has a dumb waiter, perfect for entertaining.

Plan set includes the following:

1. Cover sheet

2. Foundation Plan

3. First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4. Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5. First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6. Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

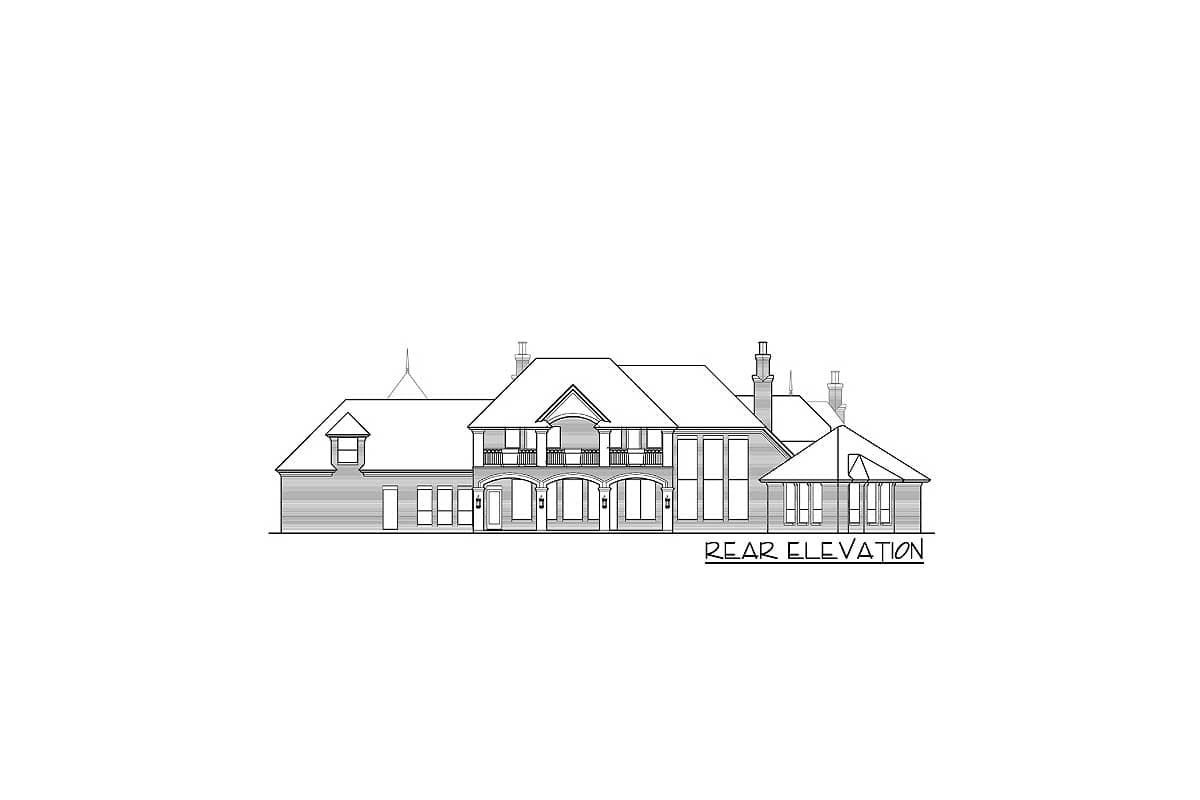

7. Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

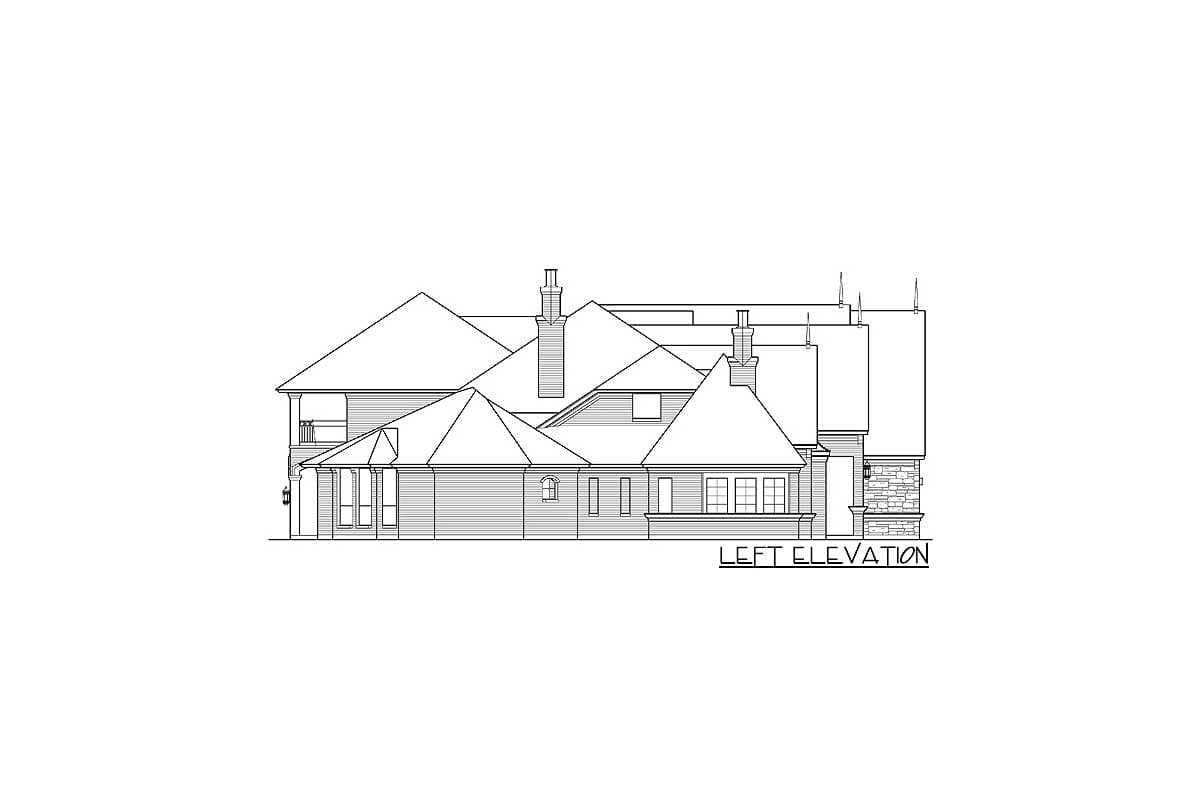

8. Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9. Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10. Sections page

11. Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Fireplace Study - 36194TX floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

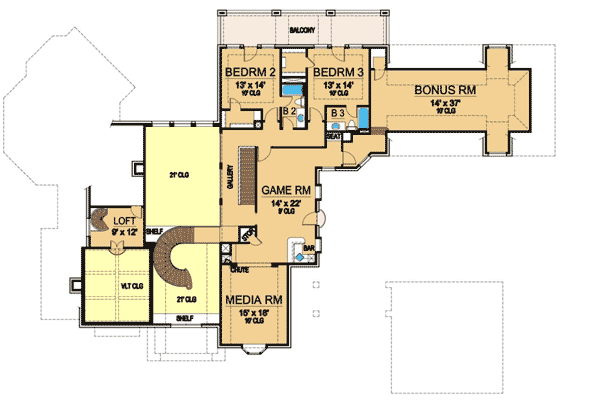

Fireplace Study - 36194TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 7,175 sq. ft.
1st Floor: 4,620 sq. ft.
2nd Floor: 2,555 sq. ft.

Porch, Rear: 76 sq. ft.
Porch, Front: 134 sq. ft.
Bonus: 696 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 127' 0"
Depth: 89' 0"
Max ridge height: 35' 0"

Garage

Type: Attached
Area: 1038 sq. ft.
Count: 4 Cars
Entry Location: Front, Rear

Ceiling Heights

Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections
