Plan 52601WM

Five-Bedroom Craftsman House Plan Featuring Main Level Primary Suite

Heated S.F.
1,948
Beds
5
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 52601WM

Floor Plan 1

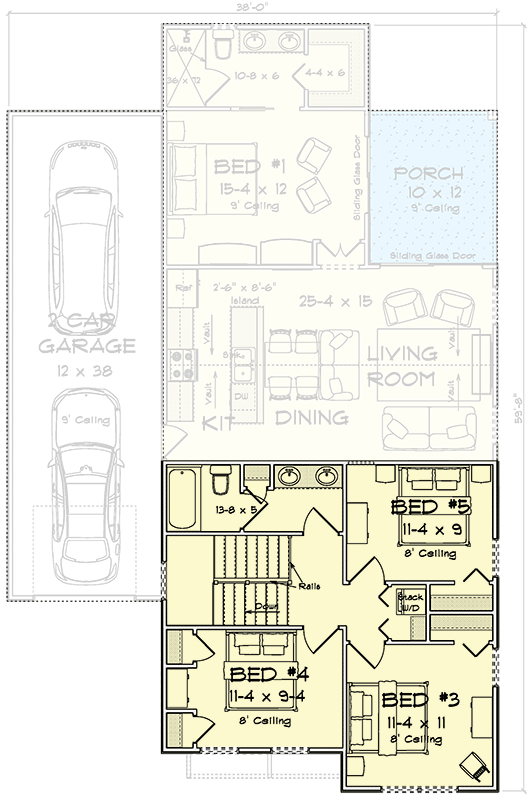

Floor Plan 2

Plan 52601WM

M-F 9am-5pm EST |

1-203-761-8500

Plan 52601WM: Five-Bedroom Craftsman House Plan Featuring Main Level Primary Suite - Floor Plan - - Craftsman, Traditional

Plan 52601WM: Five-Bedroom Craftsman House Plan Featuring Main Level Primary Suite - Floor Plan - - Craftsman, Traditional

Plan Details

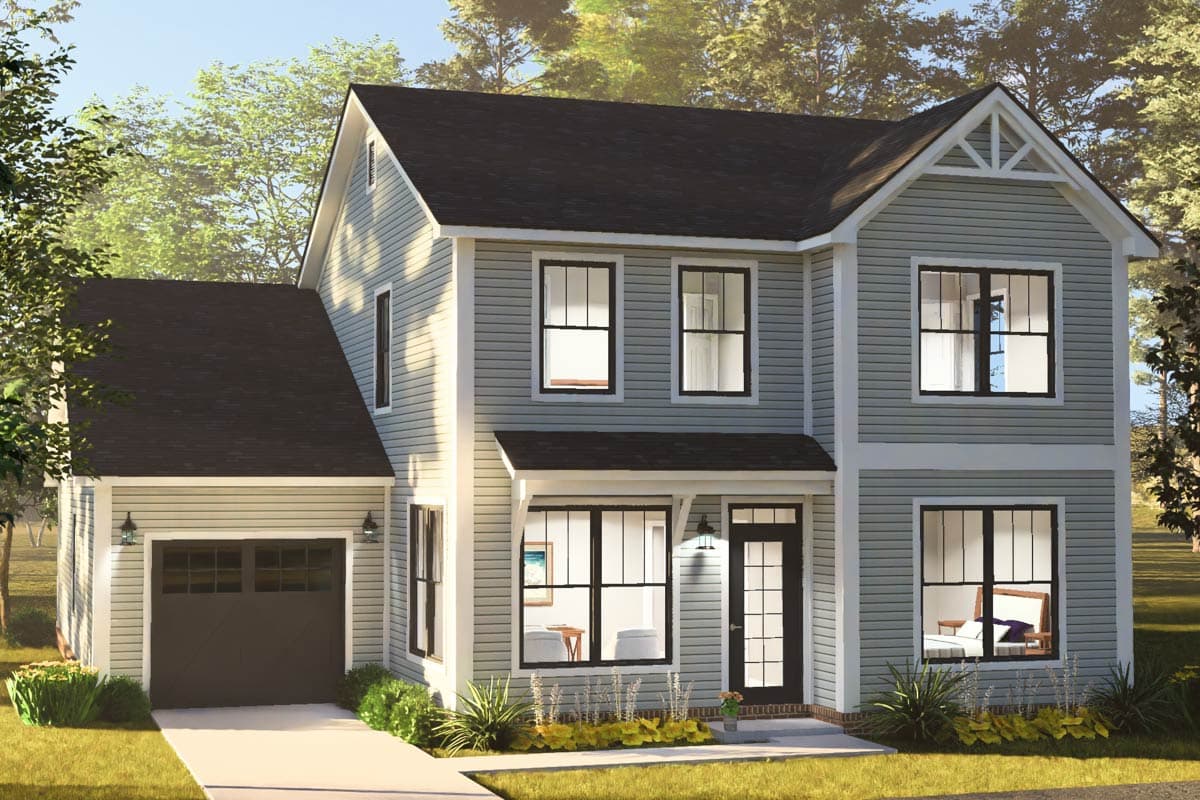

  • Spanning 1,948 finished square feet, this classic Craftsman house plan offers five bedrooms, three full baths, and an attached two-car garage.
  • The welcoming front entry opens into a thoughtful layout that balances traditional charm with modern functionality.

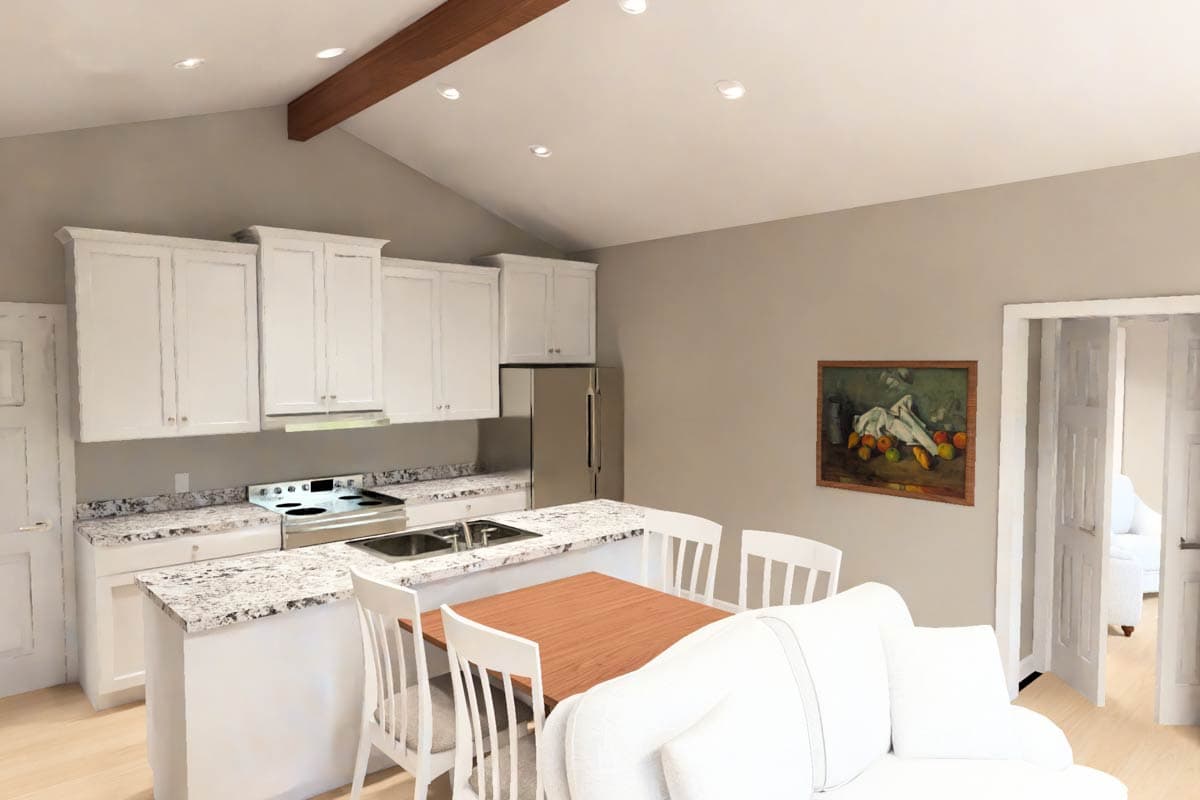

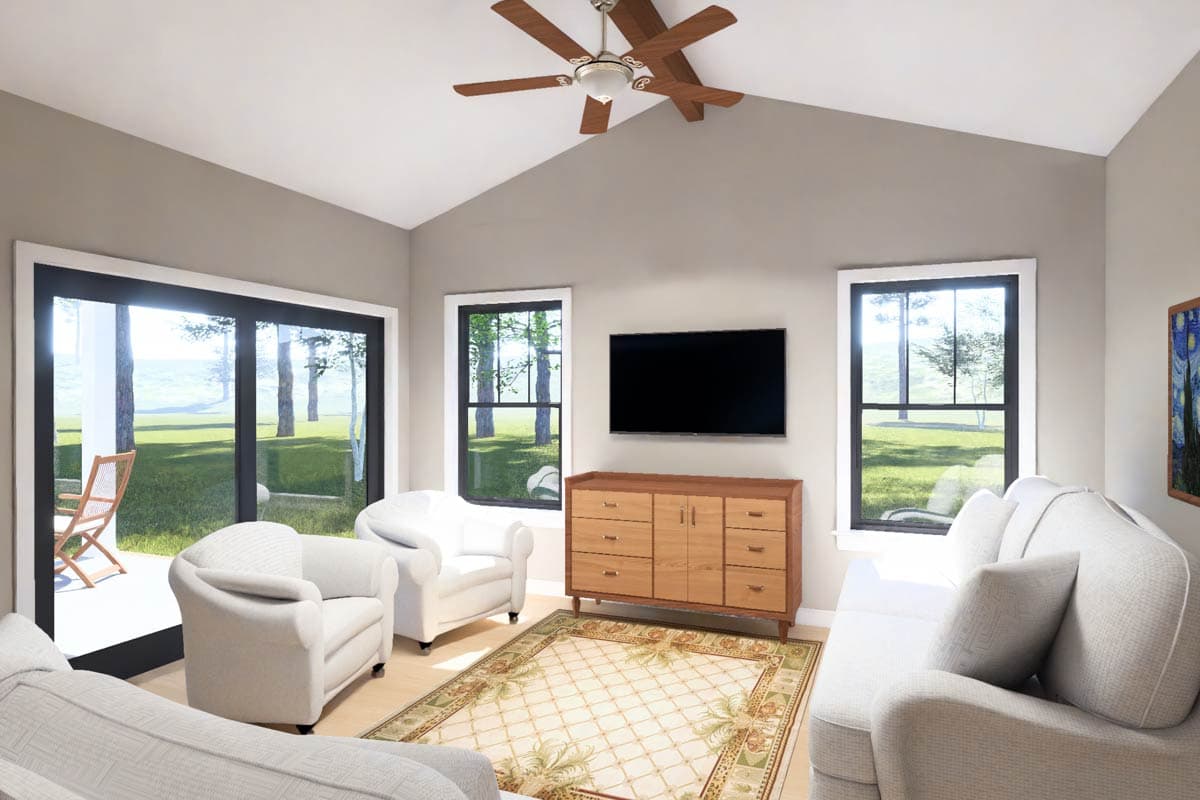

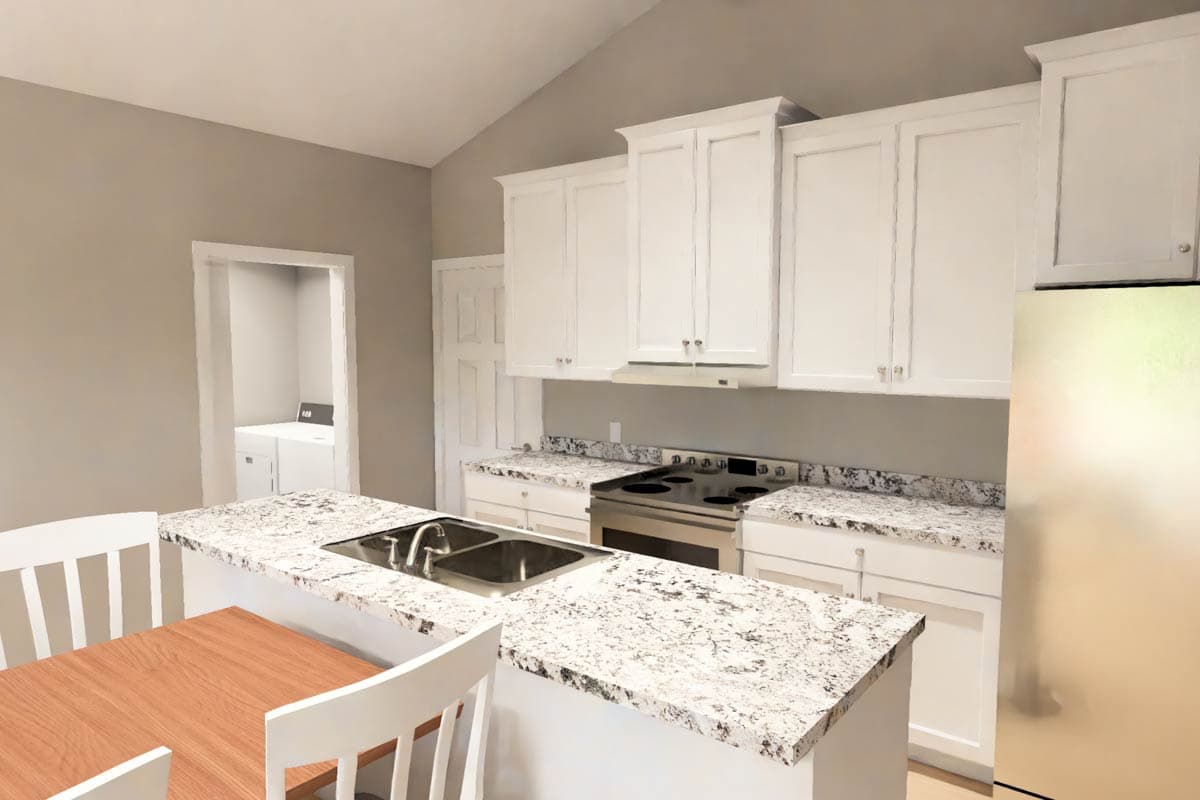

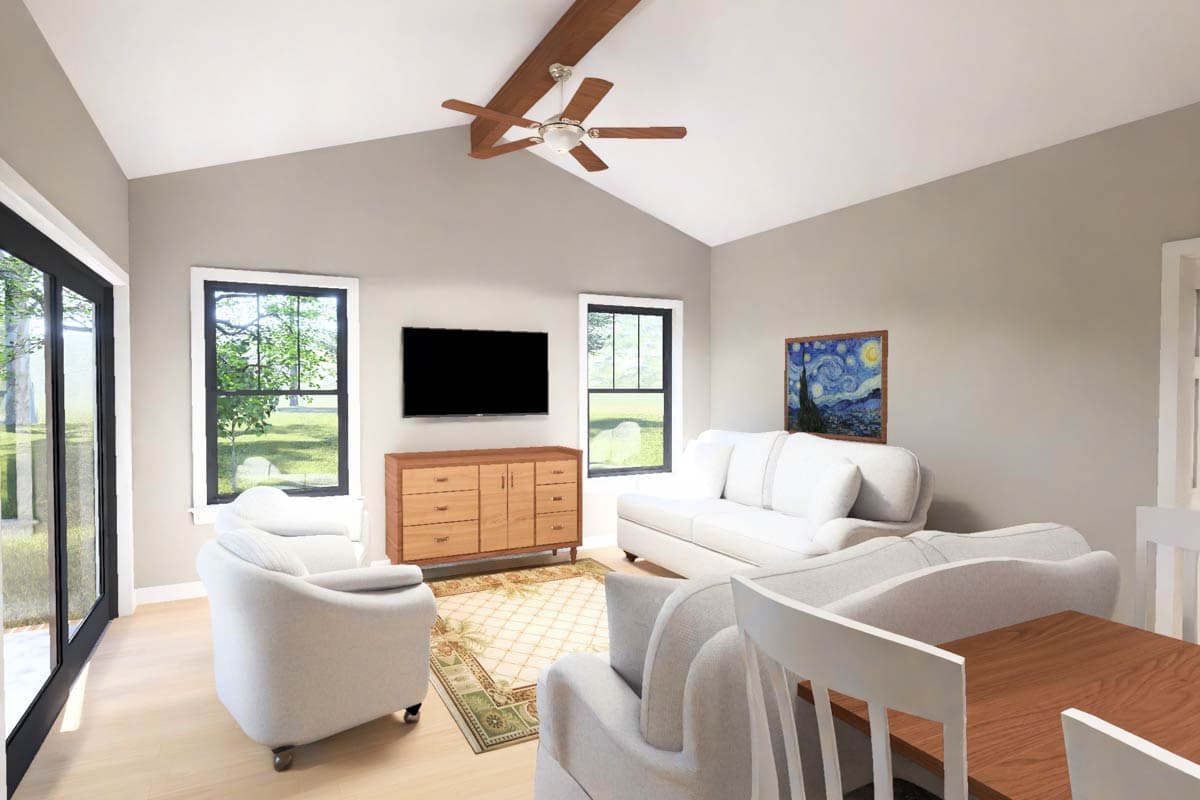

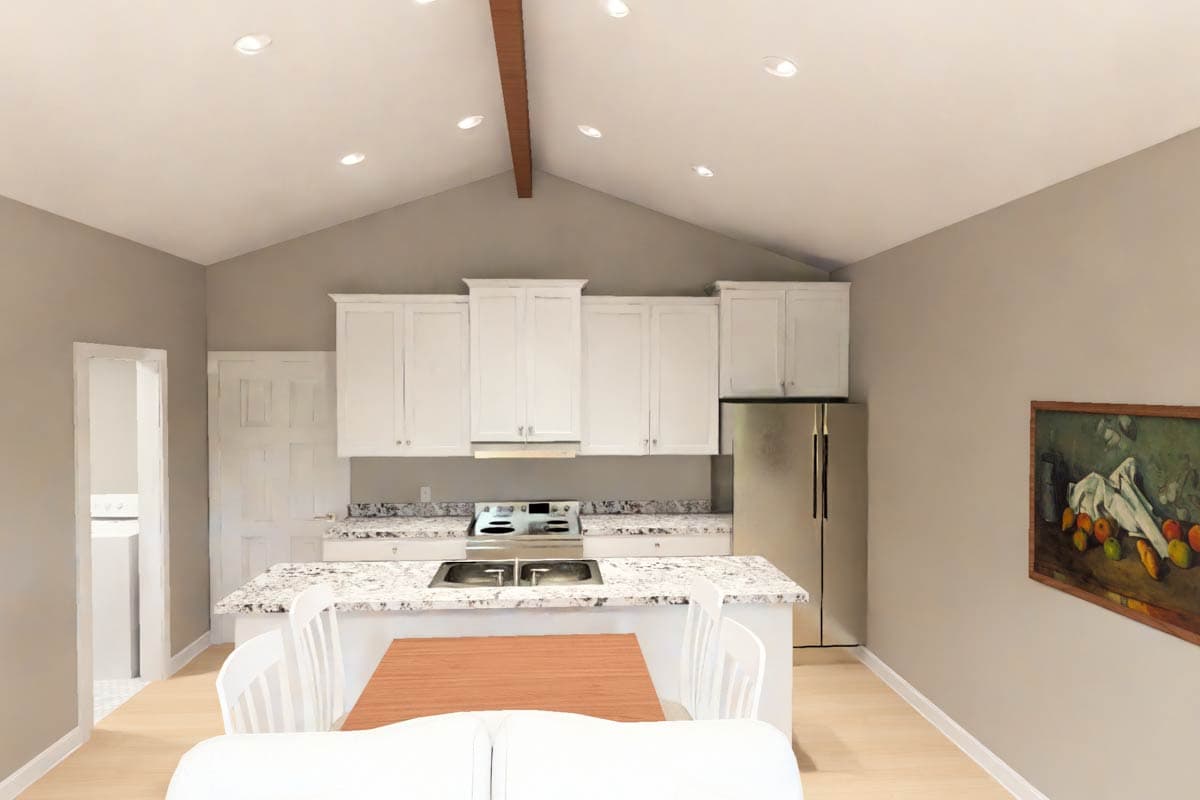

  • An open-concept living area serves as the heart of the home, featuring a seamless flow between the kitchen, dining space, and central gathering room.

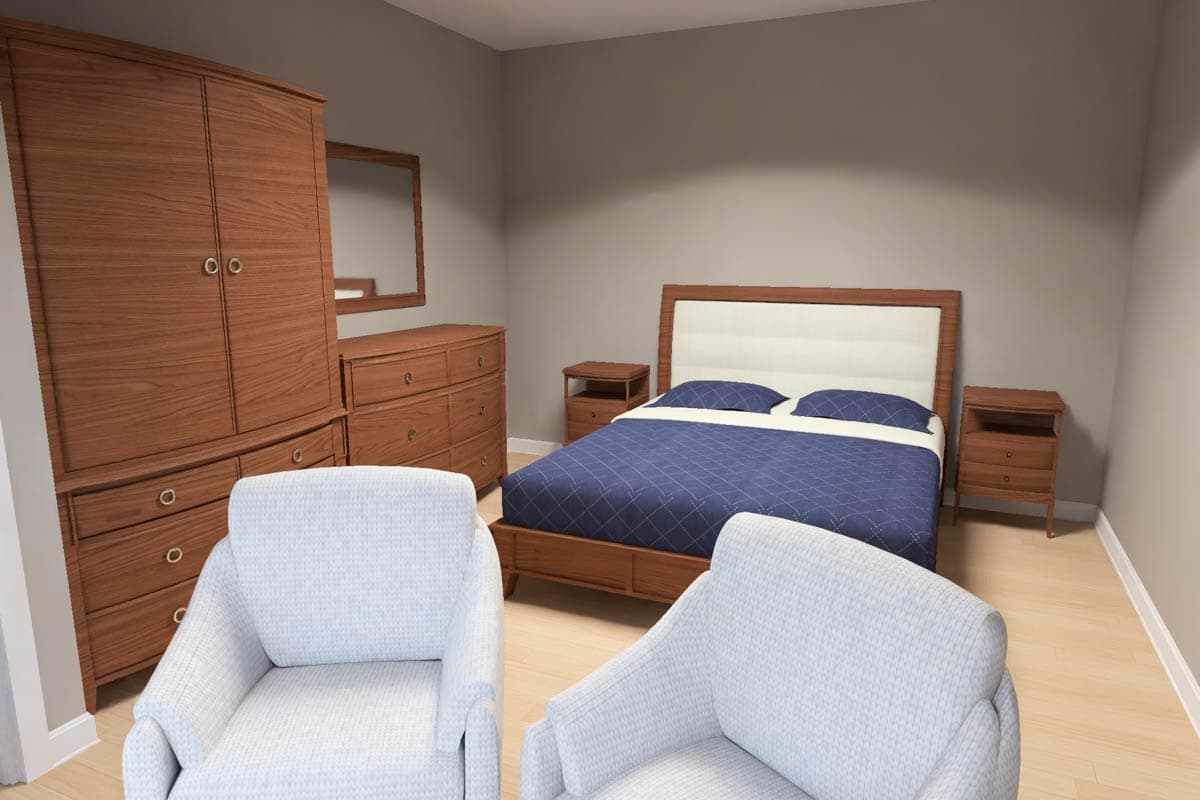

  • The main-level primary suite provides a private retreat, while the remaining four bedrooms are positioned to offer flexibility for a growing family or home office needs.

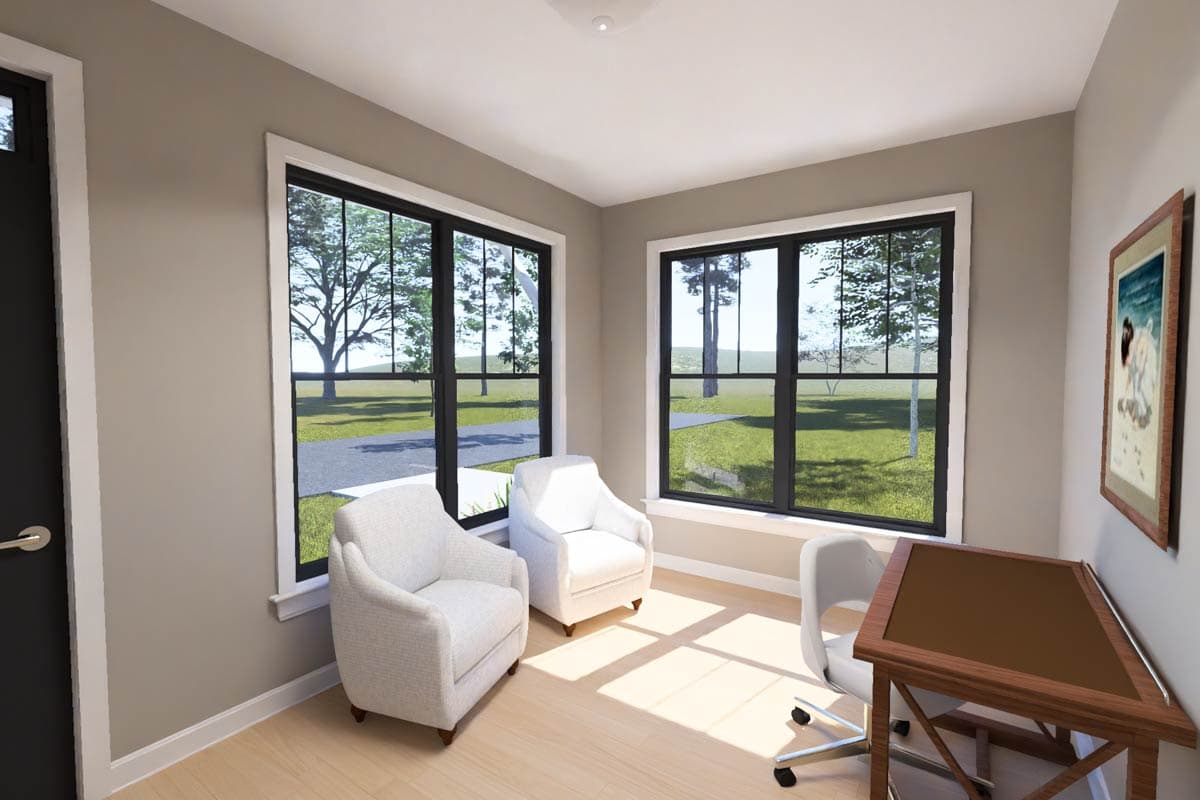

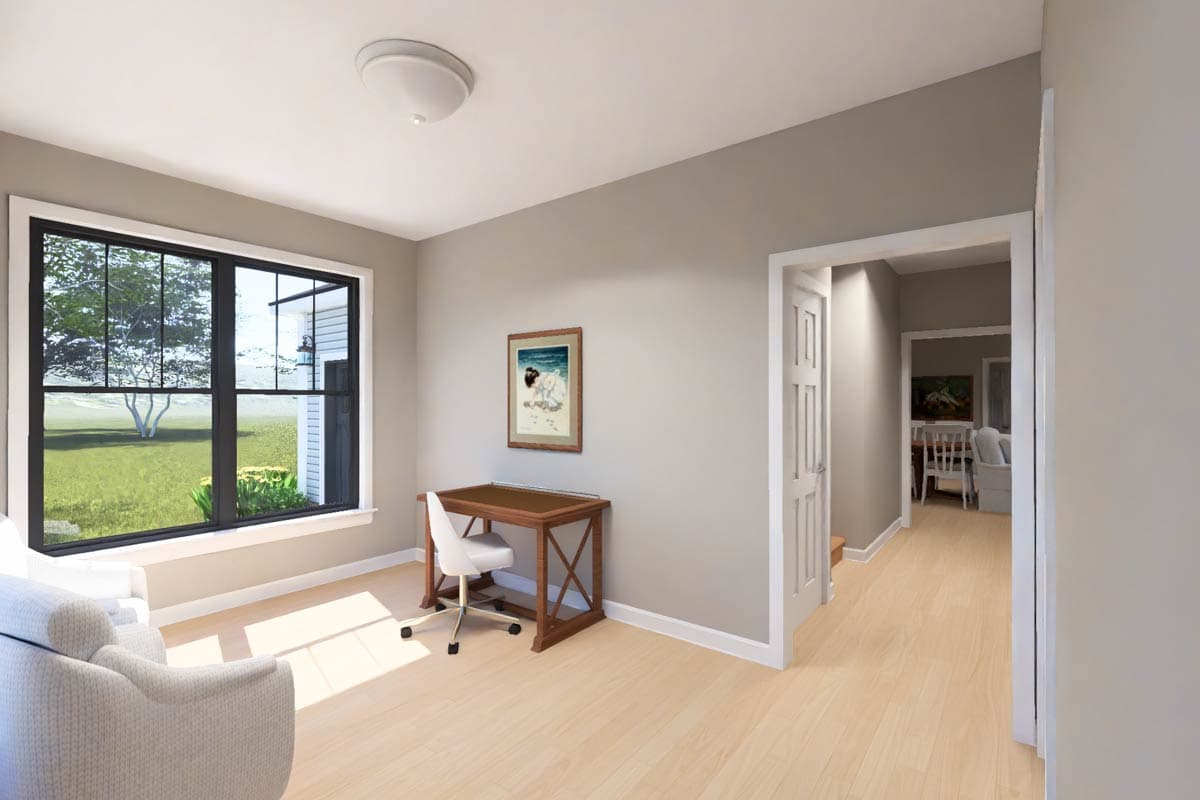

  • A dedicated library or study provides a quiet space for remote work, complemented by the convenience of both main-level and upstairs laundry areas.

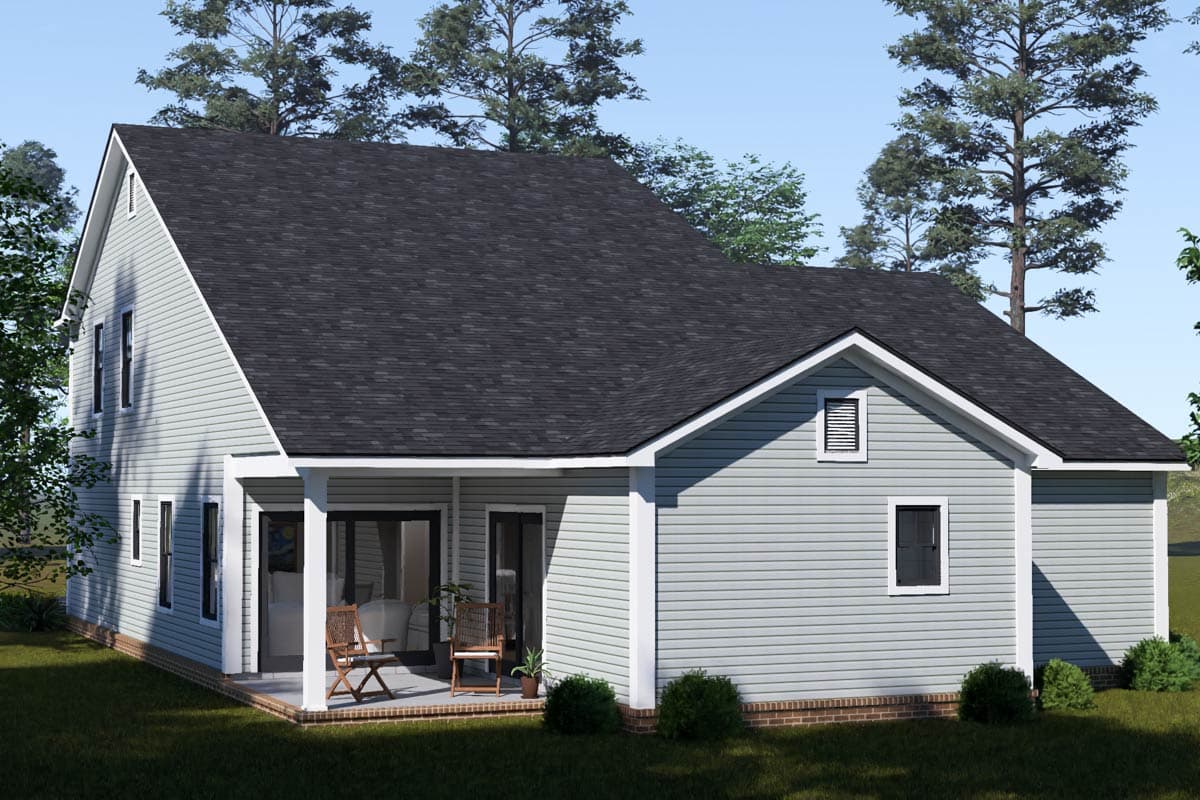

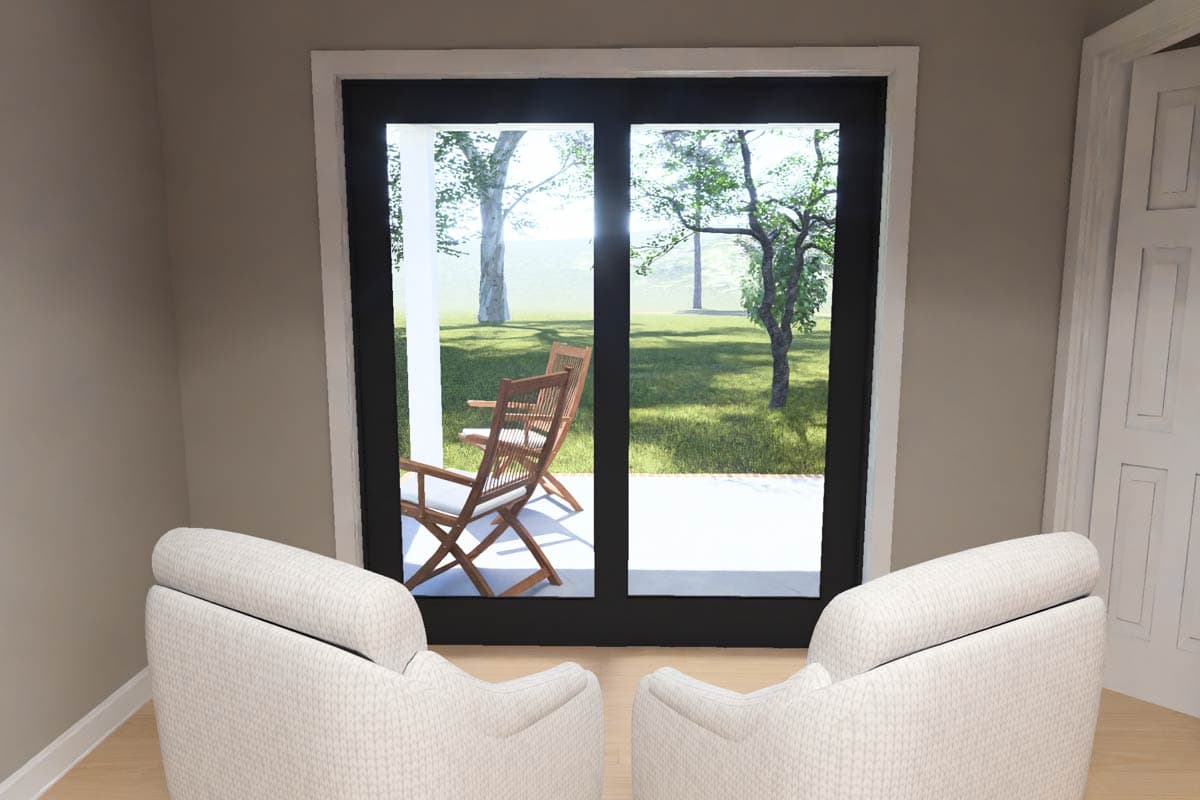

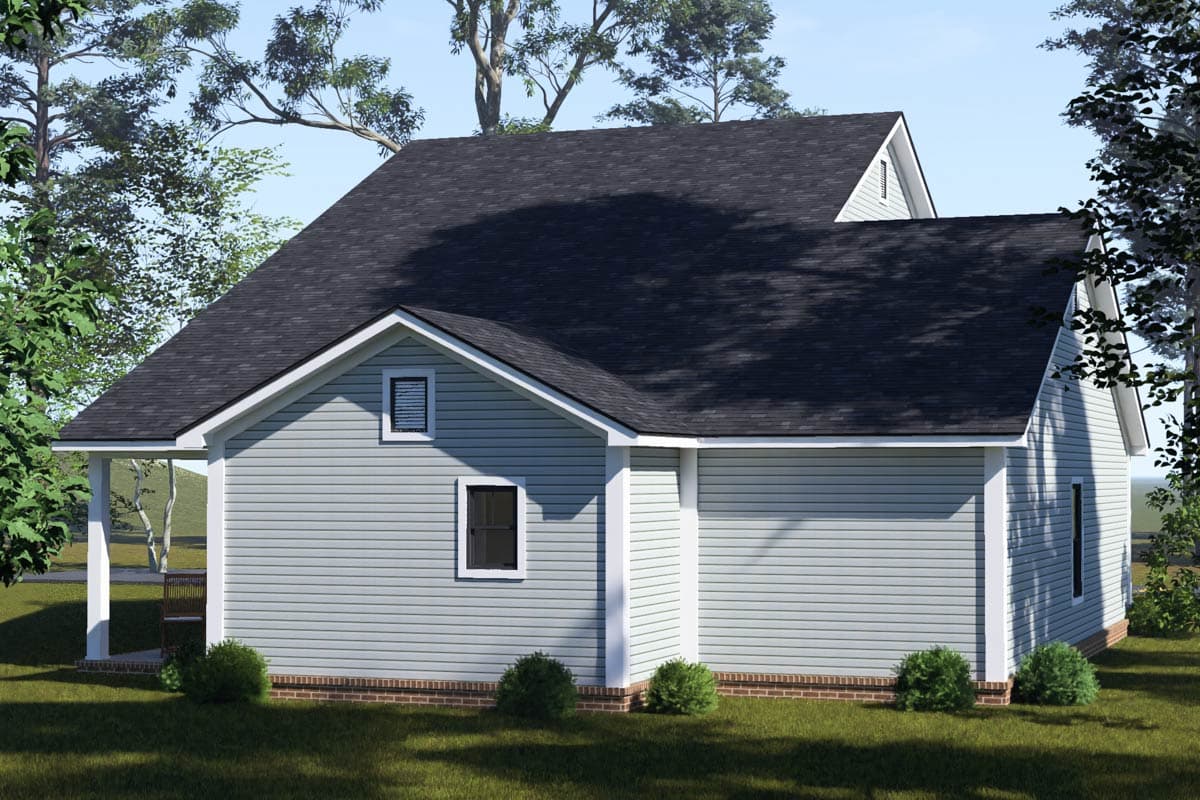

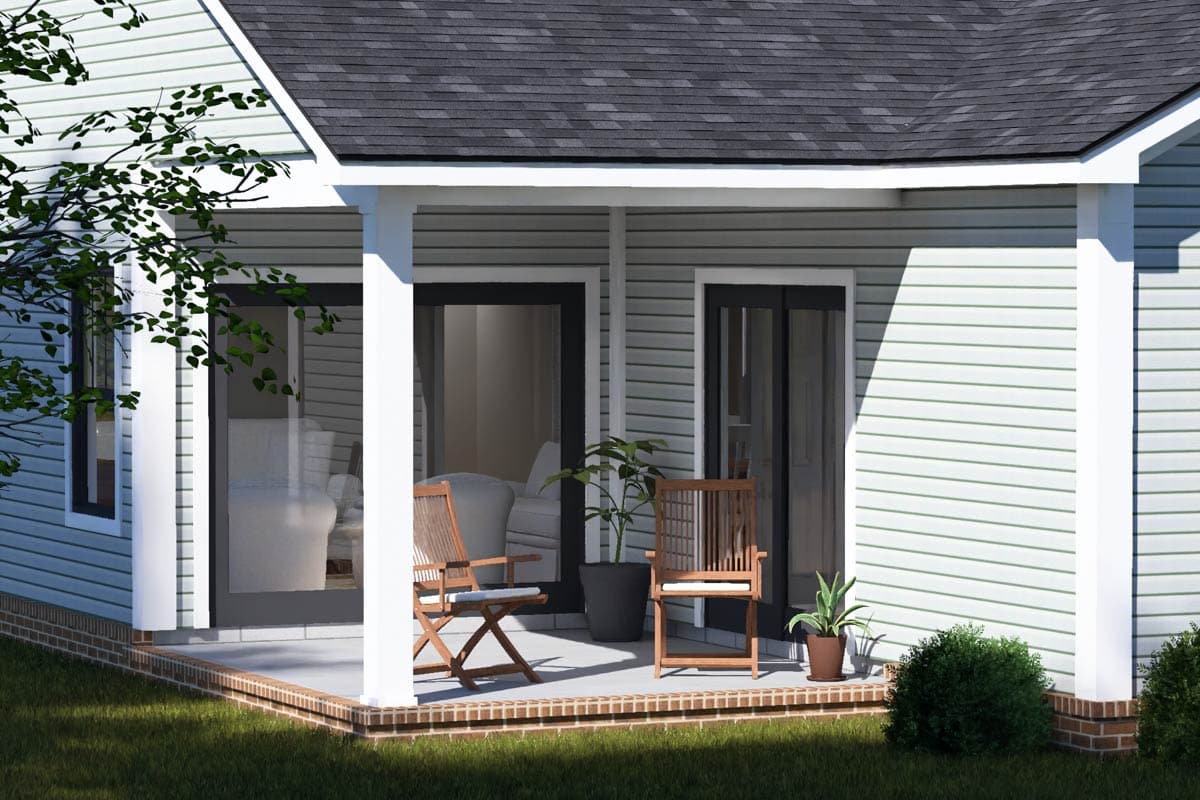

  • Outdoor living is effortlessly integrated through a 120-square-foot rear porch, ideal for enjoying morning coffee or evening relaxation.
  • Designed for versatility, the home includes a functional walk-in pantry and a spacious two-car garage with tandem capacity for additional storage.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

1,948 sq. ft.

1st Floor

1,323 sq. ft.

2nd Floor

625 sq. ft.

Porch, Rear

120 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

38' 0"

Depth

59' 8"

Max Ridge Height

26' 6"

Garage

Type

Standard, Attached

Area

456 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Tandem Garage

Walk-in Pantry

Plan Collections
