Plan 849162PGE

Five Bedroom Craftsman House Plan with Two Car Garage

Heated S.F.
2,302
Beds
4 - 7
Baths
3.5 - 4.5
Stories
2
Cars
2

Floor Plan

Plan 849162PGE

Main Level
Main Level
2nd Level
2nd Level
Optionally Finished Basement
Optionally Finished Basement

Plan 849162PGE

M-F 9am-5pm EST |

1-203-761-8500

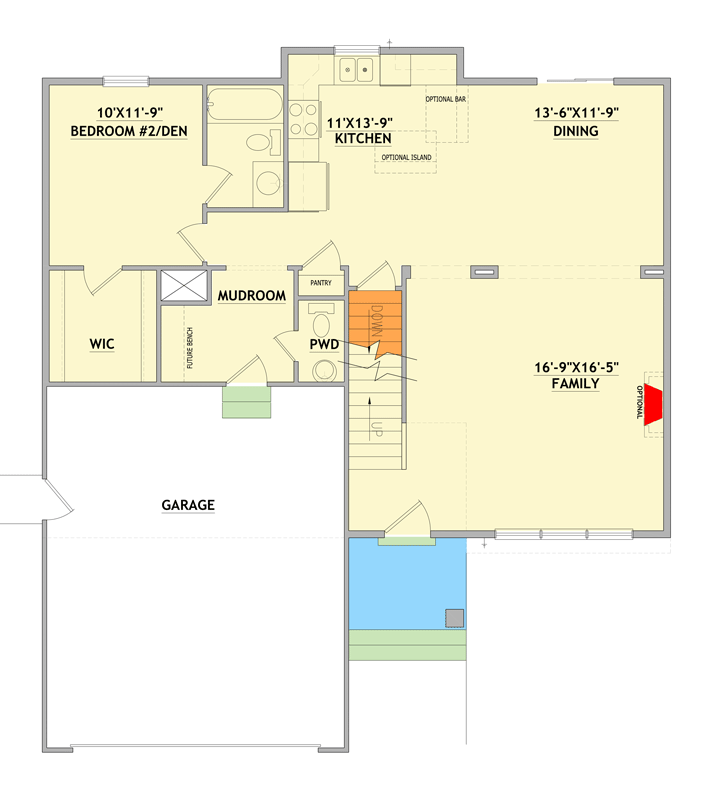

Main Level

Plan 849162PGE: Five Bedroom Craftsman House Plan with Two Car Garage - Floor Plan - Main Level - Craftsman, Farmhouse, Traditional

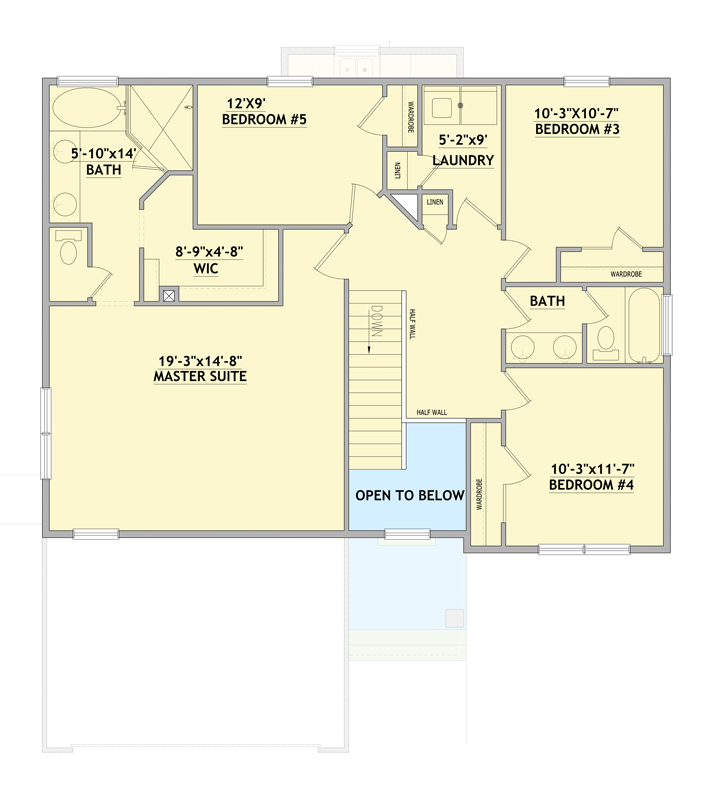

2nd Level

Plan 849162PGE: Five Bedroom Craftsman House Plan with Two Car Garage - Floor Plan - 2nd Level - Craftsman, Farmhouse, Traditional

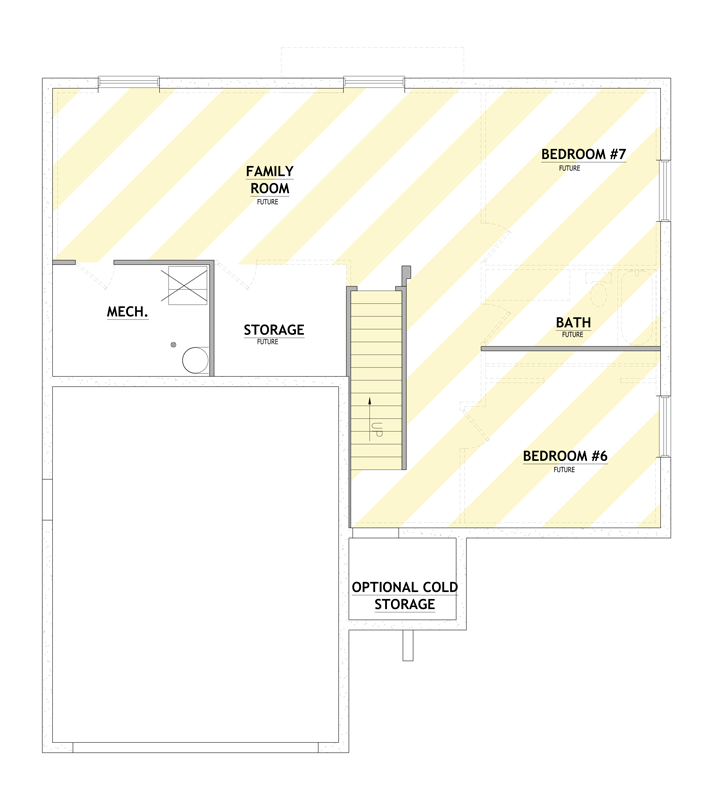

Optionally Finished Basement

Plan 849162PGE: Five Bedroom Craftsman House Plan with Two Car Garage - Floor Plan - Optionally Finished Basement - Craftsman, Farmhouse, Traditional

Plan Details

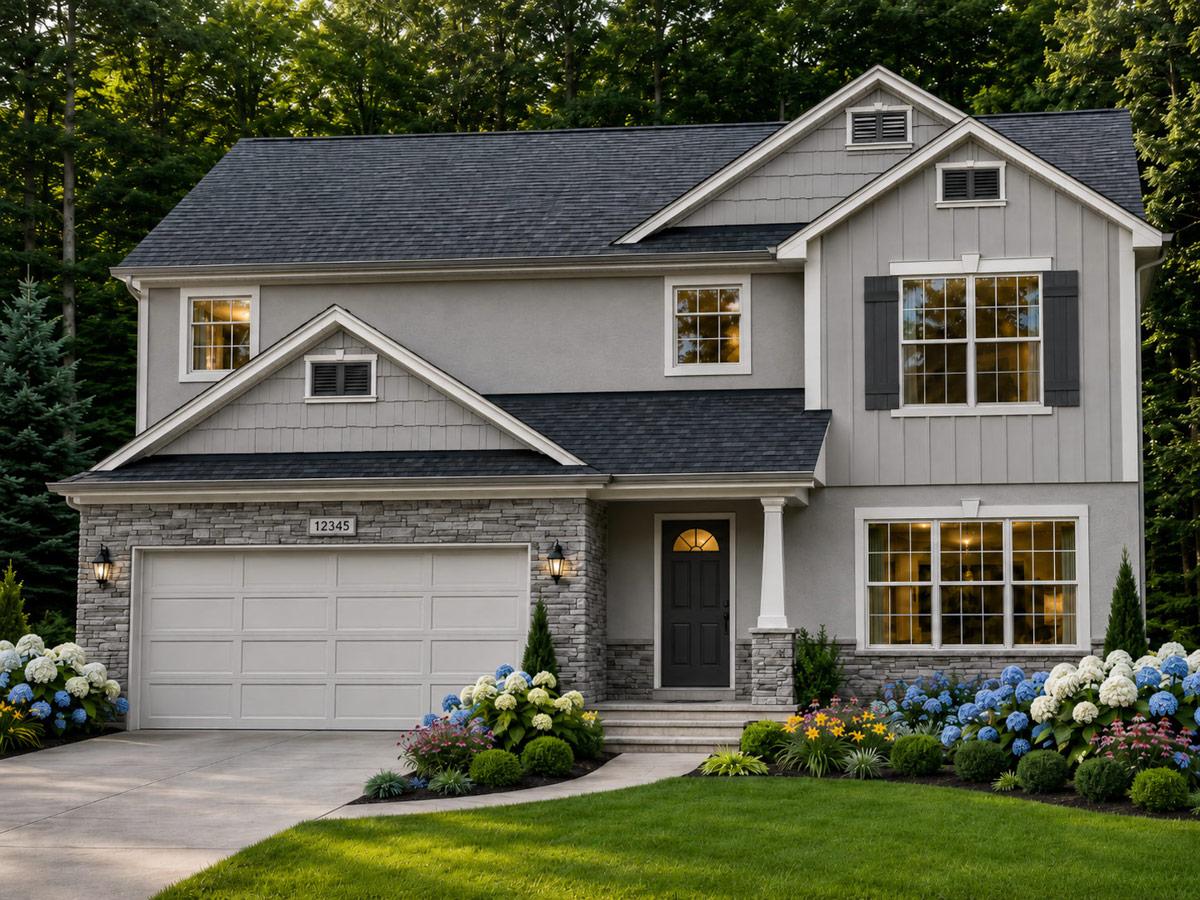

  • This charming 2,302 square foot Craftsman-inspired home features five bedrooms, three and a half baths, and a convenient two-car garage.
  • The welcoming front entry leads into a thoughtfully designed main level that balances daily functionality with traditional style.
  • A bright and open living area serves as the heart of the home, promoting effortless flow between the kitchen and common spaces.
  • The second floor hosts the spacious primary bedroom suite, offering a private retreat away from the four additional bedrooms clustered nearby.
  • A dedicated den on the main level provides a quiet space for a home office or study, while a mudroom keeps the household organized.
  • The unfinished basement offers 946 square feet of potential for future expansion, providing ample room for a workshop, gym, or additional living space.

What's Included

  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,302 sq. ft.

1st Floor

1,059 sq. ft.

2nd Floor

1,243 sq. ft.

Basement Unfinished

946 sq. ft.

Beds/Baths

Bedrooms

4, 5, 6, or 7

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

41' 0"

Depth

46' 0"

Max Ridge Height

27' 10"

Garage

Type

Standard, Attached

Area

458 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Farmhouse

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Flex Room

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

Unlimited Build License

Square Footage Breakdown

Total Heated Area

2,302 sq. ft.

1st Floor

1,059 sq. ft.

2nd Floor

1,243 sq. ft.

Basement Unfinished

946 sq. ft.

Beds/Baths

Bedrooms

4, 5, 6, or 7

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

41' 0"

Depth

46' 0"

Max Ridge Height

27' 10"

Garage

Type

Standard, Attached

Area

458 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Farmhouse

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Flex Room

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

Unlimited Build License
